Toyota YARIS 扬声器 — Figure 8602

Toyota YARIS EPC diagram 8602, 扬声器, with 3 images and 3 PNC and OE references.

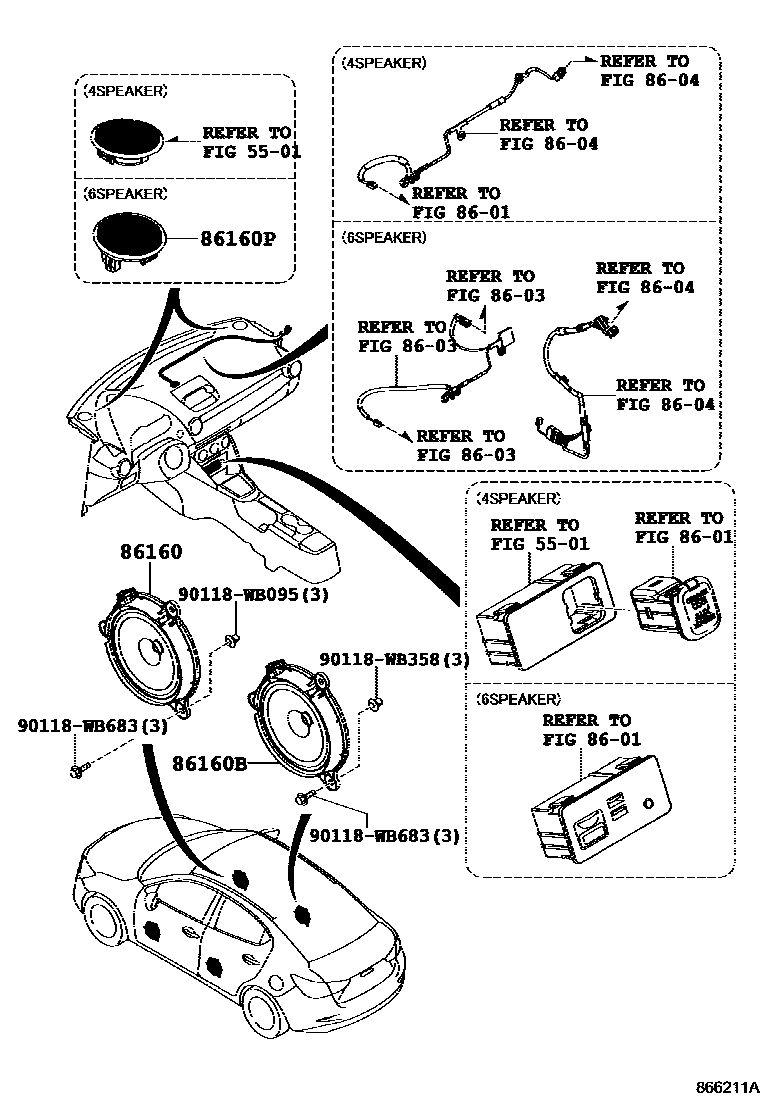

Toyota YARIS 扬声器 EPC diagram — 866211A — 扬声器 — 866211A (201506 – 201908)

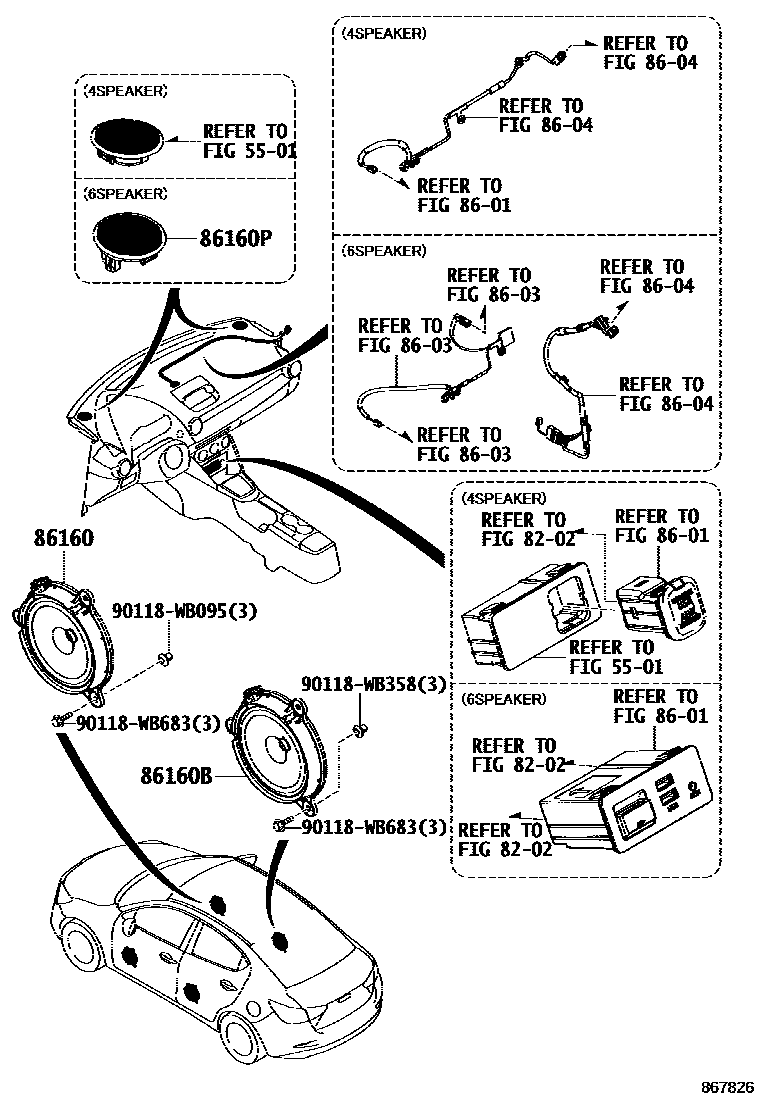

Toyota YARIS 扬声器 EPC diagram — 867826 — 扬声器 — 867826 (201908 – 999999)

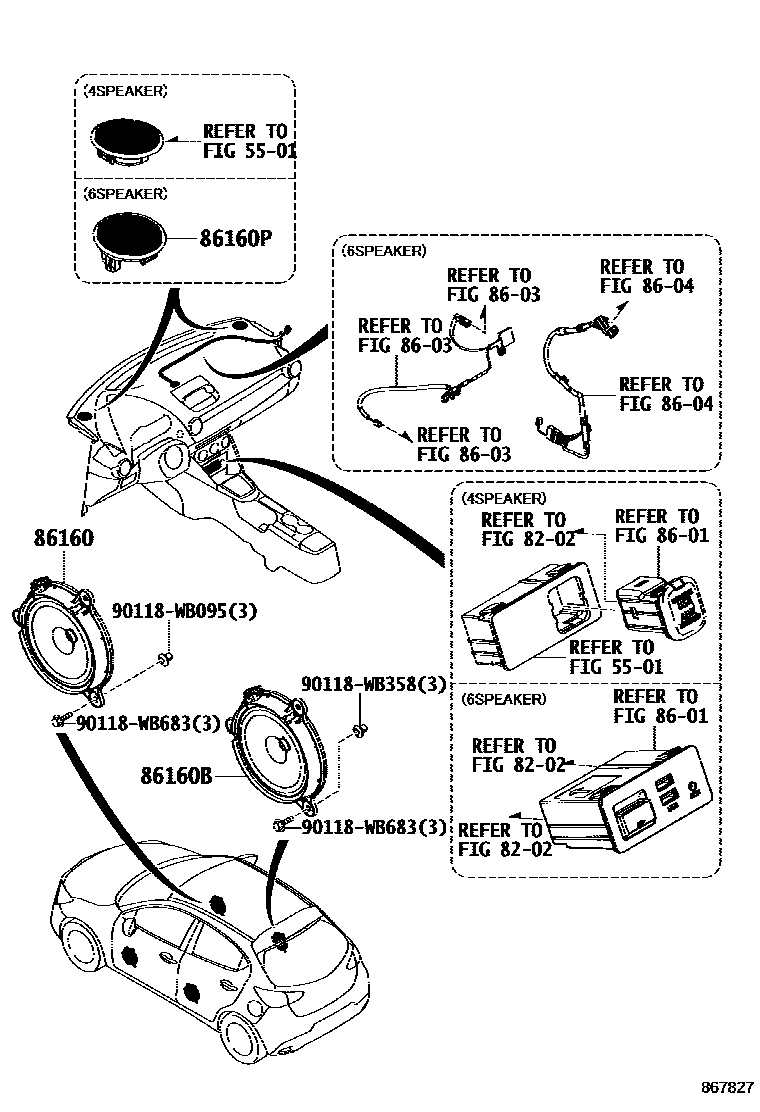

Toyota YARIS 扬声器 EPC diagram — 867827 — 扬声器 — 867827 (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
86160	No. 1 front speaker assembly	86160-WB001
86160B	Rear speaker assembly	86160-WB001
86160P	No. 2 front speaker assembly	86160-WB002
