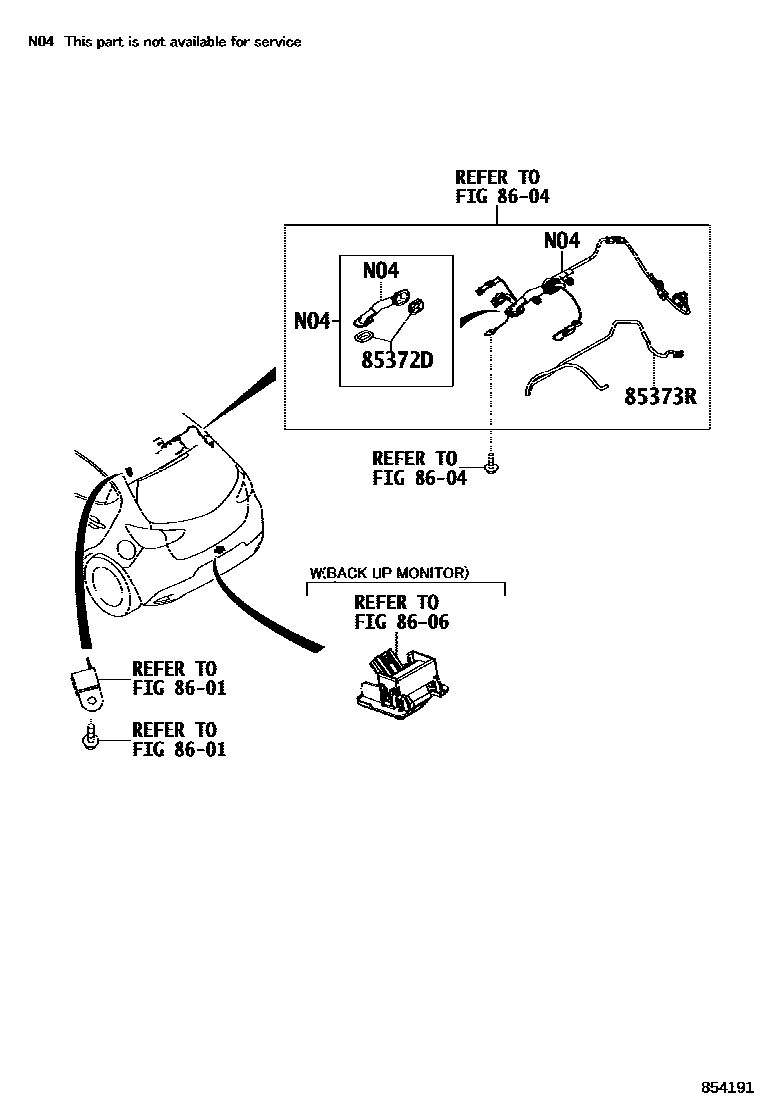

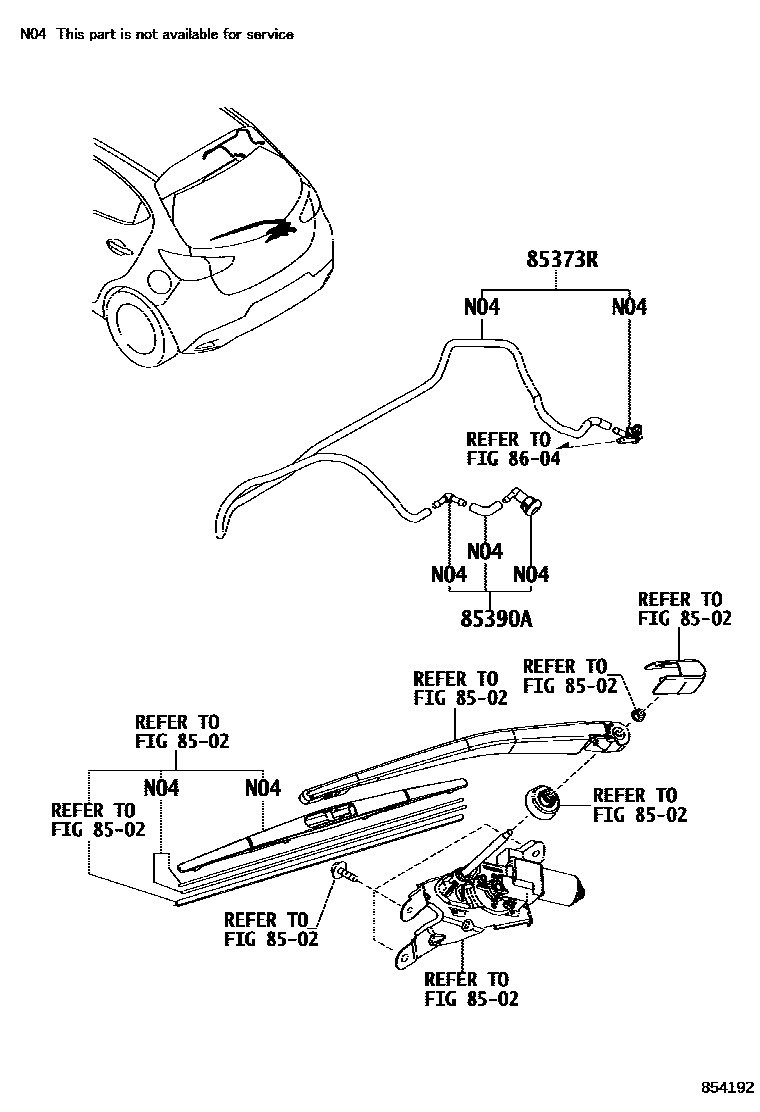

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85372D | Rear washer hose seal | 85373-WB002 |
| 85373R | Rear washer hose (from connector to nozzle) | 90118-WBB80 |
| 85390A | Rear washer nozzle and hose assembly | 85390-WB001 |
