Toyota YARIS 挡风玻璃清洗器 — Figure 8503

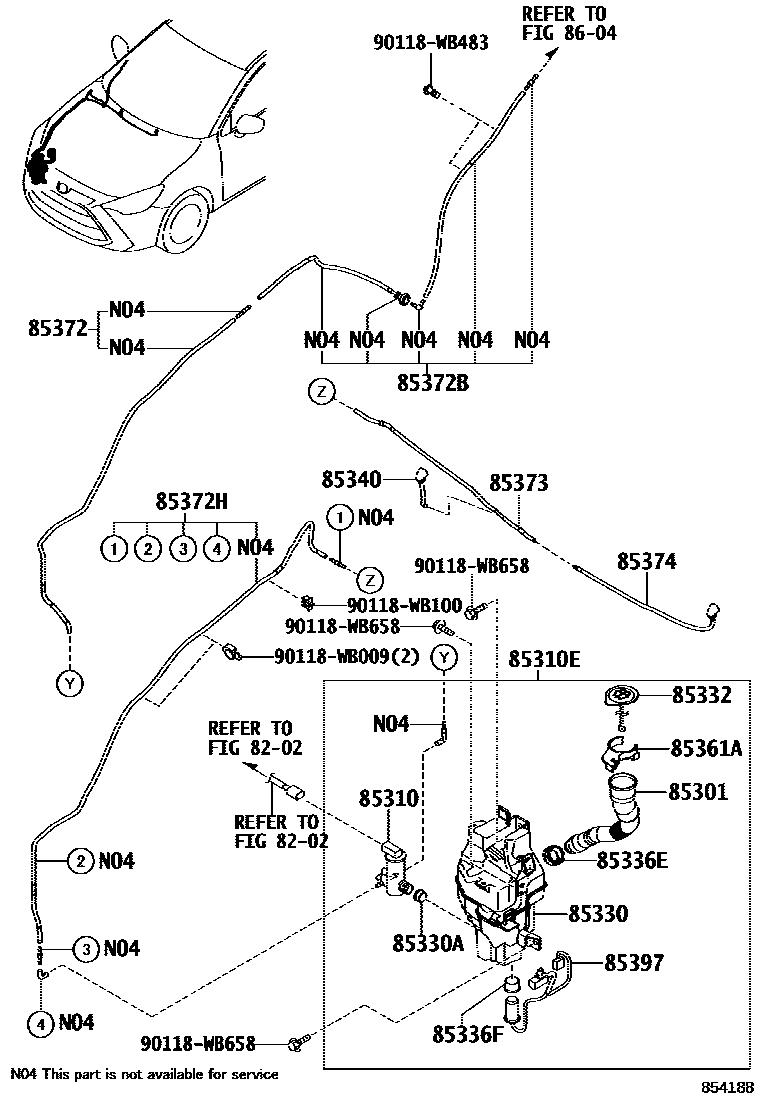

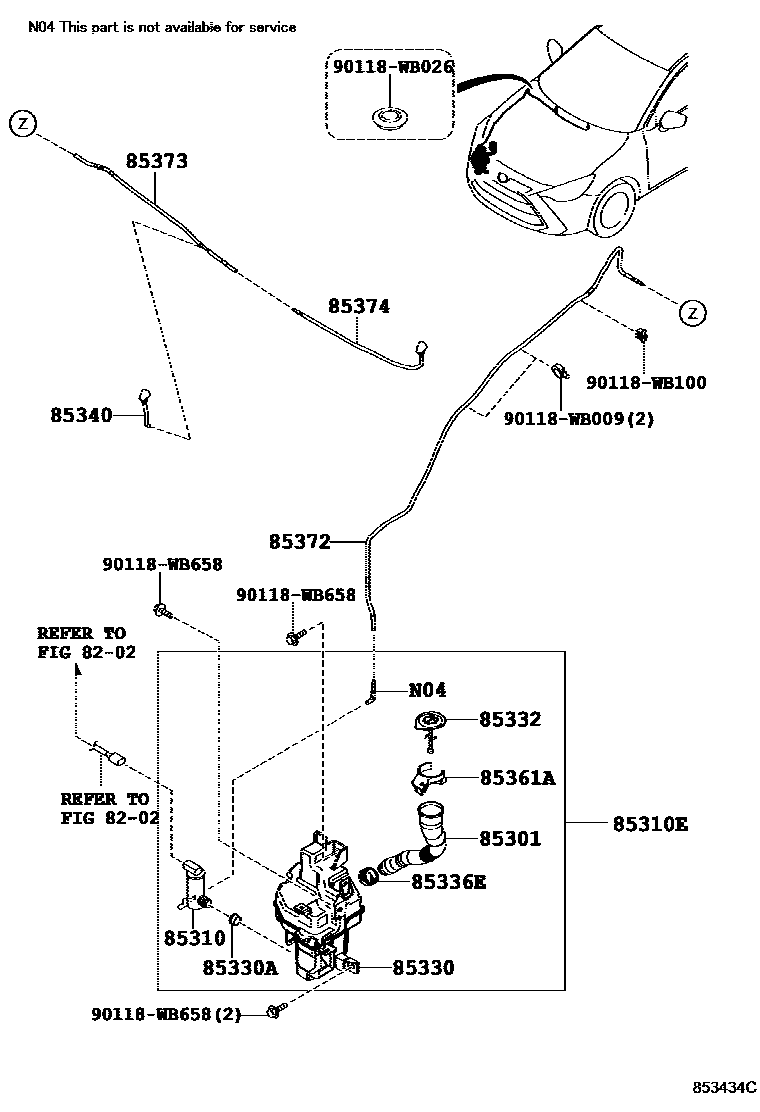

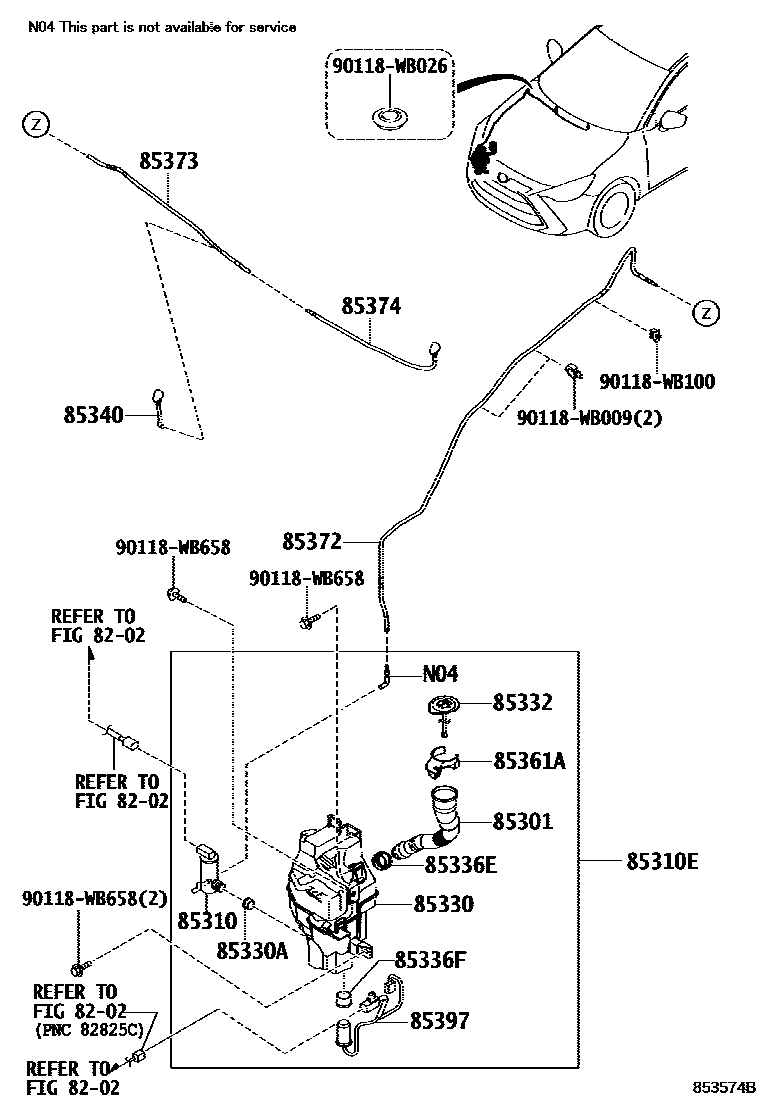

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85301 | Cleaner water inlet sub-assembly | 85319-WB001 |
| 85310 | Windshield washer motor and pump assembly | 85330-WB001 · 85330-WB002 · 85330-WB003 |
| 85310E | Cleaning fluid tank and motor assembly | 85310-WB001 · 85310-WB002 · 85310-WB003 · 85310-WB005 · 85310-WB007 |
| 85330 | Windshield washer fluid tank assembly | 85315-WB001 · 85315-WB002 |
| 85330A | Windshield washer fluid tank bushing | 90118-WB023 |
| 85332 | Windshield washer fluid tank cap | 85316-WB001 |
| 85336E | Windshield washer water inlet hose seal | 90118-WB024 |
| 85336F | Windshield washer fluid tank seal | 90118-WB025 |
| 85340 | Windshield washer nozzle and hose assembly | 85381-WB003 |
| 85361A | Windshield washer bracket No. 1 | 85337-WB001 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90118-WB084 · 90118-WBB78 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90118-WBB79 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90118-WBB89 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90118-WBA15 |
| 85374 | Windshield washer hose (nozzle to nozzle) | 85382-WB001 |
| 85397 | Liquid level warning switch assembly | 85397-WB003 |
