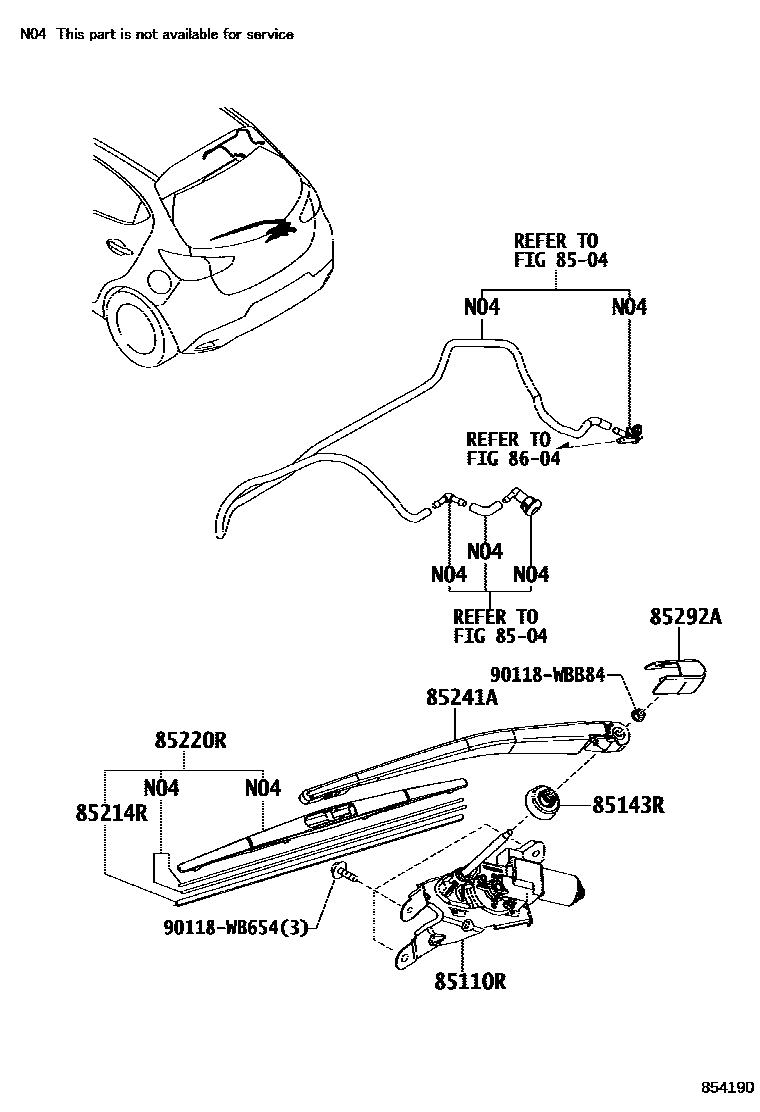

Toyota YARIS 后刮水器 — Figure 8502
Toyota YARIS EPC diagram 8502, 后刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-WB001 |
| 85143R | Rear wiper motor seal | 85143-WB001 |
| 85214R | Rear wiper rubber strip | 85214-WB003 |
| 85220R | Rear wiper blade assembly | 85212-WB003 |
| 85241A | rear wiper arm | 85241-WB001 |
| 85292A | Rear wiper arm cap | 85292-WB002 |
