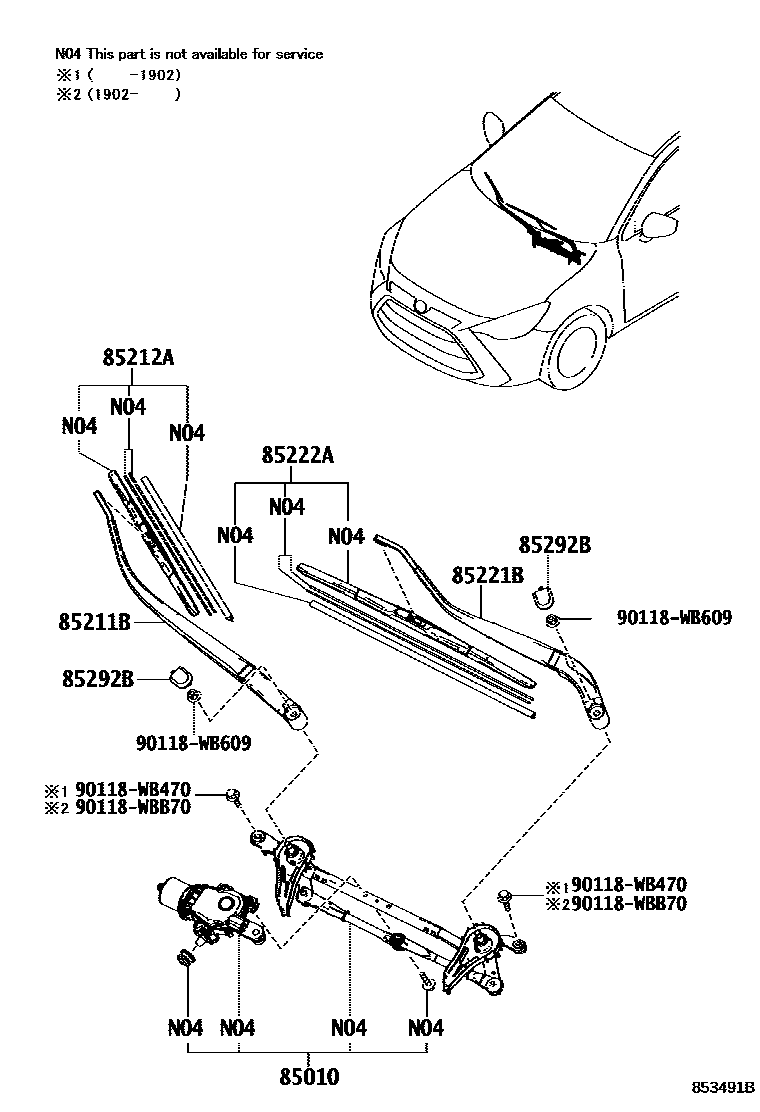

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85010 | Front wiper motor and connecting rod assembly | 85010-WB001 · 85010-WB002 |
| 85211B | Right front wiper arm | 85221-WB002 |
| 85212A | Right front wiper blade | 85212-WB002 |
| 85221B | Left front wiper arm | 85221-WB001 |
| 85222A | Left front wiper blade | 85212-WB001 |
| 85292B | Front wiper arm cap | 85292-WB001 |

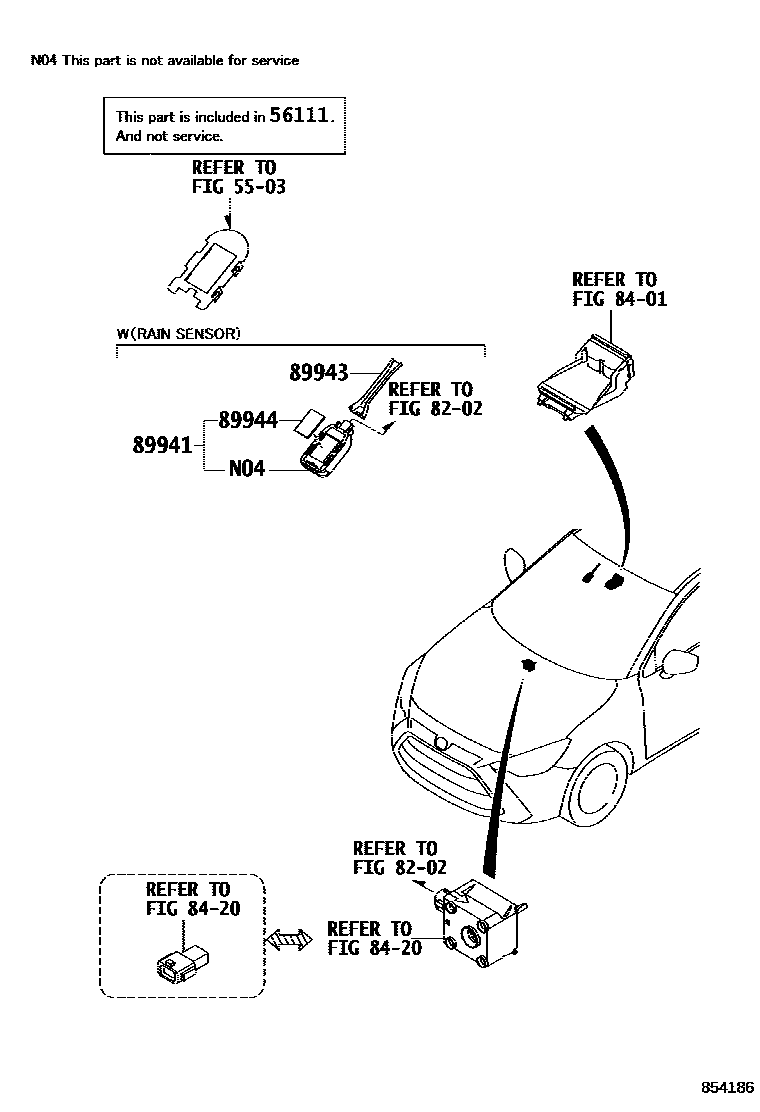

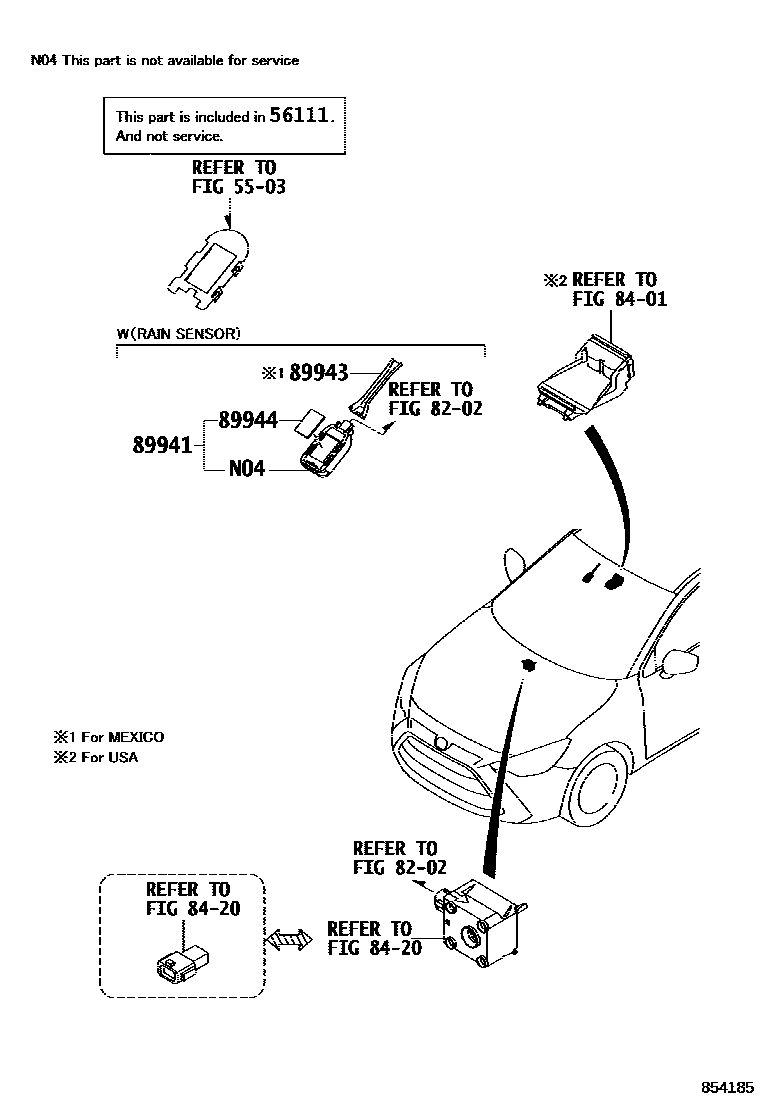

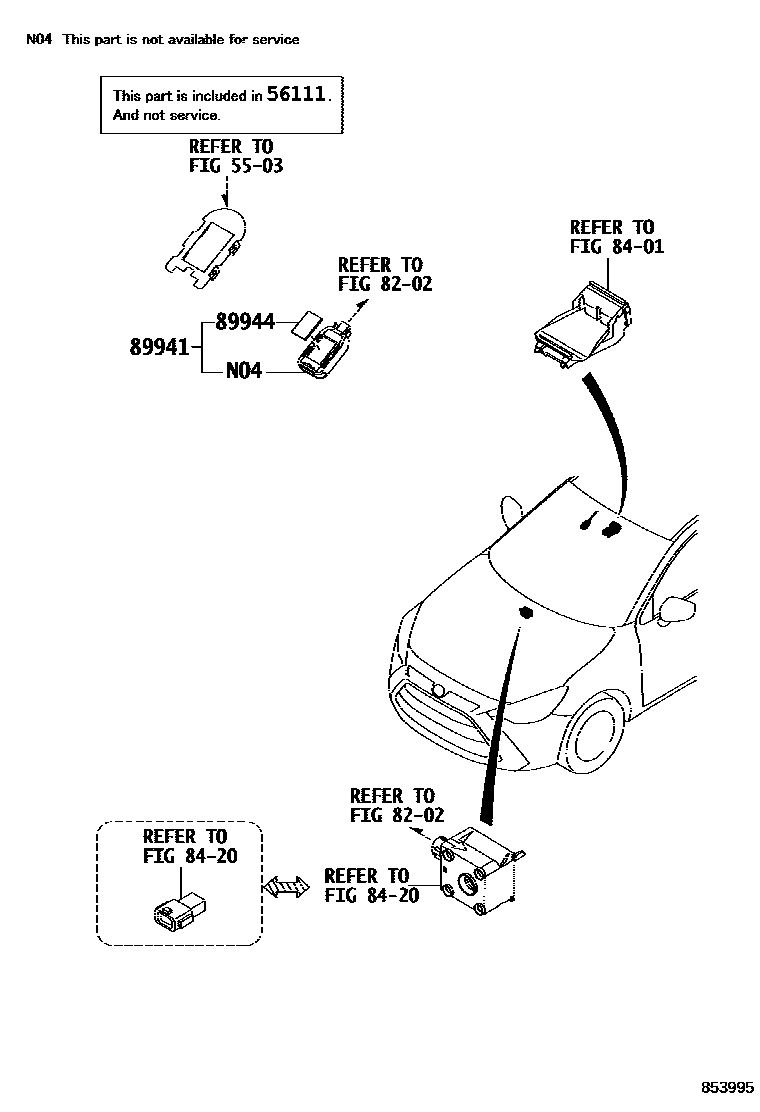

| 89941 | rain sensor | 89941-WB002 · 89941-WB003 · 89941-WB004 |
| 89943 | Rain sensor cover | 89943-WB001 |
| 89944 | Rain sensor tape | 89944-WB002 |
