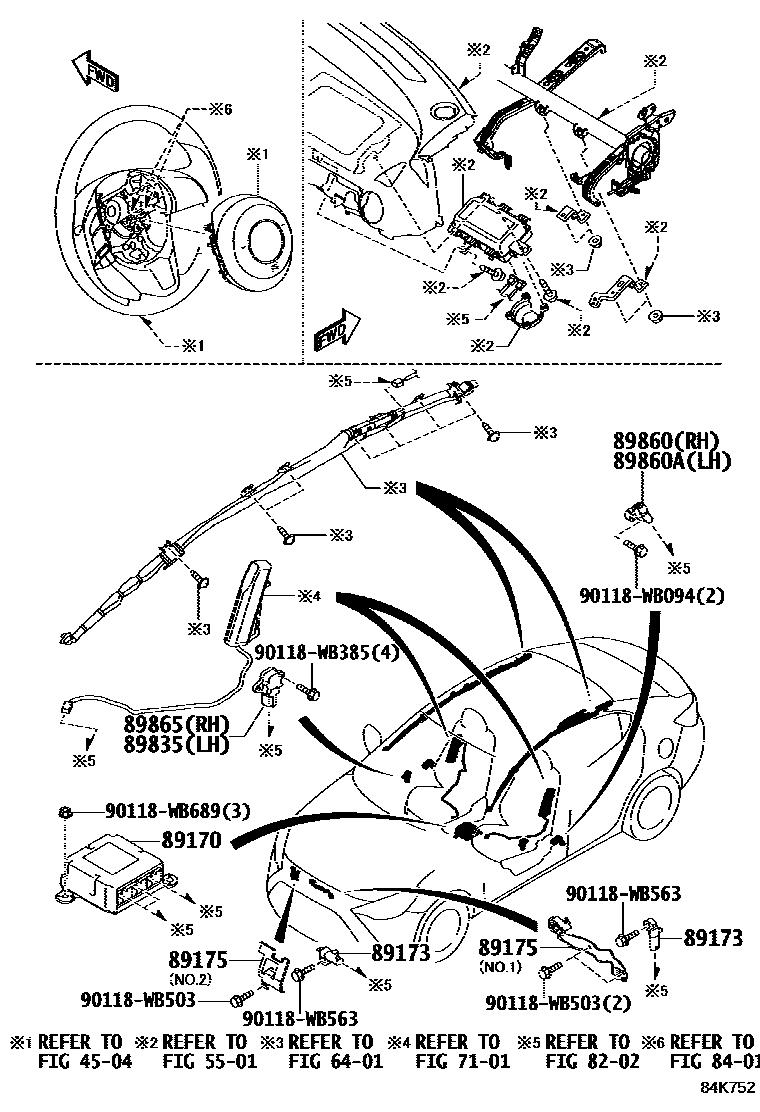

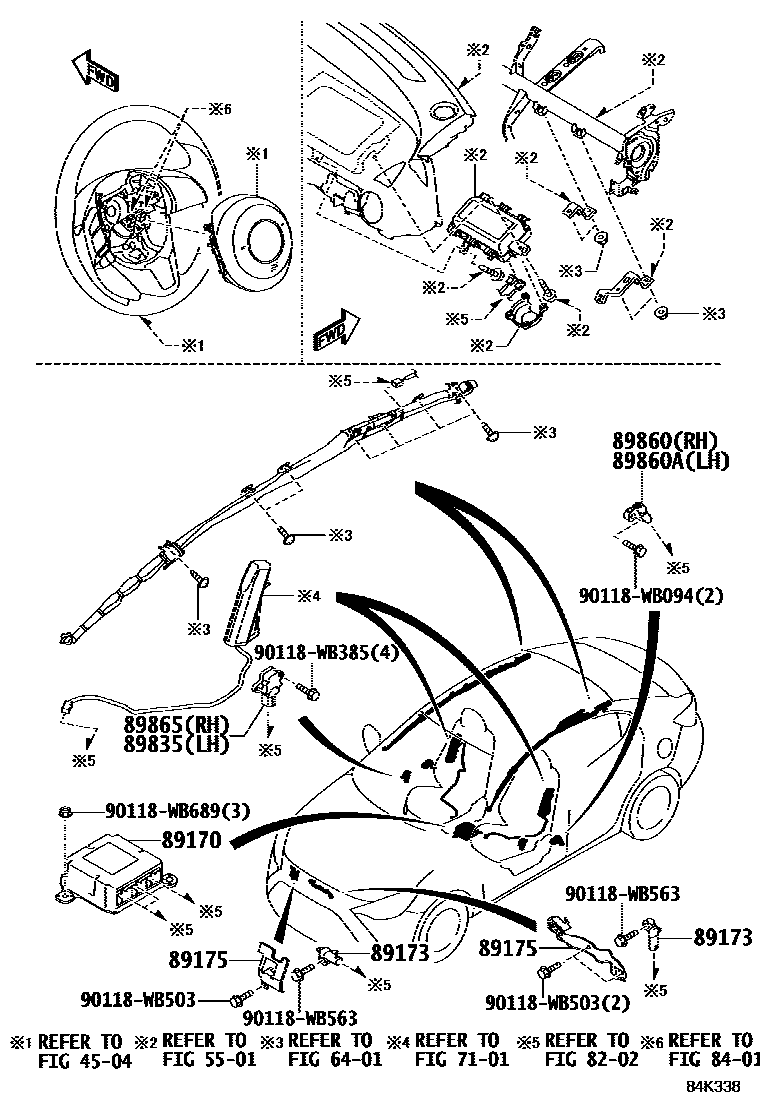

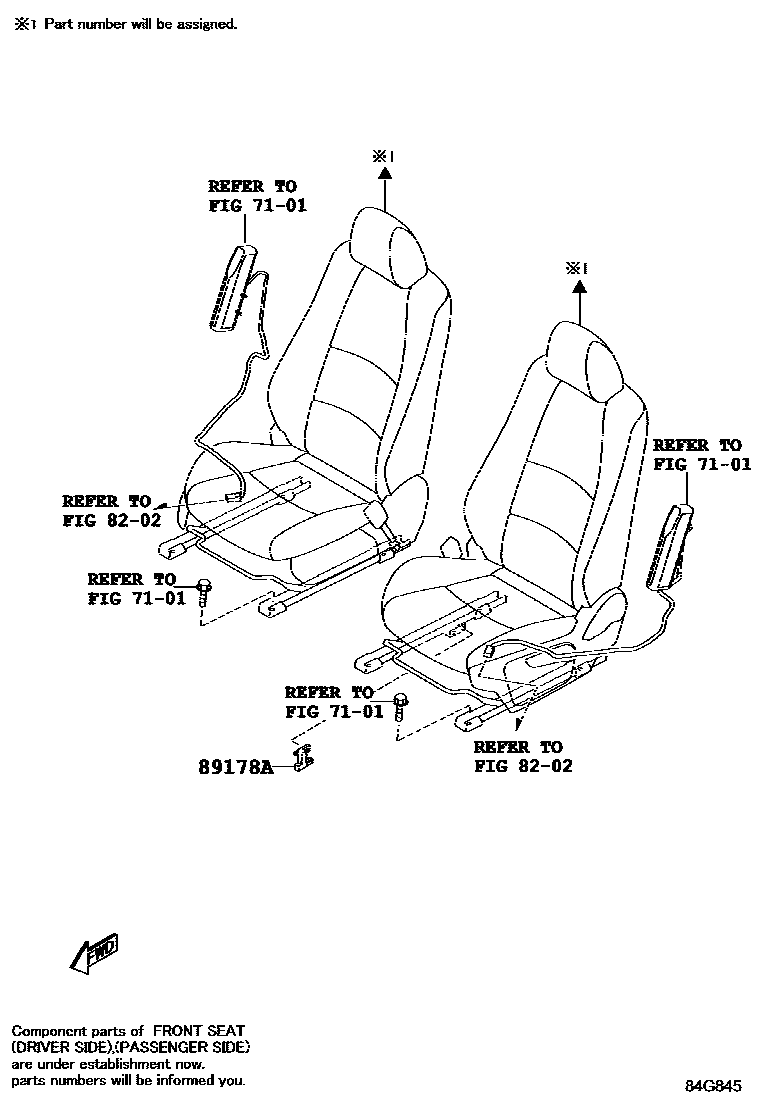

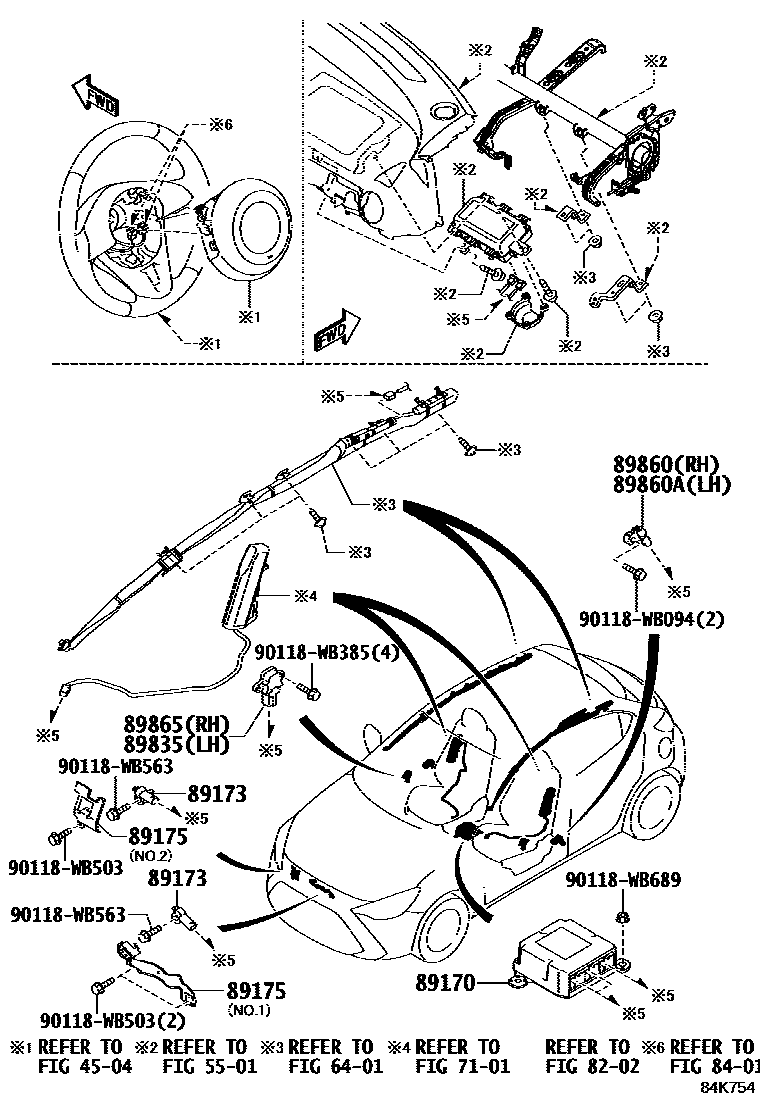

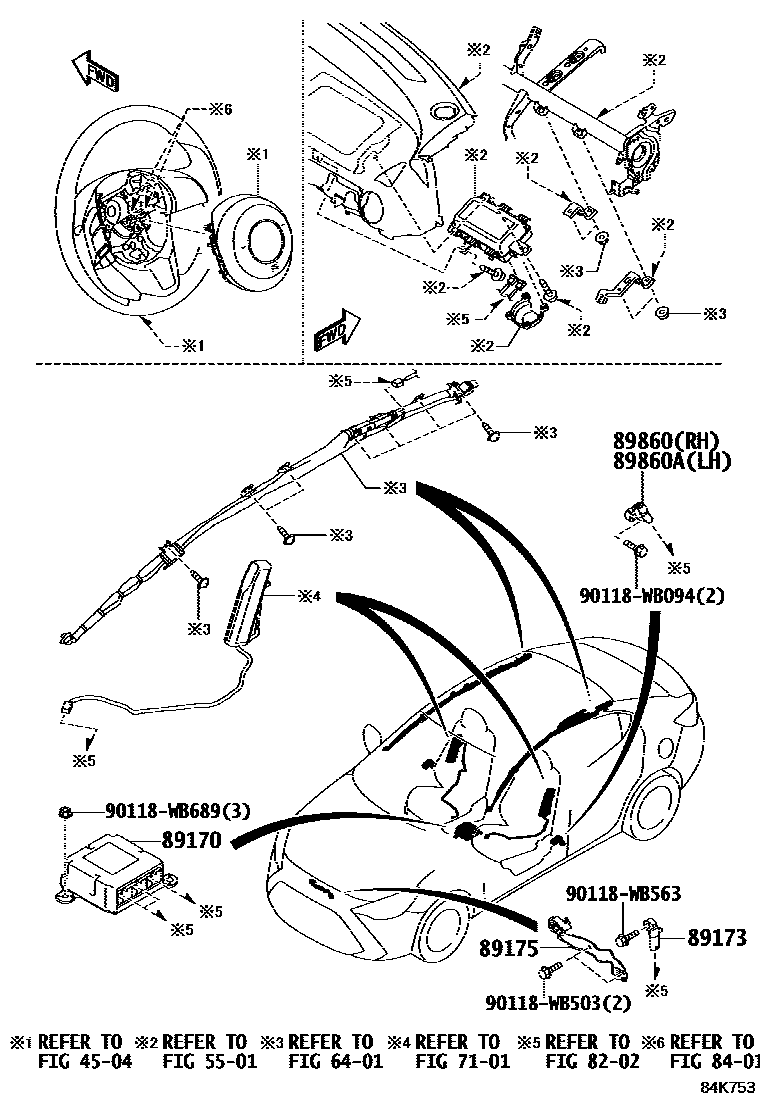

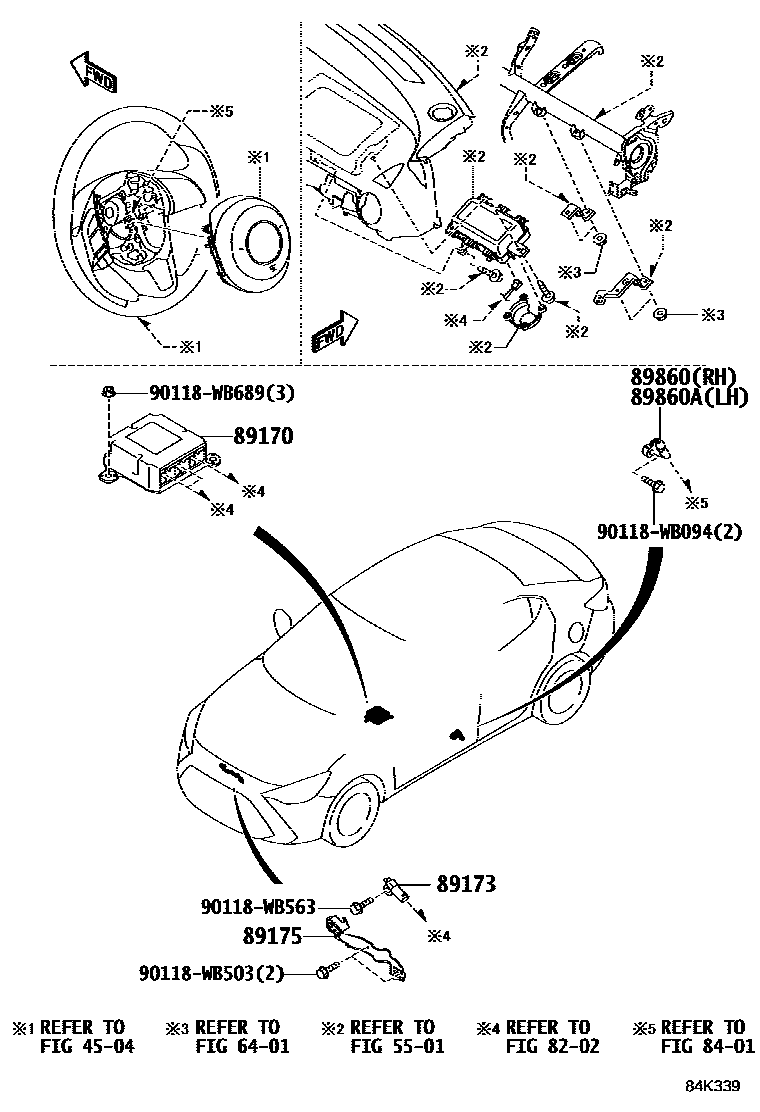

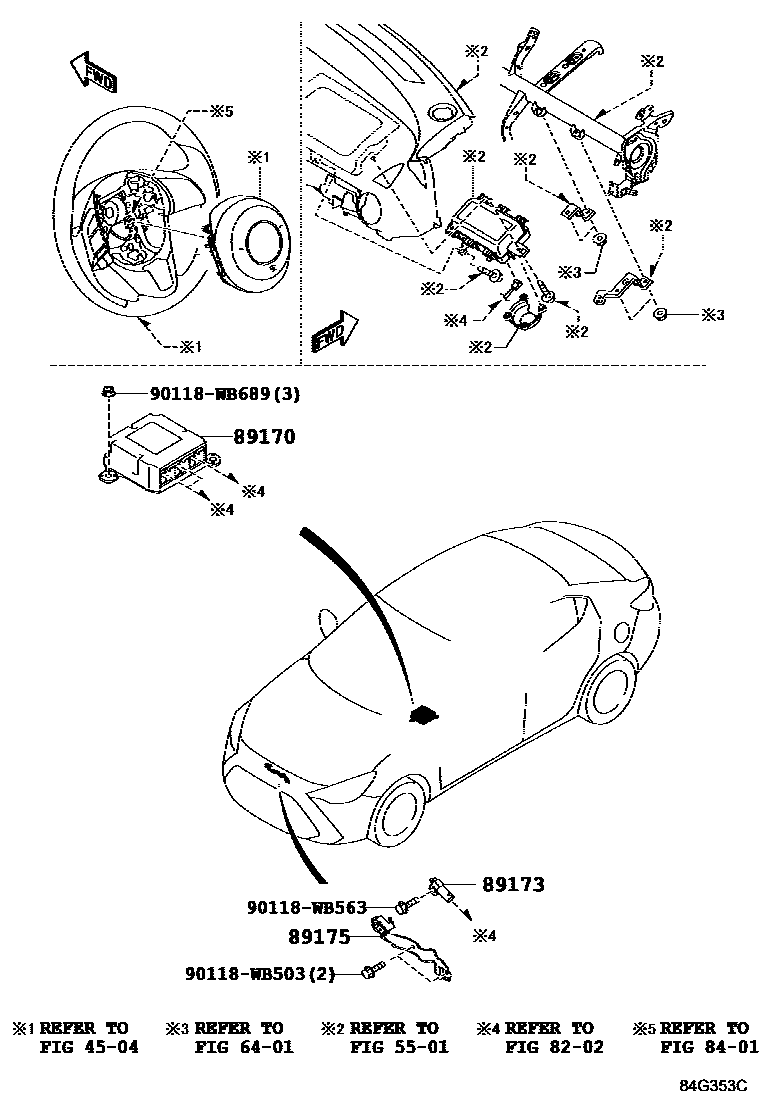

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 8 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-WB002 · 89170-WB003 · 89170-WB005 · 89170-WB006 · 89170-WB007 · 89170-WB008 |
| 89173 | front airbag sensor | 89173-WB001 |
| 89175 | air bag sensor bracket | 89175-WB001 · 89175-WB002 |
| 89178A | Seat position air bag sensor | 89178-WB001 |
| 89835 | Left door side air bag sensor | 89831-WB001 |
| 89860 | Right side airbag sensor assembly | 89831-WB002 |
| 89860A | Left side air bag sensor assembly | 89831-WB002 |
| 89865 | Right door side air bag sensor | 89831-WB001 |
