Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 4 PNC and OE references.

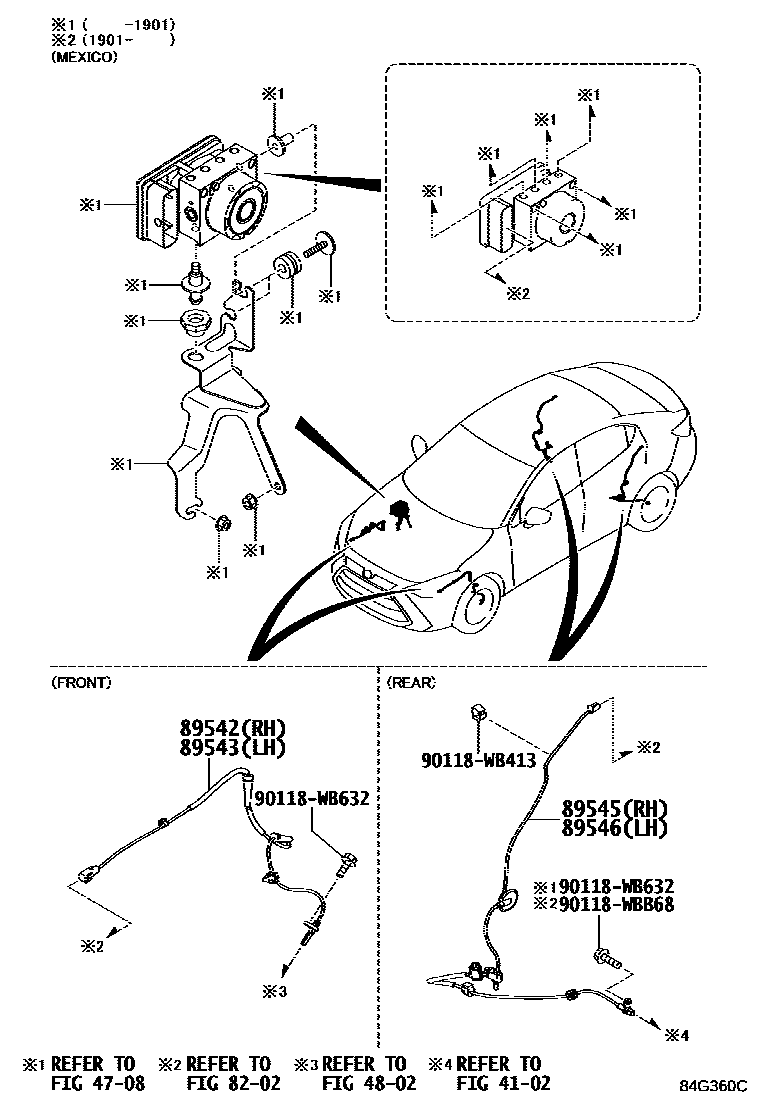

Toyota YARIS ABS 和 VSC EPC diagram — 84G360C
ABS 和 VSC — 84G360C (201508 – 999999)

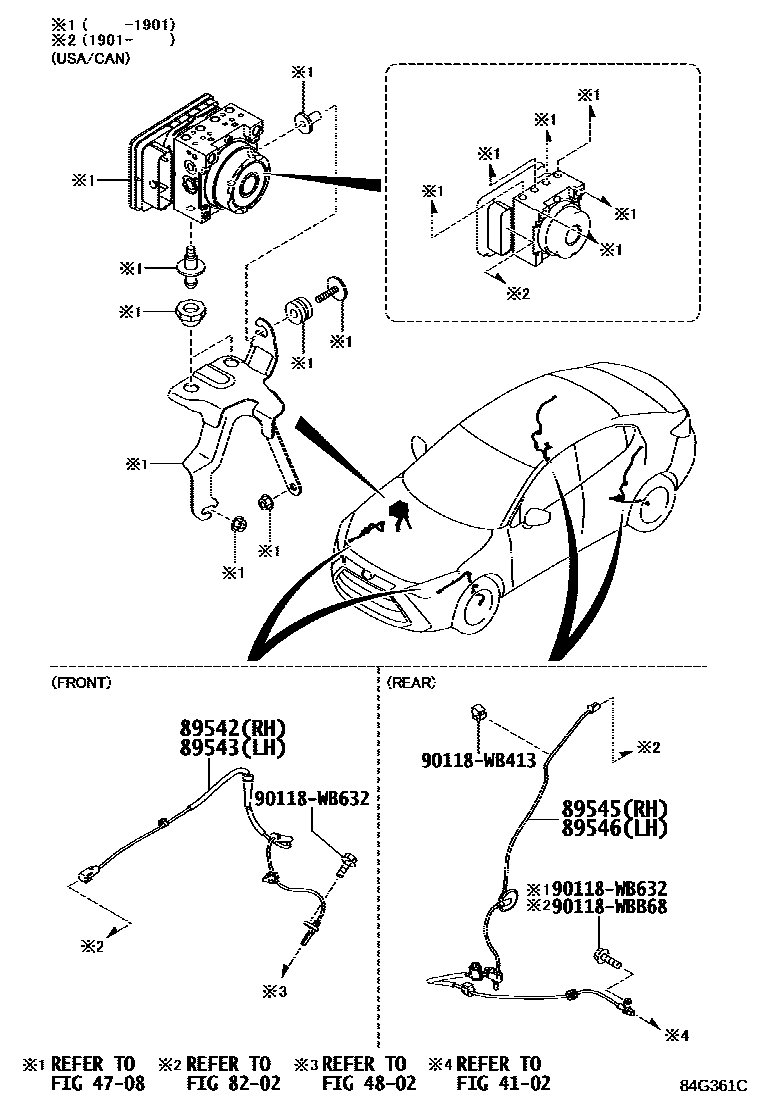

Toyota YARIS ABS 和 VSC EPC diagram — 84G361C
ABS 和 VSC — 84G361C (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
89542Right front wheel speed sensor89542-WB001
89543Left front wheel speed sensor89542-WB001
89545Right rear wheel speed sensor89545-WB001
89546Left rear wheel speed sensor89546-WB001 · 89546-WB002
