Toyota YARIS 开关和继电器和ECU — Figure 8401

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 47 images and 60 PNC and OE references.

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G377A — 开关和继电器和ECU — 84G377A (201506 – 201908)

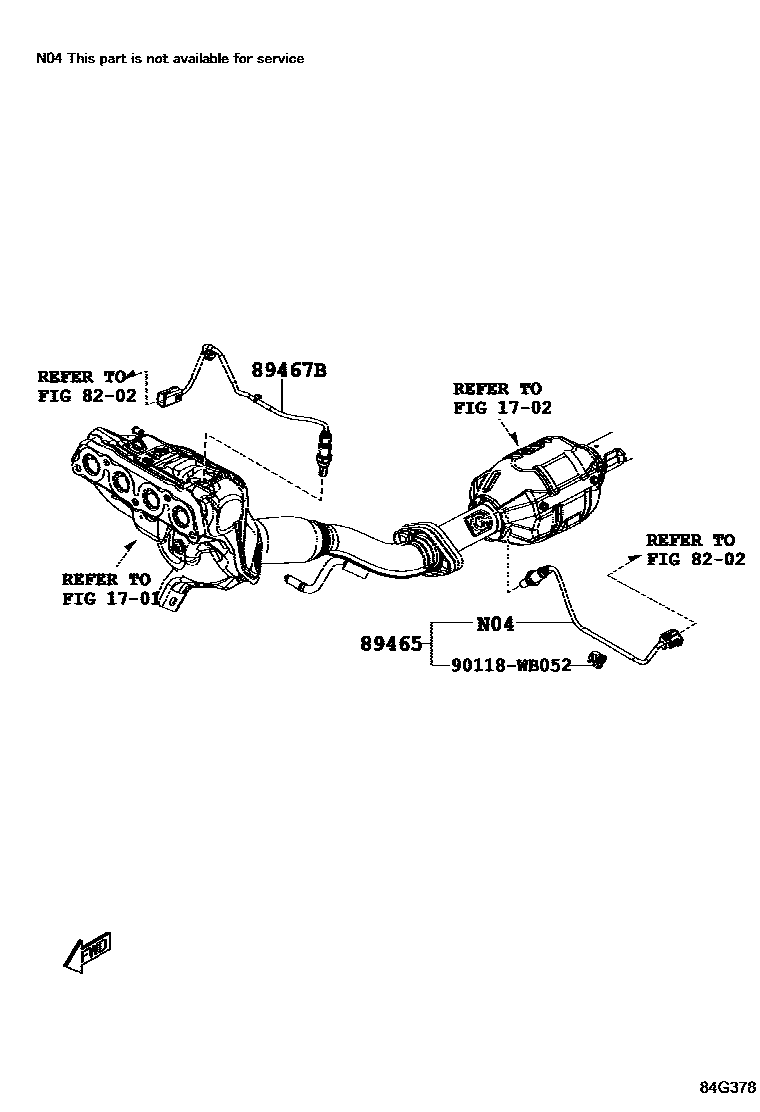

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G378 — 开关和继电器和ECU — 84G378 (201506 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G379C — 开关和继电器和ECU — 84G379C (201506 – 201908)

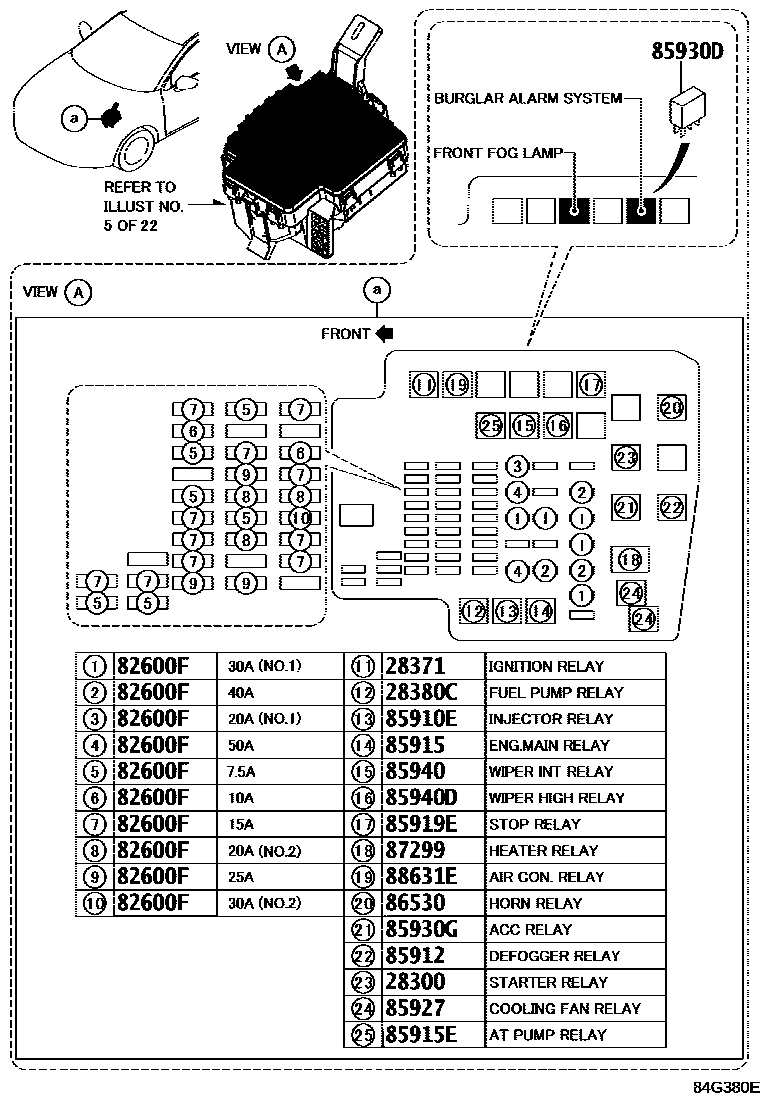

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G380E — 开关和继电器和ECU — 84G380E (201506 – 201808)

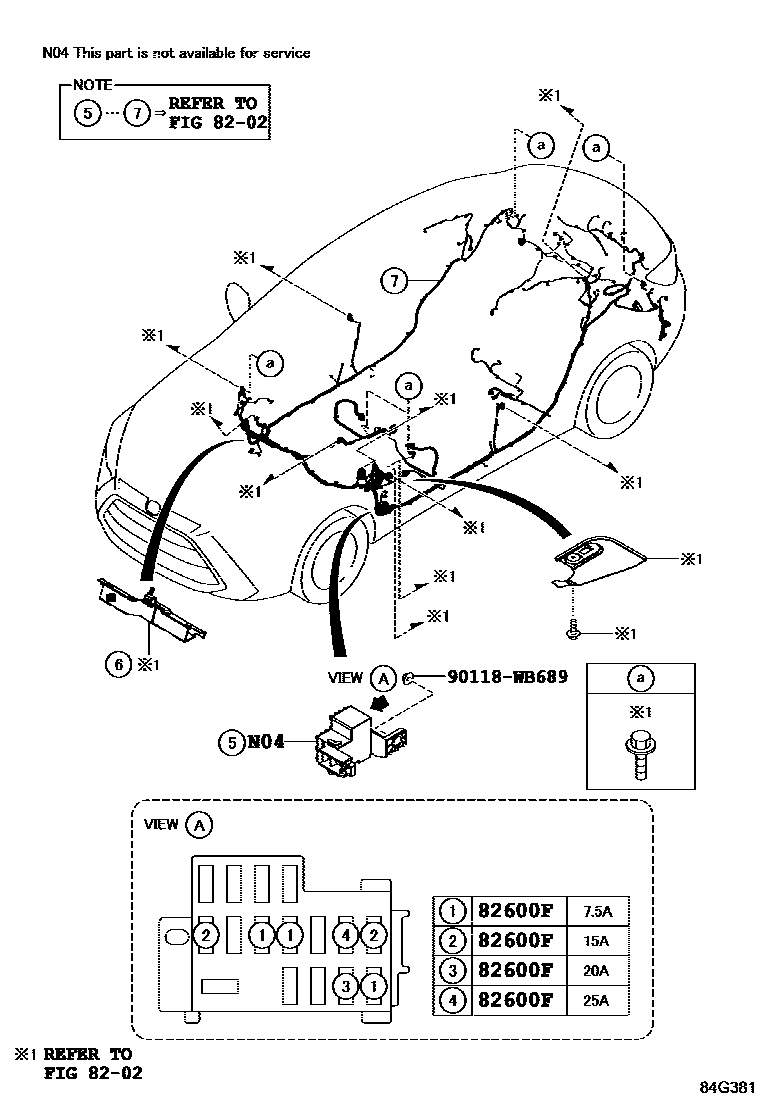

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G381 — 开关和继电器和ECU — 84G381 (201506 – 201808)

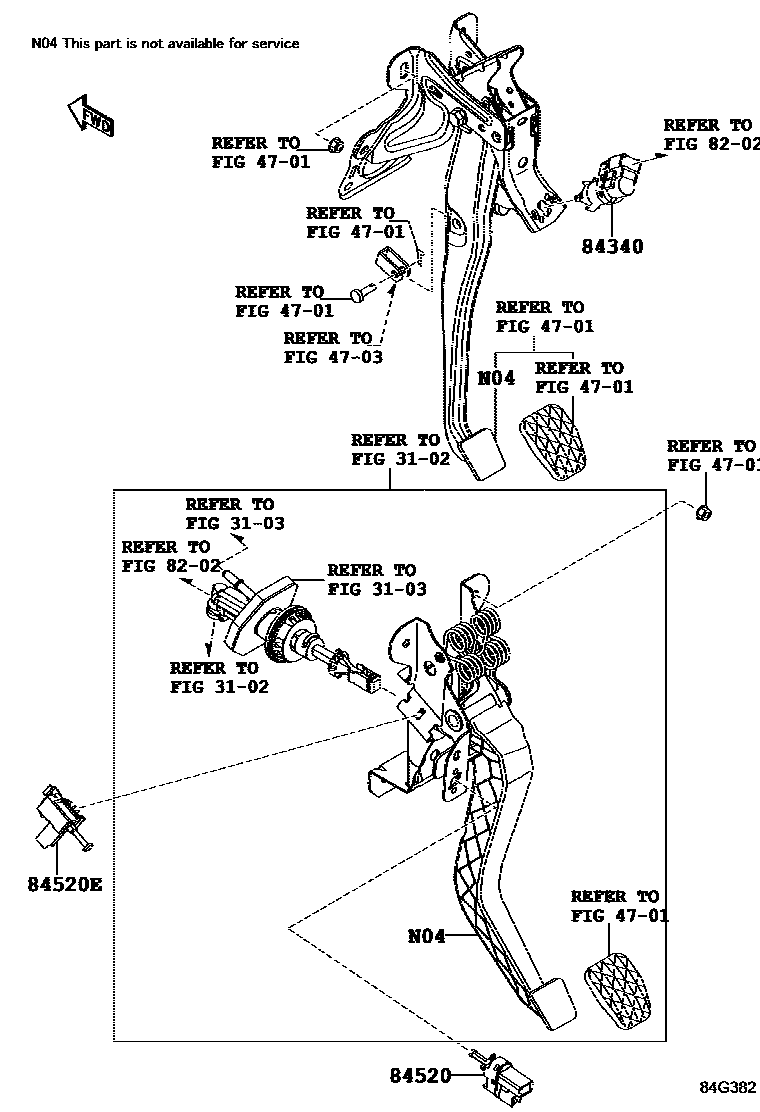

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G382 — 开关和继电器和ECU — 84G382 (201506 – 999999)

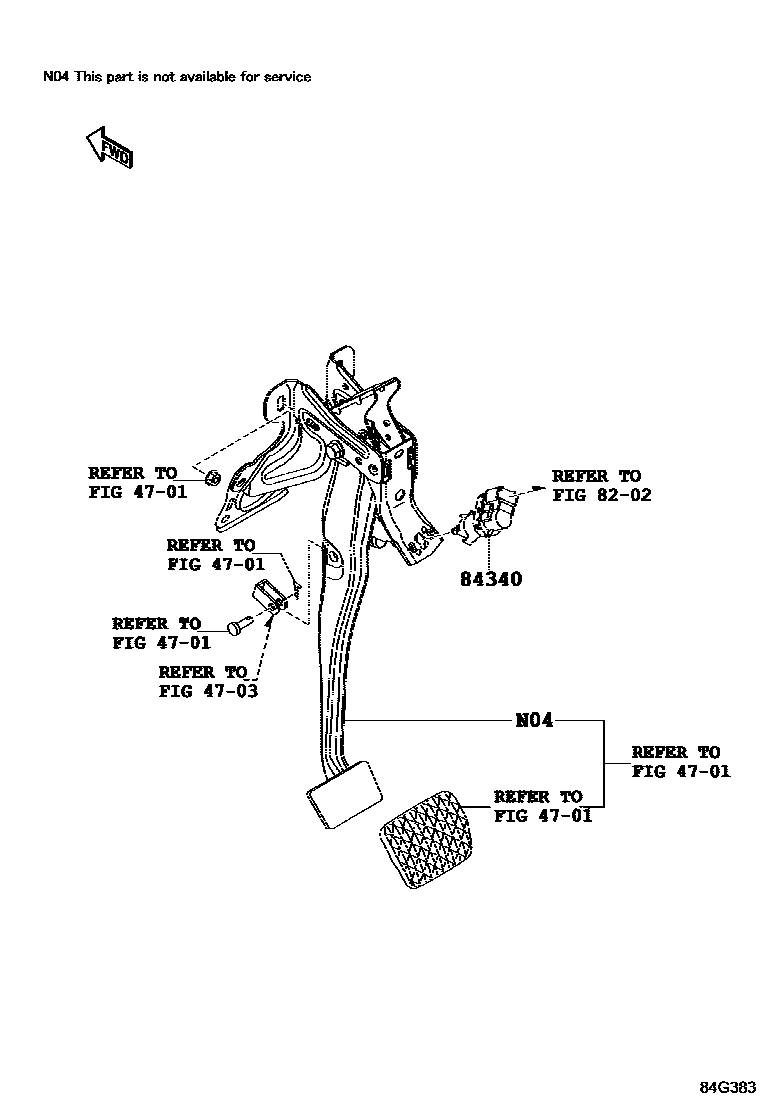

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G383 — 开关和继电器和ECU — 84G383 (201506 – 999999)

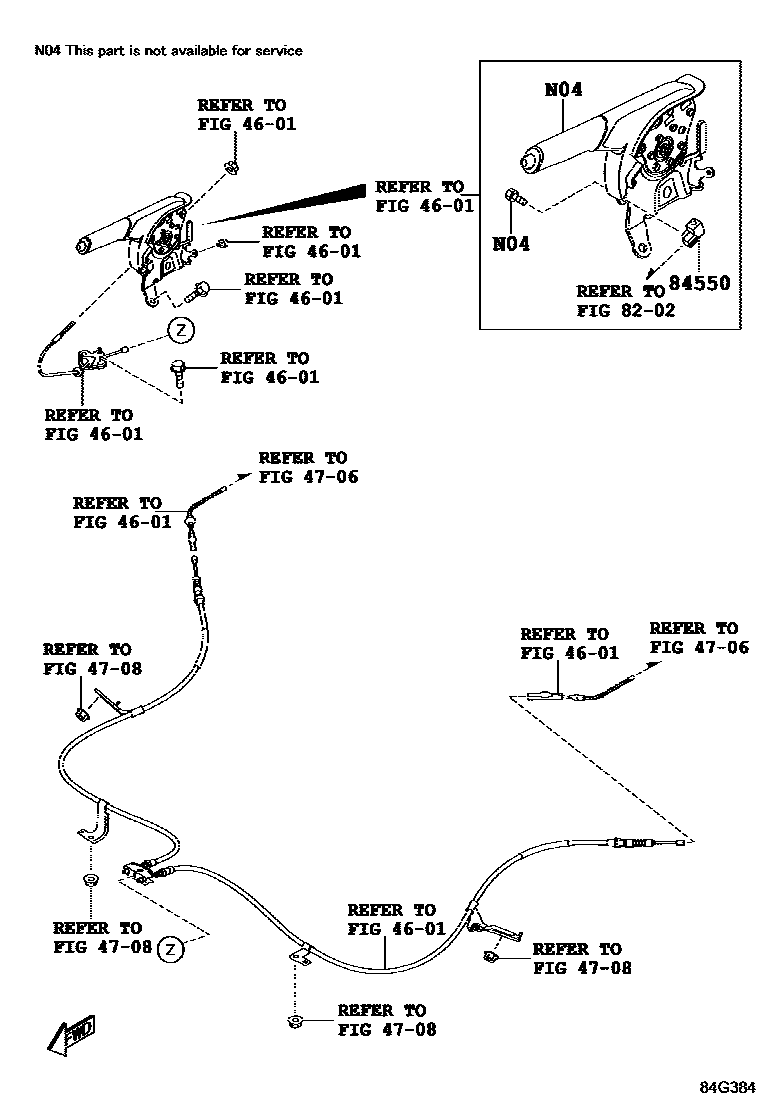

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G384 — 开关和继电器和ECU — 84G384 (201506 – 999999)

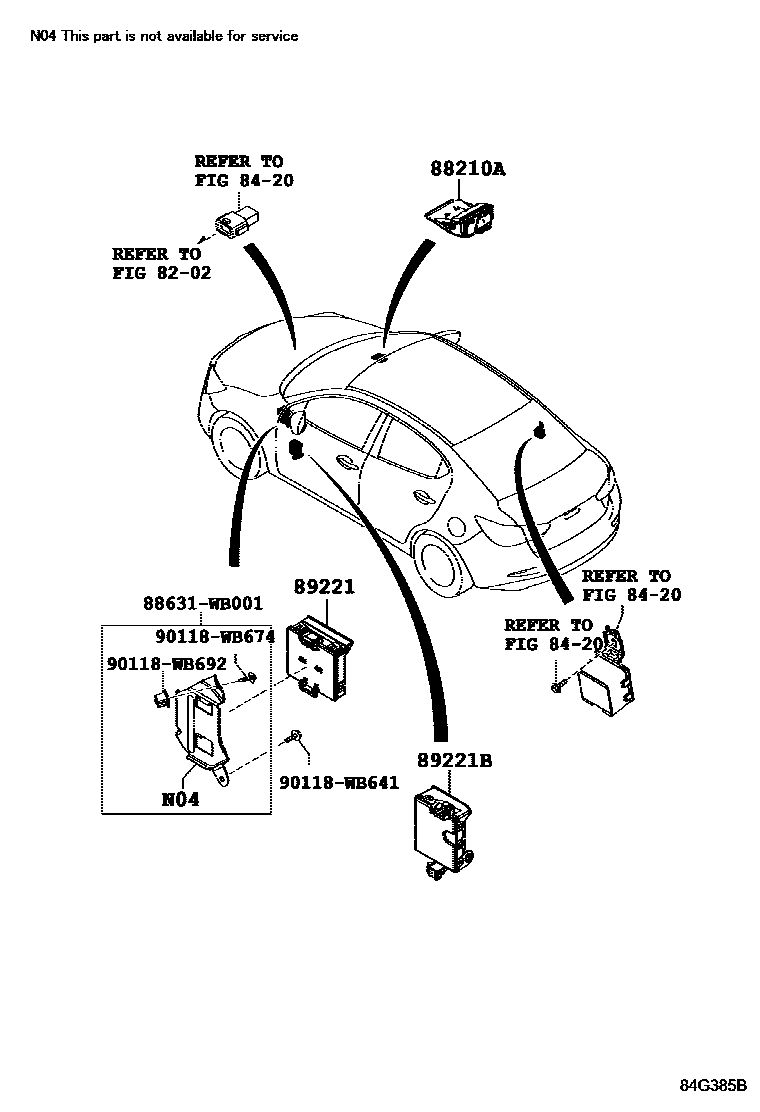

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G385C — 开关和继电器和ECU — 84G385C (201506 – 201808)

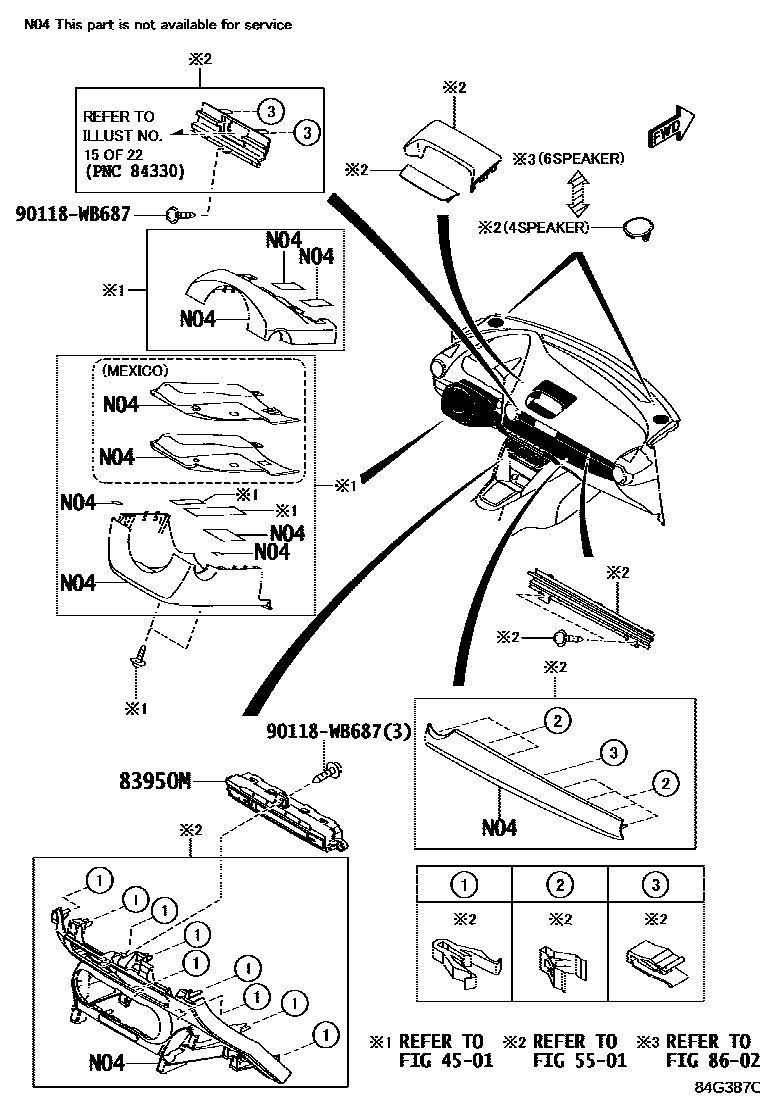

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G387C — 开关和继电器和ECU — 84G387C (201506 – 201808)

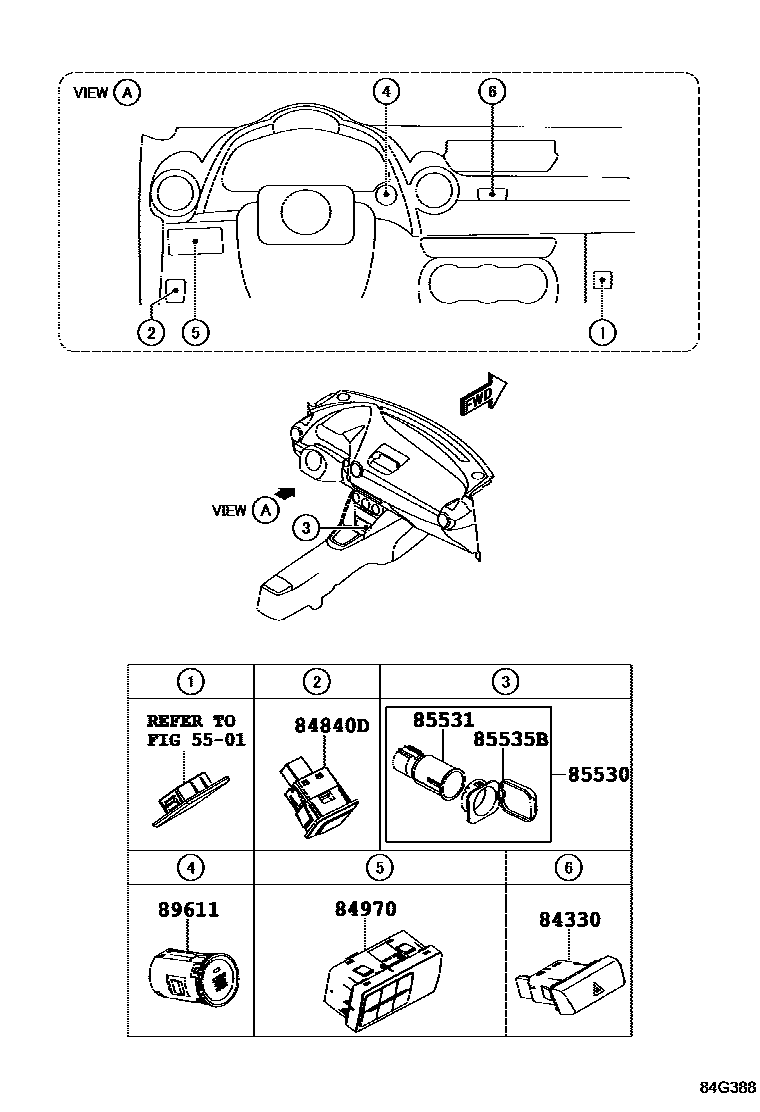

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G388 — 开关和继电器和ECU — 84G388 (201506 – 201908)

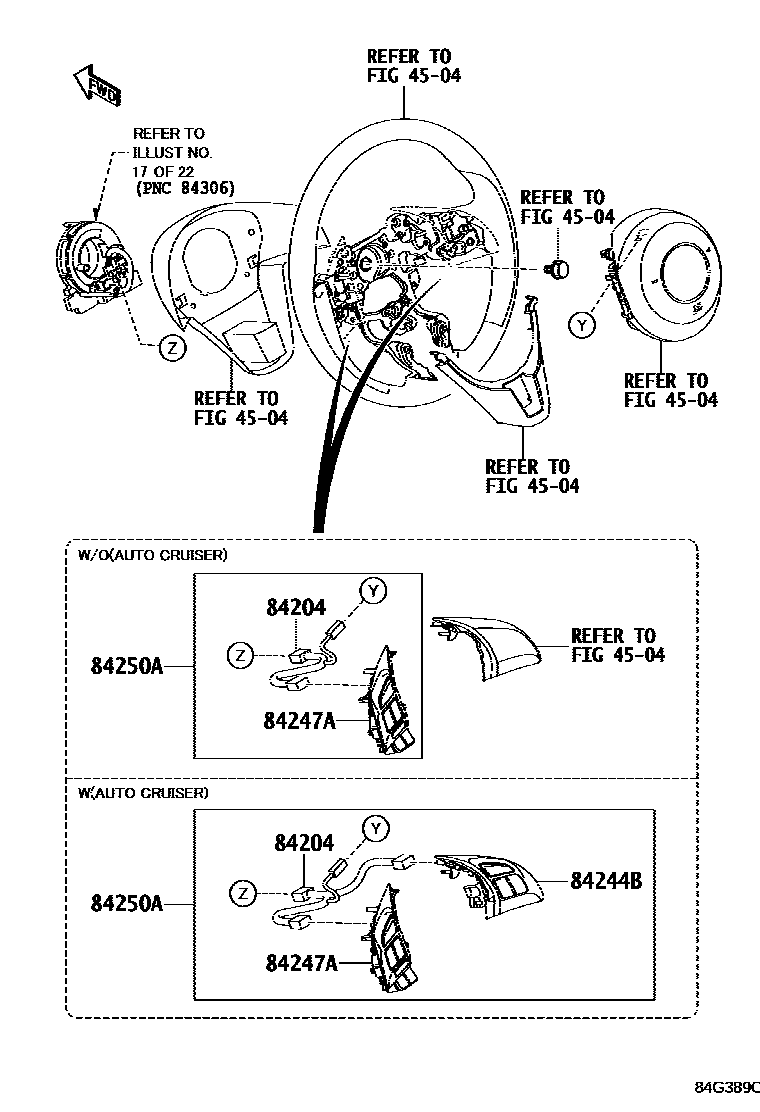

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G389C — 开关和继电器和ECU — 84G389C (201506 – 201808)

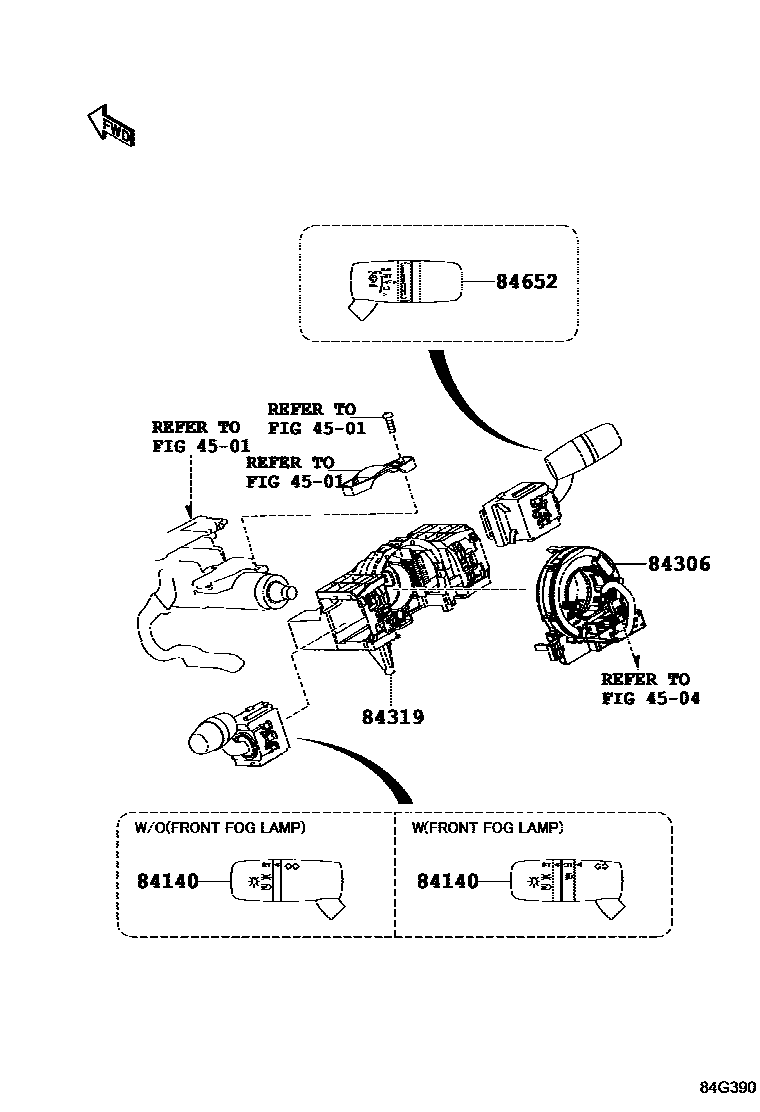

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G390 — 开关和继电器和ECU — 84G390 (201506 – 201808)

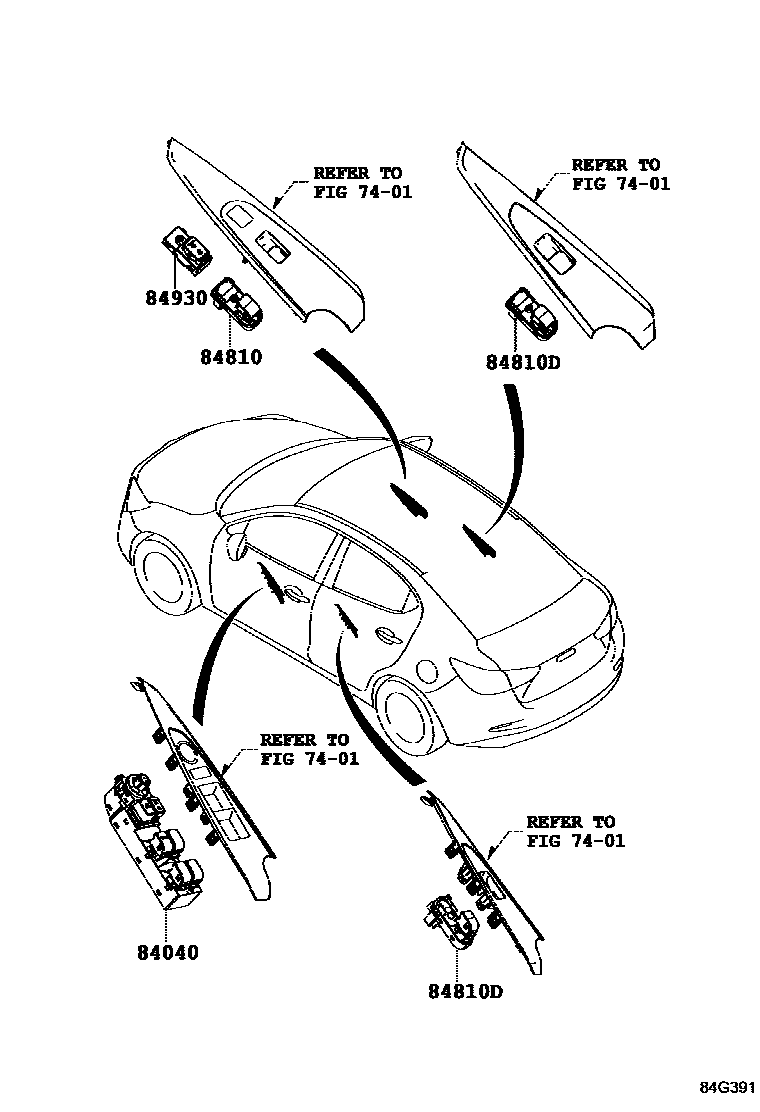

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G391 — 开关和继电器和ECU — 84G391 (201506 – 999999)

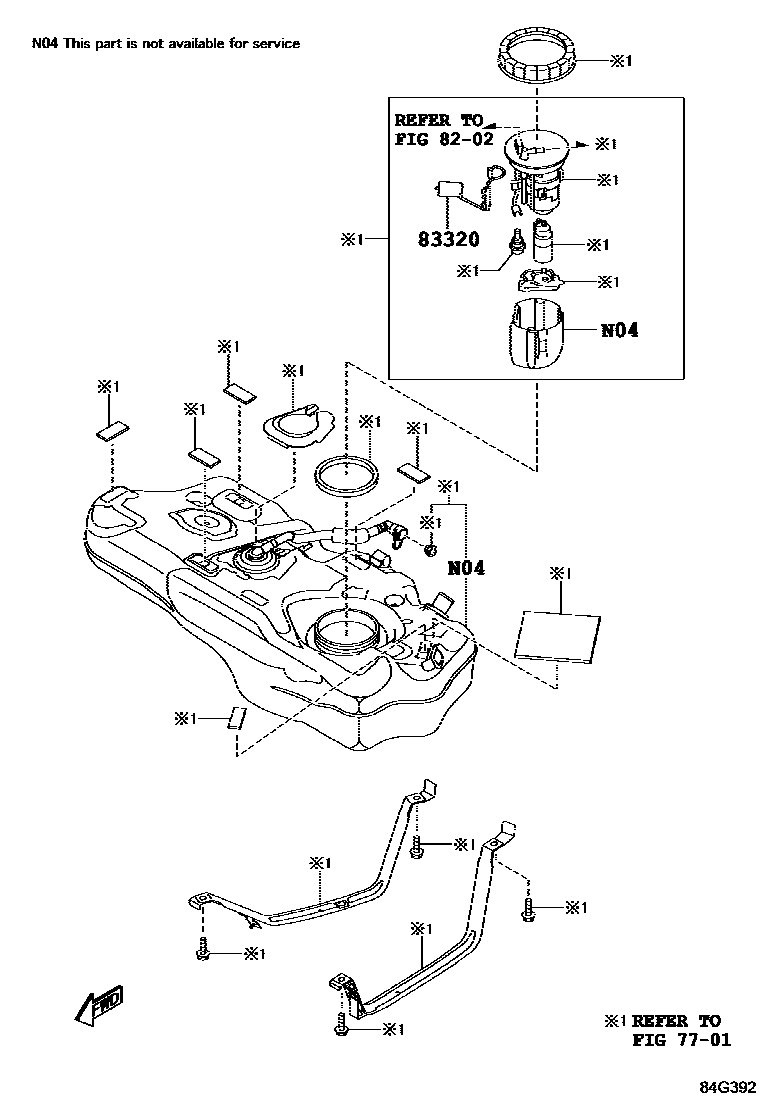

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G392 — 开关和继电器和ECU — 84G392 (201506 – 999999)

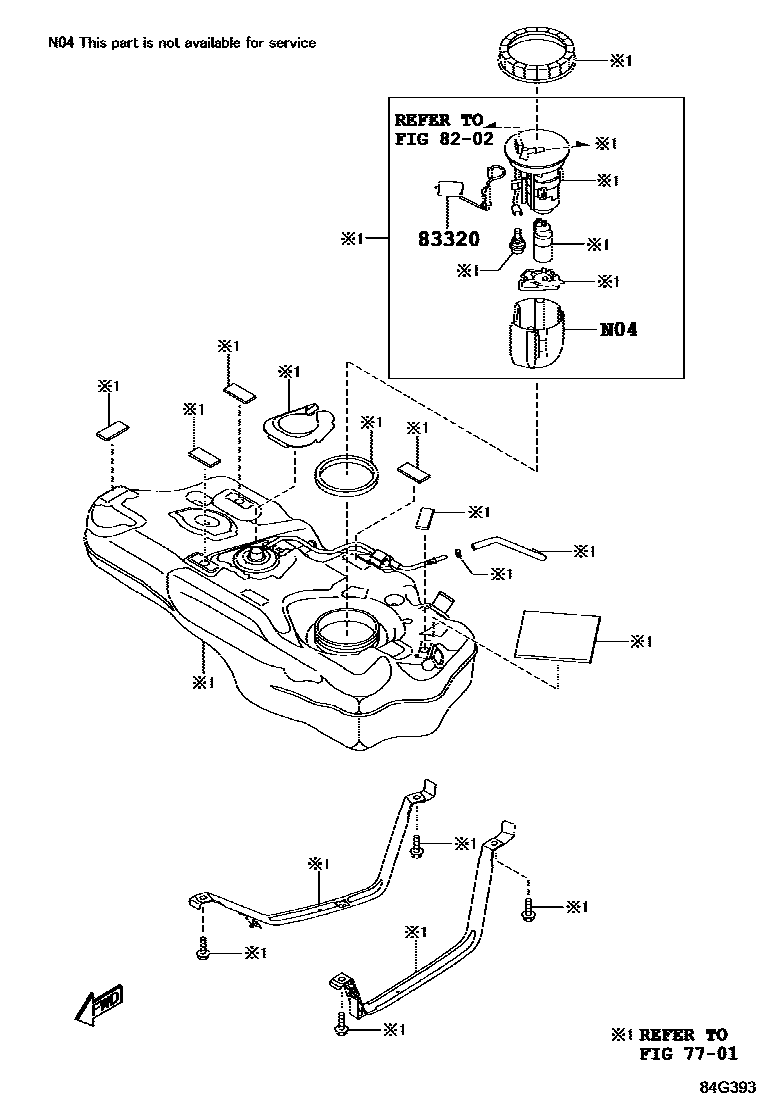

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G393 — 开关和继电器和ECU — 84G393 (201508 – 999999)

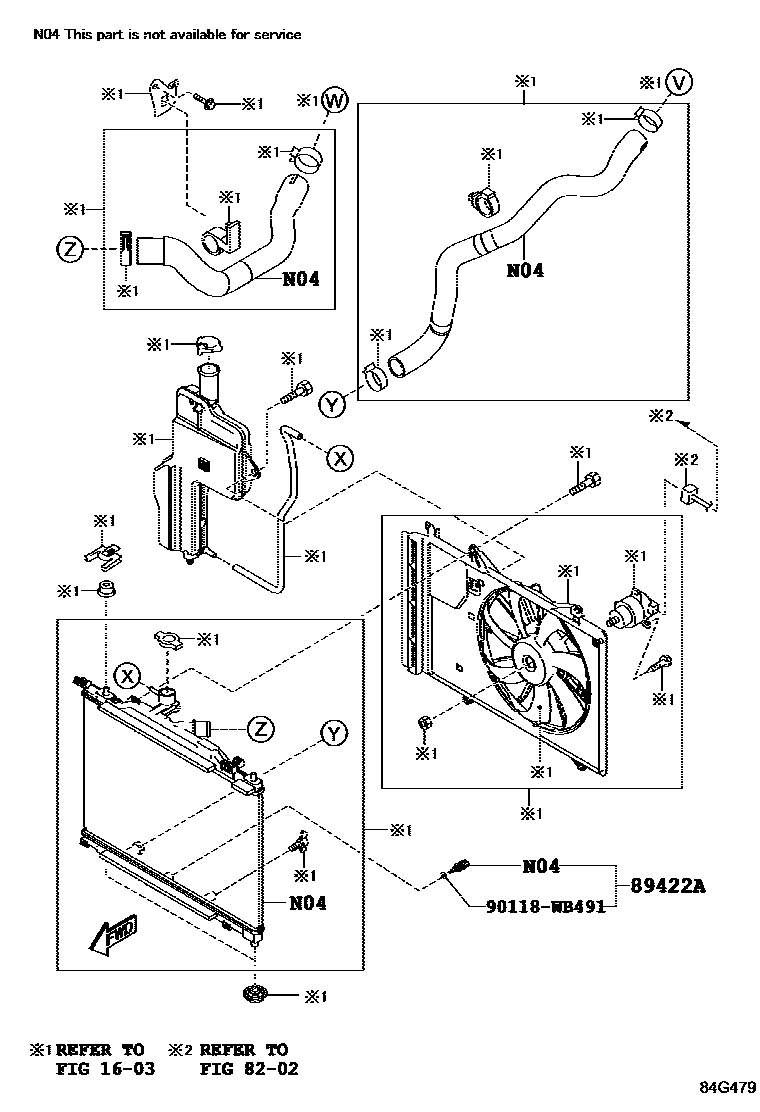

Toyota YARIS 开关和继电器和ECU EPC diagram — 84G479 — 开关和继电器和ECU — 84G479 (201506 – 201808)

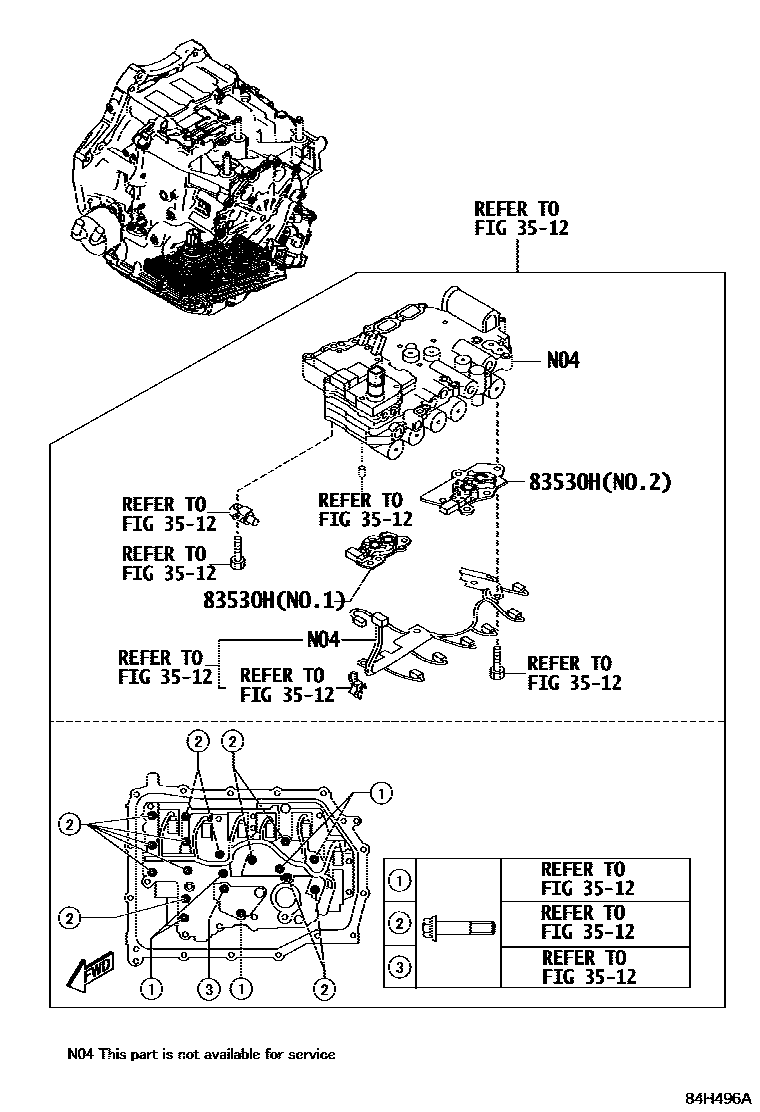

Toyota YARIS 开关和继电器和ECU EPC diagram — 84H496A — 开关和继电器和ECU — 84H496A (201506 – 999999)

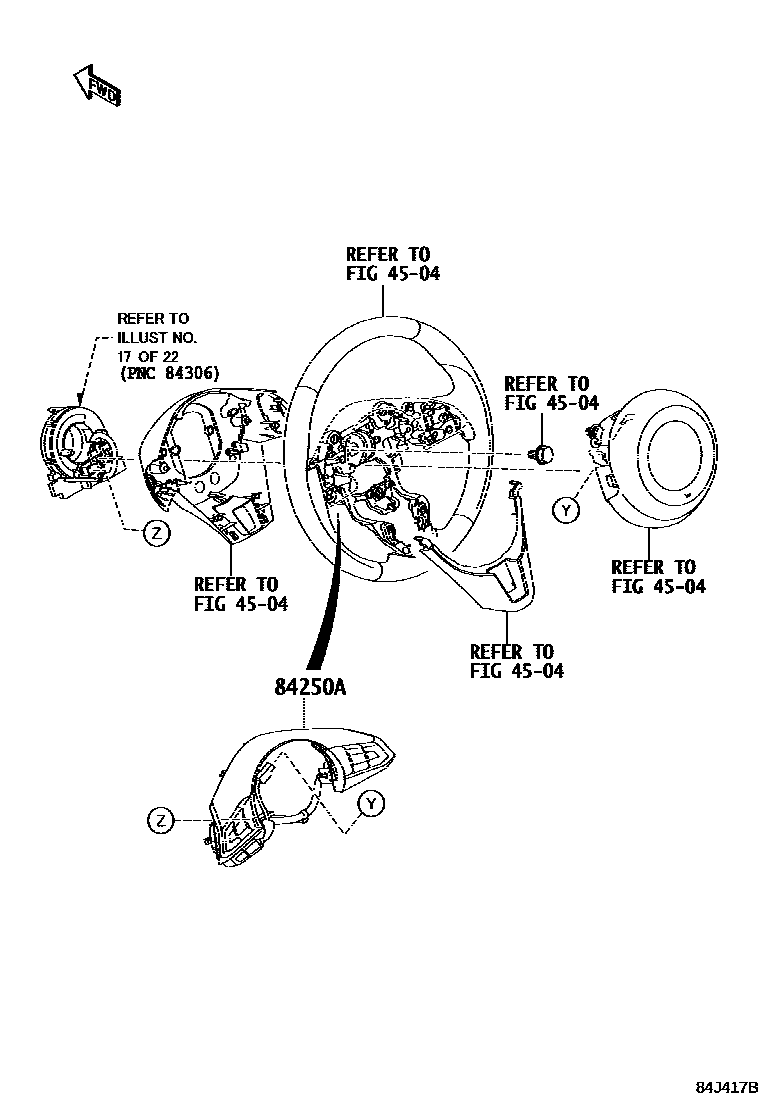

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J417B — 开关和继电器和ECU — 84J417B (201808 – 999999)

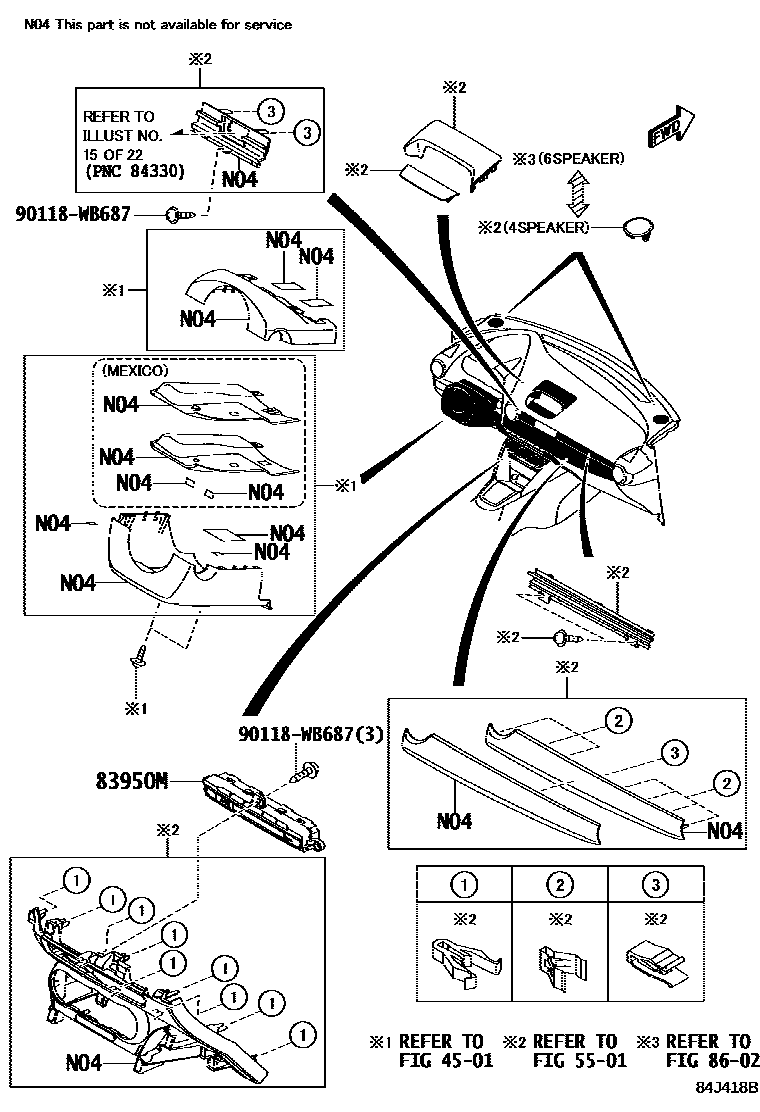

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J418B — 开关和继电器和ECU — 84J418B (201808 – 201908)

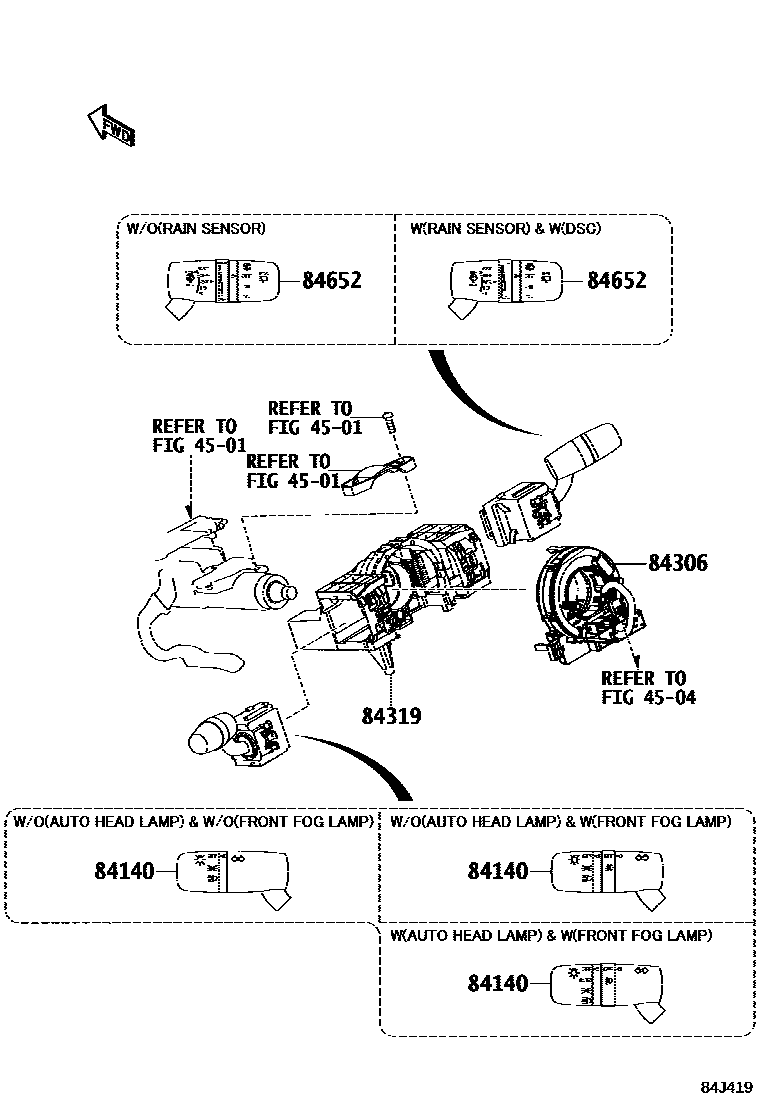

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J419 — 开关和继电器和ECU — 84J419 (201808 – 201908)

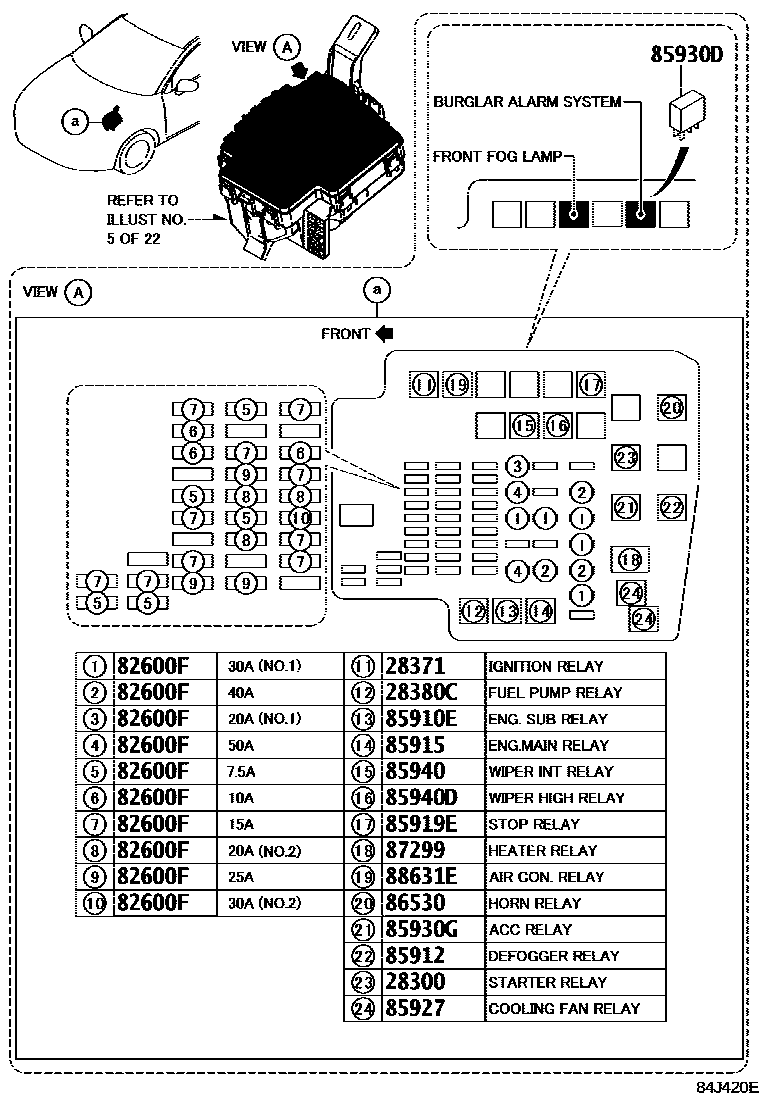

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J420E — 开关和继电器和ECU — 84J420E (201808 – 201908)

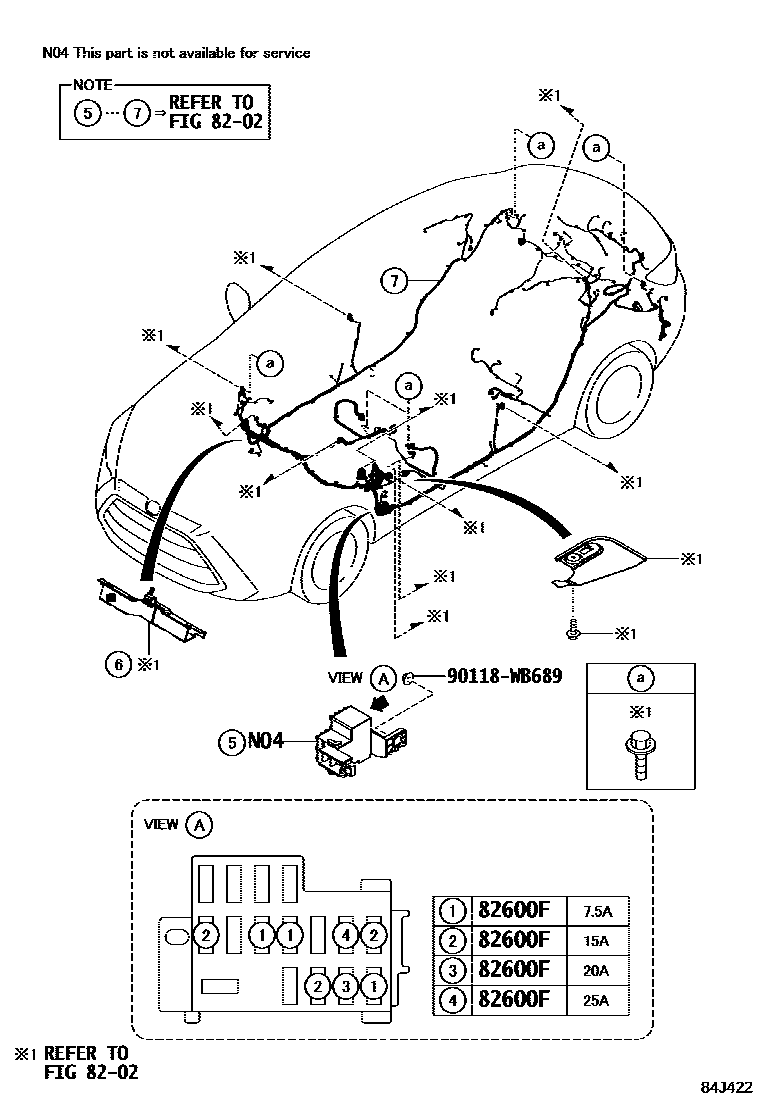

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J422 — 开关和继电器和ECU — 84J422 (201808 – 201908)

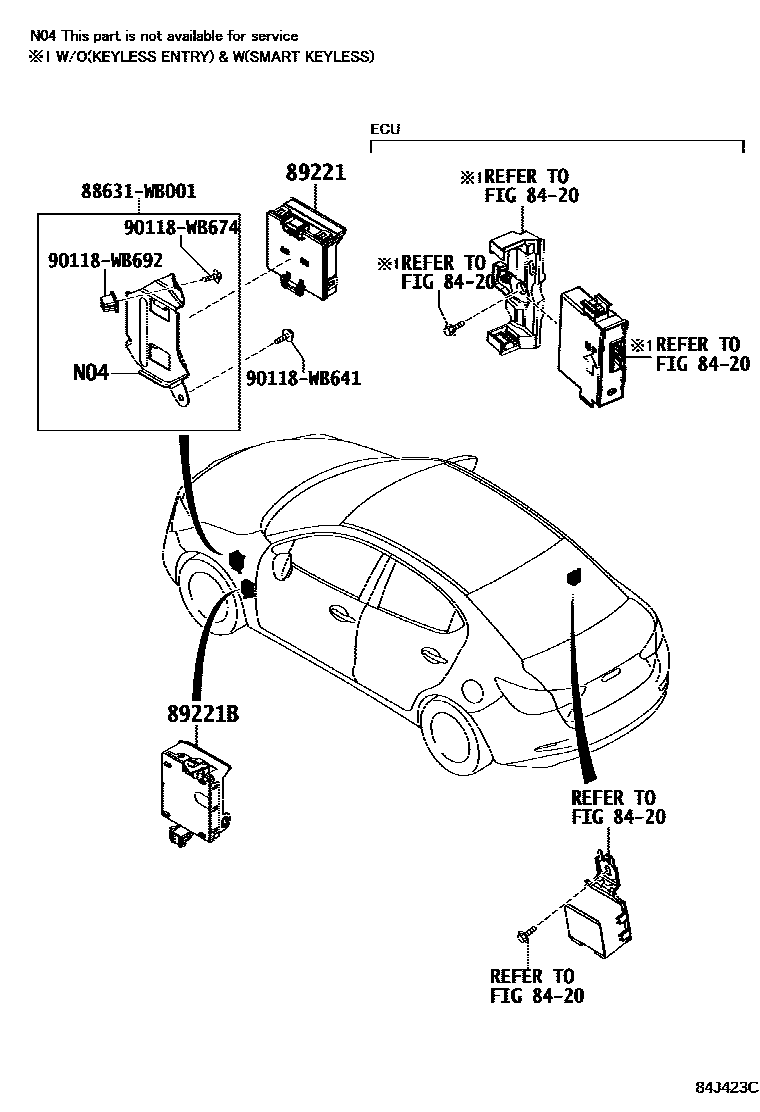

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J423C — 开关和继电器和ECU — 84J423C (201808 – 201908)

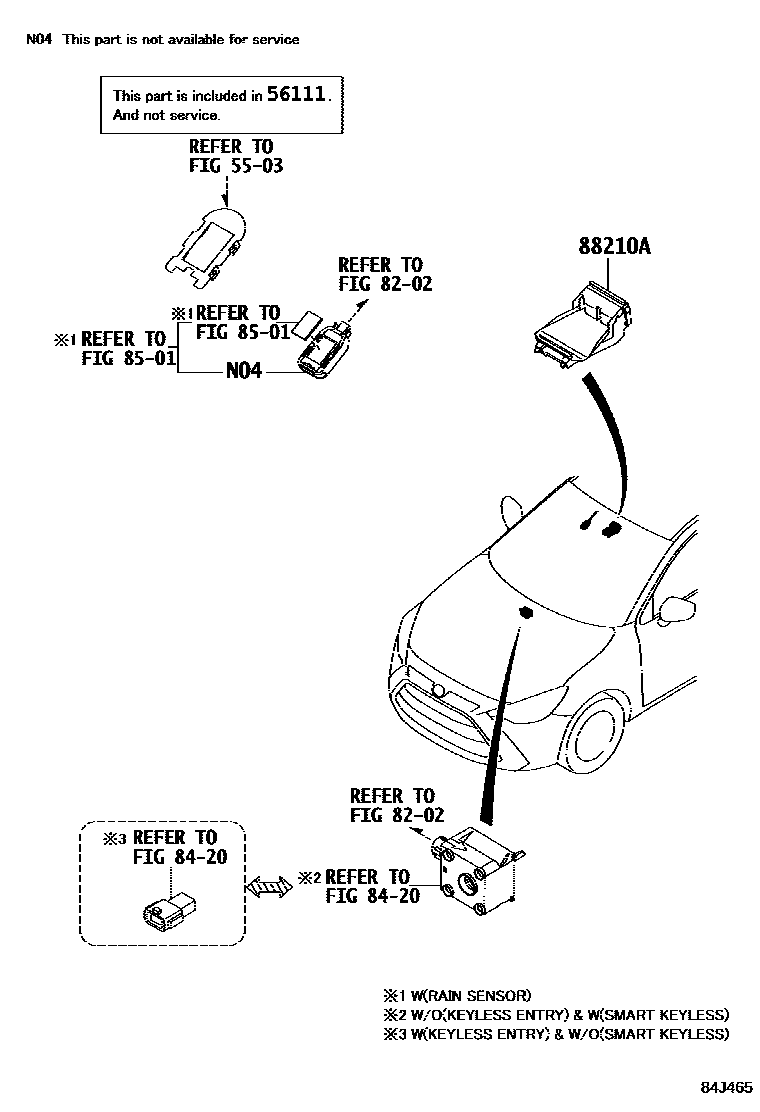

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J465 — 开关和继电器和ECU — 84J465 (201808 – 201908)

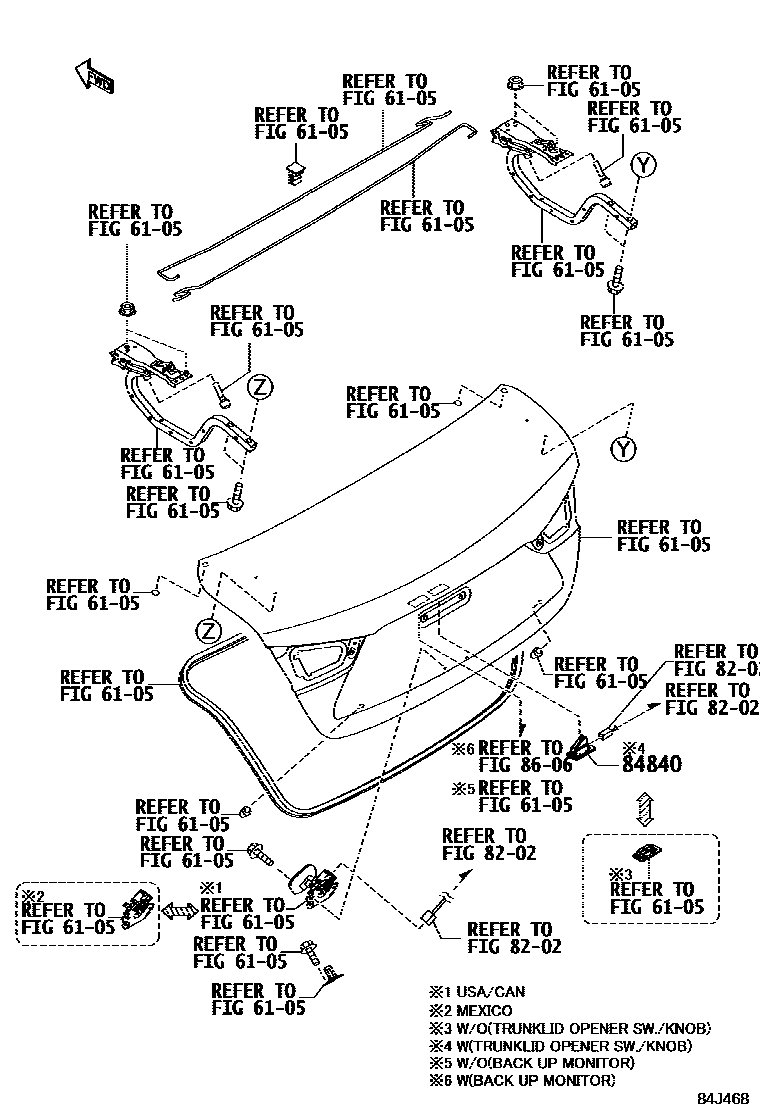

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J468 — 开关和继电器和ECU — 84J468 (201808 – 999999)

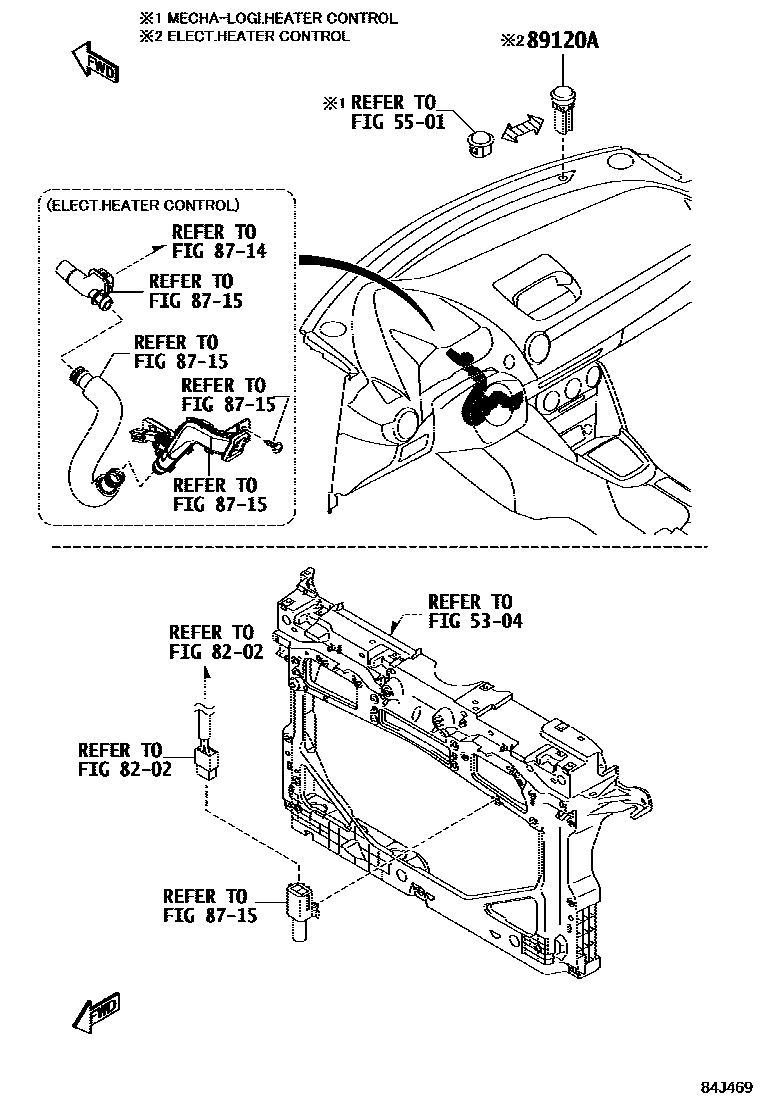

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J469 — 开关和继电器和ECU — 84J469 (201808 – 999999)

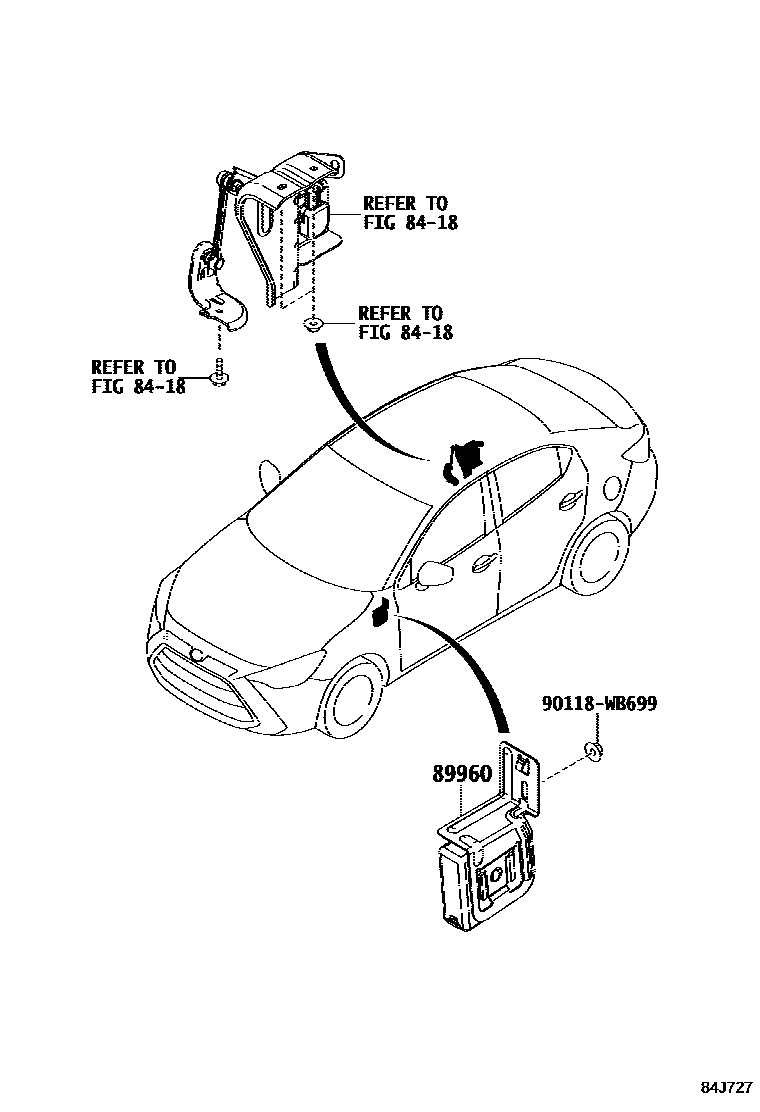

Toyota YARIS 开关和继电器和ECU EPC diagram — 84J727 — 开关和继电器和ECU — 84J727 (201808 – 999999)

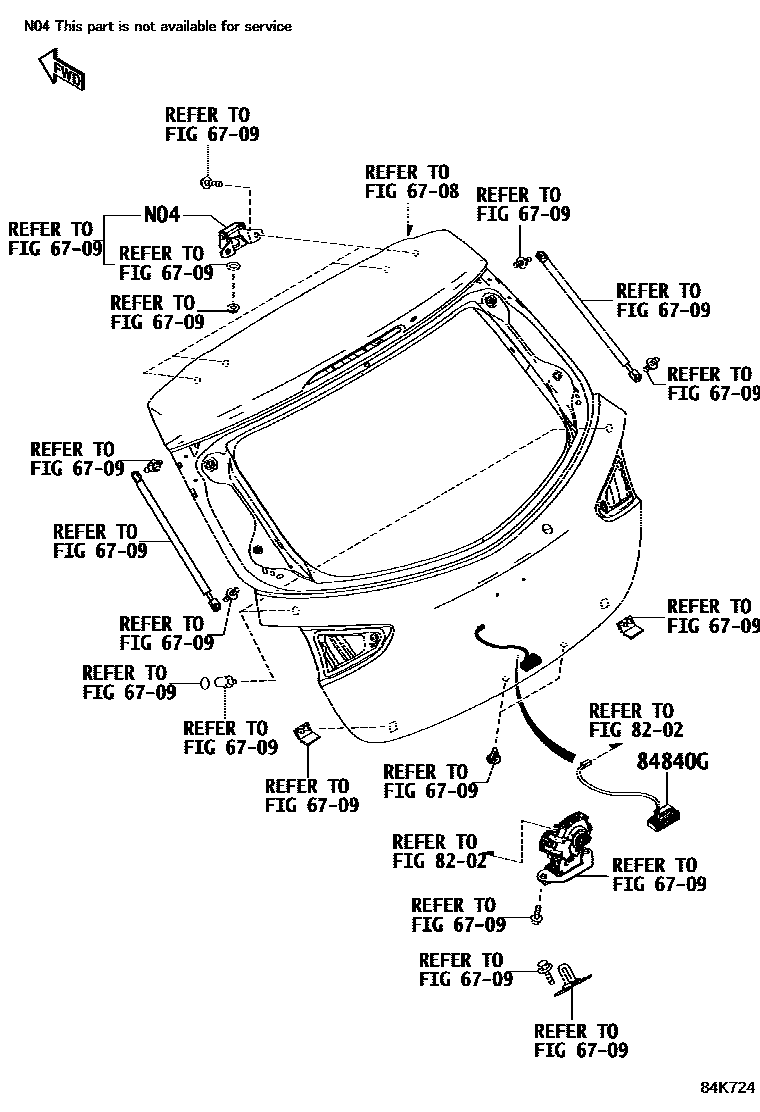

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K724 — 开关和继电器和ECU — 84K724 (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K727 — 开关和继电器和ECU — 84K727 (201908 – 999999)

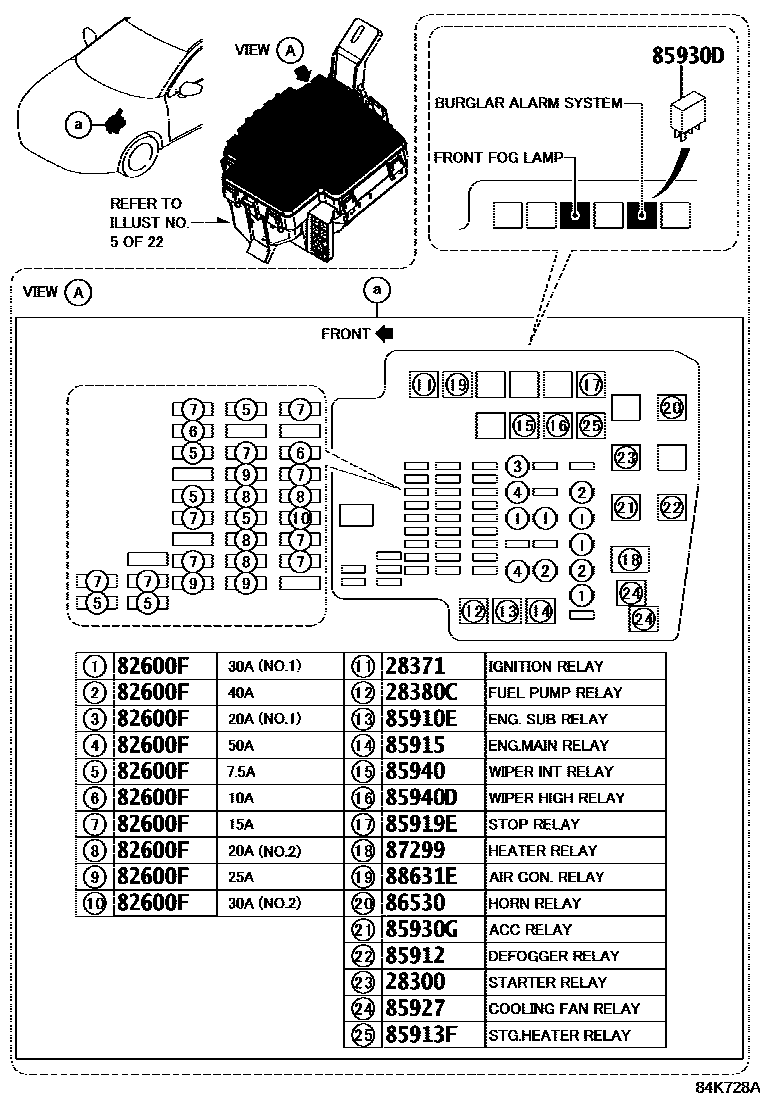

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K728A — 开关和继电器和ECU — 84K728A (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K729A — 开关和继电器和ECU — 84K729A (201908 – 999999)

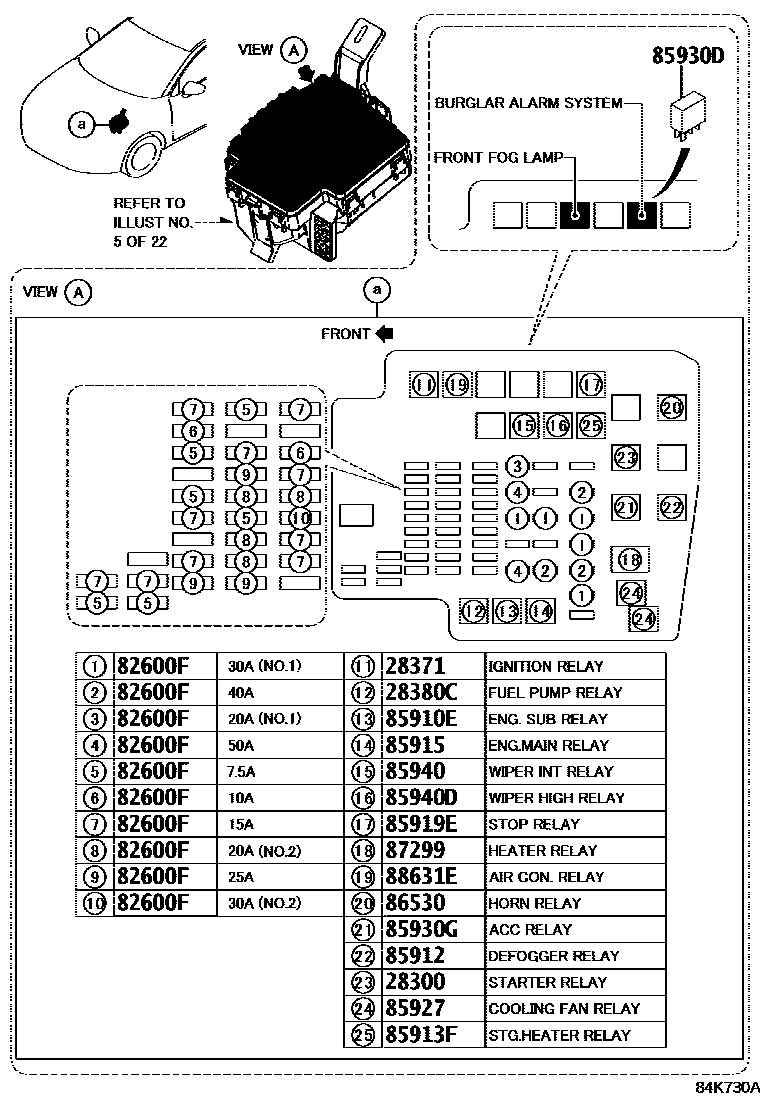

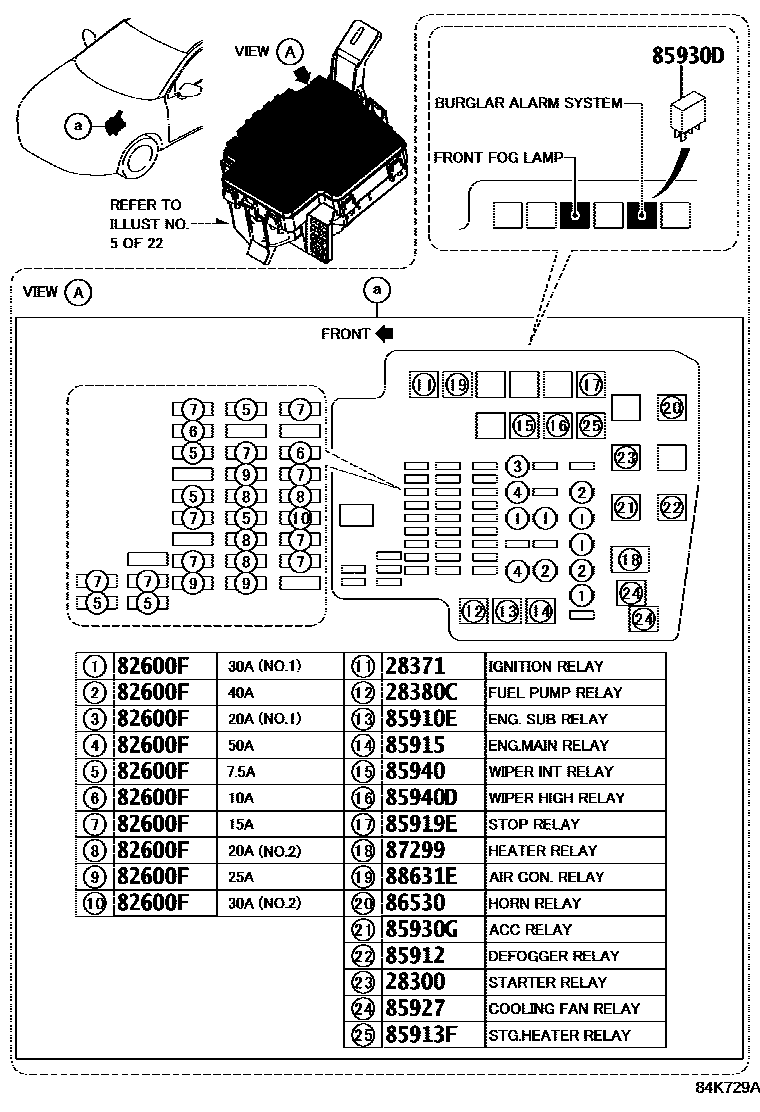

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K730A — 开关和继电器和ECU — 84K730A (201908 – 999999)

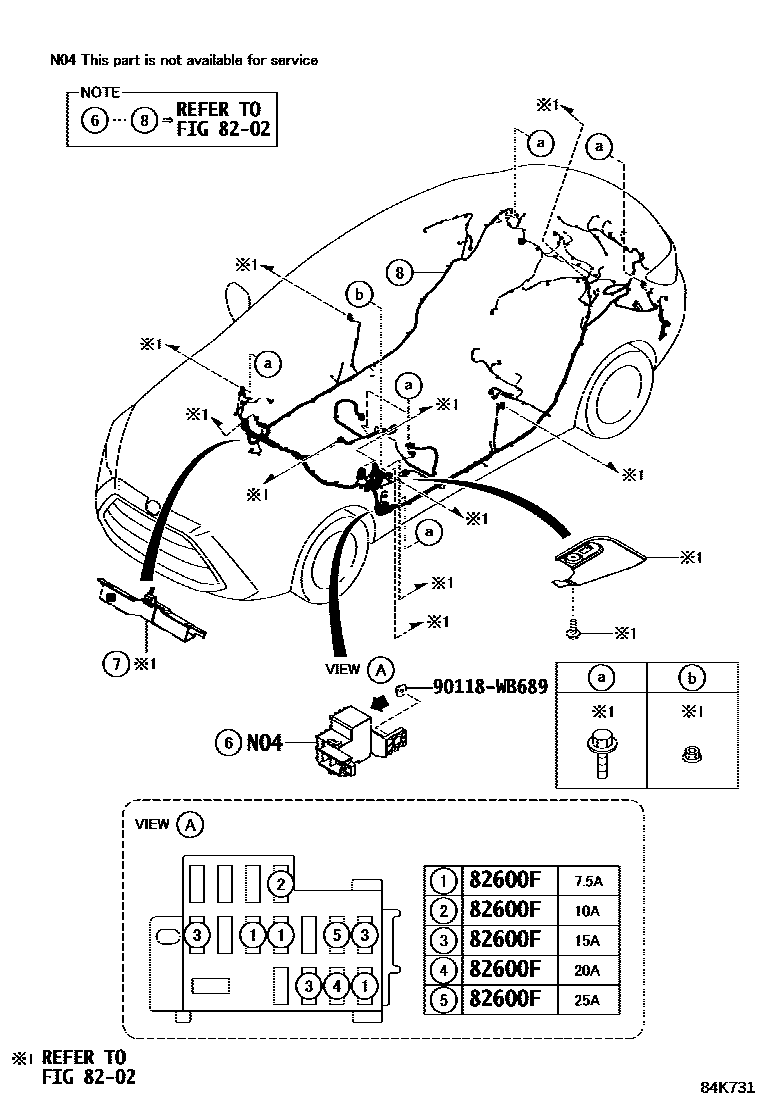

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K731 — 开关和继电器和ECU — 84K731 (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K732 — 开关和继电器和ECU — 84K732 (201908 – 999999)

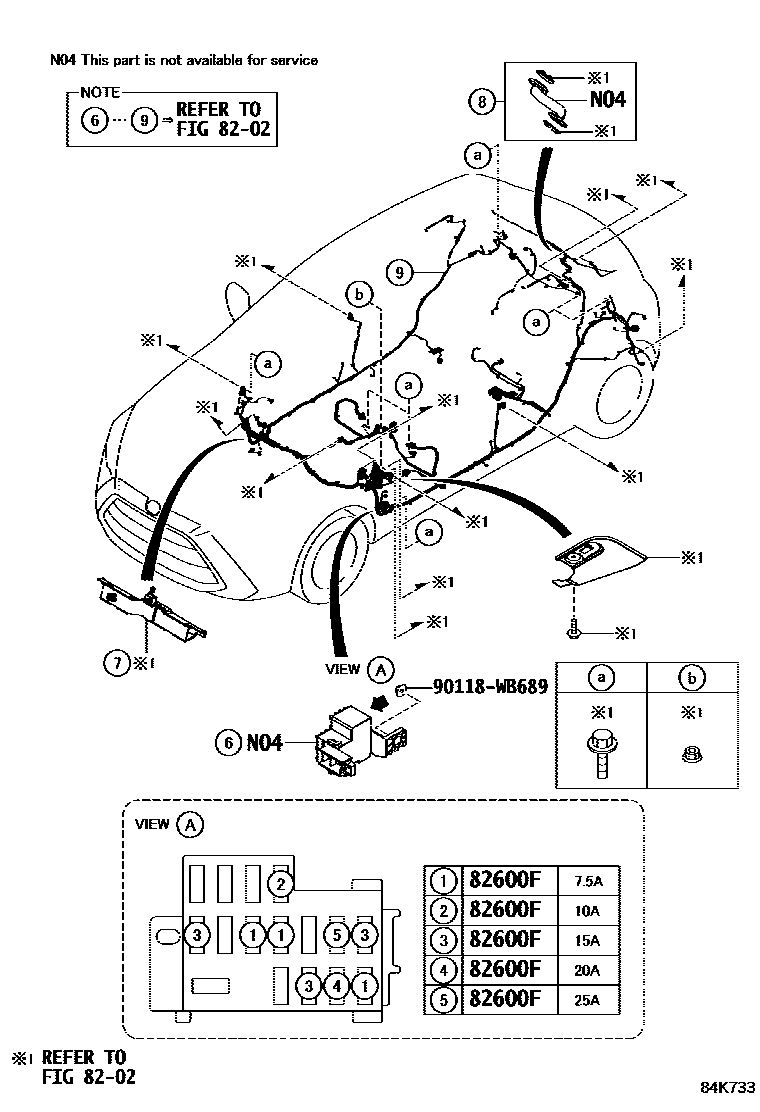

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K733 — 开关和继电器和ECU — 84K733 (201908 – 999999)

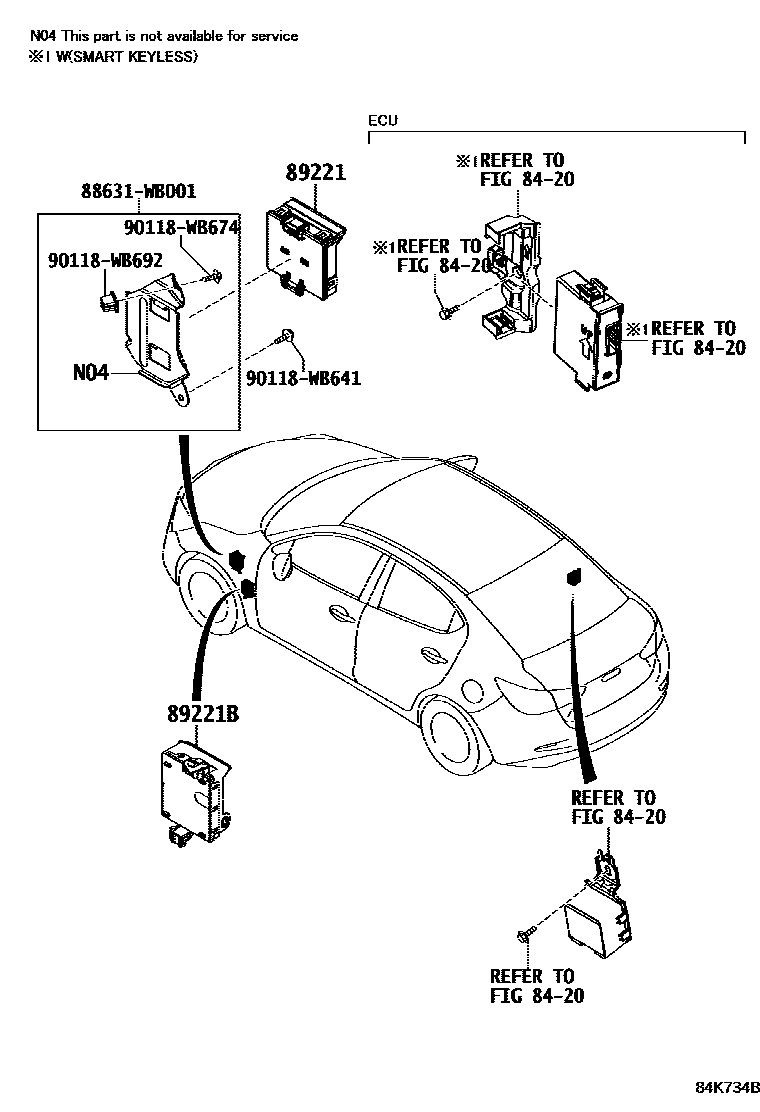

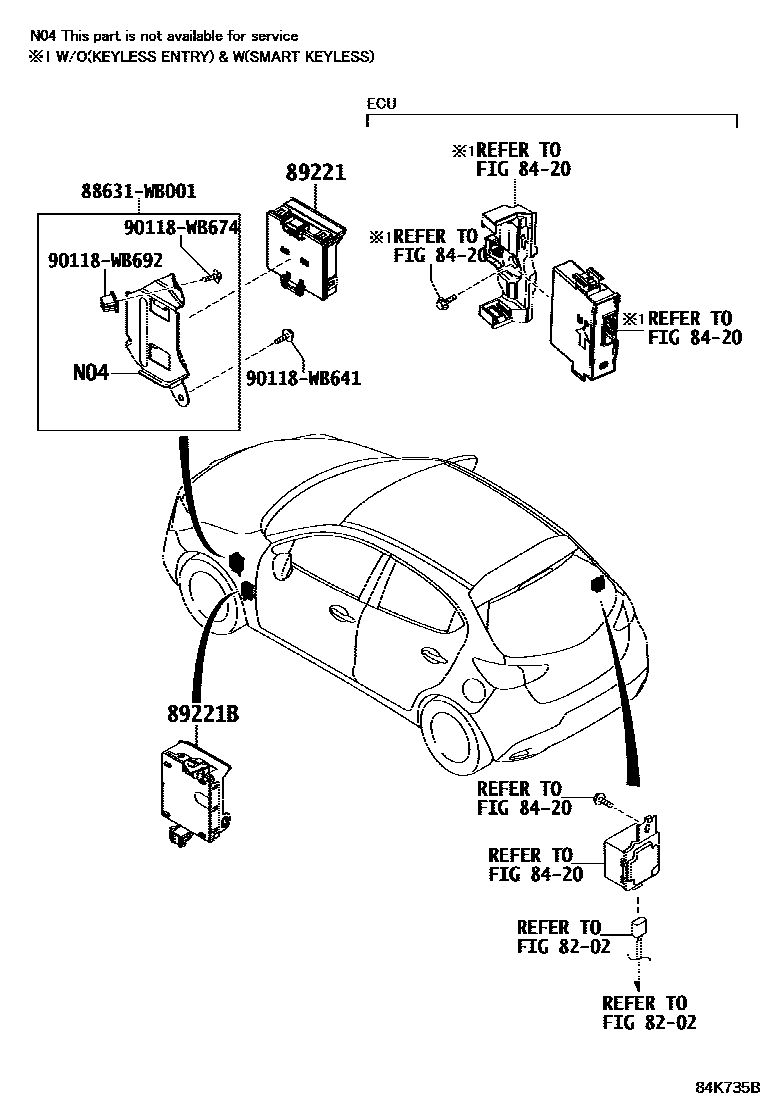

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K734B — 开关和继电器和ECU — 84K734B (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K735B — 开关和继电器和ECU — 84K735B (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K736 — 开关和继电器和ECU — 84K736 (201908 – 999999)

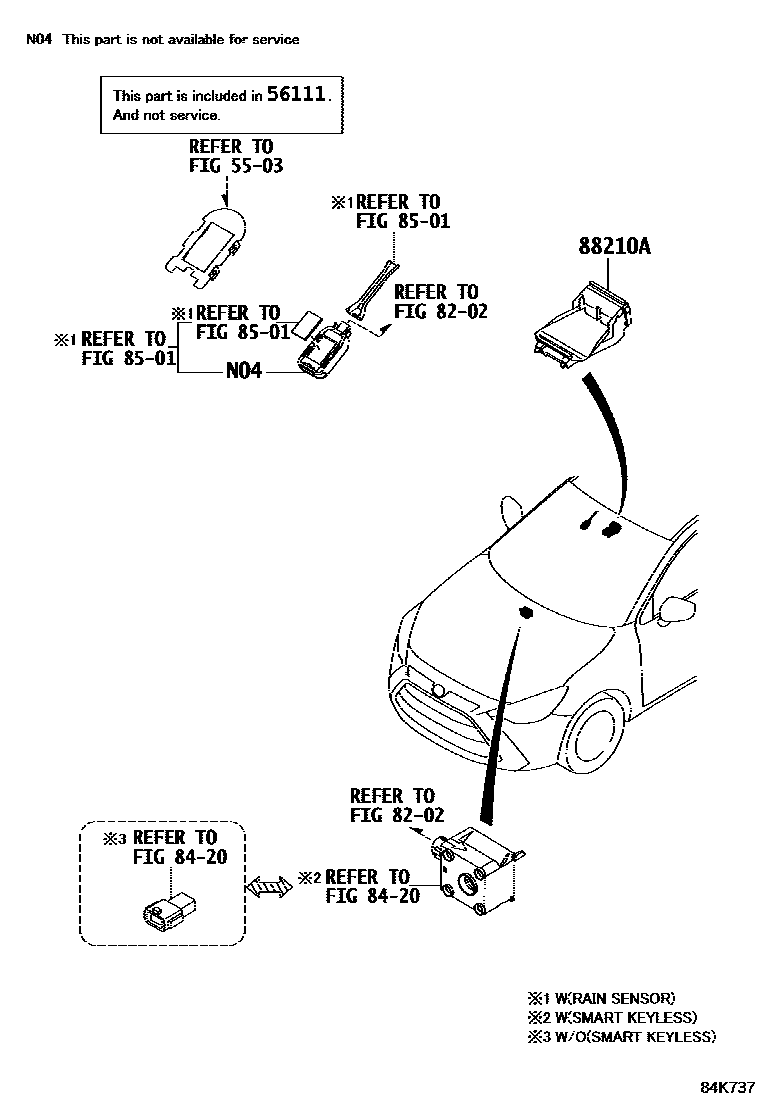

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K737 — 开关和继电器和ECU — 84K737 (201908 – 999999)

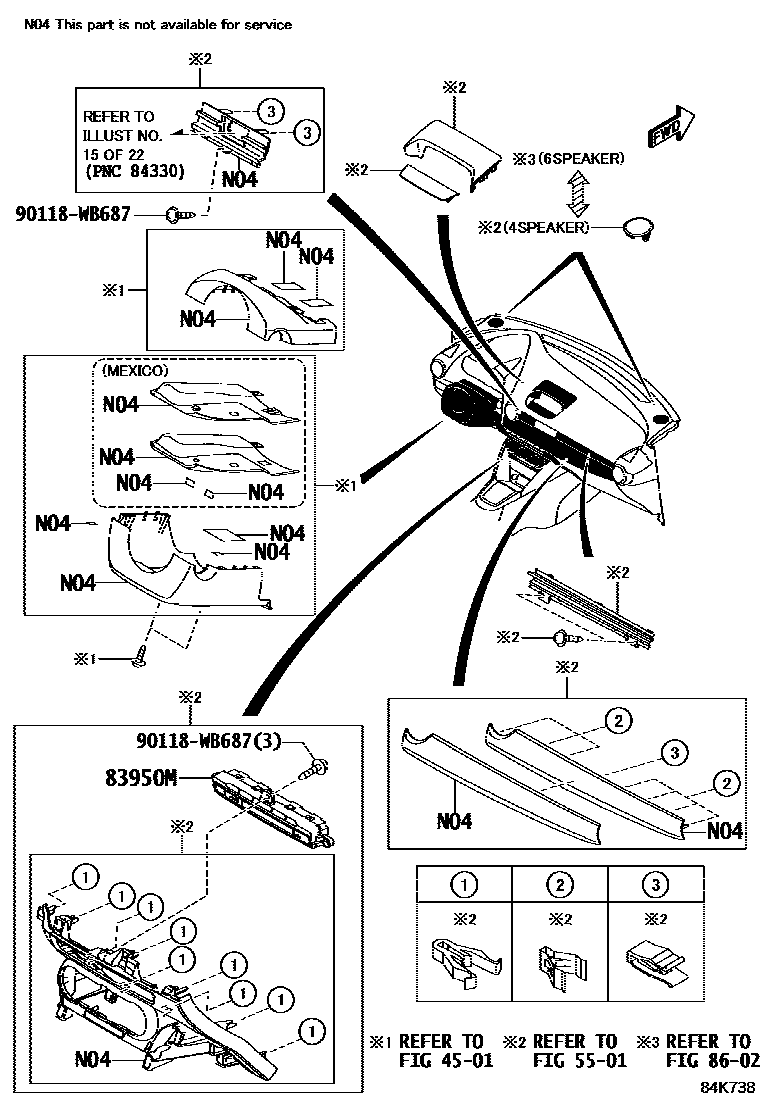

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K738 — 开关和继电器和ECU — 84K738 (201908 – 999999)

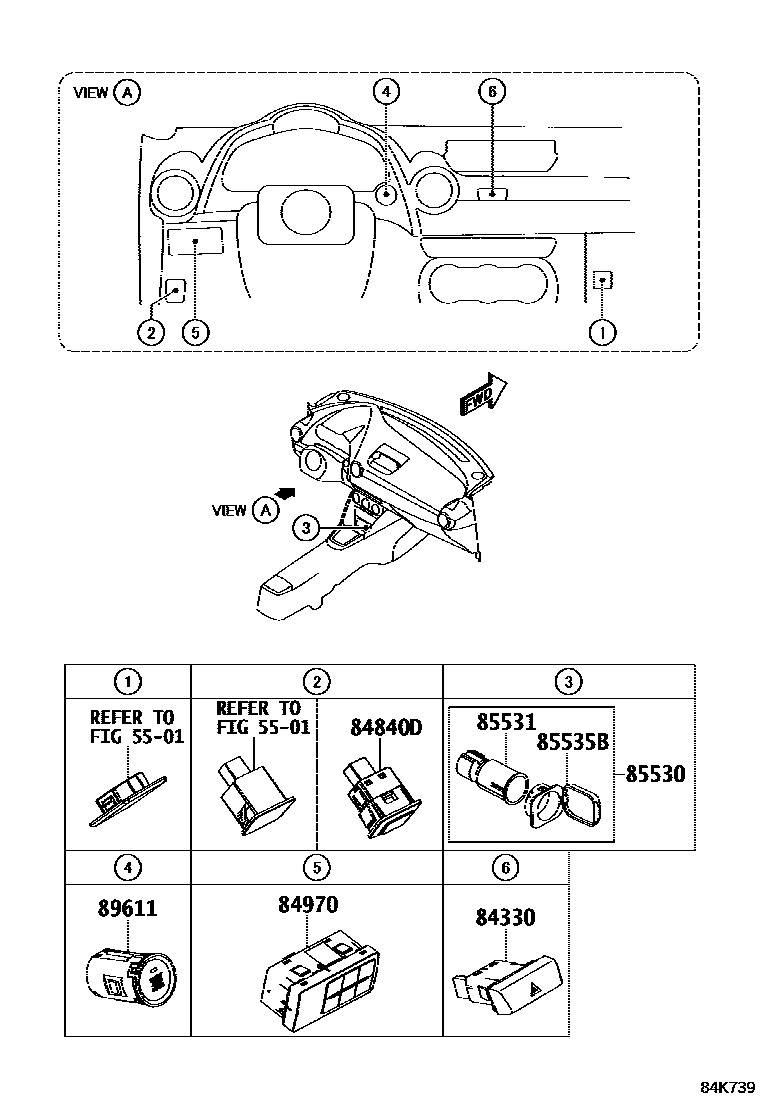

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K739 — 开关和继电器和ECU — 84K739 (201908 – 999999)

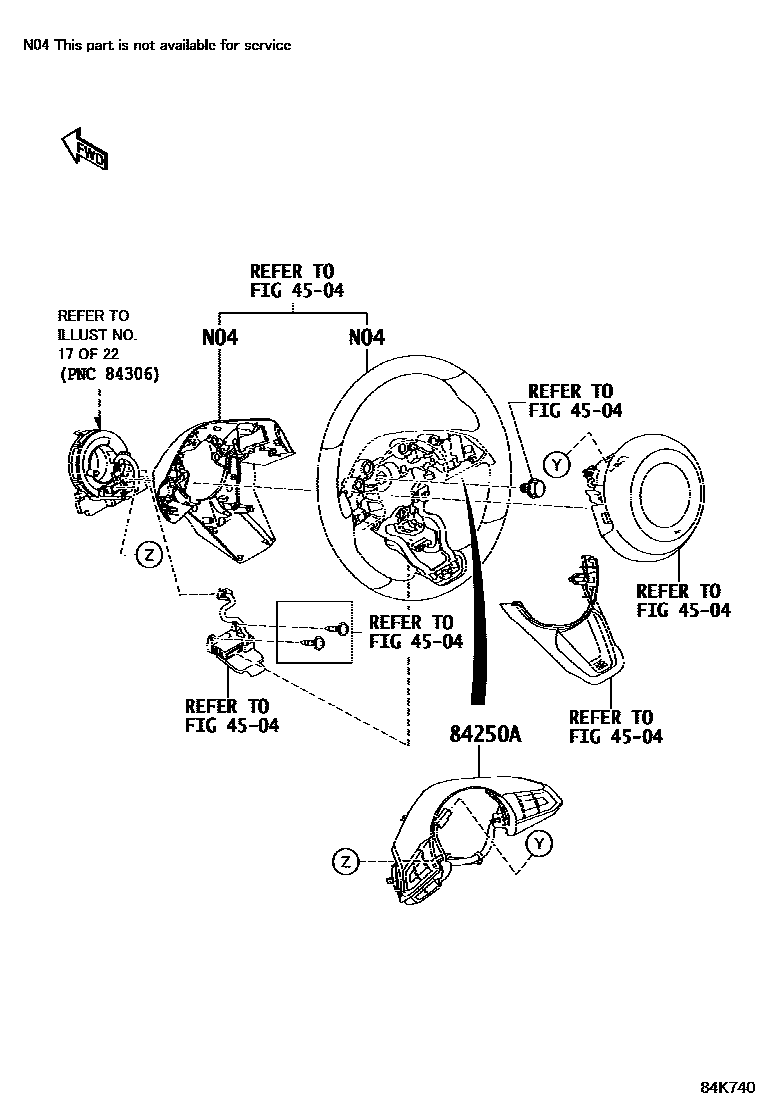

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K740 — 开关和继电器和ECU — 84K740 (201908 – 999999)

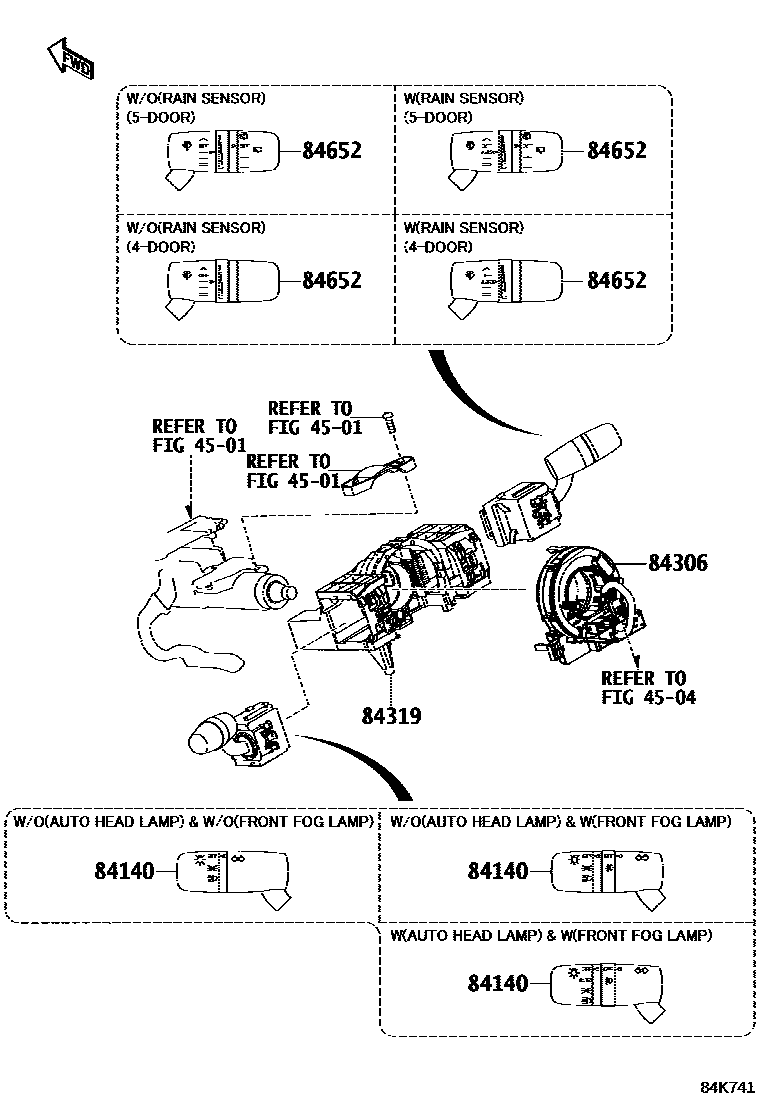

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K741 — 开关和继电器和ECU — 84K741 (201908 – 999999)

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K742 — 开关和继电器和ECU — 84K742 (201908 – 999999)

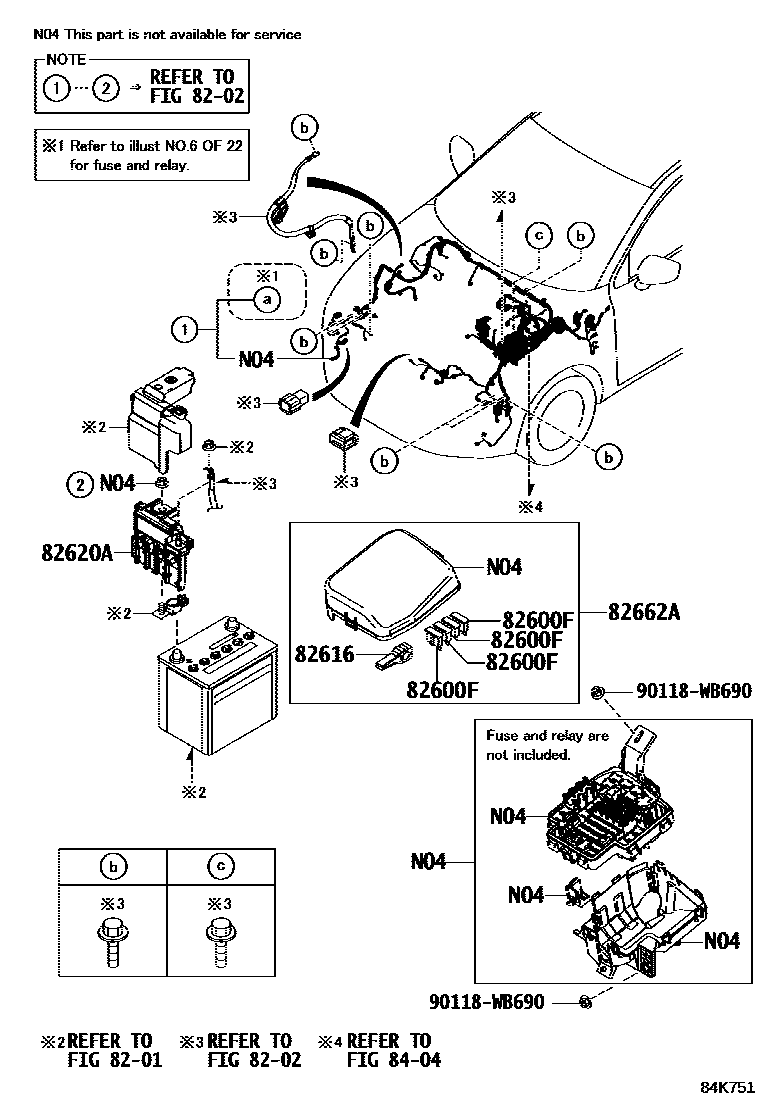

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K751 — 开关和继电器和ECU — 84K751 (201908 – 999999)

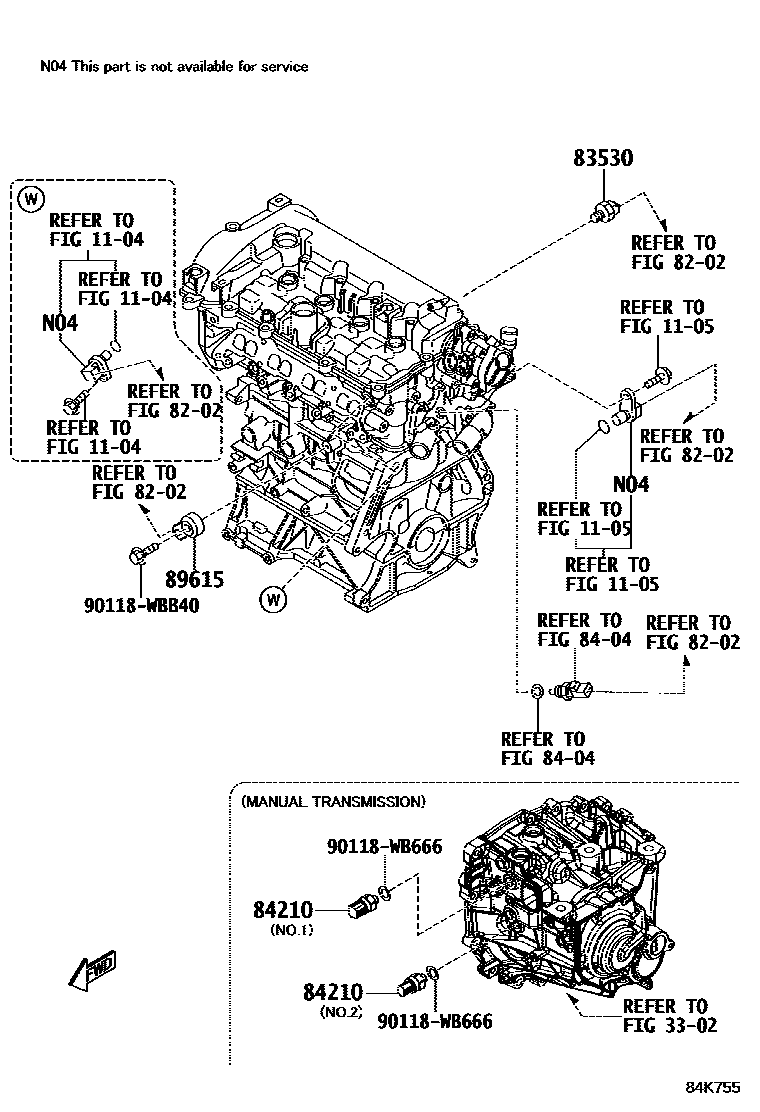

Toyota YARIS 开关和继电器和ECU EPC diagram — 84K755 — 开关和继电器和ECU — 84K755 (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
28300	Starter relay assembly	90118-WB766
28371	No. 1 ignition relay	90118-WB756 · 90118-WB759
28380C	Fuel pump relay assembly	90118-WB705 · 90118-WB756
82600F	Spare fuse	90118-WB058 · 90118-WB059 · 90118-WB060 · 90118-WB415 · 90118-WB811 · 90118-WB812 · 90118-WB813 · 90118-WB814 · 90118-WB815 · 90118-WB816
82616	fuse puller	82616-WB001
82620A	Fuse box assembly	90118-WB108
82662A	No. 1 relay box upper cover	82662-WB001 · 82662-WB002 · 82662-WB003
83320	Fuel gauge sensor assembly	83320-WB001
83530	Oil pressure switch assembly (for engine)	83530-WB001 · 83530-WB004
83530H	Oil pressure switch assembly	83530-WB002 · 83530-WB003 · 83530-WB005 · 83530-WB006
83950M	Warning light assembly	83950-WB001 · 83950-WB002 · 83950-WB004 · 83950-WB006
84040	Multi-channel network main switch assembly	84820-WB003 · 84820-WB005
84140	Headlight dimmer switch assembly	84140-WB004 · 84140-WB005 · 84140-WB007 · 84140-WB008 · 84140-WB009 · 84140-WB010 · 84140-WB011
84204	Steering wheel decorative cover switch cable sub-assembly	84204-WB002 · 84204-WB003
84210	Reversing light switch assembly	84210-WB001 · 84210-WB002 · 84210-WB003
84244B	Steering wheel decorative cover right switch	84244-WB001
84247A	Steering wheel decorative cover left switch	84247-WB002
84250A	Steering wheel decorative cover switch assembly	84250-WB002 · 84250-WB003 · 84250-WB005 · 84250-WB006 · 84250-WB007 · 84250-WB008
84306	Spiral cable sub-assembly	84306-WB001 · 84306-WB002 · 84306-WB004 · 84306-WB005 · 84306-WB007 · 84306-WB008 · 84306-WB009
84319	Steering wheel switch housing	84319-WB005 · 84319-WB008 · 84319-WB009
84330	Hazard warning signal switch assembly	84332-WB001
84340	brake light switch assembly	84340-WB001 · 84340-WB002
84520	Clutch start switch assembly	84520-WB001
84520E	No. 2 clutch start switch assembly	84520-WB002
84550	Parking brake switch assembly	84550-WB001
84652	Windshield wiper switch button (for washer)	84652-WB001 · 84652-WB004 · 84652-WB005 · 84652-WB006
84810	Electric window lift switch assembly	84810-WB002
84810D	Rear electric window lift switch assembly	84810-WB002
84840	Trunk door opening switch assembly	84840-WB003
84840D	Trunk door opening switch assembly	84840-WB001
84840G	Back door opener switch assembly	84840-WB004
84930	Door control switch assembly	84810-WB003
84970	Combination switch assembly	84970-WB001 · 84970-WB002 · 84970-WB003 · 84970-WB004 · 84970-WB005
85530	No. 1 power socket assembly	85530-WB001
85531	power socket	85531-WB001
85535B	No. 1 power outlet cover	85535-WB001
85910E	Injector relay	90118-WB756
85912	defogger relay	90118-WB766
85913F	Steering heater relay	90118-WB766
85915	main relay	90118-WB756
85915E	relay	90118-WB766
85919E	brake light relay	90118-WB485
85927	cooling fan relay	90118-WB766
85930D	relay	90118-WB726
85930G	ACC relay	90118-WB766
85940	Windshield wiper relay assembly	90118-WB485
85940D	No. 2 windshield wiper relay assembly	90118-WB485
86530	Speaker relay assembly	90118-WB766
87299	heater relay	90118-WB746
88210A	ENSEMBLE CAPTEUR, RADAR LASER	88210-WB001
88631E	air conditioning relay	90118-WB766
89120A	Automatic light control sensor	89121-WB001
89221	Multi-channel network body ECU	89221-WB005 · 89221-WB009
89221B	ORDINATEUR, CORPS	89221-WB006 · 89221-WB007 · 89221-WB008
89422A	water temperature sensor	89422-WB002
89465	oxygen sensor	89465-WB001 · 89465-WB002
89467B	air fuel ratio sensor	89467-WB001 · 89467-WB002
89611	push button start switch	89611-WB001
89615	knock control sensor	89615-WB001
89960	Headlight beam height adjustment ECU assembly	81107-WB002
