Toyota YARIS 仪表 — Figure 8301

Toyota YARIS EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.

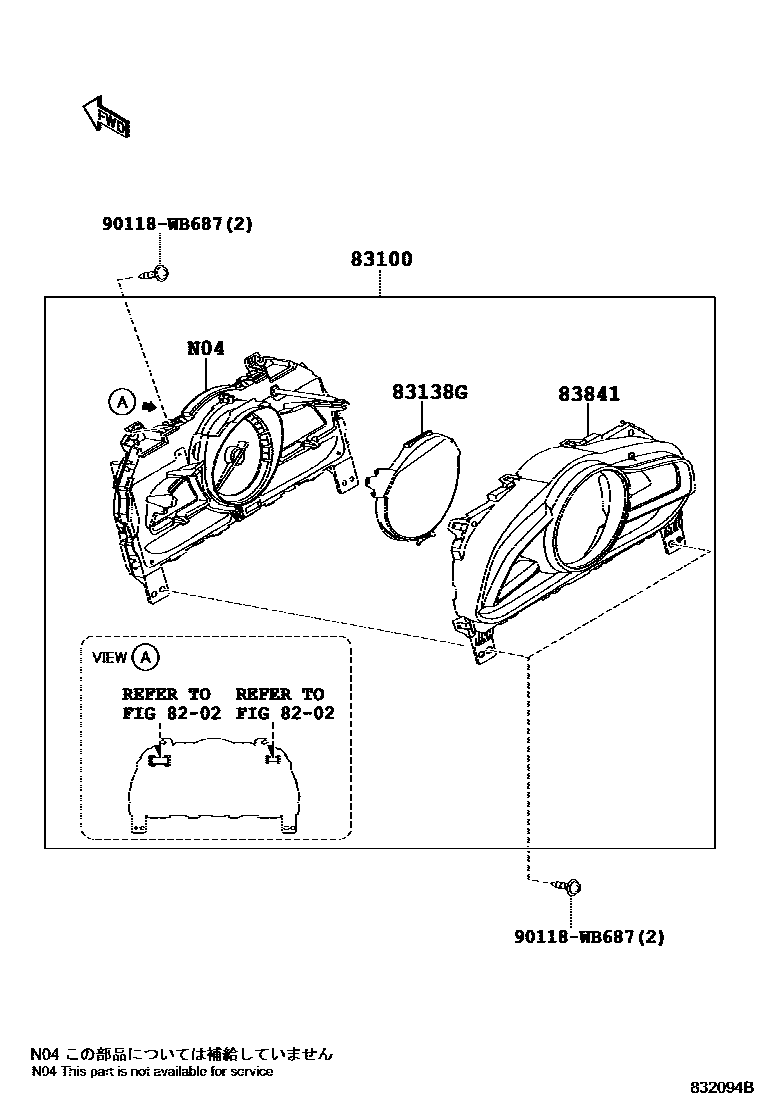

Toyota YARIS 仪表 EPC diagram — 832094B
仪表 — 832094B (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-WB017 · 83800-WB018 · 83800-WB019 · 83800-WB020 · 83800-WB021 · 83800-WB022 · 83800-WB023 · 83800-WB024 · 83800-WB025 · 83800-WB038 · 83800-WB039 · 83800-WB040 · 83800-WB041 · 83800-WB042 · 83800-WB043 · 83800-WB044 · 83800-WB045 · 83800-WB046 · 83800-WB047 · 83800-WB048 · 83800-WB049
83138GInstrument cluster glass83852-WB001
83841Warning light housing83841-WB001 · 83841-WB002 · 83841-WB005
