Toyota YARIS 线束和卡夹 — Figure 8202

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 59 images and 40 PNC and OE references.

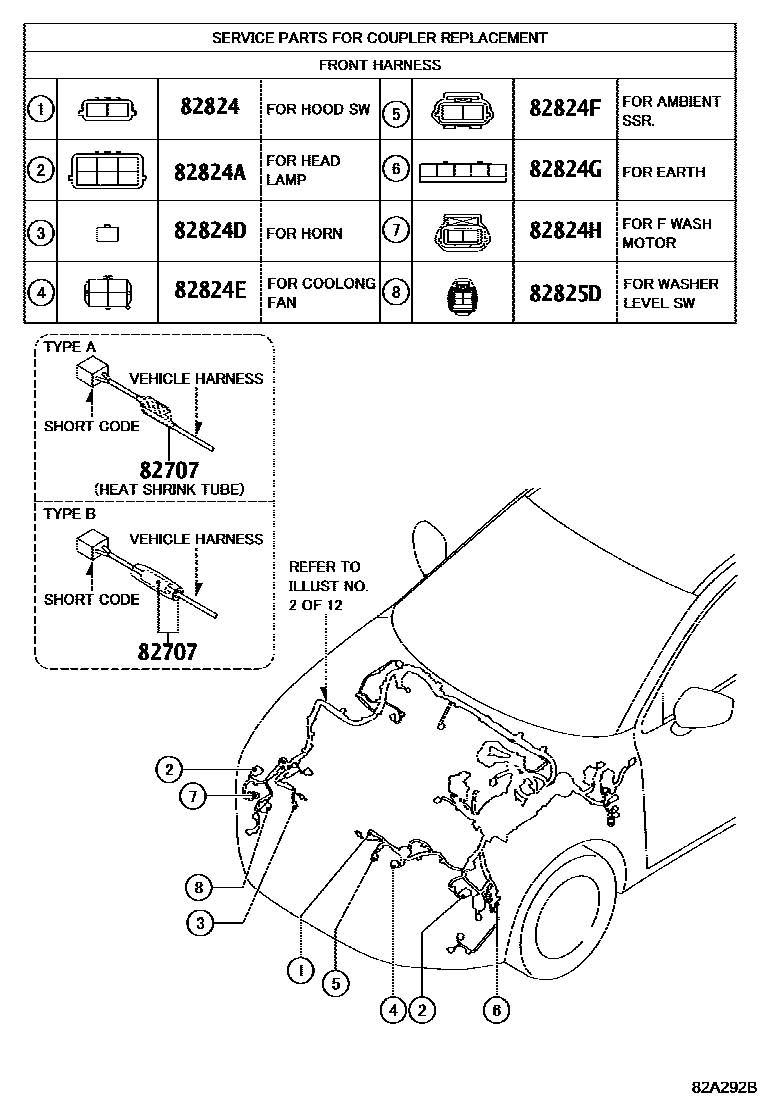

Toyota YARIS 线束和卡夹 EPC diagram — 82A292B — 线束和卡夹 — 82A292B (201506 – 201808)

Toyota YARIS 线束和卡夹 EPC diagram — 82A293 — 线束和卡夹 — 82A293 (201506 – 201808)

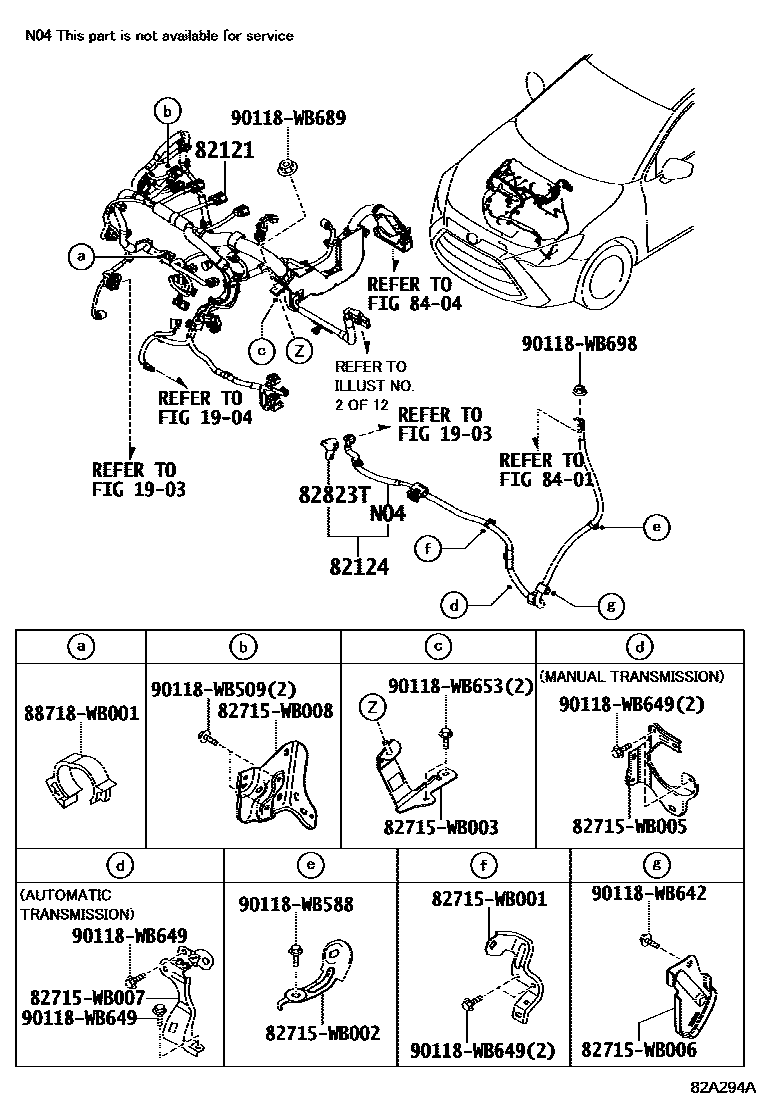

Toyota YARIS 线束和卡夹 EPC diagram — 82A294A — 线束和卡夹 — 82A294A (201506 – 201802)

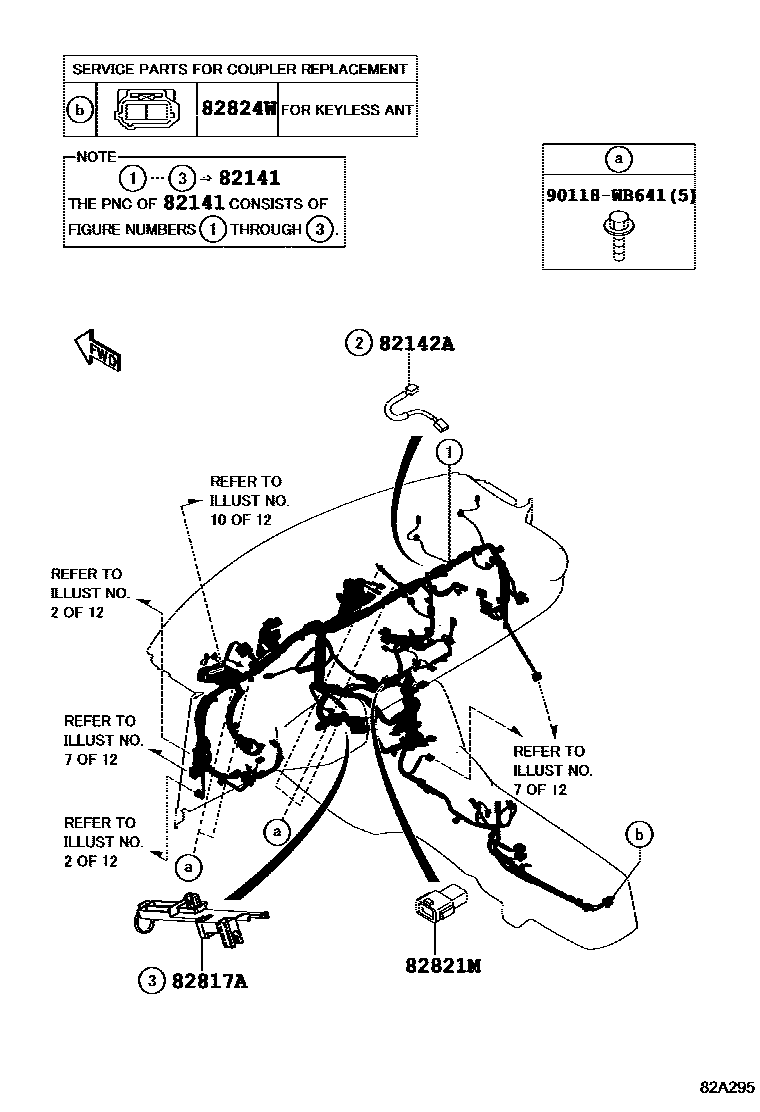

Toyota YARIS 线束和卡夹 EPC diagram — 82A295 — 线束和卡夹 — 82A295 (201506 – 201808)

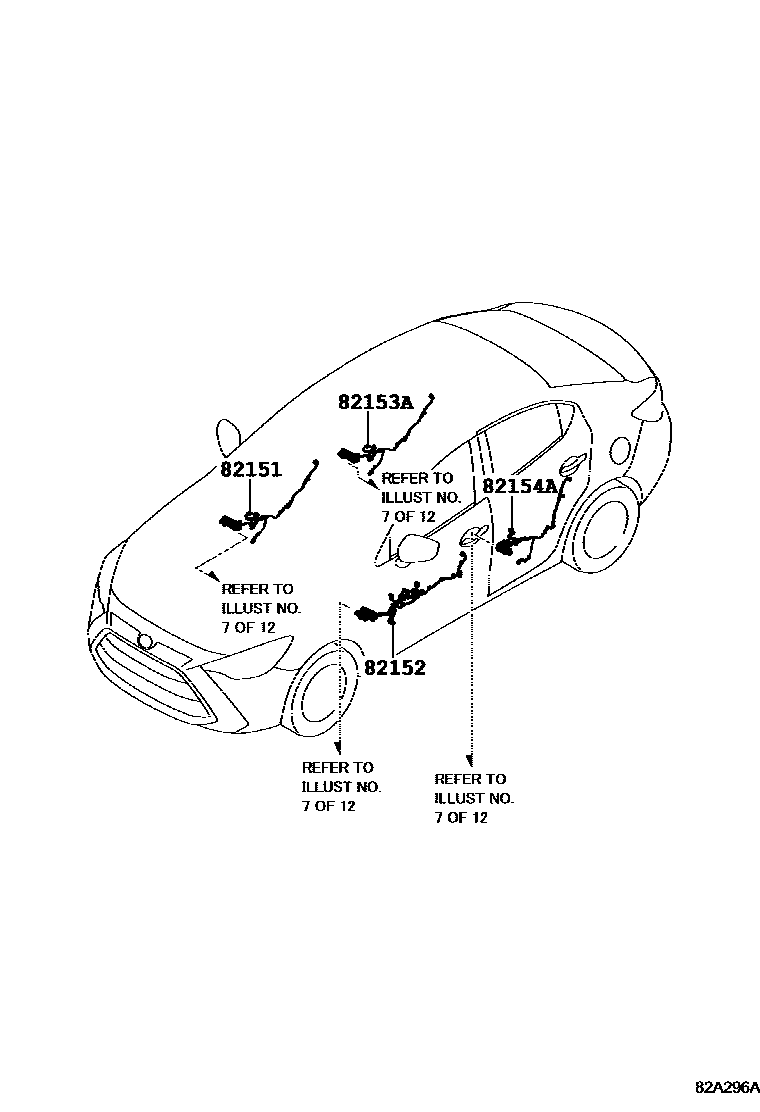

Toyota YARIS 线束和卡夹 EPC diagram — 82A296A — 线束和卡夹 — 82A296A (201506 – 201808)

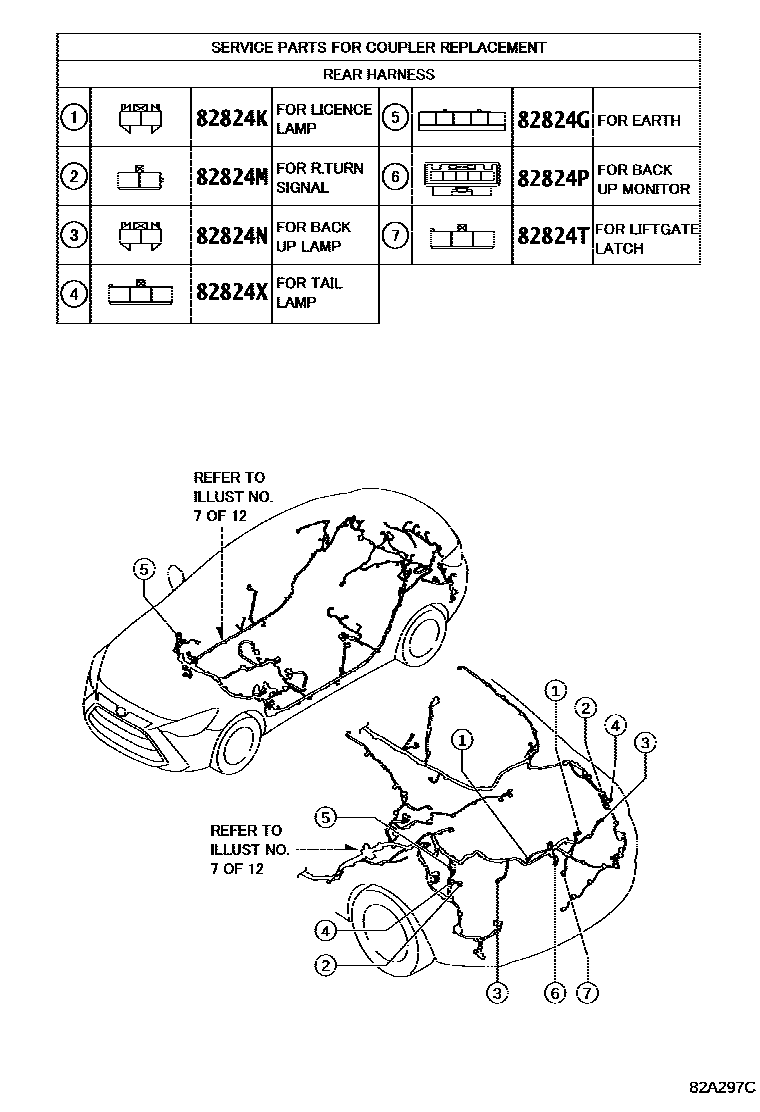

Toyota YARIS 线束和卡夹 EPC diagram — 82A297C — 线束和卡夹 — 82A297C (201506 – 201808)

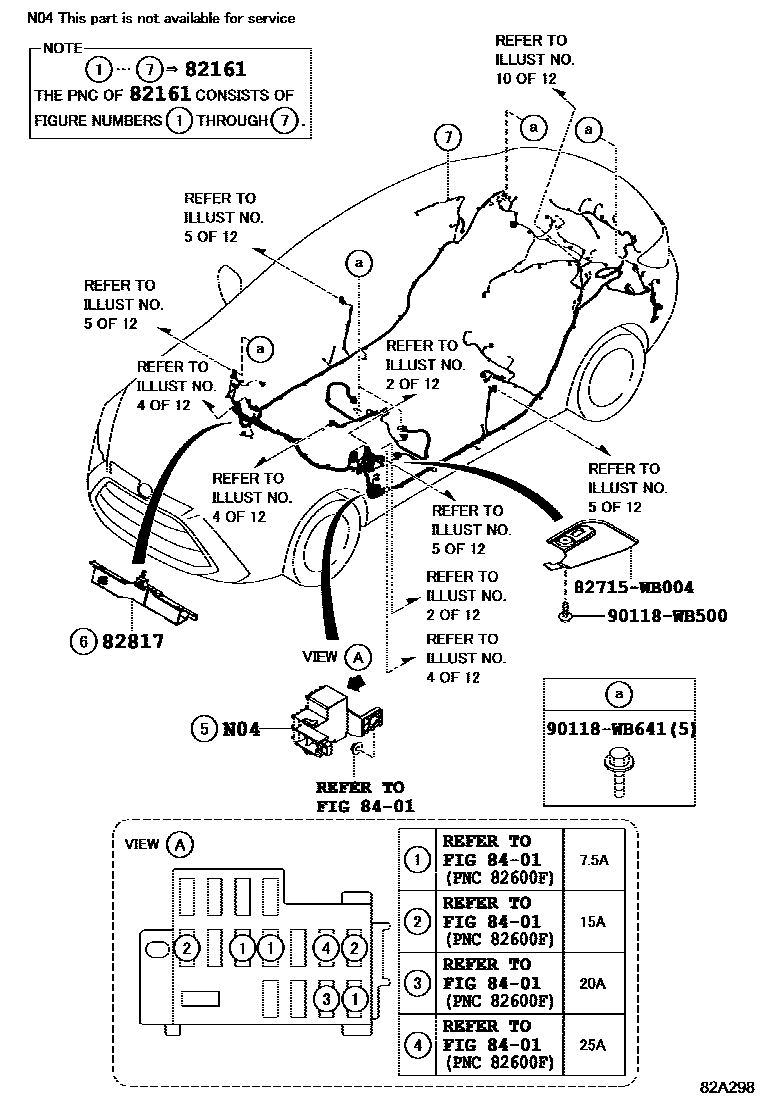

Toyota YARIS 线束和卡夹 EPC diagram — 82A298 — 线束和卡夹 — 82A298 (201506 – 201808)

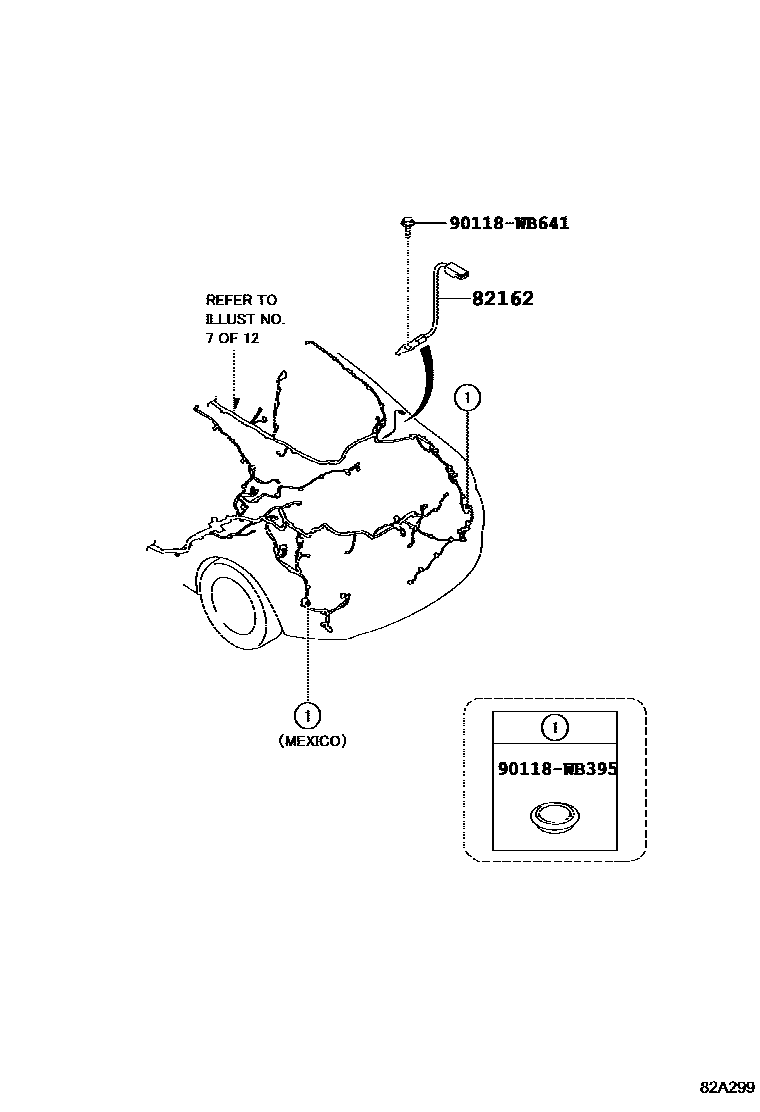

Toyota YARIS 线束和卡夹 EPC diagram — 82A299 — 线束和卡夹 — 82A299 (201506 – 201808)

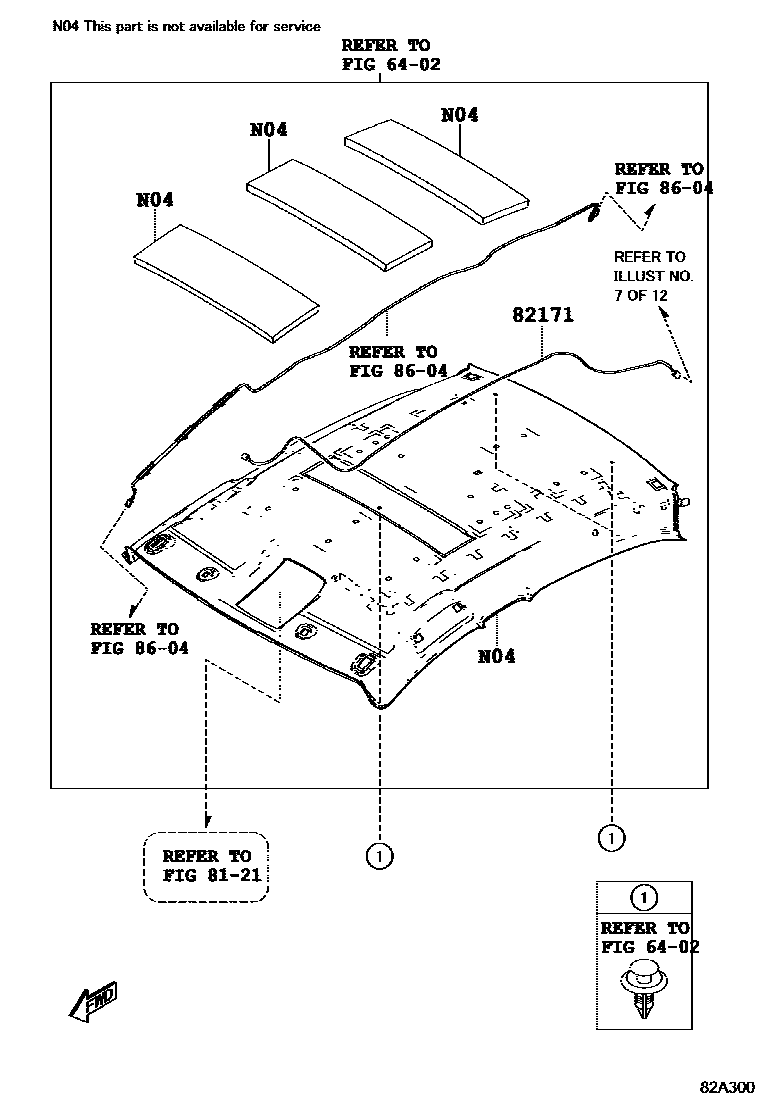

Toyota YARIS 线束和卡夹 EPC diagram — 82A300 — 线束和卡夹 — 82A300 (201506 – 201808)

Toyota YARIS 线束和卡夹 EPC diagram — 82A301 — 线束和卡夹 — 82A301 (201506 – 201808)

Toyota YARIS 线束和卡夹 EPC diagram — 82A302 — 线束和卡夹 — 82A302 (201506 – 201708)

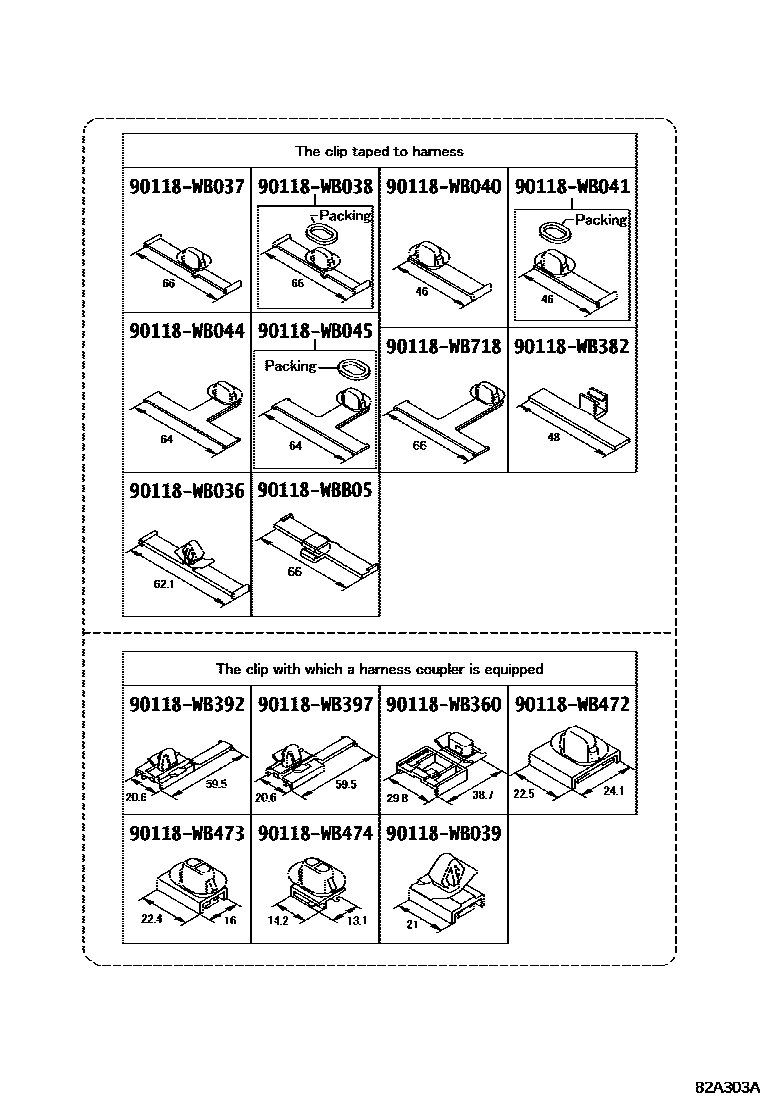

Toyota YARIS 线束和卡夹 EPC diagram — 82A303A — 线束和卡夹 — 82A303A (201506 – 201808)

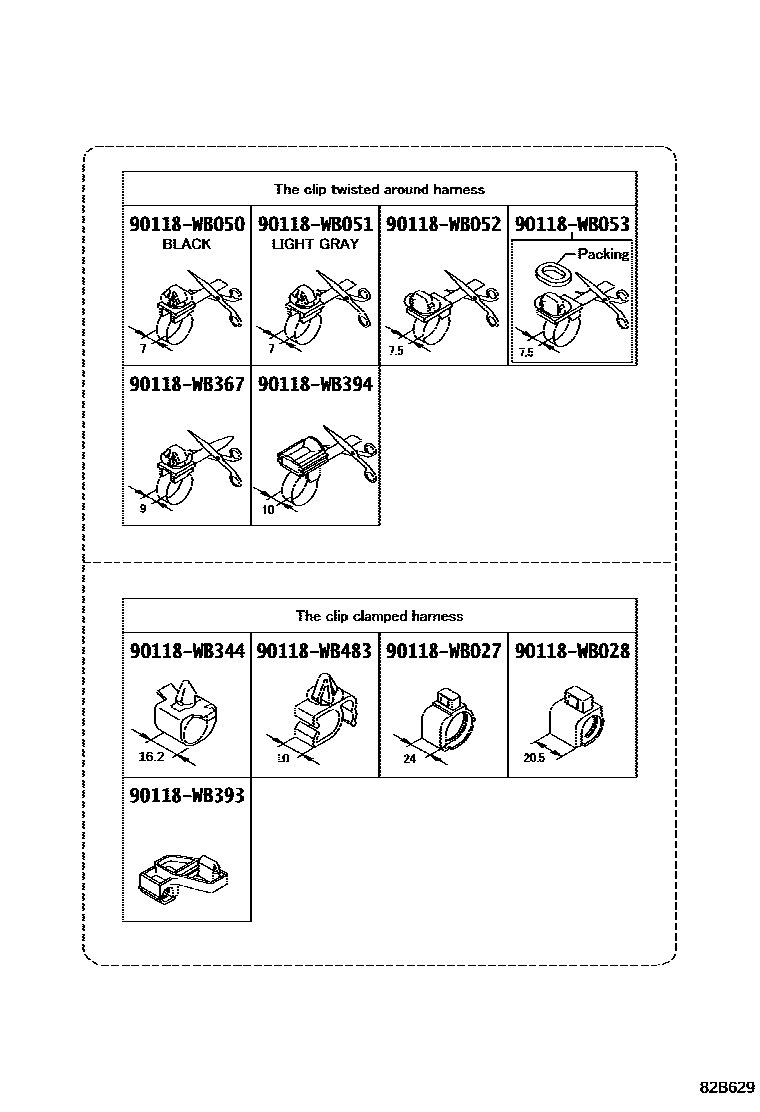

Toyota YARIS 线束和卡夹 EPC diagram — 82B629 — 线束和卡夹 — 82B629 (201708 – 201808)

Toyota YARIS 线束和卡夹 EPC diagram — 82C133 — 线束和卡夹 — 82C133 (201802 – 201908)

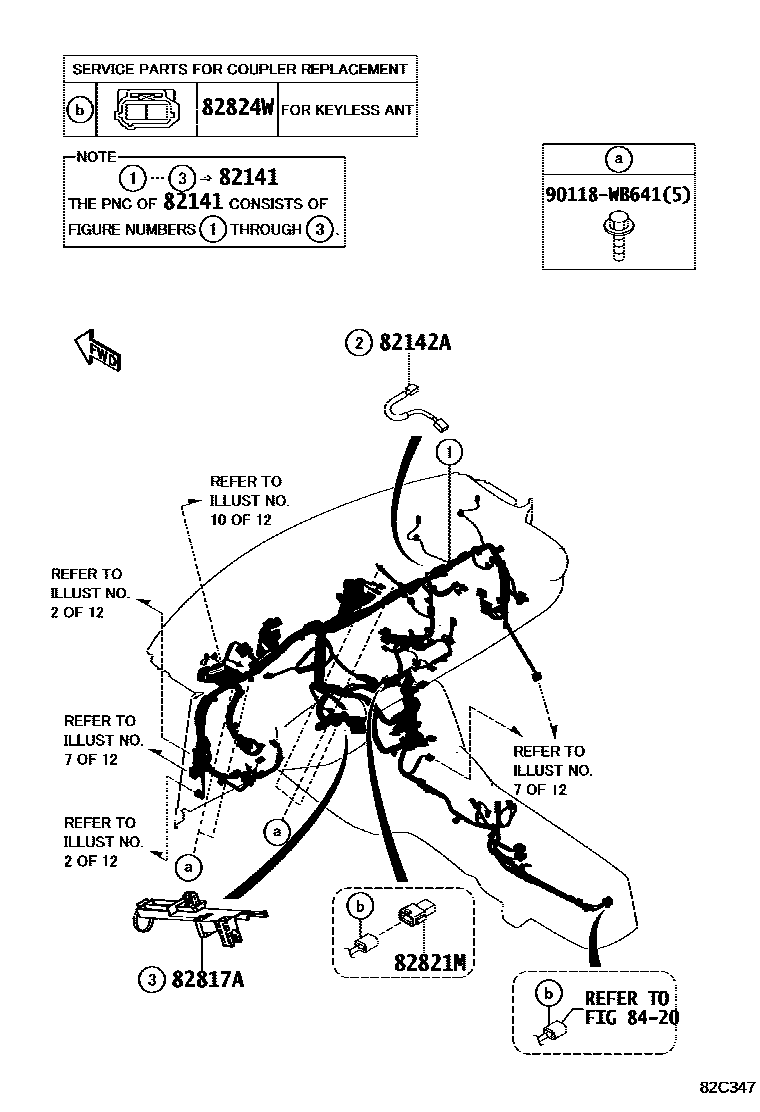

Toyota YARIS 线束和卡夹 EPC diagram — 82C347 — 线束和卡夹 — 82C347 (201808 – 201908)

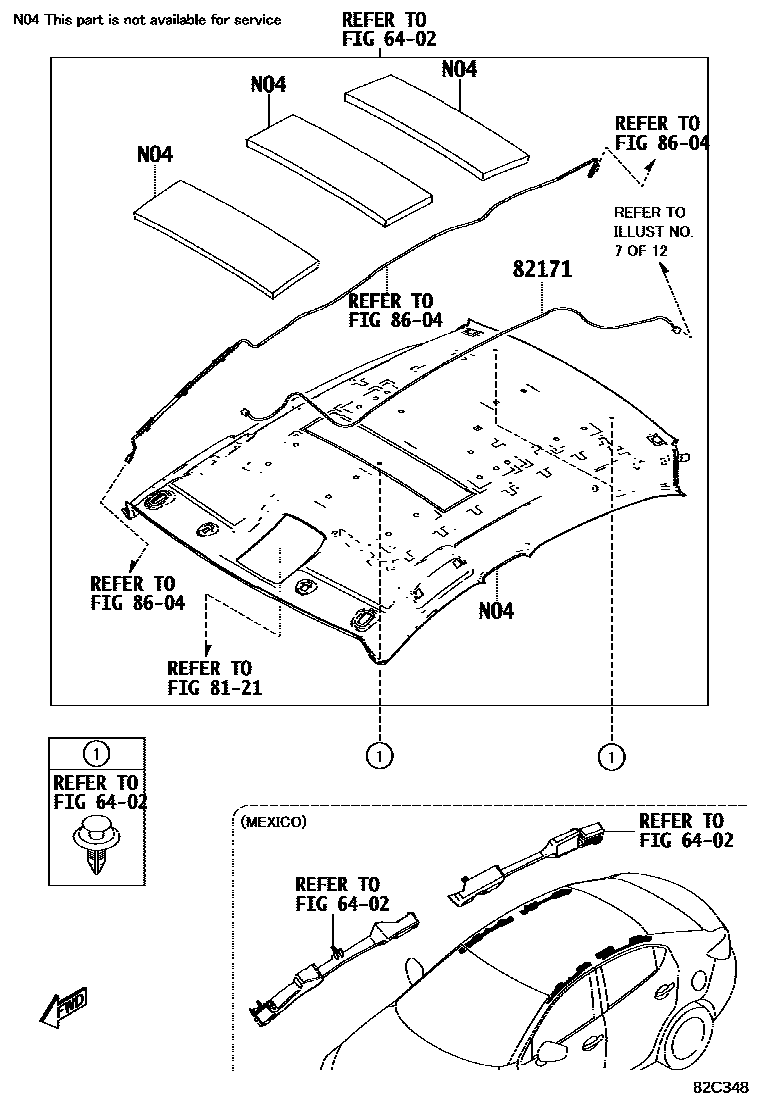

Toyota YARIS 线束和卡夹 EPC diagram — 82C348 — 线束和卡夹 — 82C348 (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C349 — 线束和卡夹 — 82C349 (201808 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82C350 — 线束和卡夹 — 82C350 (201808 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82C381 — 线束和卡夹 — 82C381 (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C382 — 线束和卡夹 — 82C382 (201808 – 201908)

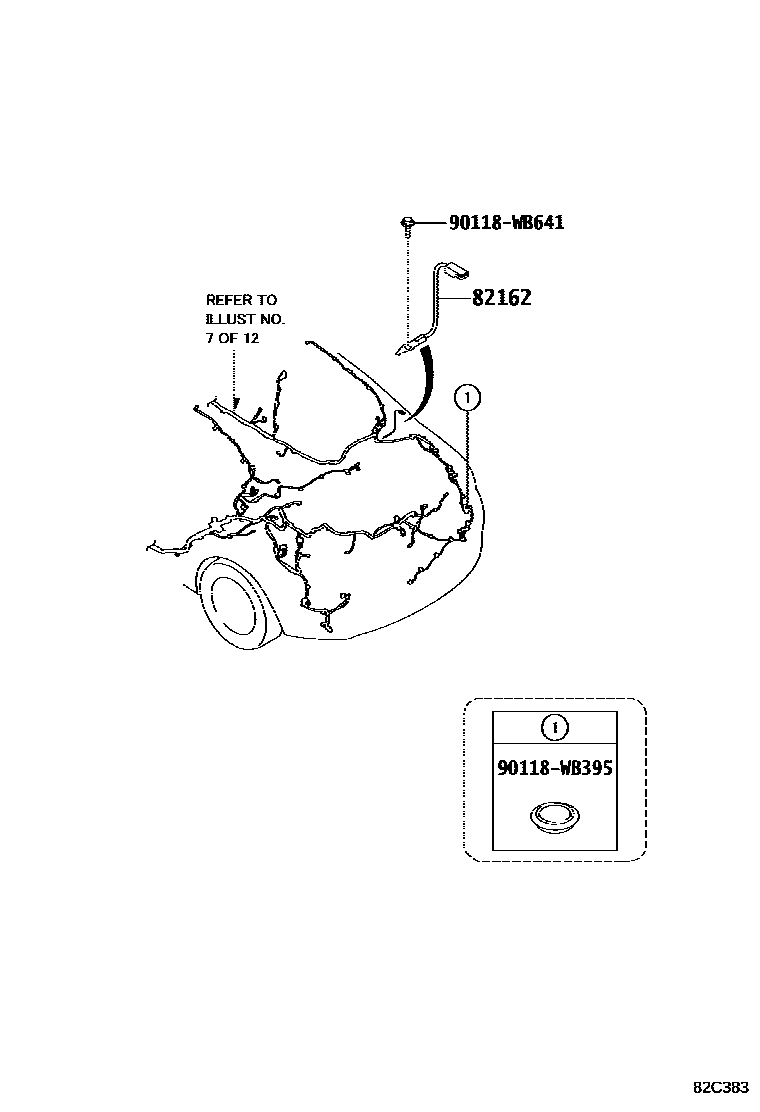

Toyota YARIS 线束和卡夹 EPC diagram — 82C383 — 线束和卡夹 — 82C383 (201808 – 201908)

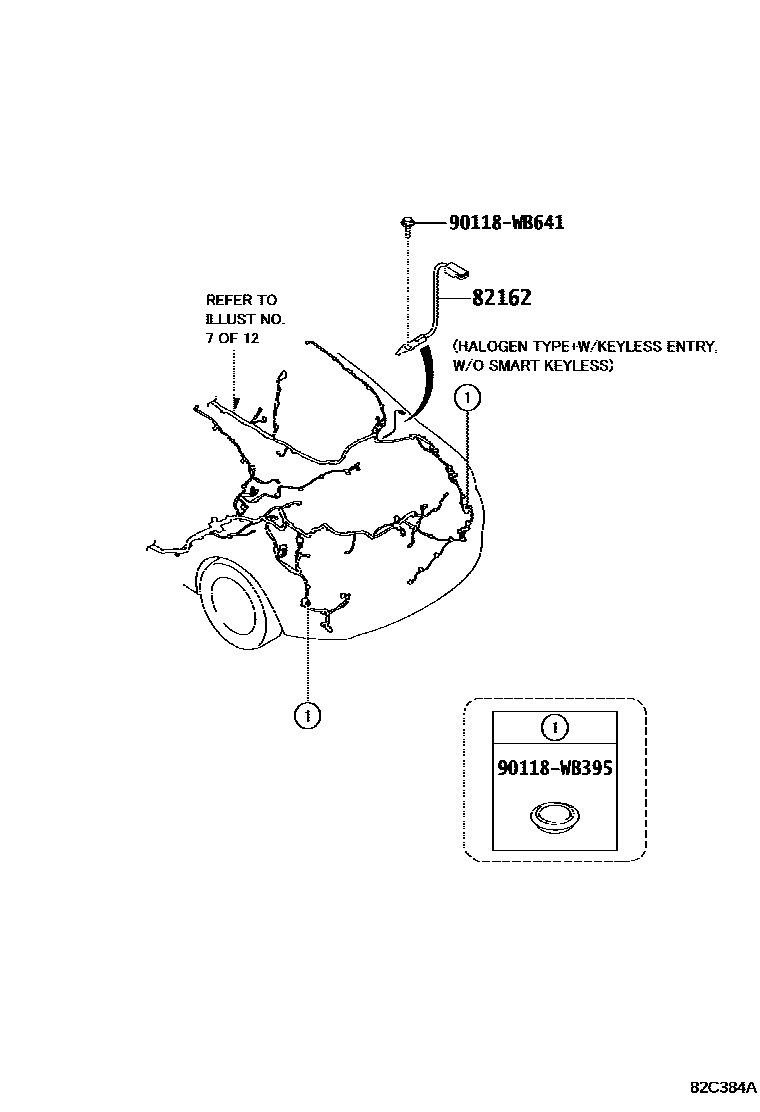

Toyota YARIS 线束和卡夹 EPC diagram — 82C384A — 线束和卡夹 — 82C384A (201808 – 201908)

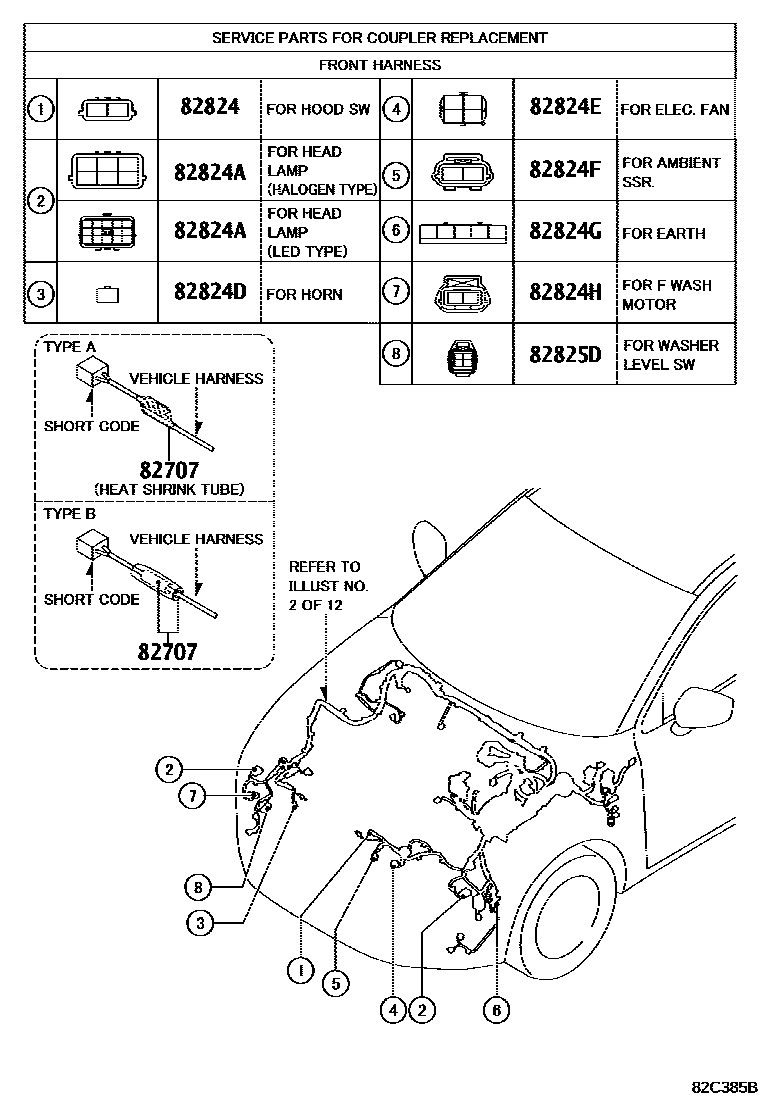

Toyota YARIS 线束和卡夹 EPC diagram — 82C385B — 线束和卡夹 — 82C385B (201808 – 201908)

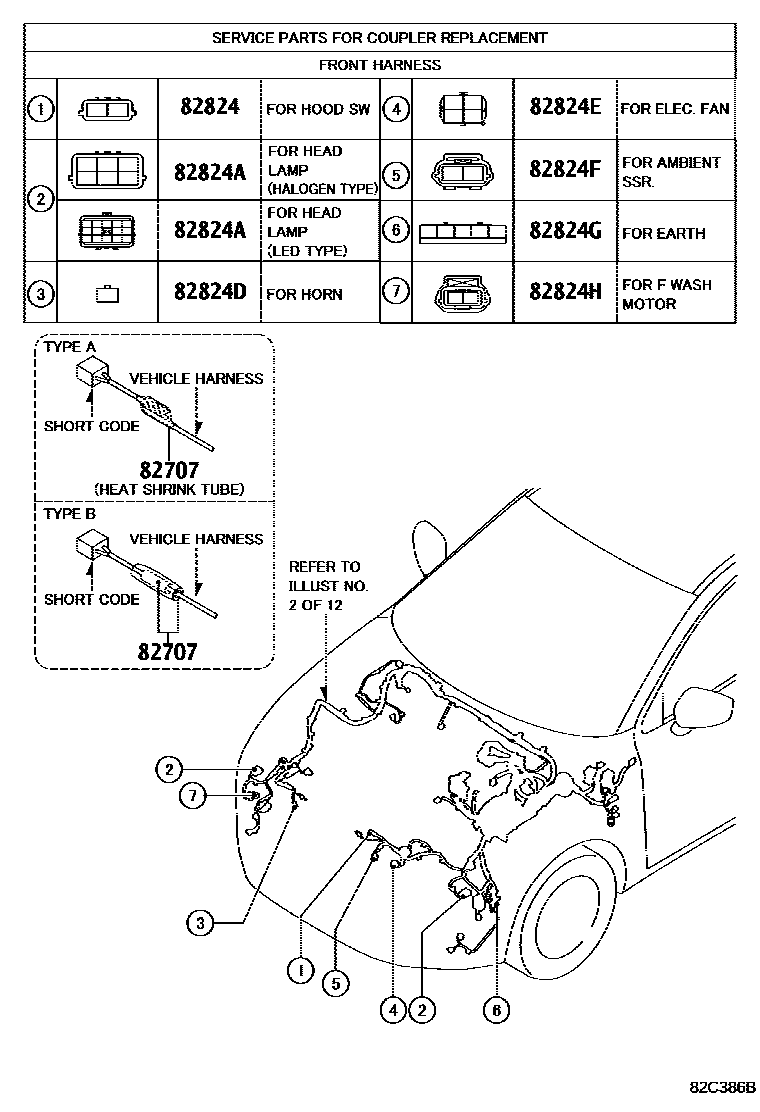

Toyota YARIS 线束和卡夹 EPC diagram — 82C386B — 线束和卡夹 — 82C386B (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C387 — 线束和卡夹 — 82C387 (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C388 — 线束和卡夹 — 82C388 (201808 – 201908)

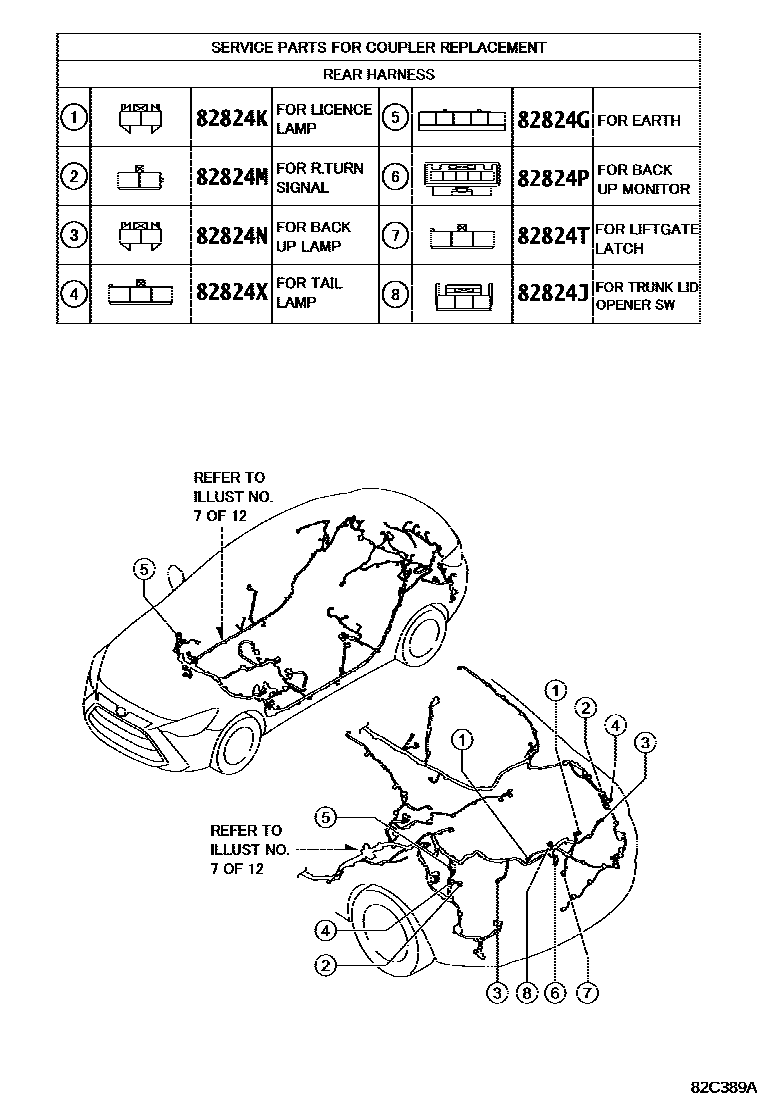

Toyota YARIS 线束和卡夹 EPC diagram — 82C389A — 线束和卡夹 — 82C389A (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C390A — 线束和卡夹 — 82C390A (201808 – 201908)

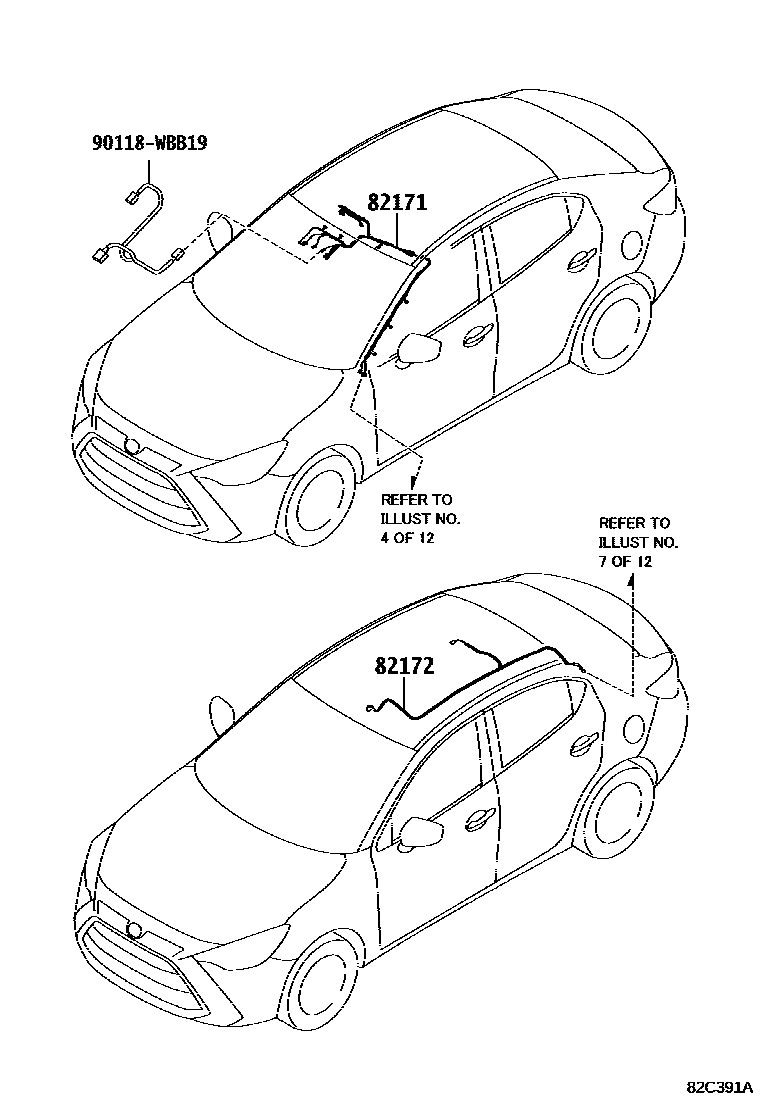

Toyota YARIS 线束和卡夹 EPC diagram — 82C391A — 线束和卡夹 — 82C391A (201808 – 201908)

Toyota YARIS 线束和卡夹 EPC diagram — 82C392 — 线束和卡夹 — 82C392 (201808 – 201908)

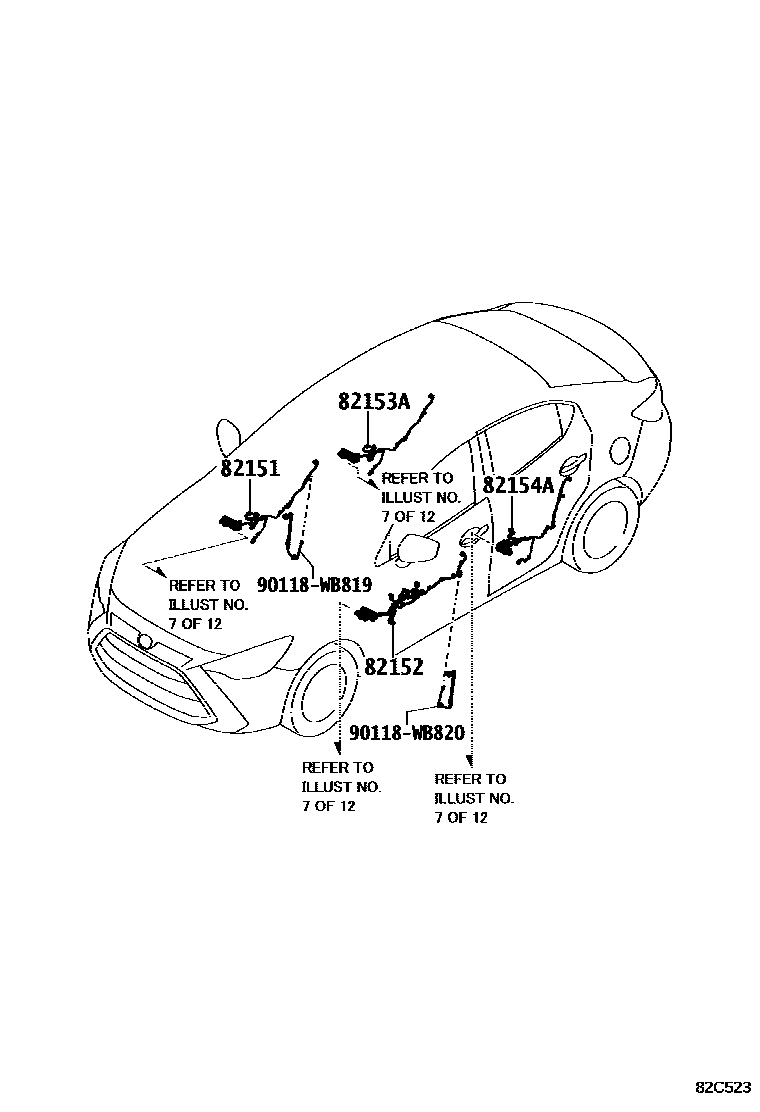

Toyota YARIS 线束和卡夹 EPC diagram — 82C523 — 线束和卡夹 — 82C523 (201808 – 999999)

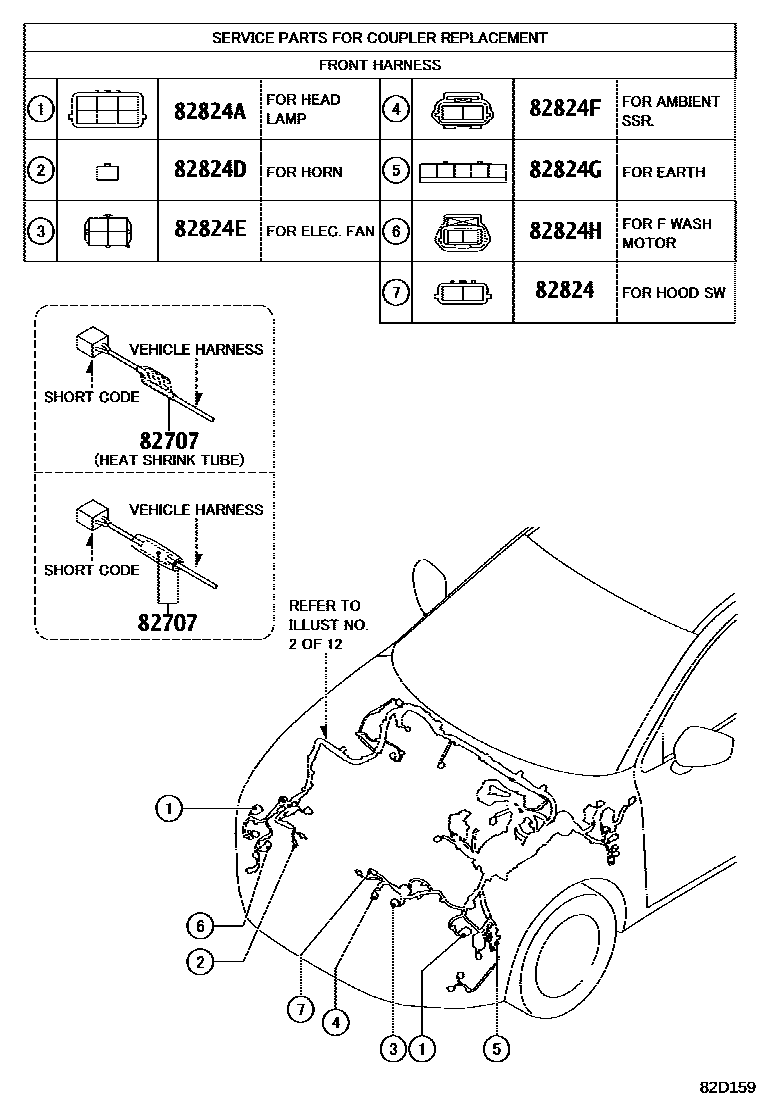

Toyota YARIS 线束和卡夹 EPC diagram — 82D159 — 线束和卡夹 — 82D159 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D160 — 线束和卡夹 — 82D160 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D161 — 线束和卡夹 — 82D161 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D162 — 线束和卡夹 — 82D162 (201908 – 999999)

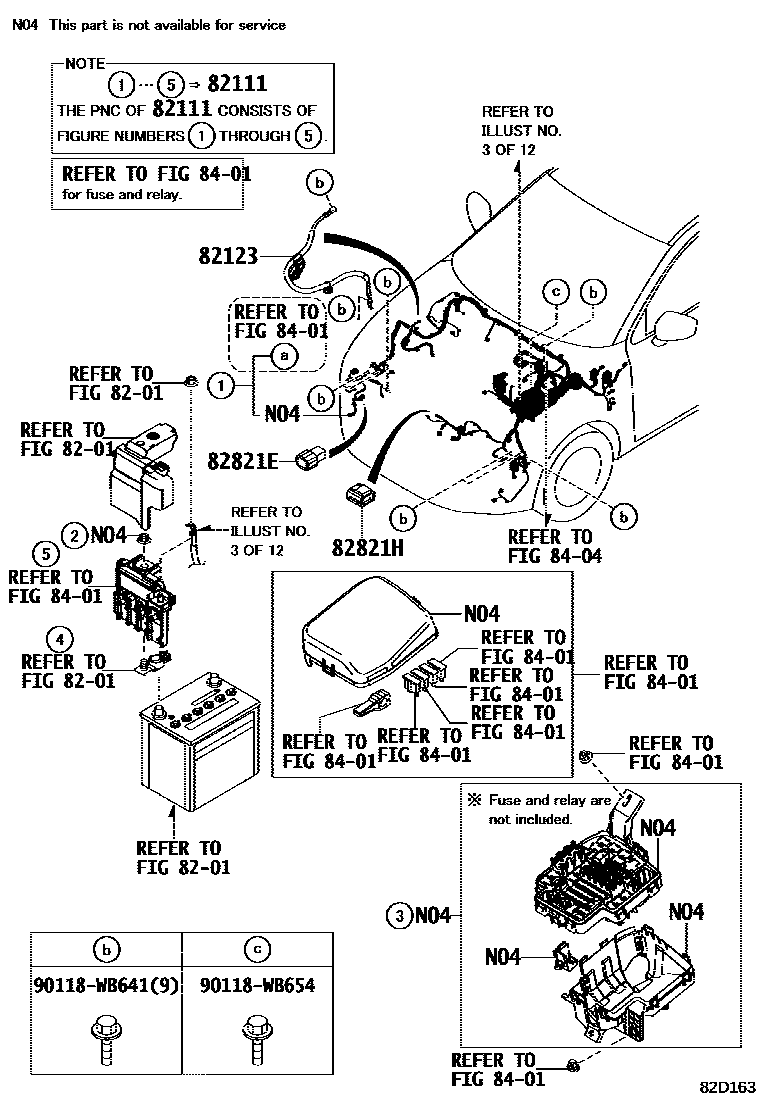

Toyota YARIS 线束和卡夹 EPC diagram — 82D163 — 线束和卡夹 — 82D163 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D164 — 线束和卡夹 — 82D164 (201908 – 999999)

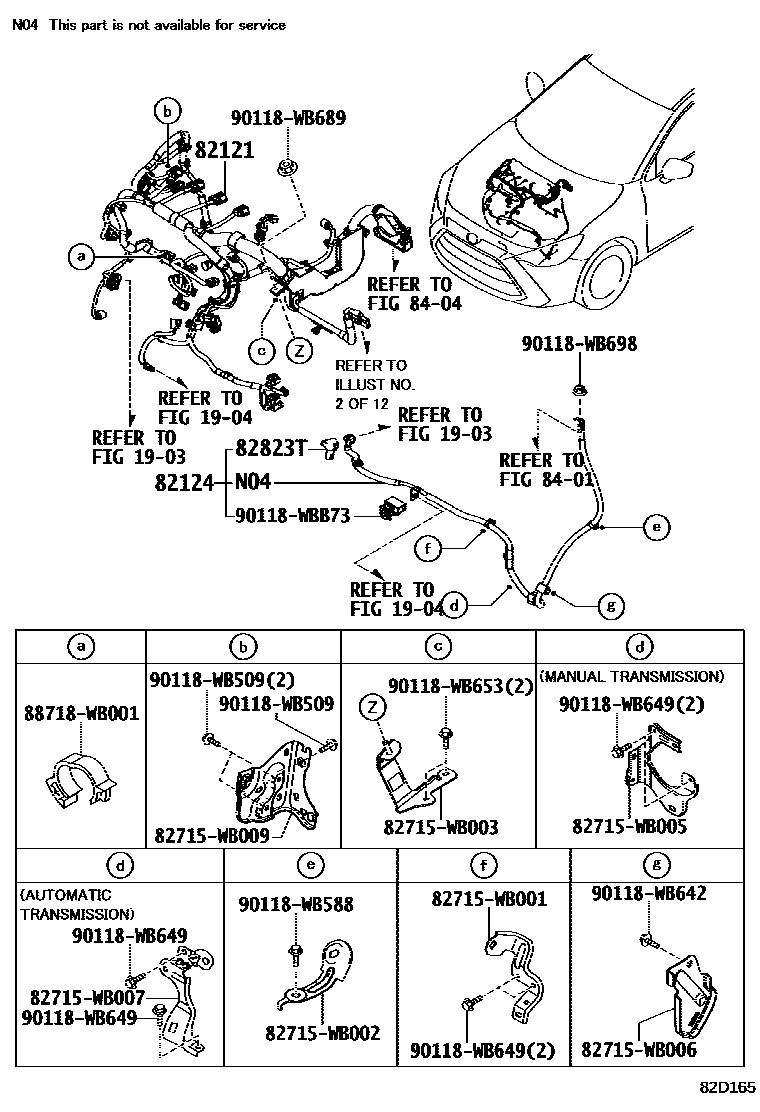

Toyota YARIS 线束和卡夹 EPC diagram — 82D165 — 线束和卡夹 — 82D165 (201908 – 999999)

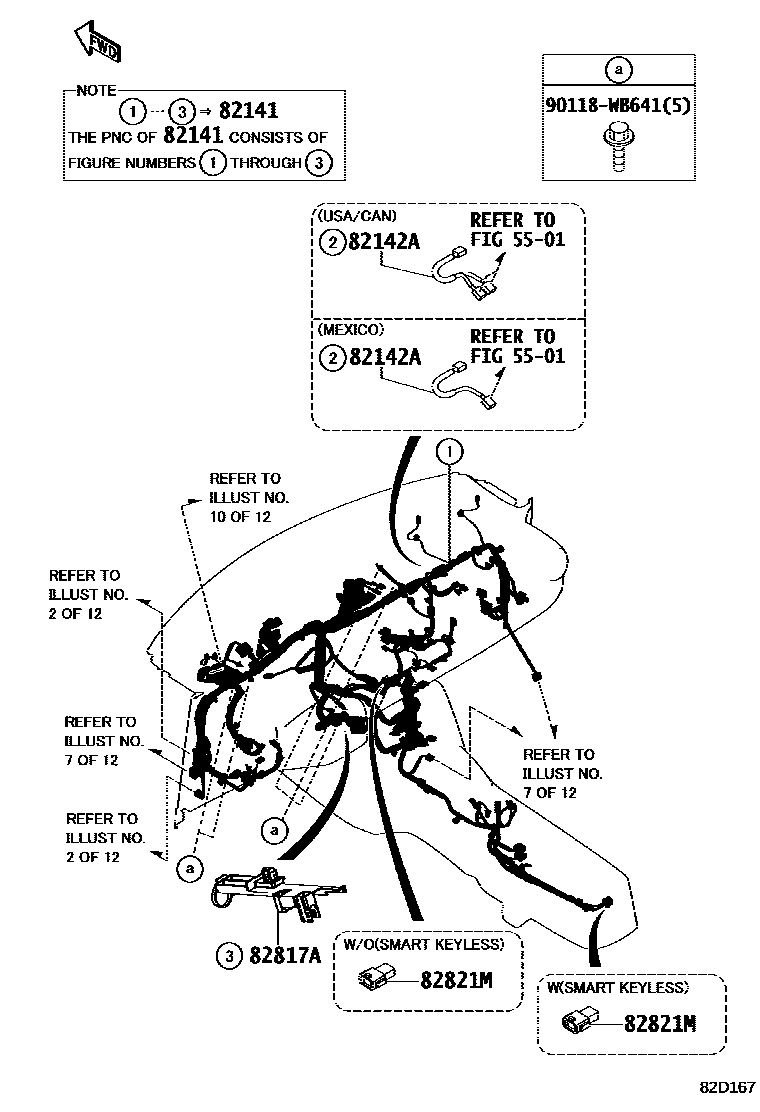

Toyota YARIS 线束和卡夹 EPC diagram — 82D167 — 线束和卡夹 — 82D167 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D168 — 线束和卡夹 — 82D168 (201908 – 999999)

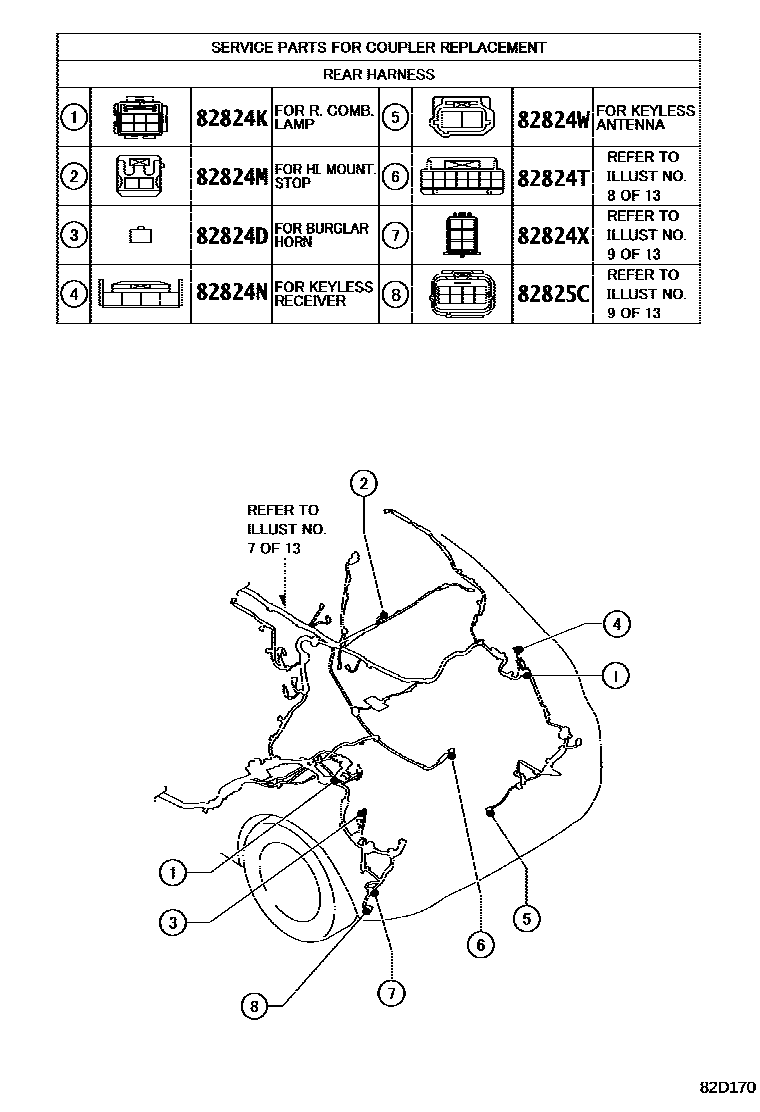

Toyota YARIS 线束和卡夹 EPC diagram — 82D170 — 线束和卡夹 — 82D170 (201908 – 999999)

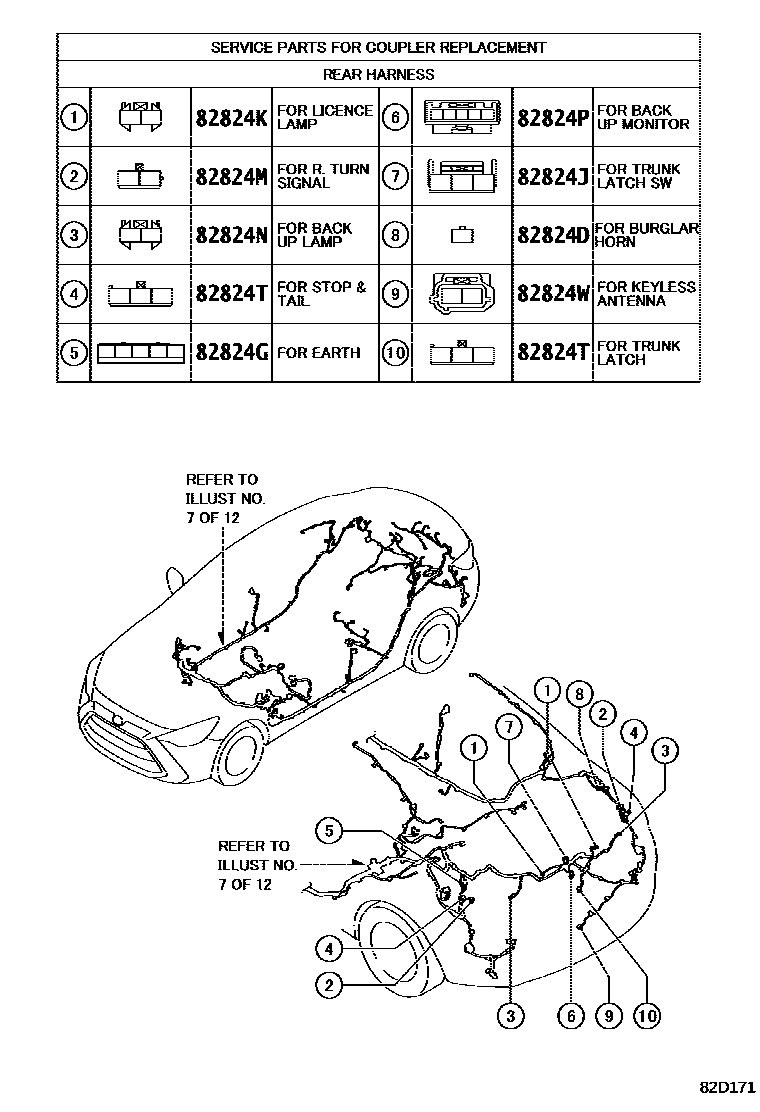

Toyota YARIS 线束和卡夹 EPC diagram — 82D171 — 线束和卡夹 — 82D171 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D172 — 线束和卡夹 — 82D172 (201908 – 999999)

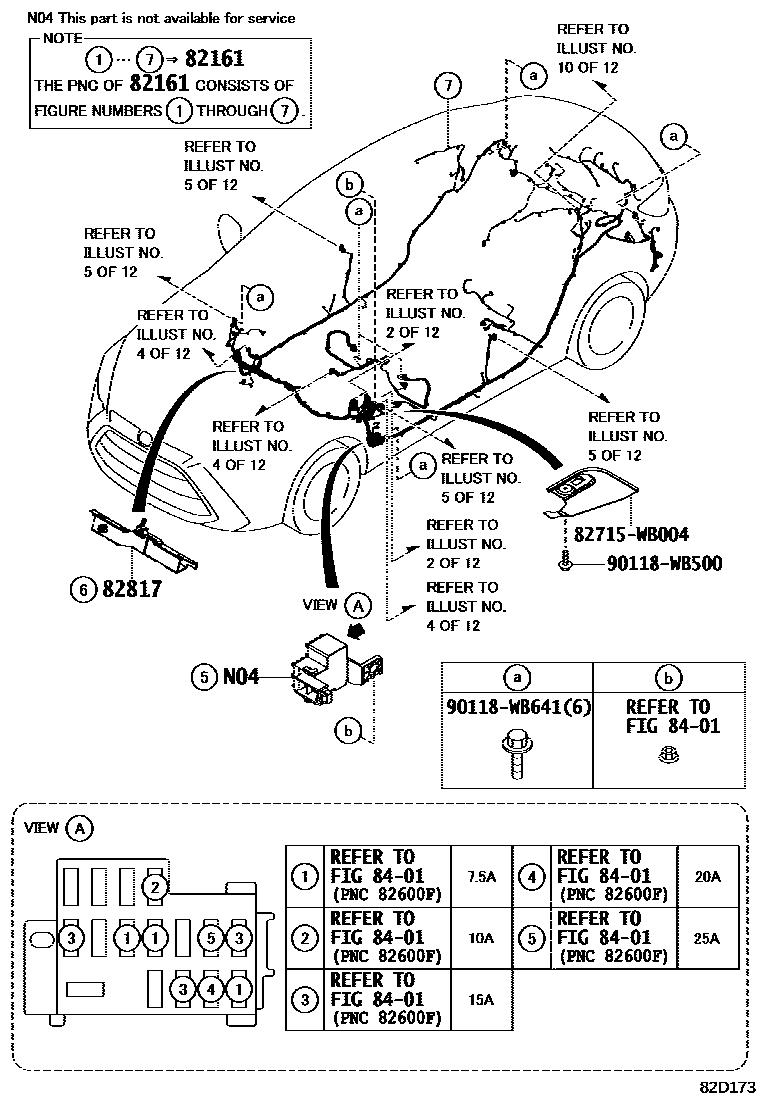

Toyota YARIS 线束和卡夹 EPC diagram — 82D173 — 线束和卡夹 — 82D173 (201908 – 999999)

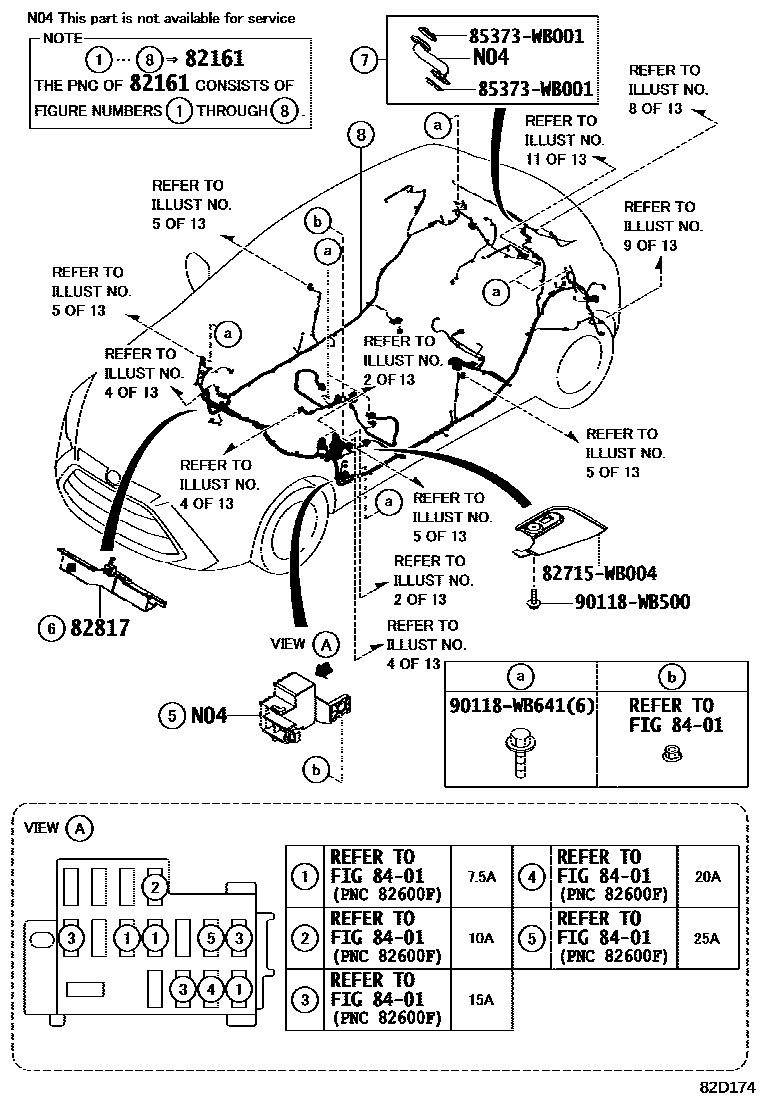

Toyota YARIS 线束和卡夹 EPC diagram — 82D174 — 线束和卡夹 — 82D174 (201908 – 999999)

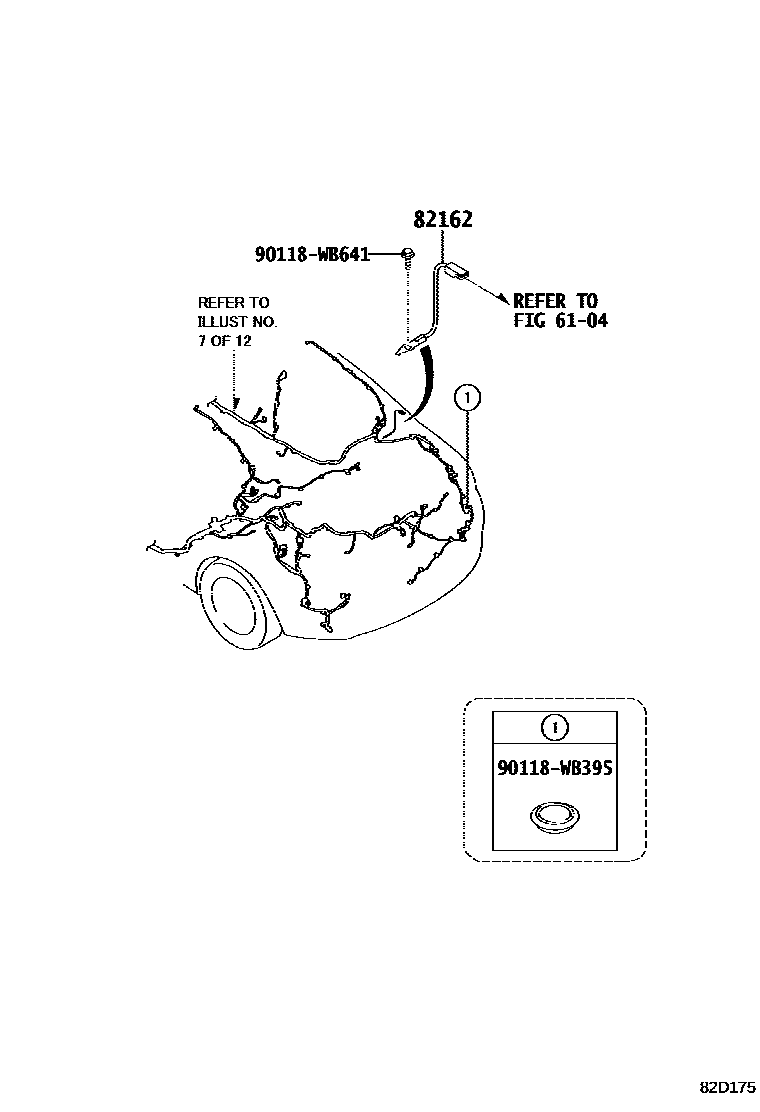

Toyota YARIS 线束和卡夹 EPC diagram — 82D175 — 线束和卡夹 — 82D175 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D176 — 线束和卡夹 — 82D176 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D178 — 线束和卡夹 — 82D178 (201908 – 999999)

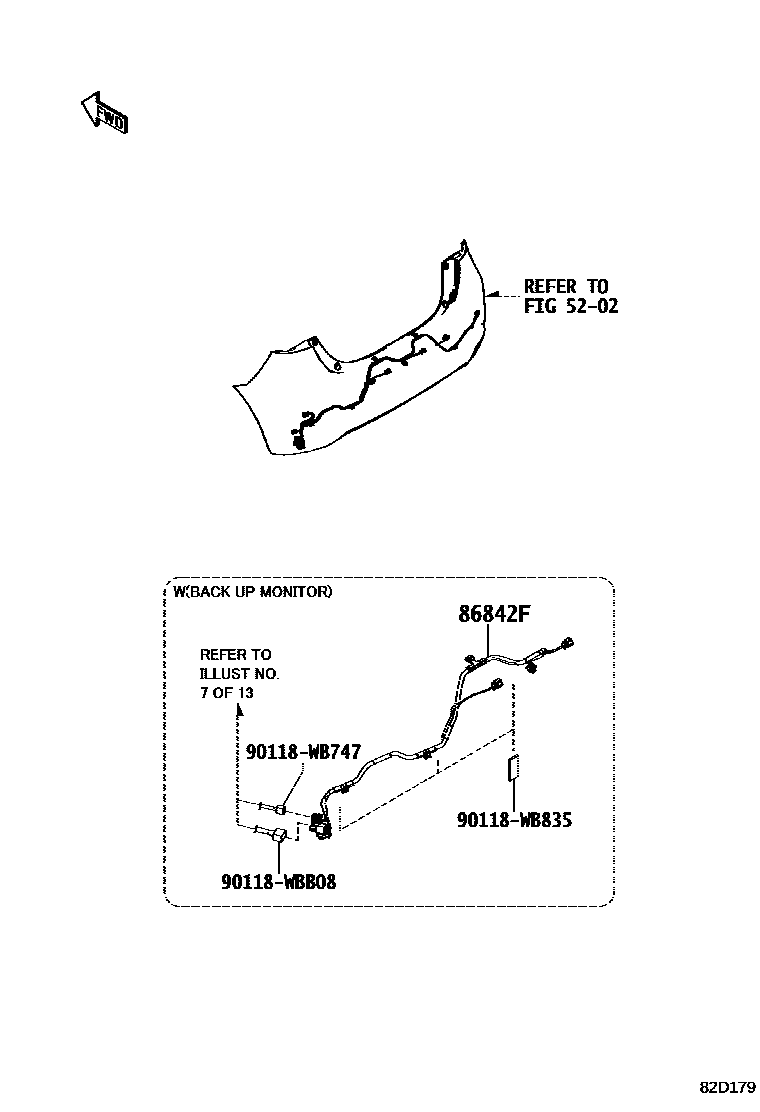

Toyota YARIS 线束和卡夹 EPC diagram — 82D179 — 线束和卡夹 — 82D179 (201908 – 999999)

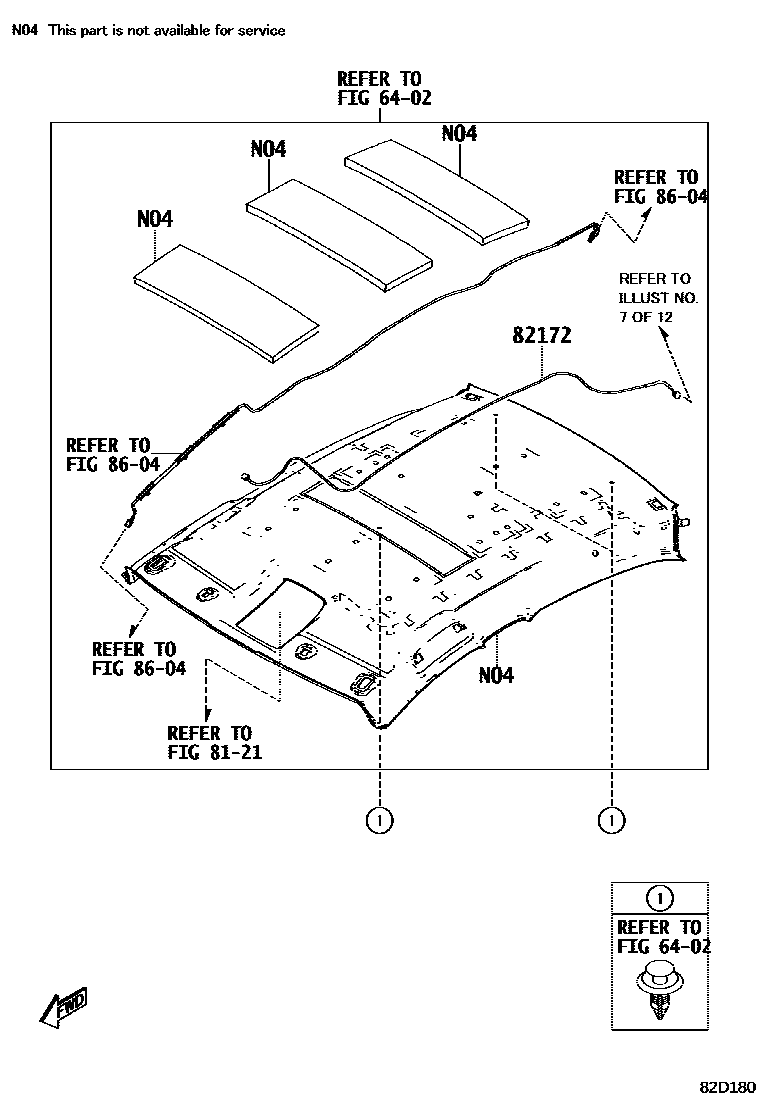

Toyota YARIS 线束和卡夹 EPC diagram — 82D180 — 线束和卡夹 — 82D180 (201908 – 999999)

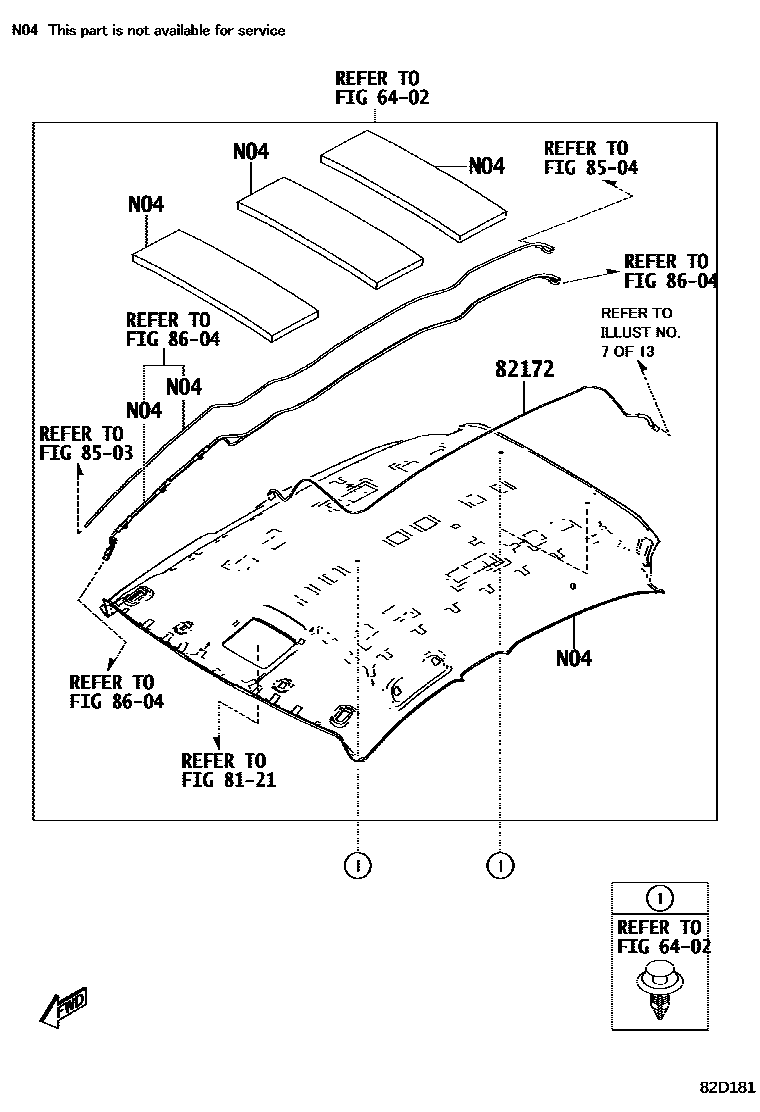

Toyota YARIS 线束和卡夹 EPC diagram — 82D181 — 线束和卡夹 — 82D181 (201908 – 999999)

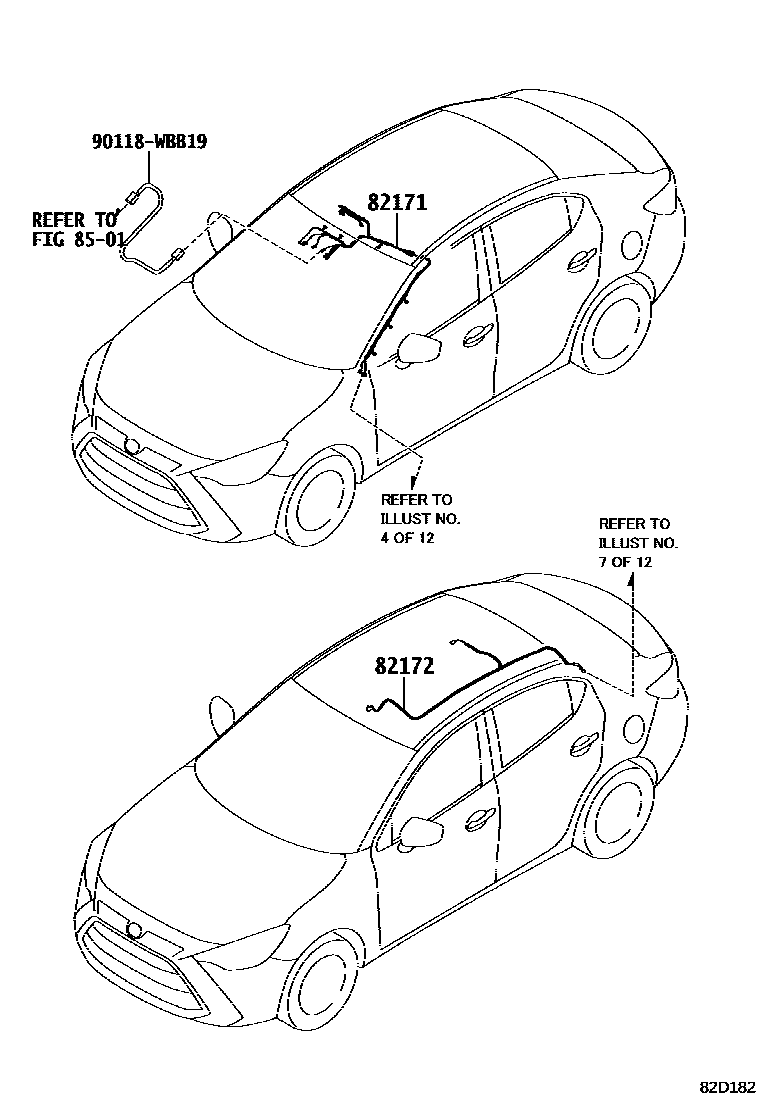

Toyota YARIS 线束和卡夹 EPC diagram — 82D182 — 线束和卡夹 — 82D182 (201908 – 999999)

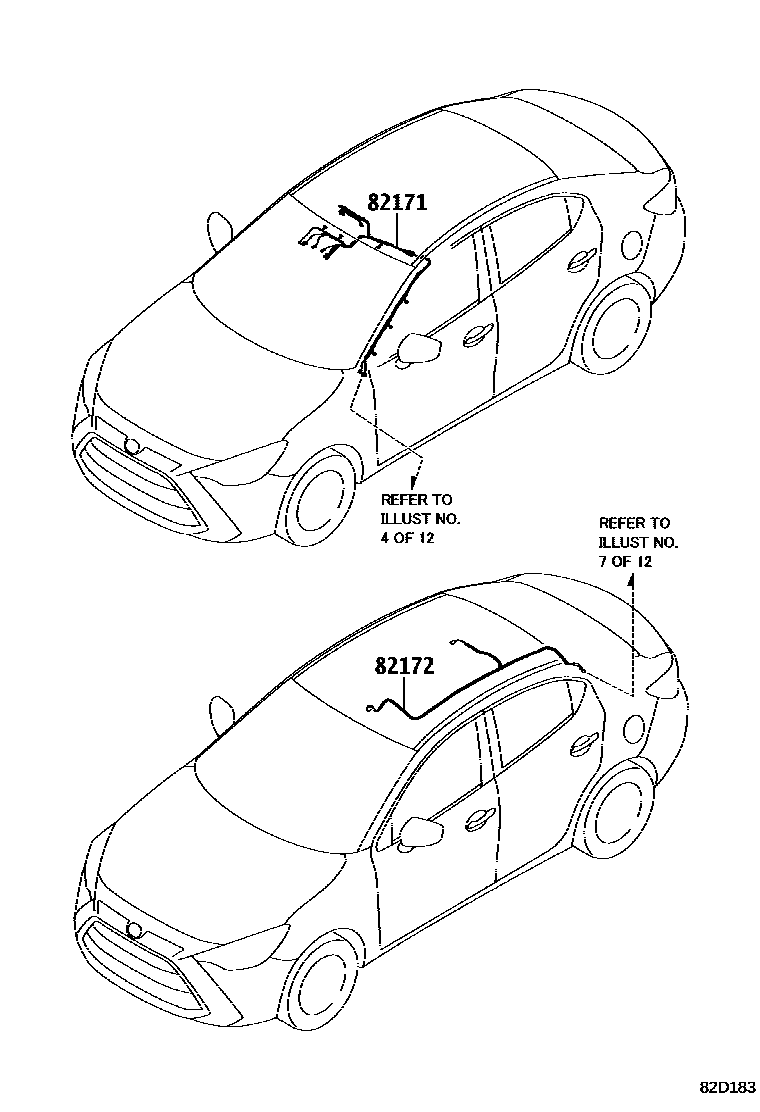

Toyota YARIS 线束和卡夹 EPC diagram — 82D183 — 线束和卡夹 — 82D183 (201908 – 999999)

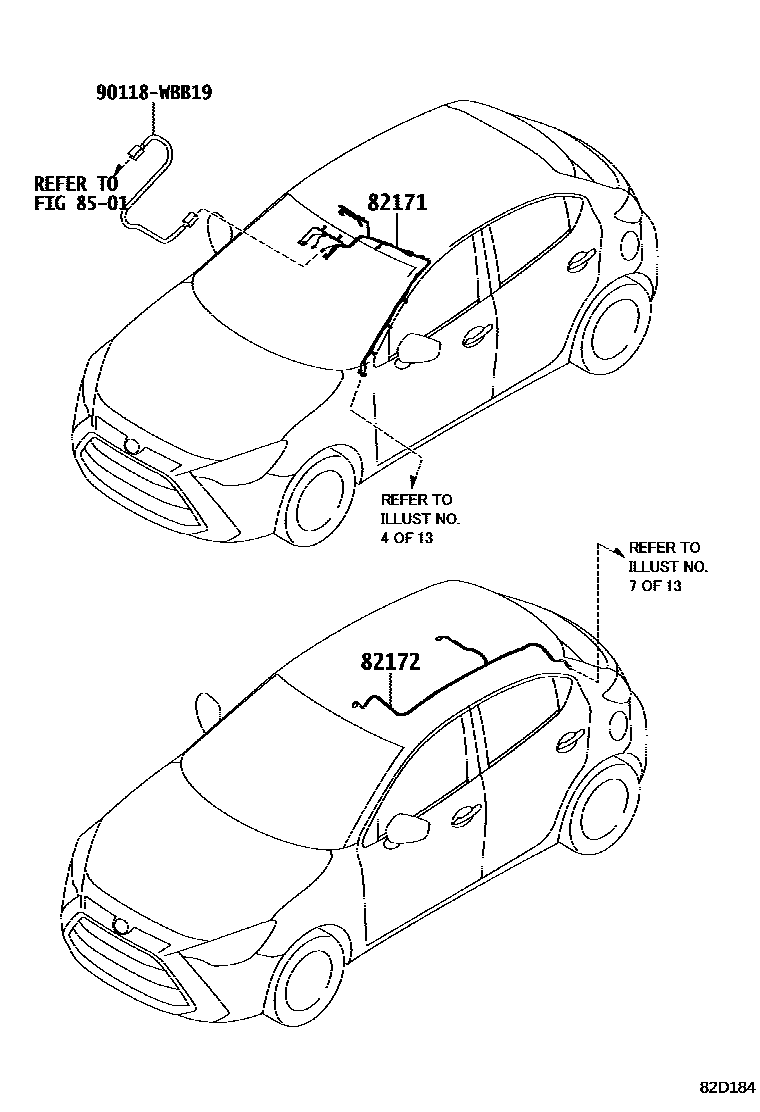

Toyota YARIS 线束和卡夹 EPC diagram — 82D184 — 线束和卡夹 — 82D184 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D185 — 线束和卡夹 — 82D185 (201908 – 999999)

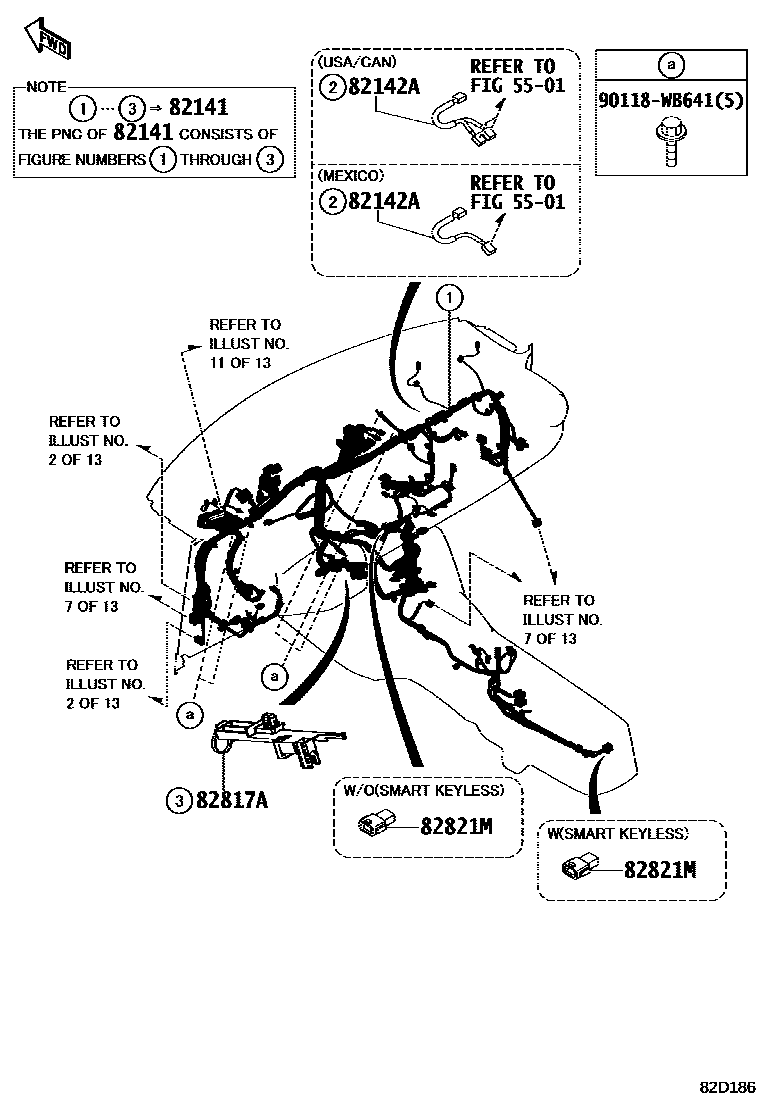

Toyota YARIS 线束和卡夹 EPC diagram — 82D186 — 线束和卡夹 — 82D186 (201908 – 999999)

Toyota YARIS 线束和卡夹 EPC diagram — 82D187 — 线束和卡夹 — 82D187 (201908 – 999999)

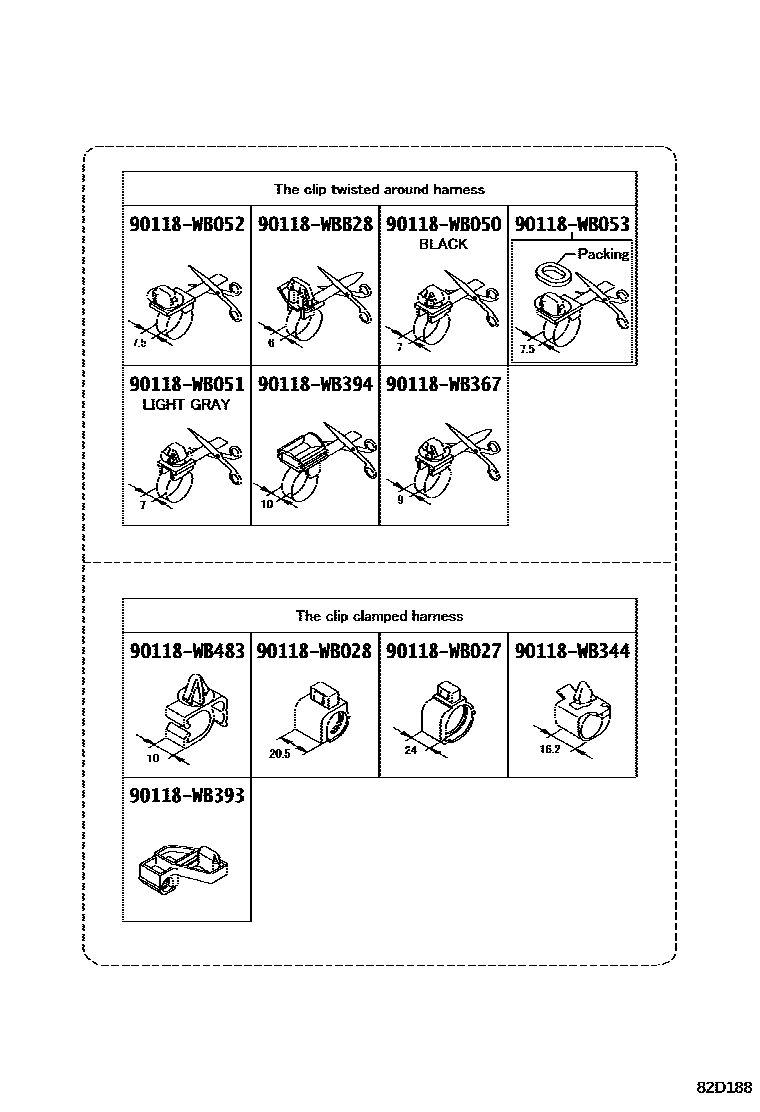

Toyota YARIS 线束和卡夹 EPC diagram — 82D188 — 线束和卡夹 — 82D188 (201908 – 999999)

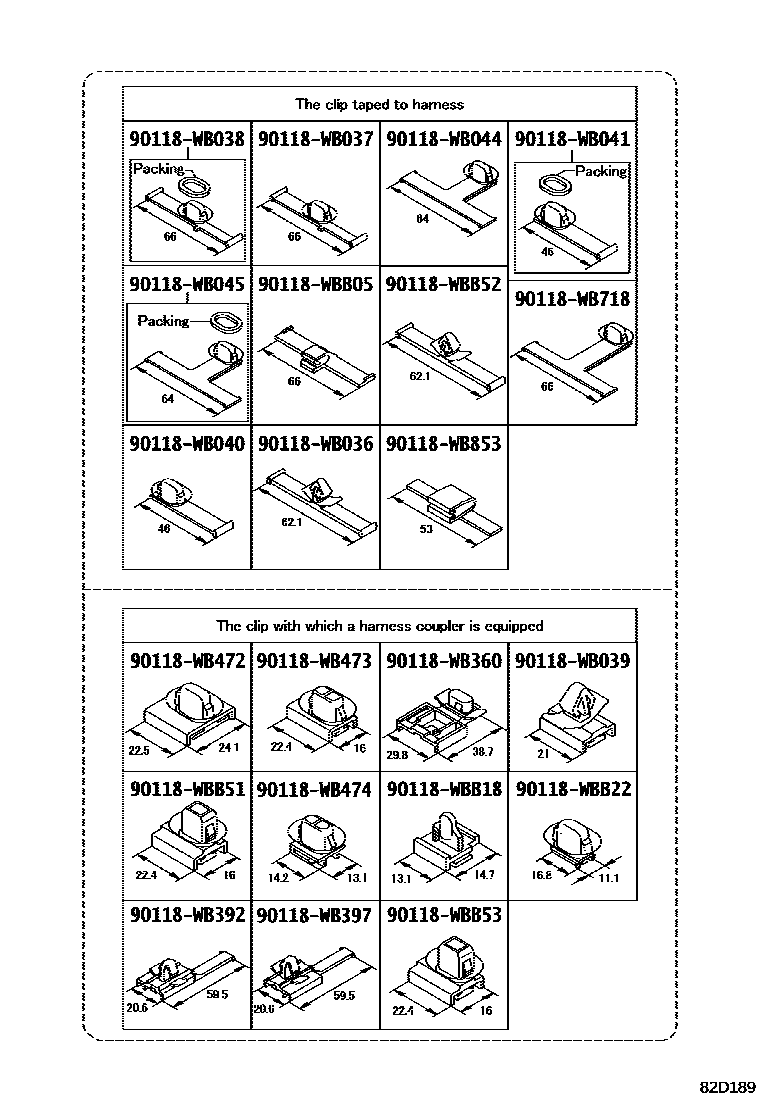

Toyota YARIS 线束和卡夹 EPC diagram — 82D189 — 线束和卡夹 — 82D189 (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
82111	Engine room main wiring harness	82111-WB007 · 82111-WB008 · 82111-WB009 · 82111-WB011 · 82111-WB013 · 82111-WB014 · 82111-WB021 · 82111-WB022 · 82111-WB023 · 82111-WB024 · 82111-WB025 · 82111-WB027 · 82111-WB028 · 82111-WB029 · 82111-WB030 · 82111-WB031
82121	Engine wiring harness	82121-WB001 · 82121-WB002 · 82121-WB003 · 82121-WB004 · 82121-WB005 · 82121-WB006
82123	Engine No. 3 wiring harness	82123-WB001
82124	Engine No. 4 wiring harness	82124-WB001 · 82124-WB002
82141	Dashboard wiring harness	82141-WB001 · 82141-WB002 · 82141-WB009 · 82141-WB010 · 82141-WB013 · 82141-WB015 · 82141-WB018 · 82141-WB021 · 82141-WB031 · 82141-WB034 · 82141-WB046 · 82141-WB048 · 82141-WB049 · 82141-WB050 · 82141-WB052 · 82141-WB053 · 82141-WB055 · 82141-WB060
82142A	Instrument panel wiring harness No. 2	82142-WB001 · 82142-WB003
82151	Right front door wiring harness	82151-WB004 · 82151-WB006
82152	Left front door wiring harness	82152-WB004 · 82152-WB006 · 82152-WB007 · 82152-WB008
82153A	Right rear door wiring harness	82153-WB001
82154A	Left rear door wiring harness	82154-WB001
82161	floor wiring harness	82161-WB001 · 82161-WB002 · 82161-WB003 · 82161-WB004 · 82161-WB010 · 82161-WB011 · 82161-WB012 · 82161-WB013 · 82161-WB014 · 82161-WB015 · 82161-WB020 · 82161-WB022 · 82161-WB023 · 82161-WB024 · 82161-WB027 · 82161-WB032 · 82161-WB034 · 82161-WB040 · 82161-WB042 · 82161-WB044 · 82161-WB045 · 82161-WB046 · 82161-WB049 · 82161-WB050 · 82161-WB076 · 82161-WB078 · 82161-WB080 · 82161-WB082 · 82161-WB083 · 82161-WB086 · 82161-WB090 · 82161-WB093 · 82161-WB097
82162	Floor wiring harness No. 2	82142-WB002
82171	Roof No. 1 wiring harness	82172-WB001 · 82172-WB002 · 82172-WB004
82172	Roof No. 2 wiring harness	82171-WB001 · 82172-WB002
82184	Rear door No. 1 wiring harness	82184-WB001
82707	Wire harness bracket sub-assembly	90118-WB829 · 90118-WB830 · 90118-WBB29 · 90118-WBB30
82817	No. 1 wire harness protection device	90118-WB708
82817A	No. 2 wire harness protection device	82817-WB001
82821E	Connector cover	82821-WB001
82821H	Connector cover	82821-WB004
82821M	Connector cover	82821-WB002
82823T	BOUCHON, BORNE ALTERNATEUR	82823-WB001
82824	Harness connector	90118-WB765
82824A	Harness connector	90118-WB710 · 90118-WB764 · 90118-WB840
82824D	Harness connector	90118-WB716
82824E	Harness connector	90118-WB729
82824F	Harness connector	90118-WB717
82824G	Harness connector	90118-WB745
82824H	Harness connector	90118-WB713
82824J	Harness connector	90118-WB711
82824K	Harness connector	90118-WB728 · 90118-WB841
82824M	Harness connector	90118-WB731 · 90118-WB855
82824N	Harness connector	90118-WB728 · 90118-WB846
82824P	Harness connector	90118-WB712
82824T	Harness connector	90118-WB730 · 90118-WB845
82824W	Harness connector	90118-WB748
82824X	Harness connector	90118-WB730 · 90118-WB747
82825C	Harness connector	90118-WB846
82825D	Harness connector	90118-WB840
86842F	Navigation harness	86842-WB003
