Toyota YARIS 车内灯 — Figure 8121

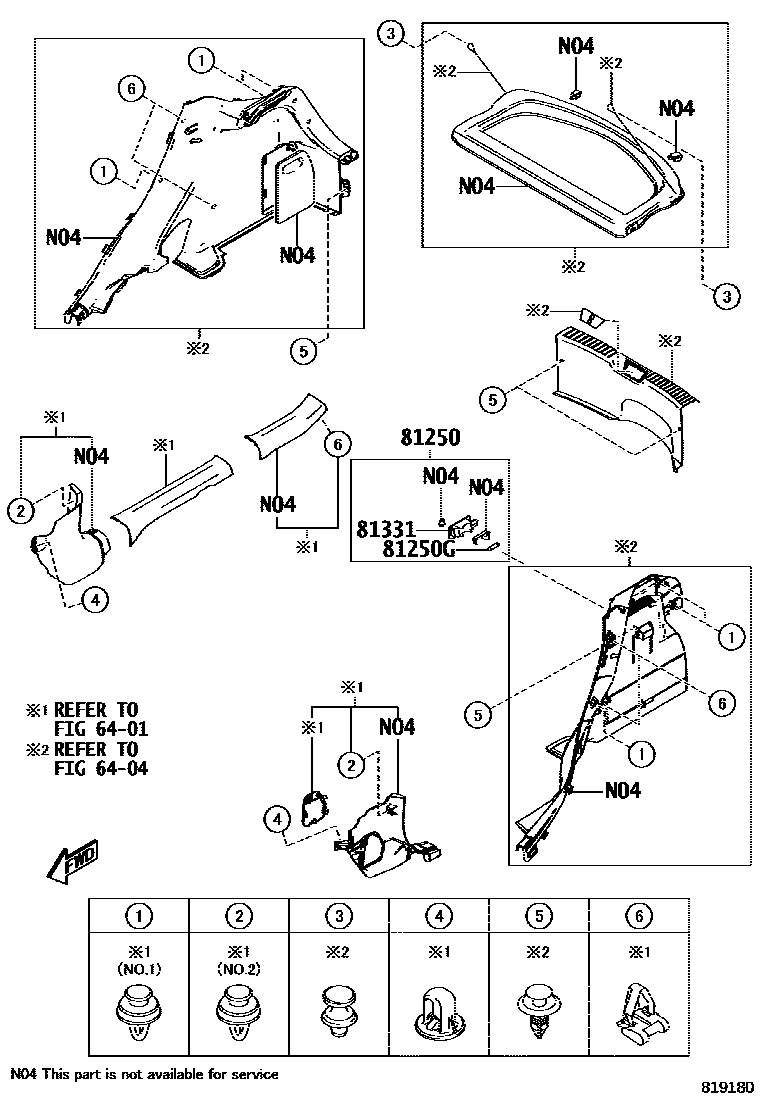

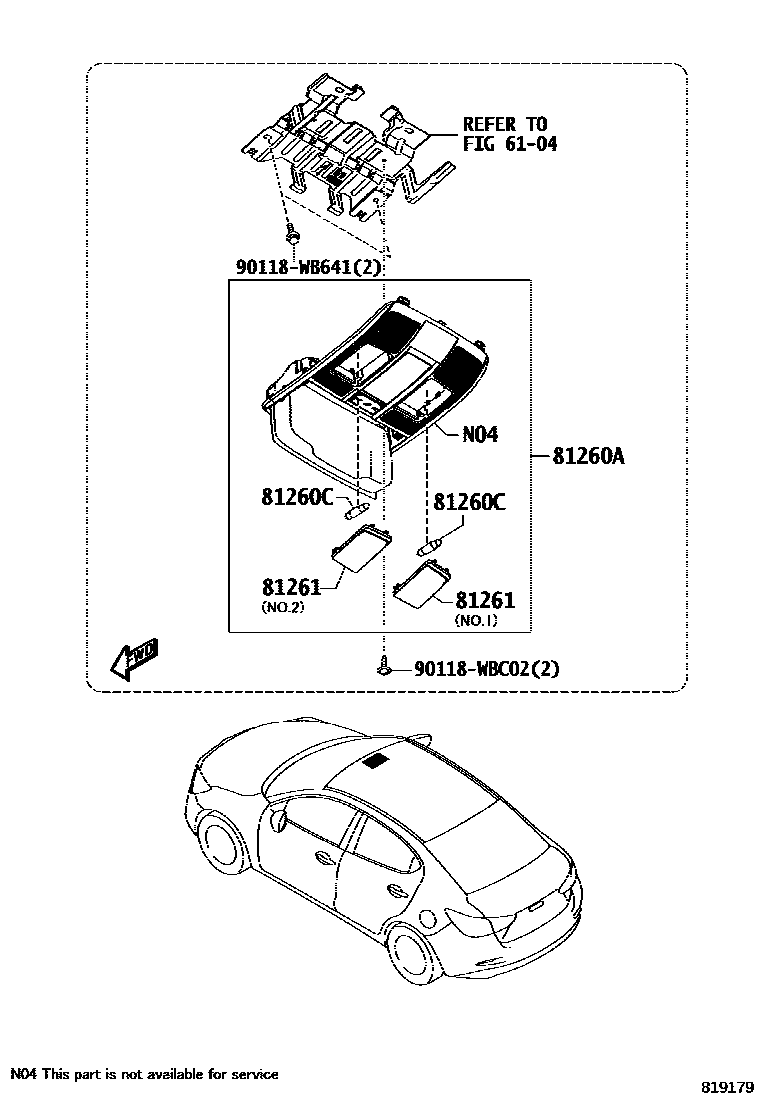

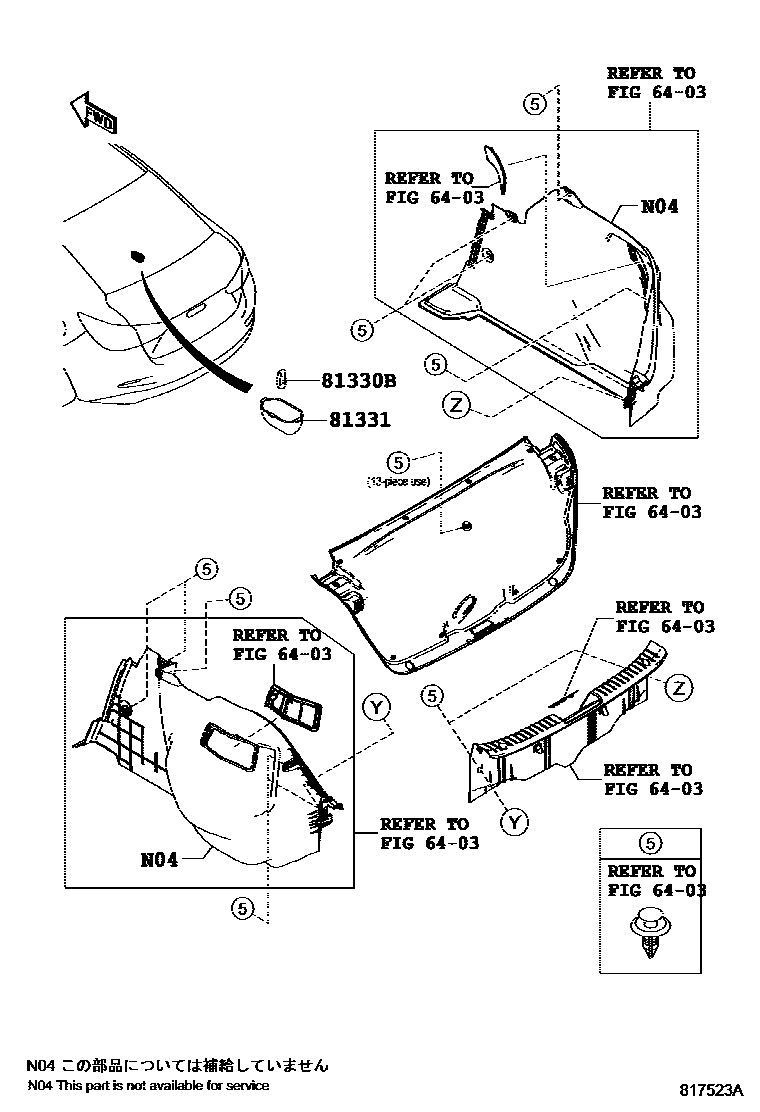

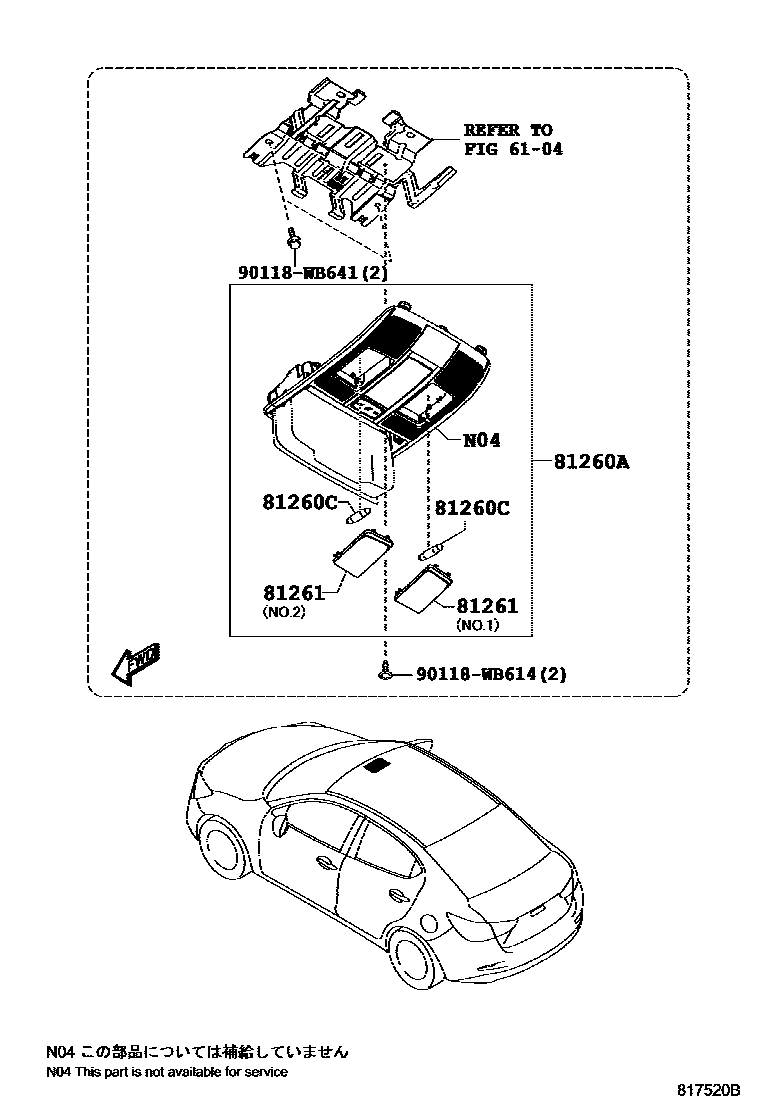

Toyota YARIS EPC diagram 8121, 车内灯, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81250 | No. 2 interior light assembly | 81250-WB001 |
| 81250G | Right rear interior light bulb | 90118-WBB95 |
| 81260A | Reading light assembly | 81260-WB001 · 81260-WB002 |
| 81260C | Light bulb (for reading lamp) | 90118-WB706 |
| 81261 | Reading lamp shades and covers | 81391-WB001 · 81391-WB002 |
| 81330B | trunk light bulb | 90118-WB739 |
| 81331 | Luggage light shade | 81331-WB001 · 81331-WB002 |
