Toyota YARIS 高位刹车灯 — Figure 8117

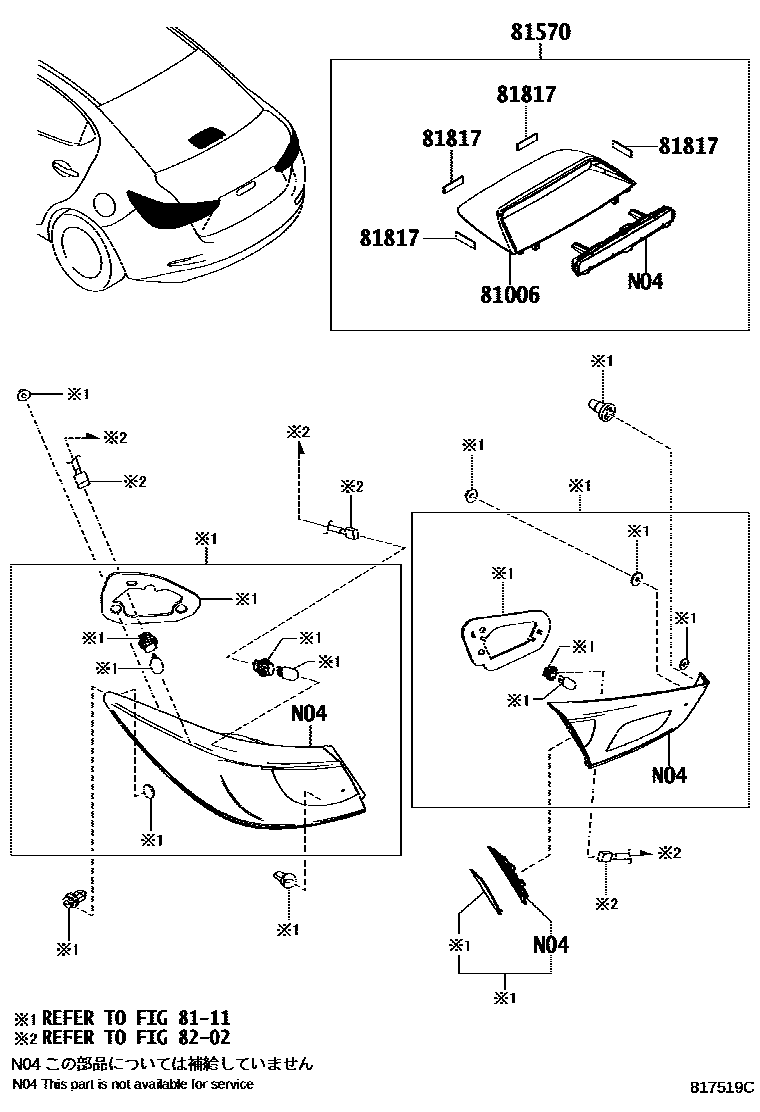

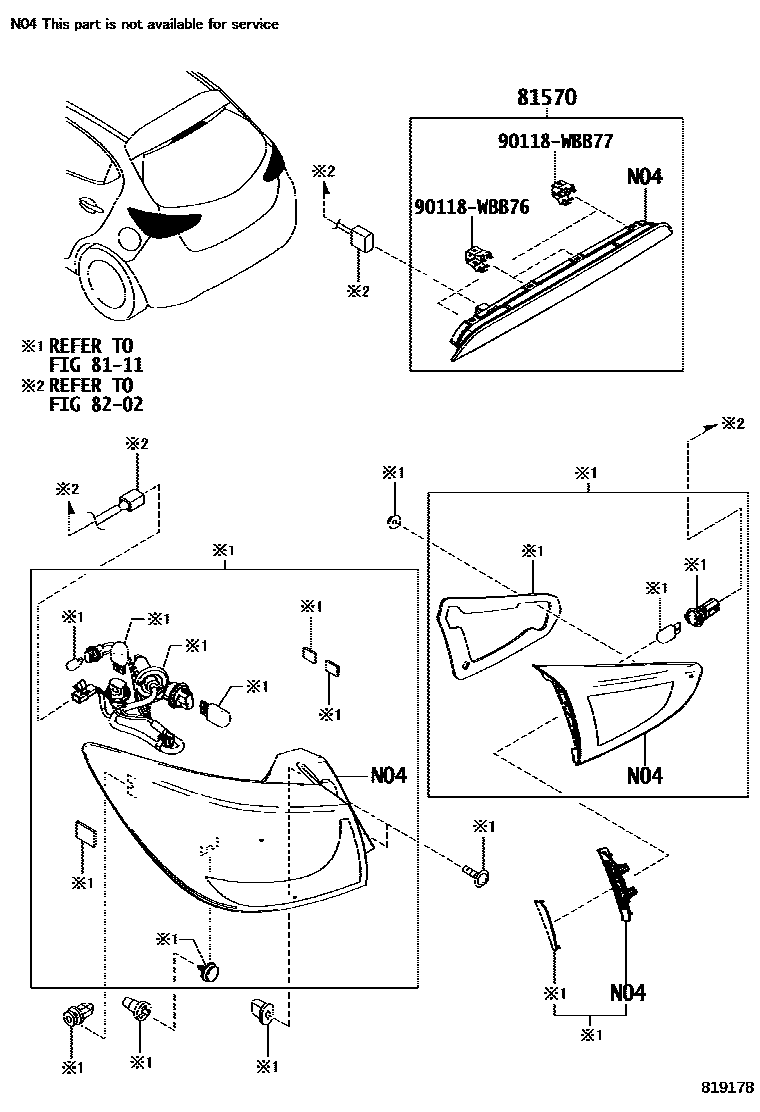

Toyota YARIS EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81977-WB002 · 81977-WB003 |
| 81570 | Central brake light assembly | 81570-WB002 · 81570-WB003 · 81570-WB004 · 81570-WB005 |
| 81817 | central brake light seal | 81817-WB001 |
