Toyota YARIS 后牌照灯 — Figure 8113

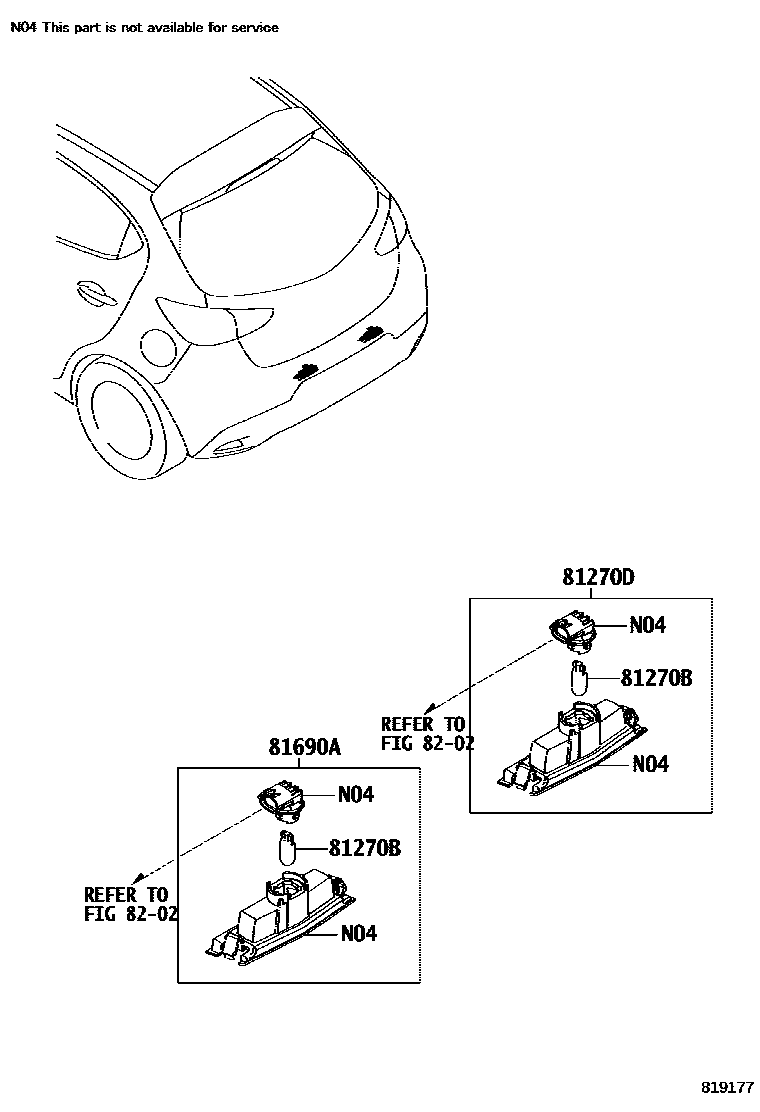

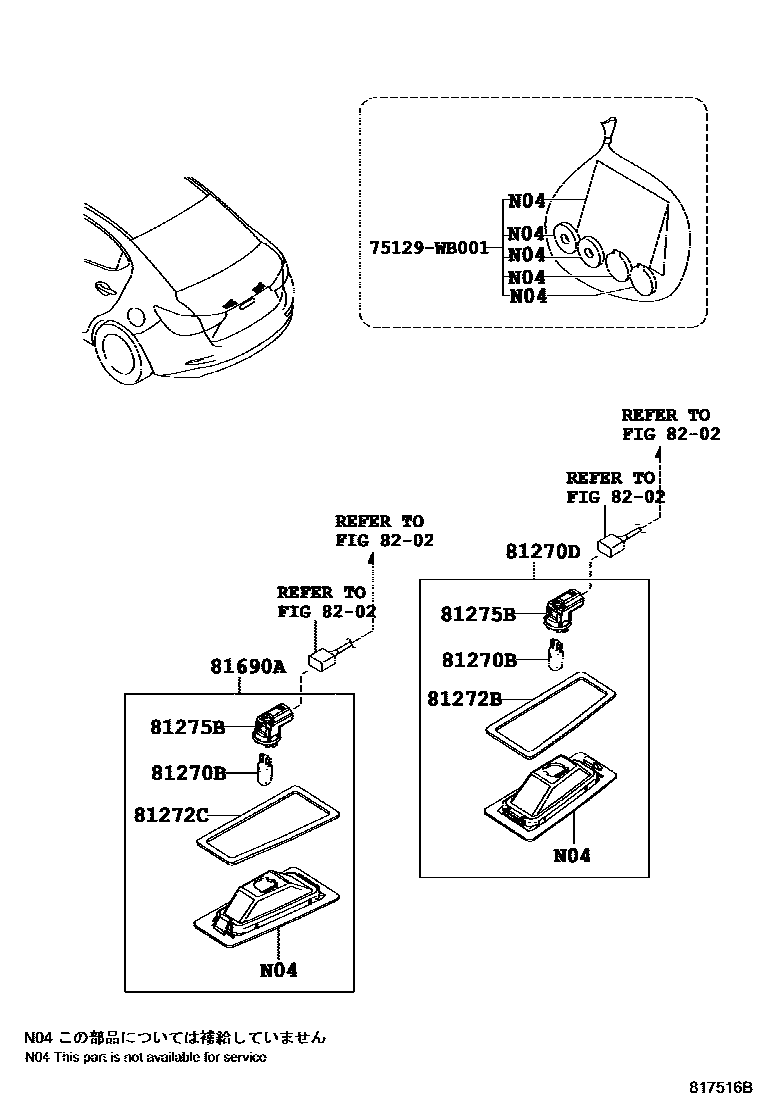

Toyota YARIS EPC diagram 8113, 后牌照灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270B | Bulb (for license plate light) | 90118-WB808 |
| 81270D | Right license plate light assembly | 81270-WB001 · 81270-WB004 · 81270-WB005 · 81270-WB007 |
| 81272B | JOINT D'ETANCHEITE, LENTILLE ECLAIRAGE PLAQUE IMMATRIC, MD | 81274-WB001 |
| 81272C | JOINT D'ETANCHEITE, LENTILLE ECLAIRAGE PLAQUE IMMATRIC, MG | 81274-WB002 |
| 81275B | License plate light lamp holder plug | 81275-WB001 |
| 81690A | Left license plate light assembly | 81270-WB002 · 81270-WB003 · 81270-WB006 · 81270-WB007 |
