Toyota YARIS 后组合灯 — Figure 8111

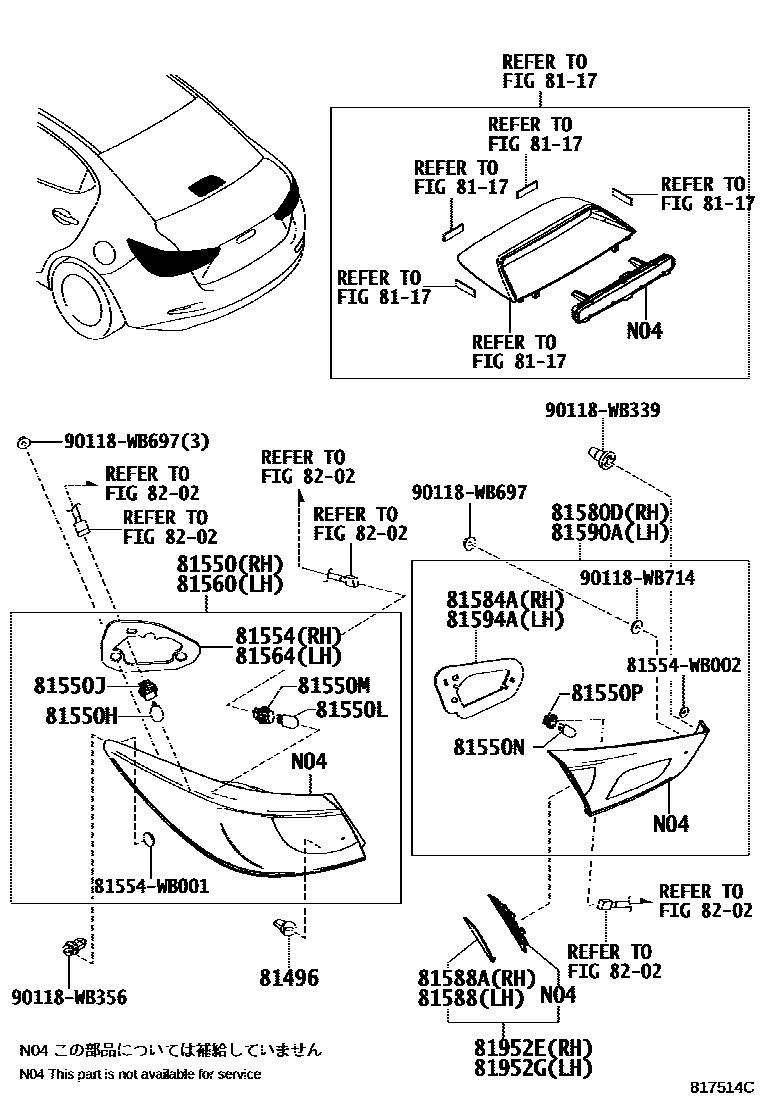

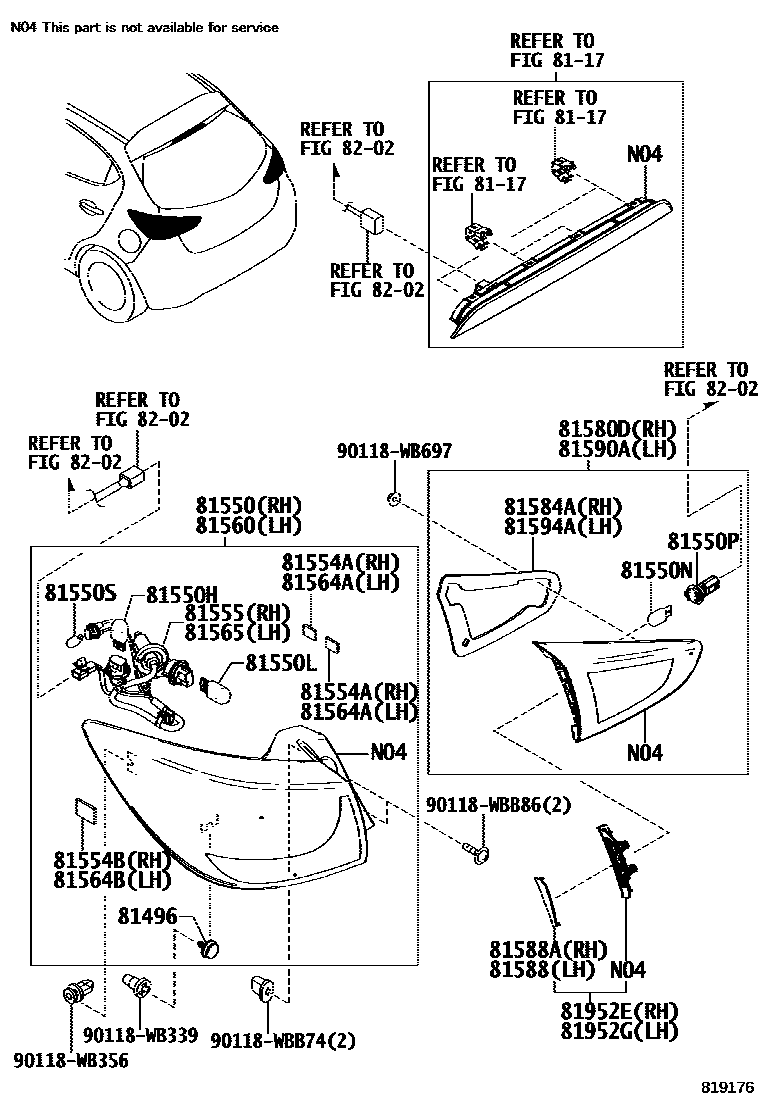

Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 90118-WB402 · 90118-WBB82 |
| 81550 | Right rear combination light assembly | 81550-WB004 · 81550-WB006 |
| 81550H | Tail and brake light bulbs | 90118-WB807 |
| 81550J | Tail and brake light holders | 90118-WB737 |
| 81550L | Rear turn signal light bulb | 90118-WB805 |
| 81550M | Rear turn signal lamp holder | 90118-WB015 |
| 81550N | reversing light bulb | 90118-WB806 |
| 81550P | Reversing light lamp holder | 81275-WB002 |
| 81550S | Rear width light bulb | 90118-WB808 |
| 81554 | Right rear combination lamp body gasket | 81552-WB001 |
| 81554A | No. 1 right rear combination lamp body gasket | 81554-WB003 |
| 81554B | No. 2 right rear combination lamp body gasket | 81554-WB004 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-WB001 |
| 81560 | Left rear combination light assembly | 81560-WB004 · 81560-WB006 |
| 81564 | Left rear combination lamp body gasket | 81562-WB001 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81554-WB003 |
| 81564B | No. 2 left rear combination lamp body gasket | 81554-WB004 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-WB001 |
| 81580D | Right rear light assembly | 81580-WB002 · 81580-WB003 |
| 81584A | Right rear light gasket | 81584-WB001 · 81584-WB002 |
| 81588 | Left rear light protective cover | 81598-WB001 · 81598-WB002 |
| 81588A | Right rear light protective cover | 81588-WB001 · 81588-WB002 |
| 81590A | Left rear light assembly | 81590-WB002 · 81590-WB003 |
| 81594A | Left rear light gasket | 81594-WB001 · 81594-WB002 |
| 81952E | rear light cover | 81952-WB001 · 81952-WB002 |
| 81952G | COUVERCLE D'ECLAIRAGE ARRIERE GAUCHE | 81962-WB001 · 81962-WB002 |
