Toyota YARIS Fog Lamp — Figure 8102

Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 4 PNC and OE references.

Toyota YARIS Fog Lamp EPC diagram — 817510D
Fog Lamp — 817510D (201506 – 201808)

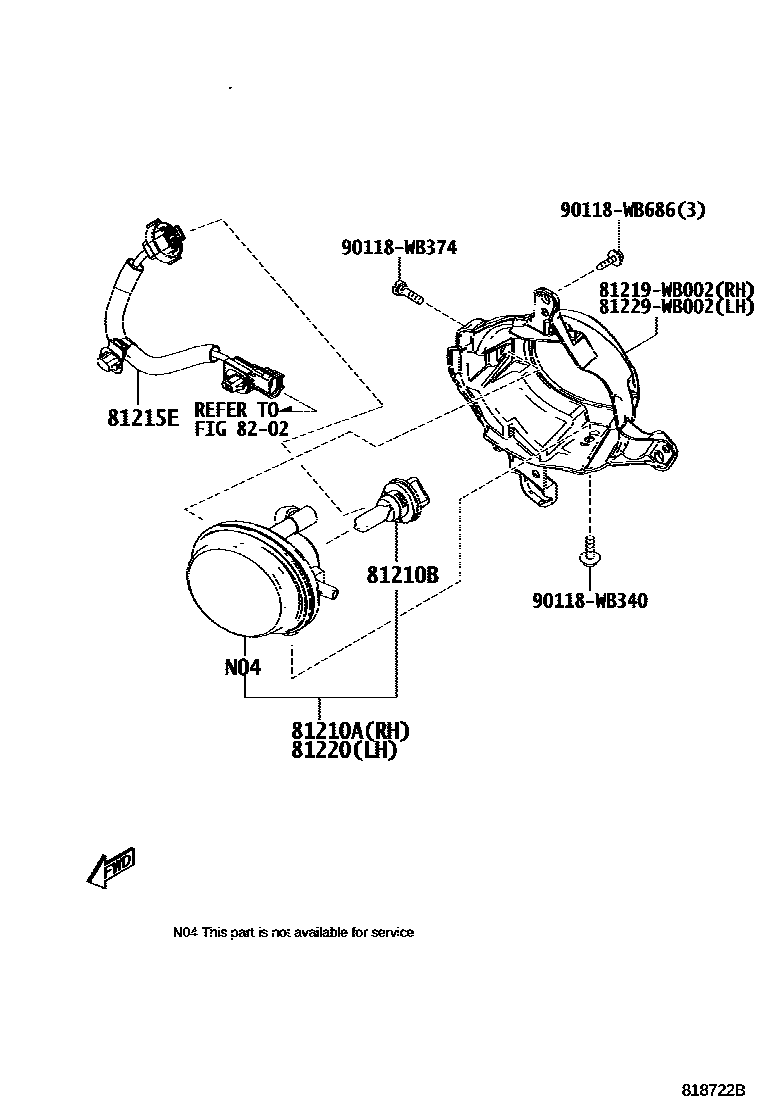

Toyota YARIS Fog Lamp EPC diagram — 818722B
Fog Lamp — 818722B (201808 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-WB001
81210Bfog light bulb90118-WB778
81215EFog light wire90118-WB818
81220Left fog light assembly81220-WB001
