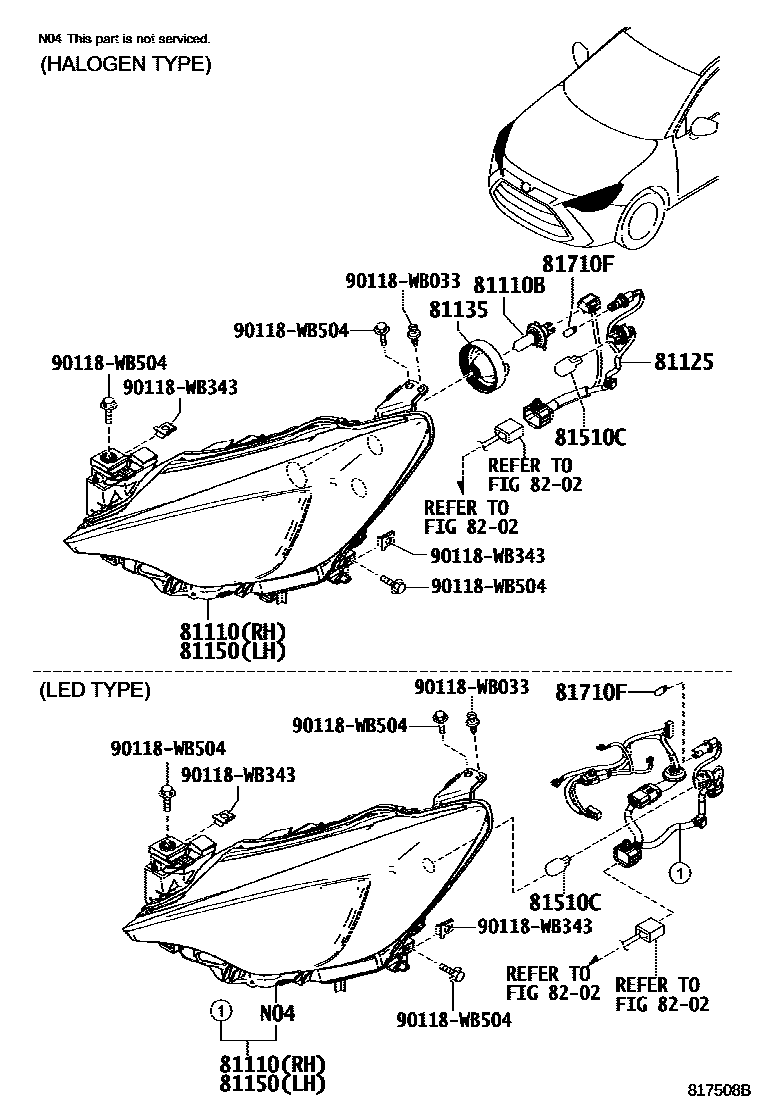

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81130-WB001 · 81145-WB003 |
| 81110B | Bulb (for headlight No. 1) | 90118-WB810 |
| 81125 | headlight wire | 81125-WB001 |
| 81135 | Right headlight assembly | 81135-WB001 |
| 81150 | Left headlight assembly | 81170-WB001 · 81185-WB003 |
| 81510C | Bulb (for front turn signal lamp) | 90118-WB744 |
| 81710F | Front width light bulb | 90118-WB809 |
