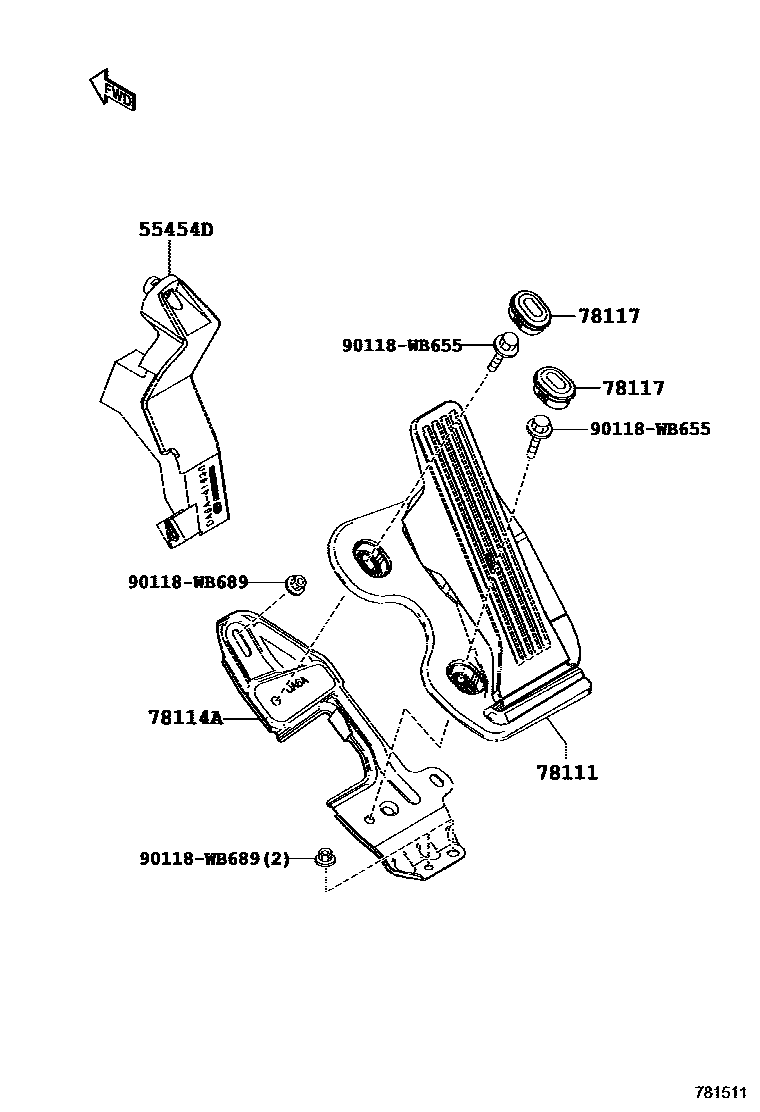

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55454D | TAMPON, SECURITE DE PANNEAU DES INSTRUMENTS | 55454-WB001 |
| 78111 | accelerator pedal | 78101-WB003 · 78101-WB004 · 78101-WB005 · 78101-WB006 · 78101-WB007 · 78101-WB008 · 78101-WB010 · 78101-WB011 |
| 78114A | accelerator pedal bracket | 78108-WB001 |
| 78117 | Cushion pad (for accelerator pedal lever) | 78117-WB001 |
