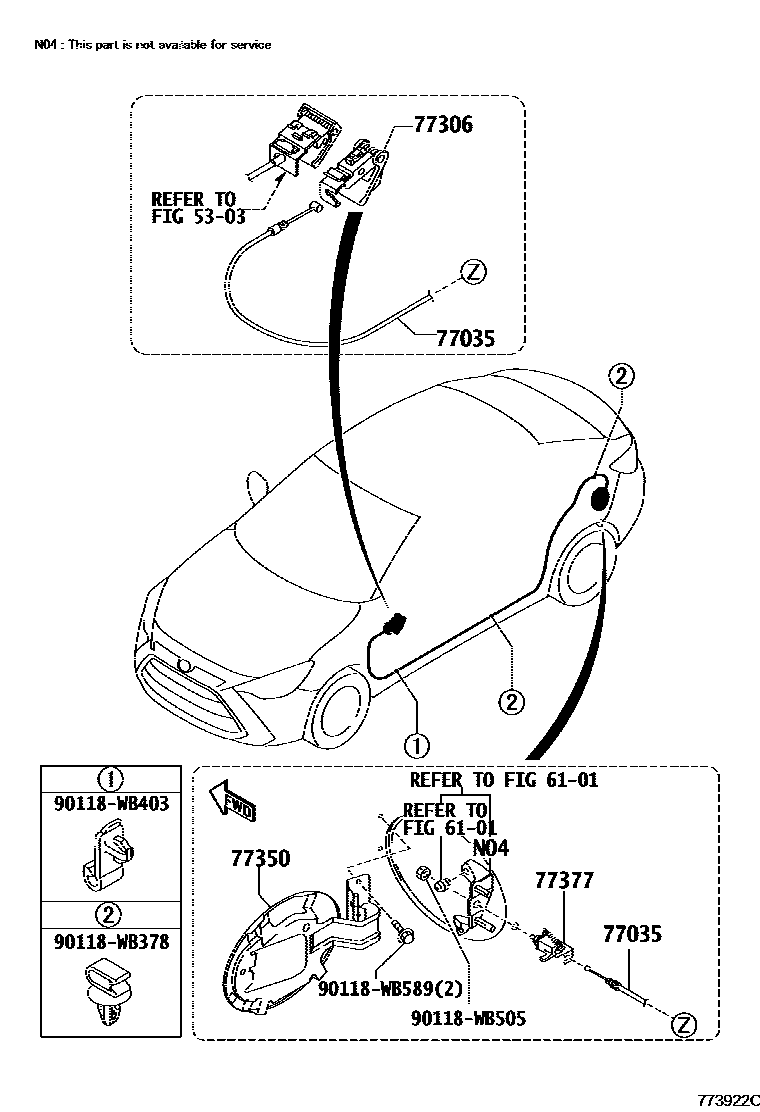

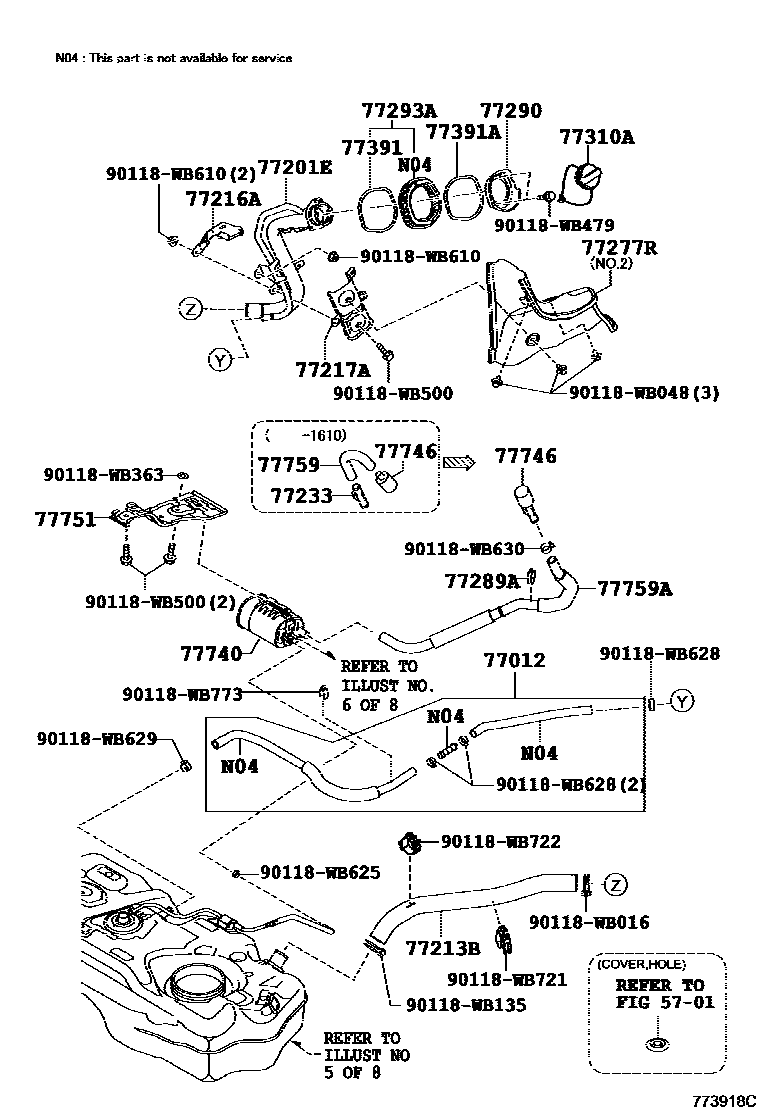

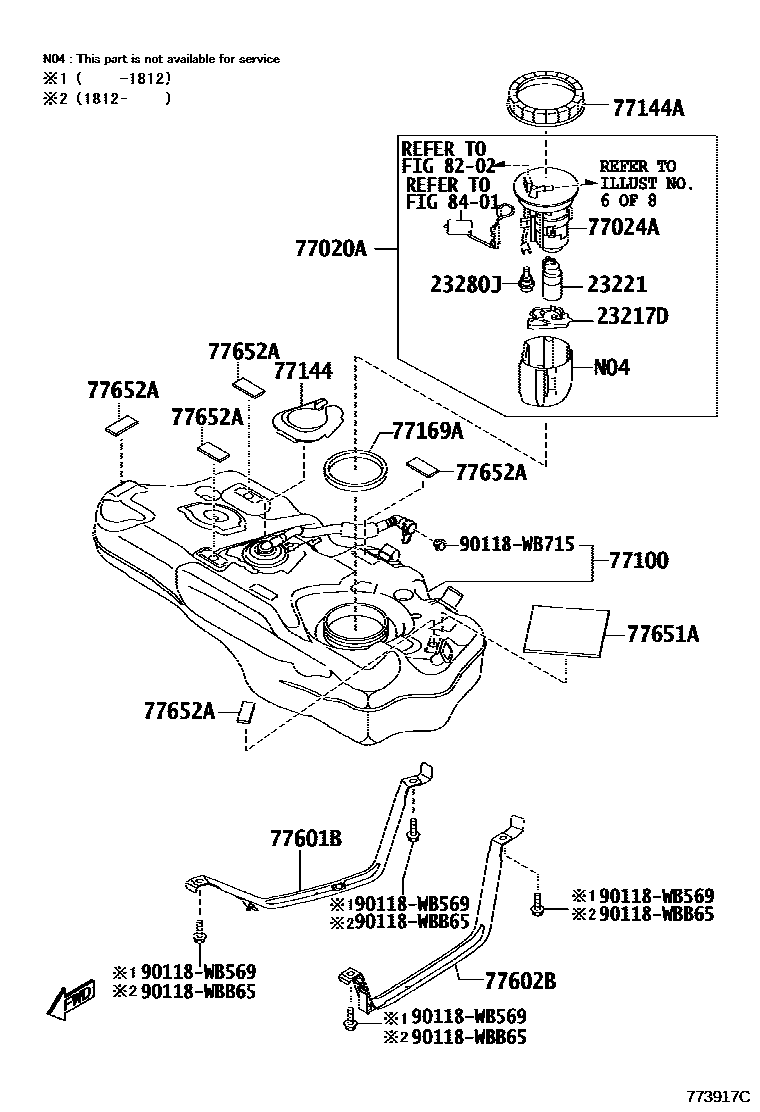

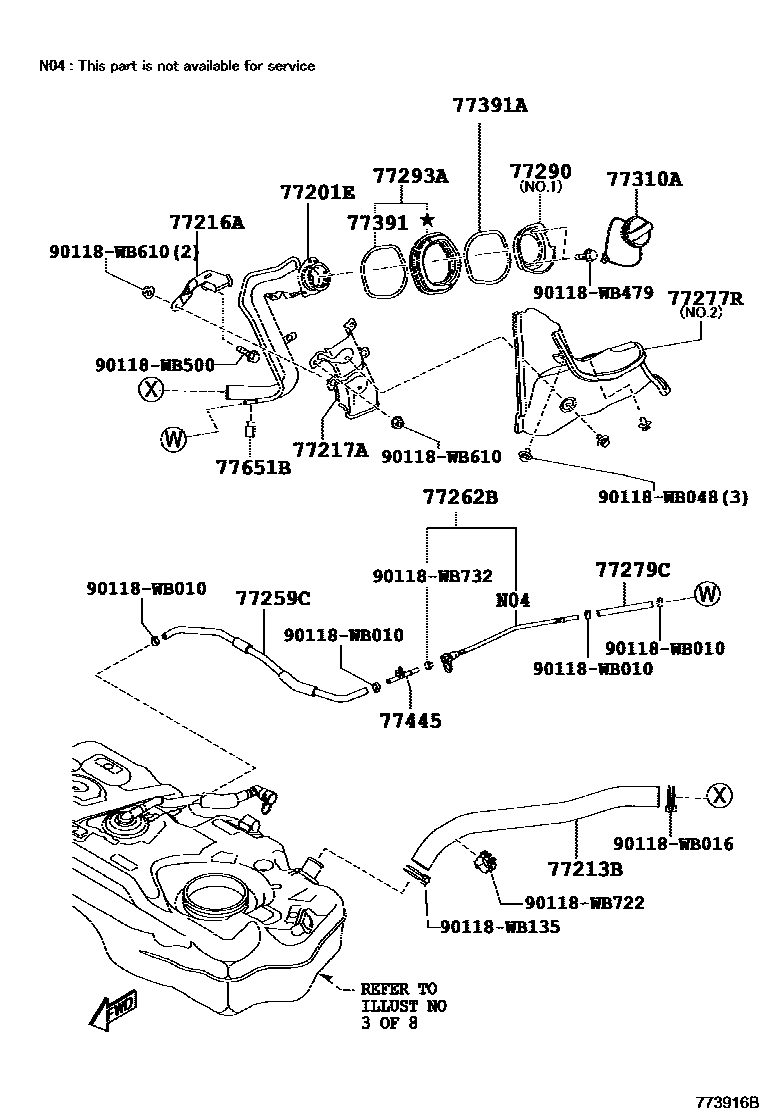

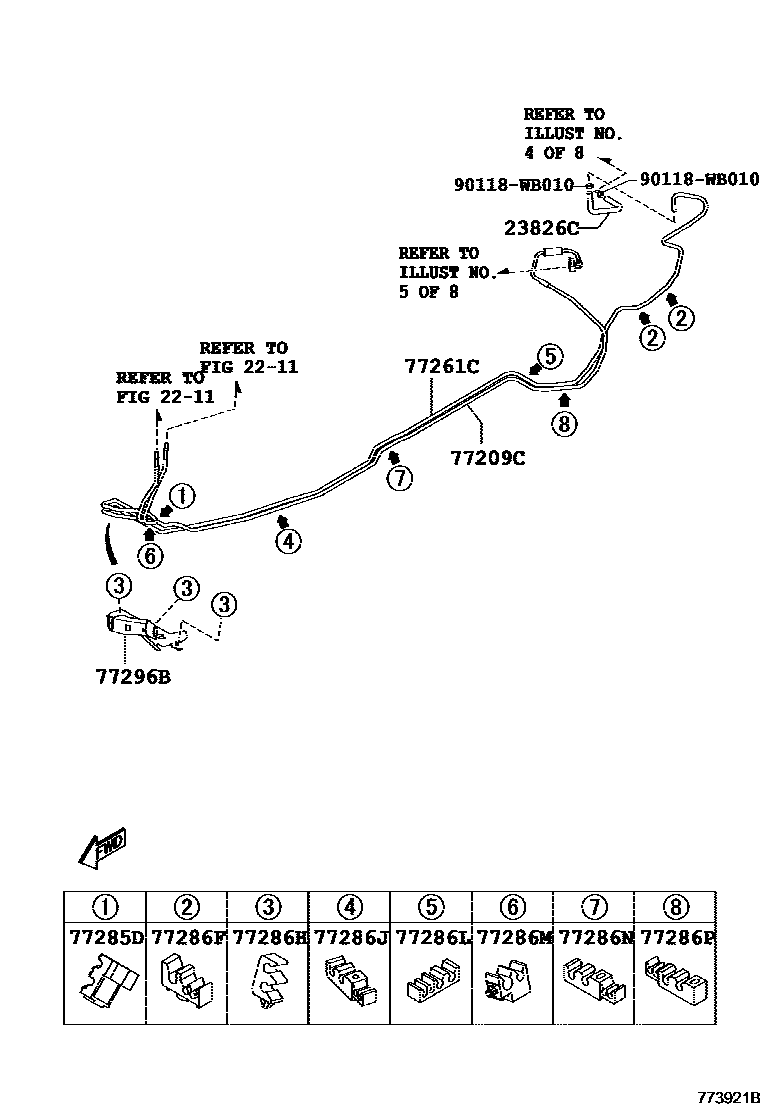

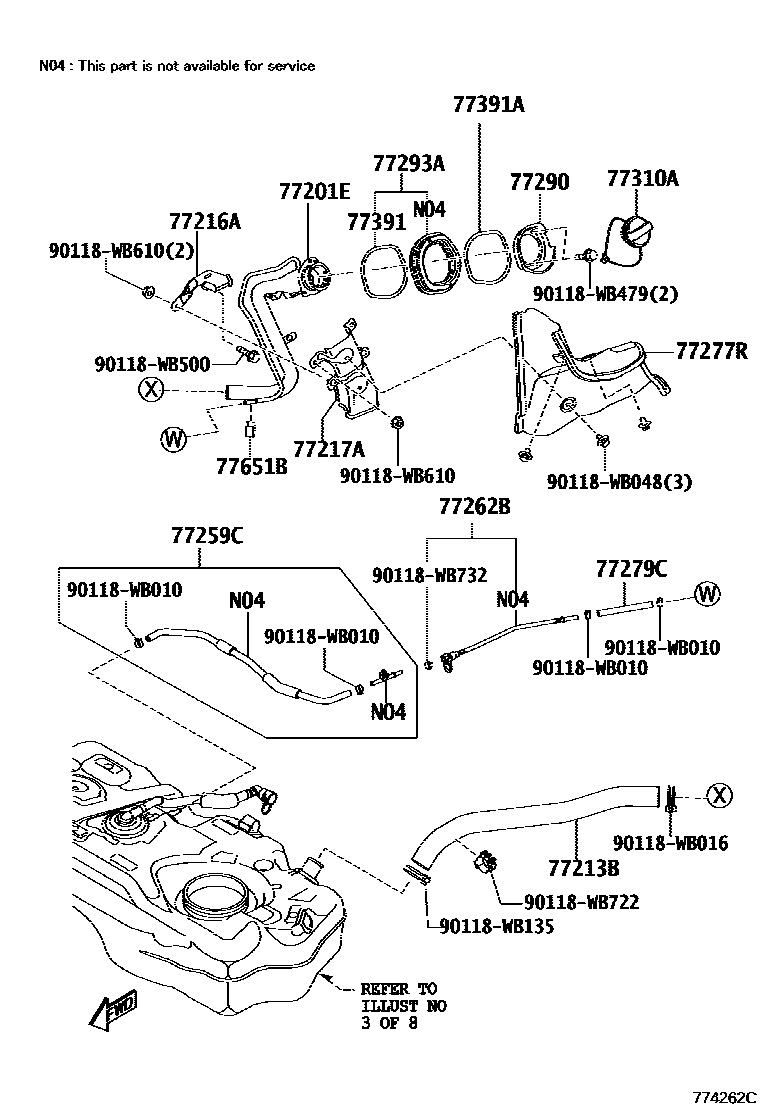

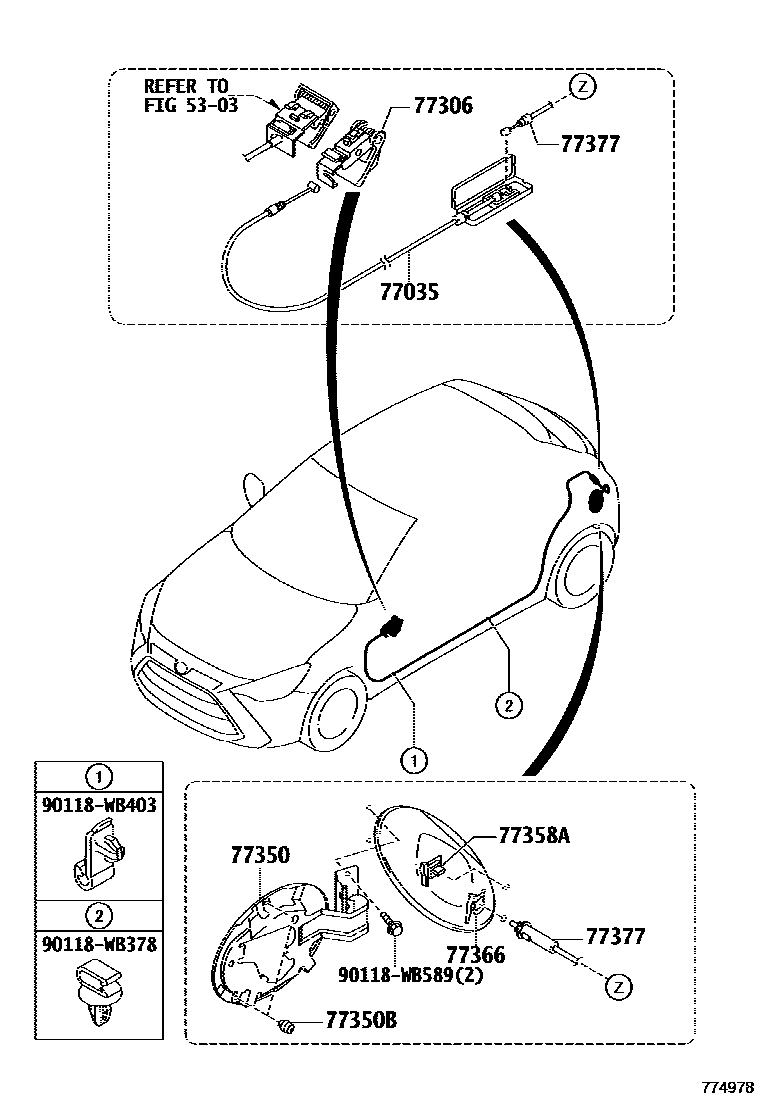

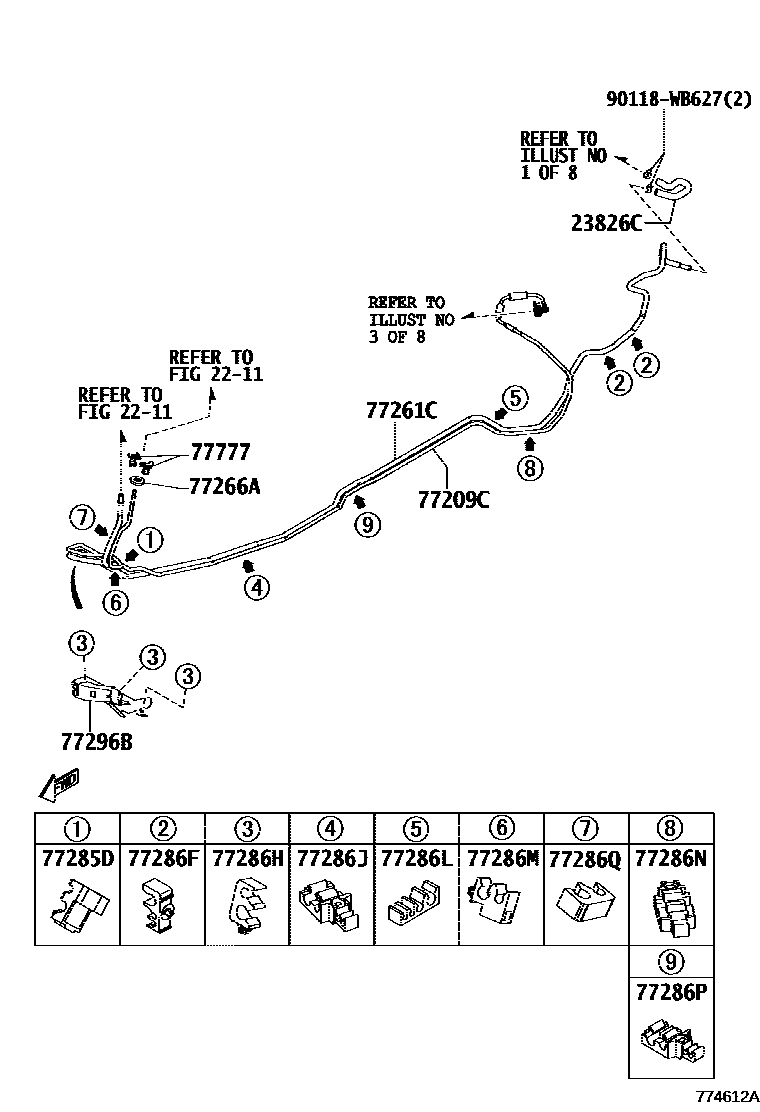

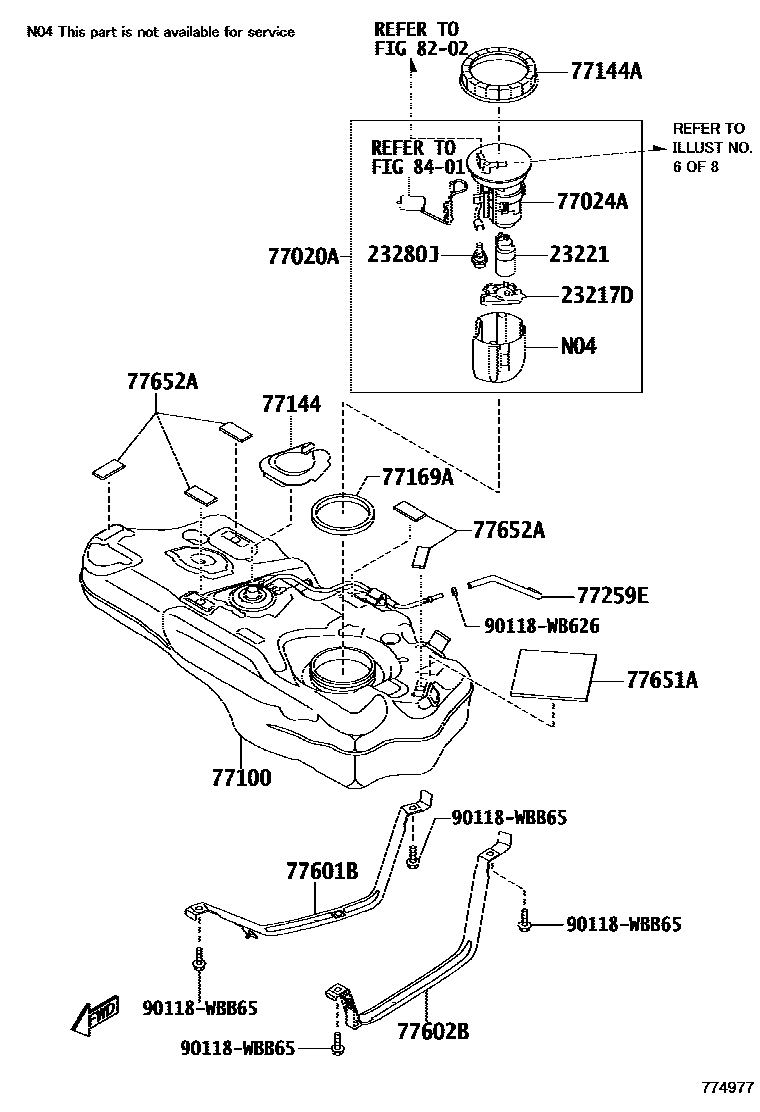

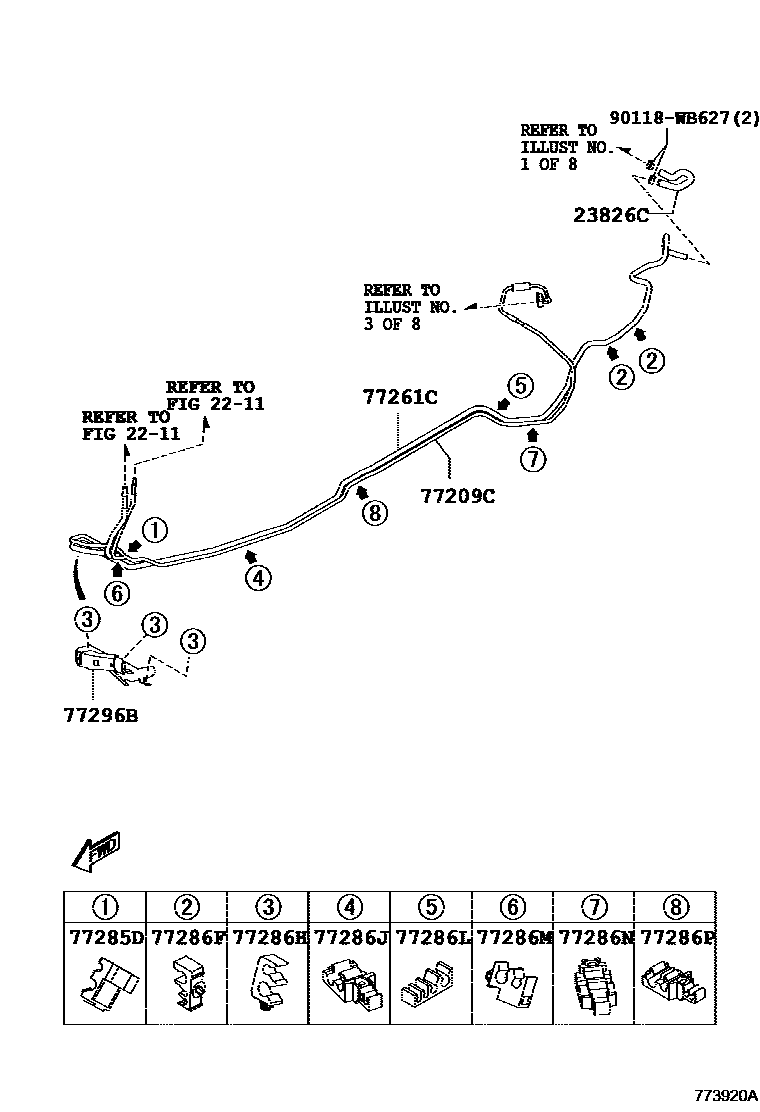

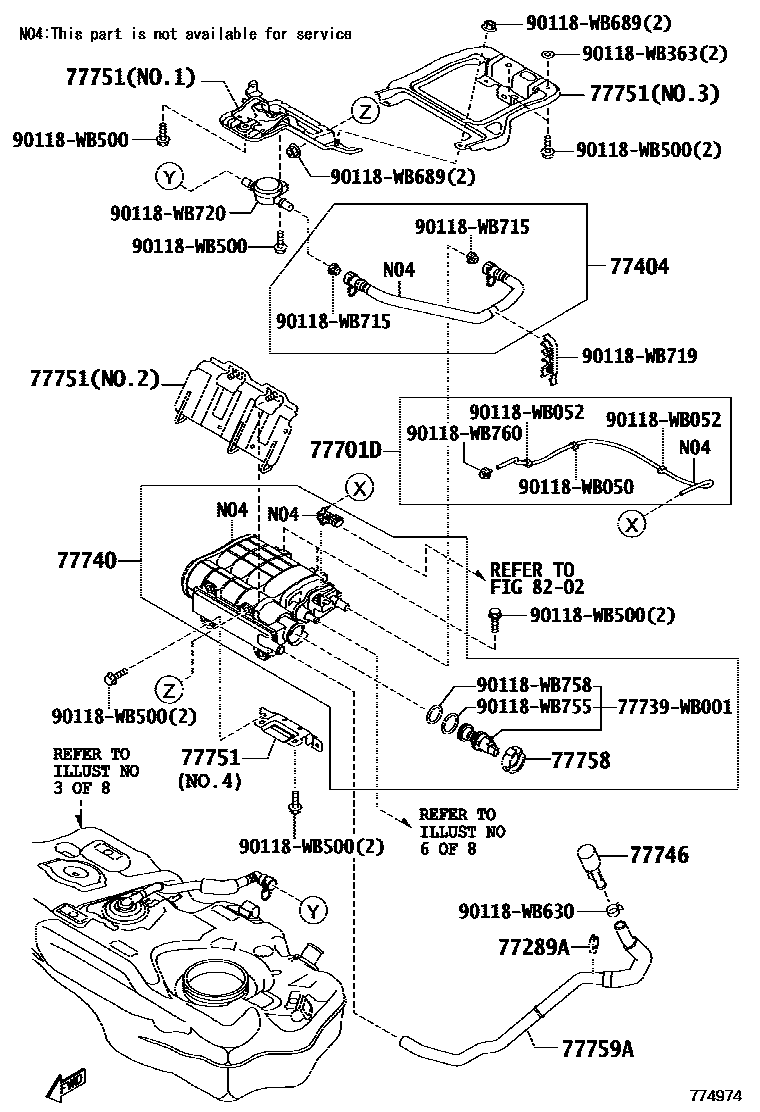

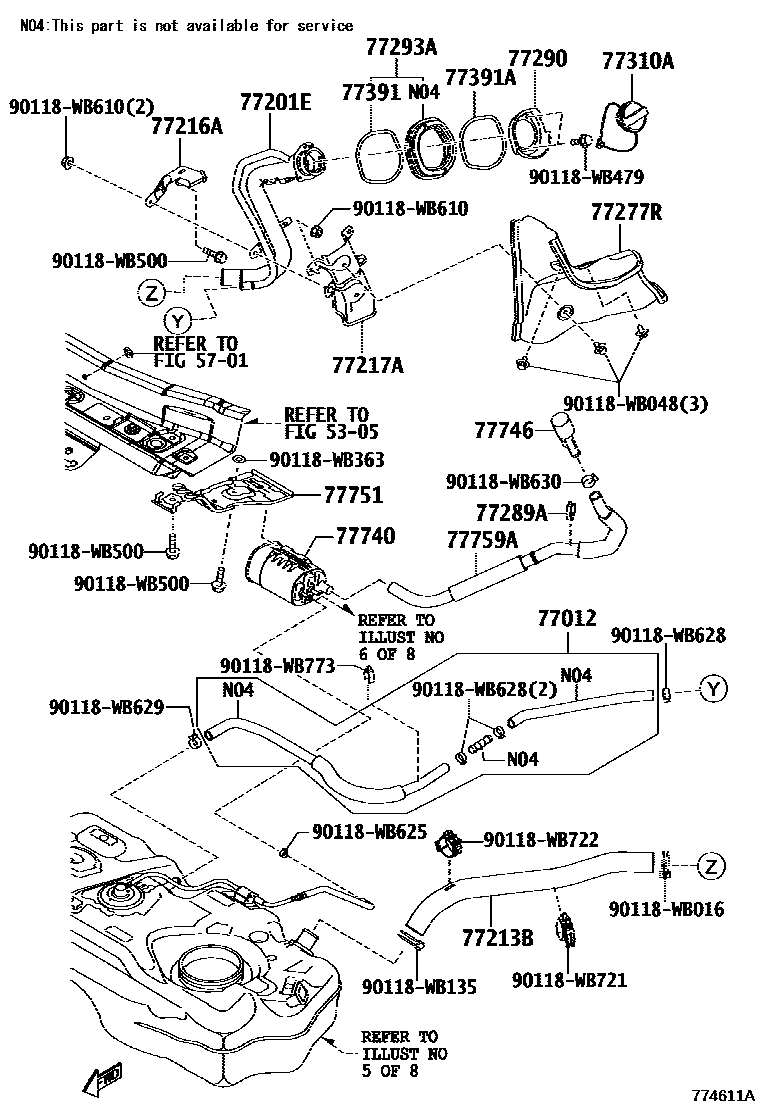

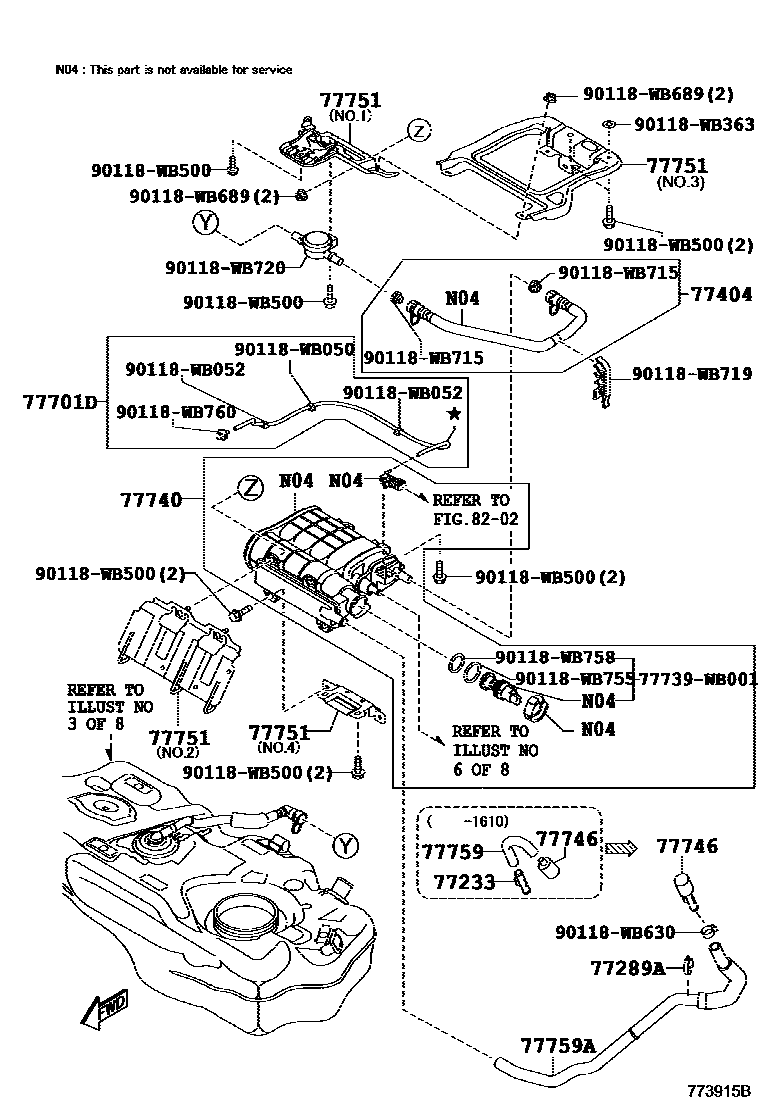

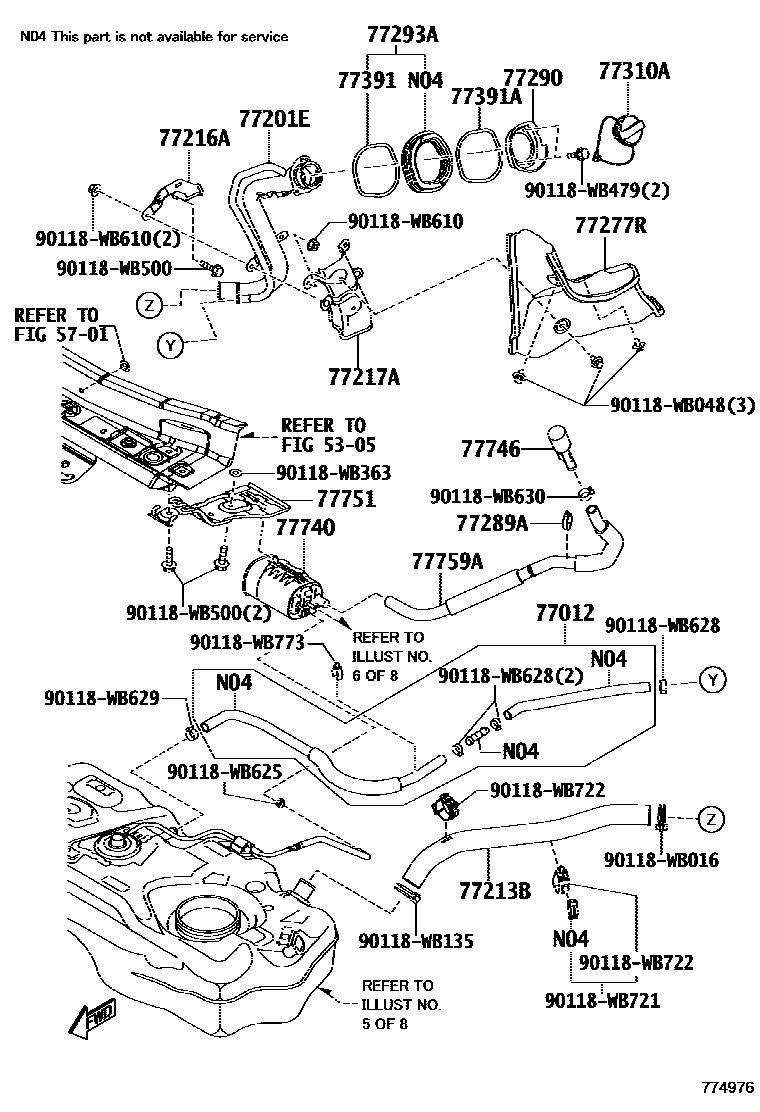

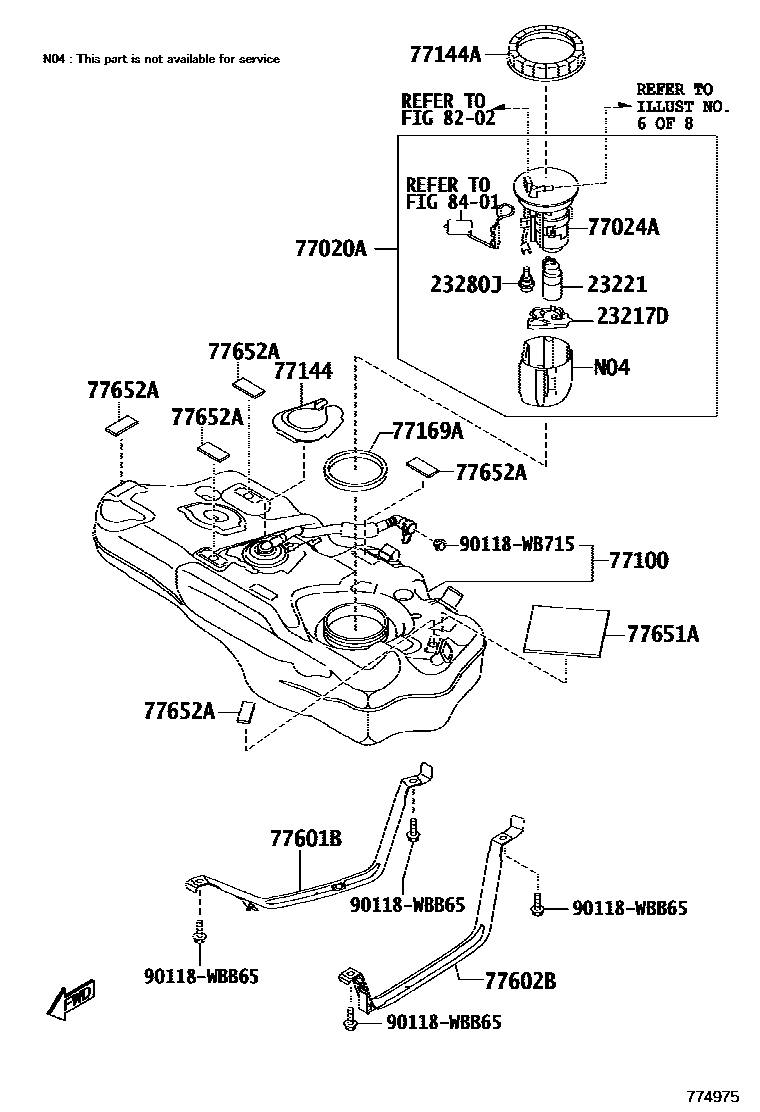

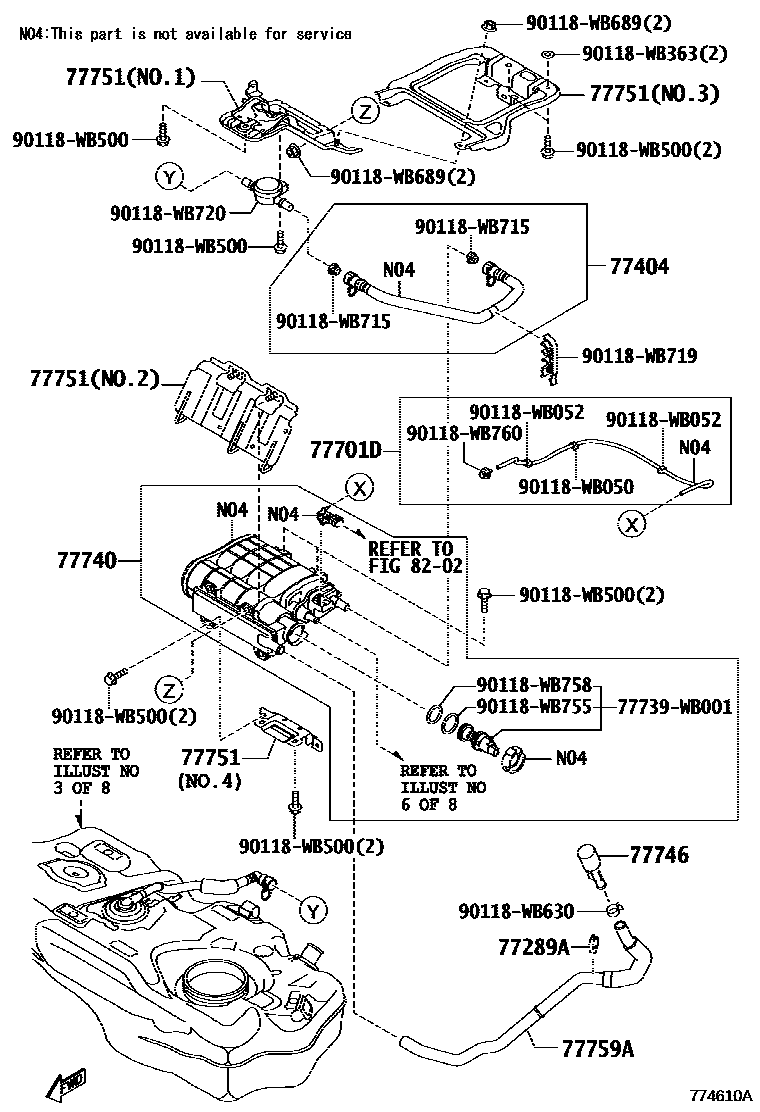

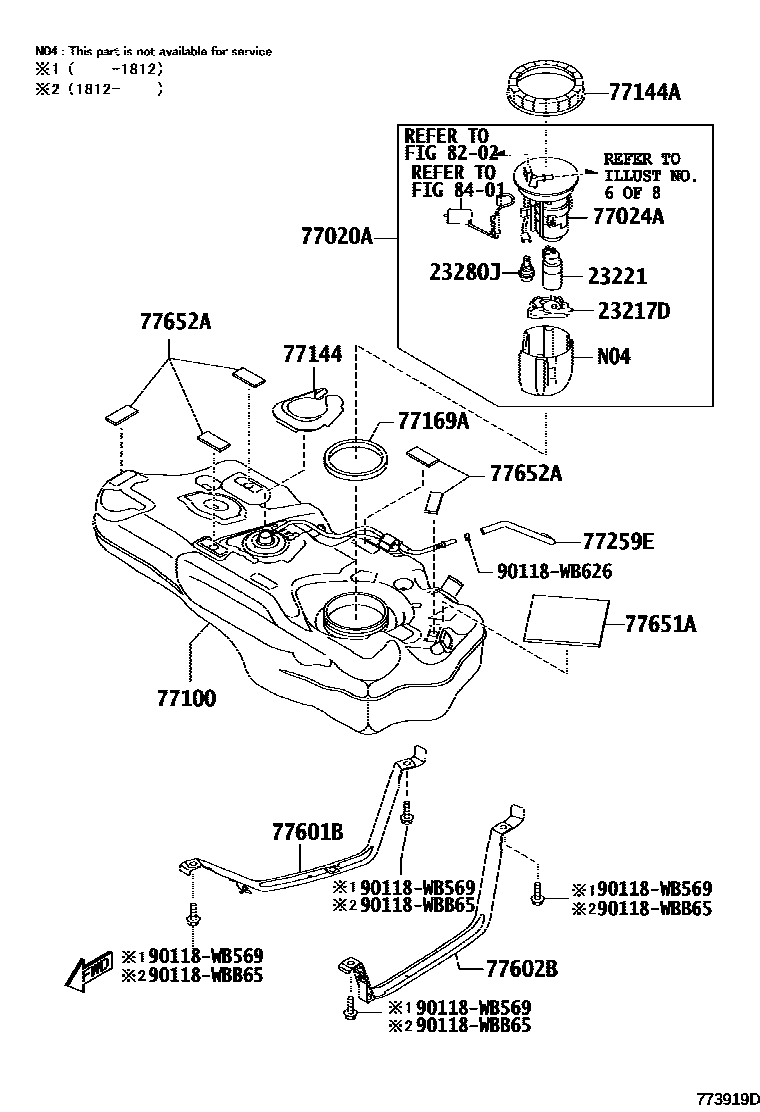

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 17 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-WB001 |
| 23221 | fuel pump | 23221-WB002 |
| 23280J | Fuel pressure regulator assembly | 23280-WB001 |
| 23826C | No. 1 fuel vapor supply hose | 23829-WB001 · 23829-WB002 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-WB001 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-WB001 |
| 77024A | Fuel absorber sub-assembly | 77024-WB001 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-WB003 · 77035-WB004 |
| 77100 | fuel tank assembly | 77001-WB001 · 77001-WB002 · 77001-WB003 · 77001-WB004 · 77001-WB006 · 77001-WB007 |
| 77144 | Fuel pump instrument fixture | 77144-WB001 |
| 77144A | Fuel pump instrument fixture | 77144-WB002 |
| 77169A | Fuel suction pipe fixed gasket | 77169-WB001 · 77169-WB002 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-WB001 · 77201-WB002 · 77201-WB003 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-WB001 · 77209-WB002 |
| 77213B | Fuel tank to filler pipe hose | 77213-WB001 · 77213-WB002 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-WB001 · 77216-WB002 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-WB001 · 77217-WB002 |
| 77233 | fuel hose connector | 77233-WB001 |
| 77259C | fuel hose | 77262-WB002 |
| 77259E | fuel hose | 77259-WB001 |
| 77261C | No. 3 fuel hose (for fuel evaporative emission pipe) | 77261-WB001 · 77261-WB002 · 77261-WB003 |
| 77262B | No. 2 fuel tank to carbon canister pipe | 77262-WB001 |
| 77266A | No. 1 fuel line protection device | 77266-WB001 |
| 77277R | Fuel tank filler pipe protection device | 77277-WB001 |
| 77279C | fuel hose | 77269-WB001 |
| 77285D | No. 1 fuel pipe clamp | 90118-WB080 · 90118-WB774 |
| 77286F | No. 2 fuel pipe clamp | 90118-WB345 · 90118-WB767 |
| 77286H | No. 3 fuel pipe clamp | 90118-WB400 · 90118-WB768 |
| 77286J | No. 4 fuel pipe clamp | 90118-WB346 · 90118-WB769 |
| 77286L | No. 5 fuel pipe clamp | 77286-WB001 · 77286-WB002 |
| 77286M | No. 6 fuel pipe clamp | 90118-WB399 · 90118-WB776 |
| 77286N | No. 7 fuel pipe clamp | 77289-WB001 · 77289-WB004 |
| 77286P | No. 8 fuel pipe clamp | 77289-WB002 · 77289-WB005 |
| 77286Q | No. 9 fuel pipe clamp | 90118-WBB20 |
| 77289A | No. 3 fuel pipe clamp with retaining ring | 77289-WB003 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-WB001 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-WB001 · 77293-WB002 |
| 77296B | No. 1 fuel line protector bracket | 77296-WB001 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-WB001 |
| 77310A | Fuel tank cap assembly | 77300-WB002 · 77300-WB003 |
| 77350 | Fuel filler cap assembly | 77350-WB001 · 77350-WB002 |
| 77350B | Cushion (for fuel filler cap) | 90118-WB887 |
| 77358A | Fuel filler cap stopper | 77358-WB001 |
| 77366 | Fuel filler cap hinge spring | 77366-WB001 |
| 77377 | Fuel filler cap lock retainer | 77377-WB001 · 77377-WB002 |
| 77391 | fuel inlet ring | 77391-WB001 |
| 77391A | fuel inlet ring | 77391-WB002 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-WB001 |
| 77445 | No. 2 fuel tank vent connector | 77445-WB002 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-WB001 · 77601-WB003 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77601-WB002 · 77601-WB004 |
| 77651A | No. 1 fuel tank liner | 77651-WB002 |
| 77651B | fuel tank liner | 77651-WB001 |
| 77652A | No. 2 fuel tank liner | 77652-WB001 |
| 77701D | No. 4 fuel hose (for breather valve) | 77701-WB001 |
| 77740 | Carbon canister assembly | 77704-WB001 · 77740-WB001 |
| 77746 | No.2 carbon canister filter | 77746-WB001 · 77746-WB002 |
| 77751 | Carbon canister base bracket | 77751-WB001 · 77751-WB002 · 77751-WB003 · 77751-WB004 · 77751-WB005 |
| 77758 | Carbon canister cover | 77758-WB001 |
| 77759 | Carbon canister hose | 77759-WB001 |
| 77759A | Carbon canister hose | 77759-WB002 · 77759-WB003 |
| 77777 | Fuel pipe clamp bracket | 77778-WB001 |
