Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

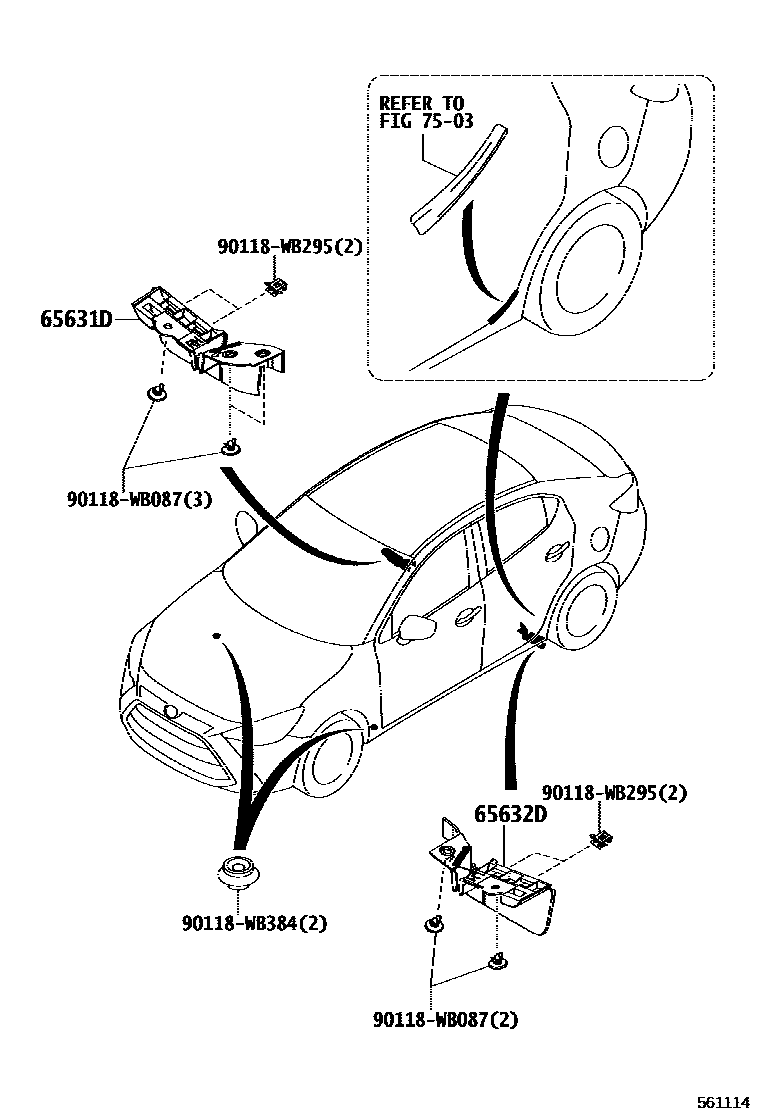

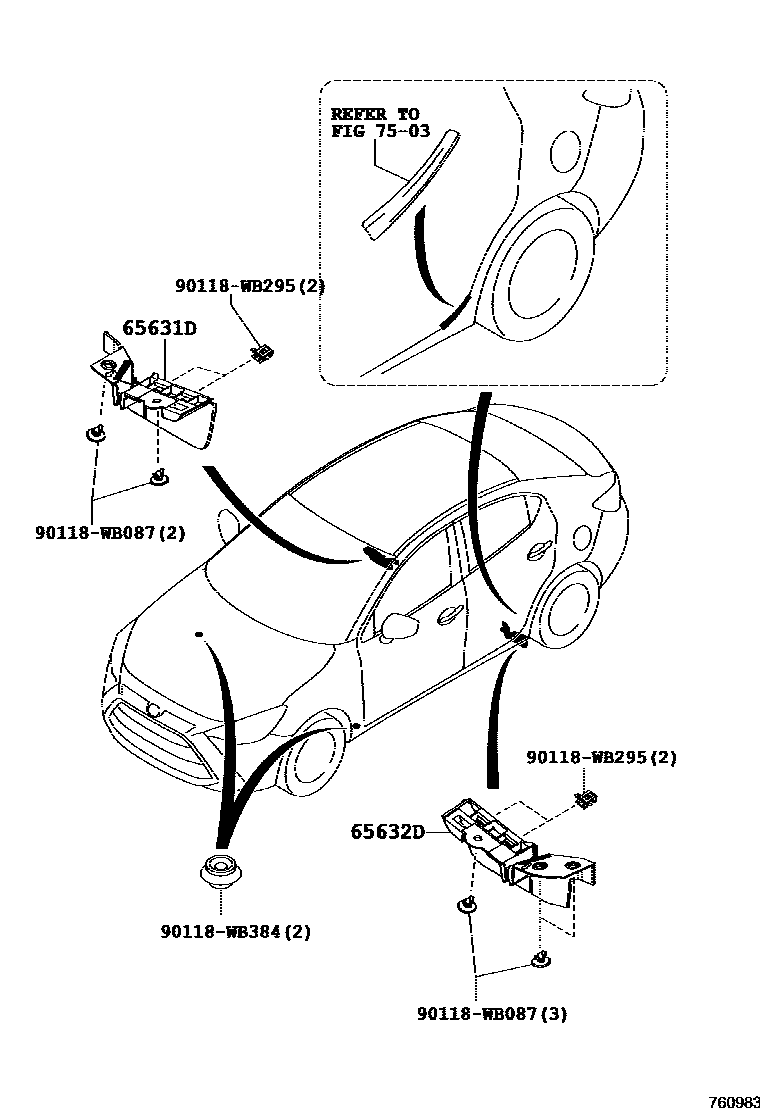

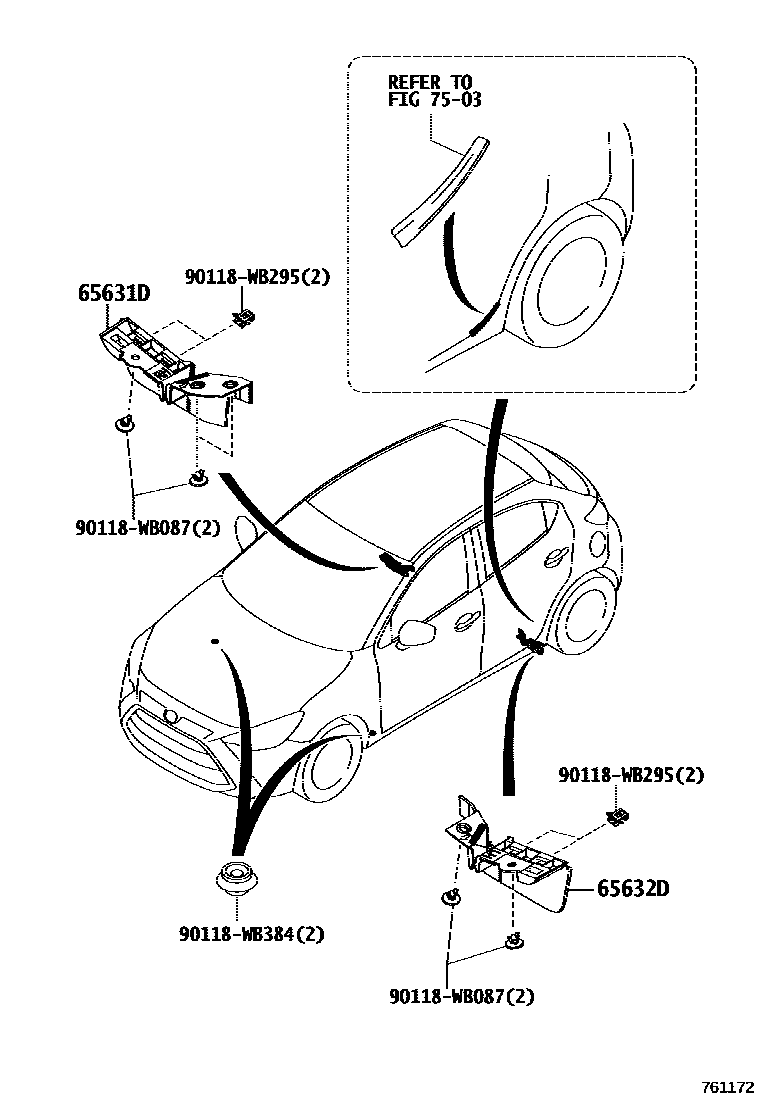

| 65631D | Right rear wheel house front panel | 65631-WB001 |
| 65632D | Left rear wheel house front panel | 65632-WB001 |

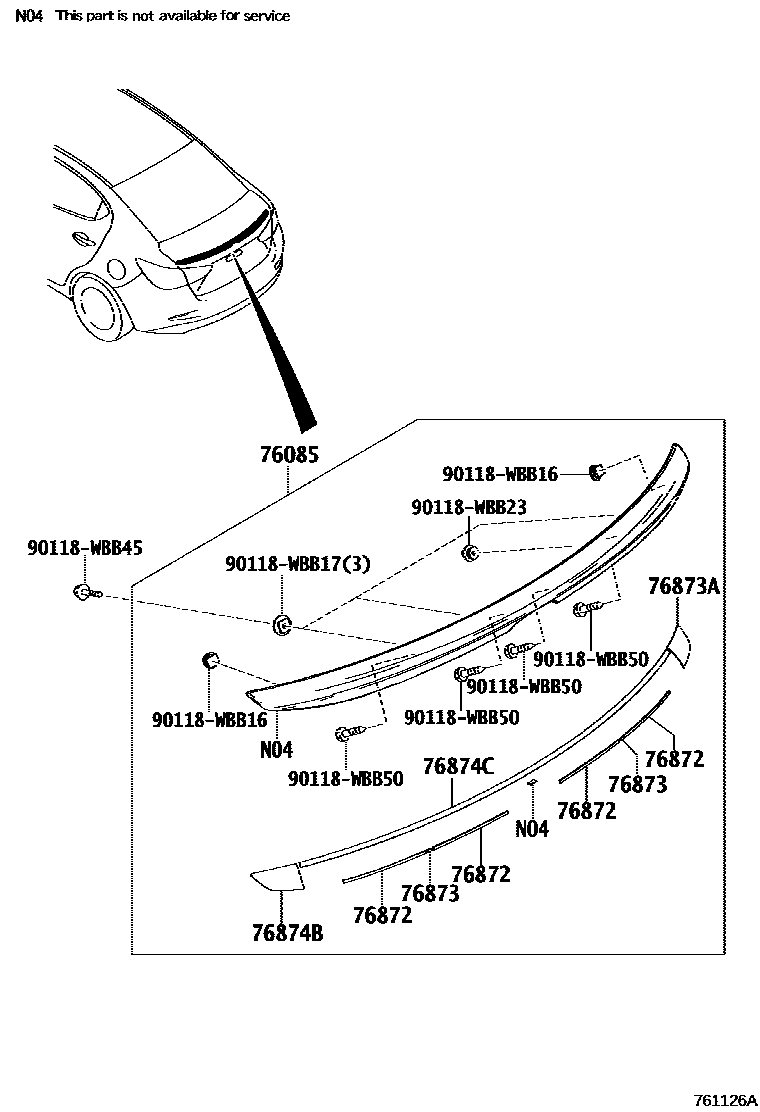

| 76085 | Rear spoiler sub-assembly | 76085-WB001 · 76085-WB002 · 76085-WB003 · 76085-WB004 · 76085-WB005 · 76085-WB006 · 76085-WB007 |
| 76872 | No. 1 rear spoiler protective strip | 76874-WB001 |
| 76873 | No. 2 rear spoiler protective strip | 76874-WB005 |
| 76873A | Right rear spoiler protective strip | 76874-WB002 |
| 76874B | Left rear spoiler protective strip | 76874-WB004 |
| 76874C | PROTECTEUR, BECQUET ARR, NO.3 | 76874-WB003 |

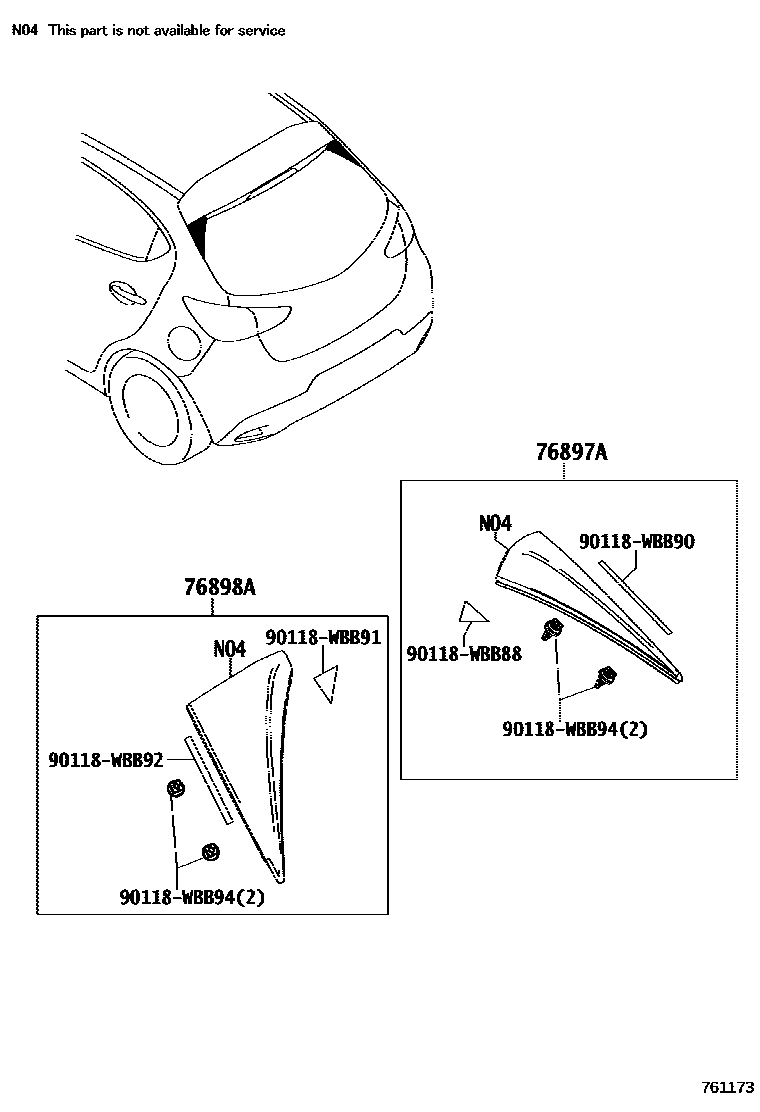

| 76897A | Right rear spoiler | 76897-WB001 |
| 76898A | Left rear spoiler | 76898-WB001 |
