Toyota YARIS 侧防护条 — Figure 7503
Toyota YARIS EPC diagram 7503, 侧防护条, with 10 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

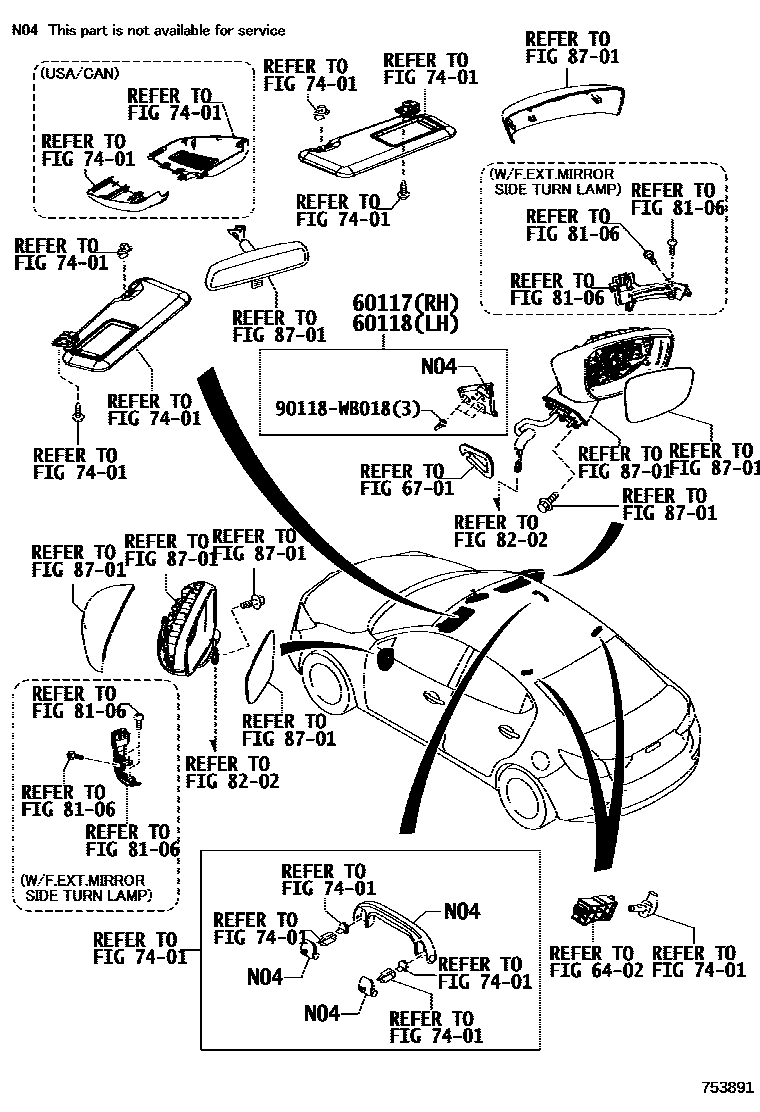

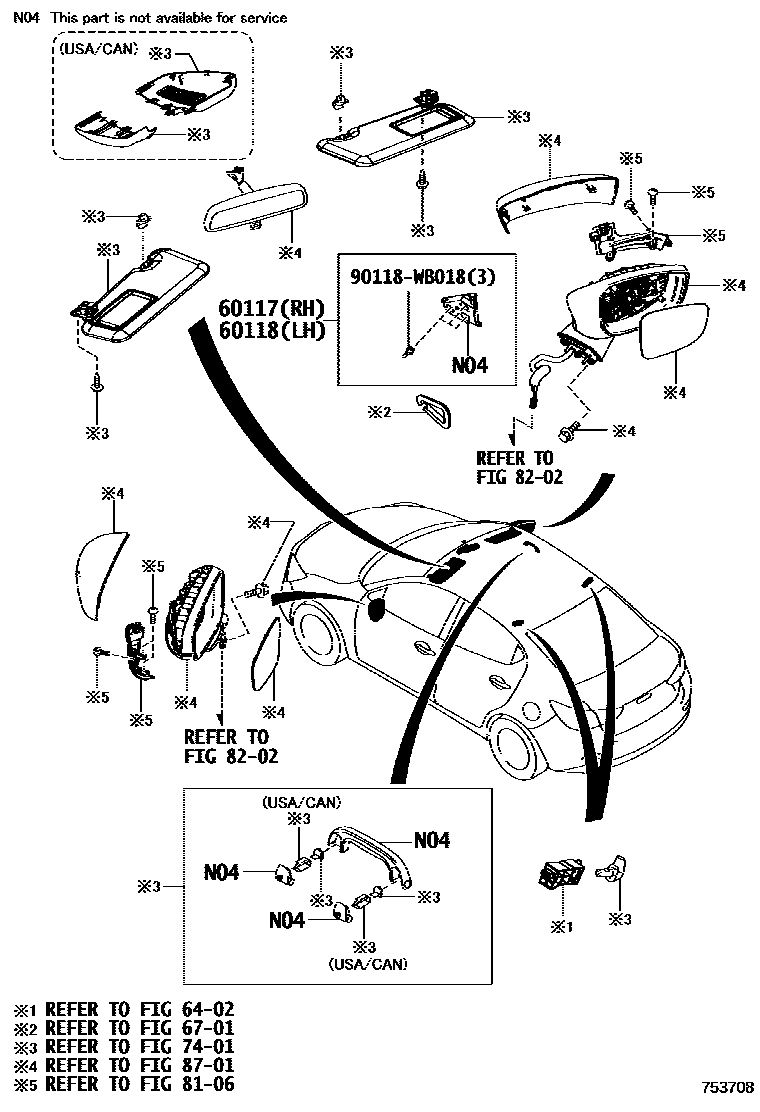

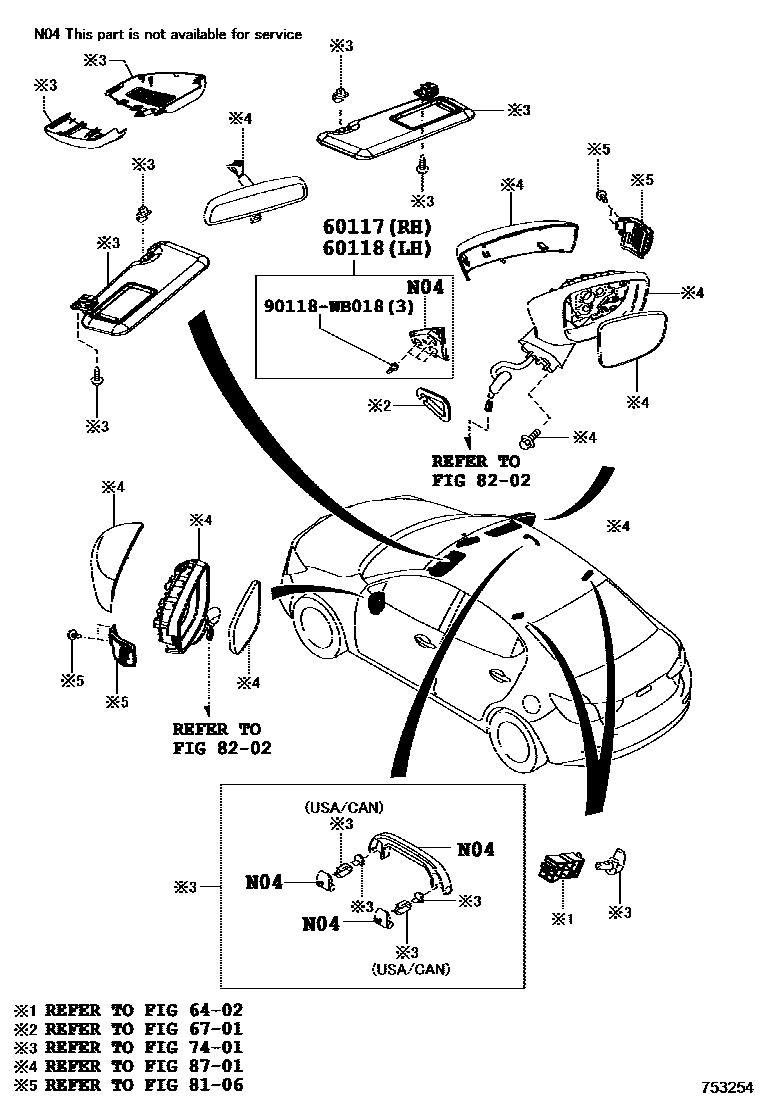

| 60117 | Right front pillar upper cover sub-assembly | 60117-WB001 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-WB001 |

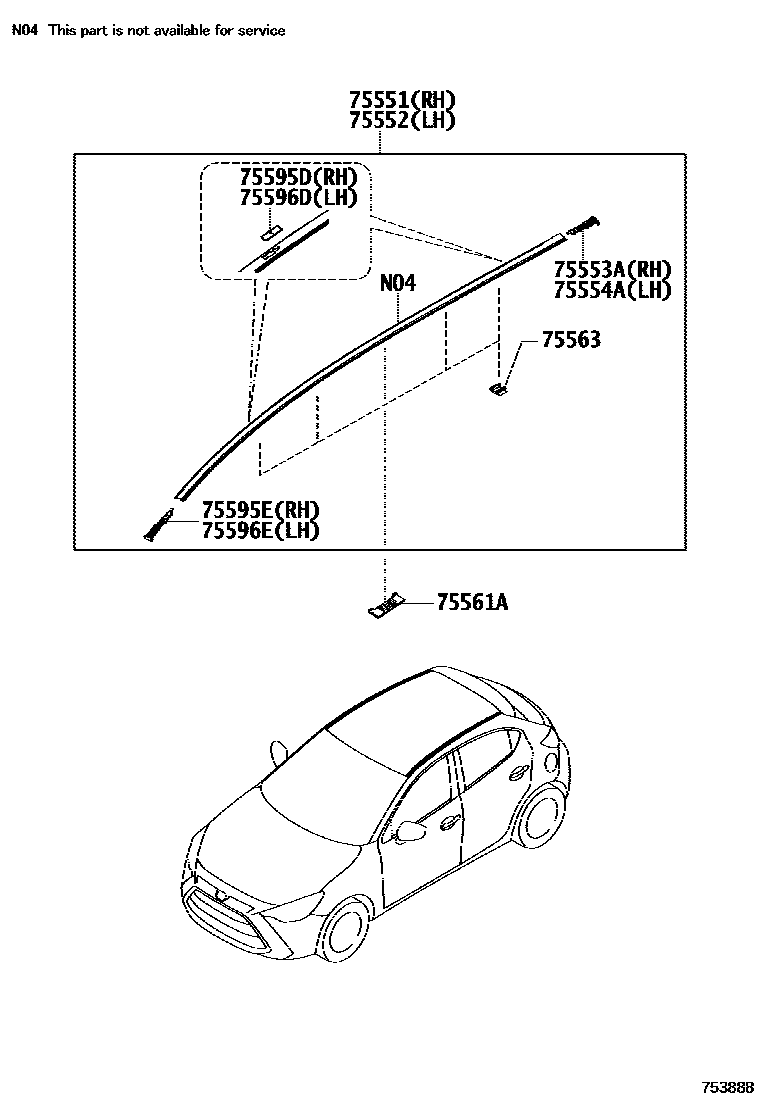

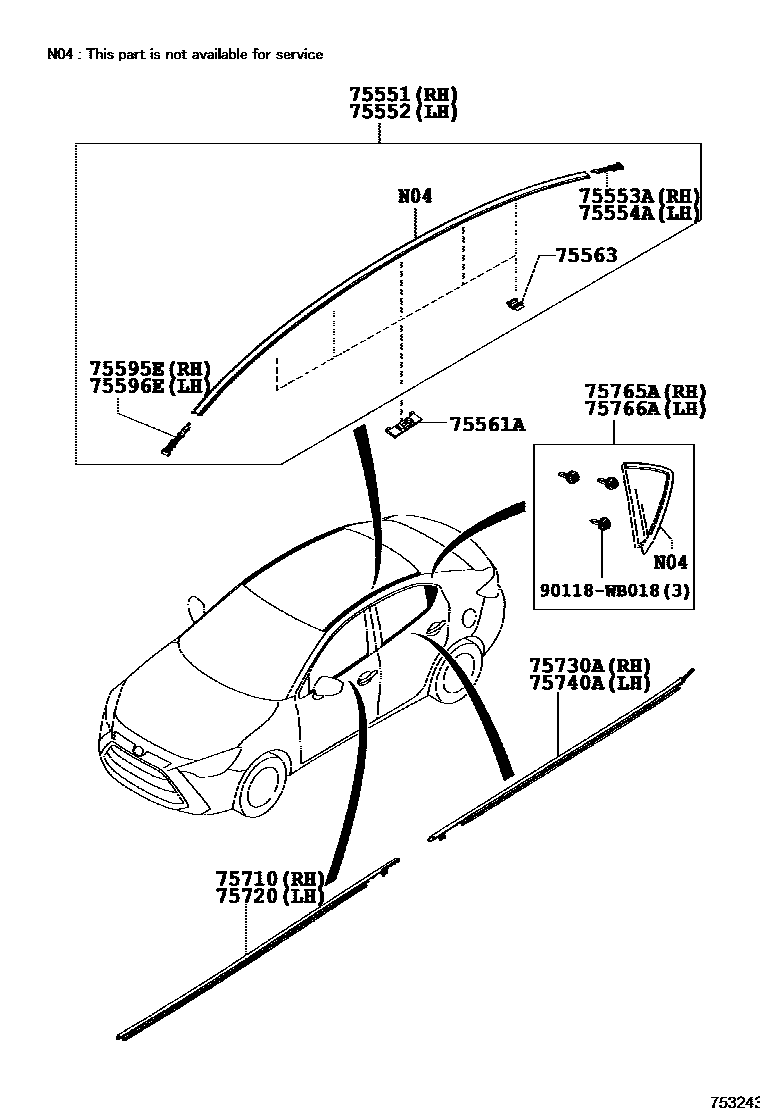

| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-WB001 · 75551-WB002 · 75551-WB003 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-WB001 · 75552-WB002 · 75552-WB003 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-WB001 · 75553-WB002 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-WB001 · 75554-WB002 |
| 75561A | Roof drain channel side decorative strip clip | 75561-WB001 |
| 75563 | No. 1 roof drain channel side decorative strip fixings | 75563-WB001 |
| 75595D | Protective strip cover for the front drain channel on the right side of the roof | 75596-WB002 |
| 75595E | End cover of front drainage gutter side protection strip on the right side of the roof | 75595-WB001 |
| 75596D | Protective strip cover for the front drain channel on the left side of the roof | 75596-WB002 |
| 75596E | End cover of front drain gutter side protection strip on the left side of the roof | 75596-WB001 |

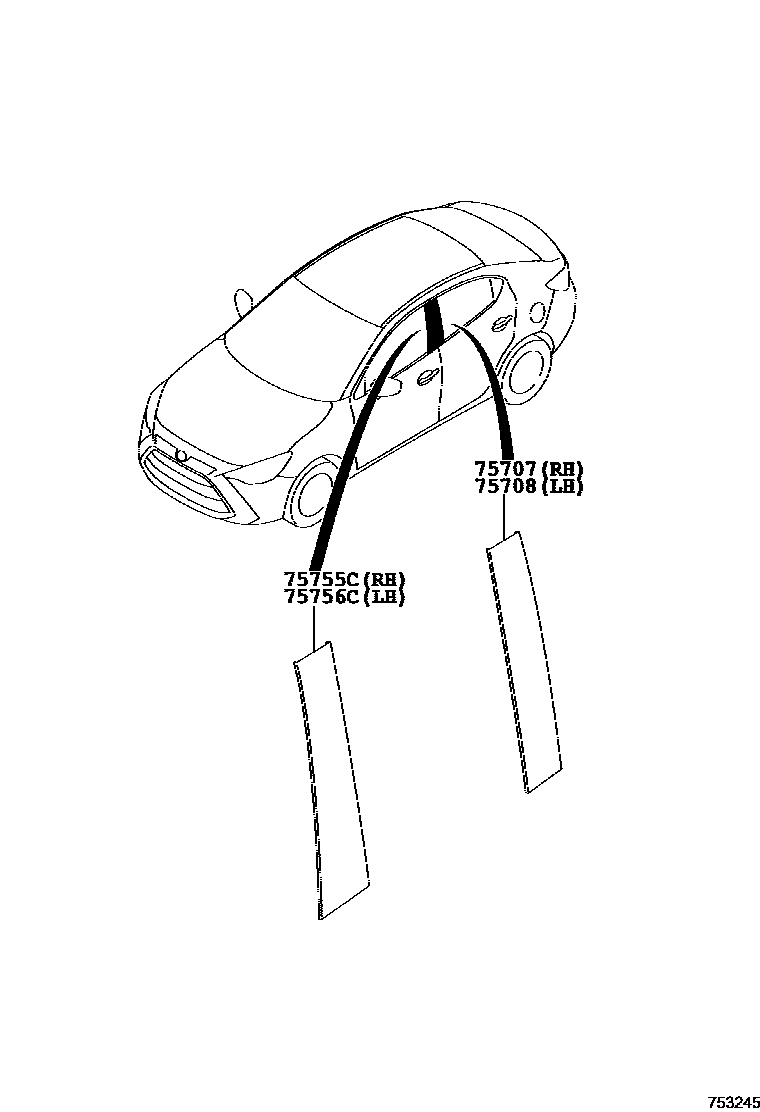

| 75707 | Right rear door window frame protective strip sub-assembly | 75707-WB001 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-WB001 |

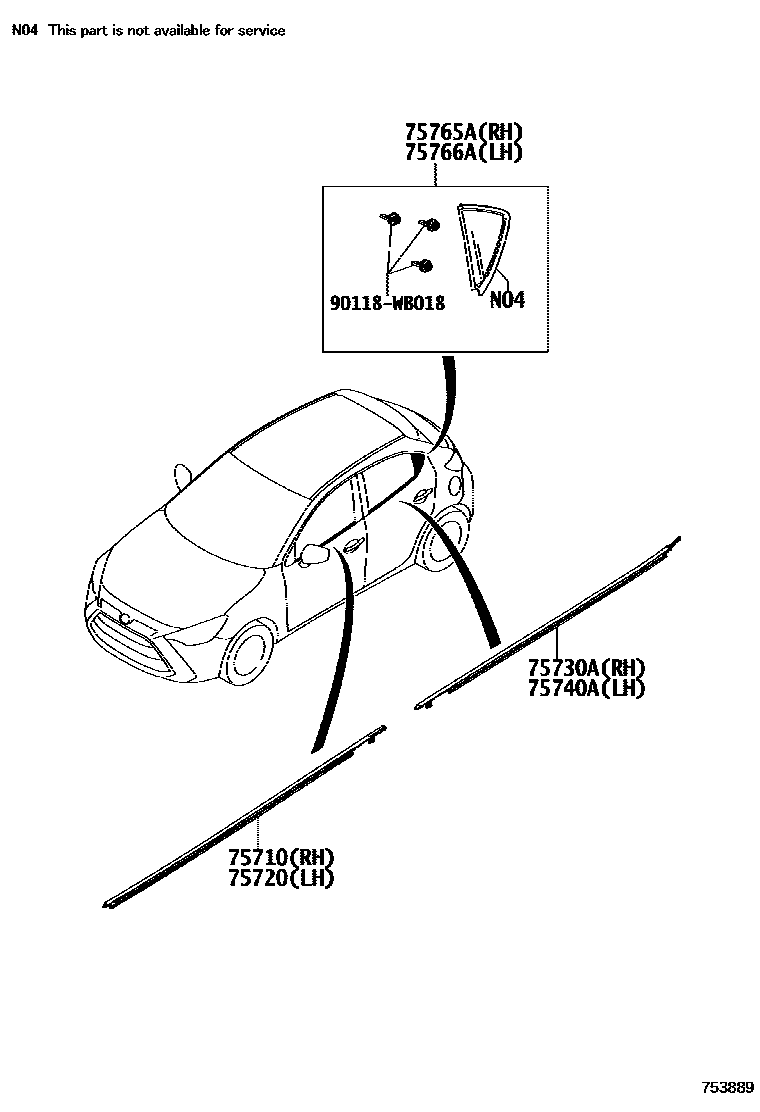

| 75710 | Right front door waistline protection strip assembly | 75710-WB002 |
| 75720 | Left front door waistline protection strip assembly | 75720-WB002 |
| 75730A | Right sliding door waistline protection strip assembly | 75730-WB002 |
| 75740A | Left sliding door waistline protection strip assembly | 75740-WB002 |

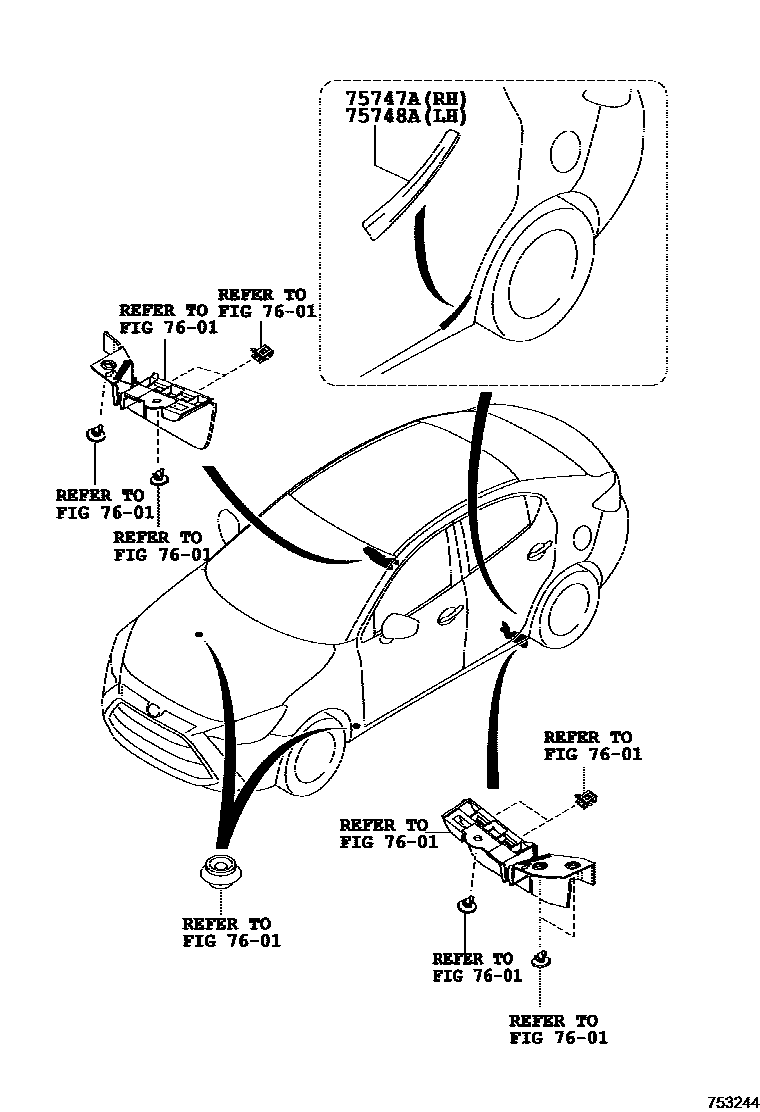

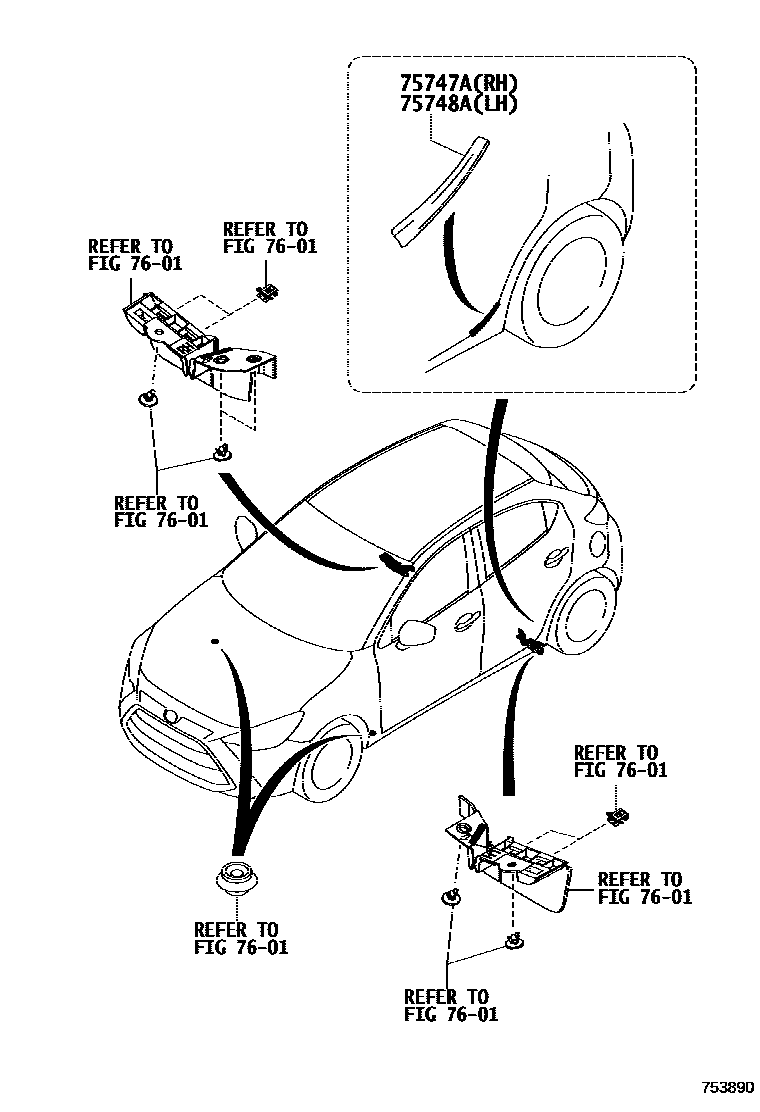

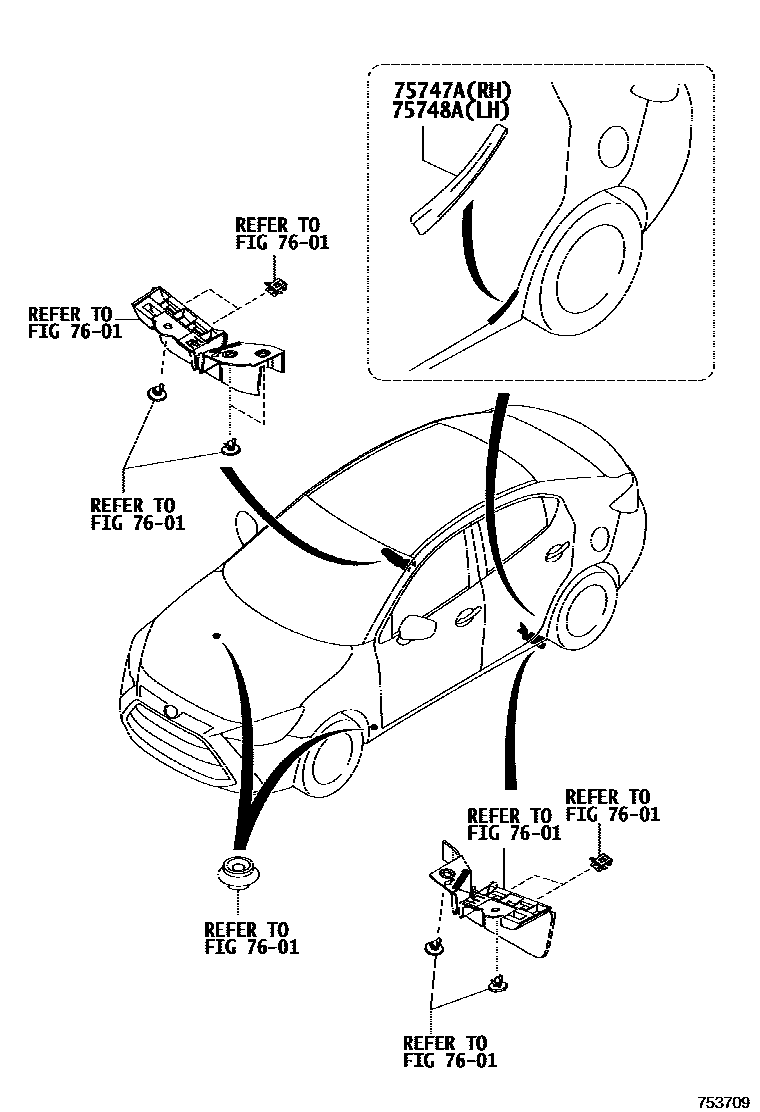

| 75747A | Right rear door outer rear lower protective strip | 75747-WB001 |
| 75748A | Left rear door outer rear lower protective strip | 75748-WB001 |
| 75755C | Right front door window frame rear protective strip | 75755-WB001 |
| 75756C | Left front door window frame rear protective strip | 75756-WB001 |
| 75765A | Right rear door window frame rear protective strip | 75765-WB001 |
| 75766A | Left rear door window frame rear protective strip | 75766-WB001 |
