Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 3 images and 4 PNC and OE references.

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 753282A
丰田徽标和铭牌(车外和车内) — 753282A (201506 – 201808)

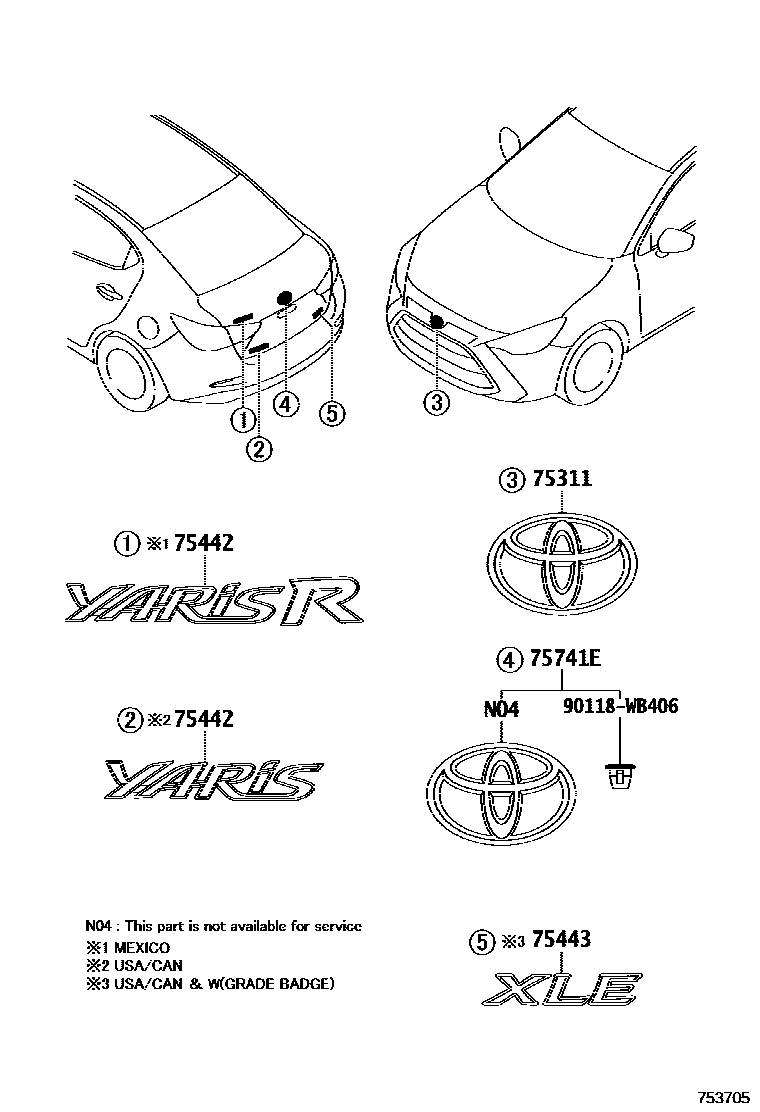

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 753705
丰田徽标和铭牌(车外和车内) — 753705 (201808 – 999999)

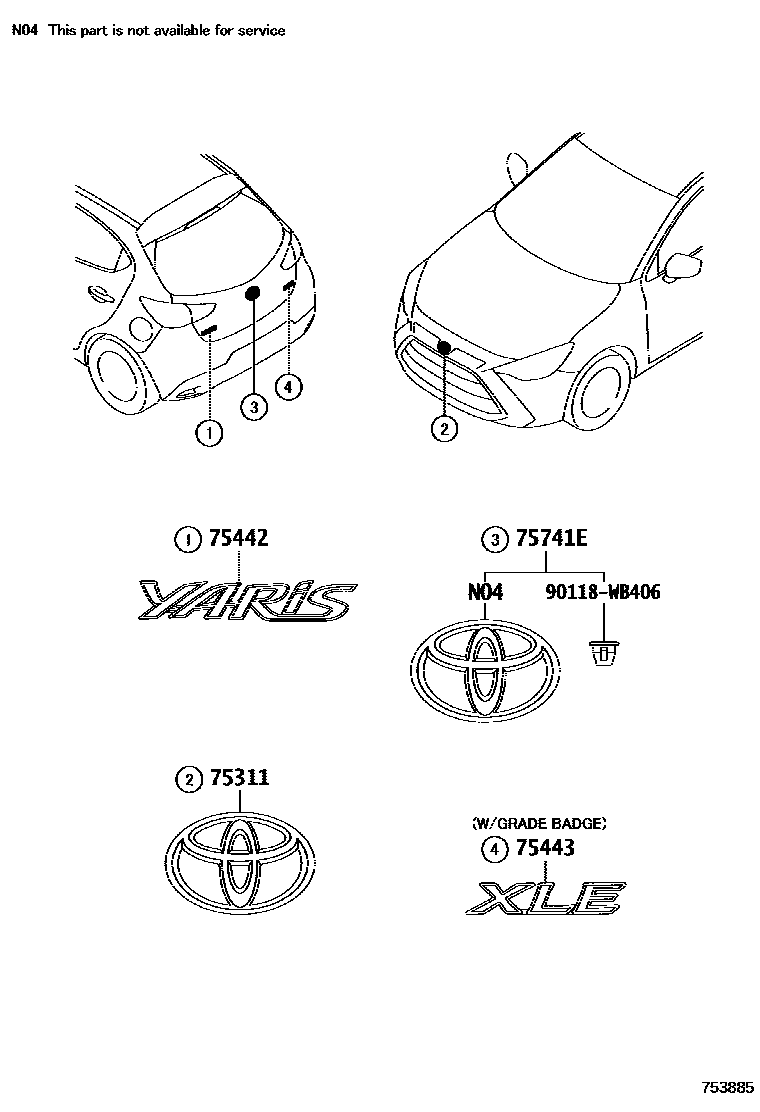

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 753885
丰田徽标和铭牌(车外和车内) — 753885 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-WB001 · 75301-WB002
75442Trunk door number plate No. 275442-WB001 · 75442-WB002 · 75442-WB003 · 75442-WB004 · 75442-WB006
75443No. 3 nameplate on back door75442-WB005 · 75442-WB007
75741Elogo90118-WB839 · 90118-WB886 · 90118-WBB93
