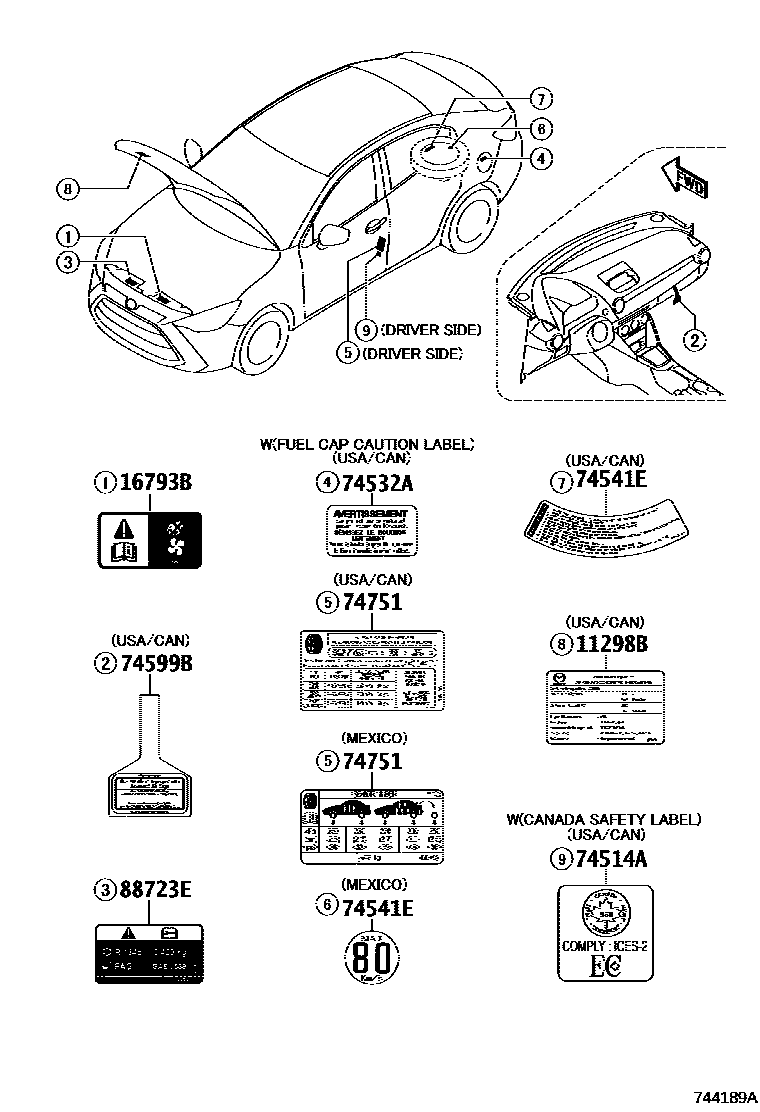

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-WB002 · 11298-WB003 · 11298-WB004 · 11298-WB005 · 11298-WB006 |
| 16793B | Cooling fan information label | 16793-WB001 |
| 74514A | Regulatory Certification Information Label | 74514-WB001 |
| 74532A | warning nameplate | 74536-WB001 |
| 74541E | Small spare tire warning plate | 42668-WB001 · 42668-WB002 |
| 74599B | Driver and passenger air bag information labels | 74599-WB001 · 74599-WB002 |
| 74751 | tire pressure information label | 42661-WB001 · 42661-WB002 · 42661-WB003 · 42661-WB005 |
| 88723E | Cooler maintenance warning label | 88723-WB001 |
