Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

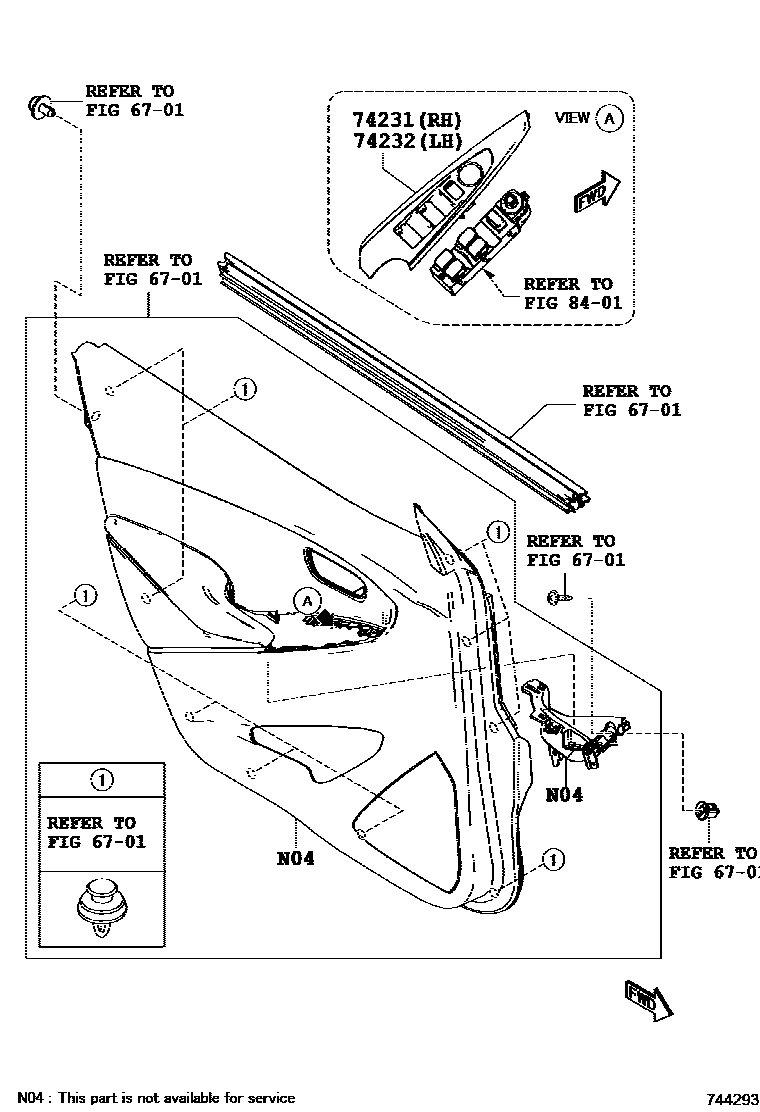

| 74231 | Right front armrest upper panel | 74231-WB001 |
| 74232 | Left front armrest upper panel | 74232-WB001 |

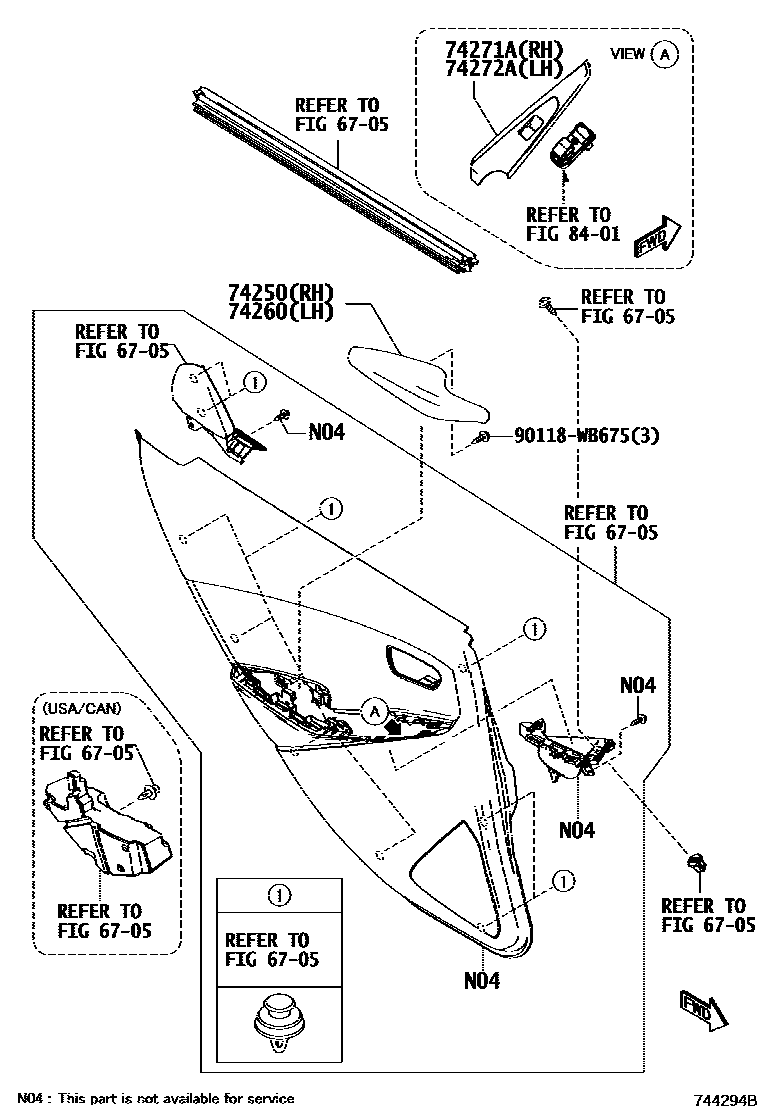

| 74250 | Right rear armrest assembly | 74250-WB003 · 74250-WB004 · 74250-WB005 · 74250-WB006 · 74250-WB007 |
| 74260 | Left rear armrest assembly | 74260-WB003 · 74260-WB004 · 74260-WB005 · 74260-WB006 · 74260-WB007 |
| 74271A | Right rear door armrest upper panel | 74271-WB001 |
| 74272A | Left rear door armrest upper panel | 74272-WB001 |

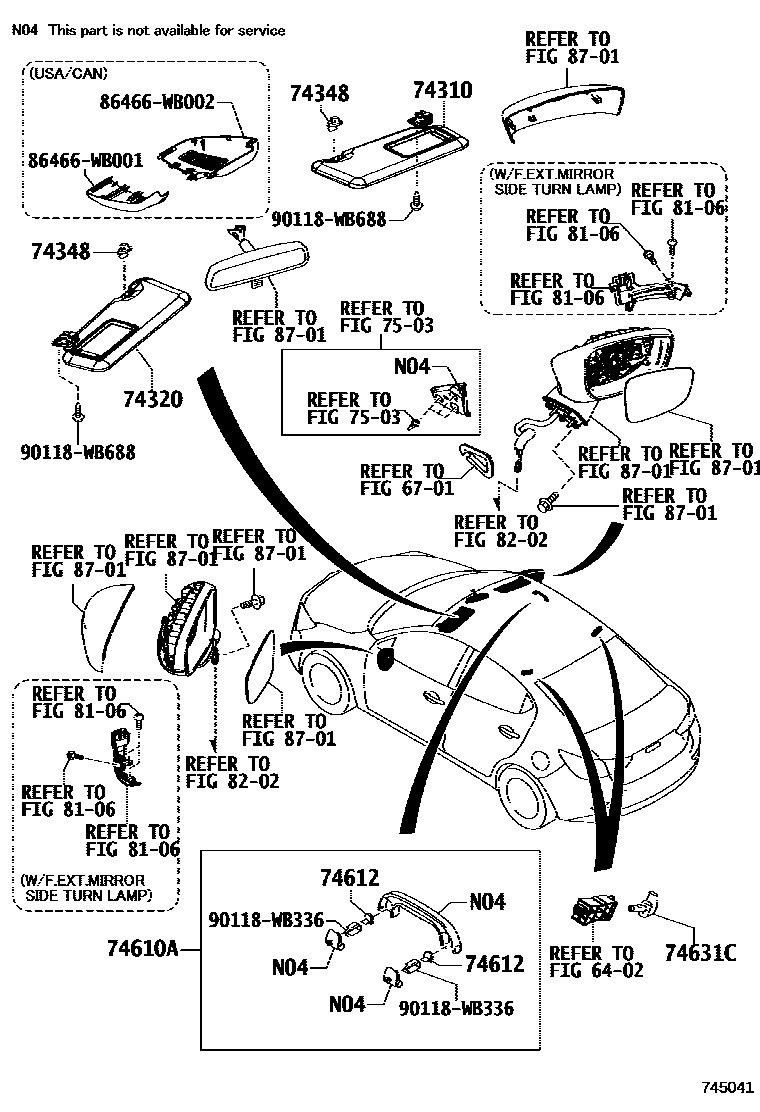

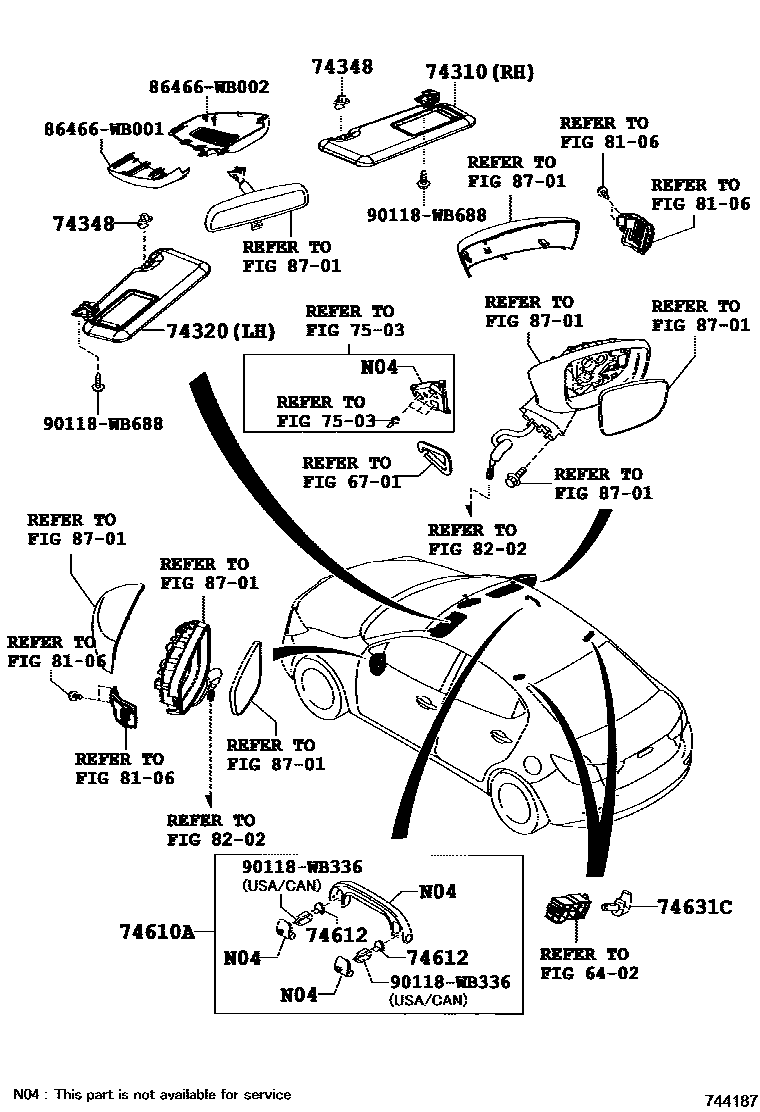

| 74310 | Right sun visor assembly | 74310-WB001 · 74310-WB002 · 74310-WB003 · 74310-WB004 · 74310-WB005 · 74310-WB006 |
| 74320 | Left sun visor assembly | 74320-WB001 · 74320-WB002 · 74320-WB003 · 74320-WB004 · 74320-WB005 · 74320-WB006 |
| 74348 | visor holder | 74348-WB001 · 74348-WB002 |
| 74610A | Auxiliary handle sub-assembly | 74610-WB001 · 74610-WB002 · 74610-WB003 |
| 74612 | Auxiliary handle cover | 74612-WB001 · 74612-WB002 |
| 74631C | coat hook | 74631-WB001 |
