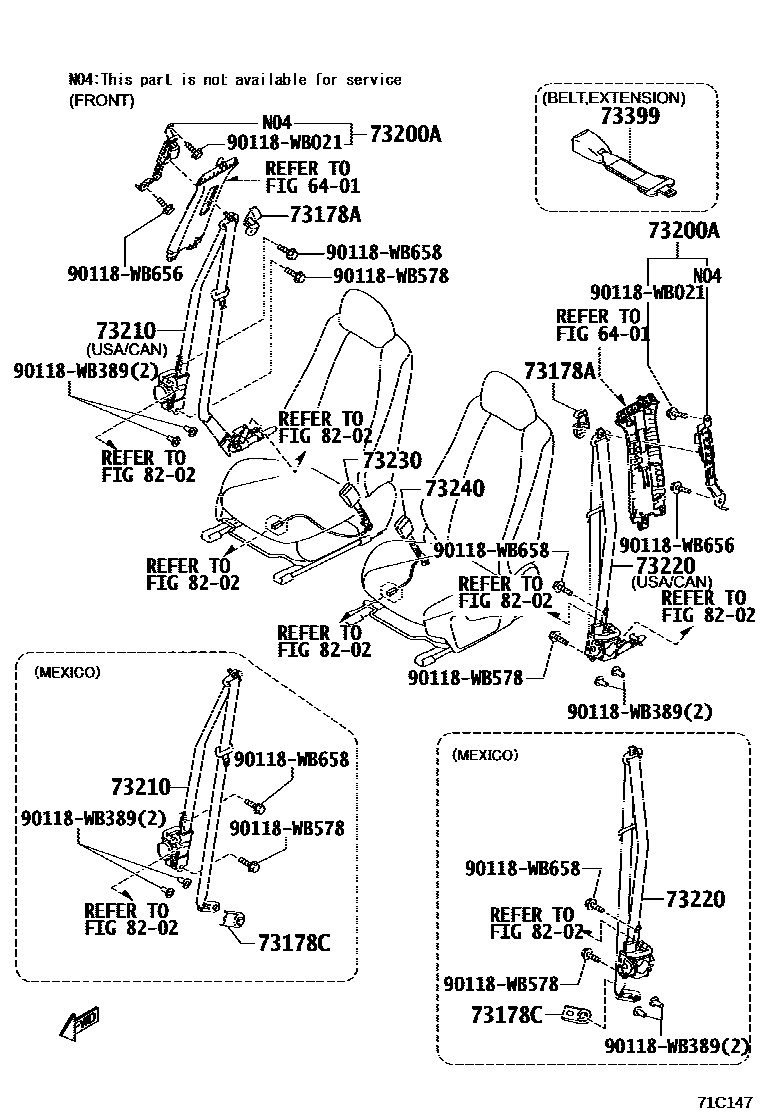

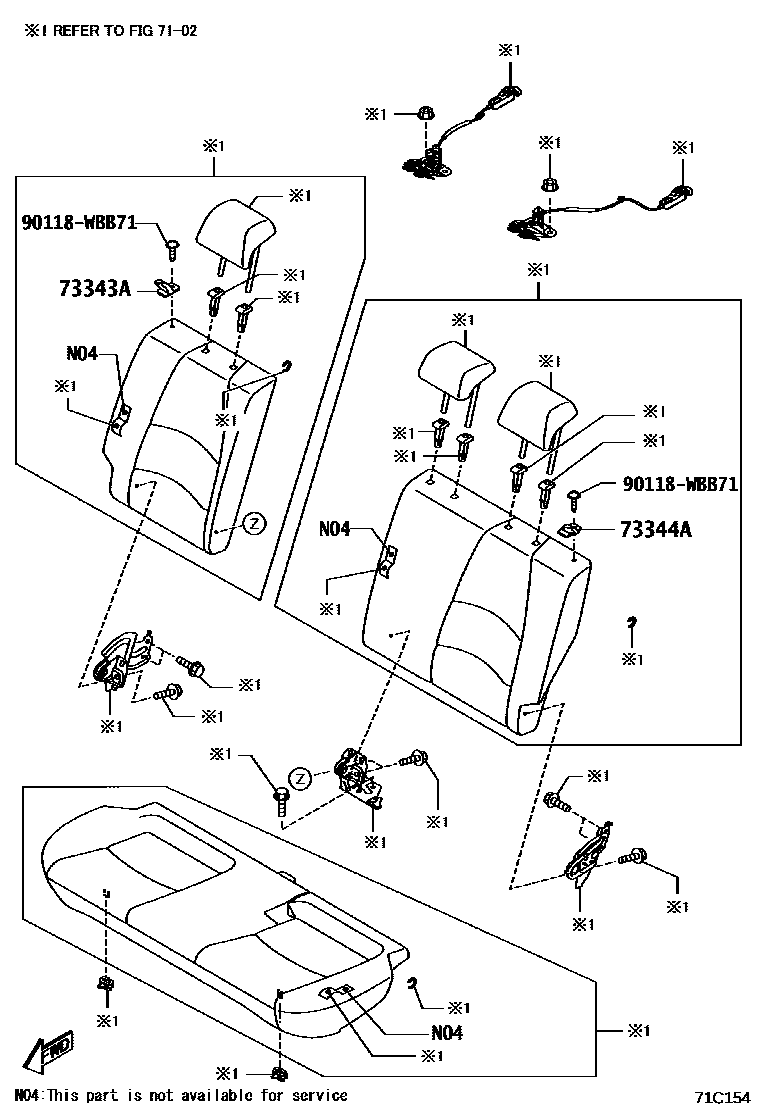

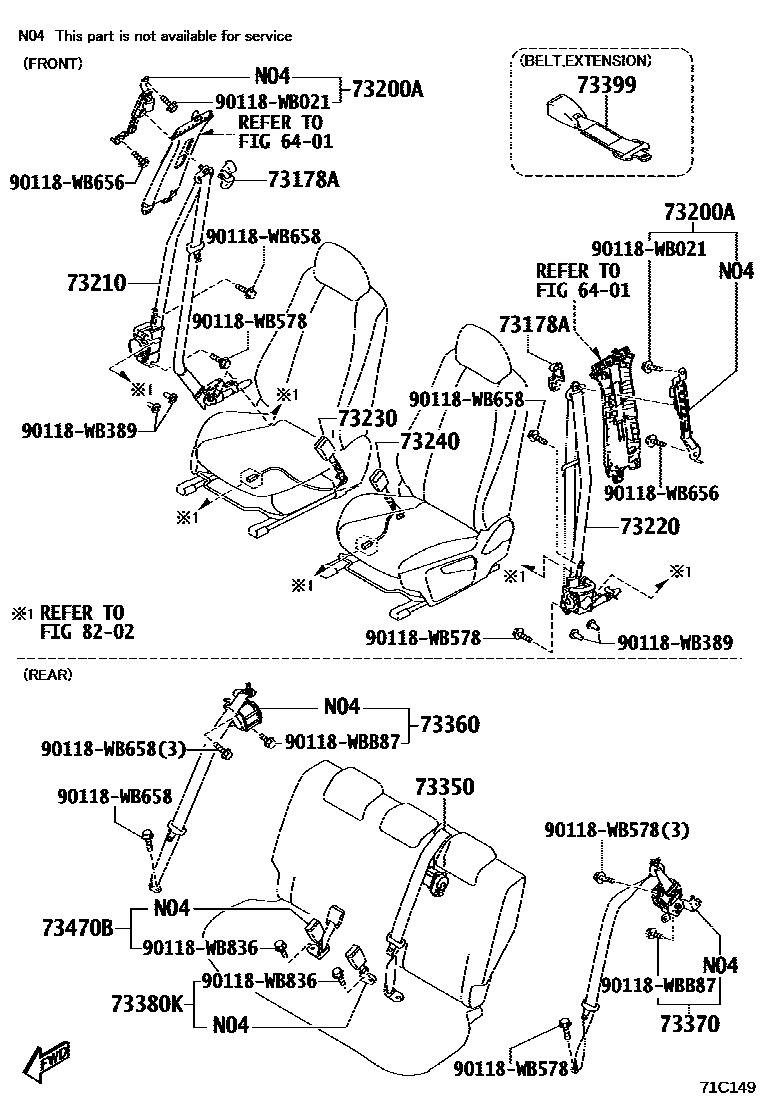

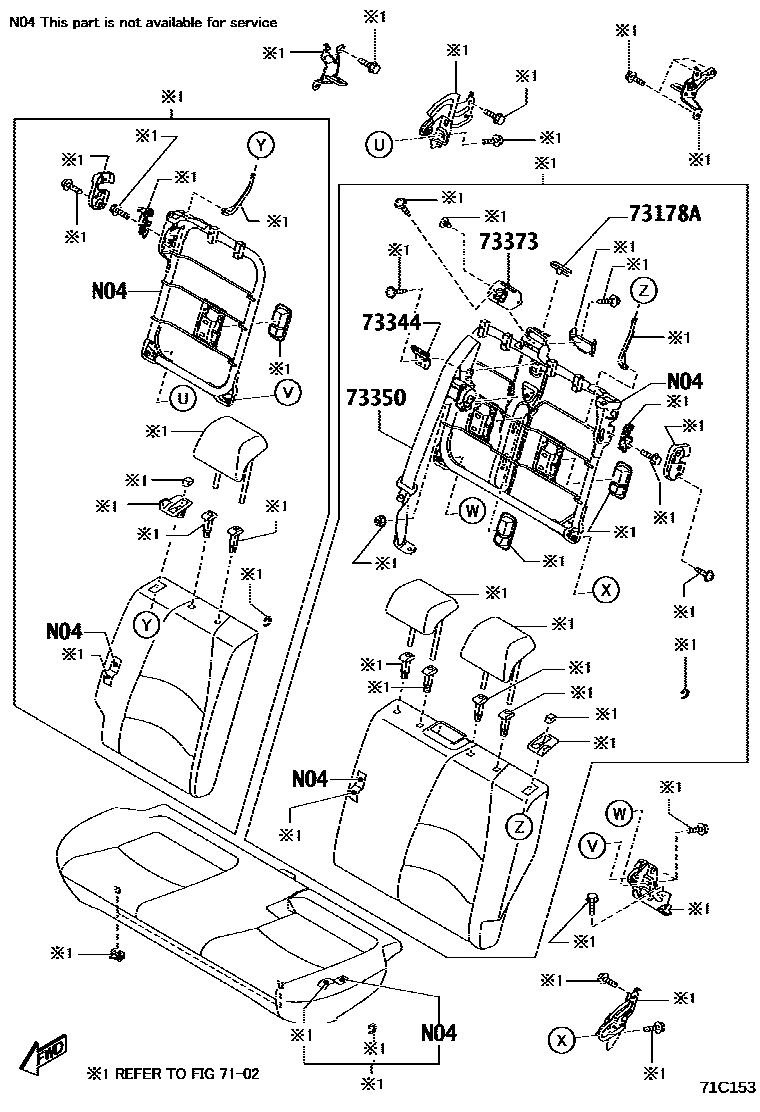

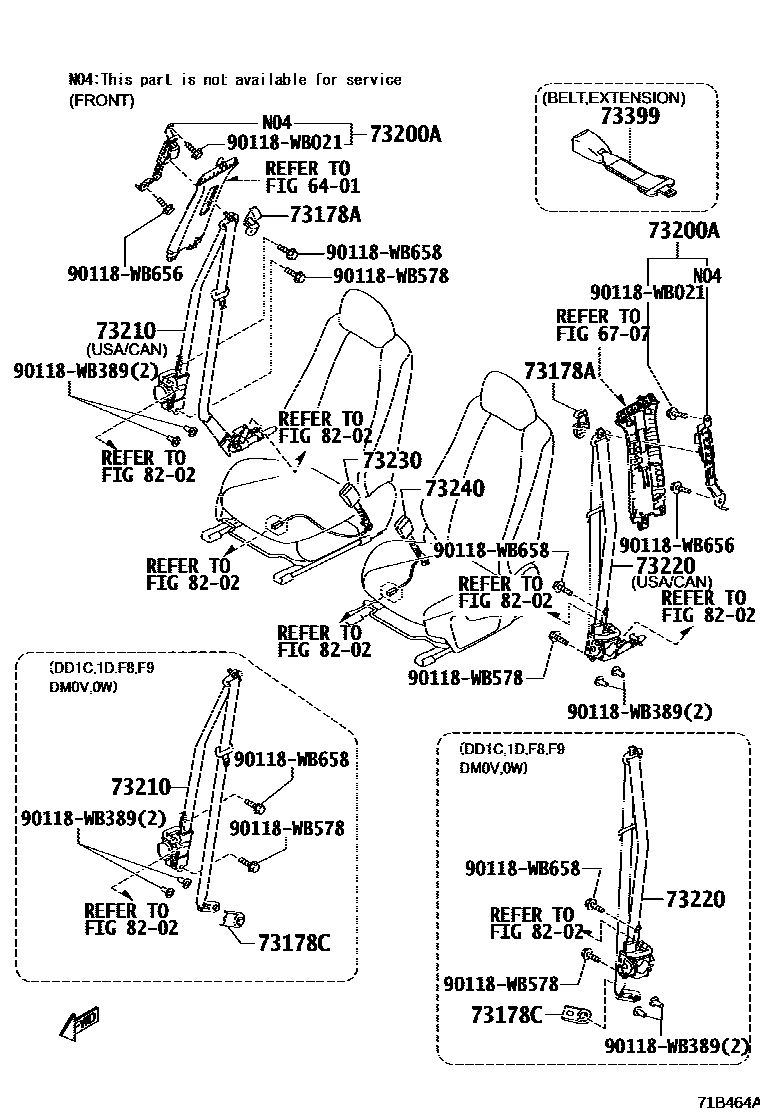

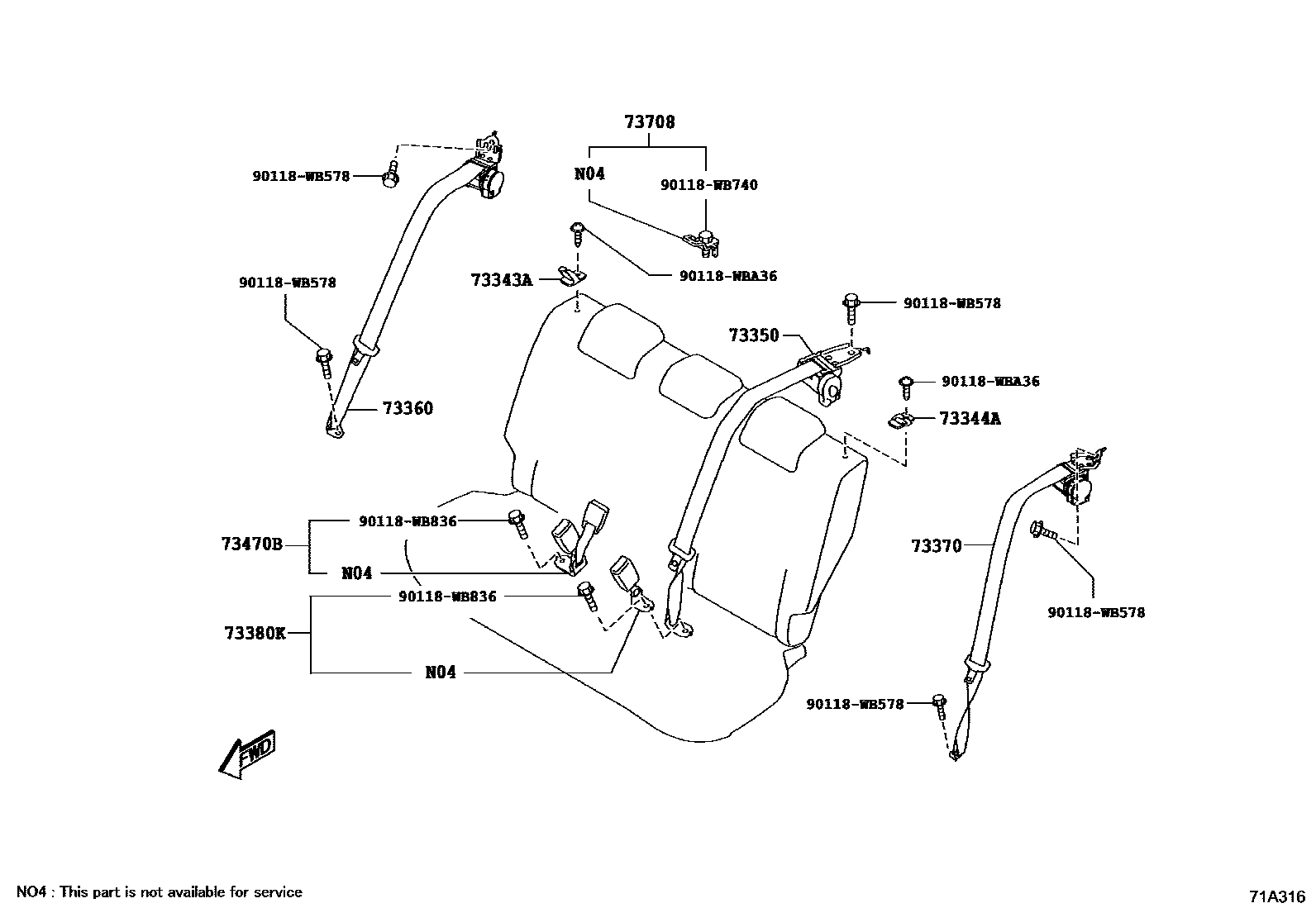

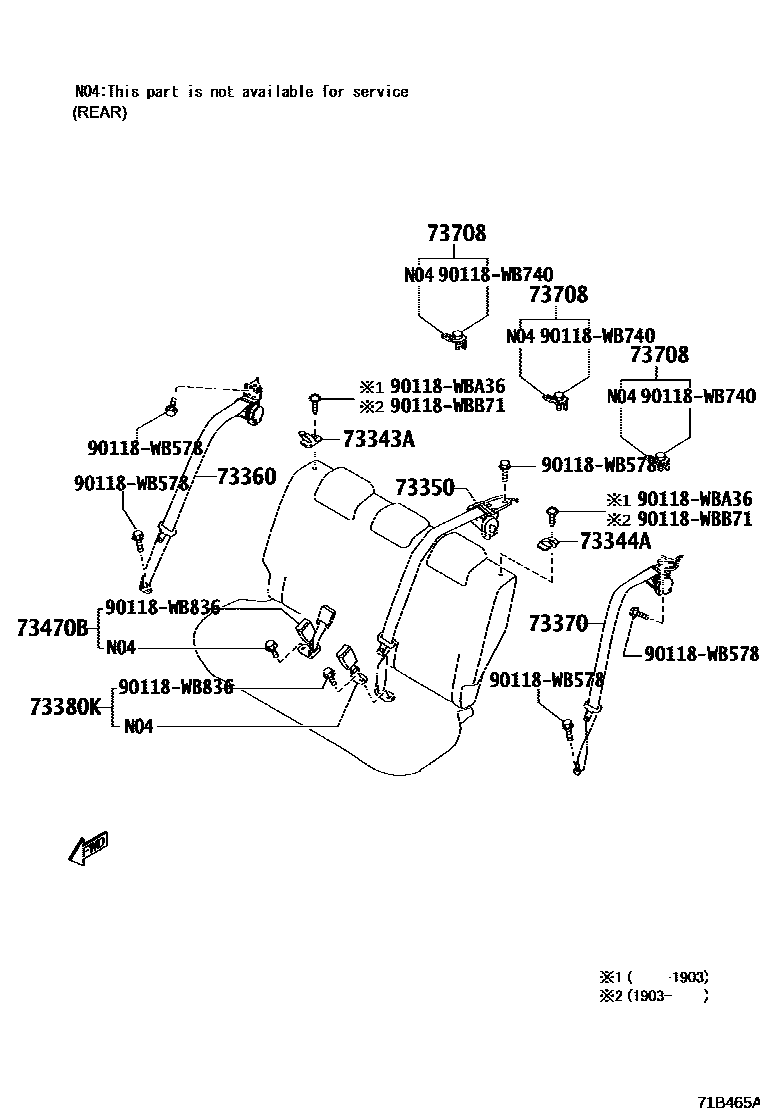

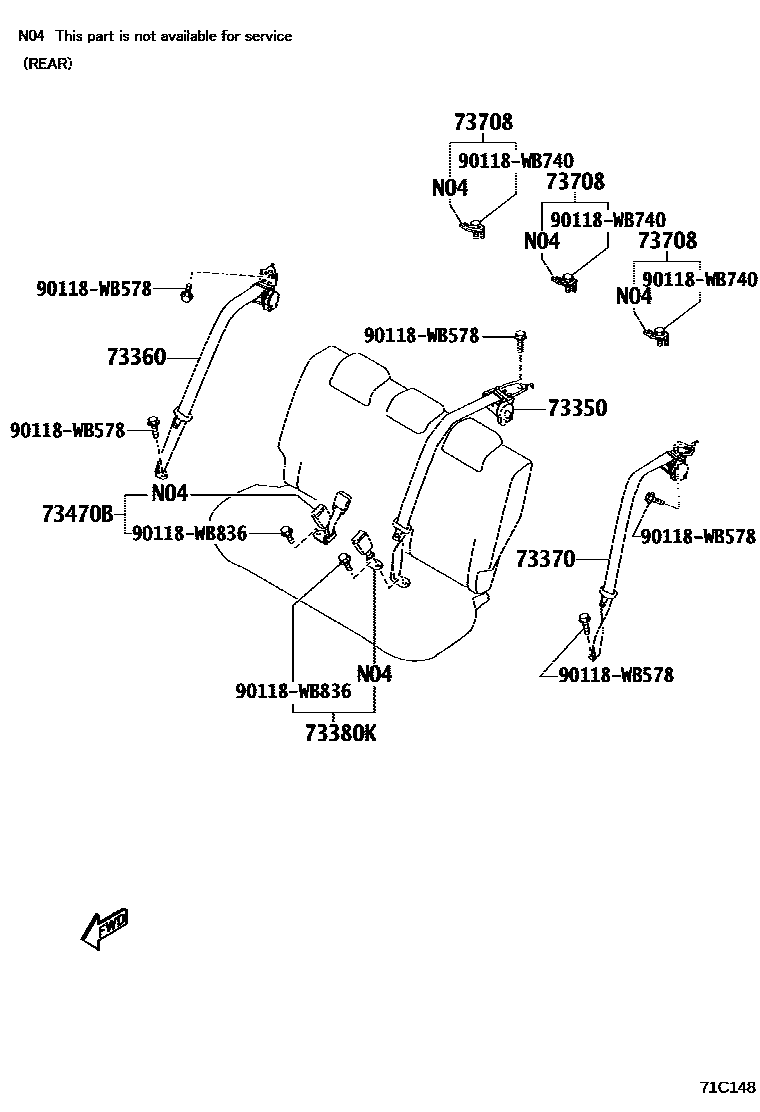

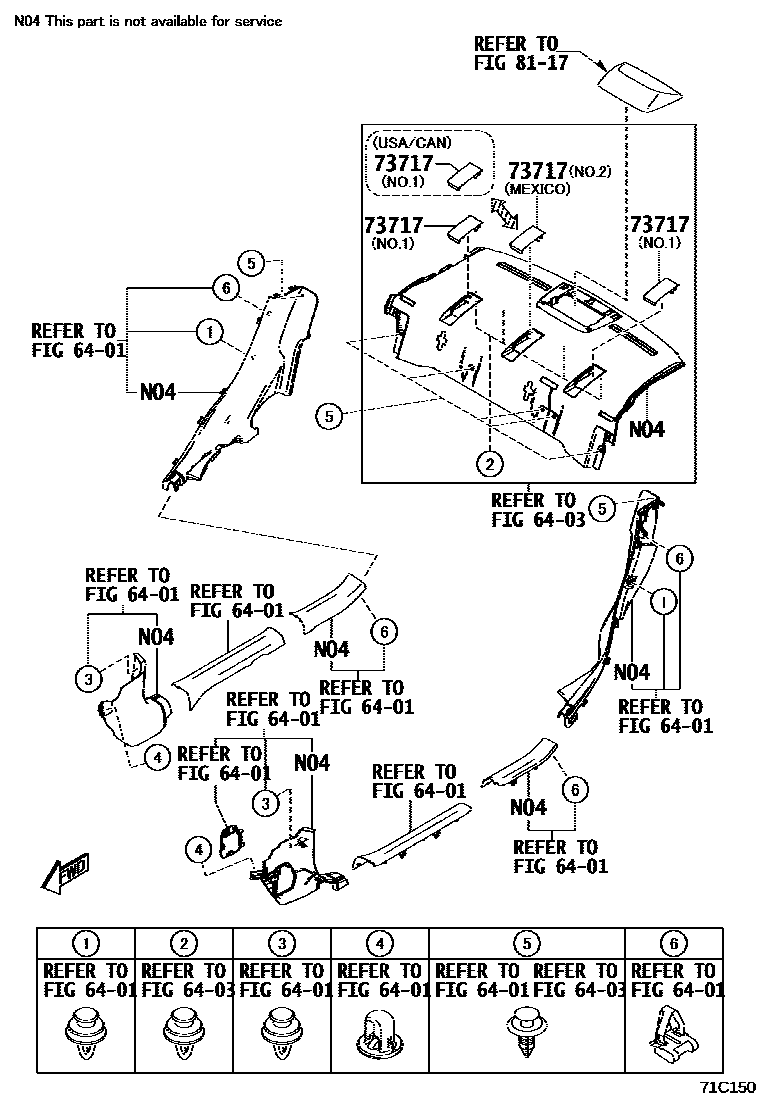

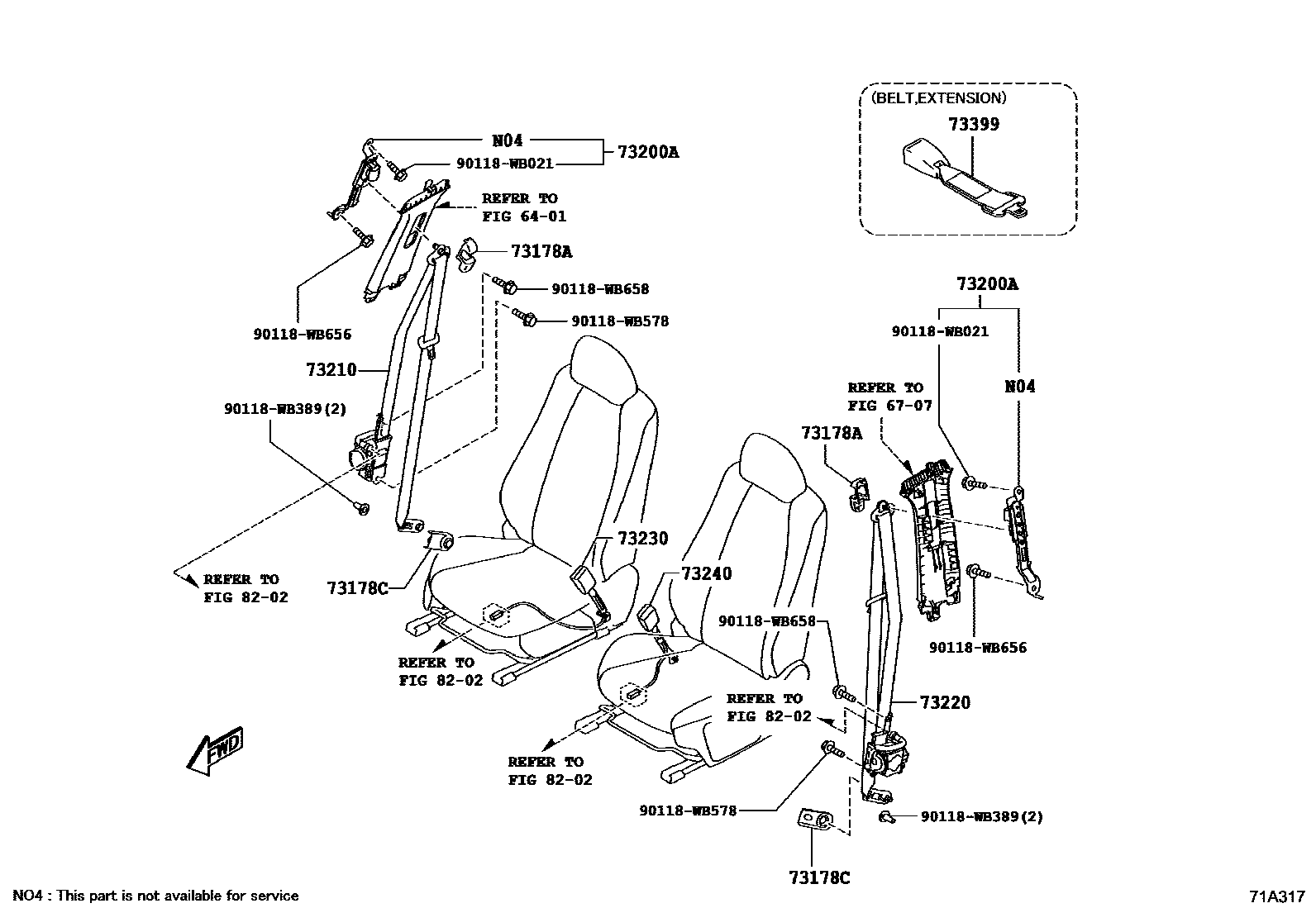

Toyota YARIS 安全带和儿童保护座椅 — Figure 7104
Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 11 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73178A | Seat belt anchor cover | 72137-WB003 · 73178-WB001 |
| 73178C | Seat belt anchor cover | 73178-WB003 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-WB001 |
| 73210 | Front right seat outer seat belt assembly | 73210-WB002 · 73210-WB003 |
| 73220 | Front left seat outer seat belt assembly | 73220-WB002 · 73220-WB003 |
| 73230 | Front right seat inner seat belt assembly | 73230-WB001 · 73240-WB002 |
| 73240 | Front left seat inner seat belt assembly | 73230-WB003 · 73230-WB004 |
| 73343A | Rear right seat shoulder belt guide | 73343-WB001 · 73343-WB002 |
| 73344 | Rear left seat shoulder belt guide | 73343-WB003 |
| 73344A | Rear left seat shoulder belt guide | 73344-WB001 · 73344-WB002 |
| 73350 | Rear center seat waist seat belt assembly | 73350-WB003 · 73350-WB004 · 73350-WB005 |
| 73360 | Rear right seat three-point outer seat belt assembly | 73360-WB001 · 73360-WB002 · 73360-WB003 |
| 73370 | Three-point outer safety belt assembly for the left rear seat | 73370-WB001 · 73370-WB002 · 73370-WB003 |
| 73373 | Rear seat shoulder belt covers | 73373-WB001 |
| 73380K | Three-point inner safety belt assembly for the left rear seat | 73380-WB001 · 73380-WB002 |
| 73399 | EXTENSEUR, CEINTURE SECURITE | 73399-WB001 · 73399-WB002 |
| 73470B | Rear right seat center inner seat belt assembly | 73470-WB001 · 73470-WB002 |
| 73708 | Tie anchor bracket assembly | 73708-WB001 |
| 73717 | Child restraint seat tether anchor cover | 73717-WB001 · 73717-WB002 · 73717-WB003 · 73717-WB004 |
