Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

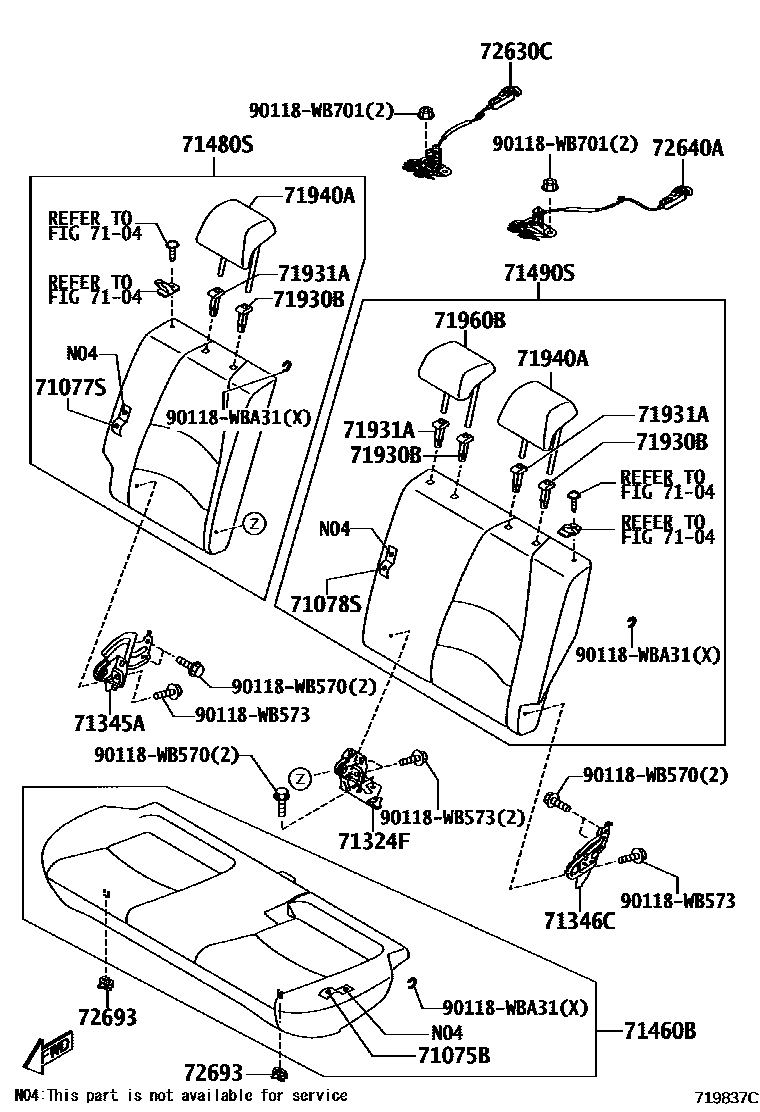

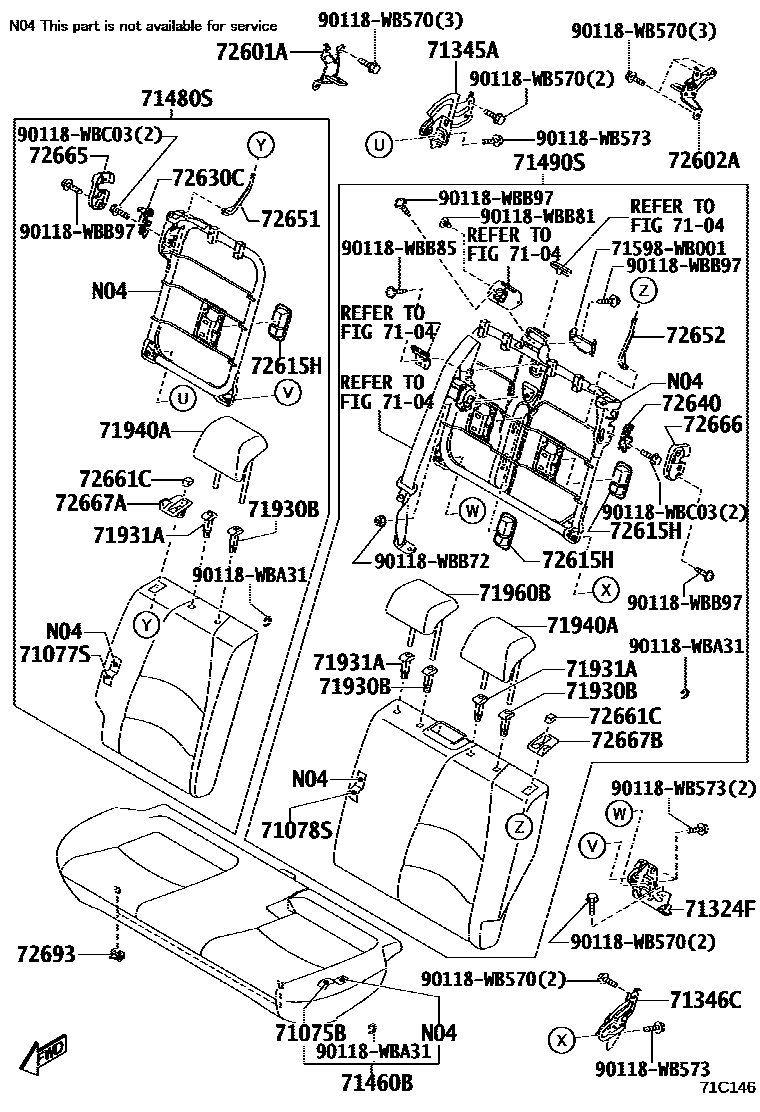

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71075B | Rear seat cushion cover (for bench seat) | 71075-WB001 · 71075-WB002 · 71075-WB003 · 71075-WB004 · 71075-WB006 · 71075-WB007 · 71075-WB008 · 71075-WB009 |
| 71077S | Right rear seat back cover (for split seats) | 71077-WB001 · 71077-WB002 · 71077-WB003 · 71077-WB004 · 71077-WB006 · 71077-WB007 · 71077-WB008 · 71077-WB009 · 71077-WB010 · 71077-WB011 · 71077-WB012 · 71077-WB013 |
| 71078S | Rear left seat back cover (for split seats) | 71078-WB001 · 71078-WB002 · 71078-WB003 · 71078-WB004 · 71078-WB006 · 71078-WB007 · 71078-WB008 · 71078-WB009 · 71078-WB011 · 71078-WB012 · 71078-WB013 · 71078-WB014 |
| 71324F | Rear seat backrest left inner hinge | 71324-WB001 |
| 71345A | Right rear seat backrest support | 71345-WB001 · 71345-WB003 |
| 71346C | Rear left seat back hinge | 71345-WB002 · 71345-WB004 |
| 71460B | Rear seat cushion assembly (for bench seat) | 71460-WB005 · 71460-WB006 · 71460-WB008 · 71460-WB009 · 71460-WB010 · 71460-WB011 · 71460-WB012 · 71460-WB013 · 71460-WB015 · 71460-WB016 |
| 71480S | Rear right seat back assembly (for split seats) | 71480-WB009 · 71480-WB010 · 71480-WB011 · 71480-WB012 · 71480-WB014 · 71480-WB015 · 71480-WB016 · 71480-WB017 · 71480-WB018 · 71480-WB019 · 71480-WB020 · 71480-WB021 · 71480-WB022 · 71480-WB023 · 71480-WB024 · 71480-WB025 · 71480-WB026 · 71480-WB027 · 71480-WB032 · 71480-WB033 · 71480-WB034 · 71480-WB035 · 71480-WB036 · 71480-WB037 · 71480-WB038 · 71480-WB039 · 71480-WB040 · 71480-WB041 · 71480-WB042 · 71480-WB043 |
| 71490S | Rear left seat back assembly (for split seats) | 71490-WB009 · 71490-WB010 · 71490-WB011 · 71490-WB012 · 71490-WB014 · 71490-WB015 · 71490-WB016 · 71490-WB017 · 71490-WB018 · 71490-WB019 · 71490-WB020 · 71490-WB021 · 71490-WB022 · 71490-WB023 · 71490-WB024 · 71490-WB025 · 71490-WB026 · 71490-WB027 · 71490-WB032 · 71490-WB033 · 71490-WB034 · 71490-WB035 · 71490-WB036 · 71490-WB037 · 71490-WB038 · 71490-WB039 · 71490-WB040 · 71490-WB041 · 71490-WB042 · 71490-WB043 |
| 71930B | Rear seat headrest bracket assembly | 71930-WB002 · 71930-WB004 |
| 71931A | Rear seat headrest bracket | 71930-WB001 · 71930-WB003 |
| 71940A | Rear seat headrest assembly | 71940-WB001 · 71940-WB002 · 71940-WB003 · 71940-WB004 · 71940-WB005 · 71940-WB006 · 71940-WB007 · 71940-WB008 · 71940-WB009 · 71940-WB010 · 71940-WB013 · 71940-WB014 · 71940-WB015 · 71940-WB016 · 71940-WB017 · 71940-WB018 · 71940-WB019 · 71940-WB020 |
| 71960B | Rear center seat headrest assembly | 71960-WB001 · 71960-WB002 · 71960-WB003 · 71960-WB004 · 71960-WB005 · 71960-WB007 · 71960-WB008 · 71960-WB009 · 71960-WB010 · 71960-WB011 · 71960-WB012 · 71960-WB013 |
| 72601A | Right rear seat back lock sub-assembly | 72601-WB001 |
| 72602A | Rear left seat back lock sub-assembly | 72602-WB001 |
| 72615H | Rear seat No. 1 backrest lock cover | 72615-WB001 |
| 72630C | Rear right seat back lock assembly | 72630-WB001 · 72630-WB002 |
| 72640 | Stop block sub-assembly on the rear left seat backrest | 72640-WB002 |
| 72640A | Rear left seat back lock assembly | 72640-WB001 |
| 72651 | Rear seat back lock lever | 72651-WB001 |
| 72652 | Rear left seat lock lever | 72652-WB001 |
| 72661C | Rear seat back lock release button | 72661-WB001 · 72661-WB002 · 72661-WB003 · 72661-WB004 |
| 72665 | Right rear seat back lock cover | 72665-WB001 |
| 72666 | Rear left seat back lock cover | 72666-WB001 |
| 72667A | ENJOLIVEUR, VERR ARR SIEGE ARR, SUP MD | 72667-WB001 · 72667-WB002 |
| 72667B | ENJOLIVEUR, VERR ARR SIEGE ARR, SUP MG | 72667-WB003 · 72667-WB004 |
| 72693 | Rear seat cushion hook | 72693-WB001 |
