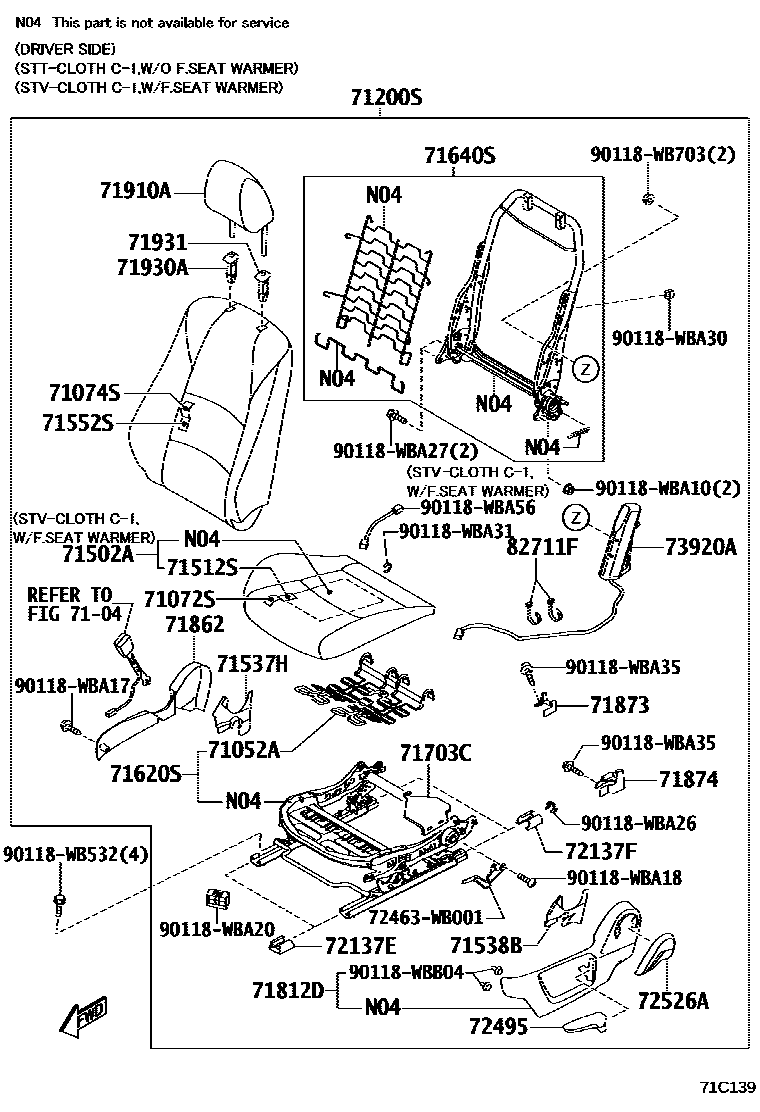

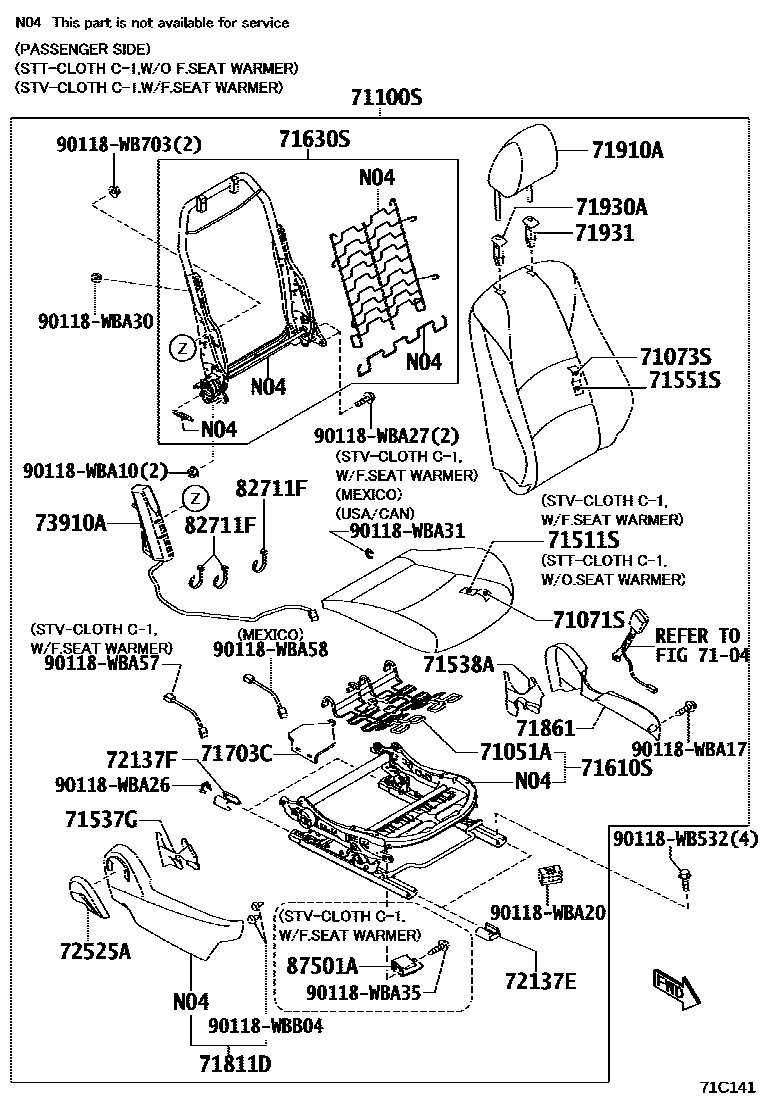

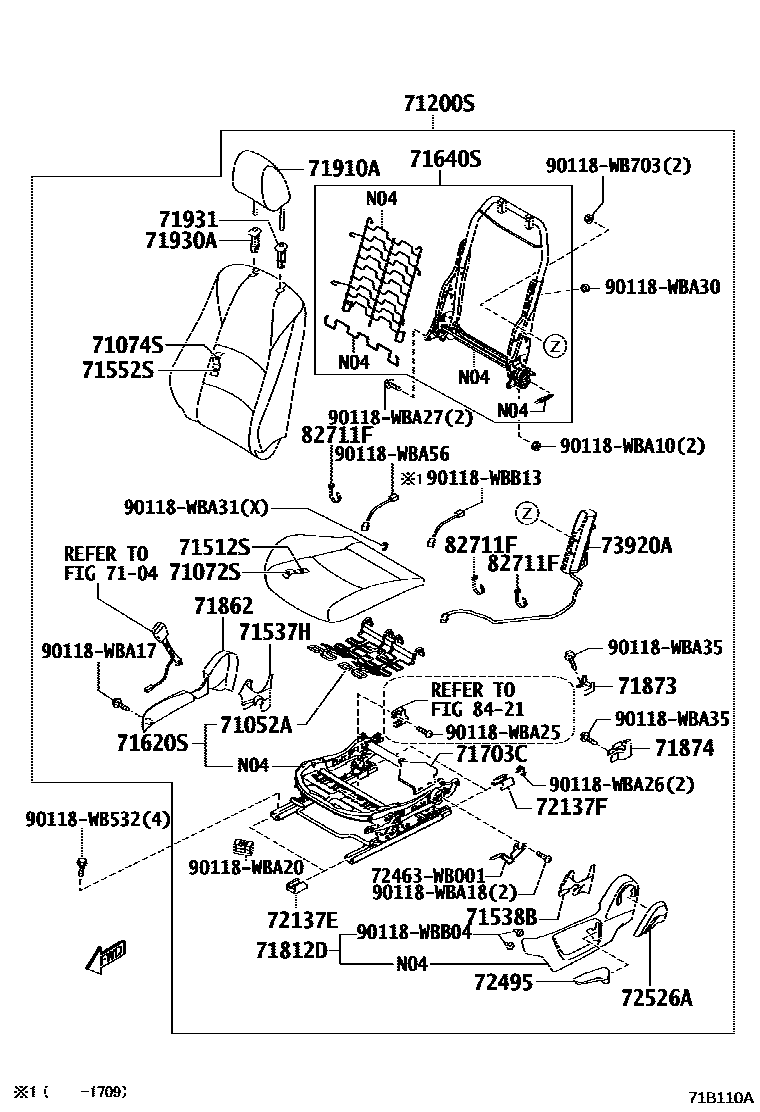

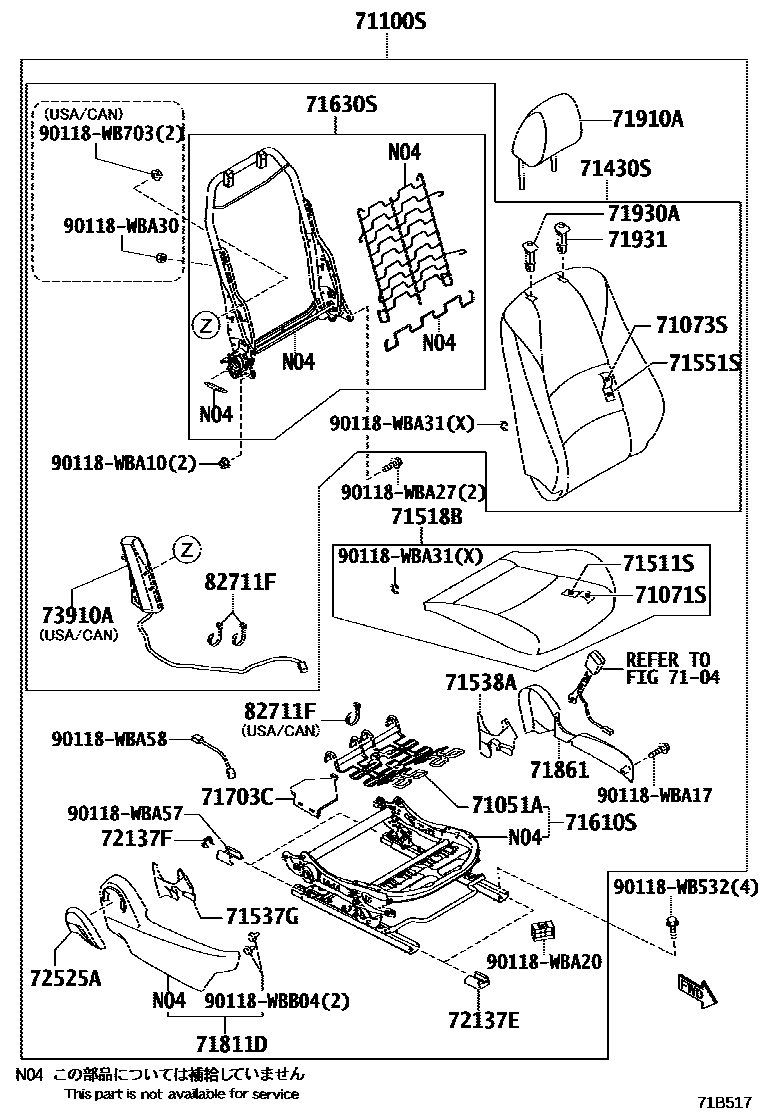

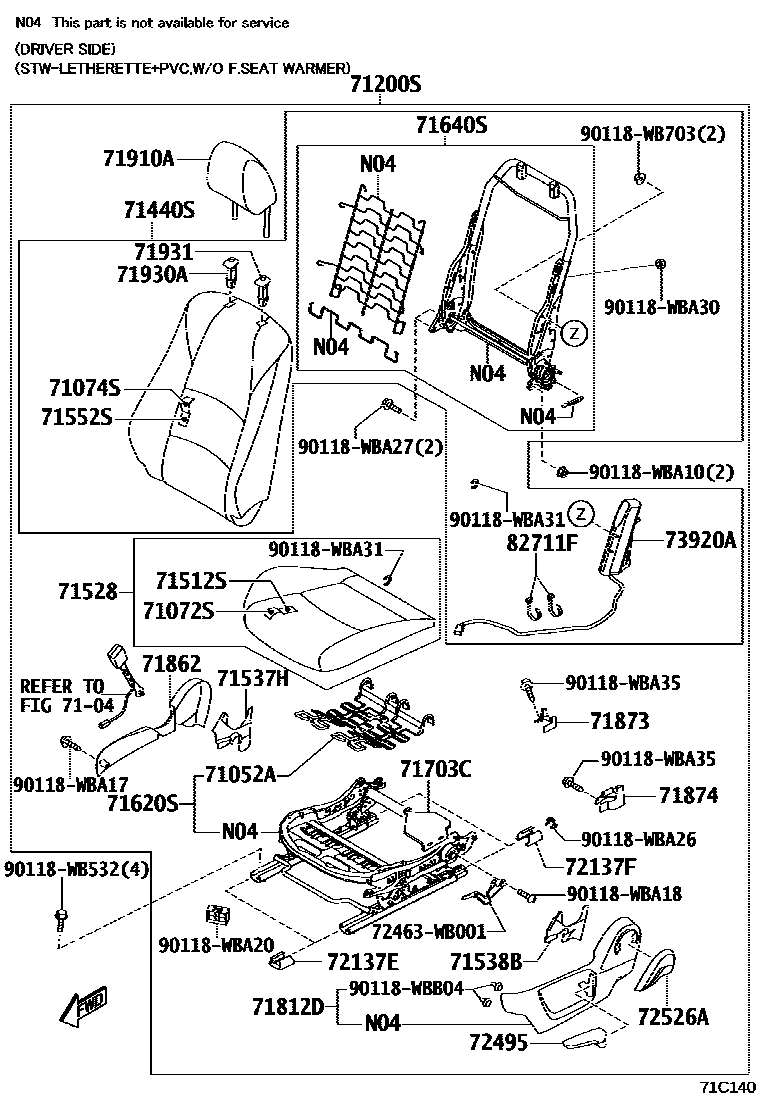

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

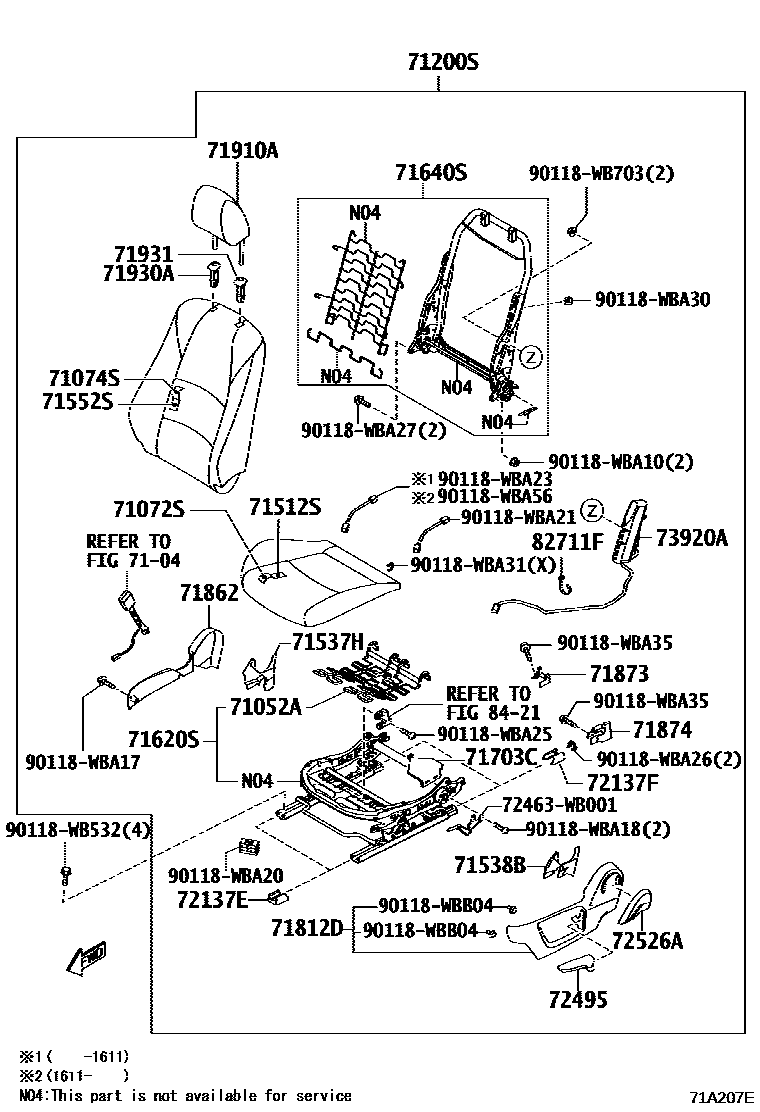

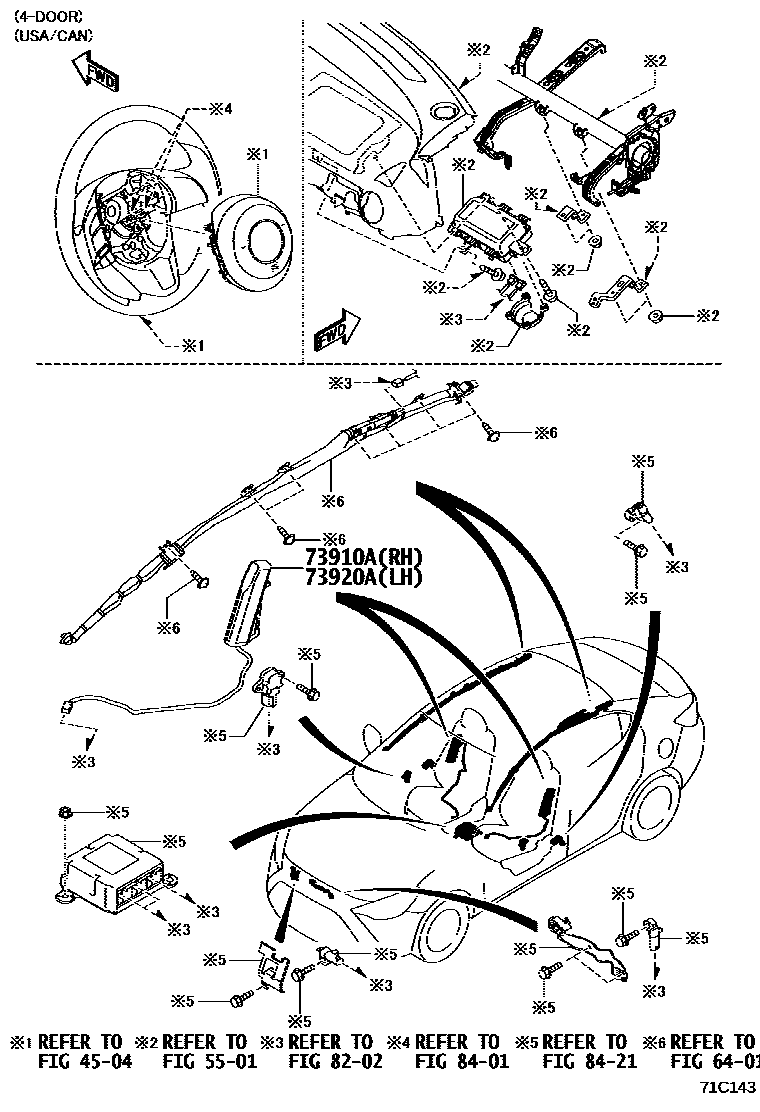

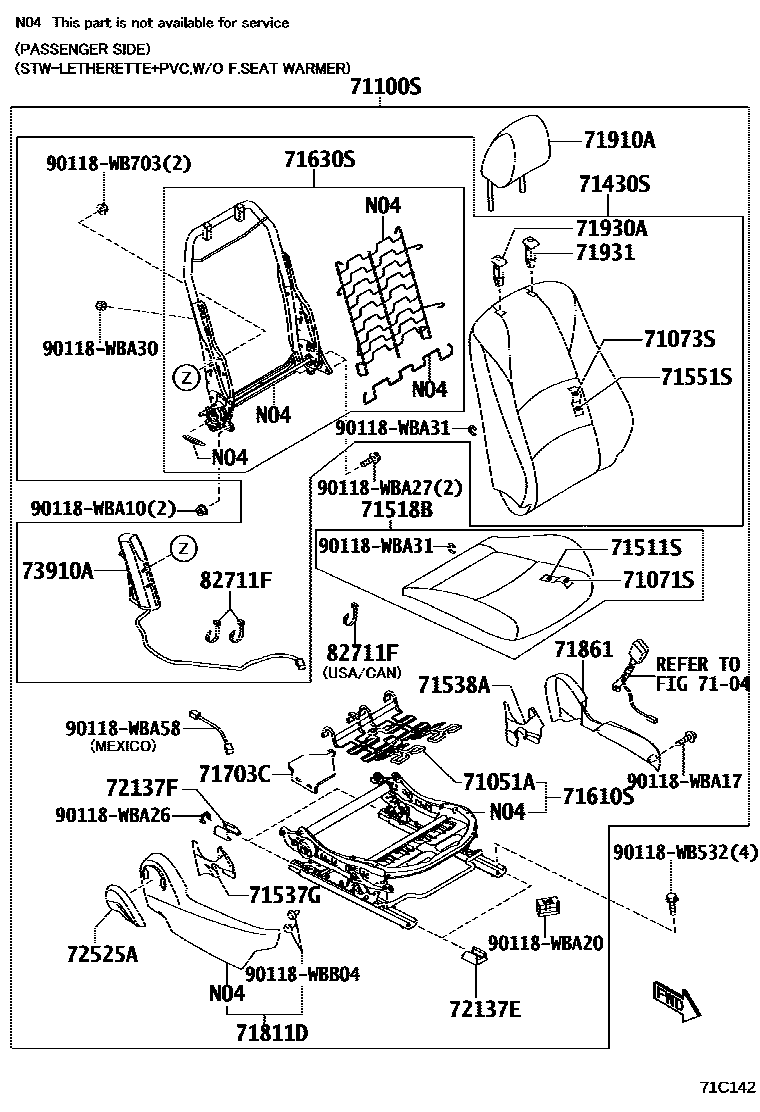

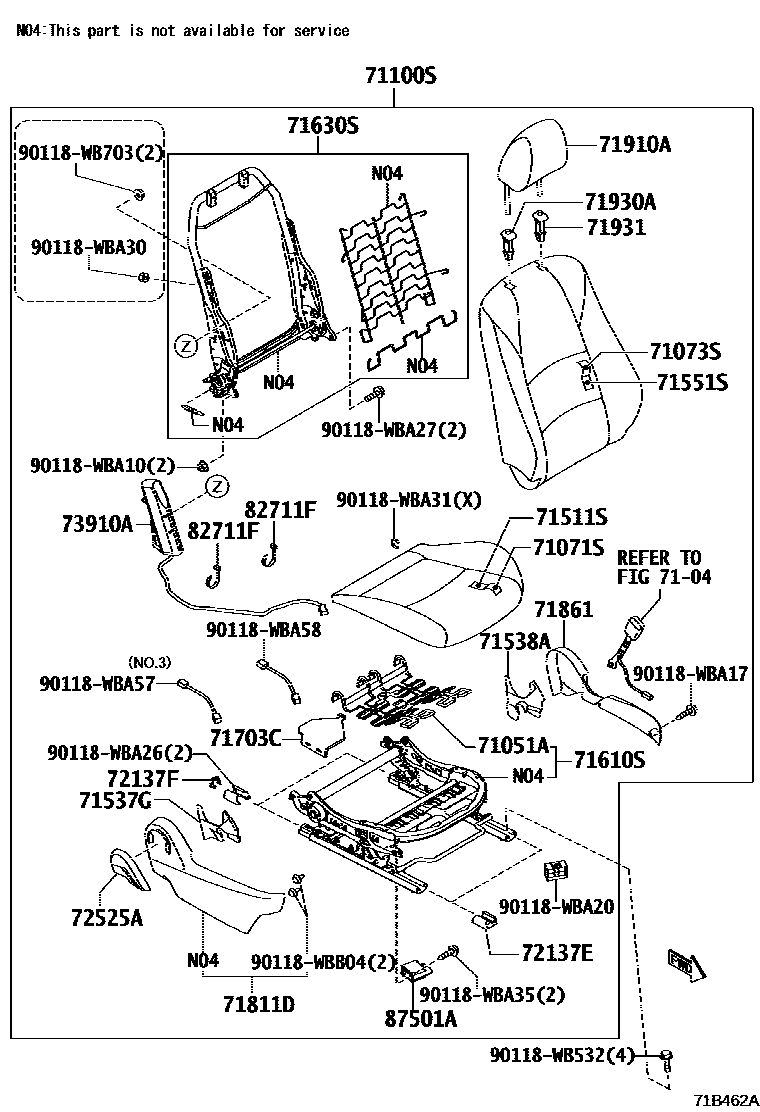

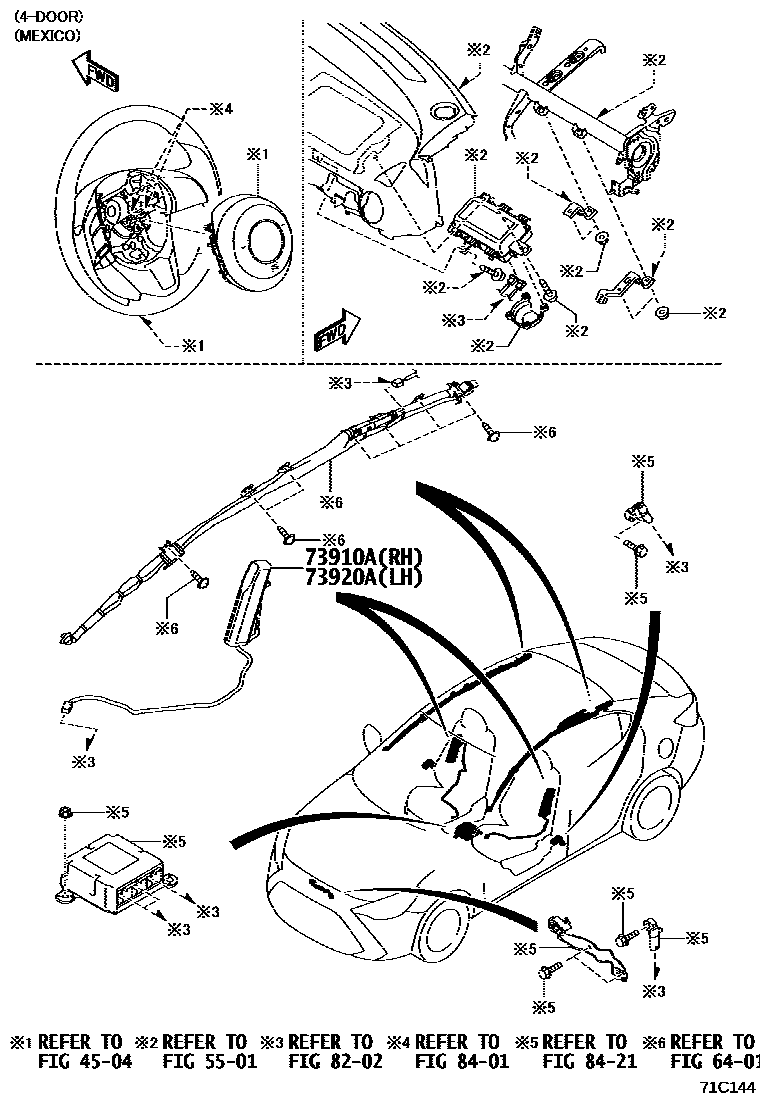

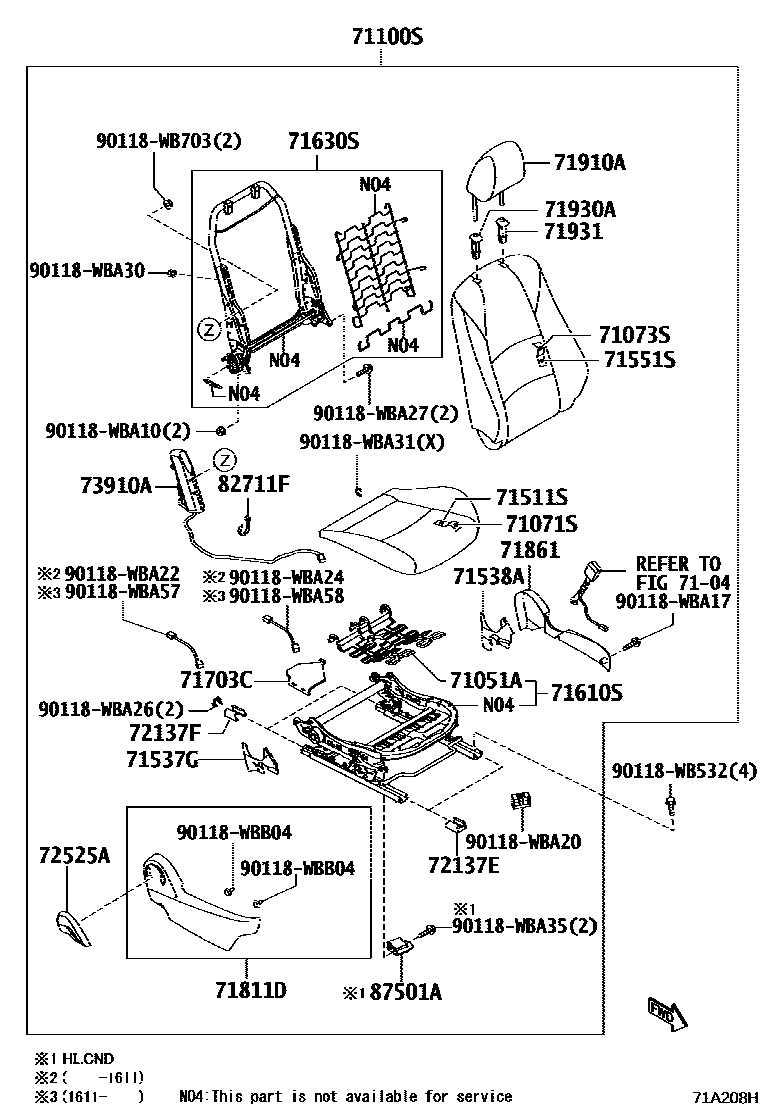

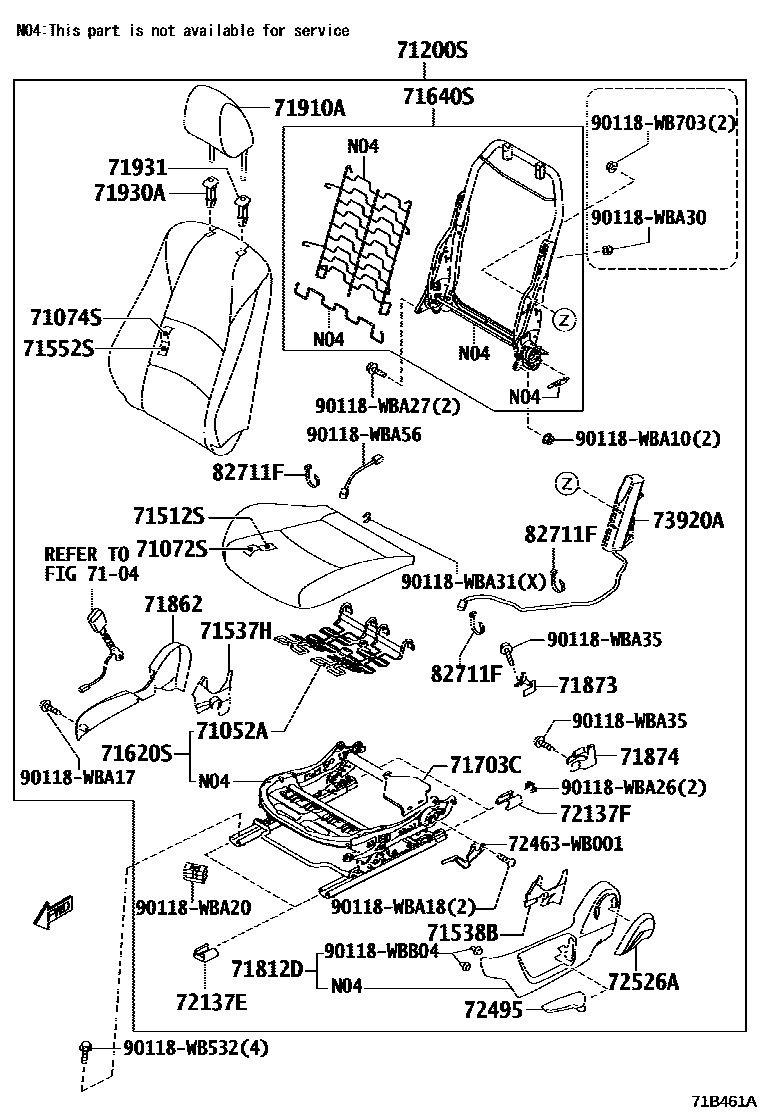

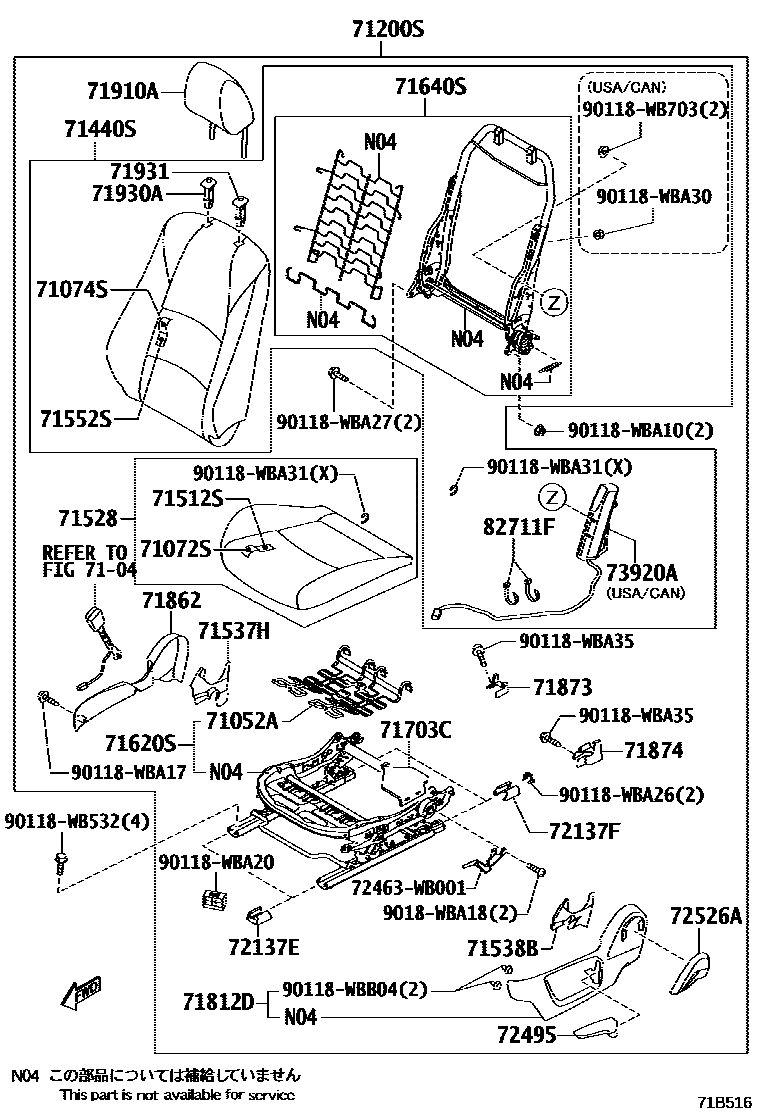

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 16 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-WB001 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-WB001 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-WB001 · 71071-WB002 · 71071-WB003 · 71071-WB004 · 71071-WB005 · 71071-WB006 · 71071-WB007 · 71071-WB008 · 71071-WB011 · 71071-WB012 · 71071-WB015 · 71071-WB016 · 71071-WB017 · 71071-WB018 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-WB001 · 71072-WB002 · 71072-WB003 · 71072-WB004 · 71072-WB006 · 71072-WB007 · 71072-WB008 · 71072-WB009 |
| 71073S | Front right seat back cover (for split seats) | 71073-WB001 · 71073-WB002 · 71073-WB003 · 71073-WB004 · 71073-WB005 · 71073-WB006 · 71073-WB008 · 71073-WB011 · 71073-WB012 · 71073-WB013 · 71073-WB014 |
| 71074S | Front left seat back cover (for split seats) | 71074-WB001 · 71074-WB002 · 71074-WB003 · 71074-WB004 · 71074-WB005 · 71074-WB006 · 71074-WB007 · 71074-WB008 · 71074-WB011 · 71074-WB012 · 71074-WB013 · 71074-WB014 |
| 71100S | Front right seat assembly | 71100-WB001 · 71100-WB002 · 71100-WB003 · 71100-WB004 · 71100-WB005 · 71100-WB006 · 71100-WB007 · 71100-WB008 · 71100-WB010 · 71100-WB011 · 71100-WB012 · 71100-WB013 · 71100-WB014 · 71100-WB015 · 71100-WB016 · 71100-WB017 · 71100-WB018 · 71100-WB019 · 71100-WB020 · 71100-WB021 · 71100-WB022 · 71100-WB023 · 71100-WB024 · 71100-WB025 · 71100-WB026 · 71100-WB027 · 71100-WB028 · 71100-WB029 · 71100-WB030 · 71100-WB031 · 71100-WB032 · 71100-WB033 · 71100-WB034 · 71100-WB035 · 71100-WB036 · 71100-WB037 · 71100-WB038 · 71100-WB039 · 71100-WB040 · 71100-WB041 · 71100-WB042 · 71100-WB043 · 71100-WB044 · 71100-WB045 · 71100-WB046 · 71100-WB047 · 71100-WB048 · 71100-WB049 · 71100-WB050 · 71100-WB051 · 71100-WB052 · 71100-WB053 · 71100-WB054 · 71100-WB055 · 71100-WB056 · 71100-WB057 · 71100-WB058 · 71100-WB059 · 71100-WB068 · 71100-WB069 · 71100-WB072 · 71100-WB073 · 71100-WB074 · 71100-WB075 |
| 71200S | Front left seat assembly | 71200-WB001 · 71200-WB002 · 71200-WB003 · 71200-WB004 · 71200-WB005 · 71200-WB006 · 71200-WB007 · 71200-WB008 · 71200-WB012 · 71200-WB013 · 71200-WB014 · 71200-WB015 · 71200-WB018 · 71200-WB019 · 71200-WB020 · 71200-WB021 · 71200-WB022 · 71200-WB023 · 71200-WB024 · 71200-WB025 · 71200-WB026 · 71200-WB027 · 71200-WB028 · 71200-WB029 · 71200-WB030 · 71200-WB031 · 71200-WB032 · 71200-WB033 · 71200-WB034 · 71200-WB035 · 71200-WB036 · 71200-WB037 · 71200-WB038 · 71200-WB039 · 71200-WB040 · 71200-WB041 · 71200-WB042 · 71200-WB043 · 71200-WB044 · 71200-WB045 · 71200-WB046 · 71200-WB047 · 71200-WB048 · 71200-WB049 · 71200-WB050 · 71200-WB051 · 71200-WB052 · 71200-WB053 · 71200-WB054 · 71200-WB055 · 71200-WB056 · 71200-WB057 · 71200-WB058 · 71200-WB059 · 71200-WB060 · 71200-WB061 · 71200-WB062 · 71200-WB063 · 71200-WB064 · 71200-WB065 · 71200-WB066 · 71200-WB067 · 71200-WB074 · 71200-WB075 · 71200-WB076 · 71200-WB077 |
| 71430S | Front right seat back assembly (for split seats) | 71430-WB001 · 71430-WB002 |
| 71440S | Front left seat back assembly (for split seats) | 71440-WB001 · 71440-WB002 |
| 71502A | SOUS-ENS. REMB, COUSSIN SIEGE AV, MG | 71512-WB002 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-WB001 · 71511-WB002 · 71511-WB003 · 71511-WB005 · 71511-WB006 · 71511-WB008 · 71511-WB009 · 71511-WB010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-WB001 · 71512-WB002 |
| 71518B | Front right-hand seat cushion with cover | 71518-WB001 · 71518-WB002 |
| 71528 | Front left seat cushion with cover | 71528-WB001 · 71528-WB002 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-WB002 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-WB001 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71538-WB002 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71538-WB001 |
| 71551S | Front right seat back cushion (for split seats) | 71551-WB001 · 71551-WB002 |
| 71552S | Front left seat back cushion (for split seats) | 71552-WB001 · 71552-WB002 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-WB001 · 71610-WB002 · 71610-WB003 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-WB002 · 71620-WB003 · 71620-WB004 · 71620-WB005 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-WB001 · 71630-WB002 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-WB001 · 71640-WB002 |
| 71703C | Front seat cushion panel sub-assembly | 71703-WB001 · 71703-WB002 |
| 71811D | Front right seat cushion guard | 71811-WB001 |
| 71812D | Front left seat cushion guard | 71812-WB001 |
| 71861 | Front right seat cushion inner guard | 71861-WB001 |
| 71862 | Front left seat cushion inner guard | 71862-WB001 |
| 71873 | Front right seat cushion lower guard panel | 71873-WB001 |
| 71874 | Front left seat cushion lower guard | 71874-WB001 |
| 71910A | Front seat headrest assembly | 71910-WB001 · 71910-WB002 · 71910-WB003 · 71910-WB004 · 71910-WB005 · 71910-WB006 |
| 71930A | Front seat headrest bracket assembly | 71930-WB002 · 71930-WB004 |
| 71931 | Front seat headrest bracket | 71930-WB001 · 71930-WB003 |
| 72137E | No. 1 seat slide rail cover | 72137-WB001 |
| 72137F | No. 2 seat slide rail cover | 72137-WB002 |
| 72495 | Left height adjuster handle | 72495-WB001 |
| 72525A | Right seat back recliner release handle | 72525-WB001 |
| 72526A | Left seat back recliner release handle | 72526-WB001 |

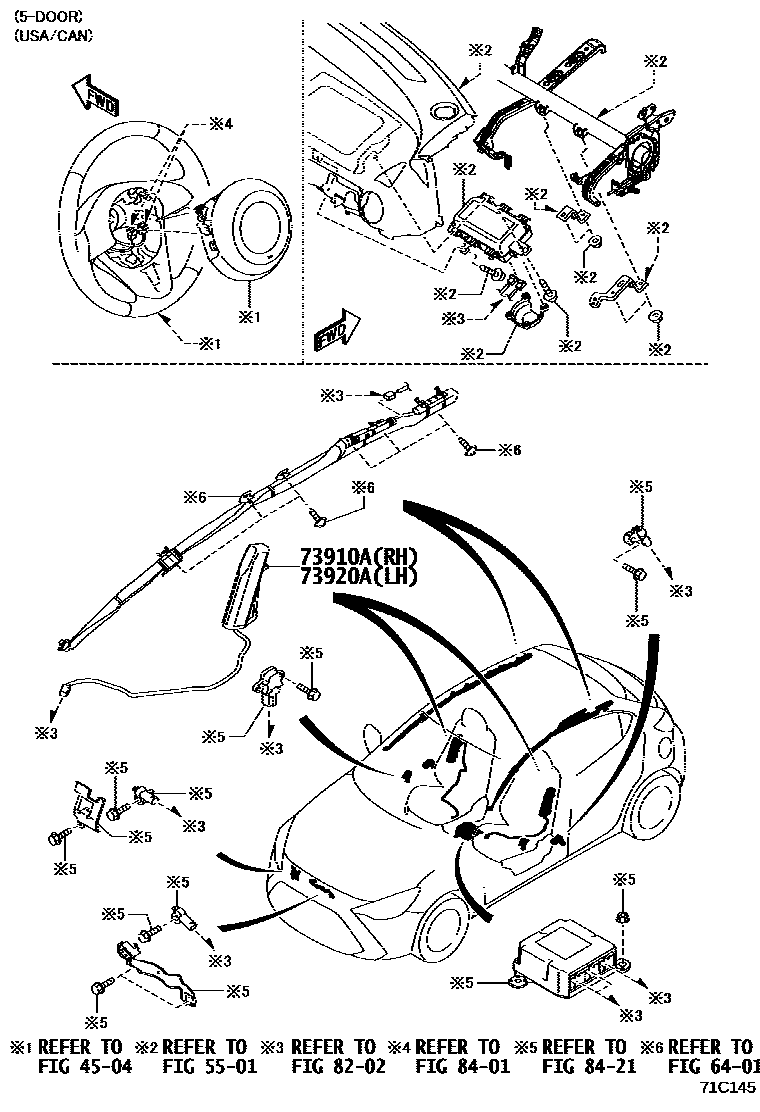

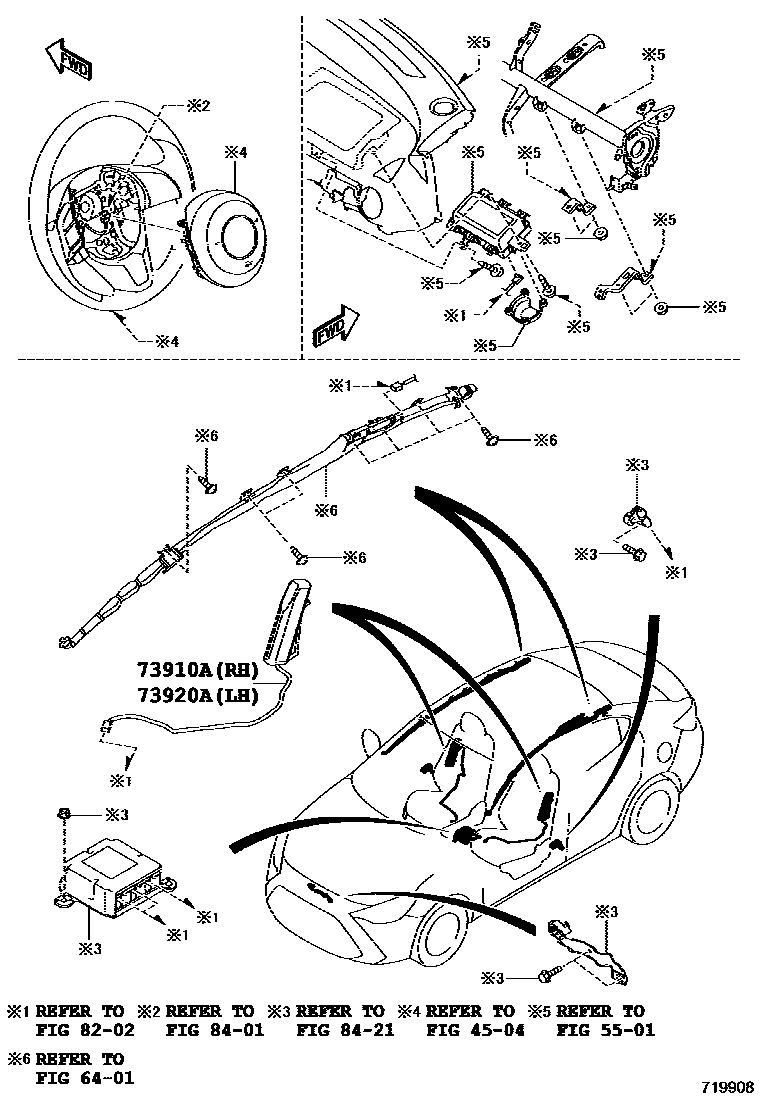

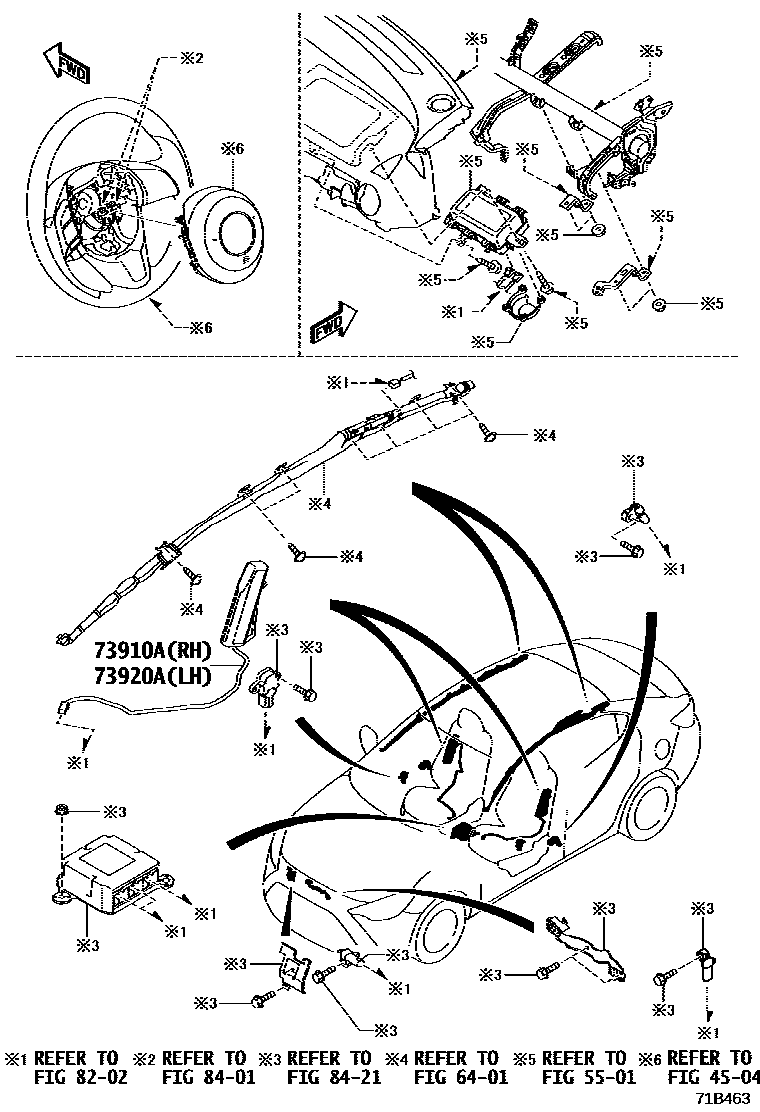

| 73910A | Front right seat airbag assembly | 73910-WB001 |
| 73920A | Front left seat airbag assembly | 73920-WB001 |
| 82711F | Wire harness clip | 90118-WBA19 |
| 87501A | Right seat heater control sub-assembly | 90118-WBA49 |
