Toyota YARIS 锁芯组件 — Figure 6712

Toyota YARIS EPC diagram 6712, 锁芯组件, with 5 images and 3 PNC and OE references.

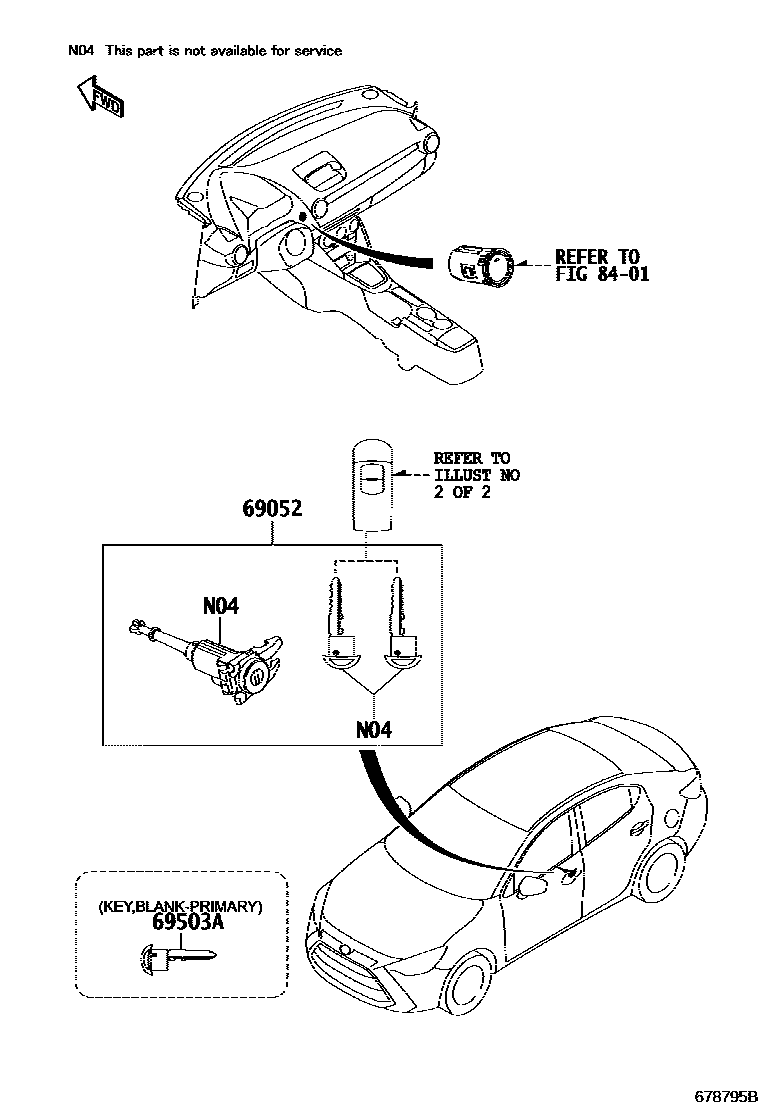

Toyota YARIS 锁芯组件 EPC diagram — 678795B — 锁芯组件 — 678795B (201506 – 999999)

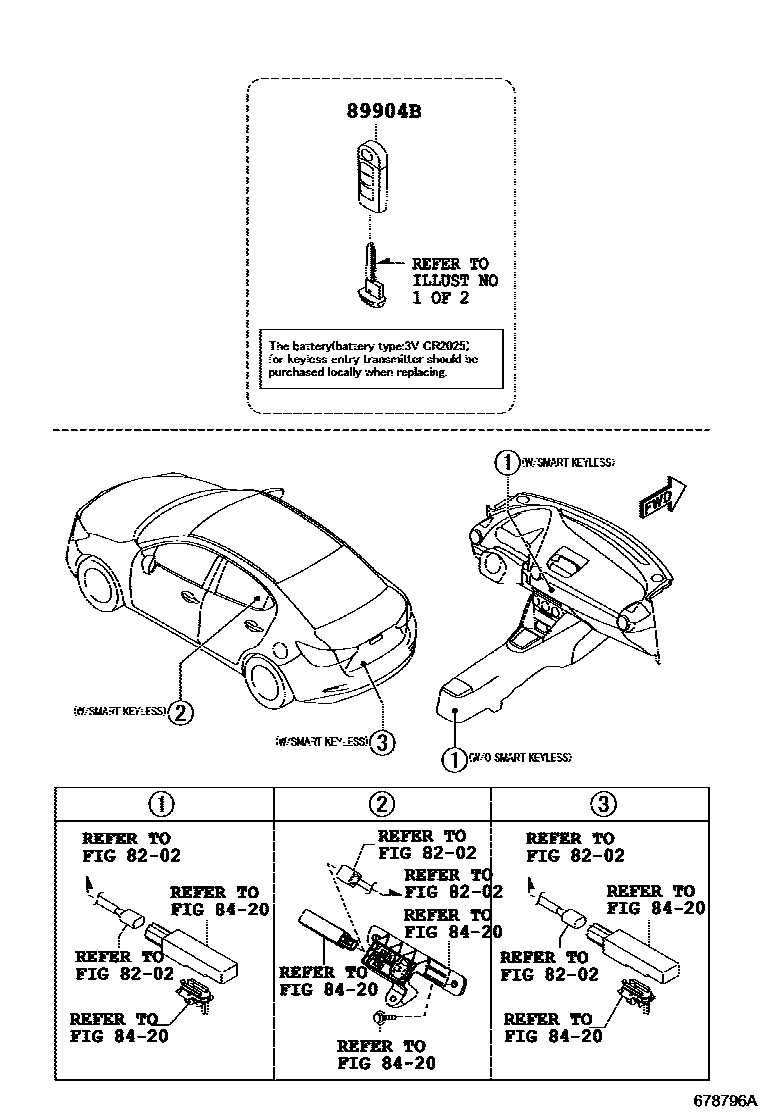

Toyota YARIS 锁芯组件 EPC diagram — 678796A — 锁芯组件 — 678796A (201506 – 201808)

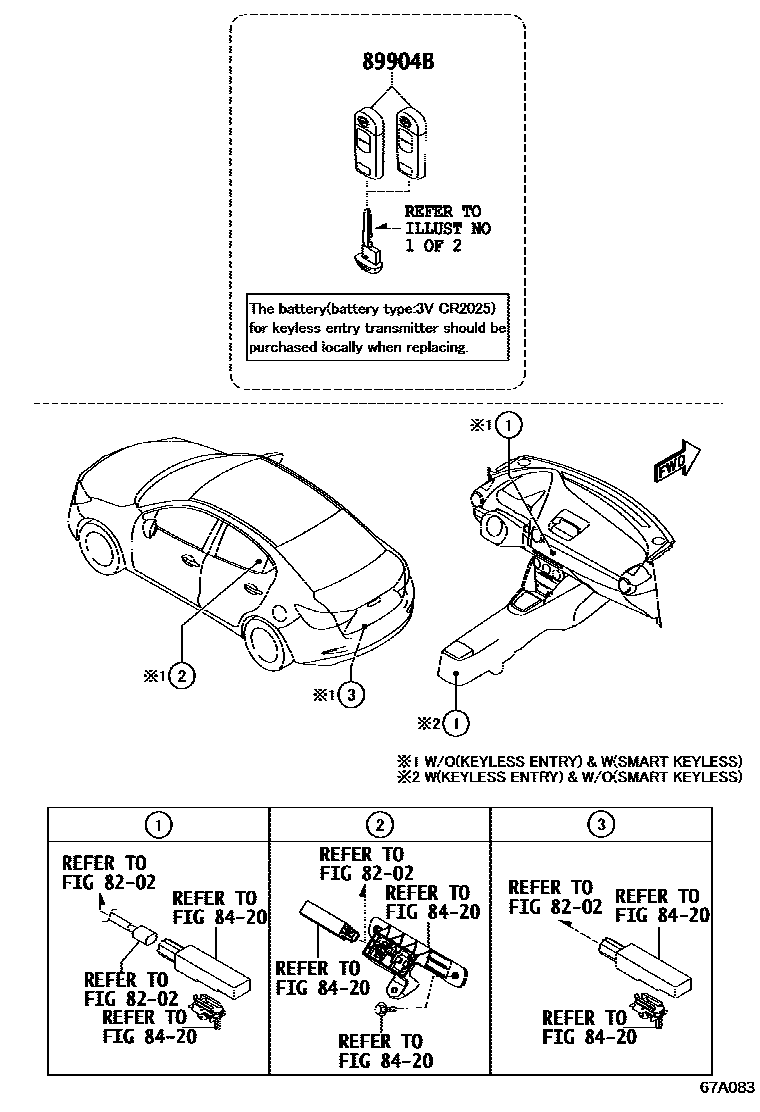

Toyota YARIS 锁芯组件 EPC diagram — 67A083 — 锁芯组件 — 67A083 (201808 – 201908)

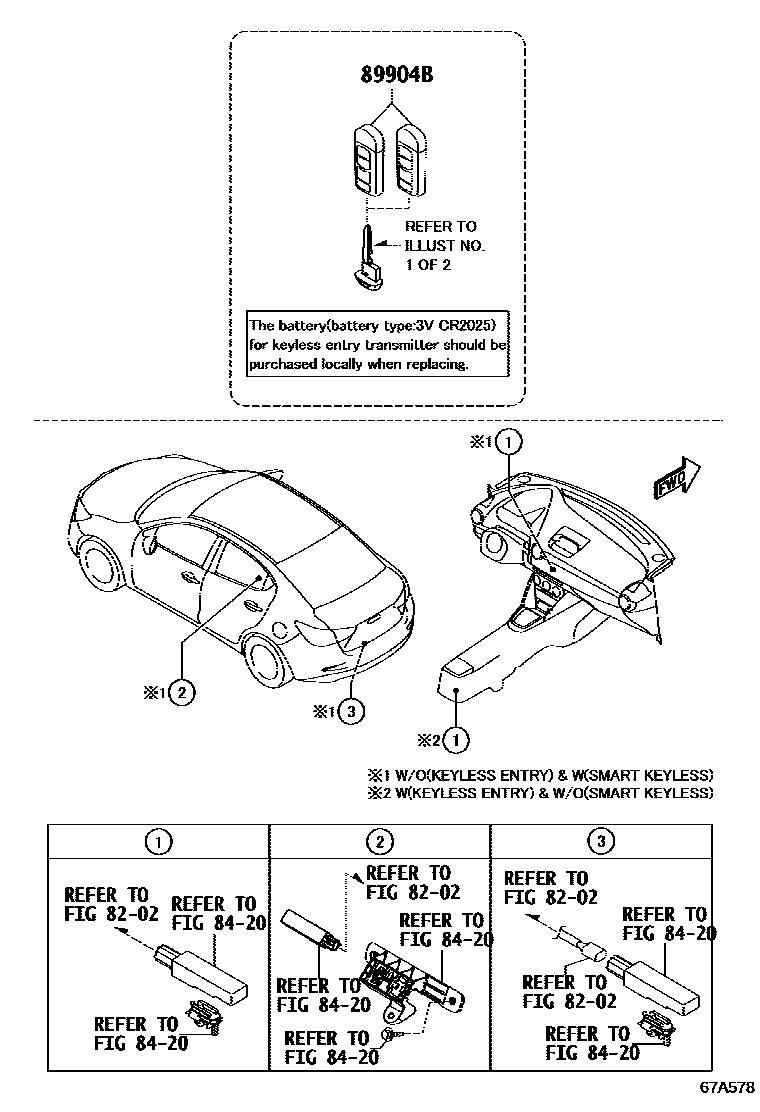

Toyota YARIS 锁芯组件 EPC diagram — 67A578 — 锁芯组件 — 67A578 (201908 – 999999)

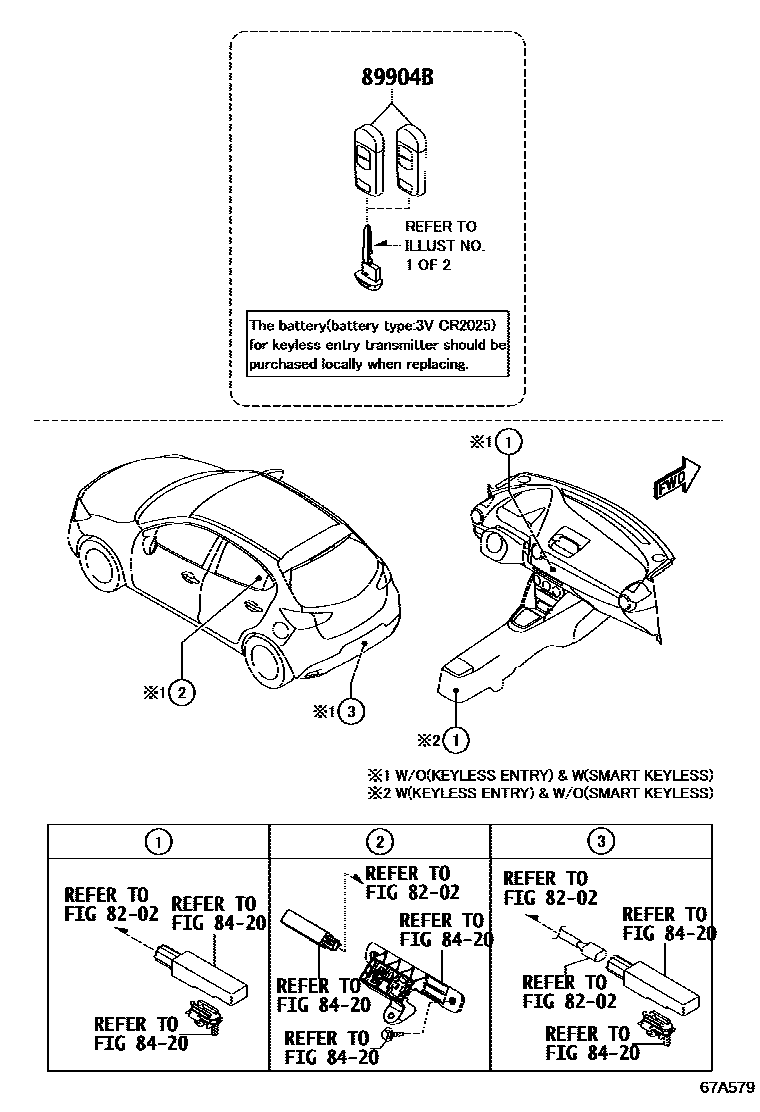

Toyota YARIS 锁芯组件 EPC diagram — 67A579 — 锁芯组件 — 67A579 (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
69052	Left door lock cylinder and key assembly	69052-WB001
69503A	external tooth key	69515-WB001
89904B	Electronic key transmitter sub-assembly	89904-WB001 · 89904-WB003 · 89904-WB004
