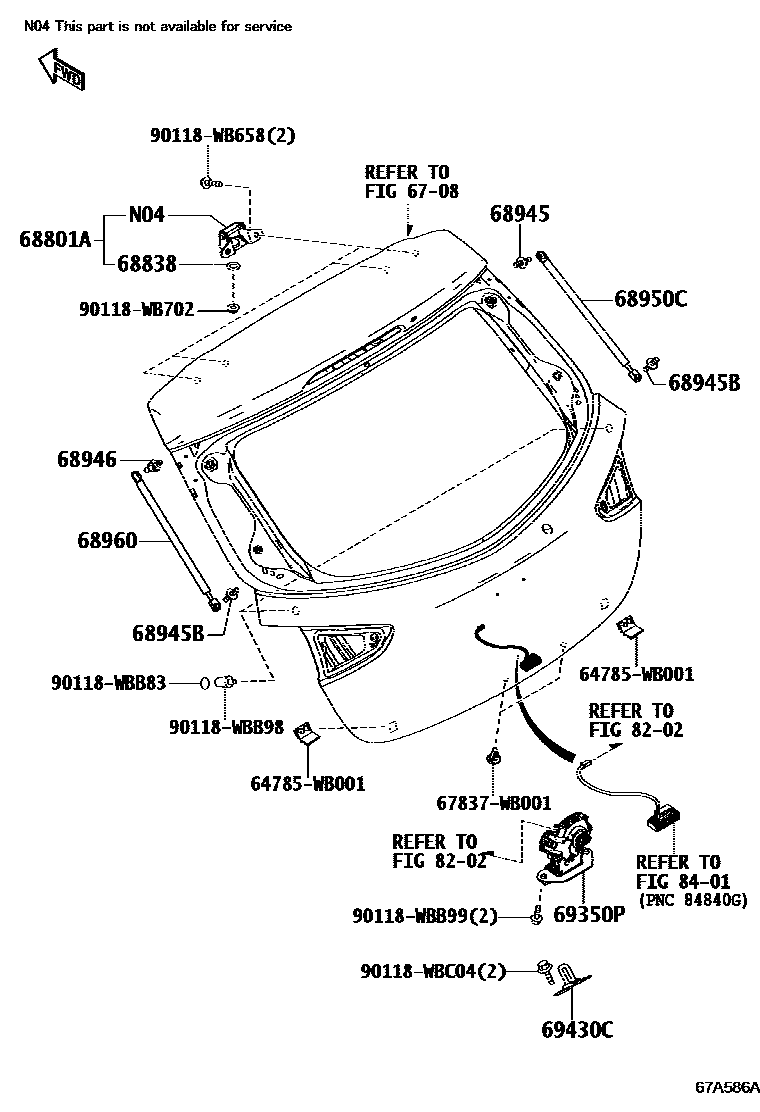

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68820-WB001 |
| 68838 | Back door hinge No. 1 gasket | 68838-WB002 |
| 68945 | Back door right damping stay upper bracket | 68946-WB001 |
| 68945B | BOULON, SUPPORT PIECE MAINTIEN AMORT HAYON | 68946-WB001 |
| 68946 | Rear door left damping strut upper bracket | 68946-WB001 |
| 68950C | Back door right support rod assembly | 68950-WB002 |
| 68960 | Back door left support rod assembly | 68960-WB002 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-WB001 |
| 69430C | Back door lock assembly | 69430-WB001 |
