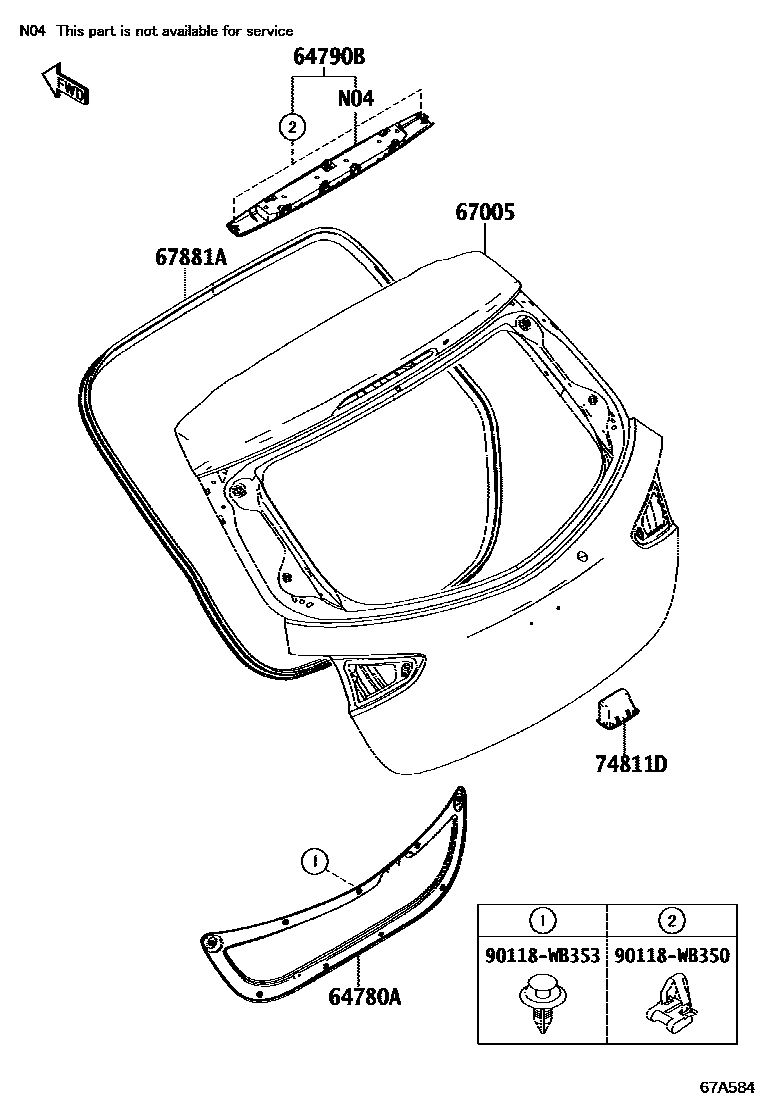

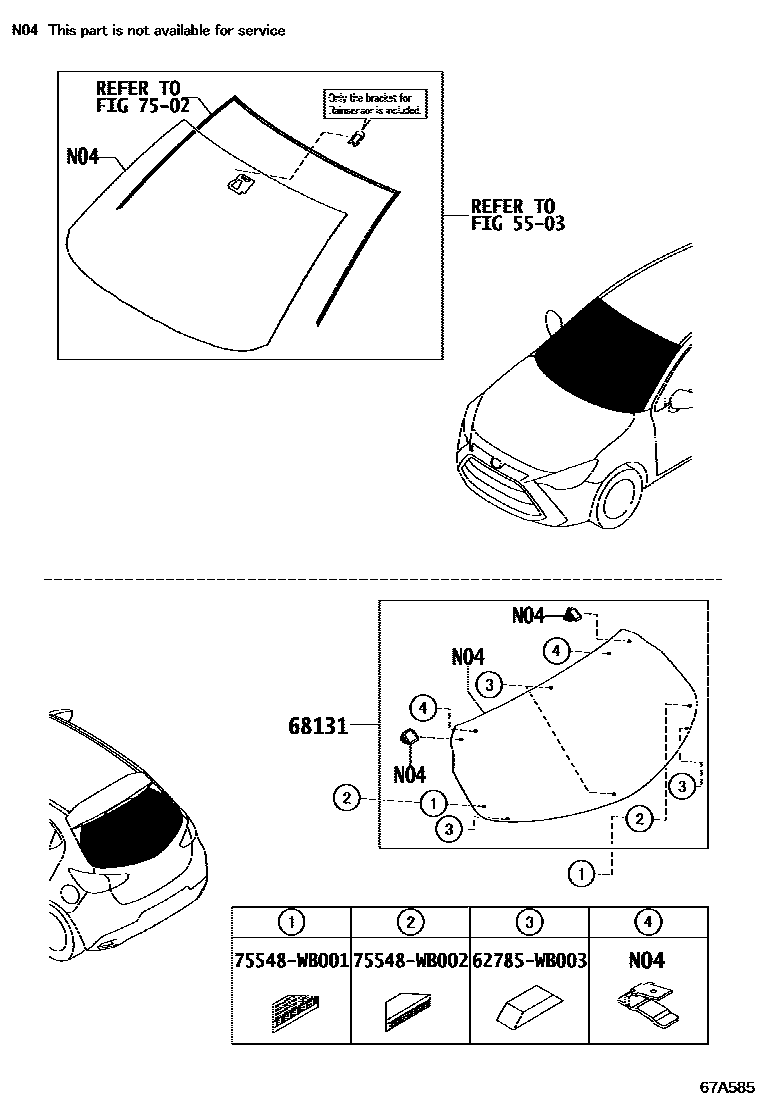

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64780A | Rear door decorative panel assembly | 64780-WB001 |
| 64790B | Rear door upper decorative panel assembly | 64790-WB001 |
| 67005 | Rear door panel sub-assembly | 67005-WB001 · 67005-WB002 |
| 67881A | Back door seal | 67881-WB001 |
| 68131 | back door glass | 68105-WB004 |
| 74811D | door handle | 74811-WB001 |
