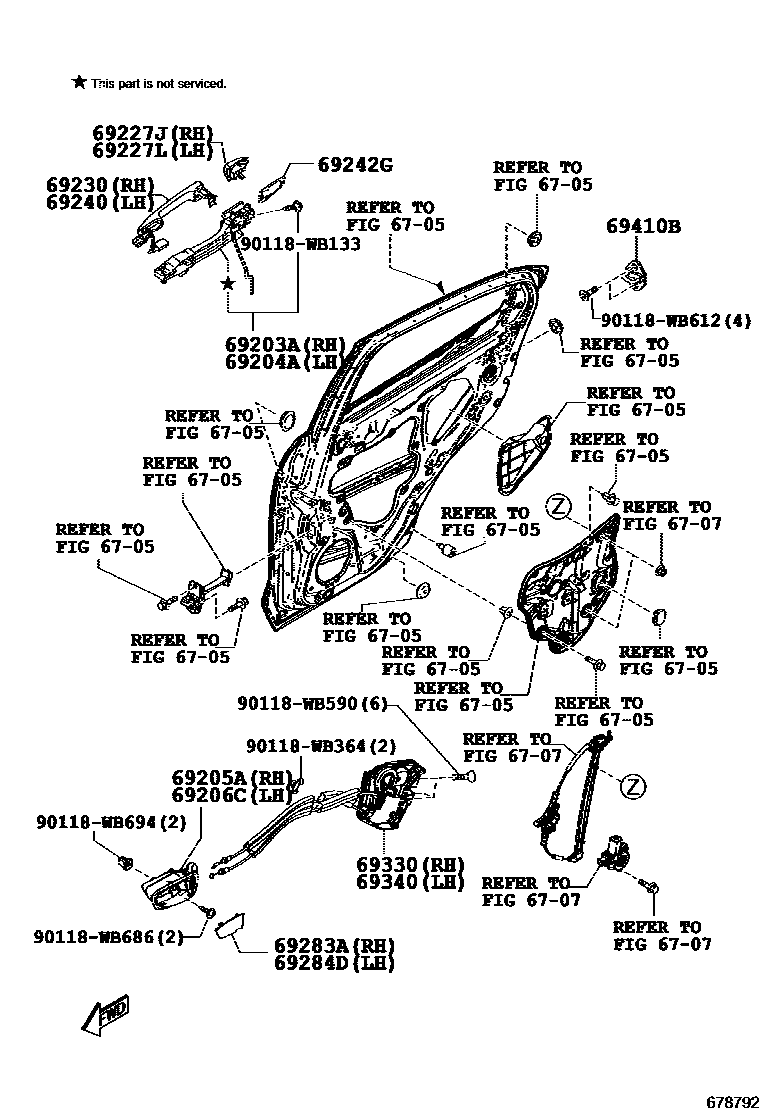

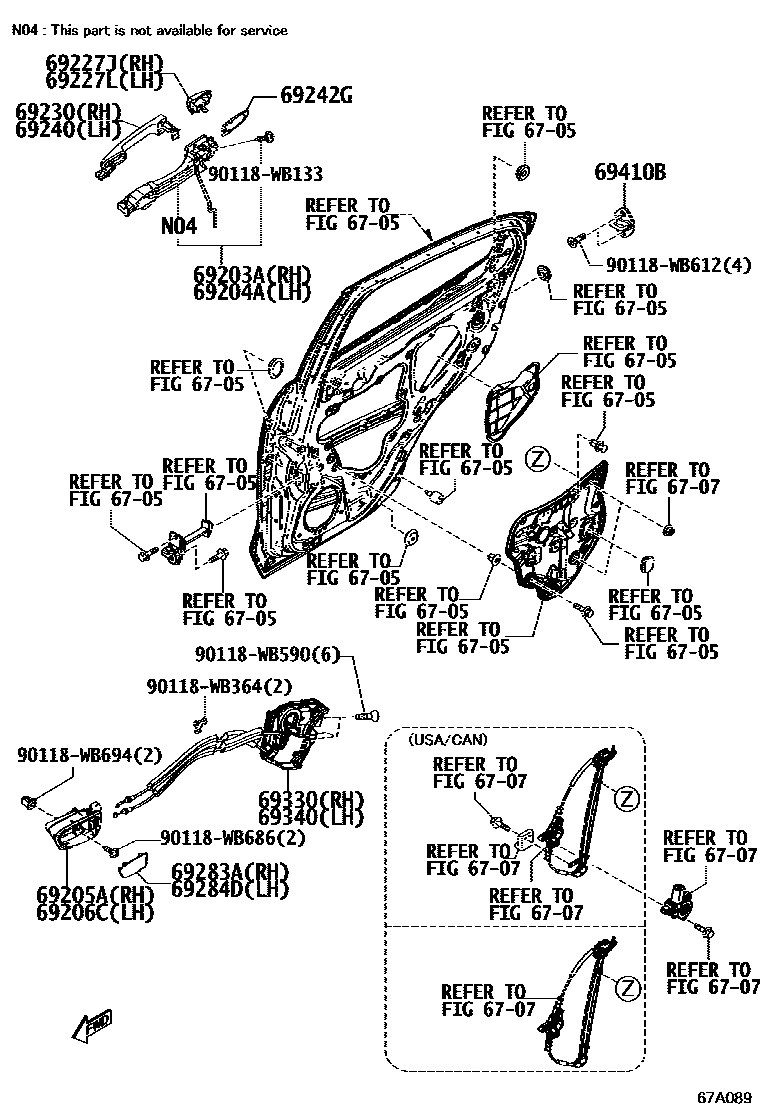

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69203A | Right rear door outer handle frame sub-assembly | 69203-WB002 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-WB002 |
| 69205A | Right rear door inner handle sub-assembly | 69205-WB001 · 69205-WB002 · 69205-WB003 · 69205-WB004 |
| 69206C | Left rear door inner handle sub-assembly | 69206-WB001 · 69206-WB002 · 69206-WB003 · 69206-WB004 |
| 69227J | Right rear door outer handle cover | 69227-WB001 · 69227-WB002 · 69227-WB003 · 69227-WB004 · 69227-WB005 · 69227-WB006 · 69227-WB007 · 69227-WB022 · 69227-WB025 |
| 69227L | Left rear door outer handle cover | 69227-WB015 · 69227-WB016 · 69227-WB017 · 69227-WB018 · 69227-WB019 · 69227-WB020 · 69227-WB021 · 69227-WB024 · 69227-WB027 |
| 69230 | Right rear door outer handle assembly | 69210-WB001 · 69210-WB002 · 69210-WB003 · 69210-WB004 · 69210-WB005 · 69210-WB006 · 69210-WB007 · 69210-WB029 · 69210-WB031 |
| 69240 | Left rear door outer handle assembly | 69210-WB008 · 69210-WB009 · 69210-WB010 · 69210-WB011 · 69210-WB012 · 69210-WB013 · 69210-WB014 · 69210-WB030 · 69210-WB032 |
| 69242G | Rear door rear outer handle pad | 69241-WB001 · 69241-WB002 |
| 69283A | Right rear door inner handle frame plug | 69283-WB001 · 69283-WB002 |
| 69284D | Left rear door inner handle frame plug | 69284-WB001 · 69284-WB002 |
| 69330 | Right rear door door lock assembly | 69050-WB001 · 69050-WB002 |
| 69340 | Left rear door lock assembly | 69060-WB001 · 69060-WB002 |
| 69410B | Rear door lock plate assembly | 69410-WB001 |
