Toyota YARIS 后门板和后门玻璃 — Figure 6705

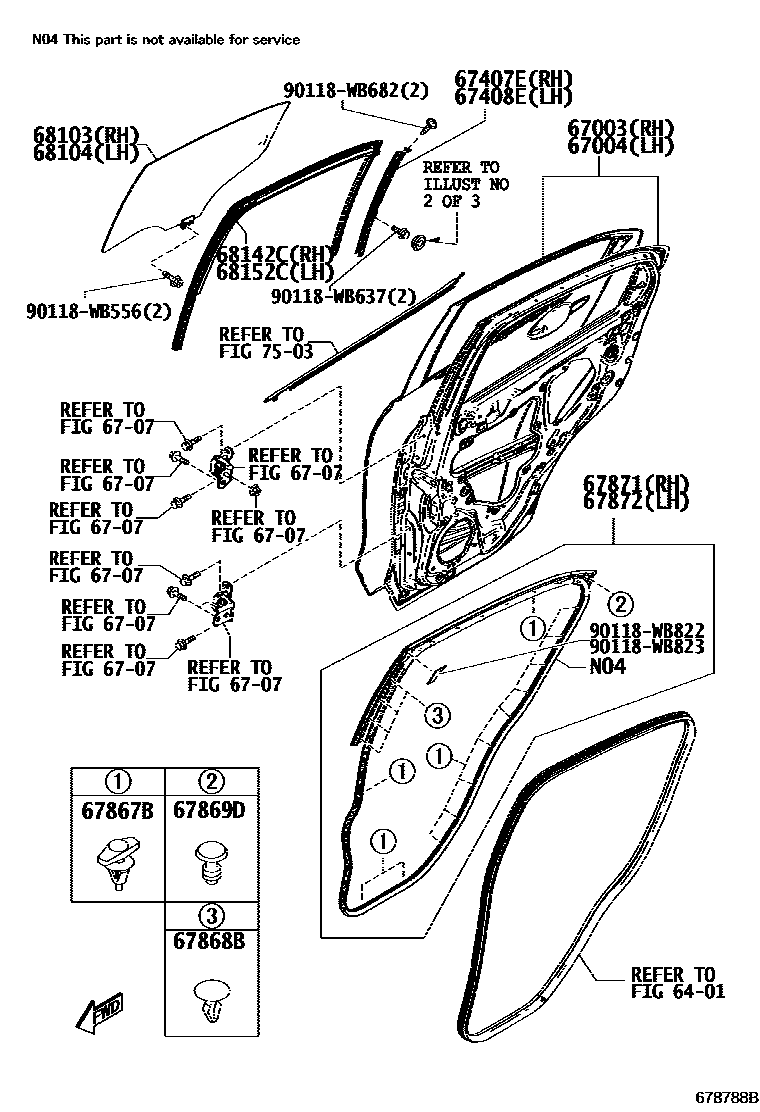

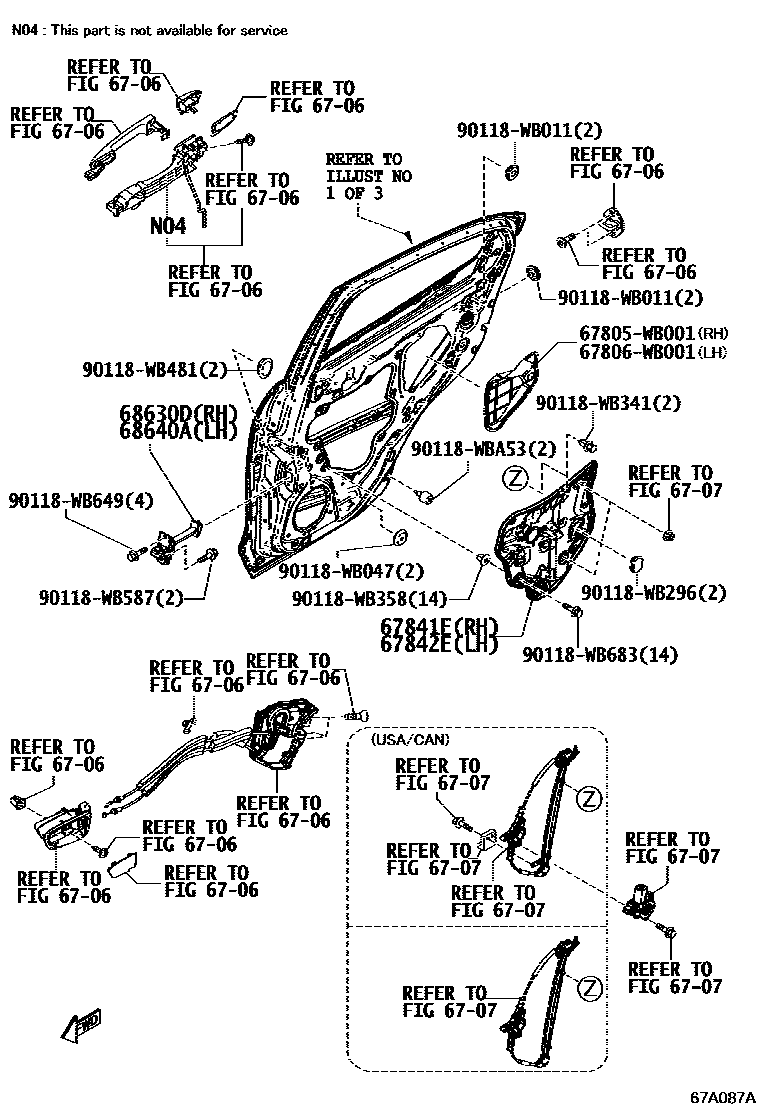

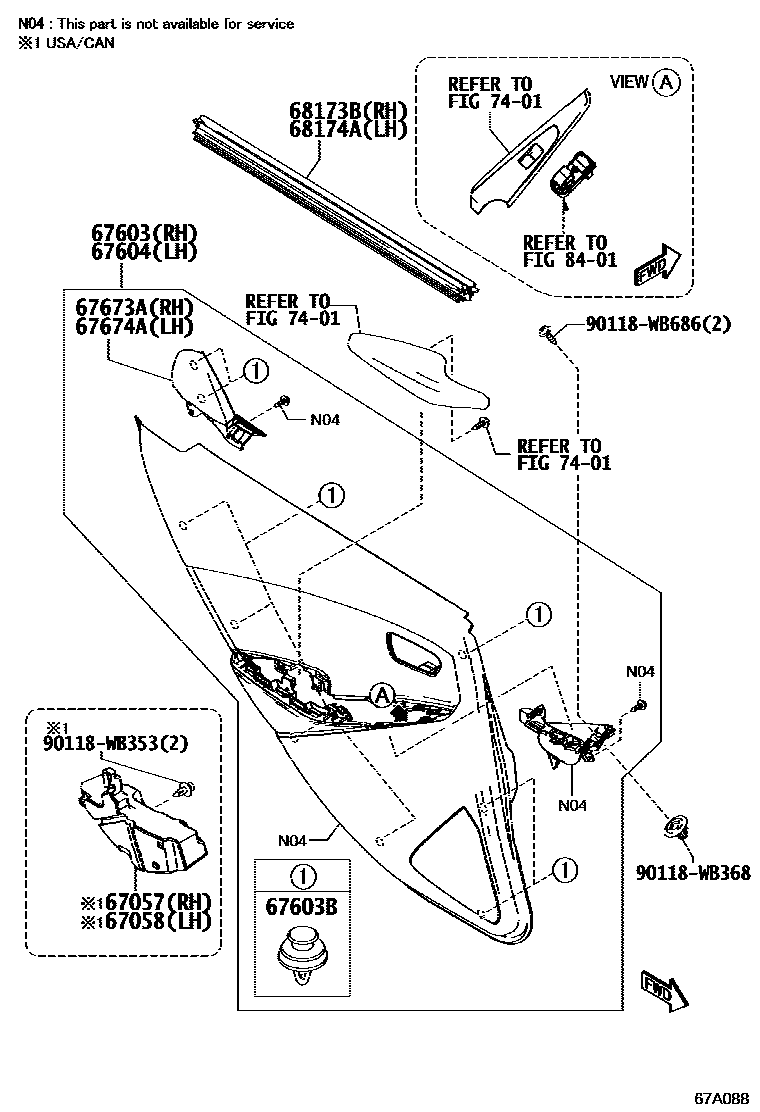

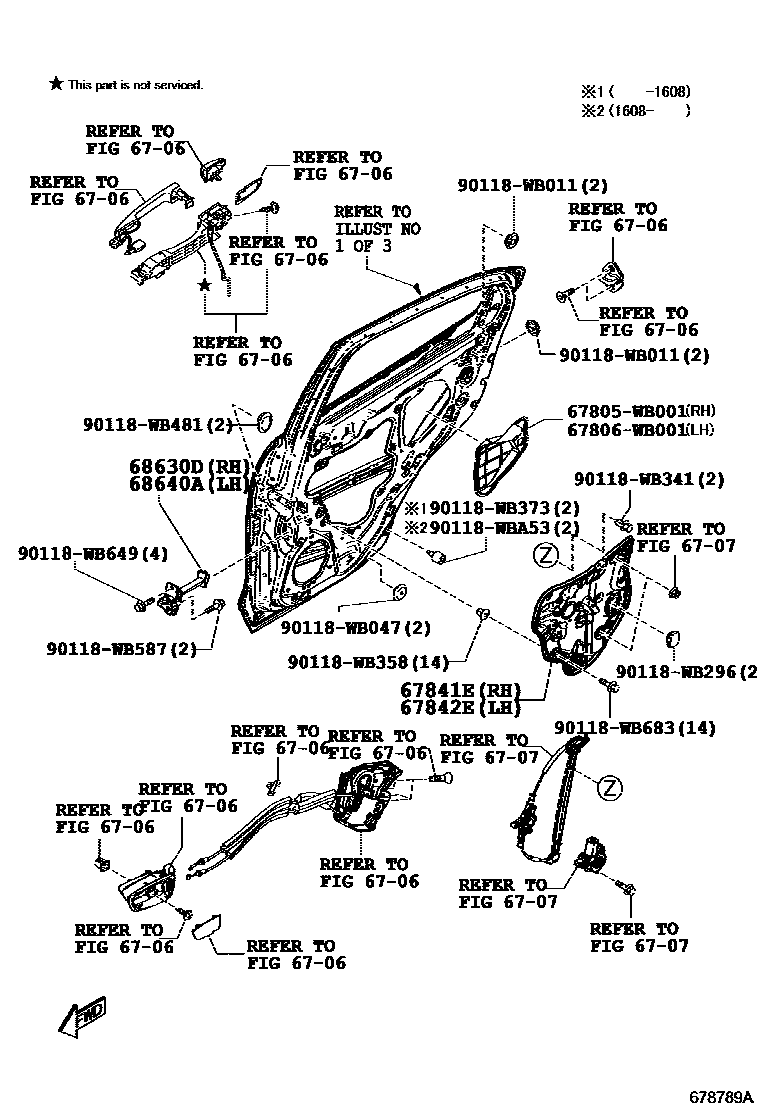

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-WB004 · 67003-WB005 · 67003-WB006 · 67003-WB008 |
| 67004 | Left rear door panel sub-assembly | 67004-WB004 · 67004-WB005 · 67004-WB006 · 67004-WB008 |
| 67057 | Right rear door inner panel reinforcement sub-assembly | 67057-WB001 |
| 67058 | Left rear door inner panel reinforcement sub-assembly | 67058-WB001 |
| 67407E | Right rear door window divider sub-assembly | 67407-WB001 |
| 67408E | Left rear door window divider sub-assembly | 67408-WB001 |
| 67603 | Right rear door decorative panel sub-assembly | 67630-WB002 · 67630-WB003 · 67630-WB004 · 67630-WB005 |
| 67603B | Catch (for rear door trim panel) | 90118-WB361 |
| 67604 | Left rear door decorative panel sub-assembly | 67640-WB002 · 67640-WB003 · 67640-WB004 · 67640-WB005 |
| 67673A | Right rear door frame decorative strip | 67673-WB001 |
| 67674A | Left rear door frame decorative strip | 67674-WB001 |
| 67841E | Right rear door access hole cover | 67841-WB002 |
| 67842E | Left rear door access hole cover | 67842-WB002 |
| 67867B | Door seal strip clip (for rear door) | 90118-WB022 |
| 67868B | Door glass seal strip clip (for rear door) | 90118-WB370 |
| 67869D | Car door seal strip clip | 90118-WB349 |
| 67871 | Right rear door sealing strip | 67871-WB001 · 67871-WB002 |
| 67872 | Left rear door sealing strip | 67872-WB001 · 67872-WB002 |
| 68103 | Right rear door glass sub-assembly | 68103-WB001 |
| 68104 | Left rear door glass sub-assembly | 68104-WB001 |
| 68142C | Right rear door glass lift slot | 68142-WB001 · 68142-WB002 |
| 68152C | Left rear door glass lift slot | 68152-WB001 · 68152-WB002 |
| 68173B | Right rear door glass inner sealing strip | 68173-WB002 |
| 68174A | Left rear door glass inner sealing strip | 68174-WB002 |
| 68630D | Right rear door opening limiter assembly | 68630-WB001 |
| 68640A | Left rear door opening limiter assembly | 68630-WB001 |
