Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

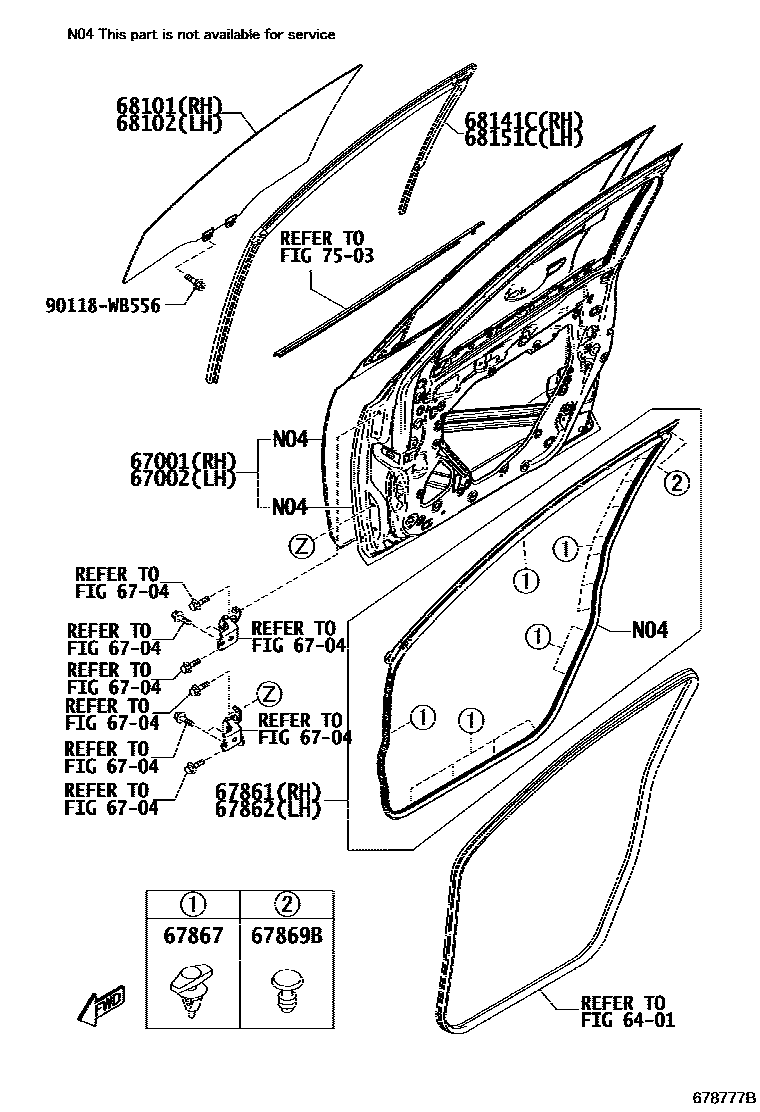

| 67001 | Right front door panel sub-assembly | 67001-WB002 · 67001-WB003 |
| 67002 | Left front door panel sub-assembly | 67002-WB002 · 67002-WB003 |

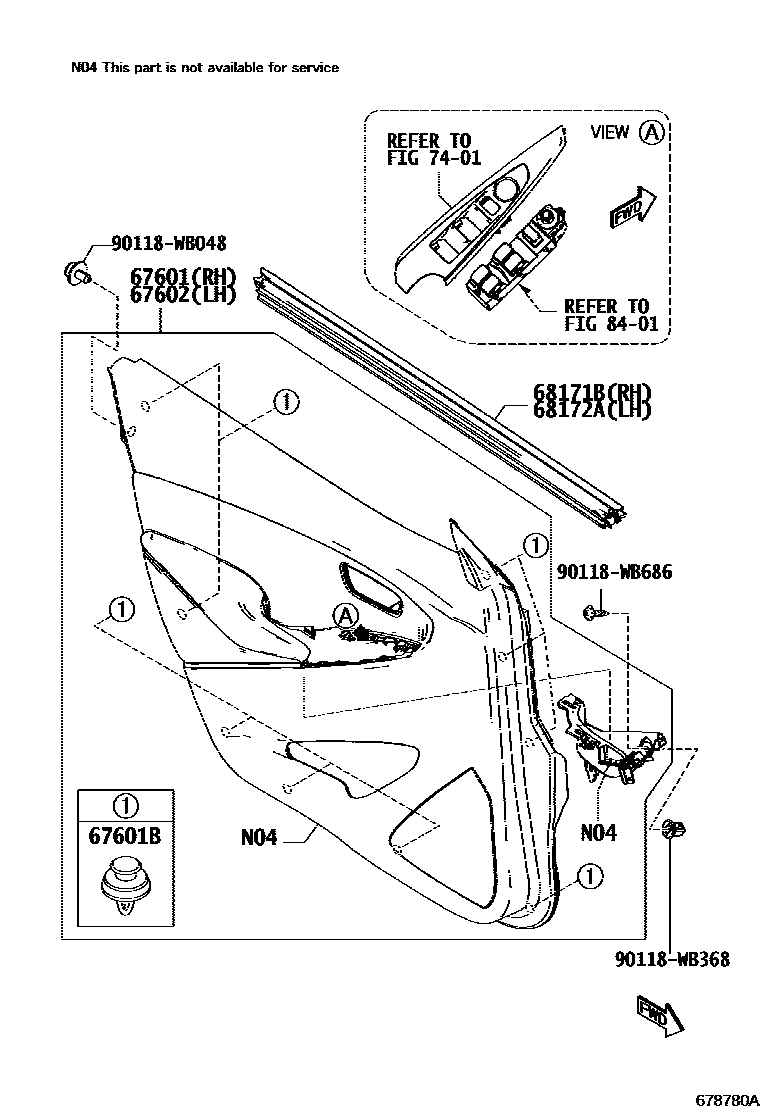

| 67601 | Right front door decorative panel sub-assembly | 67610-WB008 · 67610-WB010 · 67610-WB012 · 67610-WB013 · 67610-WB014 · 67610-WB015 · 67610-WB016 · 67610-WB017 |
| 67601B | Catch (for front door trim panel) | 90118-WB361 |
| 67602 | Left front door decorative panel sub-assembly | 67620-WB008 · 67620-WB010 · 67620-WB012 · 67620-WB013 · 67620-WB014 · 67620-WB015 · 67620-WB016 · 67620-WB017 |

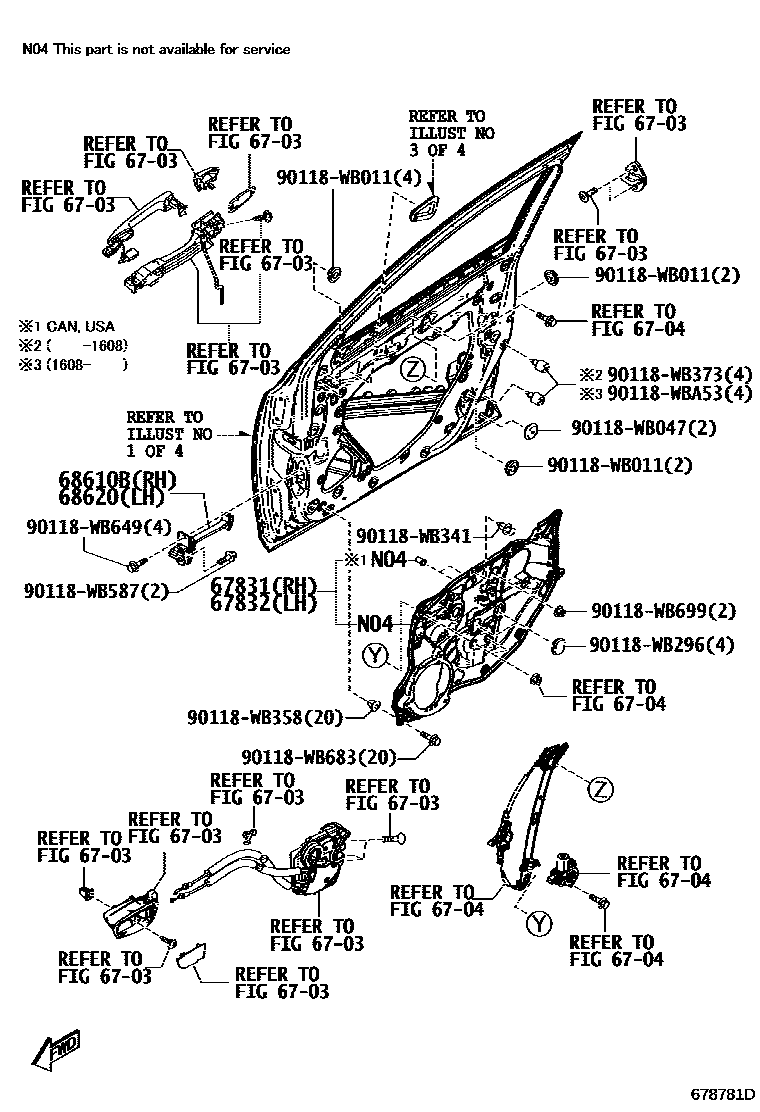

| 67831 | Right front door access hole cover | 67831-WB003 · 67831-WB004 |
| 67832 | Left front door access hole cover | 67832-WB003 · 67832-WB004 |
| 67861 | Right front door seal | 67861-WB001 · 67861-WB002 |
| 67862 | Left front door seal | 67862-WB001 · 67862-WB002 |
| 67867 | Car door seal strip clip | 90118-WB022 |
| 67869B | Front door seal strip clip | 90118-WB349 |
| 68101 | Right front door glass sub-assembly | 68101-WB001 |
| 68102 | Left front door glass sub-assembly | 68102-WB001 |
| 68141C | Right front door glass lift channel | 68141-WB001 · 68141-WB002 |
| 68151C | Left front door glass lift channel | 68151-WB001 · 68151-WB002 |
| 68171B | Right front door glass inner sealing strip | 68171-WB002 |
| 68172A | Left front door glass inner sealing strip | 68172-WB002 |
| 68610B | Right front door opening limiter assembly | 68610-WB001 |
| 68620 | Left front door opening limiter assembly | 68610-WB001 |
