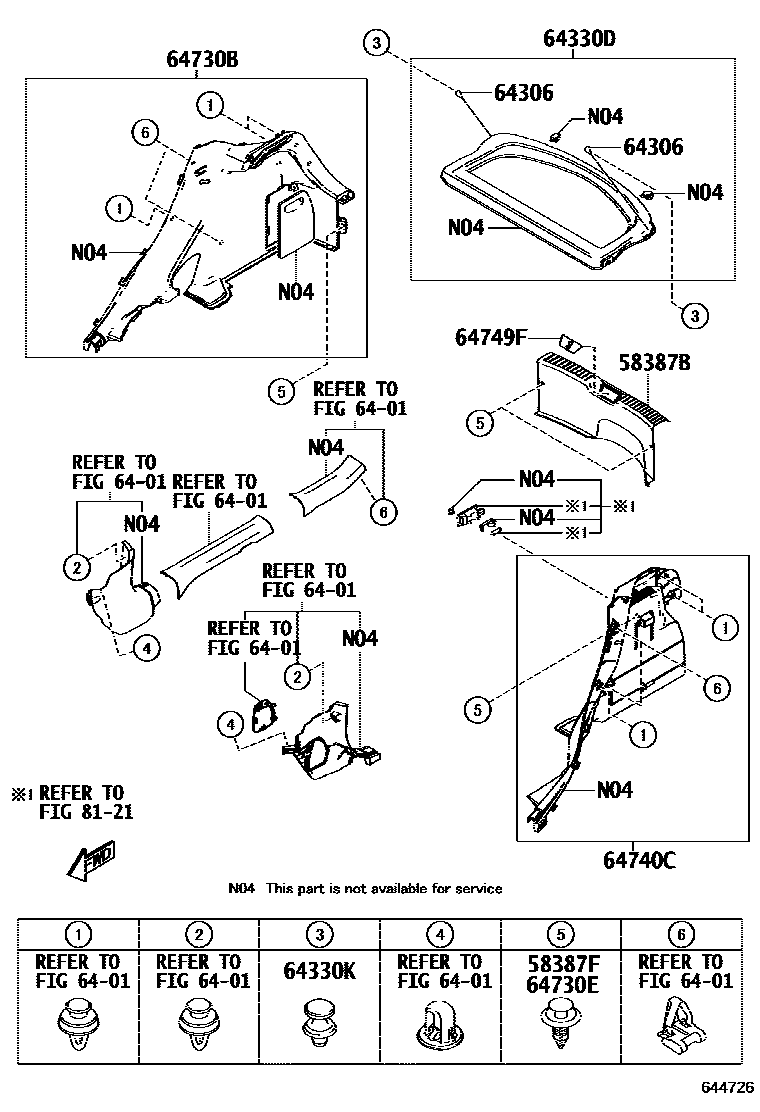

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387B | Rear floor decorative panel | 58387-WB003 |
| 58387F | Rear floor decorative panel clip | 90118-WB353 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-WB001 |
| 64330D | Glove box decorative panel assembly | 64330-WB007 |
| 64330K | Clip (for glove box decorative panel) | 64338-WB001 |
| 64730B | Bottom panel right decorative panel assembly | 64721-WB003 |
| 64730E | Clip (for bottom panel side decorative panel) | 90118-WB353 |
| 64740C | Floor left decorative panel assembly | 64722-WB003 |
| 64749F | Back door latch cover | 64749-WB002 |
