Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 6 images and 15 PNC and OE references.

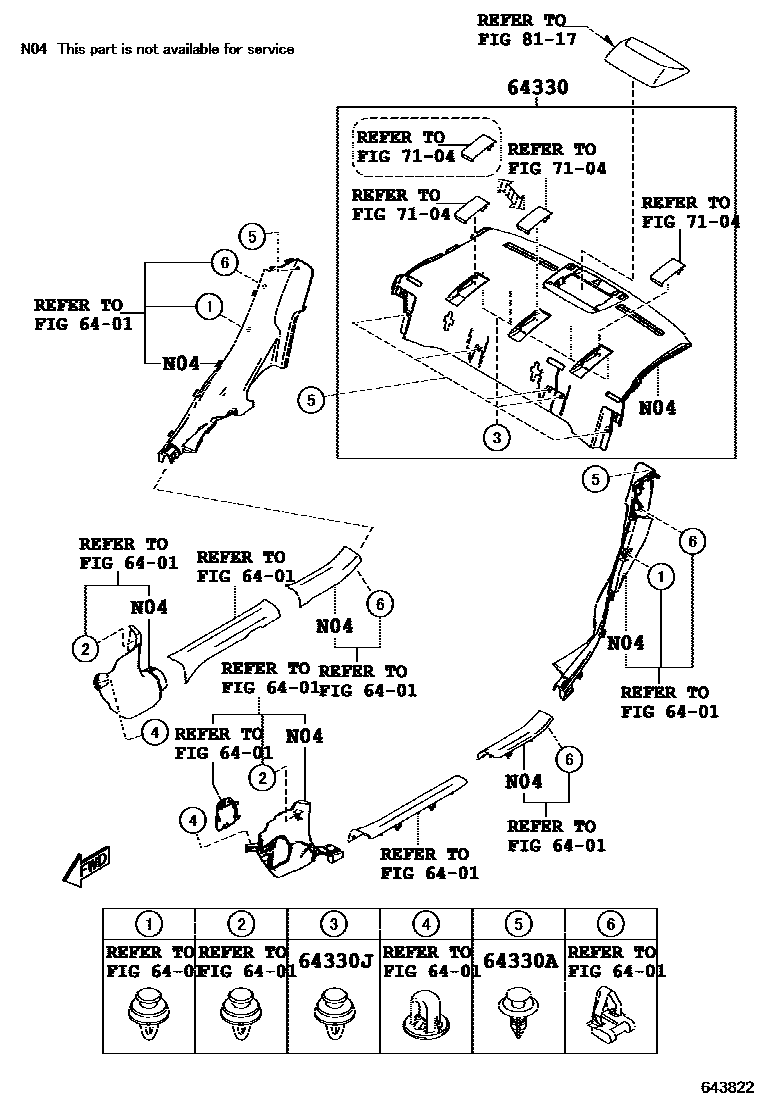

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 643822
杂物箱板和行李箱垫 — 643822 (201506 – 201908)

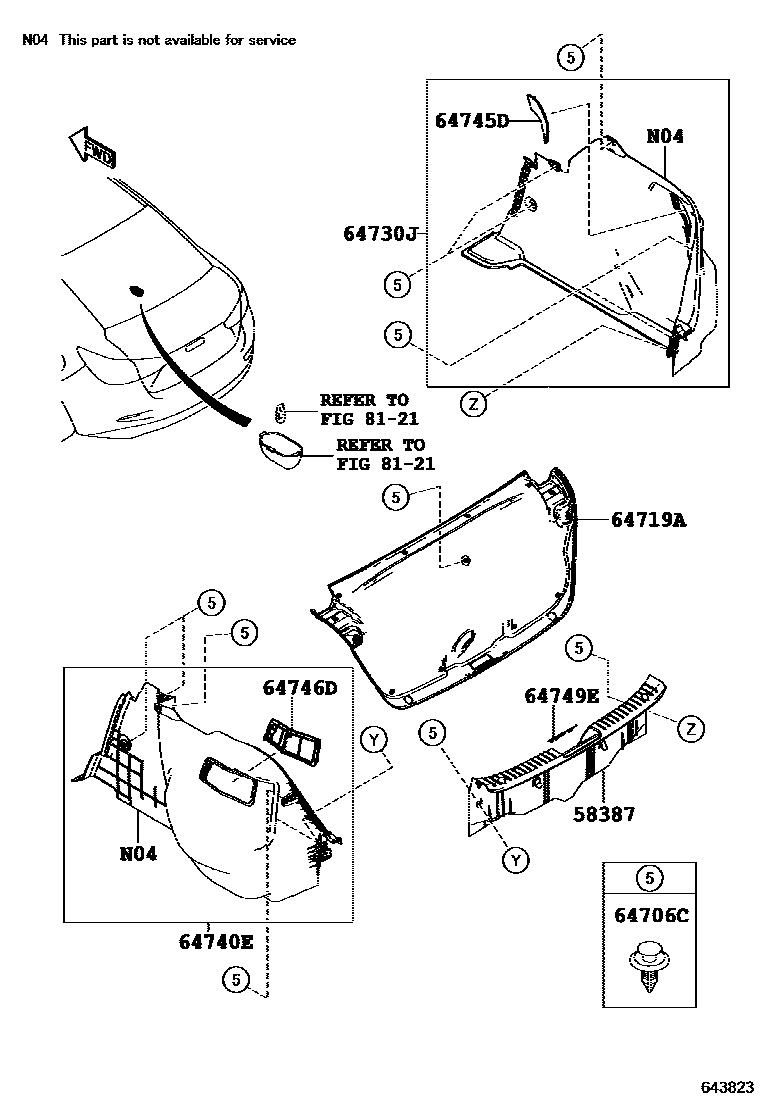

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 643823
杂物箱板和行李箱垫 — 643823 (201506 – 999999)

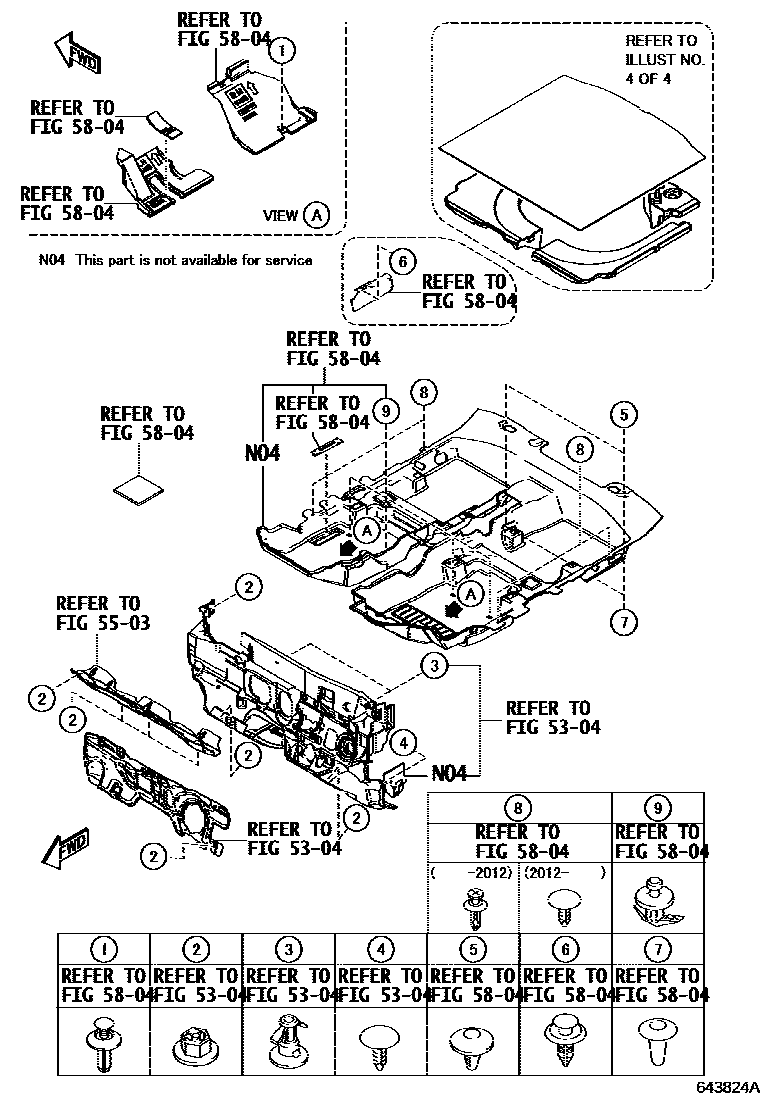

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 643824A
杂物箱板和行李箱垫 — 643824A (201506 – 999999)

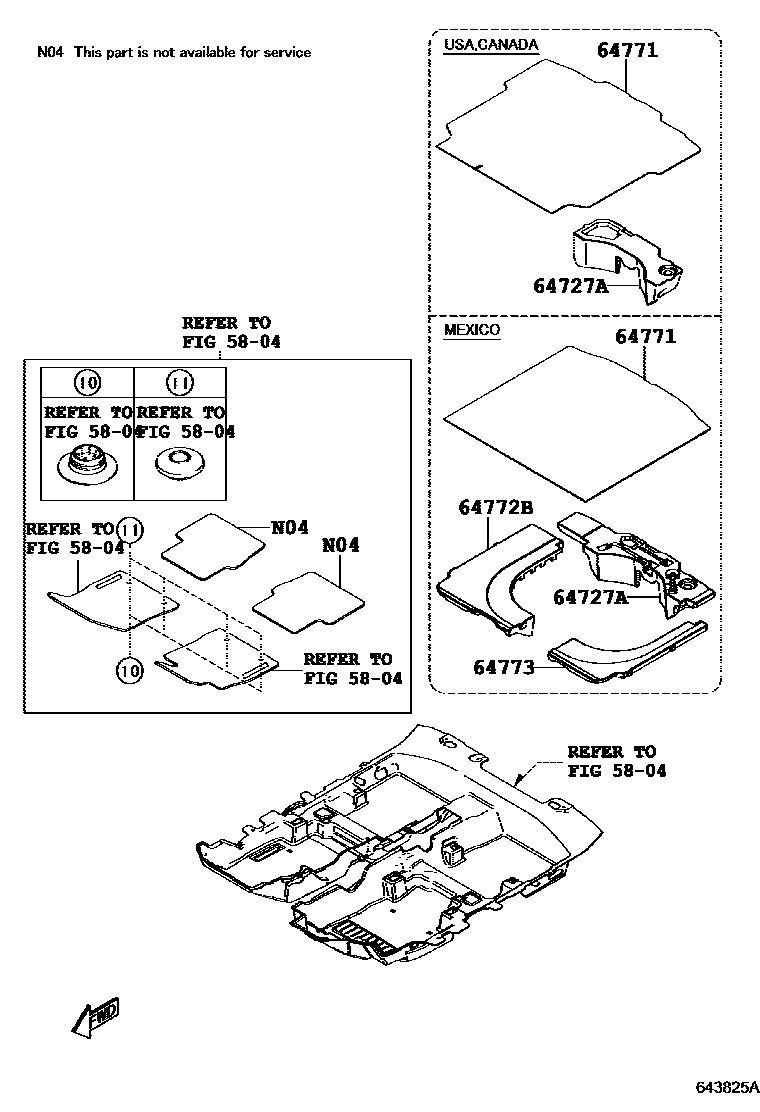

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 643825A
杂物箱板和行李箱垫 — 643825A (201506 – 201908)

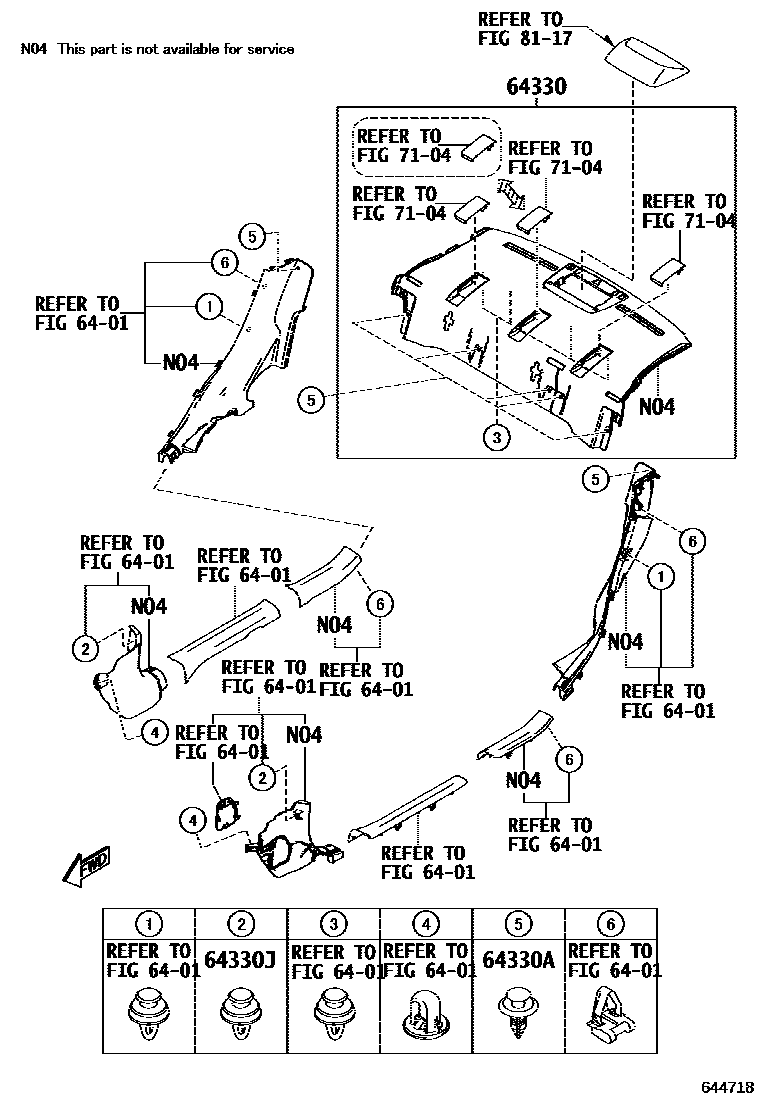

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 644718
杂物箱板和行李箱垫 — 644718 (201908 – 999999)

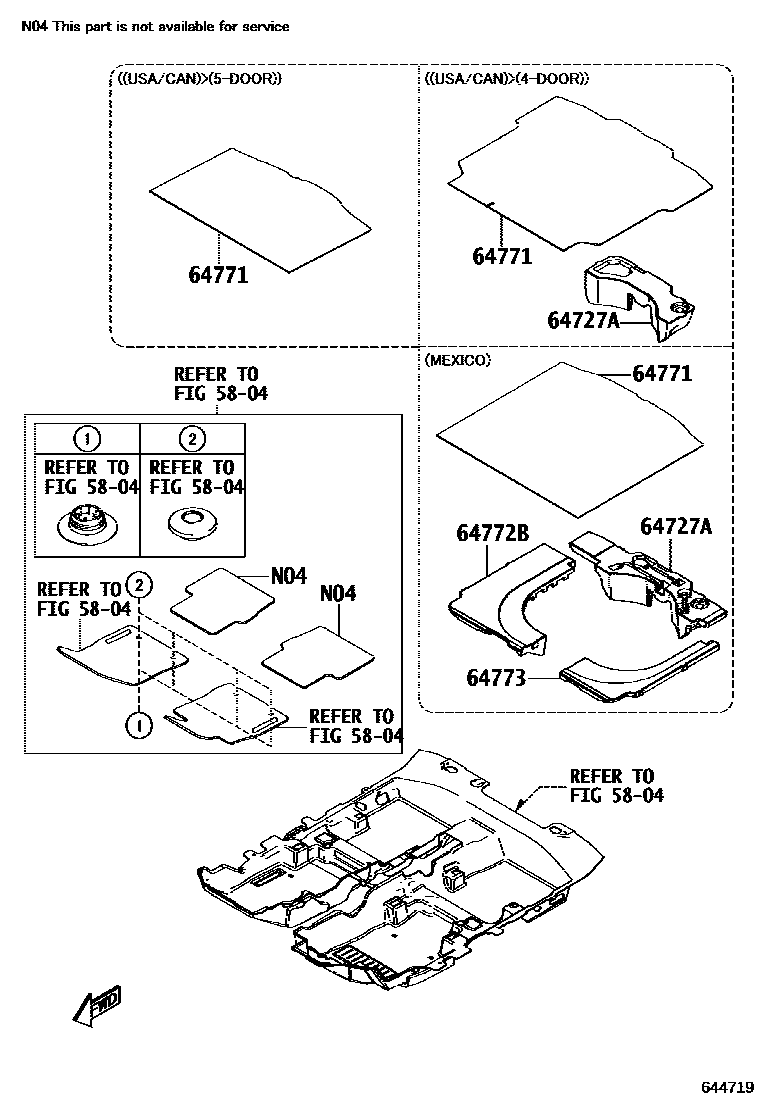

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 644719
杂物箱板和行李箱垫 — 644719 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387Rear floor decorative panel58387-WB001
64330Glove box decorative panel assembly64330-WB005 · 64330-WB006
64330AClip (for glove box decorative panel)90118-WB353
64330JClip (for glove box decorative panel)90118-WB361
64706CBack panel decorative cover sub-assembly90118-WB353
64719ATrunk door decorative cover64719-WB001 · 64719-WB002
64727ALuggage interior decorative mat64727-WB002 · 64727-WB003 · 64727-WB004
64730JENSEMBLE PANNEAU, COTE DE GARNITURE DU PLANCHER, MD64721-WB002
64740EENSEMBLE PANNEAU, COTE DE GARNITURE DU PLANCHER, MG64722-WB002
64745DRight rear combination light access hole cover64745-WB001
64746DLeft rear combination light access hole cover64746-WB002
64749ETrunk door latch cover64749-WB001
64771Spare Wheel Cover64771-WB002 · 64771-WB003 · 64771-WB004
64772BSpare tire cover liner64772-WB001
64773No. 2 spare tire cover64773-WB001
