Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 12 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62101 | Right front wall side upper trim panel sub-assembly | 62101-WB001 |
| 62102 | Left front wall side upper trim panel sub-assembly | 62102-WB001 · 62102-WB002 · 62102-WB003 |

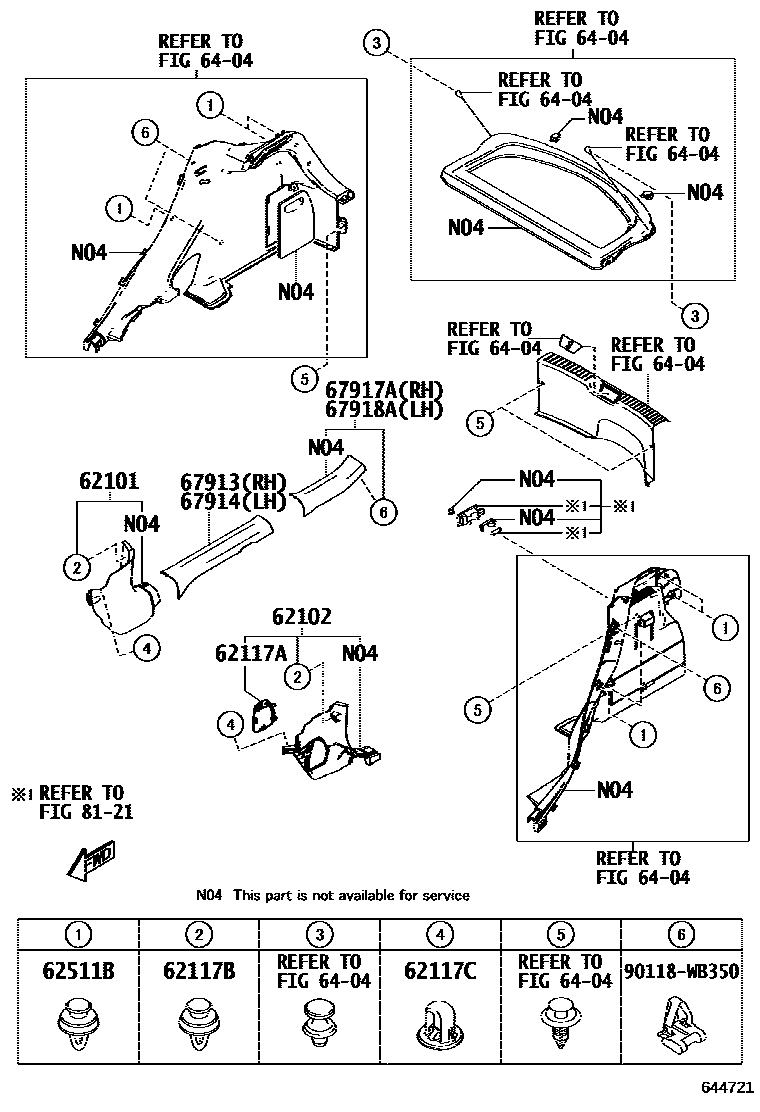

| 62117A | Front wall side trim panel access hole cover | 62117-WB001 · 62117-WB002 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90118-WB396 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90118-WB414 |

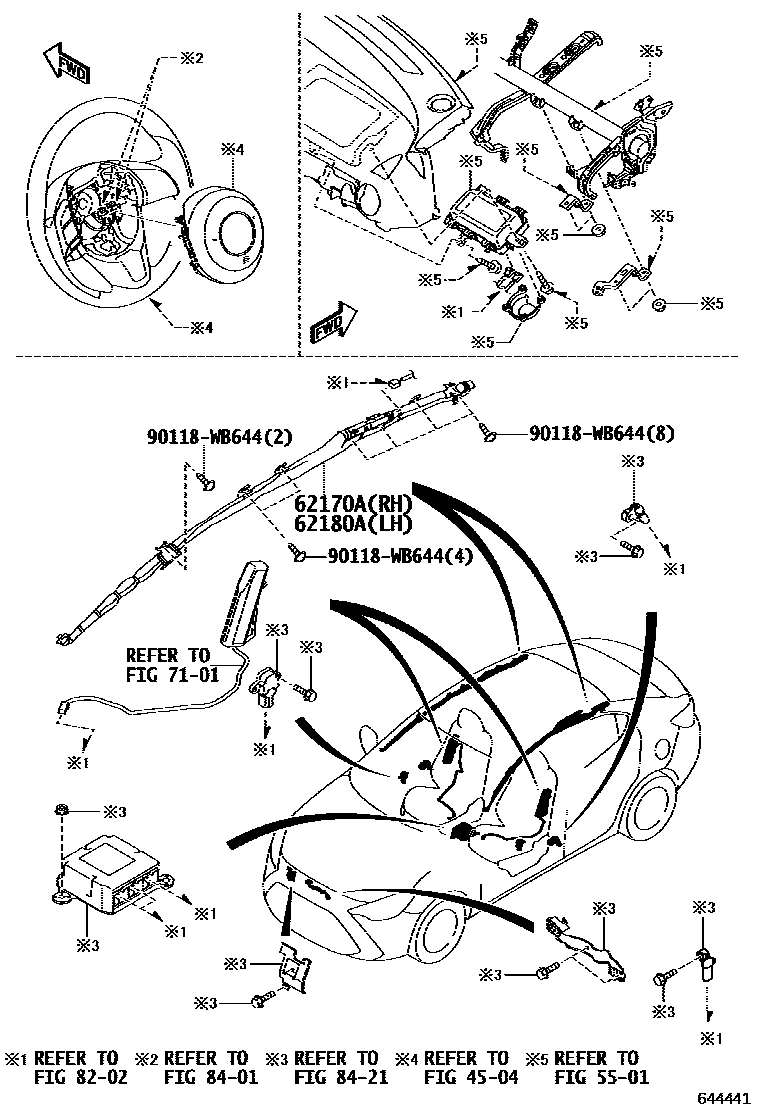

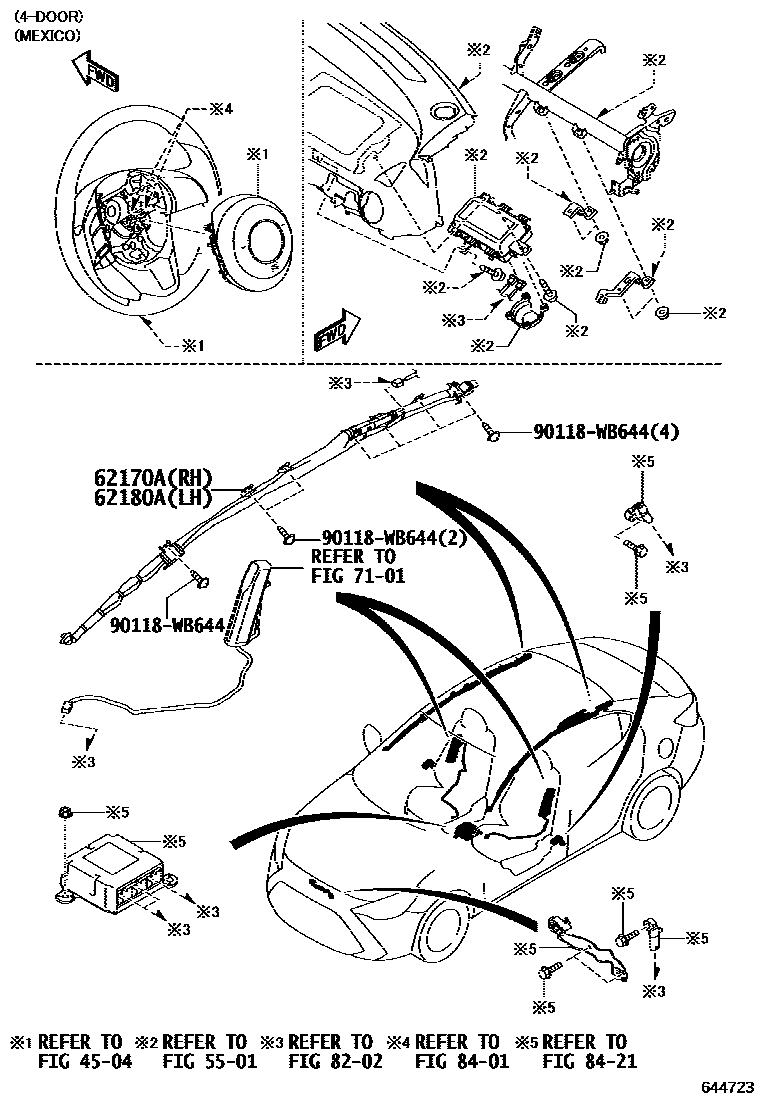

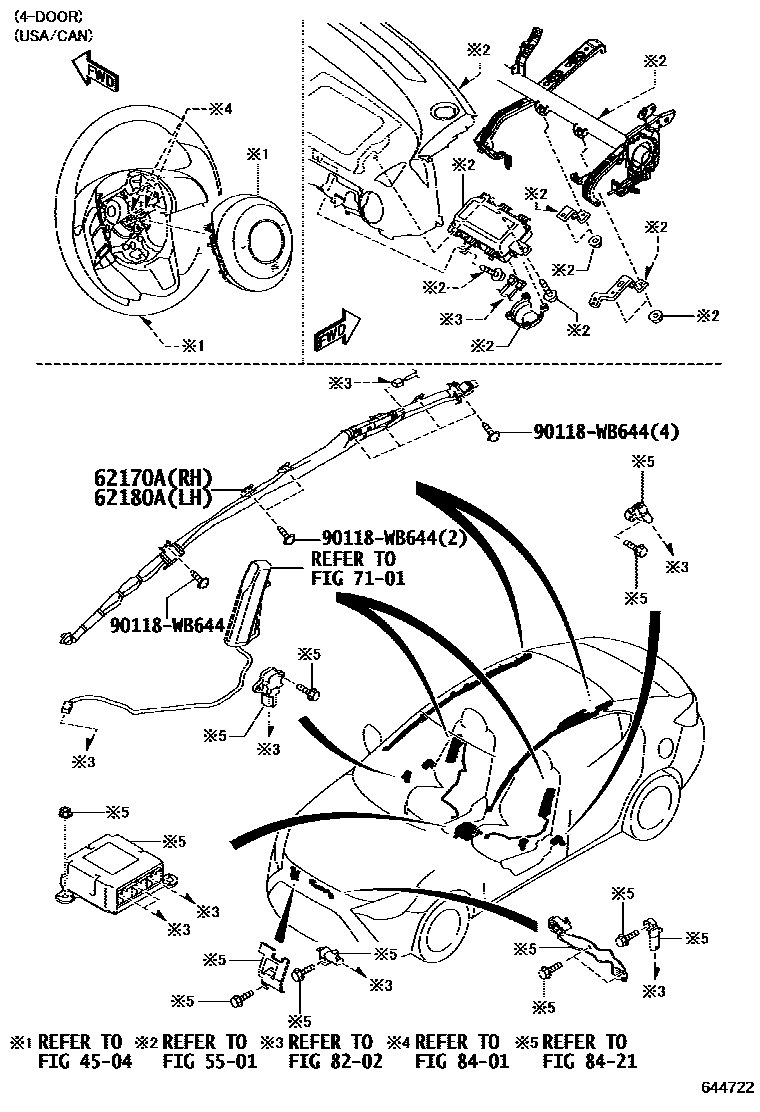

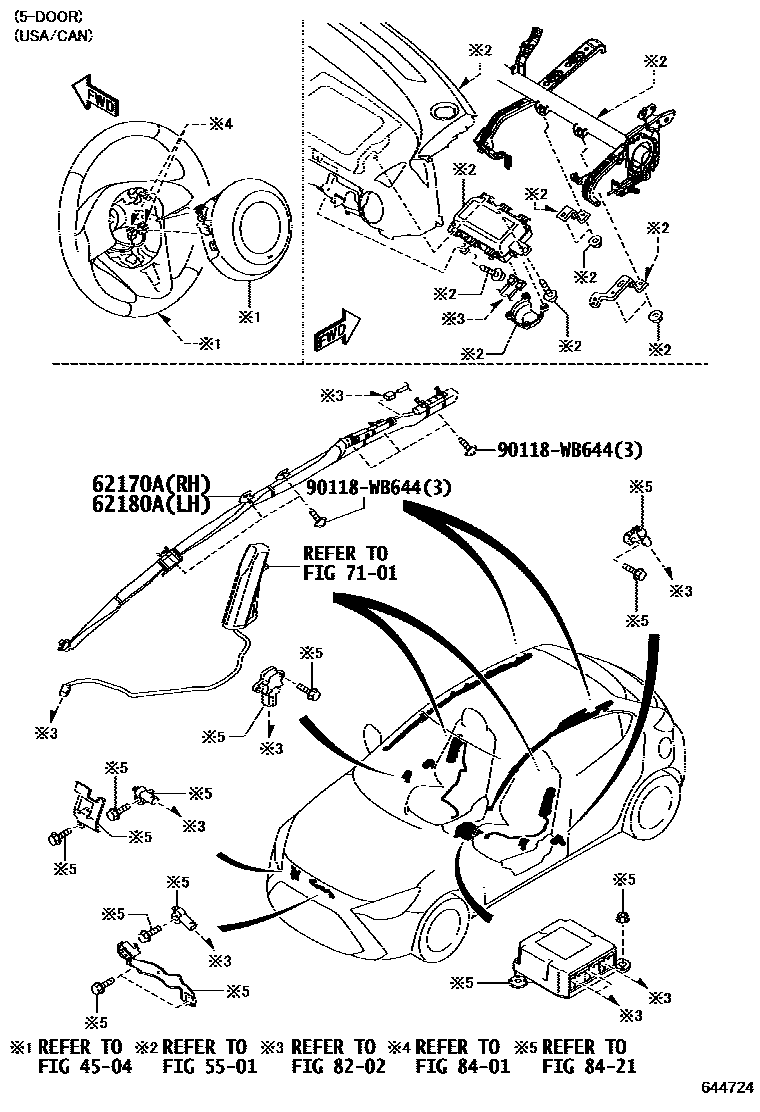

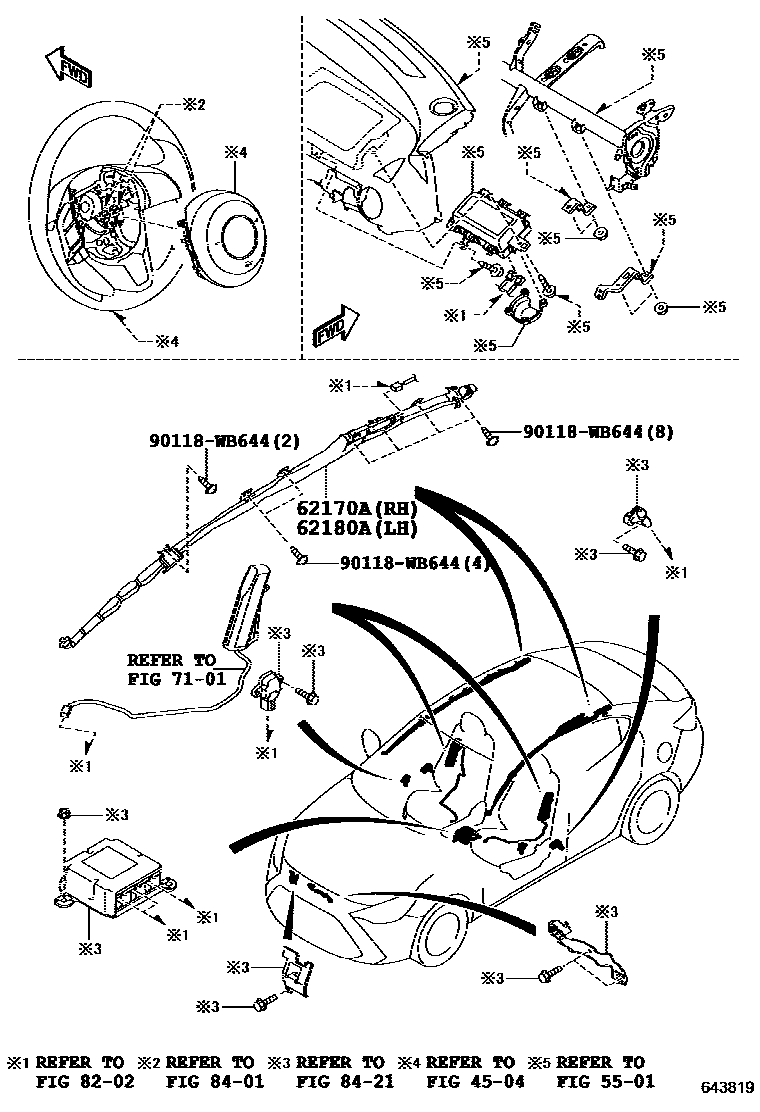

| 62170A | Right curtain air bag assembly | 62170-WB002 · 62170-WB003 |
| 62180A | Left curtain air bag assembly | 62180-WB002 · 62180-WB003 |

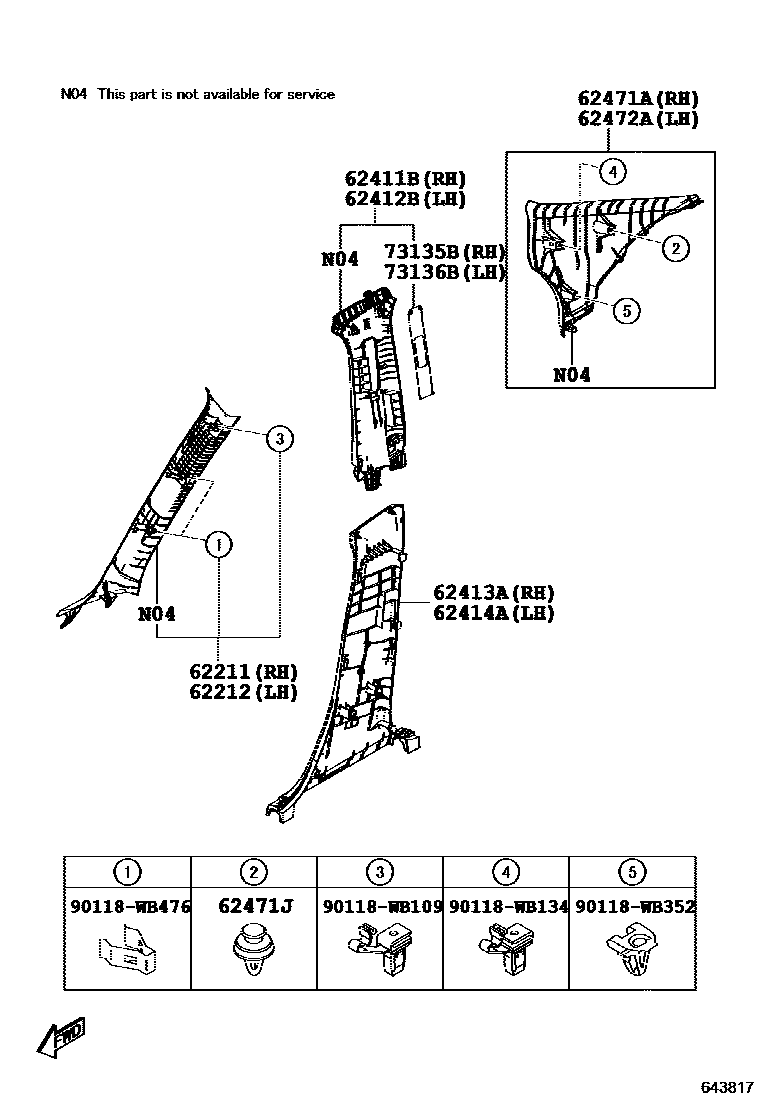

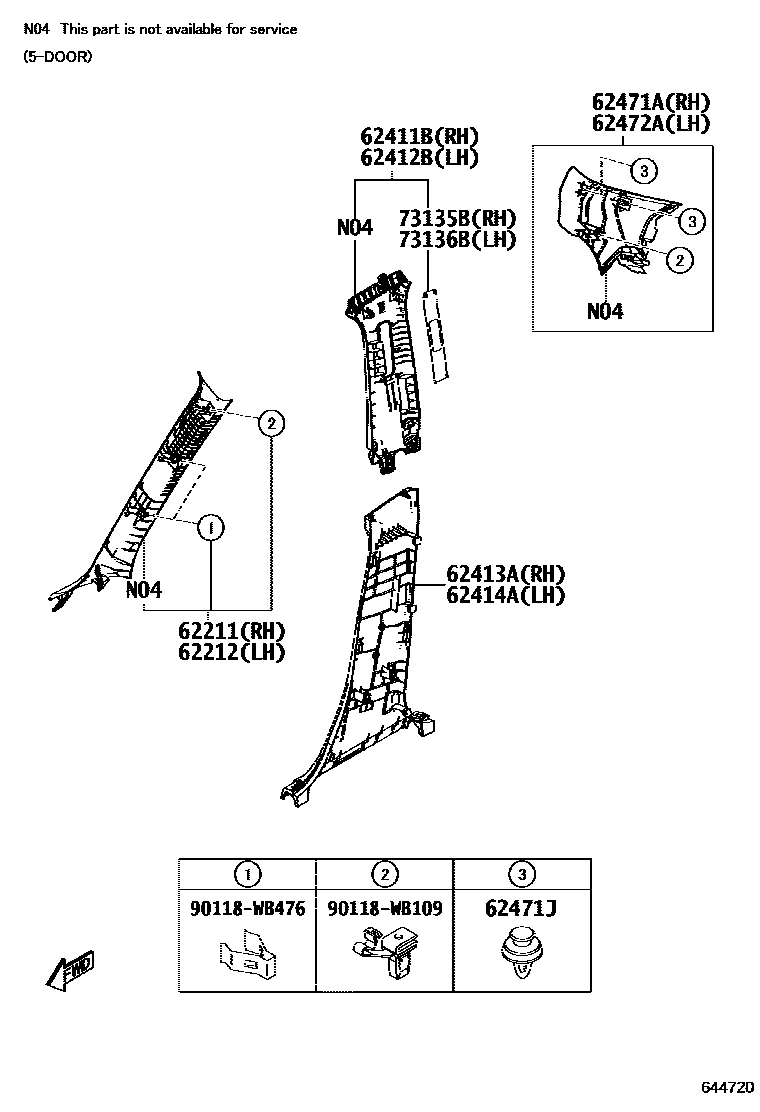

| 62211 | Right front pillar trim | 62211-WB001 |
| 62212 | Left front pillar trim | 62212-WB001 |

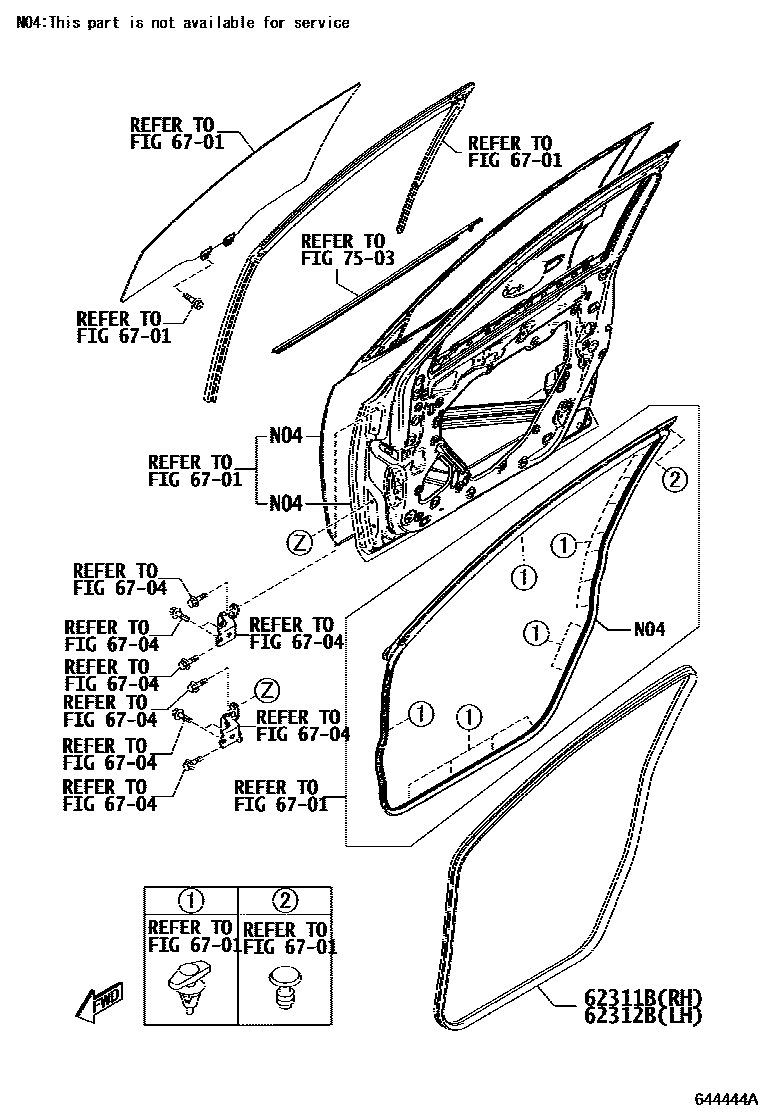

| 62311B | Right front door opening waterproof tape | 62311-WB001 · 62311-WB002 |
| 62312B | Left front door opening waterproof tape | 62311-WB001 · 62311-WB002 |

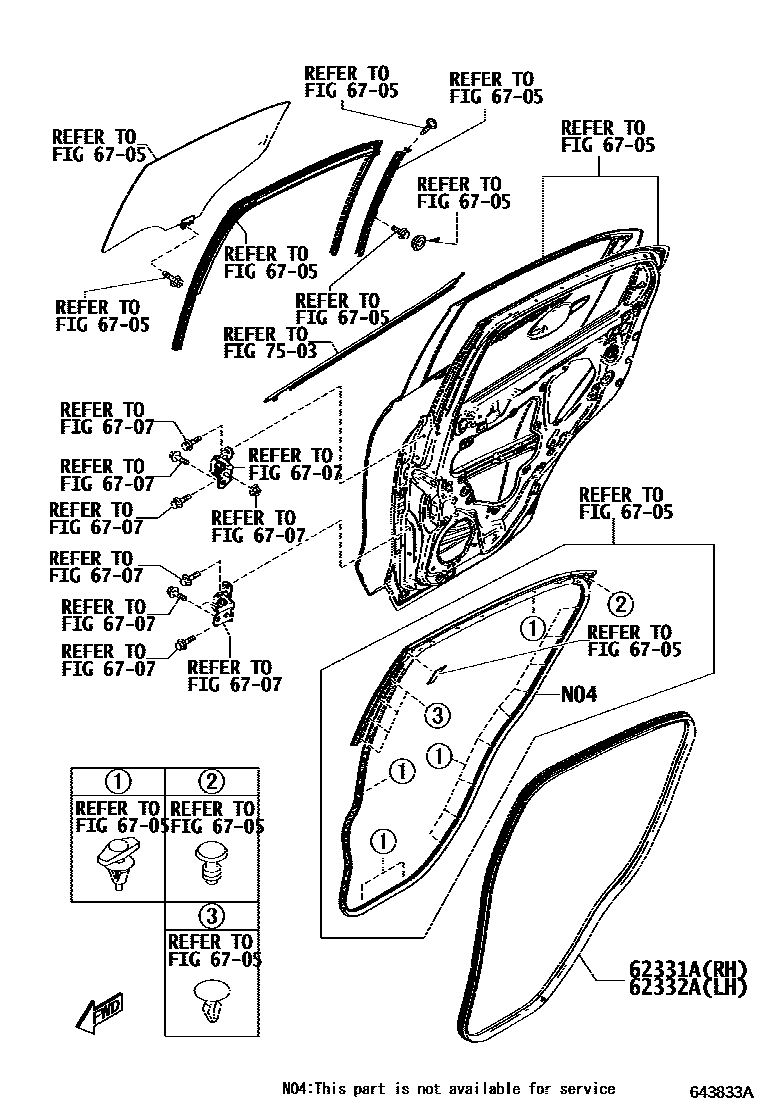

| 62331A | Right rear door opening waterproof tape | 62331-WB001 · 62331-WB002 |
| 62332A | Left rear door opening waterproof tape | 62331-WB001 · 62331-WB002 |
| 62411B | Decorative panel on right center pillar | 62411-WB001 · 62411-WB002 |
| 62412B | Decorative panel on left center pillar | 62412-WB001 · 62412-WB002 |
| 62413A | Decorative panel under right center pillar | 62413-WB001 |
| 62414A | Decorative panel under left center pillar | 62414-WB001 · 62414-WB002 |
| 62471A | Roof right interior panel | 62471-WB003 · 62471-WB004 |
| 62471J | Clips (for roof side trim panels) | 90118-WB361 · 90118-WBB96 |
| 62472A | Roof left interior panel | 62472-WB003 · 62472-WB004 |

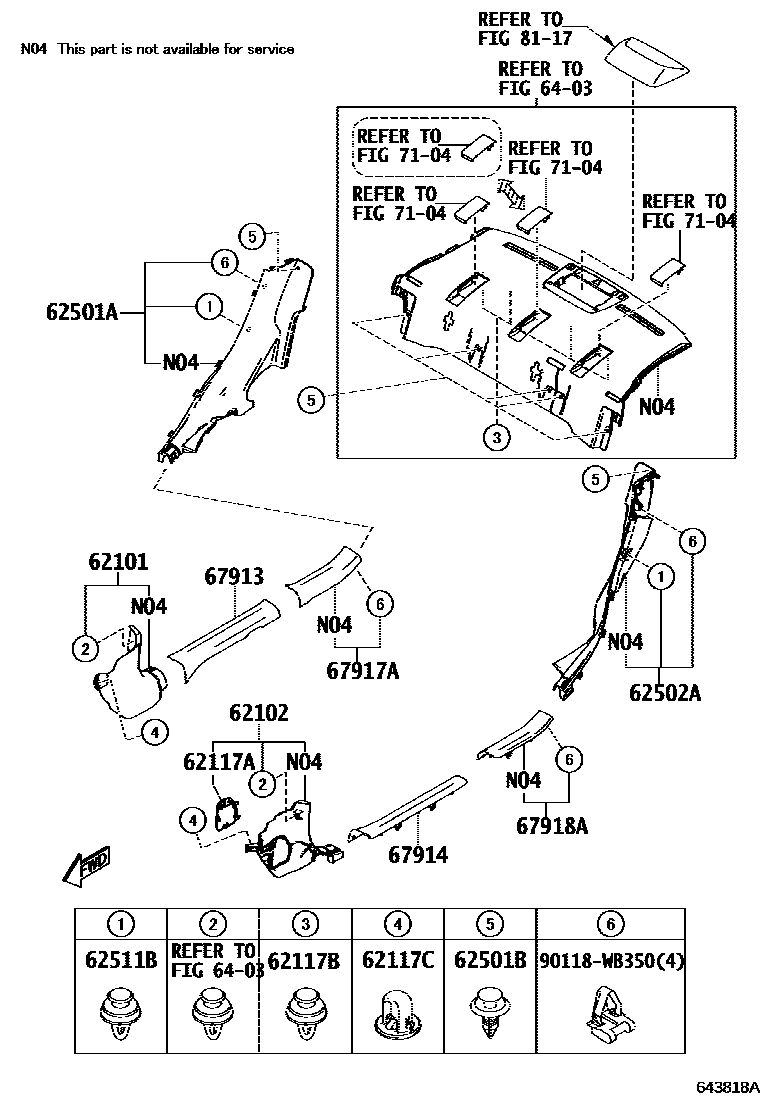

| 62501A | Right side decorative panel assembly | 62510-WB002 |
| 62501B | Clip (for the upper decorative panel on the inside of the side panel) | 90118-WB353 |
| 62502A | Left side decorative panel assembly | 62520-WB002 |
| 62511B | Clip (for the inner decorative panel of the side panel) | 90118-WB137 |
| 67913 | Right front door wear plate | 67913-WB001 |
| 67914 | Left front door wear plate | 67914-WB001 · 67914-WB002 |
| 67917A | Right rear door wear plate | 67917-WB001 |
| 67918A | Left rear door wear plate | 67918-WB001 |
| 73135B | Right seat shoulder belt anchor cover | 73135-WB001 |
| 73136B | Right seat shoulder belt anchor cover | 73135-WB001 |
