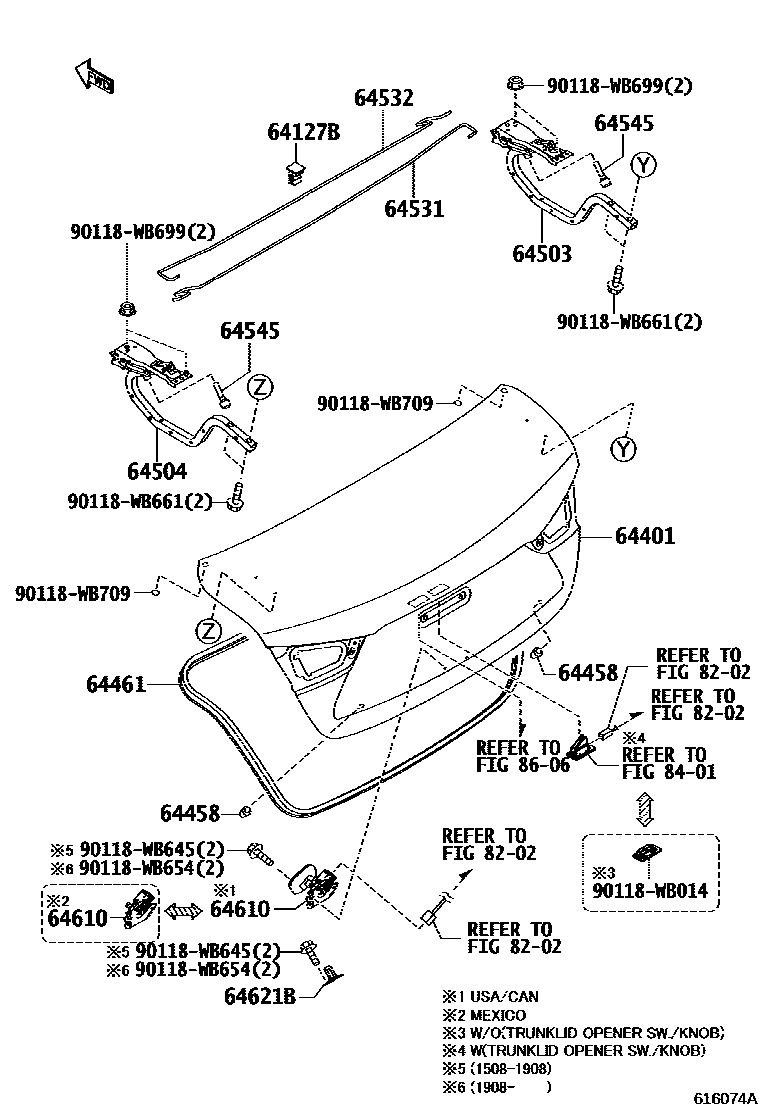

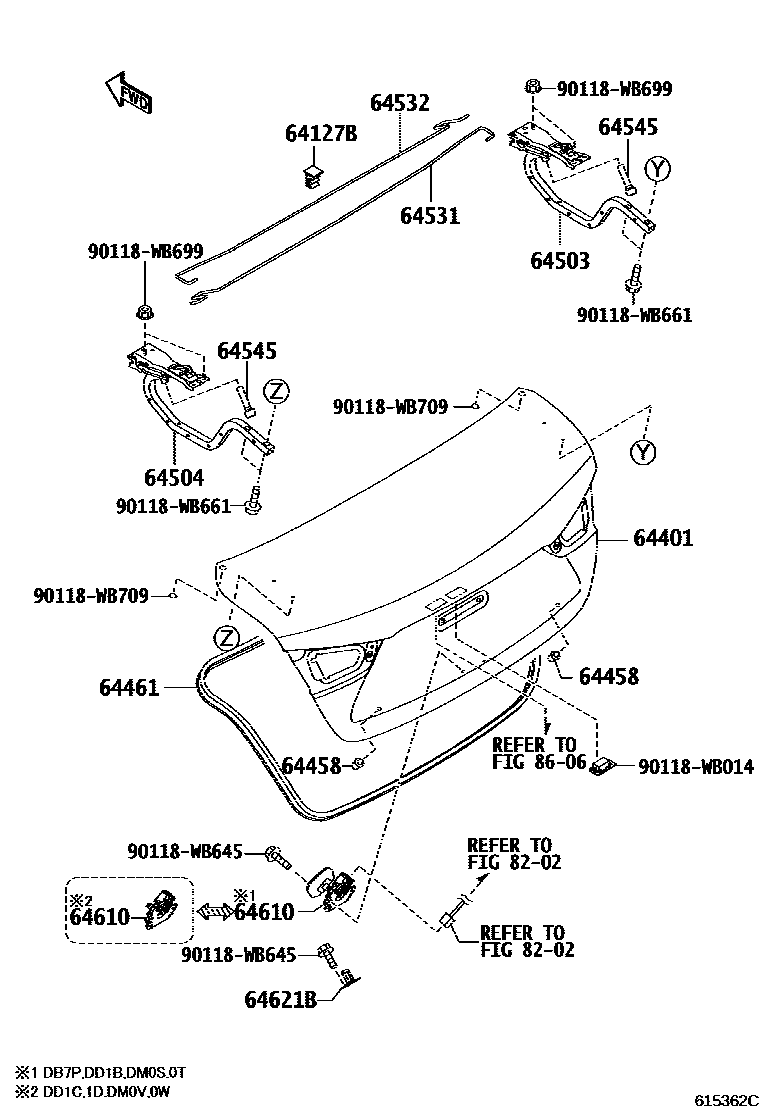

Toyota YARIS 行李箱门和行李箱锁 — Figure 6105
Toyota YARIS EPC diagram 6105, 行李箱门和行李箱锁, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-WB002 |
| 64401 | Trunk door panel sub-assembly | 64401-WB001 · 64401-WB003 · 64401-WB004 · 64401-WB005 · 64401-WB006 · 64401-WB007 |
| 64458 | Trunk door stop bumper left cover | 90118-WB057 |
| 64461 | Trunk door seal | 64461-WB001 · 64461-WB002 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-WB001 · 64503-WB002 |
| 64504 | Trunk door left hinge arm sub-assembly | 64504-WB001 · 64504-WB002 |
| 64531 | Trunk door right hinge torsion bar | 64531-WB003 · 64531-WB004 · 64532-WB003 · 64532-WB004 |
| 64532 | Trunk door left hinge torsion bar | 64532-WB003 · 64532-WB004 |
| 64545 | Trunk door hinge cushion | 90118-WB894 |
| 64610 | Trunk door lock assembly | 64600-WB001 · 64600-WB002 |
| 64621B | Trunk door latch | 64621-WB001 |
