Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 7 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

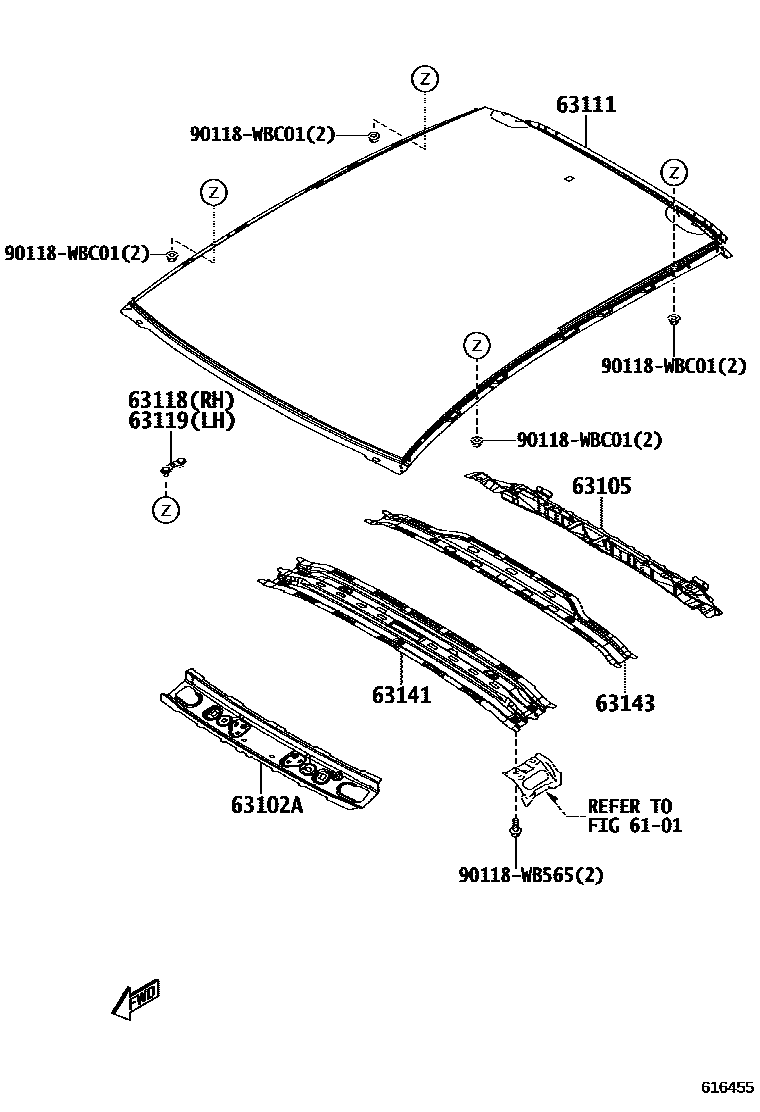

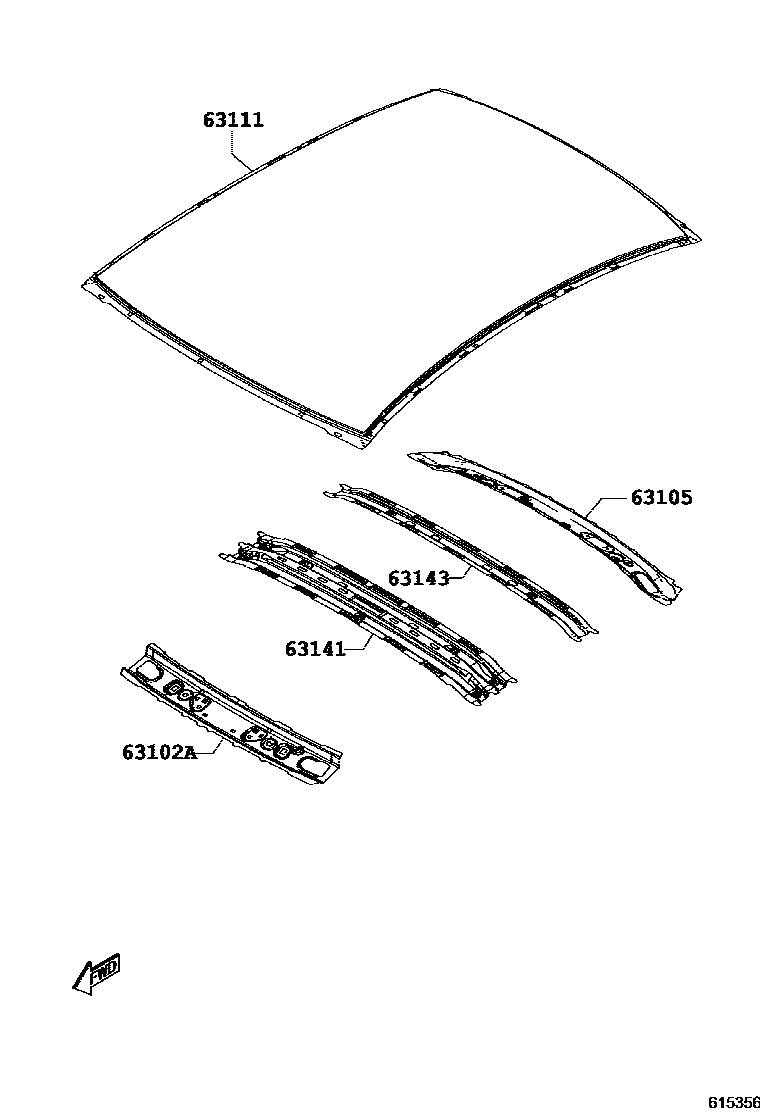

| 63102A | Windshield roof sub-assembly | 63102-WB001 |
| 63105 | Rear roof panel reinforcement sub-assembly | 63133-WB001 · 63133-WB002 |
| 63111 | roof panel | 63111-WB001 · 63111-WB002 · 63111-WB003 |
| 63118 | Right roof panel bracket | 63118-WB001 |
| 63119 | Left roof panel bracket | 63118-WB001 |

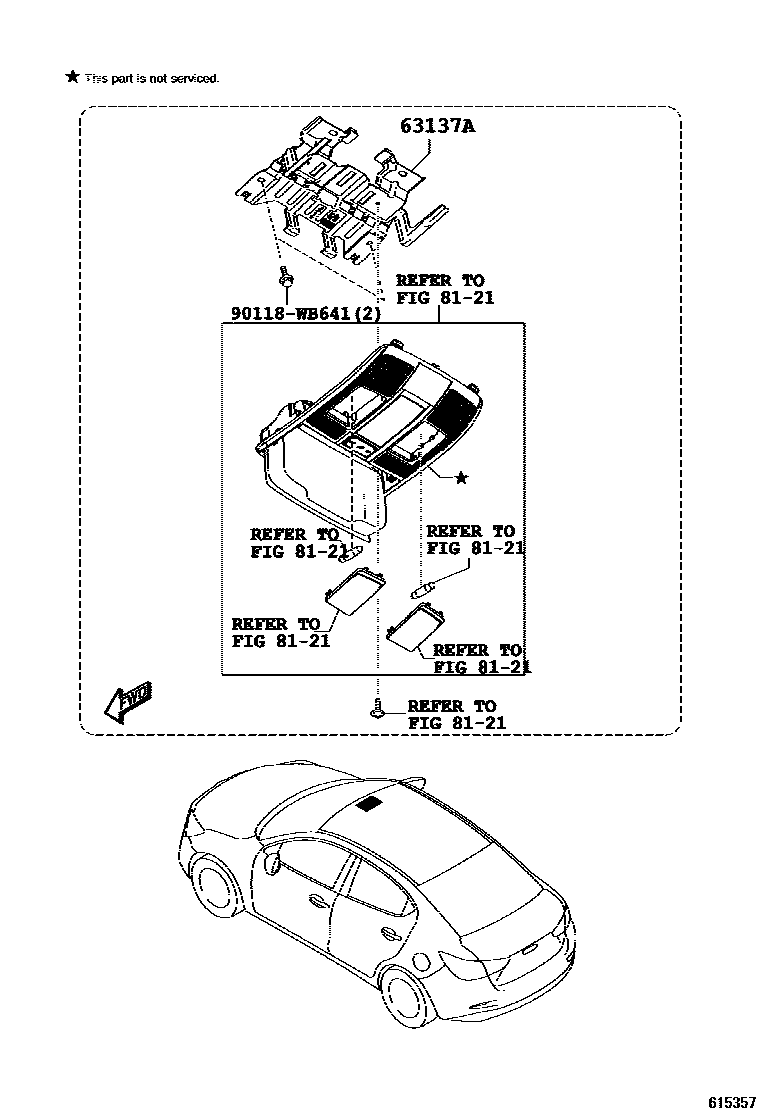

| 63137A | No. 1 ceiling light bracket | 63137-WB001 |
| 63141 | Roof panel side reinforcements | 63141-WB001 · 63141-WB002 |
| 63143 | Longitudinal beam on right rear quarter panel | 63143-WB001 · 63143-WB002 |

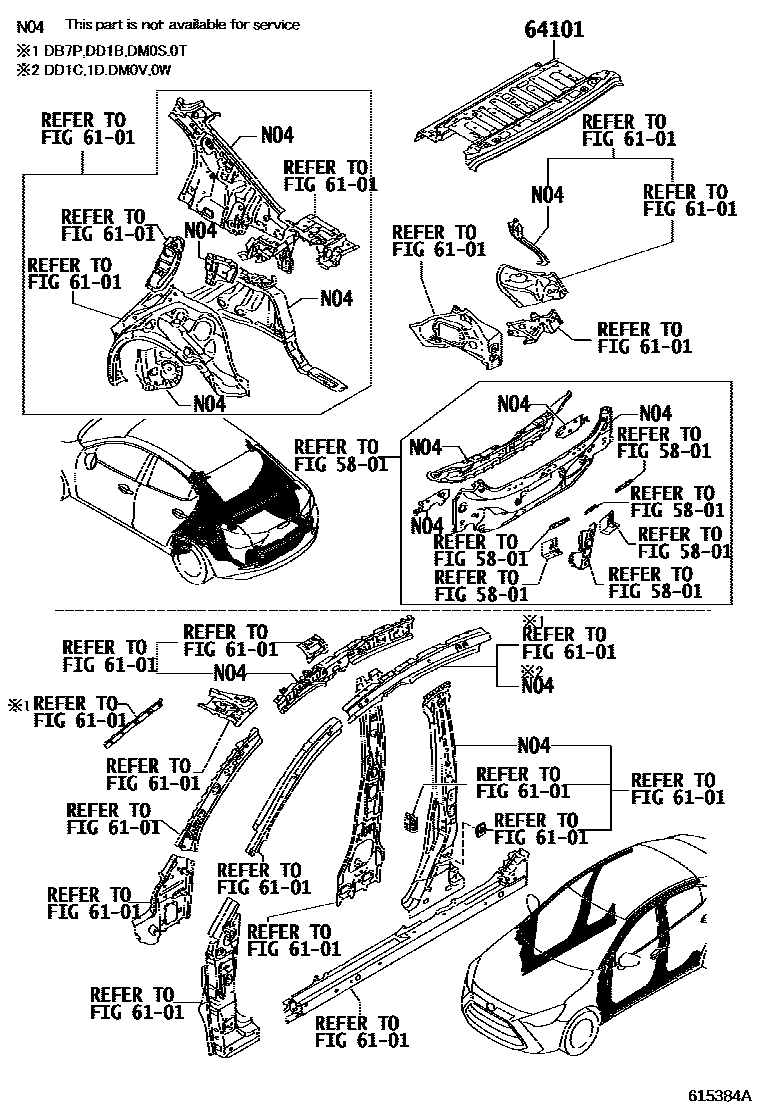

| 64101 | Upper back panel sub-assembly | 64101-WB003 |

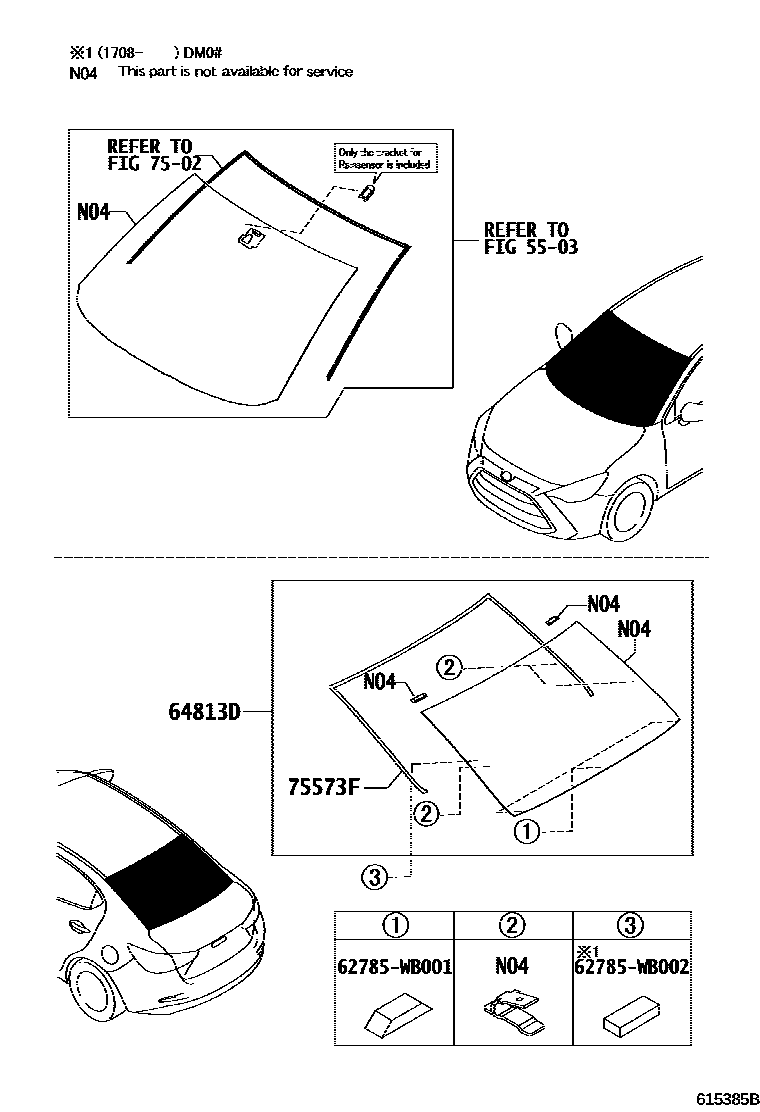

| 64813D | Back window glass adhesive seal | 68105-WB002 · 68105-WB003 |
| 75573F | Protective strip for rear window | 75573-WB002 · 75573-WB003 |
