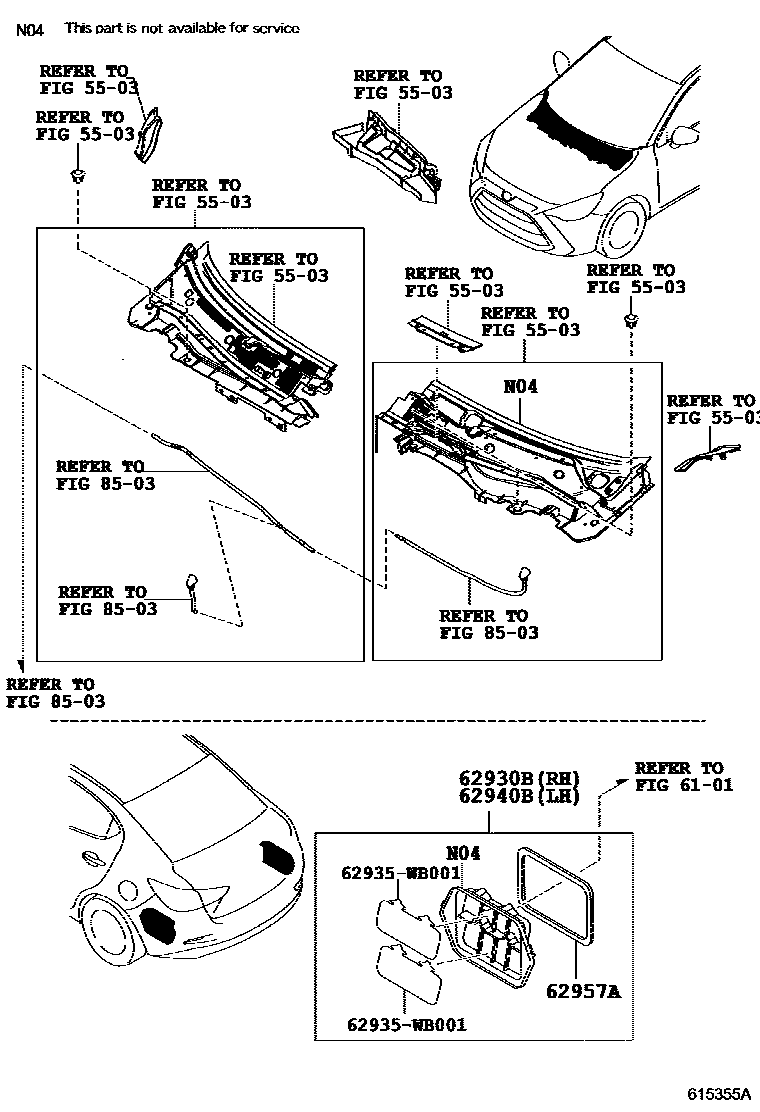

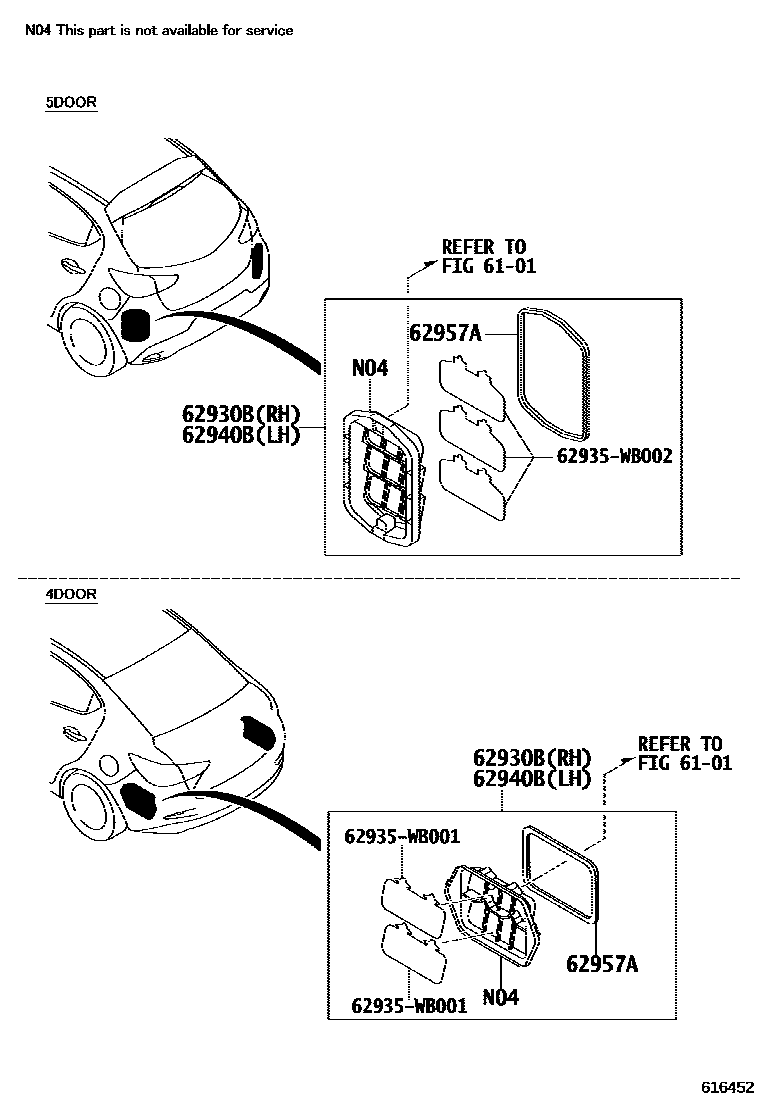

Toyota YARIS 车侧通风装置 — Figure 6102
Toyota YARIS EPC diagram 6102, 车侧通风装置, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62930B | Right side ventilation duct assembly | 62940-WB001 · 62940-WB002 |
| 62940B | Left side ventilation duct assembly | 62940-WB001 · 62940-WB002 |
| 62957A | Side ventilation duct No. 1 seal | 62957-WB001 · 62957-WB003 |
