Toyota YARIS 侧梁 — Figure 6101

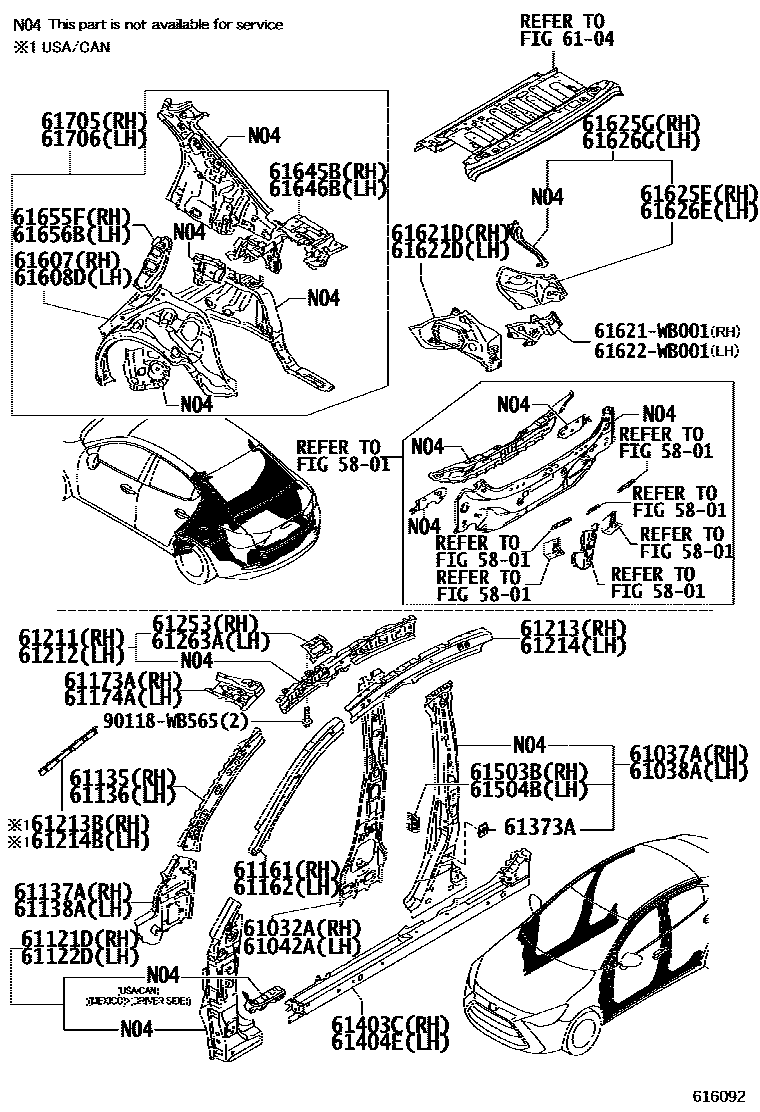

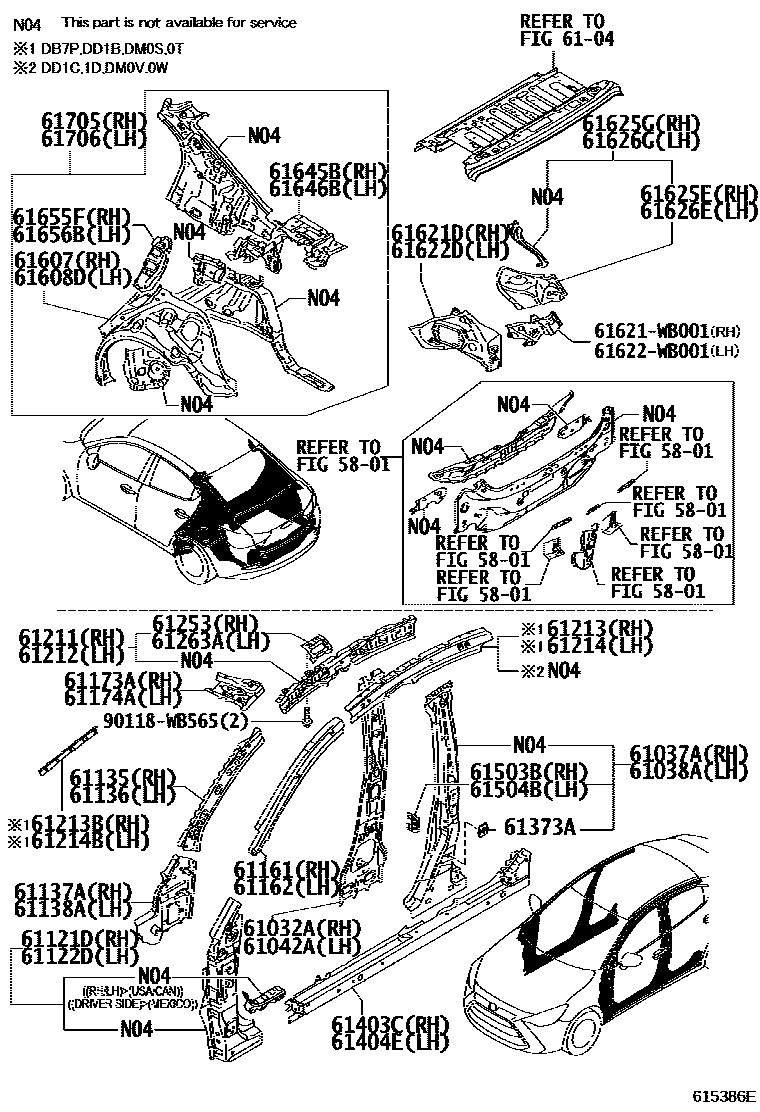

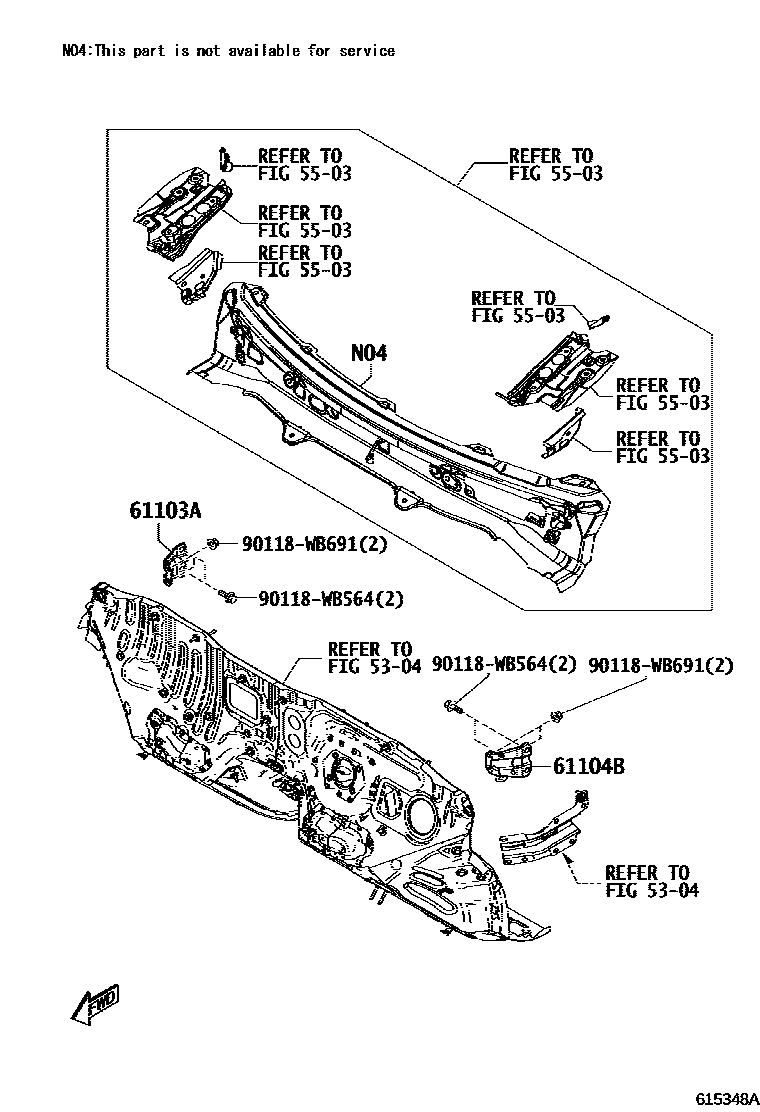

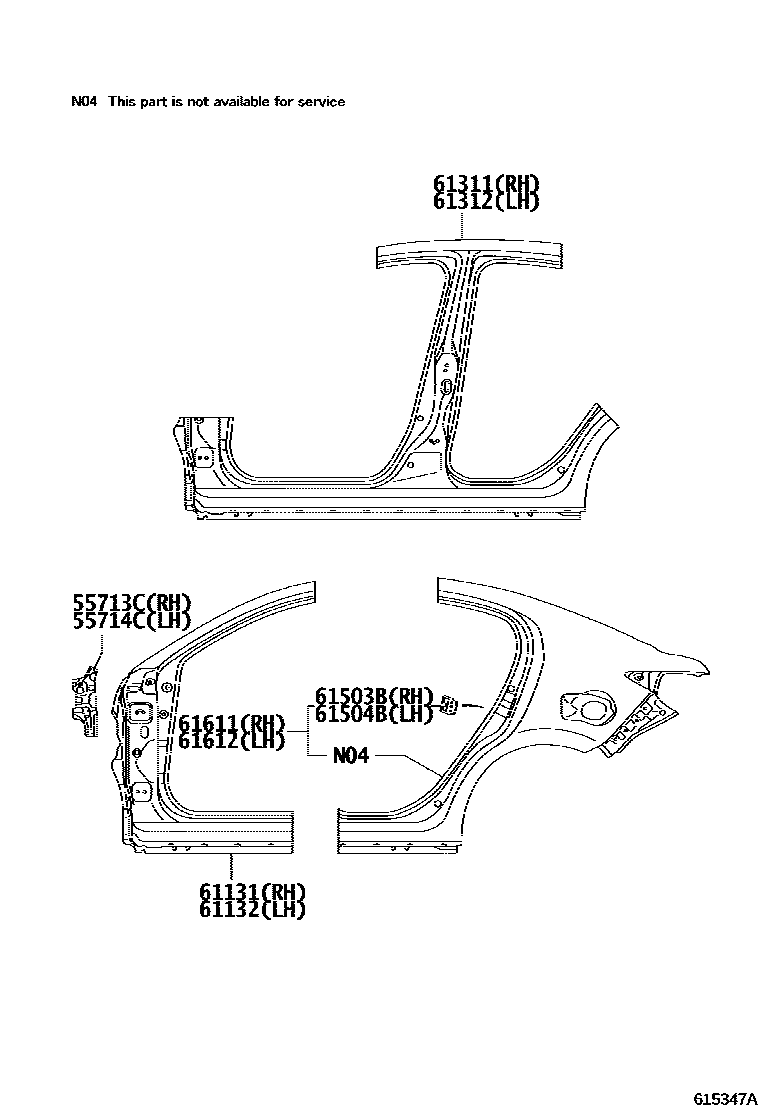

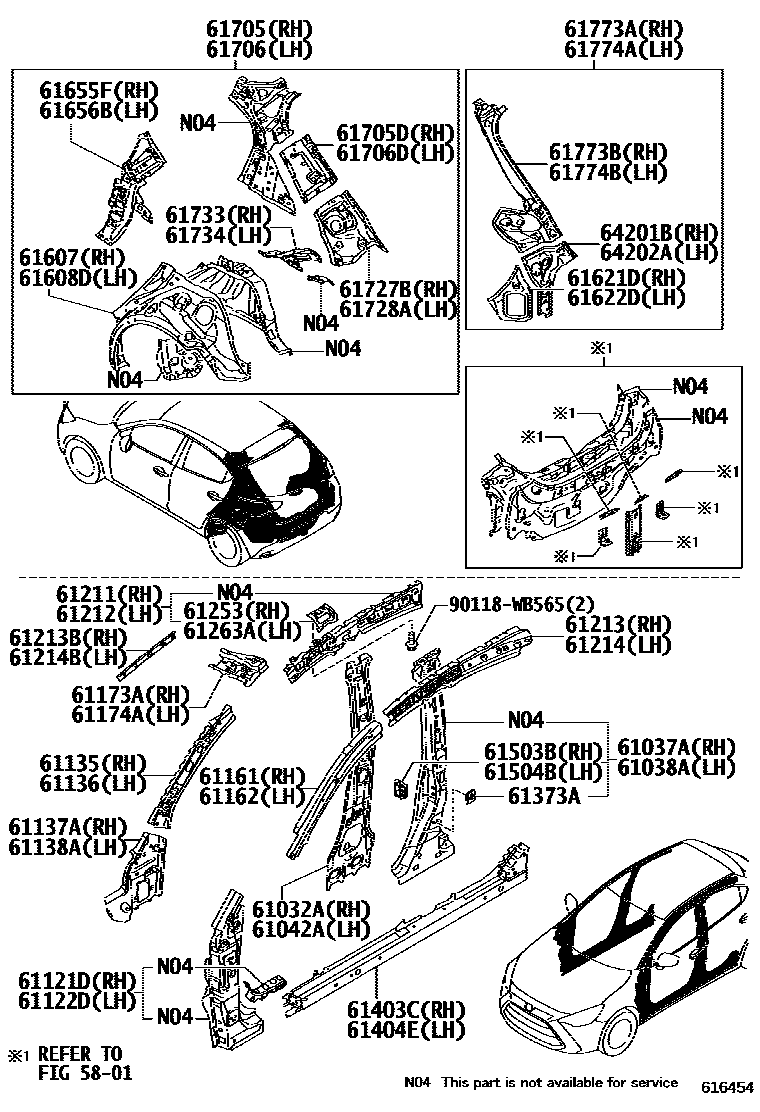

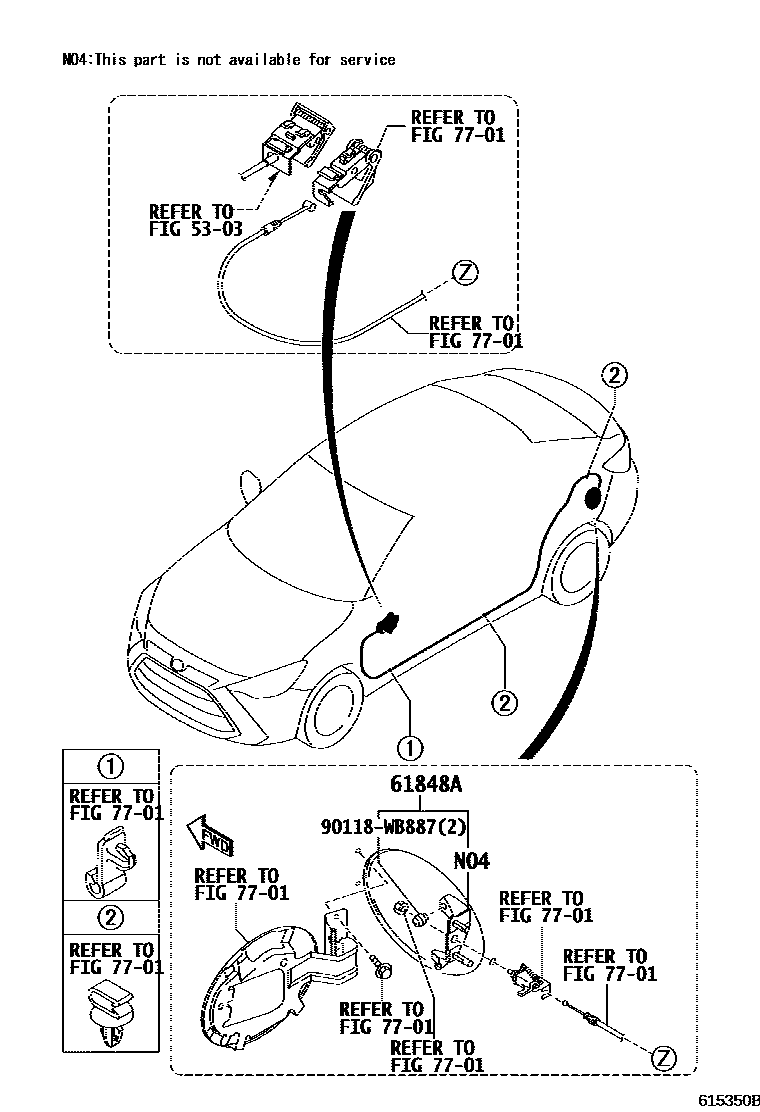

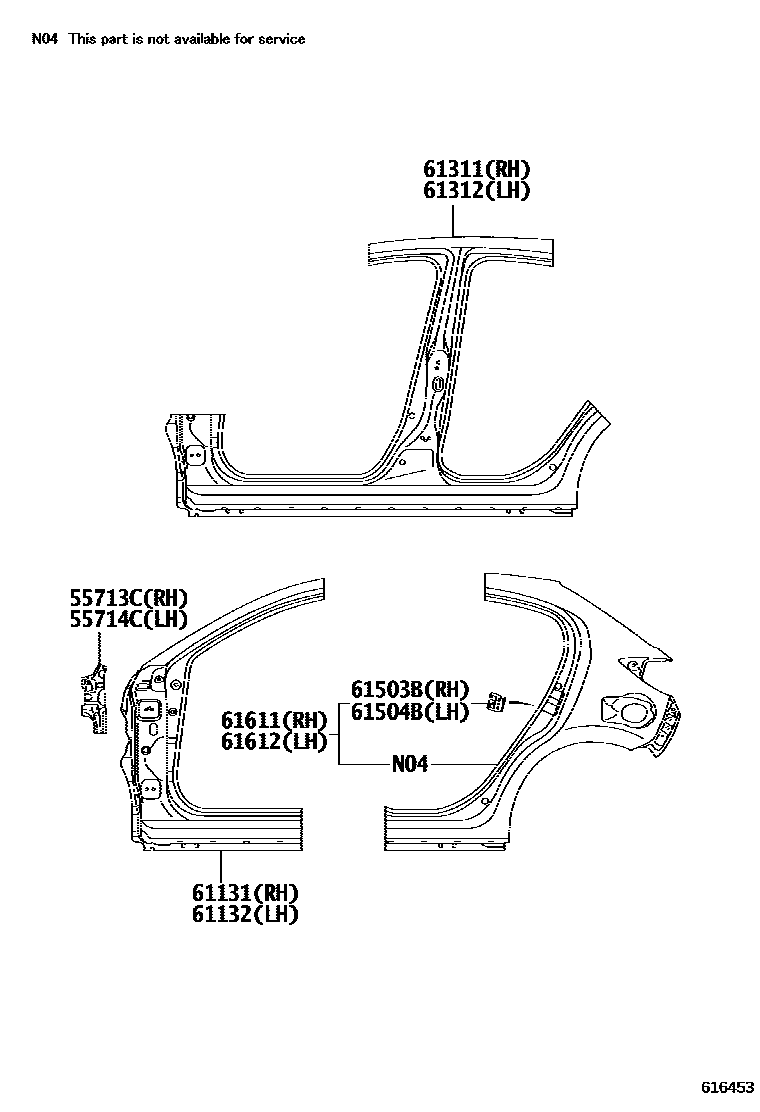

Toyota YARIS EPC diagram 6101, 侧梁, with 7 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 61117-WB001 |
| 55714C | Left front wall upper side panel | 61118-WB001 |
| 61032A | No. 1 right inner column sub-assembly | 61037-WB001 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61032-WB001 · 61032-WB003 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61042-WB001 · 61042-WB003 |
| 61042A | No. 1 left inner column sub-assembly | 61038-WB001 · 61038-WB002 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-WB001 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-WB001 |
| 61121D | Right front panel | 61121-WB001 · 61121-WB003 |
| 61122D | Left front panel | 61122-WB001 · 61122-WB003 |
| 61131 | Right body outer front upper pillar | 61101-WB001 · 61101-WB002 |
| 61132 | Left body outer front upper pillar | 61102-WB001 · 61102-WB002 |
| 61135 | Reinforcement member on the right front body pillar | 61135-WB001 · 61135-WB002 |
| 61136 | Reinforcement member on left front body pillar | 61136-WB001 · 61136-WB002 |
| 61137A | Right body outer front pillar lower reinforcement | 61137-WB001 · 61137-WB003 · 61137-WB004 |
| 61138A | Left body outer front pillar lower reinforcement | 61138-WB001 · 61138-WB002 |
| 61161 | Right upper body inner front pillar | 61161-WB001 |
| 61162 | Left side inner front upper pillar | 61162-WB001 |
| 61173A | Reinforcement member on the right inner front pillar of the body | 61173-WB001 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-WB001 |
| 61211 | Roof right outer longitudinal beam | 61211-WB001 · 61211-WB002 |
| 61212 | Roof left outer longitudinal beam | 61212-WB001 · 61212-WB002 |
| 61213 | Right rear roof outer longitudinal beam | 61213-WB002 · 61213-WB003 · 61213-WB004 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-WB001 |
| 61214 | Left rear roof rail | 61214-WB002 · 61214-WB003 · 61214-WB004 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-WB001 |
| 61253 | No. 2 right inner column | 61253-WB001 |
| 61263A | No. 2 left inner column | 61263-WB001 |
| 61311 | Right rear pillar | 61311-WB001 · 61311-WB002 |
| 61312 | Left rear pillar | 61312-WB001 · 61312-WB002 |
| 61373A | No. 1 right center pillar hinge lower reinforcement | 61373-WB001 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-WB001 · 61403-WB002 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-WB001 · 61404-WB002 |
| 61503B | Right side locking column reinforcement sub-assembly | 61315-WB001 |
| 61504B | Left side locking column reinforcement sub-assembly | 61315-WB001 |
| 61607 | Back door left side opening frame sub-assembly | 61607-WB001 · 61607-WB002 |
| 61608D | Left side wheel housing lining panel | 61608-WB001 · 61608-WB002 |
| 61611 | Right side hoarding | 61601-WB001 · 61601-WB002 · 61601-WB003 · 61601-WB004 · 61601-WB005 · 61601-WB006 |
| 61612 | left side panel | 61602-WB001 · 61602-WB002 · 61602-WB003 · 61602-WB004 · 61602-WB005 · 61602-WB006 |
| 61621D | Back door right opening slot | 61621-WB002 · 64201-WB001 |
| 61622D | Rear door left opening slot | 61622-WB002 · 64202-WB001 · 64202-WB002 |
| 61625E | Right rear side panel inner panel extension | 61625-WB002 |
| 61625G | Right rear side panel extension | 61033-WB002 |
| 61626E | Left rear side panel inner panel extension | 61626-WB002 |
| 61626G | Left rear side panel extension | 61034-WB002 |
| 61645B | Right rear side wheel housing corner panel | 61645-WB001 |
| 61646B | Left rear side wheel housing corner panel | 61646-WB001 |
| 61655F | Upper bracket of support rod on the right side of the back door | 61655-WB001 · 61713-WB001 |
| 61656B | Rear door left side support rod upper bracket | 61656-WB001 · 61714-WB001 |
| 61705 | Roof right inner panel sub-assembly | 61705-WB001 · 61705-WB002 · 61705-WB004 |
| 61705D | Roof right inner reinforcement | 61705-WB003 |
| 61706 | Roof left inner panel sub-assembly | 61706-WB001 · 61706-WB002 · 61706-WB004 |
| 61706D | Roof left inner reinforcement | 61706-WB003 |
| 61727B | EXTENSION, RENFORT PANNEAU CUSTODE, MD | 61727-WB001 |
| 61728A | EXTENSION, RENFORT PANNEAU CUSTODE, MG | 61728-WB001 |
| 61733 | Right side enclosure inner corner panel | 61733-WB001 |
| 61734 | Left side enclosure inner corner panel | 61734-WB001 |
| 61773A | Back door opening lower right lining | 61773-WB002 |
| 61773B | Back door upper right opening frame | 61773-WB001 |
| 61774A | Back door opening lower left lining | 61774-WB002 |
| 61774B | Back door upper left opening frame | 61774-WB001 |
| 61848A | Left side panel fixing | 61848-WB001 |
| 64201B | Glove box to floor right filter sub-assembly | 64201-WB002 |
| 64202A | Glove box to floor left filter sub-assembly | 64202-WB003 |
