Toyota YARIS 中央扶手箱和支架 — Figure 5806

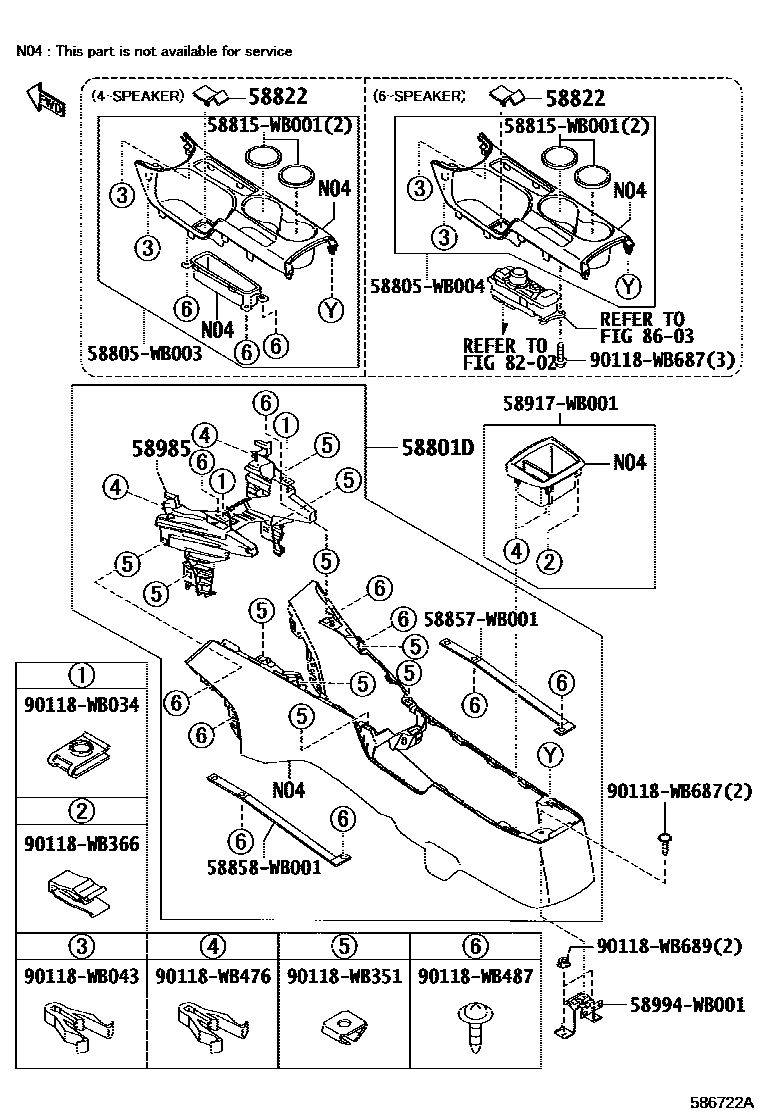

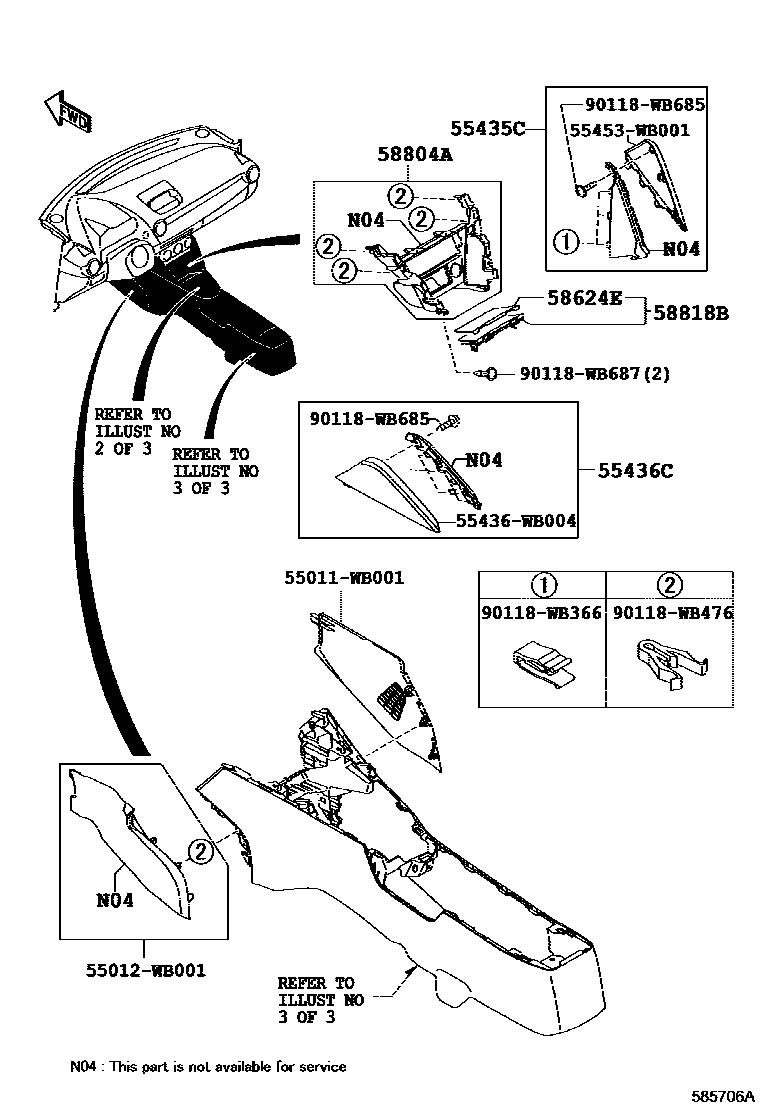

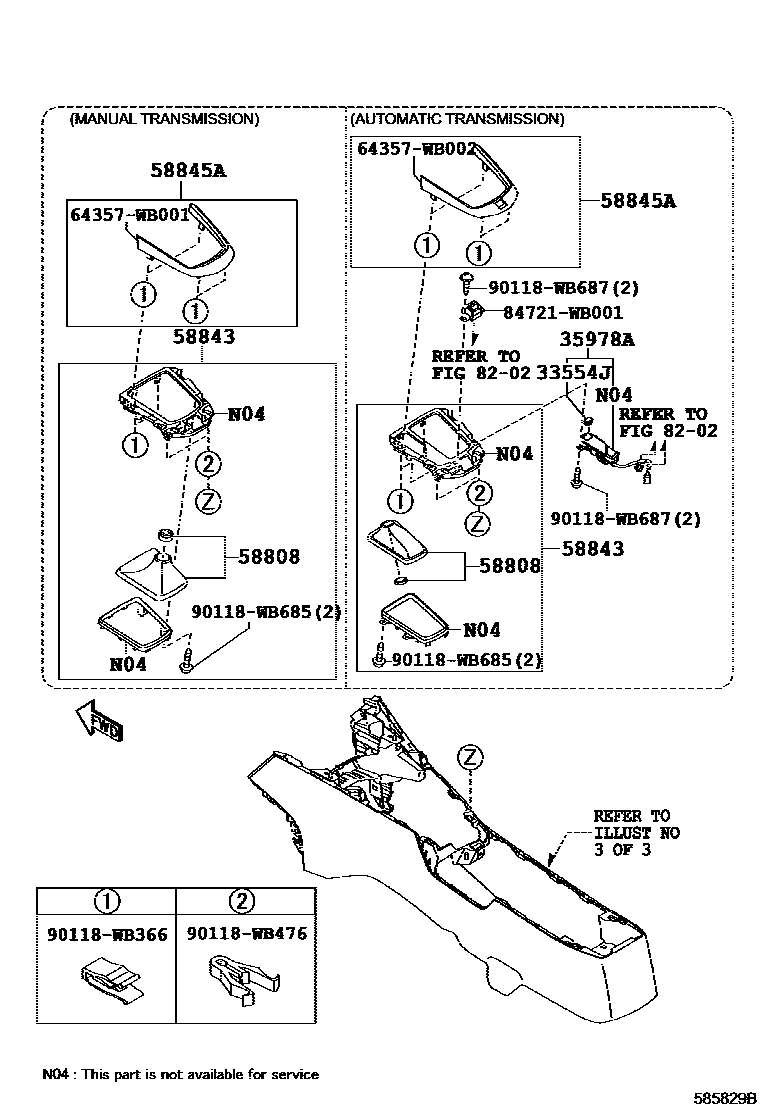

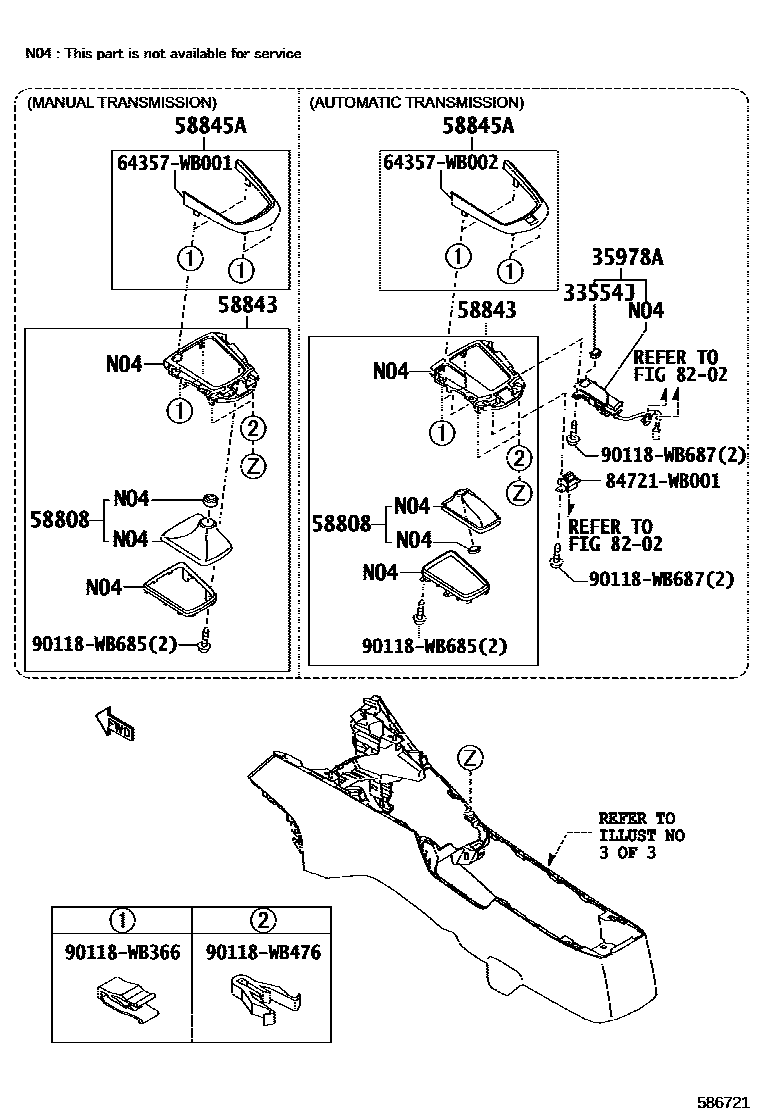

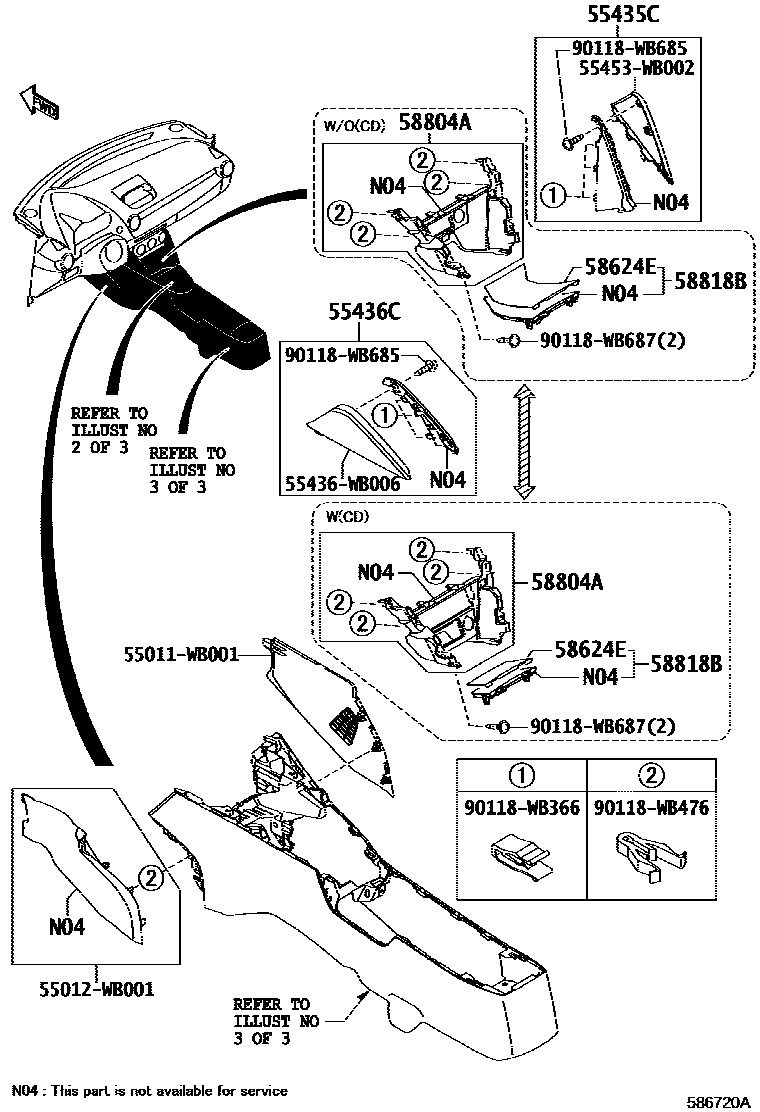

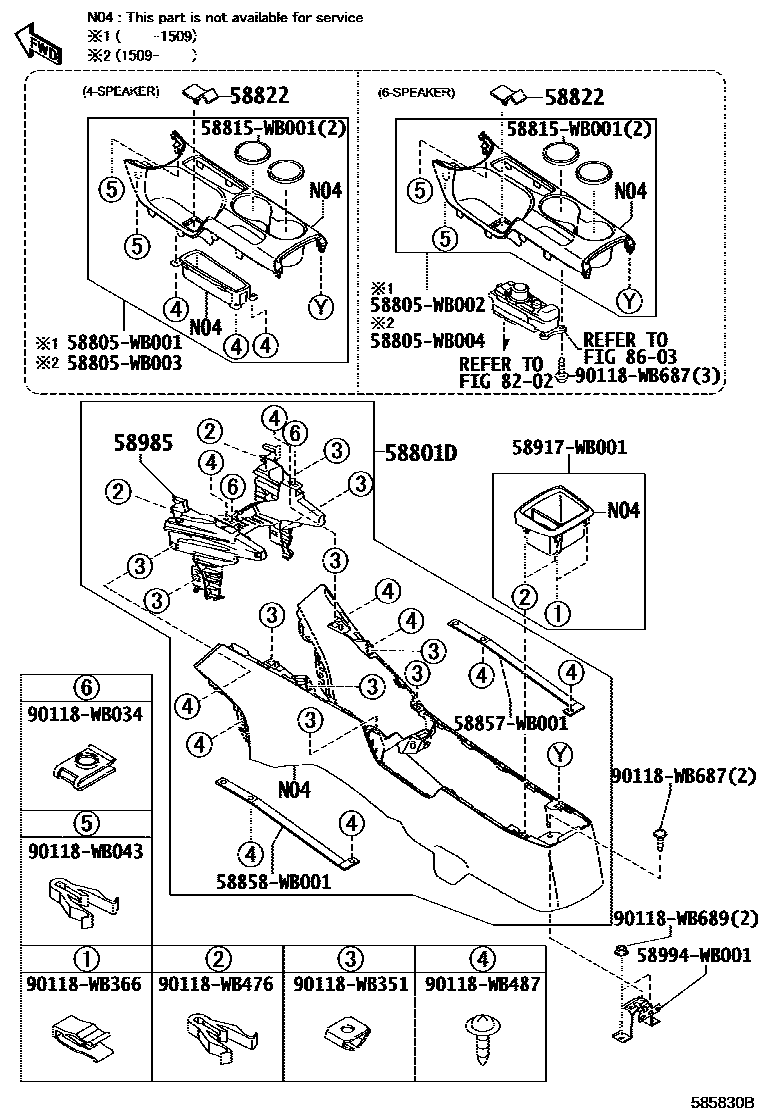

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554J | COUV, BOUTON DE DEVERROUILLAGE DE SELECTION | 33554-WB001 |
| 35978A | Shift lever position indicator light | 35978-WB001 · 35978-WB002 |
| 55435C | Dashboard right end decorative panel | 55435-WB002 · 55435-WB003 · 55435-WB004 |
| 55436C | Instrument panel left end decorative panel | 55436-WB002 · 55436-WB003 · 55436-WB005 |
| 58624E | No. 4 pad fixing plate A | 58624-WB001 · 58624-WB002 |
| 58801D | Armrest box assembly | 58910-WB001 · 58910-WB002 |
| 58804A | Armrest box upper panel sub-assembly | 58804-WB001 · 58804-WB002 |
| 58808 | Shift hole cover sub-assembly | 58808-WB001 · 58808-WB002 · 58808-WB005 |
| 58818B | Armrest box upper cover | 58818-WB001 · 58818-WB002 |
| 58822 | Armrest box side panel | 58822-WB001 |
| 58843 | shift hole frame | 58843-WB001 · 58843-WB002 · 58843-WB005 · 58843-WB007 · 58843-WB008 |
| 58845A | Console Frame No. 1 | 58845-WB001 · 58845-WB002 · 58845-WB003 · 58845-WB004 |
| 58985 | Armrest box fixing bracket | 58985-WB001 · 58985-WB002 |
