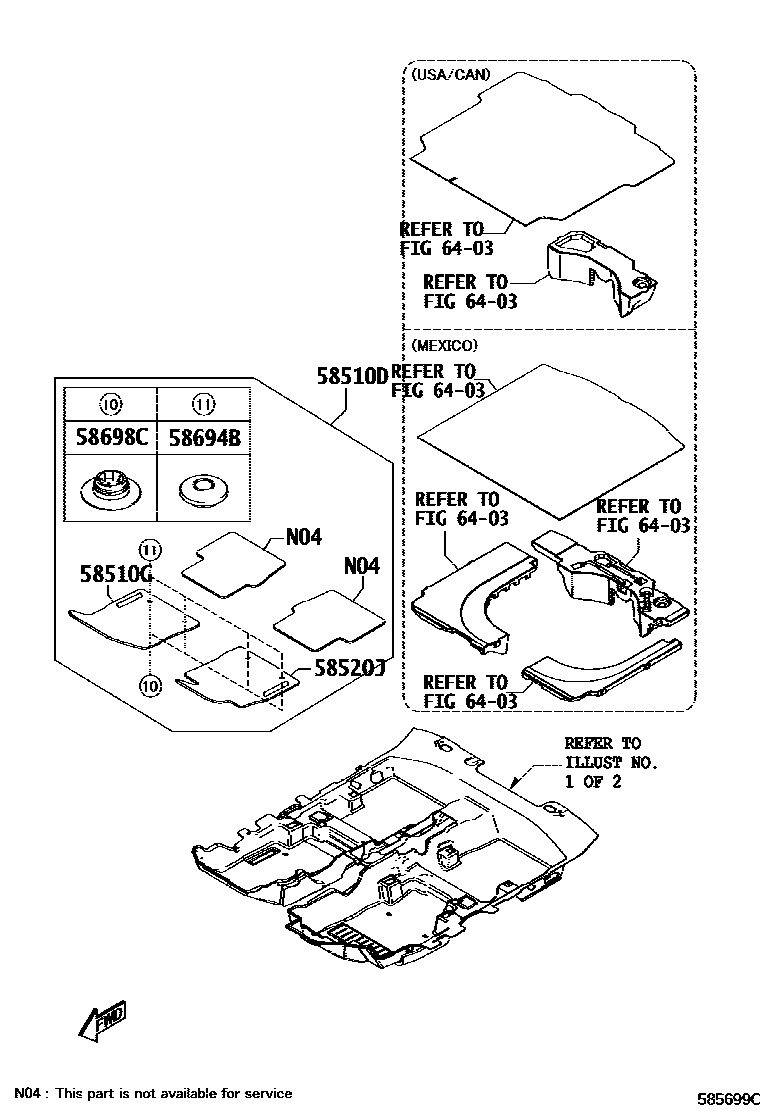

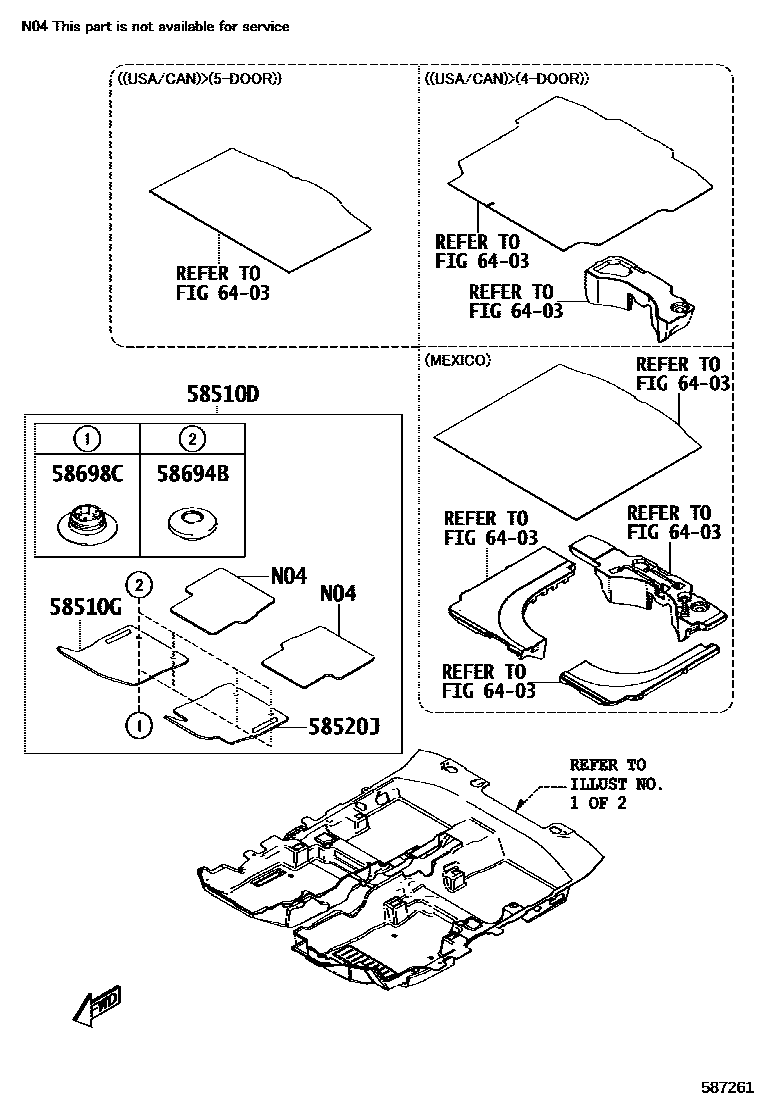

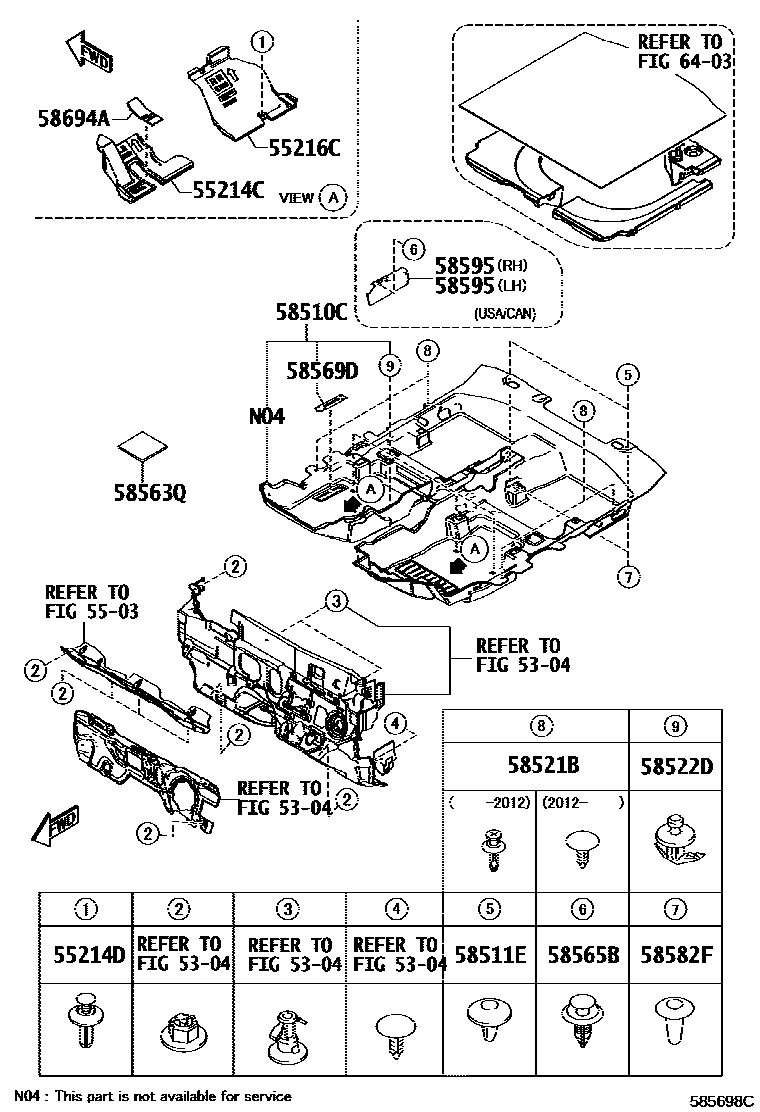

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-WB001 |
| 55214D | ATTACHE(POUR PLAQUE ISOLANTE DE TABLEAU DE BORD) | 90118-WB388 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-WB001 |
| 58510C | Front floor and front felt pad assembly | 58510-WB001 · 58510-WB002 · 58510-WB013 · 58510-WB014 |
| 58510D | front carpet assembly | 58510-WB003 · 58510-WB007 · 58510-WB008 · 58510-WB009 · 58510-WB010 · 58510-WB011 · 58510-WB012 |
| 58510G | Right front carpet assembly | 58511-WB001 · 58511-WB002 · 58511-WB004 · 58511-WB005 · 58511-WB006 · 58511-WB007 |
| 58511E | Clip (for front floor mat) | 90118-WB471 |
| 58520J | Left front carpet assembly | 58512-WB001 · 58512-WB002 · 58512-WB004 · 58512-WB005 · 58512-WB006 · 58512-WB007 |
| 58521B | carpet hook | 90118-WB379 · 90118-WBC10 |
| 58522D | Carpet hook number 2 | 58522-WB001 |
| 58563Q | Front floor silencer No. 3 | 58563-WB001 |
| 58565B | No. 1 rear leather carpet | 90118-WB353 |
| 58569D | Front floor warning nameplate cover | 58569-WB001 |
| 58582F | Clamp No. 2 (for rear carpet) | 90118-WB371 |
| 58595 | No. 3 carpet protective strip | 58595-WB001 · 58595-WB002 |
| 58694A | Pad the fixing plate | 58694-WB002 |
| 58694B | Pad the fixing plate | 58694-WB001 |
| 58698C | Fixing plate under the pad | 58698-WB001 |
