Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

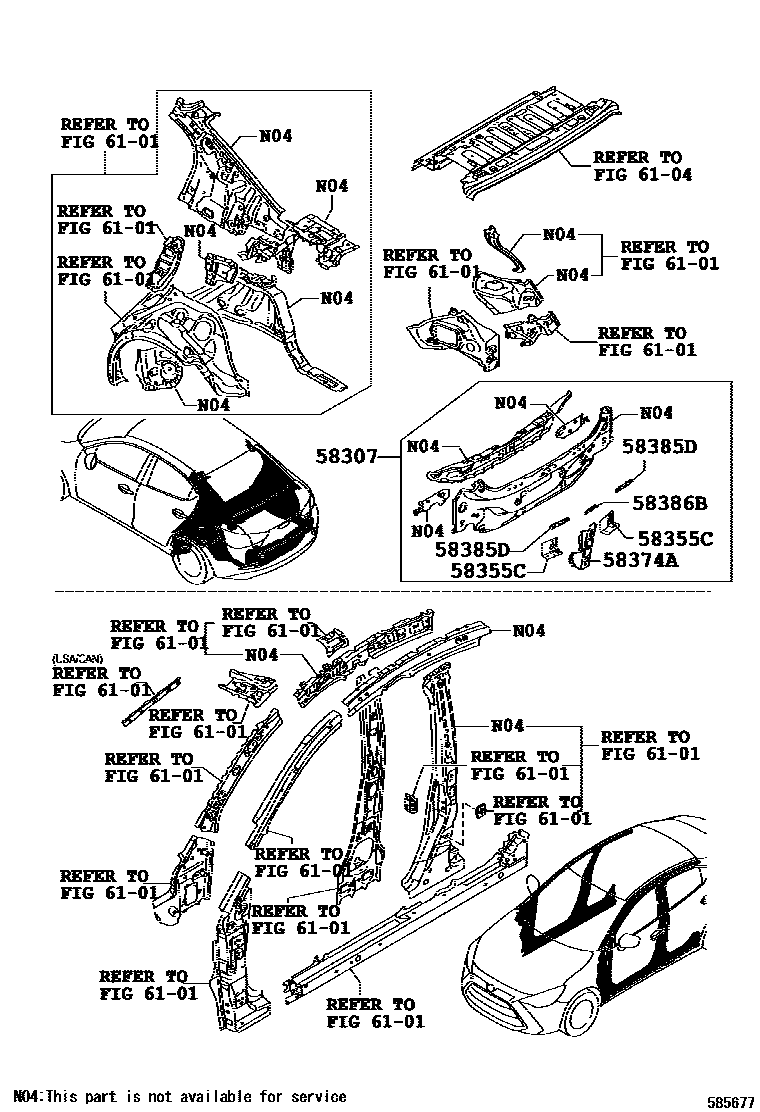

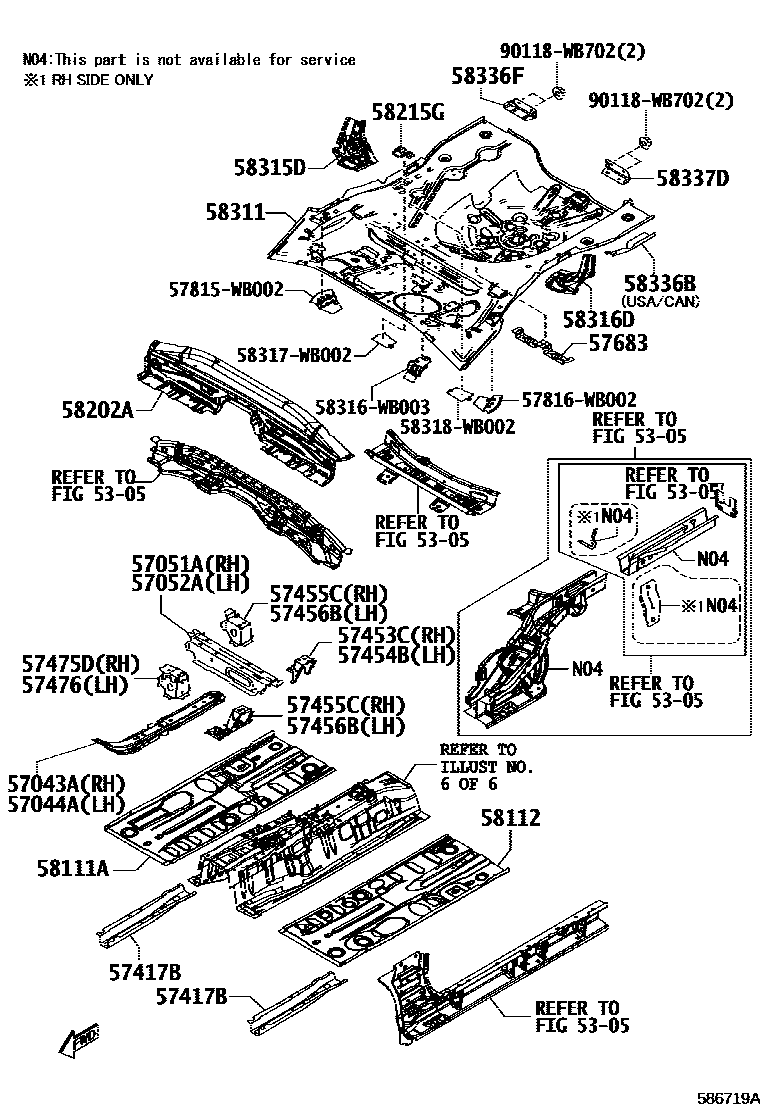

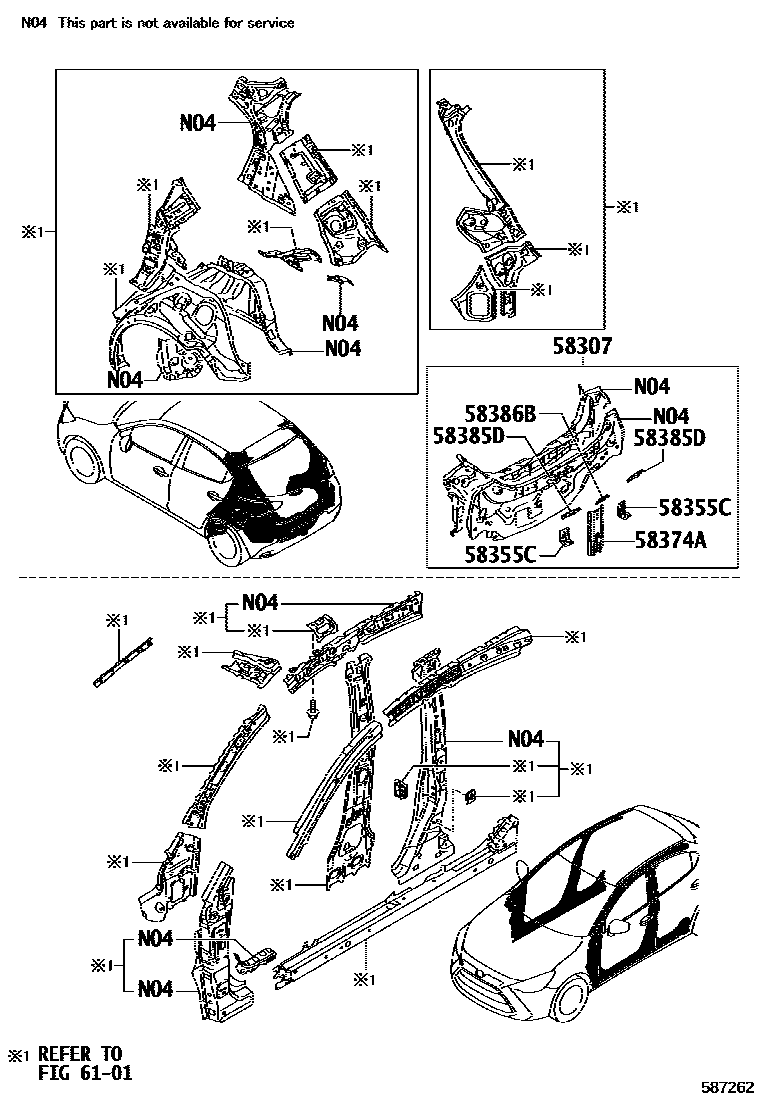

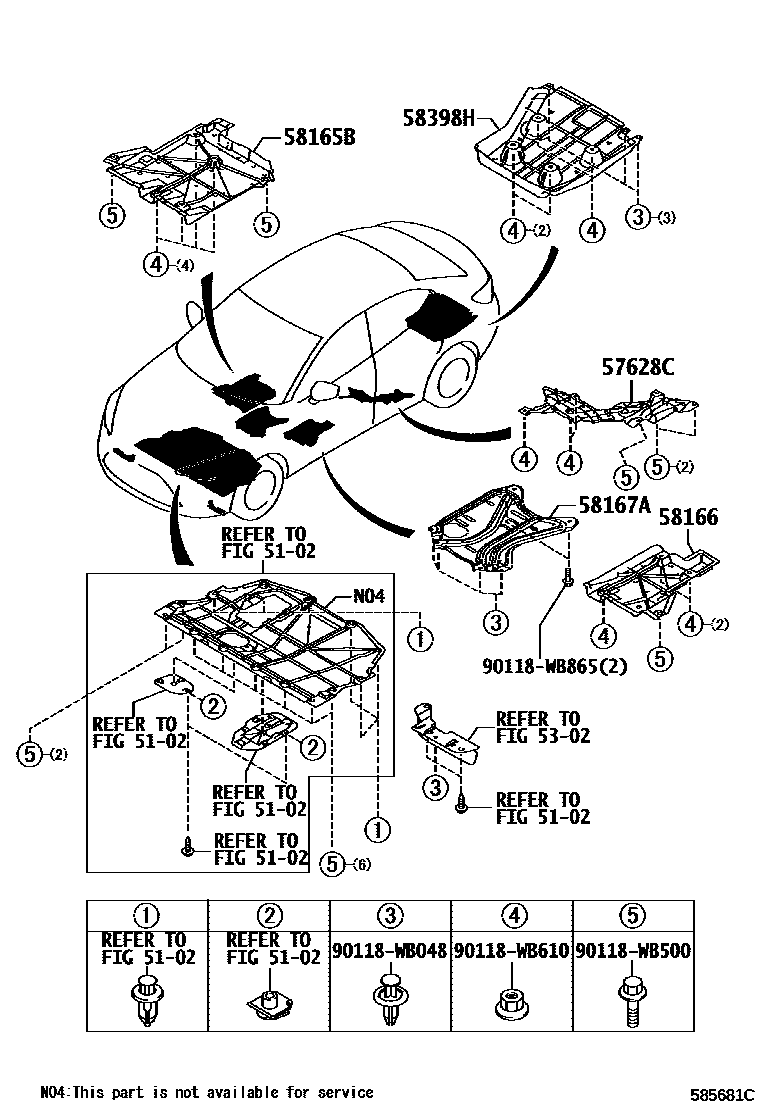

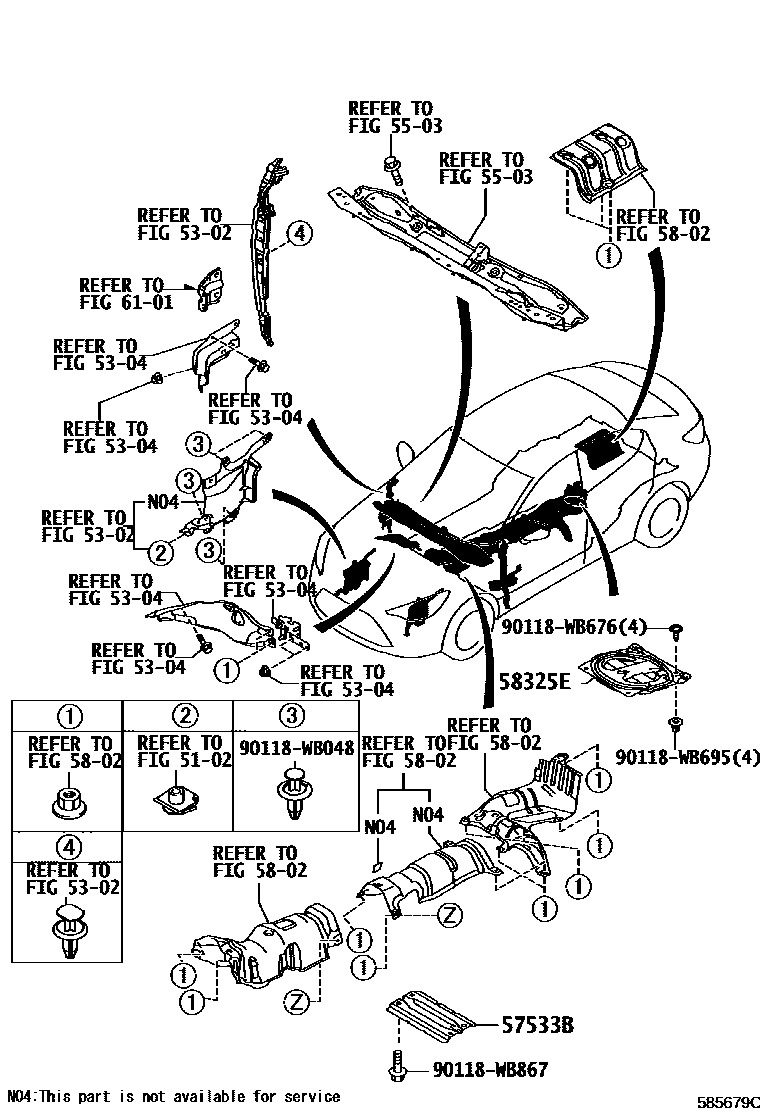

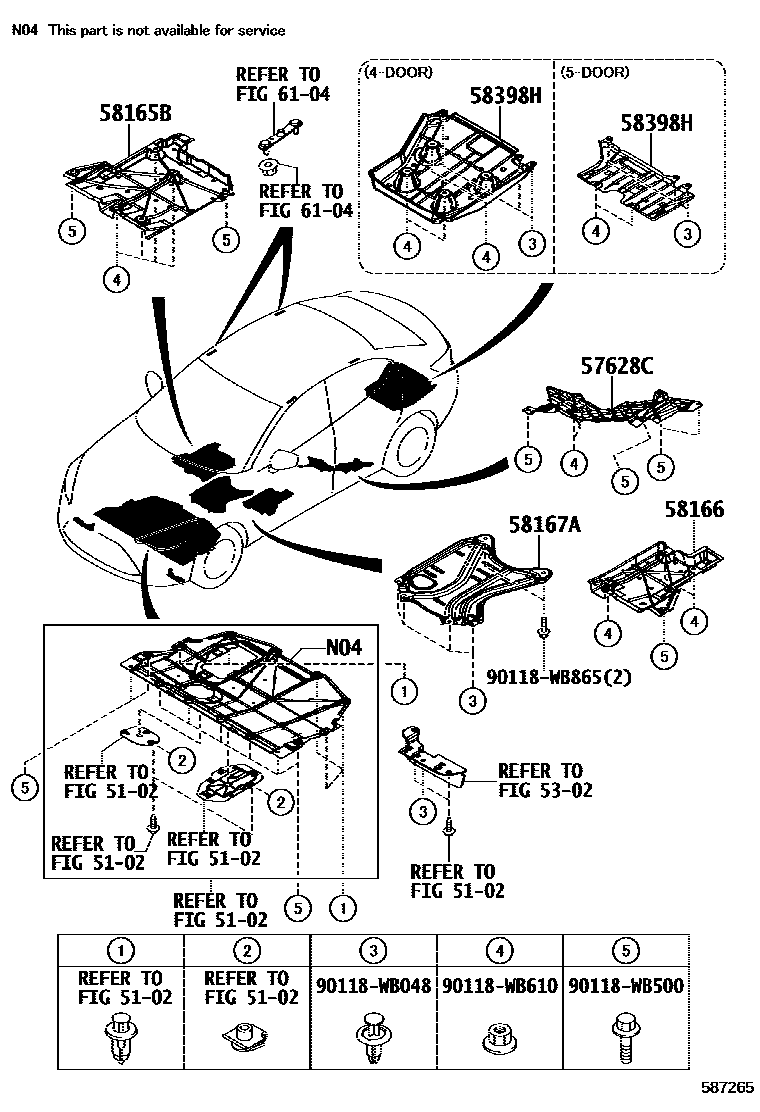

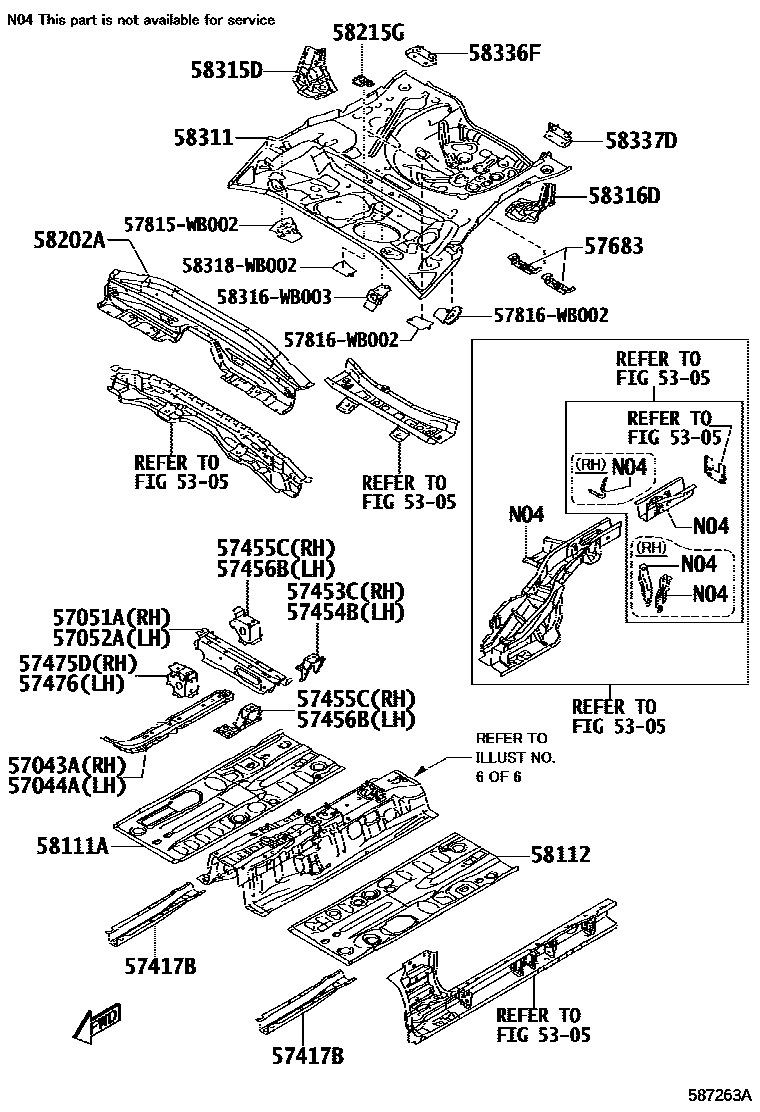

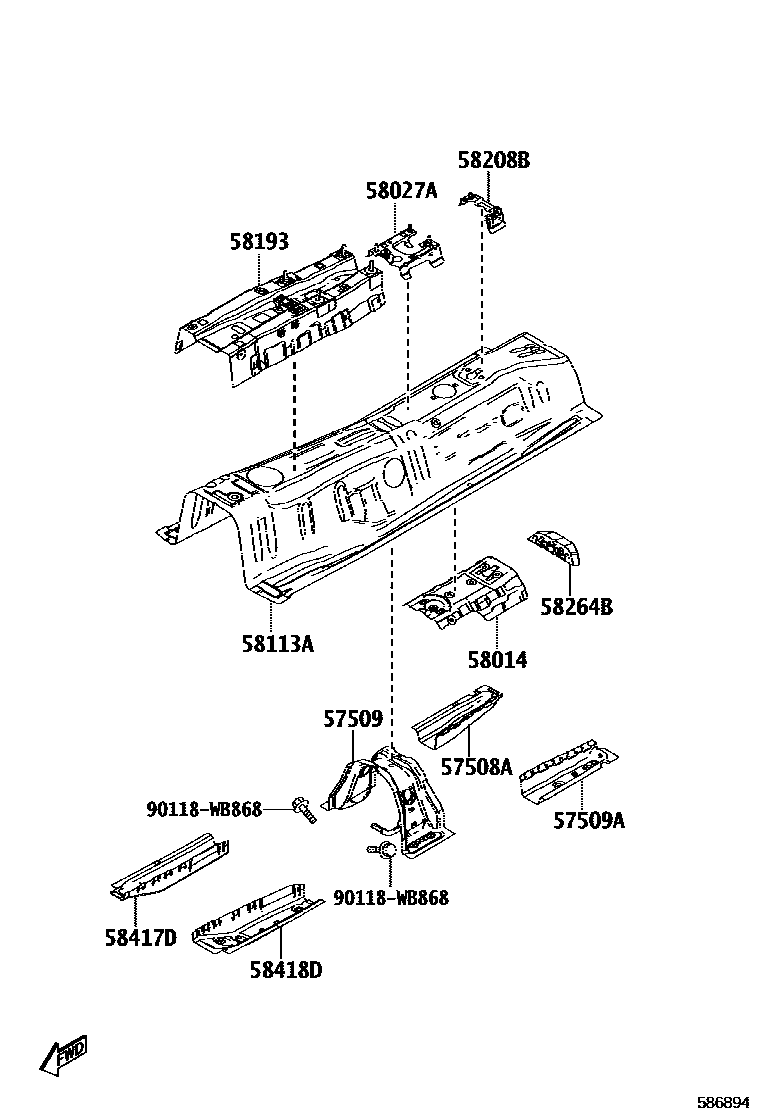

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 11 images and 46 PNC and OE references.
PNC and OE references

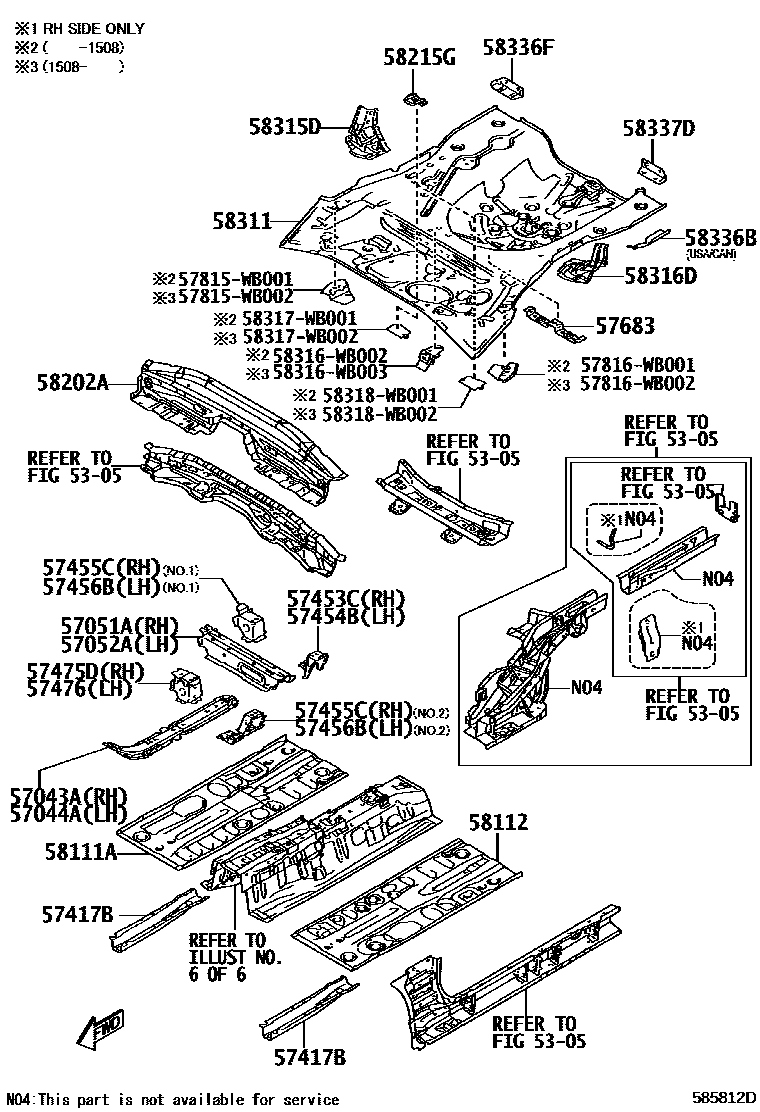

| PNC | Part name | OE numbers |
|---|---|---|
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-WB001 · 57043-WB002 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-WB001 · 57044-WB002 · 57044-WB003 |
| 57051A | Front floor right cross member sub-assembly | 57051-WB001 · 57051-WB002 |
| 57052A | Front floor left cross member sub-assembly | 57052-WB001 · 57052-WB002 · 57052-WB003 · 57052-WB004 · 57052-WB005 |
| 57417B | Front underfloor reinforcement | 57417-WB001 |
| 57453C | Front floor right cross member | 57453-WB001 |
| 57454B | Front floor left longitudinal beam | 57454-WB001 |
| 57455C | Front right seat outer mounting bracket | 57455-WB001 · 57455-WB002 · 57457-WB001 · 57457-WB002 |
| 57456B | Front left seat outer mounting bracket | 57456-WB001 · 57456-WB002 · 57458-WB001 · 57458-WB002 |
| 57475D | Front floor right cross member panel | 57475-WB001 |
| 57476 | Front floor left cross member panel | 57476-WB001 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-WB001 · 57508-WB002 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-WB001 · 57509-WB003 |
| 57509A | Front floor left reinforcement sub-assembly | 57509-WB002 · 57509-WB004 |
| 57533B | Front floor center bracket | 57533-WB001 · 57533-WB002 |
| 57628C | Rear floor left longitudinal member cover | 57628-WB001 |
| 57683 | Fuel tank front bracket | 57683-WB001 · 57683-WB002 · 57683-WB003 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-WB001 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-WB001 · 58027-WB002 |
| 58111A | Front floor right bottom panel | 58111-WB001 · 58111-WB002 |
| 58112 | Seat rail rear fixings | 58112-WB001 · 58112-WB002 |
| 58113A | front floor center panel | 58113-WB001 |
| 58165B | Front floor right cover | 58165-WB001 |
| 58166 | Front floor left cover | 58166-WB001 |
| 58167A | front floor center cover | 58167-WB001 |
| 58193 | Dashboard bracket mounting bracket | 58193-WB001 |
| 58202A | Center floor front floor sub-assembly | 58202-WB001 · 58202-WB002 |
| 58208B | Central floor insulation pad bracket | 58207-WB001 |
| 58215G | Rear seat No. 1 mounting bracket | 58215-WB001 |
| 58264B | Parking brake cable guide bracket | 58264-WB001 |
| 58307 | Body lower back panel sub-assembly | 58307-WB001 · 58307-WB002 |
| 58311 | rear floor pan | 58311-WB001 · 58311-WB002 · 58311-WB004 |
| 58315D | Rear floor pan right extension | 58315-WB001 |
| 58316D | Rear floor pan left extension | 58316-WB001 |
| 58325E | Rear floor access hole cover | 58325-WB001 |
| 58336B | Rear floor pan reinforcement | 58338-WB001 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-WB001 · 58336-WB002 |
| 58337D | Rear floor bottom left reinforcement | 58337-WB001 · 58337-WB002 |
| 58355C | Rear bumper arm bracket | 58355-WB001 · 58355-WB002 |
| 58374A | Rear door latch reinforcement | 58374-WB001 · 58374-WB002 |
| 58385D | Rear bumper cover bracket | 58385-WB001 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-WB001 |

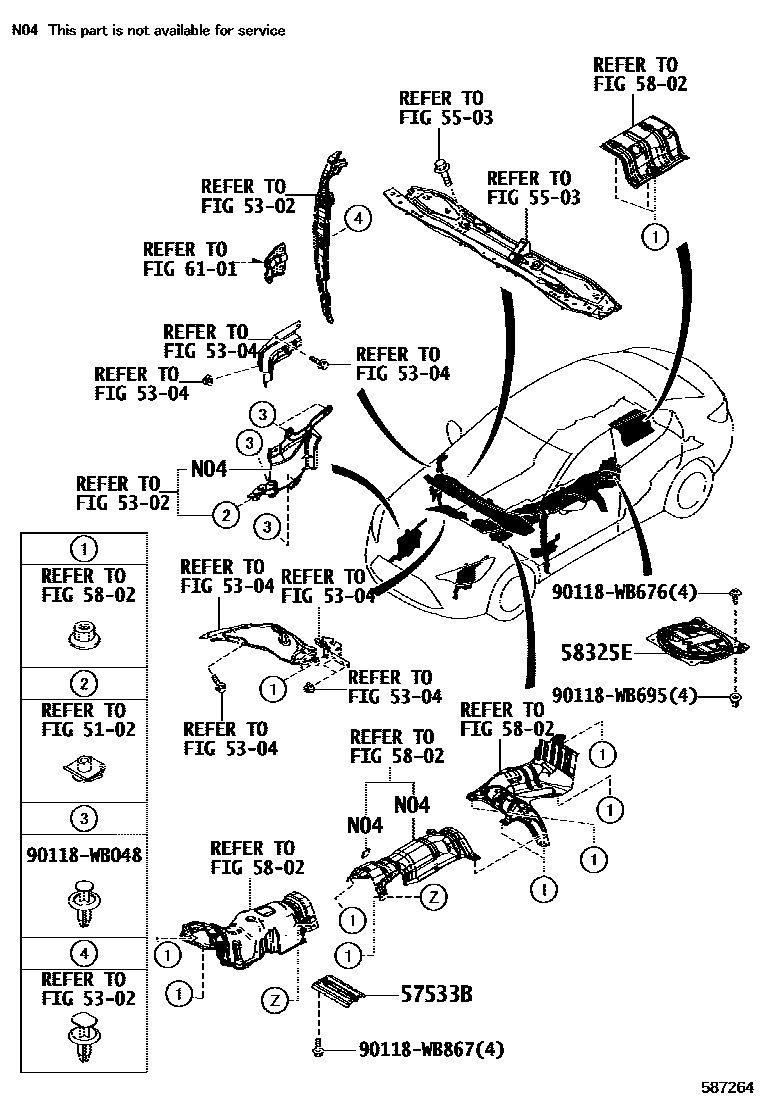

| 58398H | No. 1 floor under cover | 58398-WB002 · 58398-WB003 |
| 58417D | No. 1 base plate left bracket | 58417-WB002 · 58417-WB003 |
| 58418D | Bottom plate bracket No. 2 | 58418-WB001 |

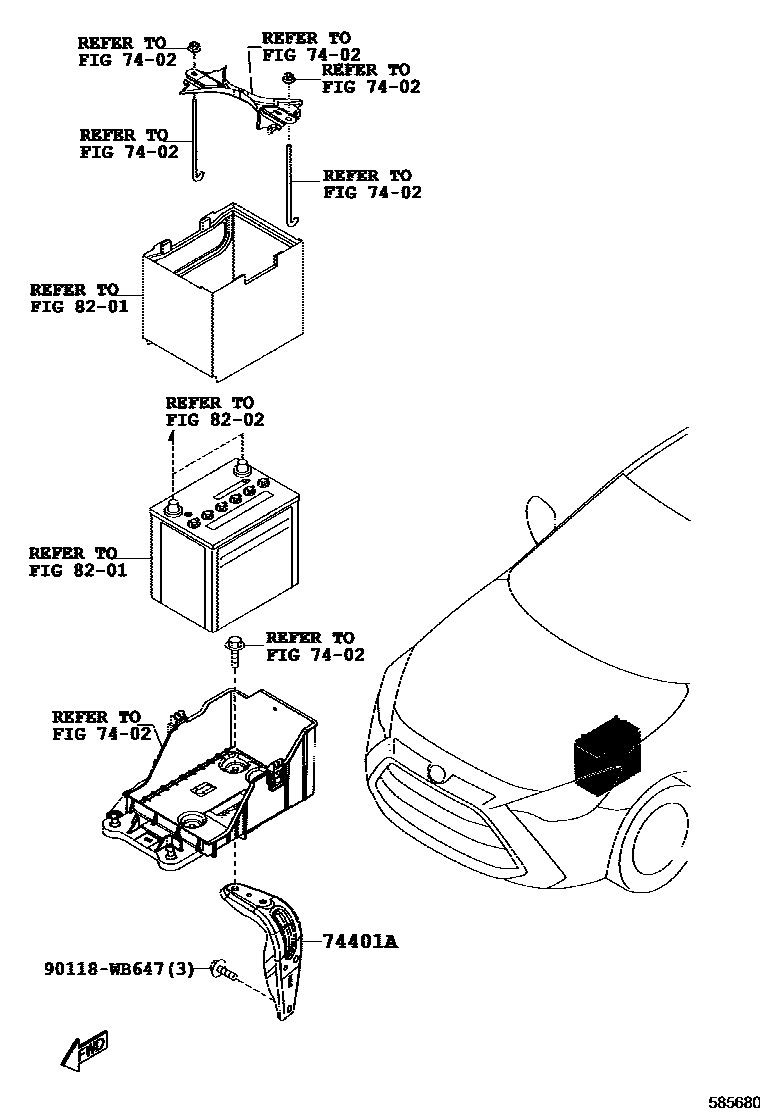

| 74401A | SOUS-ENSEMBLE SUPPORT, BATTERIE, AVANT | 74401-WB001 |
