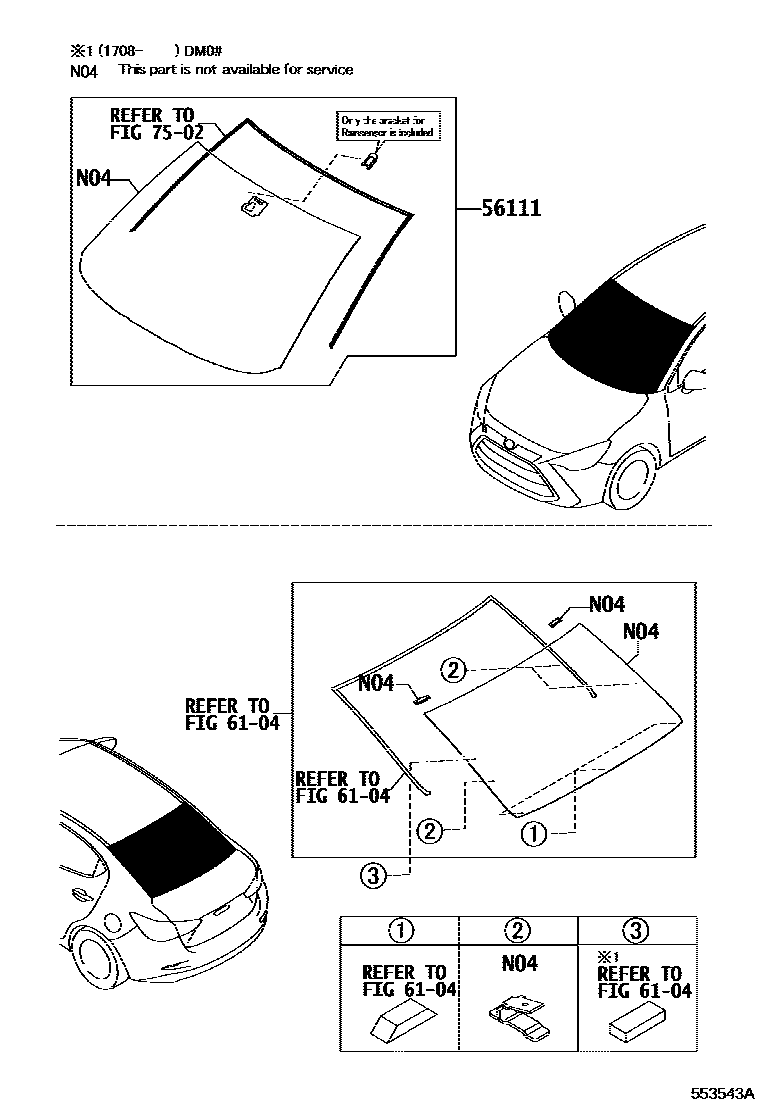

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 9 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

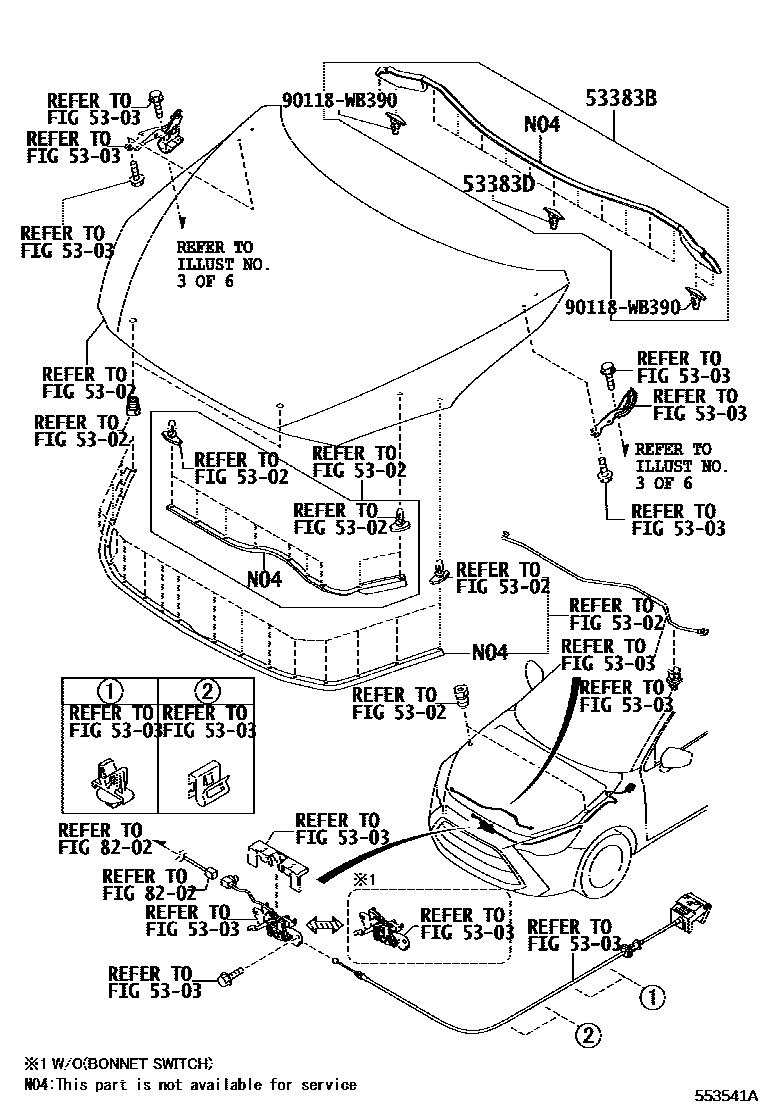

| 53383B | Engine cover to cowl upper cover seal | 53383-WB001 · 53383-WB002 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90118-WB008 |
| 53717G | PLAQUE JUPE AILE DROITE | 53717-WB001 |
| 53718G | PLAQUE JUPE AILE GAUCHE | 53718-WB001 |

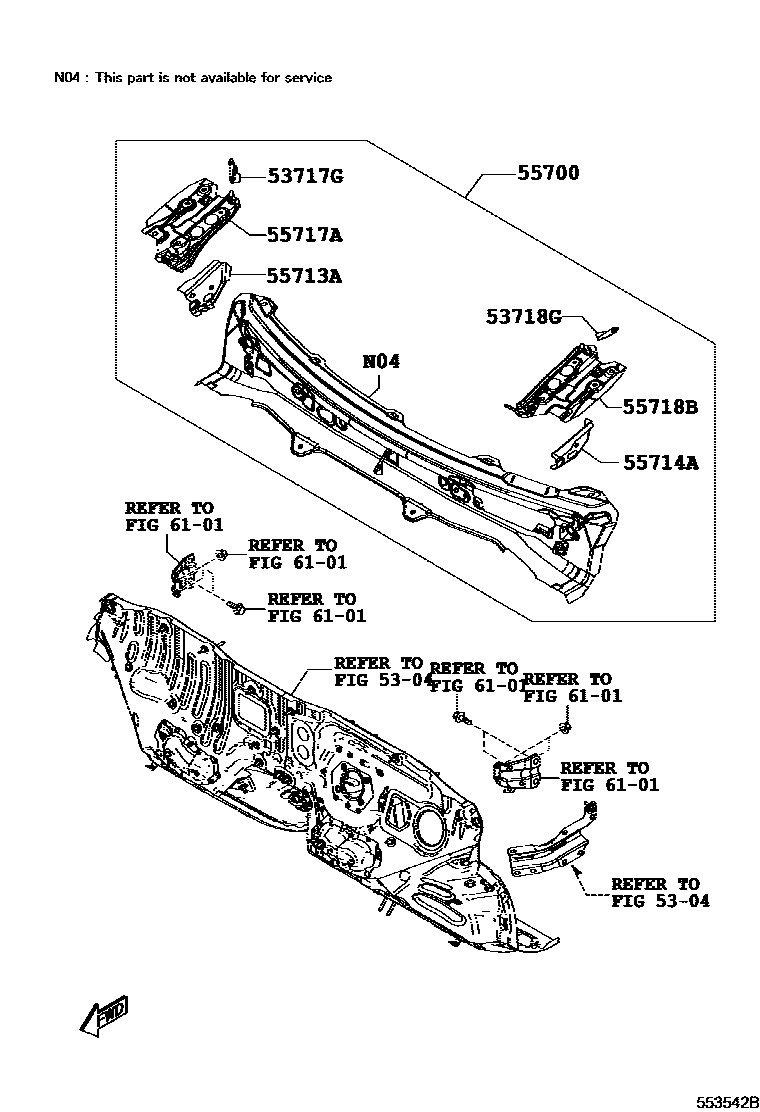

| 55700 | Front panel assembly | 55700-WB001 |

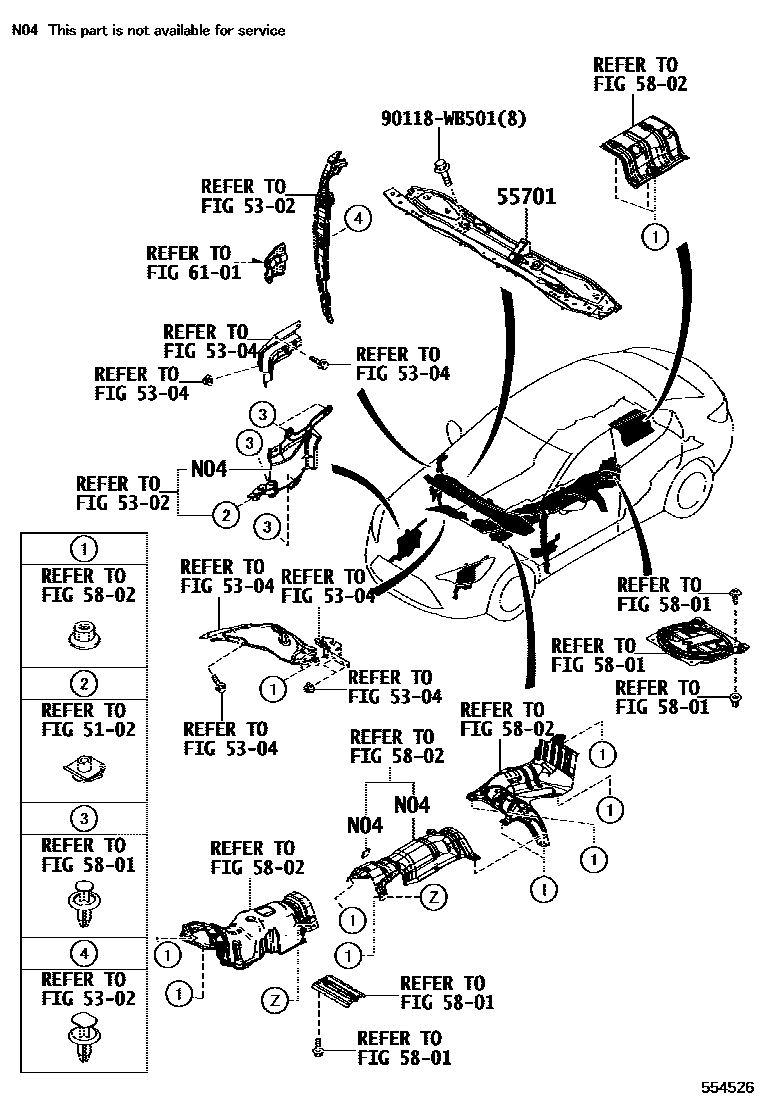

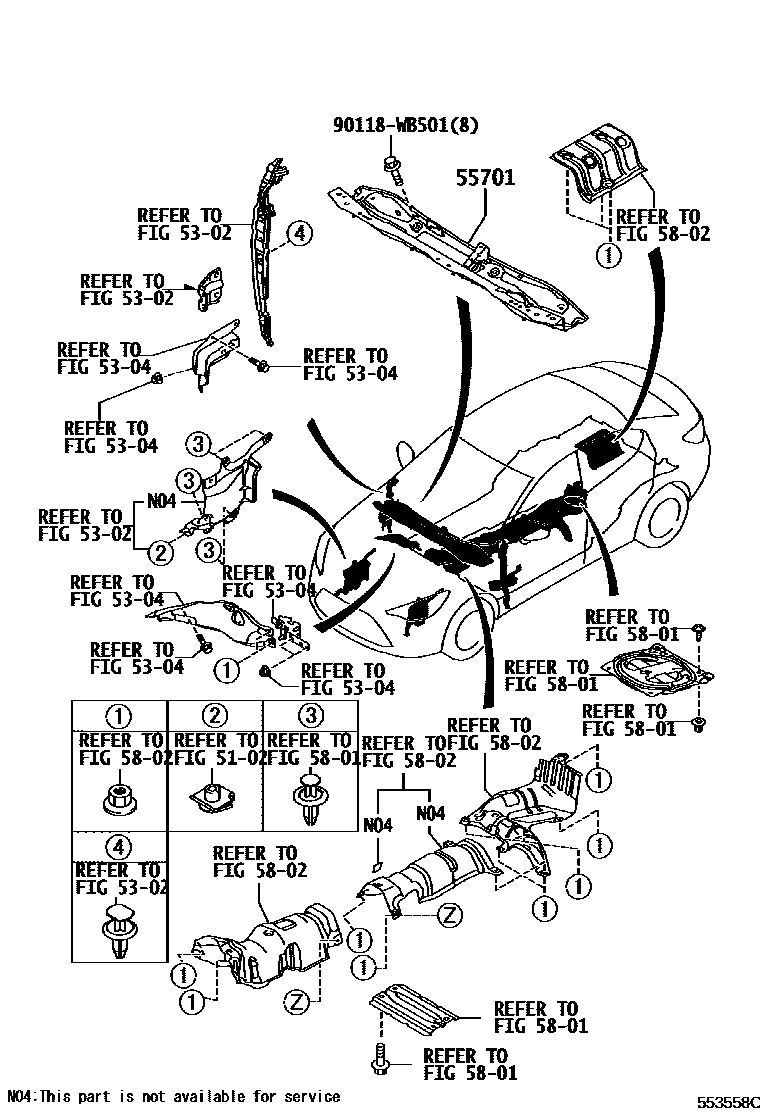

| 55701 | Front apron sub-assembly | 55701-WB001 |
| 55713A | Right front wall upper side panel | 55713-WB001 |
| 55714A | Left front wall upper side panel | 55714-WB001 |
| 55717A | Upper right inner panel of cowl | 55717-WB001 |
| 55718B | Upper left inner panel of front wall | 55718-WB001 |

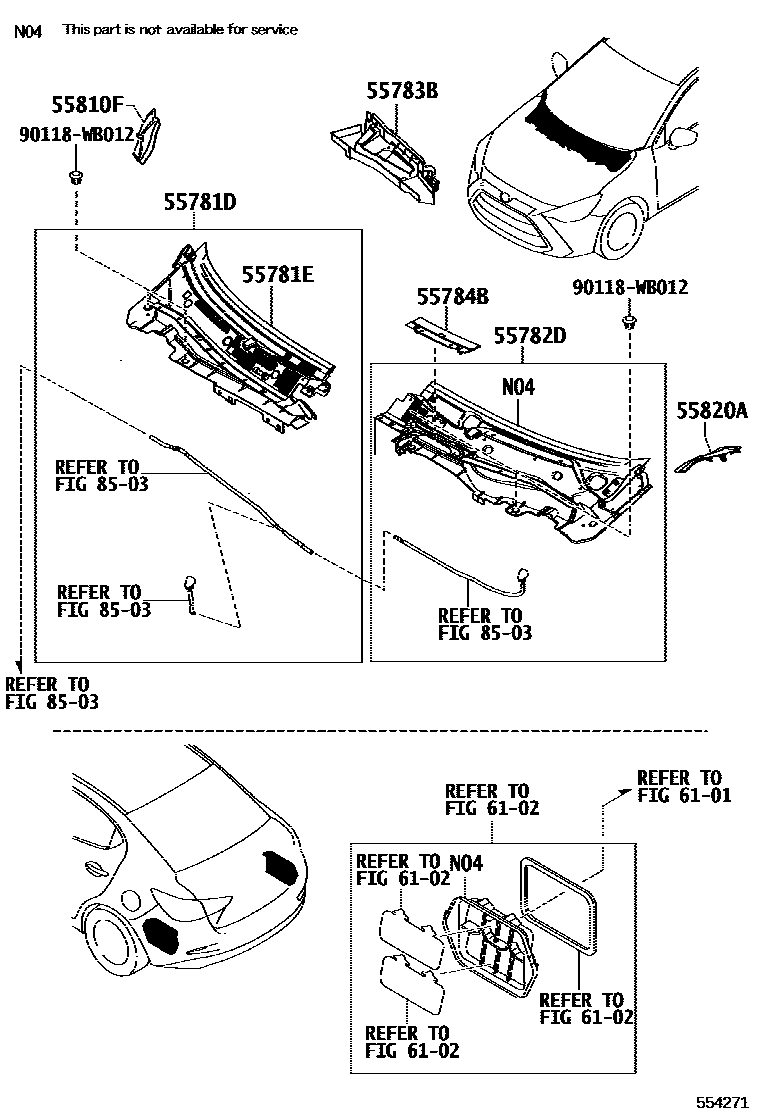

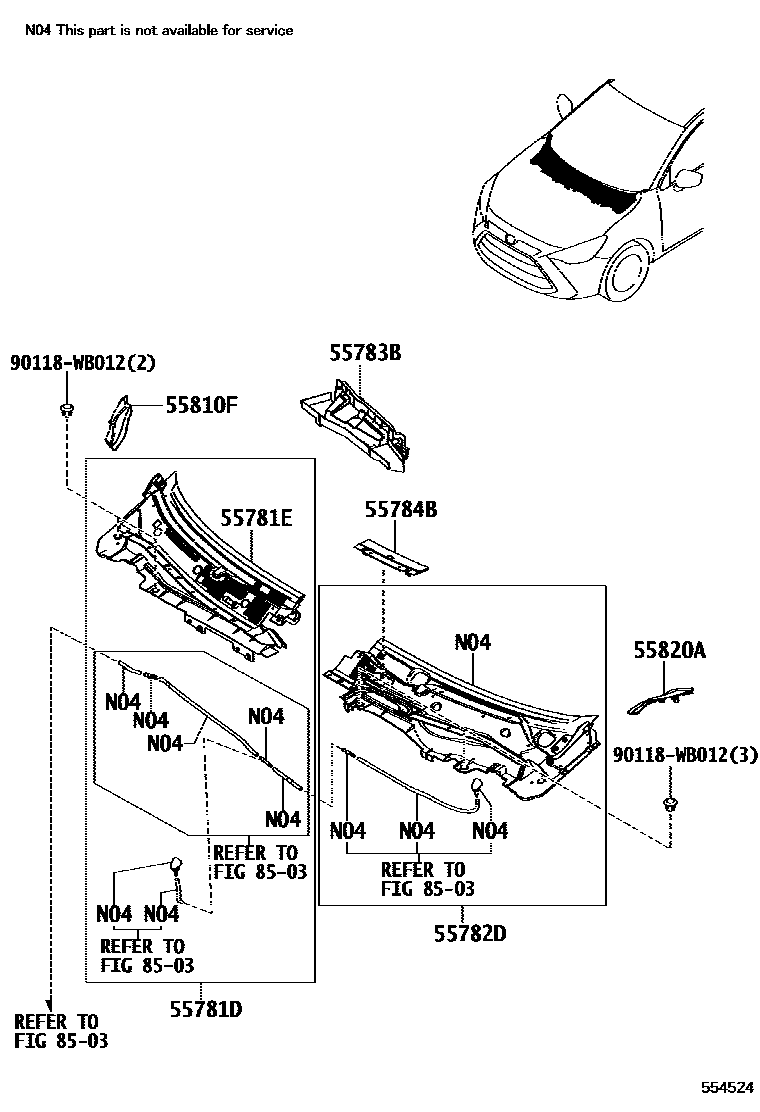

| 55781D | Ventilation grille on right front apron | 55781-WB001 · 55781-WB002 |
| 55781E | Ventilation grille sub-assembly on front apron | 55783-WB002 |
| 55782D | Ventilation grille on left front apron | 55782-WB001 · 55782-WB002 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-WB003 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-WB001 |

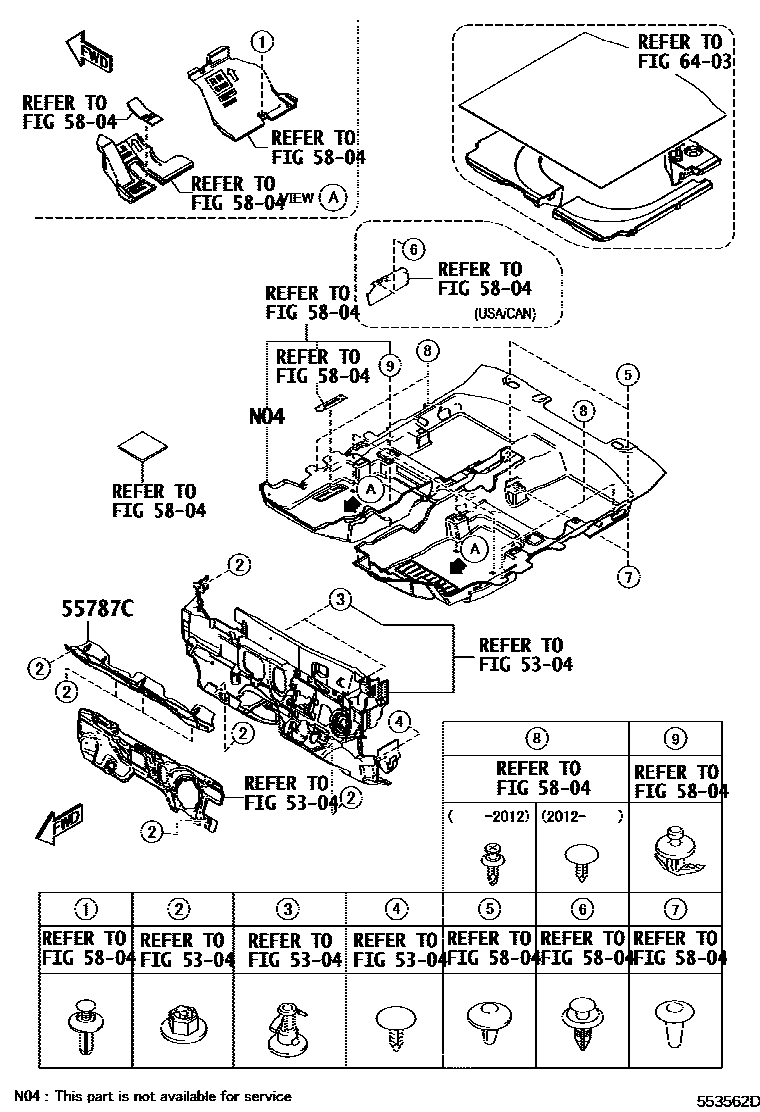

| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-WB001 |
| 55810F | Front ventilation device assembly | 55810-WB001 |
| 55820A | ENS. VENTILATEUR, COTE AUVENT, MG | 55820-WB001 |

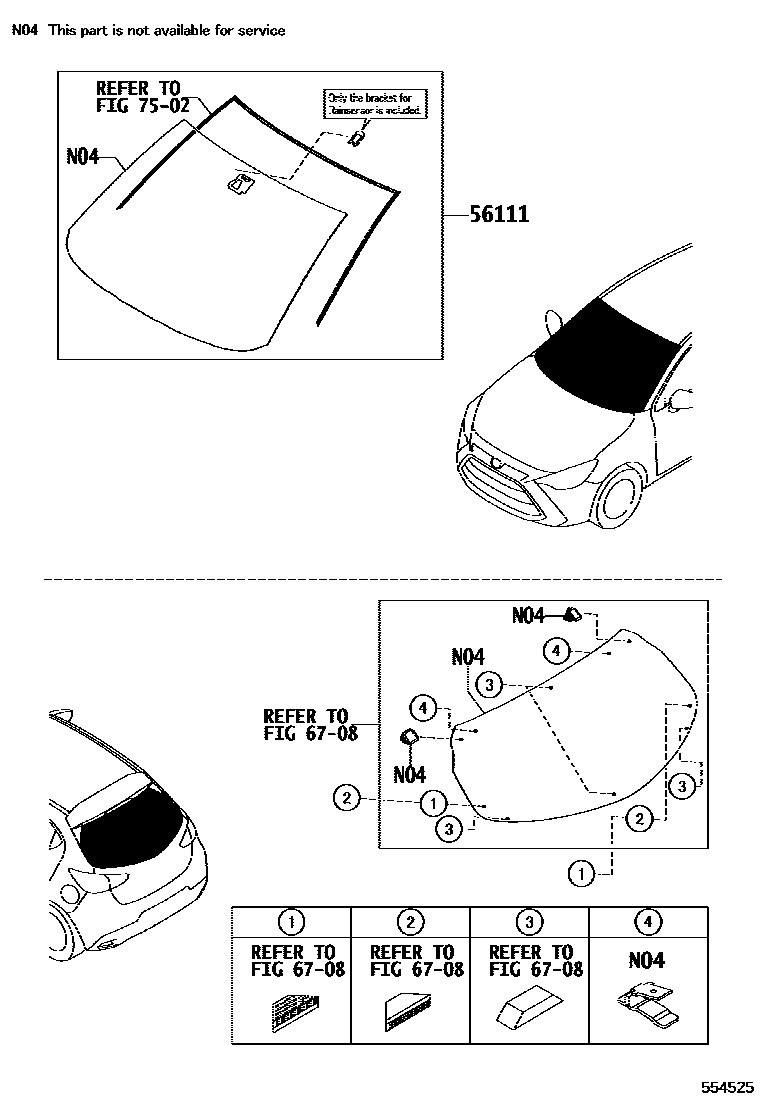

| 56111 | windshield | 56101-WB001 · 56101-WB002 · 56101-WB003 · 56101-WB005 · 56101-WB006 · 56101-WB007 · 56101-WB008 · 56101-WB009 |
