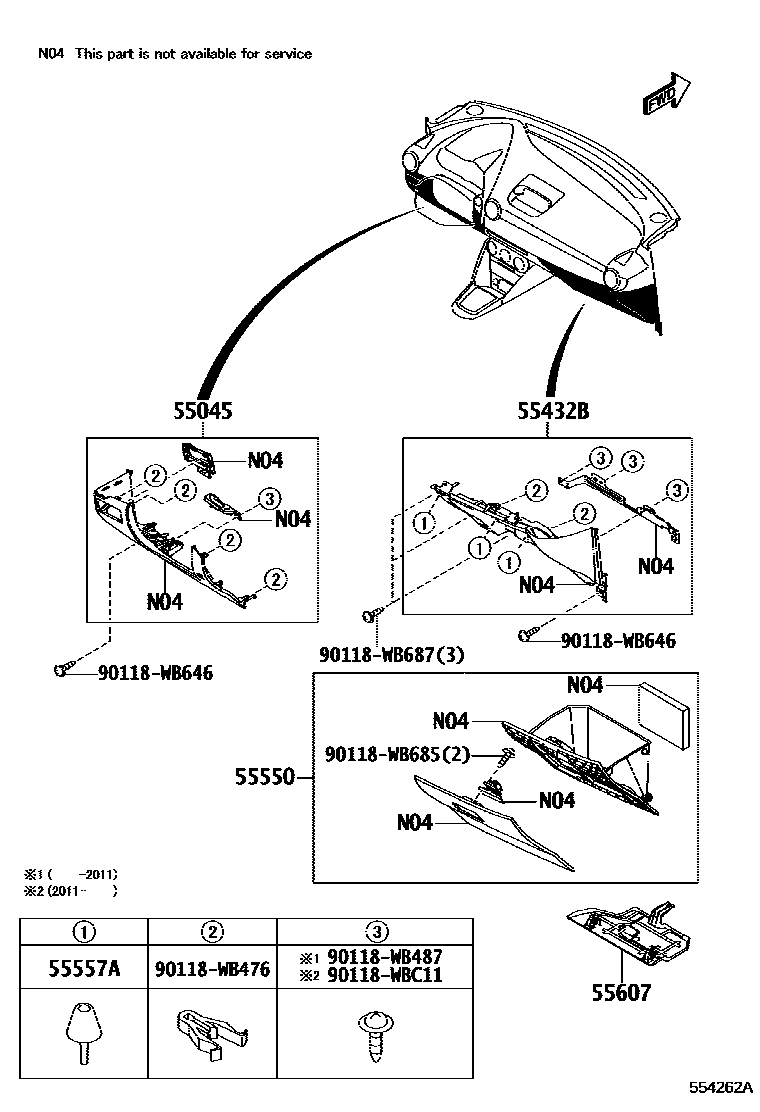

Toyota YARIS 仪表板和手套箱 — Figure 5501

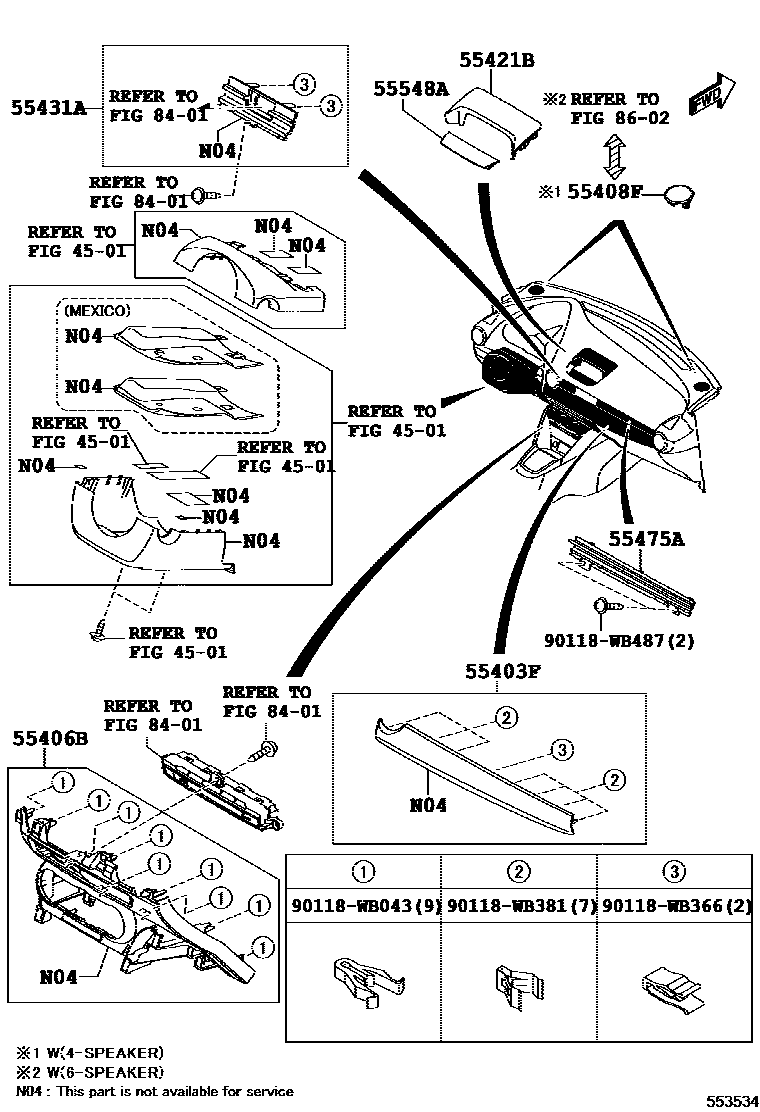

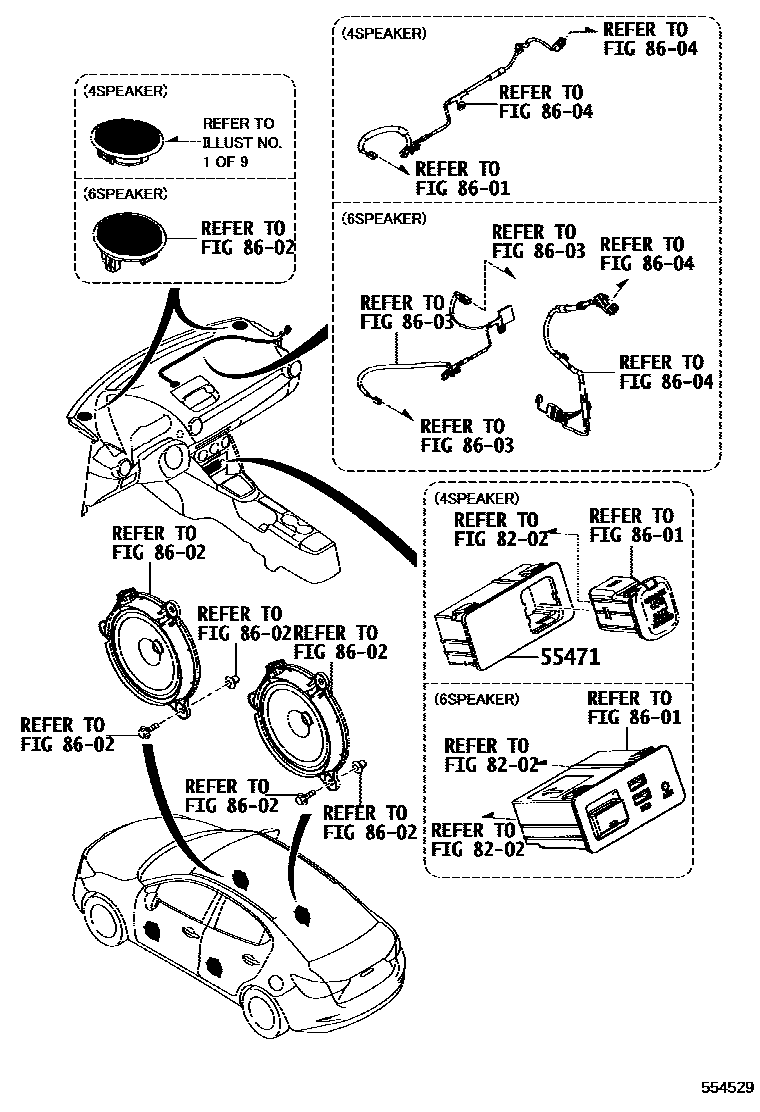

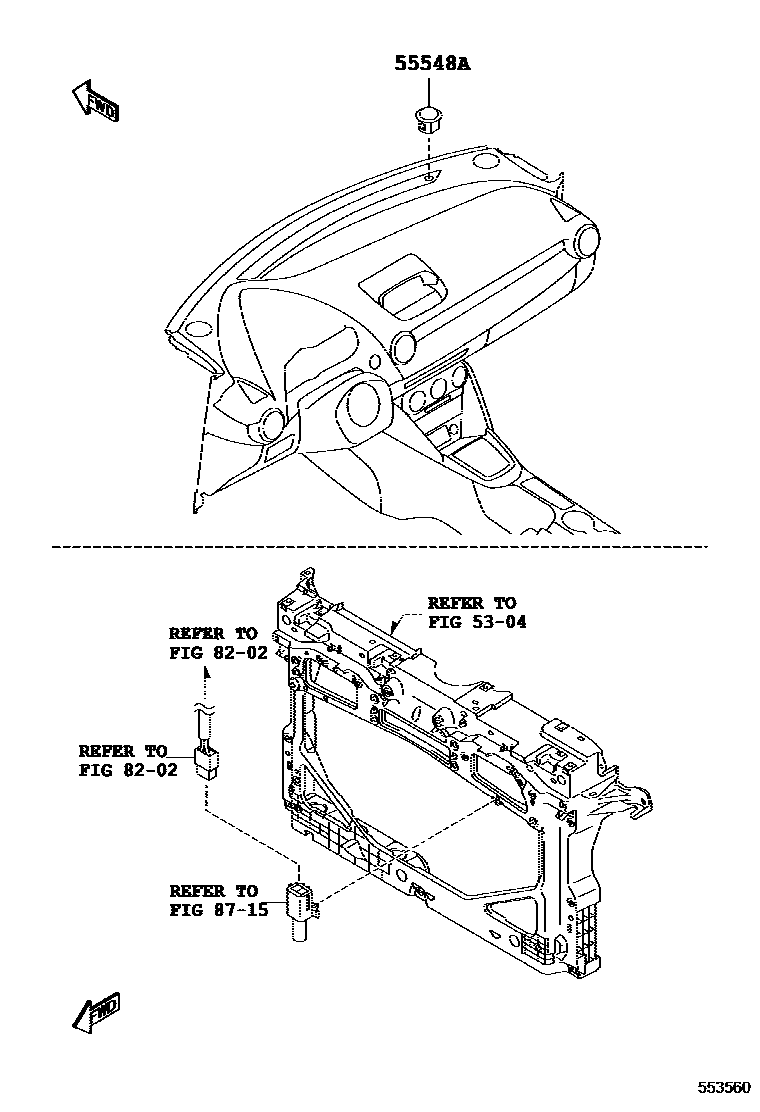

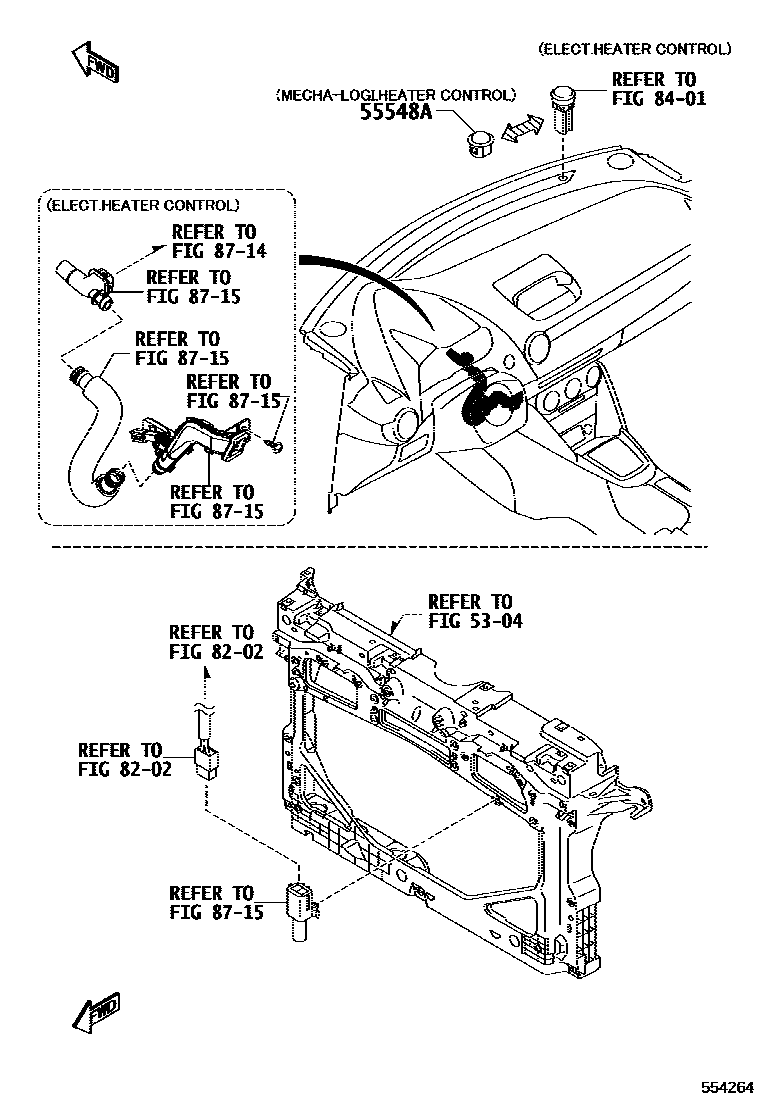

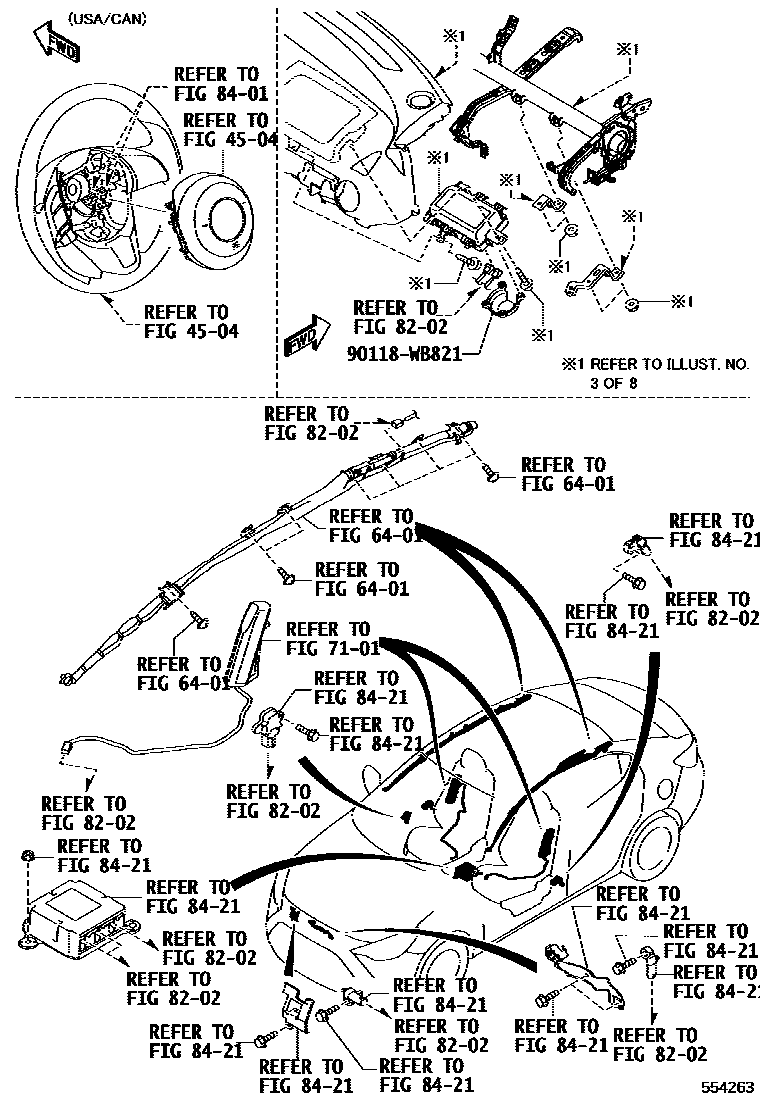

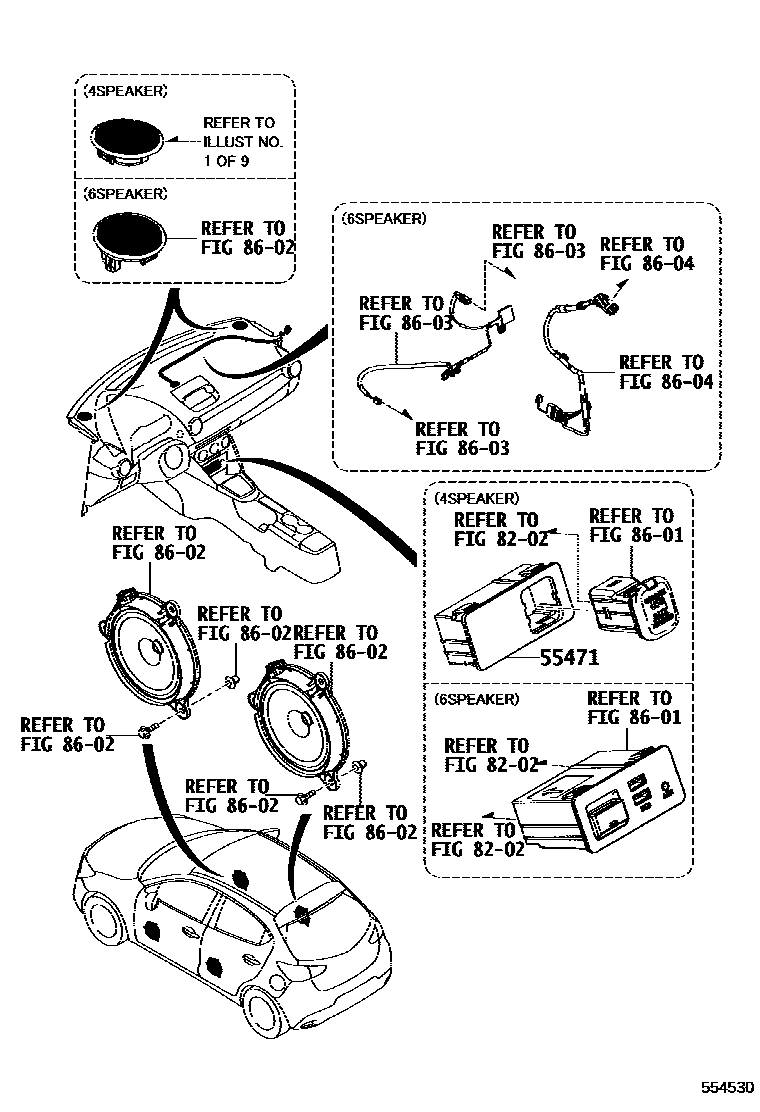

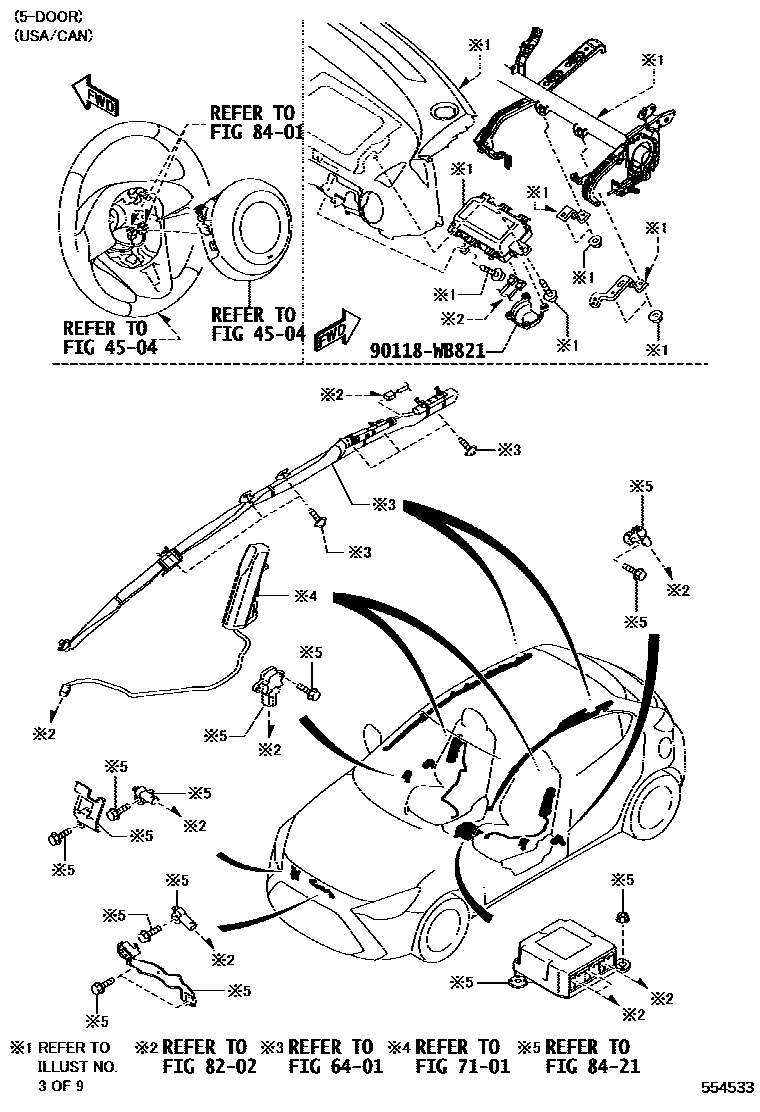

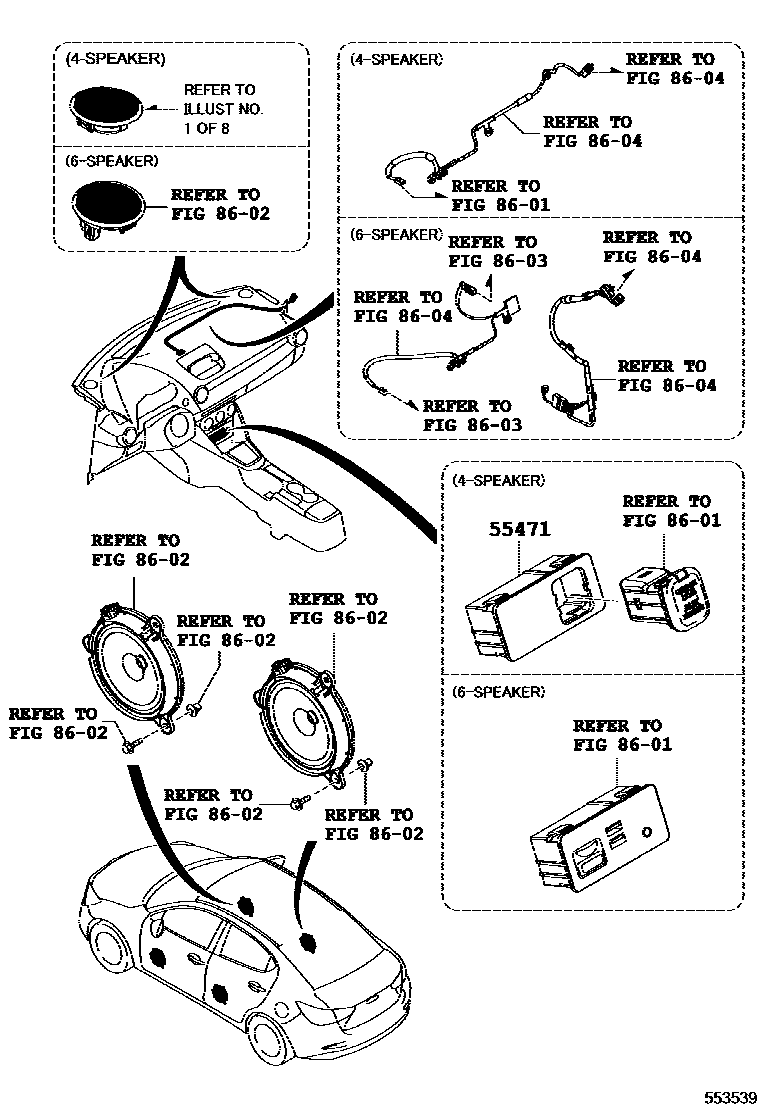

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 25 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55045 | Lower instrument panel decorative panel sub-assembly | 55045-WB001 · 55045-WB002 |
| 55302A | Upper instrument panel sub-assembly | 55302-WB001 |
| 55315A | Instrument panel spacer No. 1 | 55315-WB001 · 55315-WB002 |

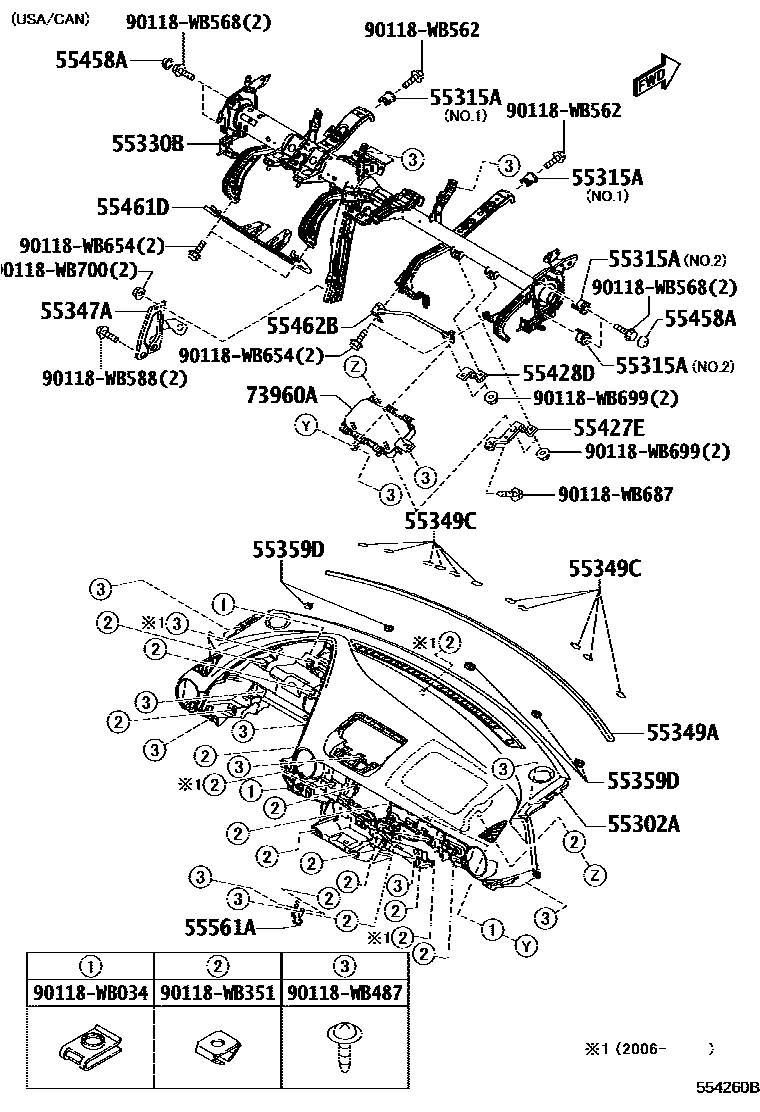

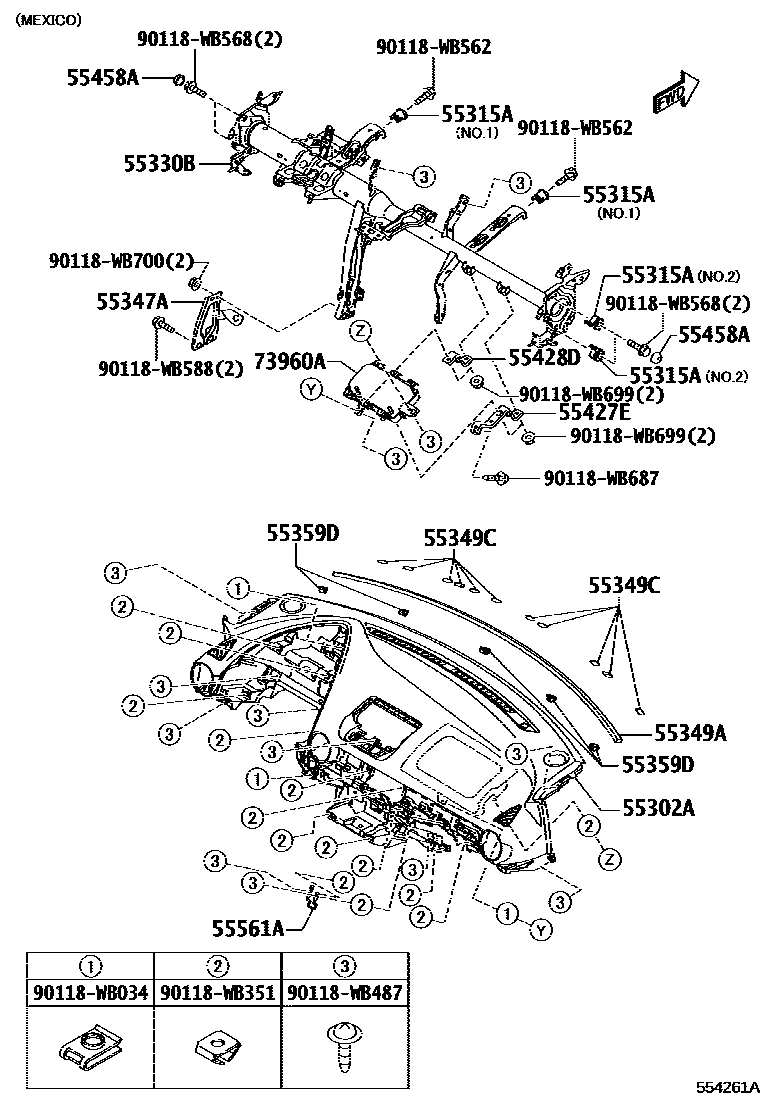

| 55330B | Instrument panel reinforcement assembly | 55330-WB003 · 55330-WB004 · 55330-WB005 |
| 55347A | Instrument panel No. 1 bracket mounting bracket | 55347-WB001 |
| 55349A | Dashboard cushion | 90118-WB891 |
| 55349C | Dashboard cushion | 90118-WBA33 |
| 55359D | Dashboard No. 5 Cushion Pad | 90118-WB892 · 90118-WBA52 |

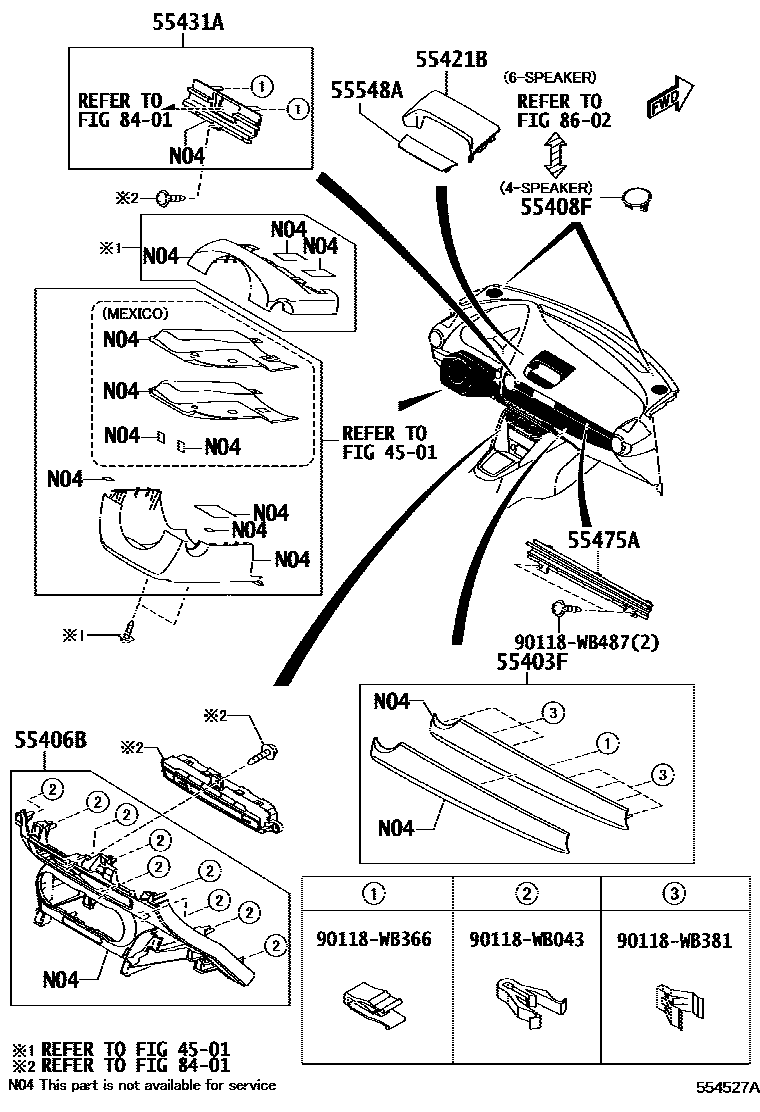

| 55403F | Instrument panel decorative panel sub-assembly | 55403-WB001 · 55403-WB002 · 55403-WB003 · 55403-WB004 · 55403-WB005 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-WB001 |
| 55408F | Instrument panel No. 1 speaker panel sub-assembly | 55472-WB001 |

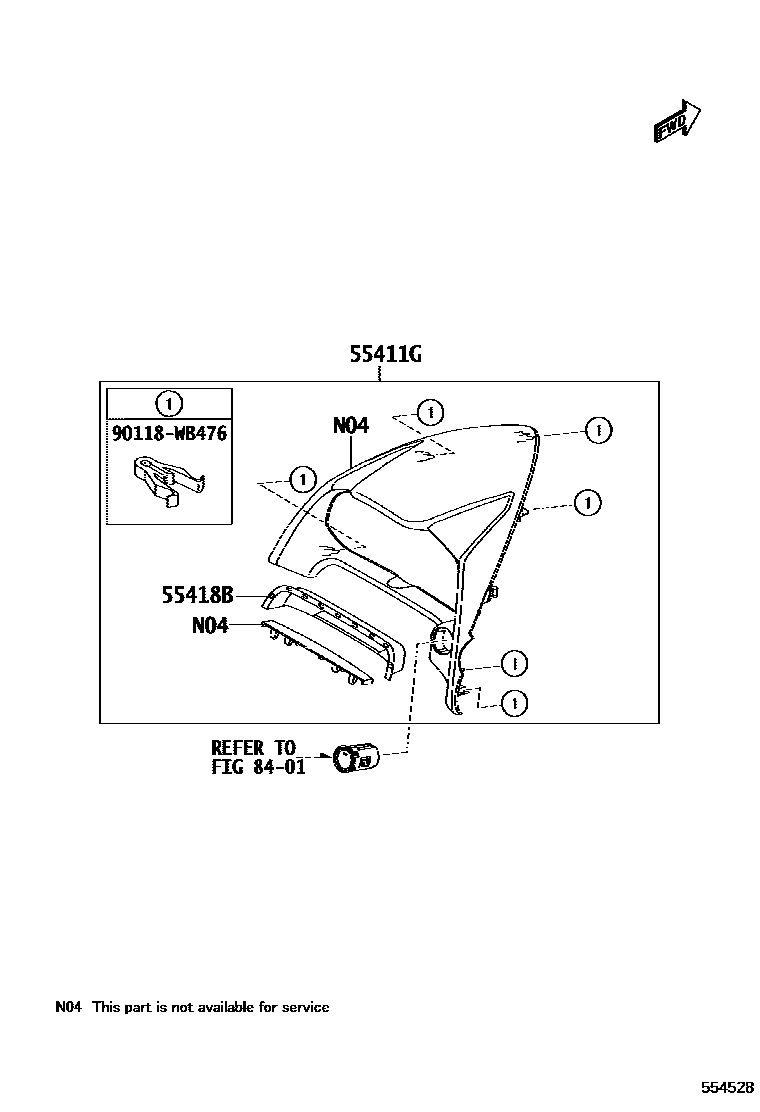

| 55411G | Instrument cluster No. 1 decorative panel | 55411-WB001 |
| 55418B | Instrument cover spacer | 55418-WB001 |
| 55421B | Decorative panel on instrument cluster | 55421-WB001 · 55421-WB002 |
| 55427E | Instrument cluster No. 2 decorative panel bracket | 55427-WB001 |
| 55428D | Instrument panel No. 2 decorative panel lower fixing piece | 55428-WB001 |
| 55431A | Dashboard decorative panel | 55431-WB001 · 55431-WB002 |
| 55432B | Lower dashboard trim panel | 55432-WB001 |
| 55458A | Dashboard safety pad cover | 55458-WB001 |
| 55461D | Dashboard Safety Mat Insert No. 1 | 55461-WB002 · 55461-WB003 |
| 55462B | INSERT, REMBOURRAGE SECURITE TABLEAU DE BORD | 55462-WB001 |
| 55471 | Instrument cluster No. 1 protective strip | 55472-WB002 · 55472-WB003 |
| 55475A | Instrument cluster No. 2 decorative panel decorative parts | 55475-WB001 · 55475-WB002 |

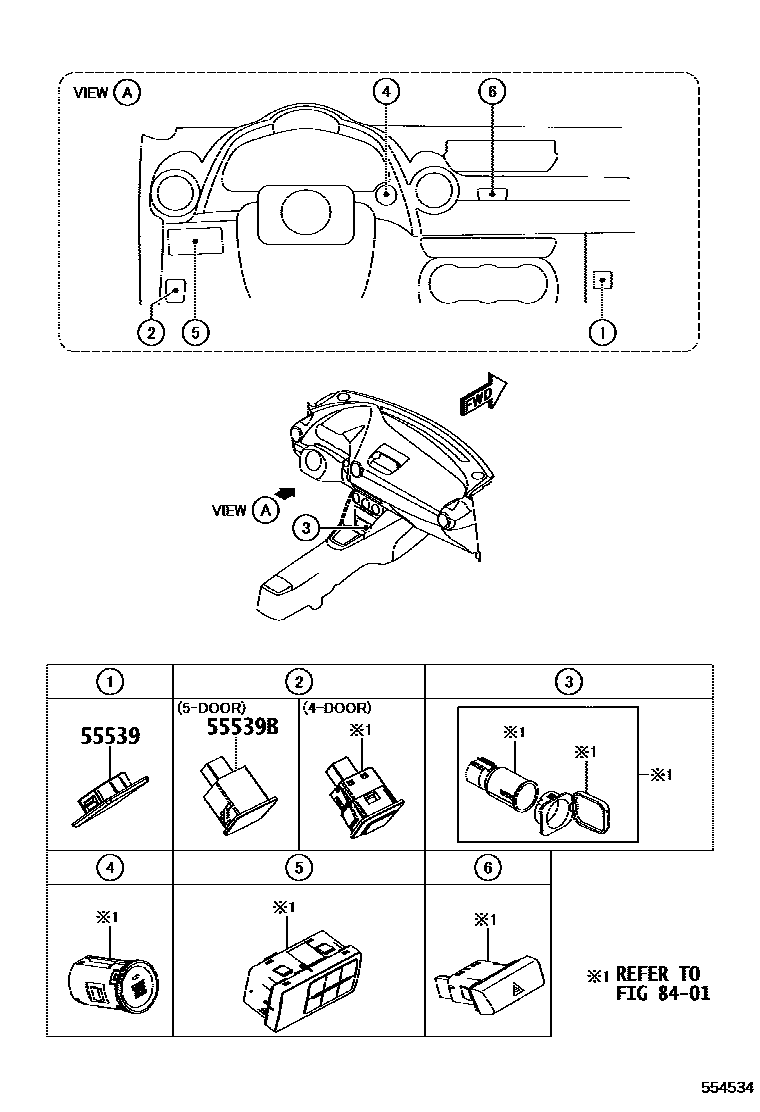

| 55539 | Spare switch hole cover | 55539-WB001 |
| 55539B | No. 2 spare switch hole cover | 55539-WB002 |
| 55548A | Dashboard hole cover | 55548-WB001 · 55548-WB002 |
| 55550 | Glove box cover assembly | 55550-WB001 |
| 55557A | Glove box cover limit pad | 55557-WB001 |
| 55561A | Glove box lid lock | 55561-WB001 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-WB001 |

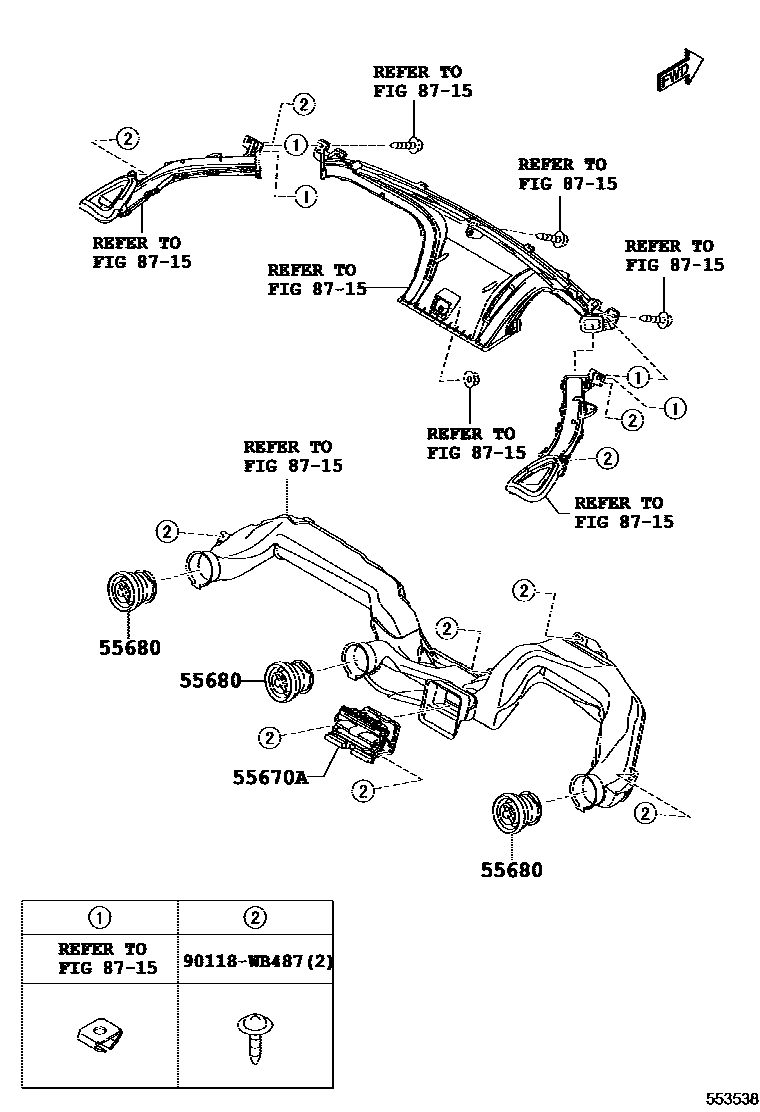

| 55670A | Instrument panel central air register assembly | 55670-WB001 · 55670-WB002 |
| 55680 | Instrument panel No. 1 down-regulator assembly | 55680-WB001 · 55680-WB002 · 55680-WB003 |

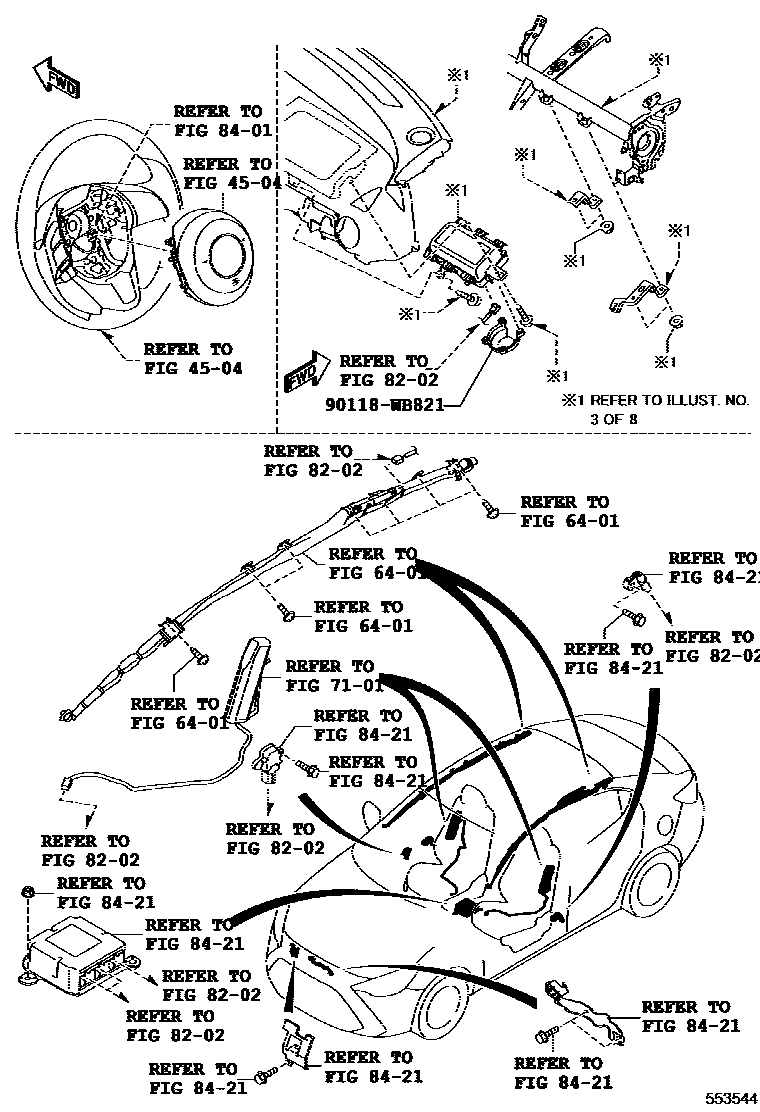

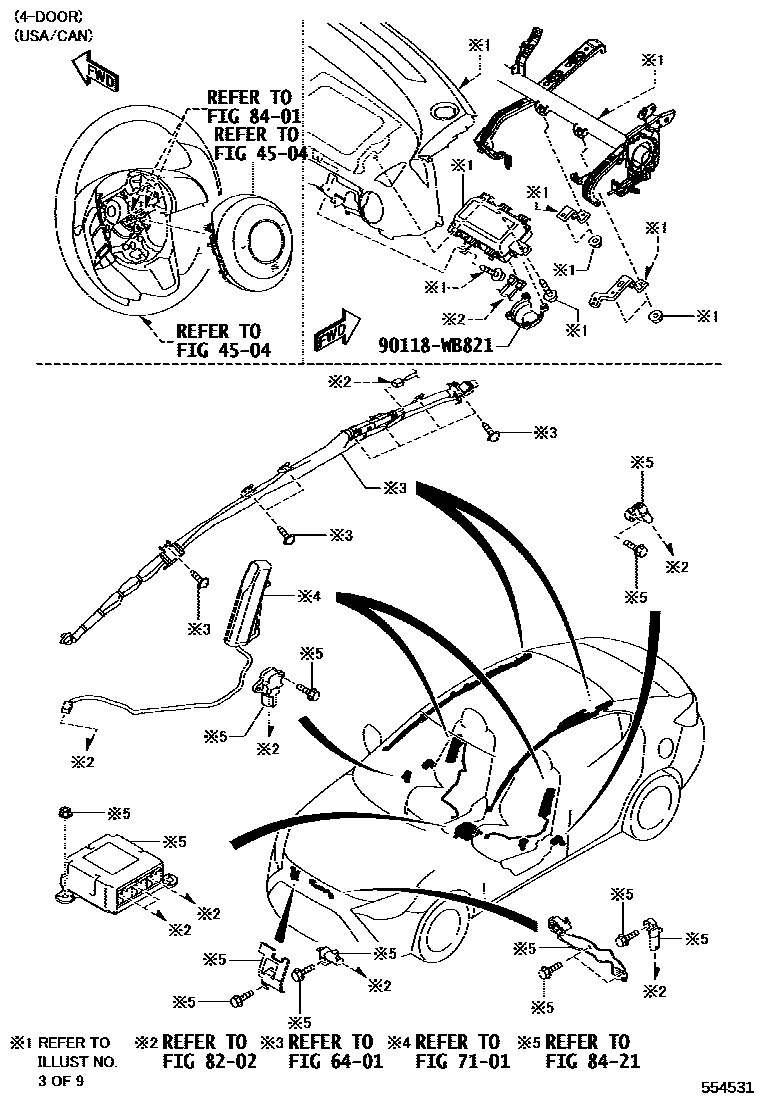

| 73960A | Dashboard passenger air bag assembly without cover | 73960-WB001 · 73960-WB002 |
