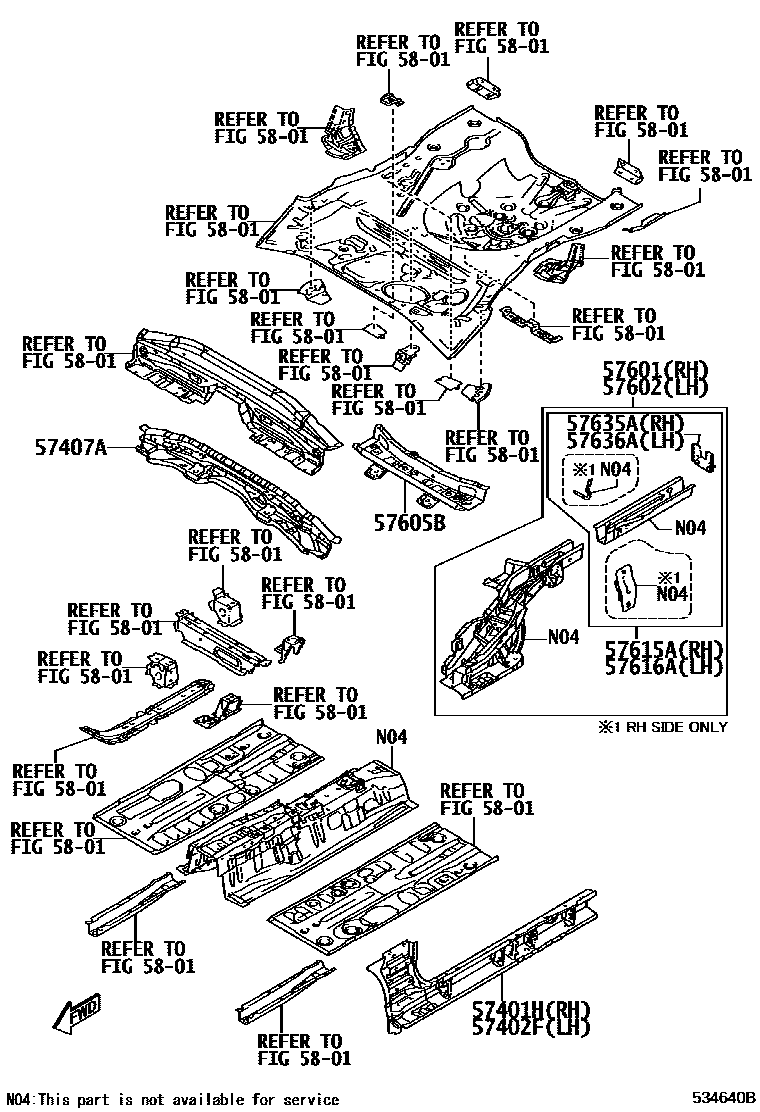

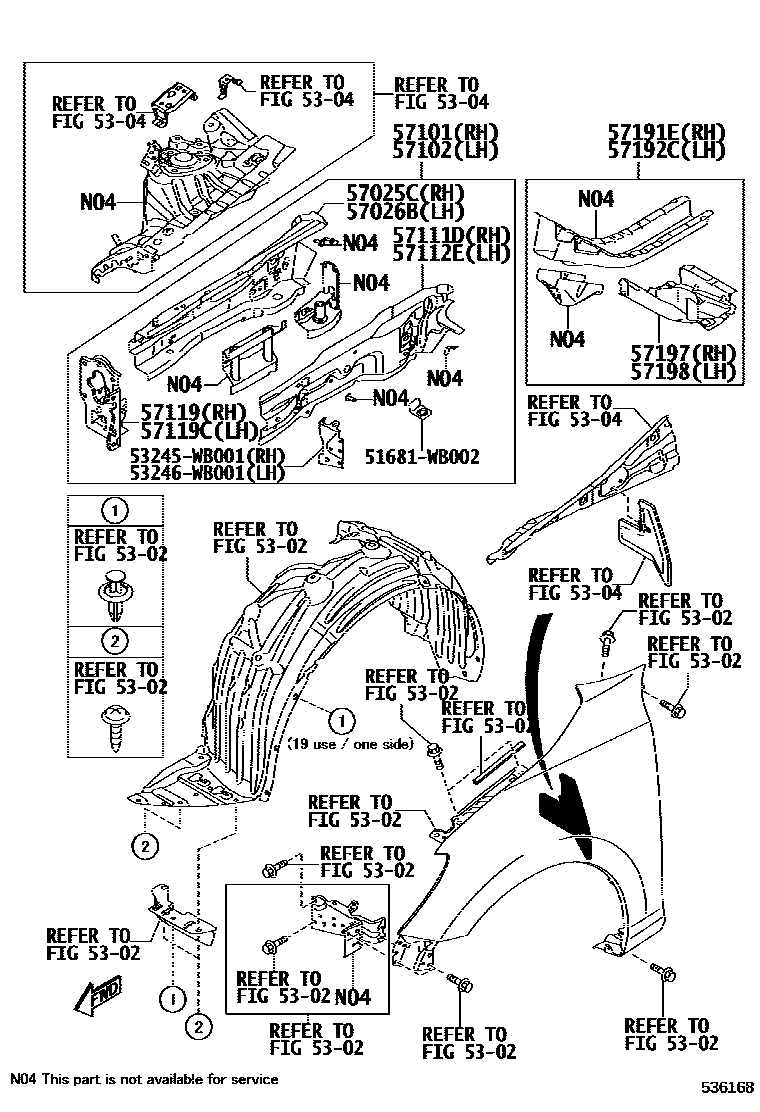

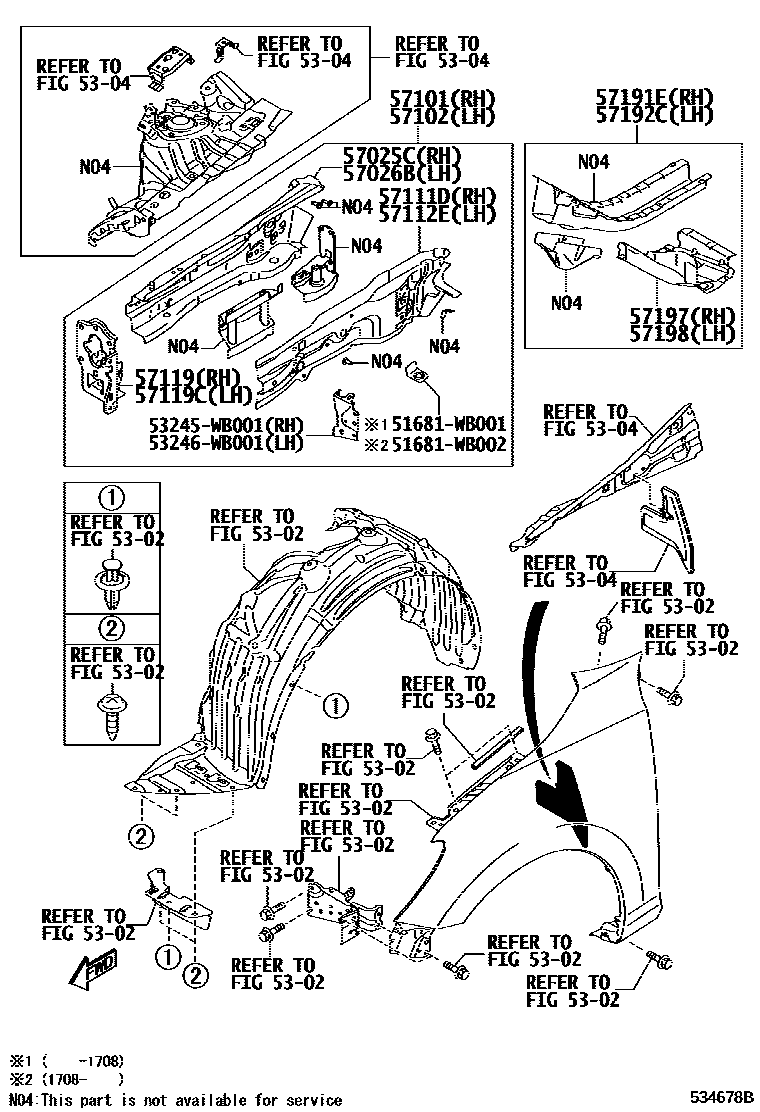

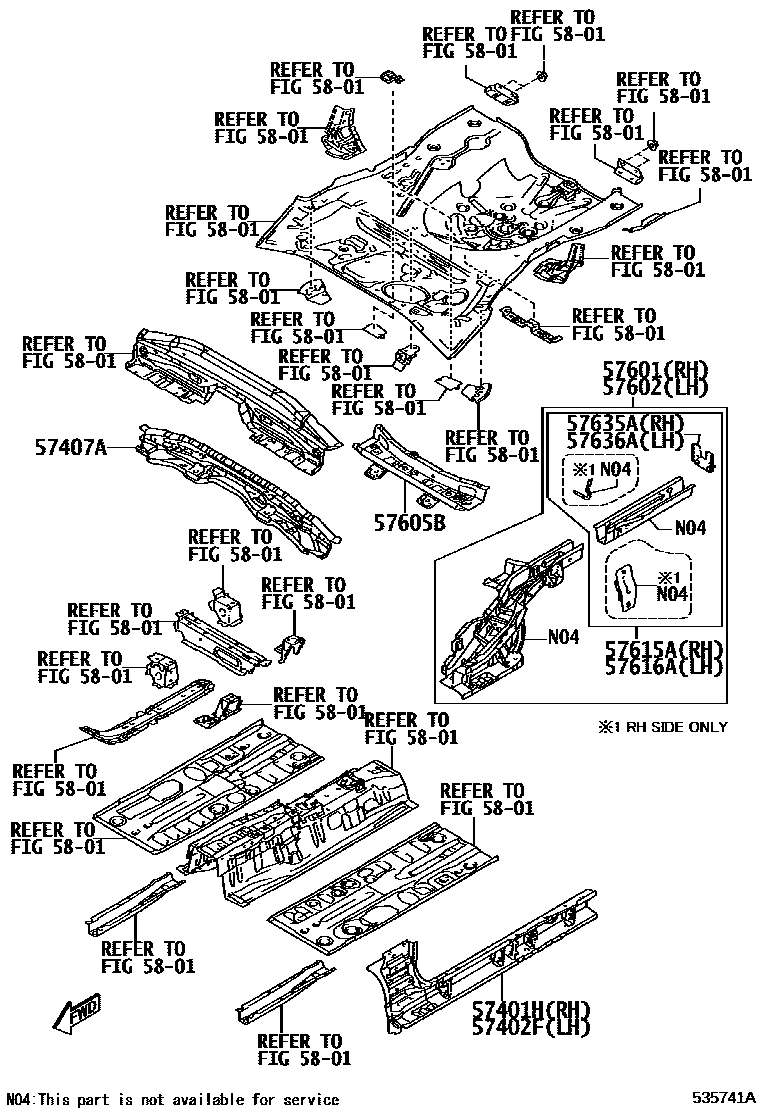

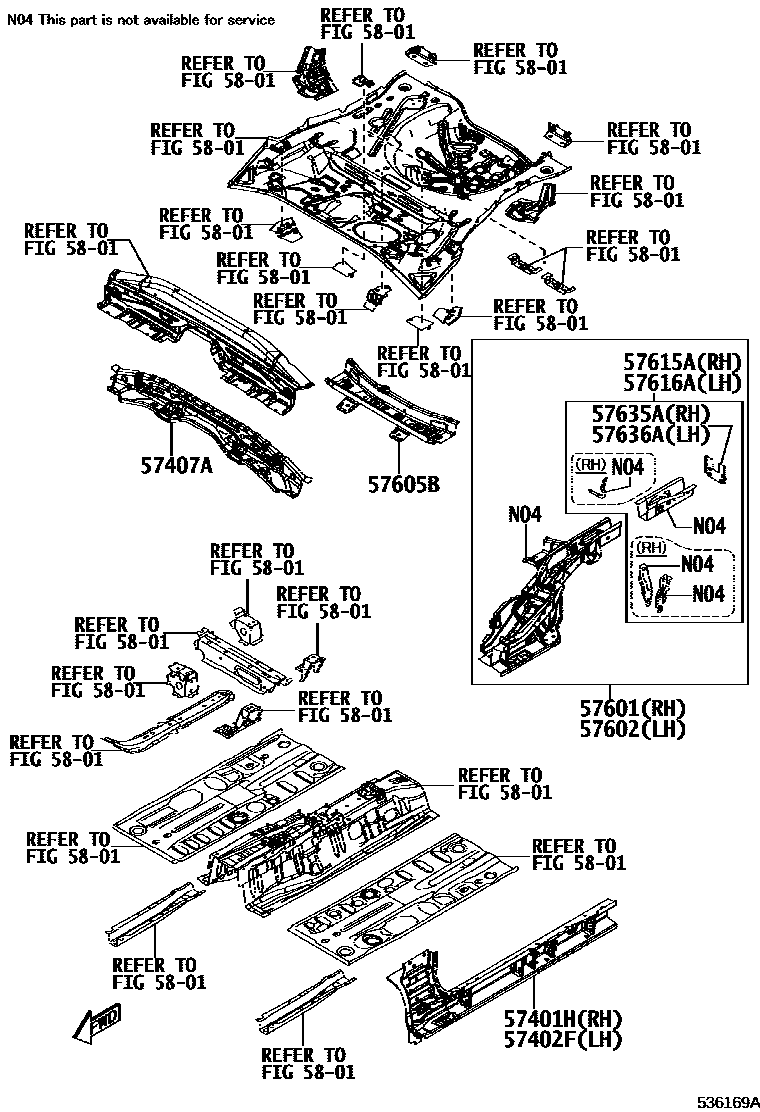

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-WB001 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-WB001 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-WB001 · 57101-WB002 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-WB001 · 57102-WB002 |
| 57111D | Inner right front longitudinal beam | 57111-WB001 |
| 57112E | Inboard left front longitudinal beam | 57112-WB001 |
| 57119 | Front longitudinal beam front panel | 57119-WB001 |
| 57119C | Front longitudinal beam front panel | 57129-WB001 |
| 57191E | Right rear longitudinal beam sub-assembly inside front floor | 57191-WB001 |
| 57192C | Left rear longitudinal beam sub-assembly inside the front floor | 57192-WB001 |
| 57197 | Right front torsion box section piece | 57197-WB001 |
| 57198 | Left front anti-torsion box section piece | 57198-WB001 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-WB001 · 57401-WB002 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-WB001 · 57402-WB002 |
| 57407A | Center floor beam sub-assembly | 57407-WB001 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-WB001 · 57601-WB002 · 57601-WB003 · 57601-WB004 · 57601-WB005 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-WB001 · 57602-WB002 · 57602-WB003 · 57602-WB004 · 57602-WB005 · 57602-WB006 · 57602-WB007 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-WB001 · 57605-WB002 |
| 57615A | Rear floor right rear longitudinal member | 57615-WB001 · 57615-WB002 |
| 57616A | Rear floor left rear longitudinal member | 57612-WB002 · 57616-WB001 |
| 57635A | Rear floor right rear longitudinal beam reinforcement | 57635-WB001 |
| 57636A | Rear floor left rear longitudinal beam reinforcement | 57636-WB001 |
