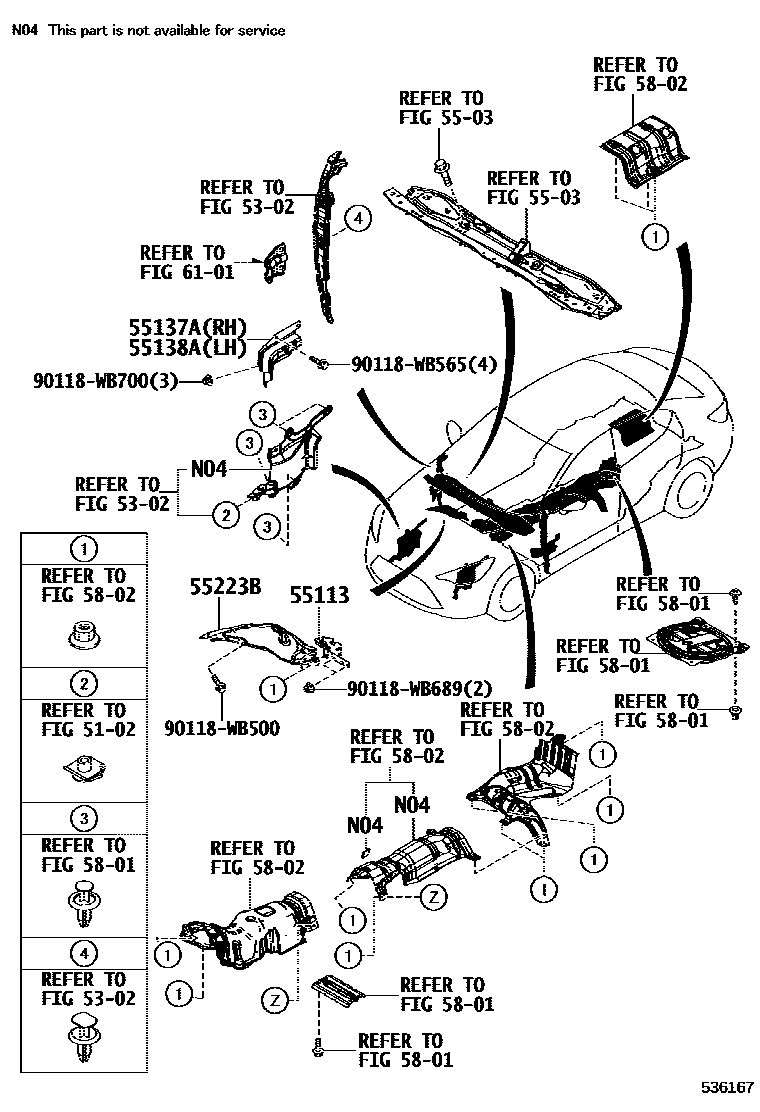

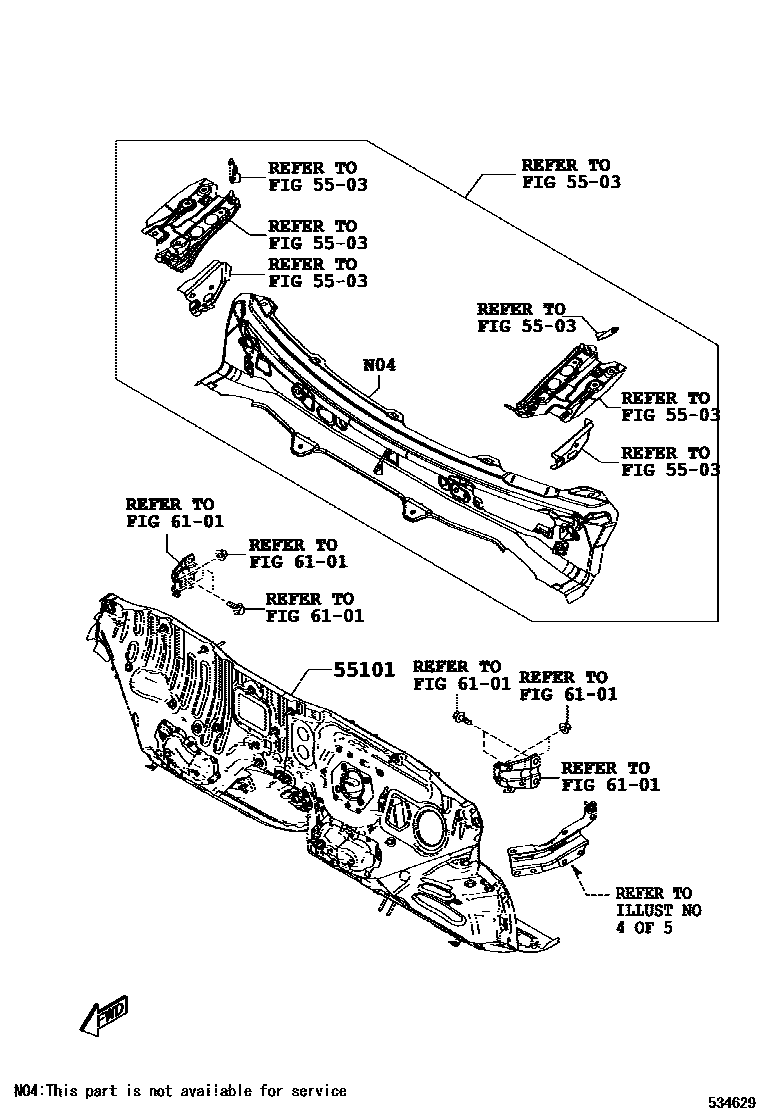

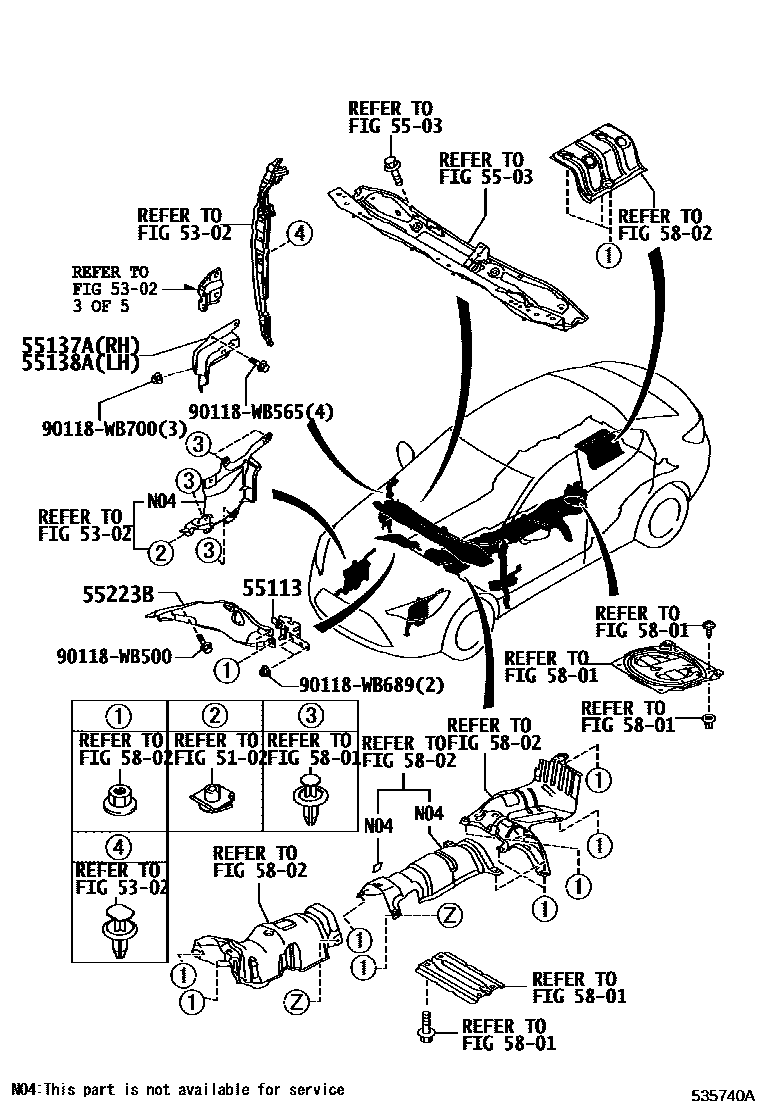

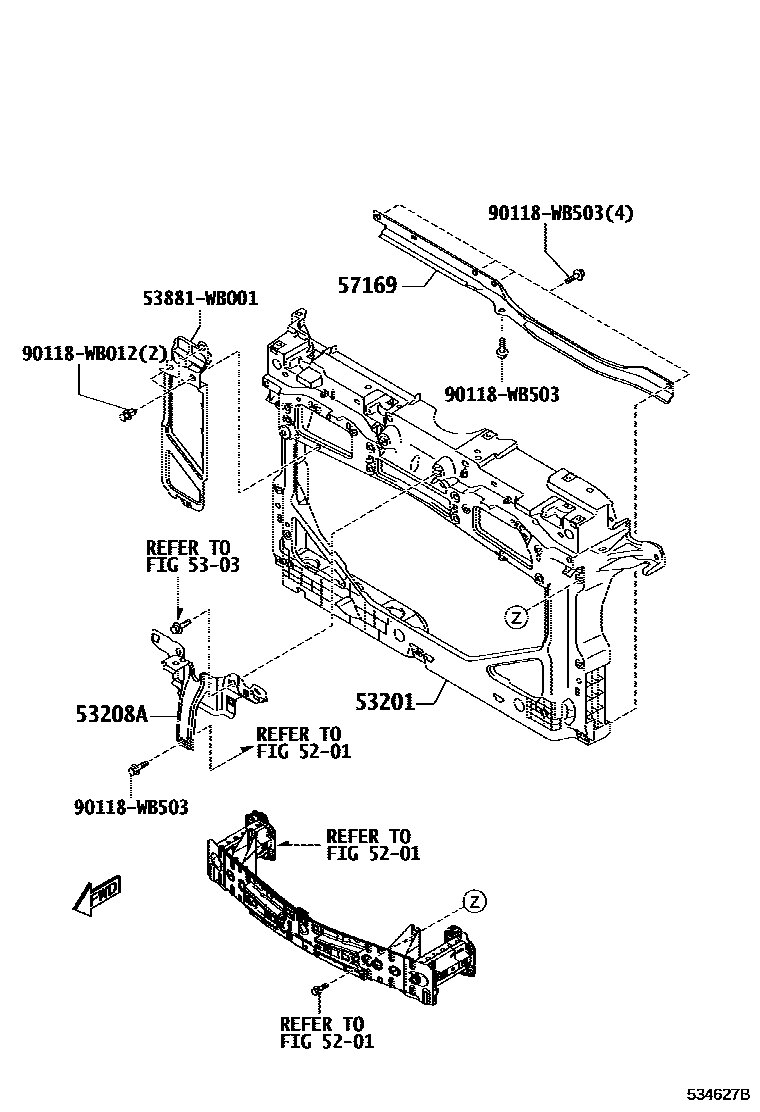

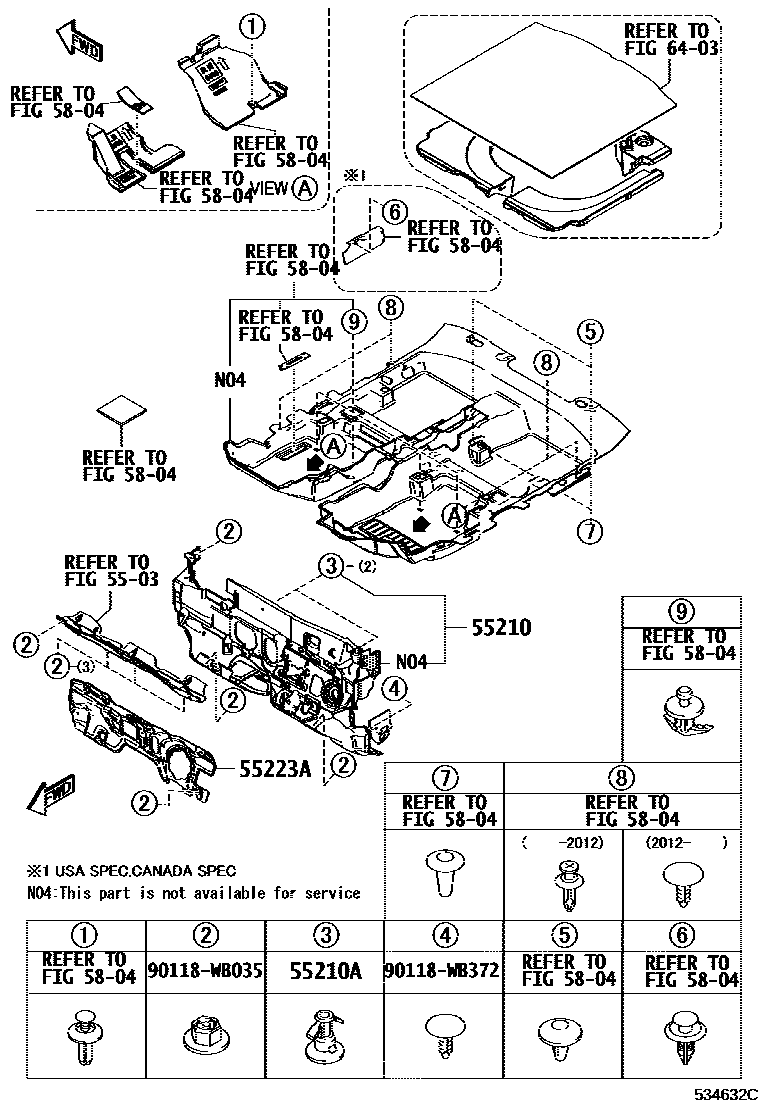

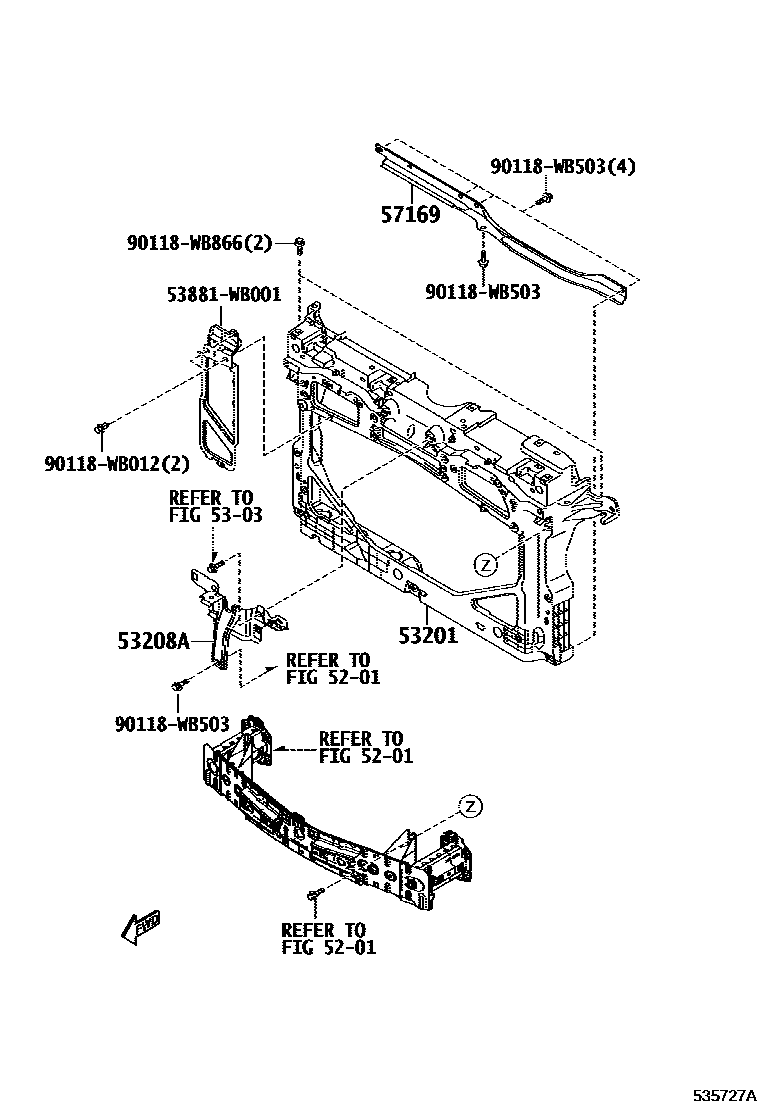

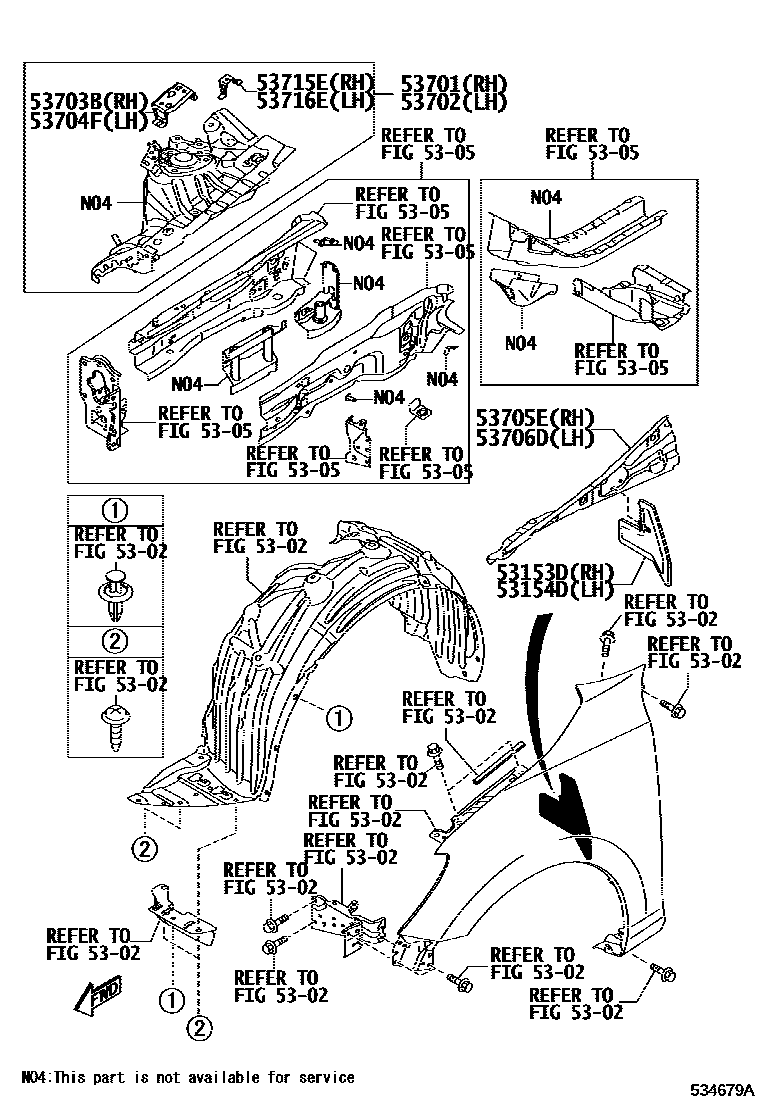

Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304
Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 8 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153D | Radiator grille right deflector | 53153-WB001 |
| 53154D | Radiator grille left deflector | 53153-WB001 |
| 53201 | Radiator bracket sub-assembly | 53201-WB001 · 53201-WB003 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-WB001 |
| 53701 | Right front fender fender sub-assembly | 53701-WB001 |
| 53702 | Left front fender fender sub-assembly | 53702-WB001 |
| 53703B | Right fender fender fixing part sub-assembly | 53703-WB001 |
| 53704F | Left fender fender fixing part sub-assembly | 53704-WB001 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-WB001 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-WB001 |
| 53715E | Right front fender fender rear extension | 53715-WB001 |
| 53716E | Left front fender fender rear extension | 53716-WB001 |
| 55101 | Front apron sub-assembly | 55101-WB003 · 55101-WB004 |
| 55113 | Clutch pedal bracket mounting plate | 55113-WB001 |
| 55137A | Right side bracket (front wall to frame) | 55137-WB001 |
| 55138A | Left side bracket (front wall to frame) | 55138-WB001 |
| 55210 | Front wall insulation pad assembly | 55210-WB001 |
| 55210A | clip | 90118-WB032 |
| 55223A | Front wall outer heat insulation pad | 55223-WB001 |
| 55223B | No. 1 insulation pad for front wall panel | 55223-WB002 |
| 57169 | Front floor right front bracket | 57169-WB001 |
