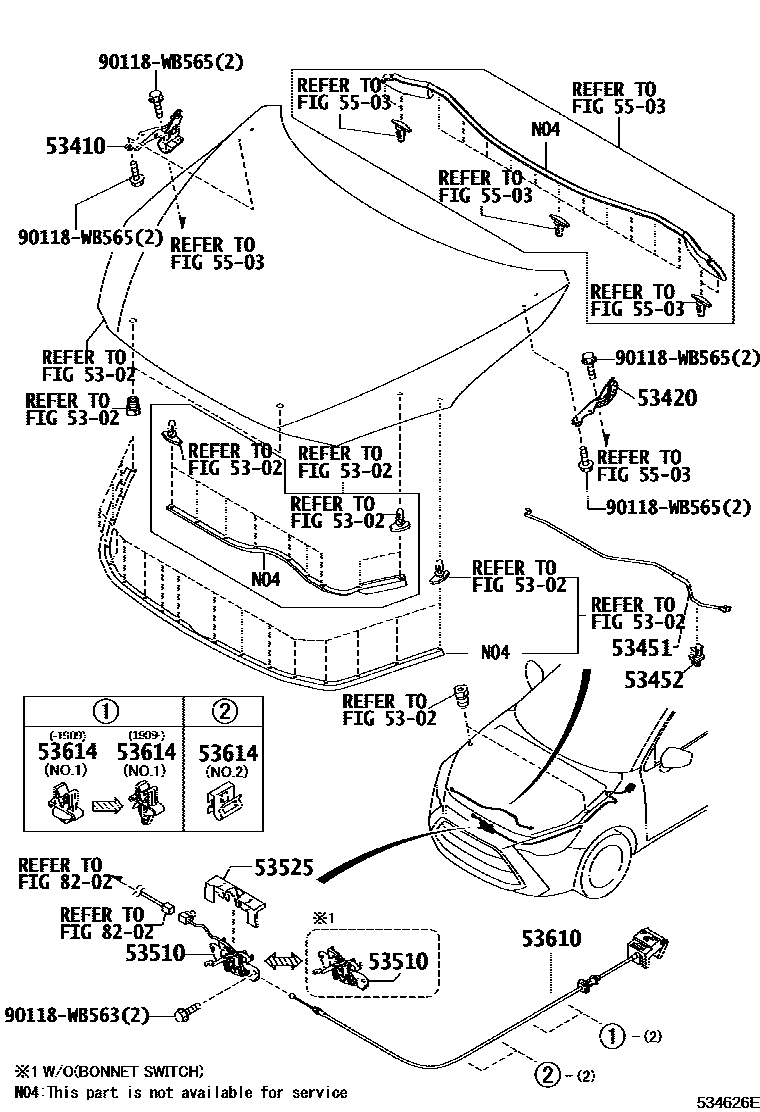

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-WB001 |
| 53420 | Engine cover left hinge assembly | 53420-WB001 |
| 53451 | Engine cover support rod | 53440-WB001 |
| 53452 | Engine cover stay rod fixing | 53452-WB001 |
| 53510 | Engine cover lock assembly | 53510-WB001 · 53510-WB002 |
| 53525 | Engine hood lock opening lever guard | 53525-WB001 |
| 53610 | Engine hood lock opening lever assembly | 53600-WB001 · 53600-WB002 |
| 53614 | Engine hood lock control cable clip | 53614-WB001 · 53614-WB002 · 53614-WB003 |
