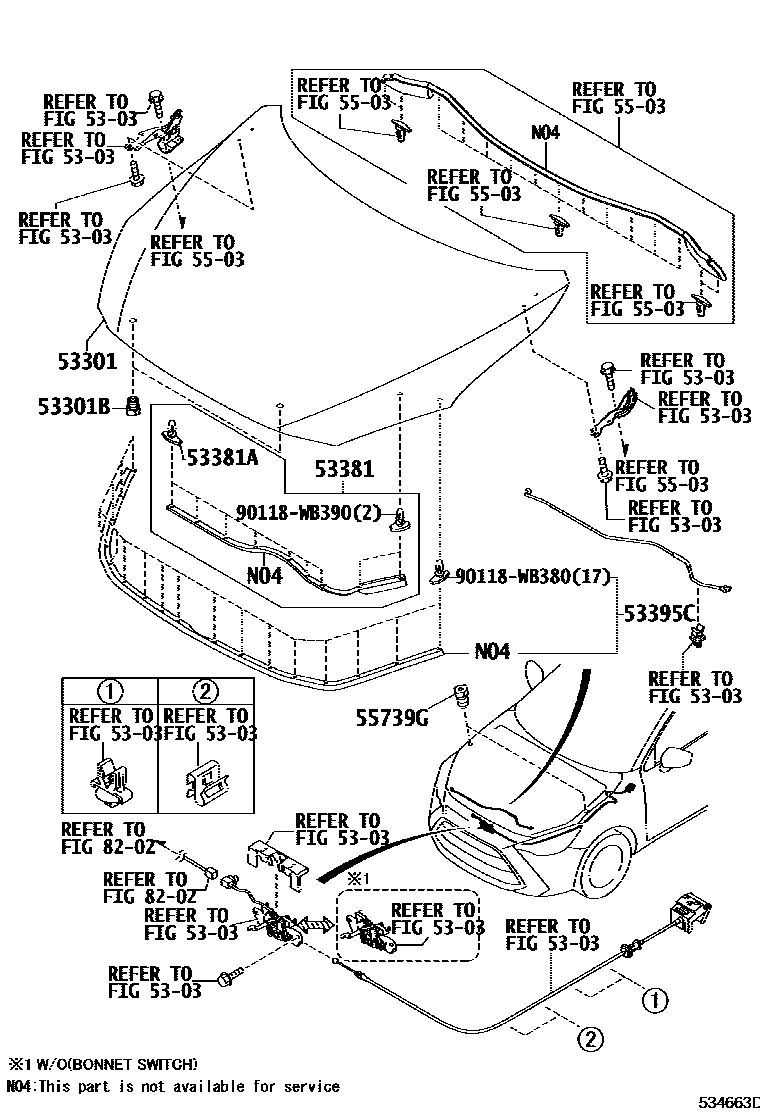

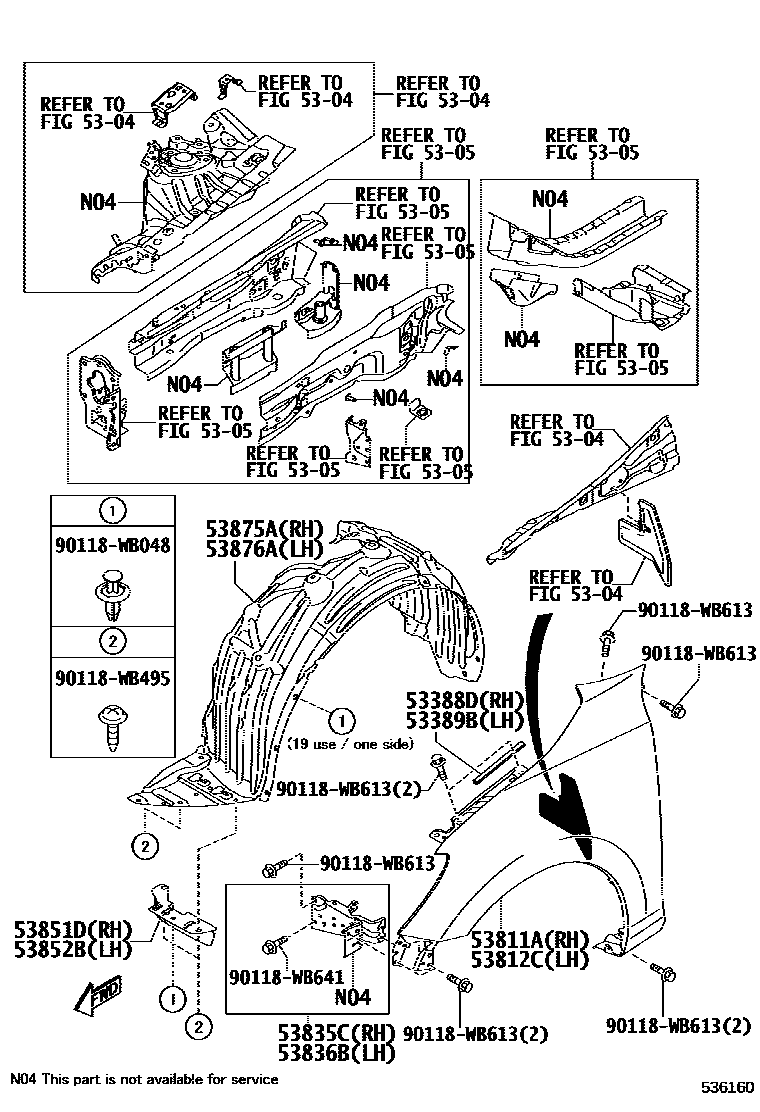

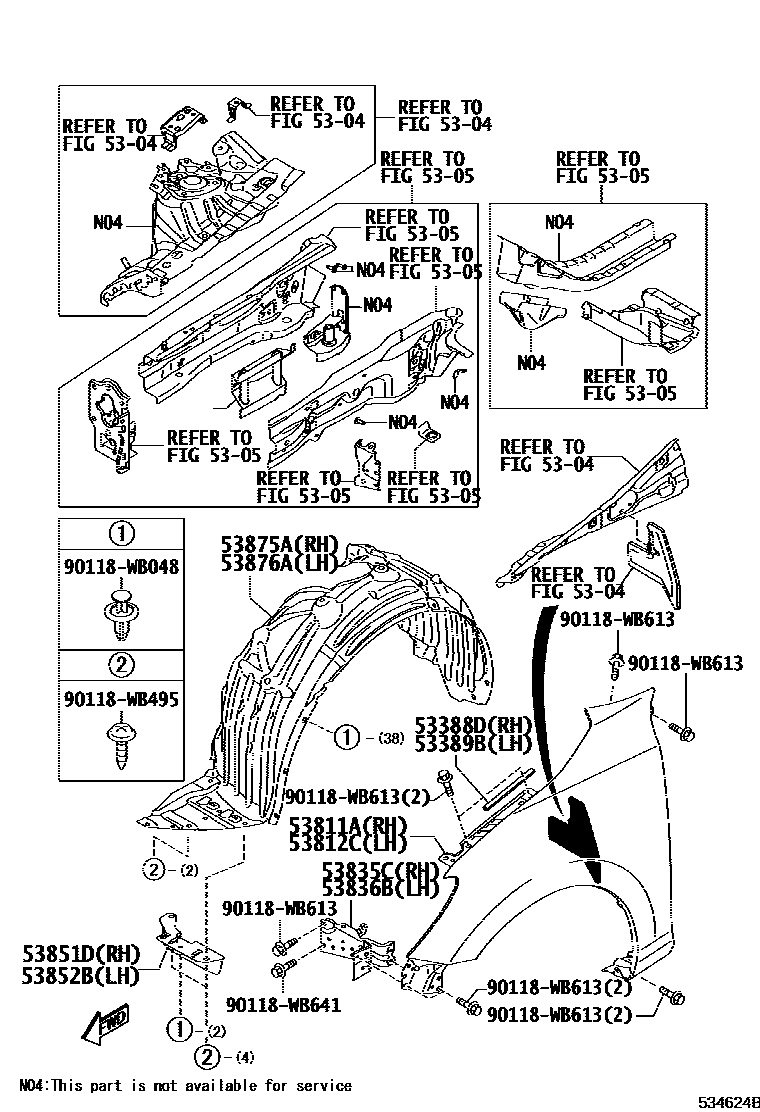

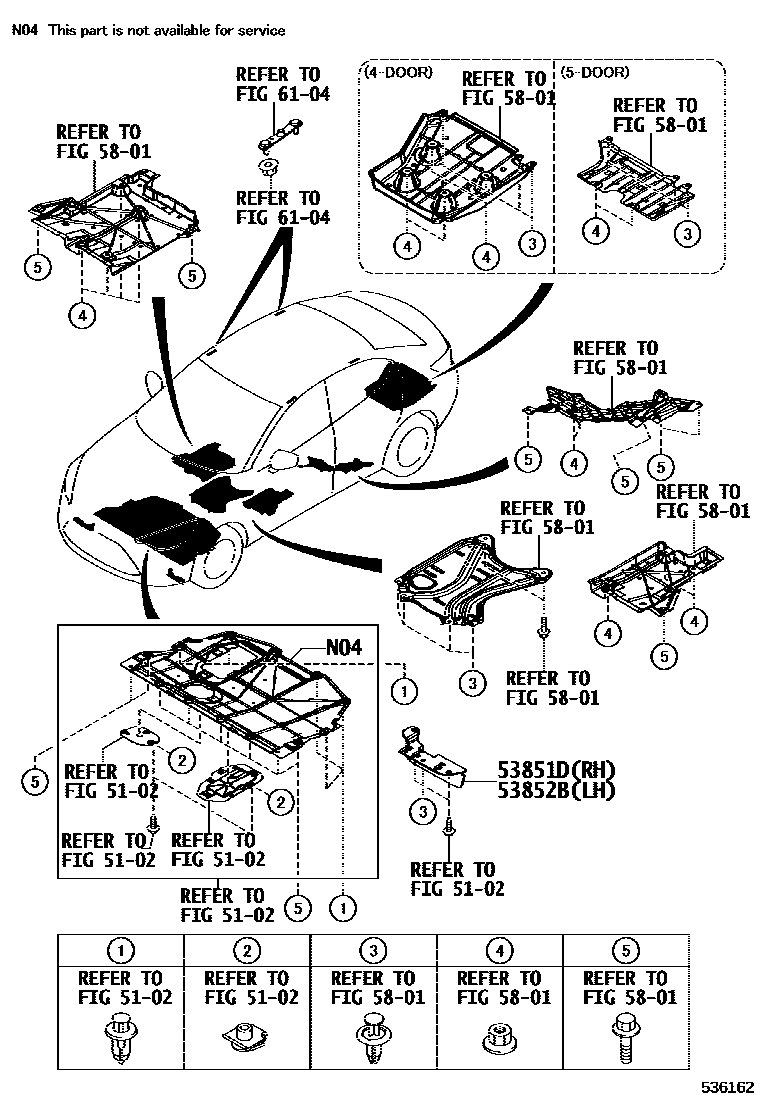

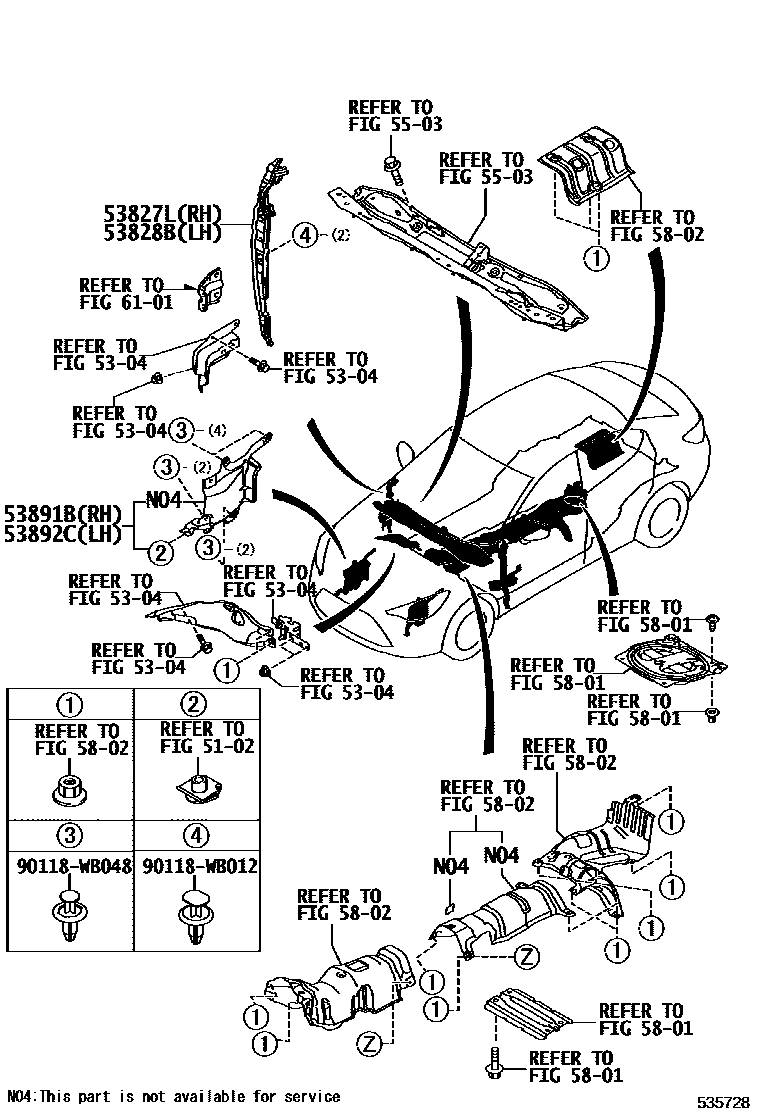

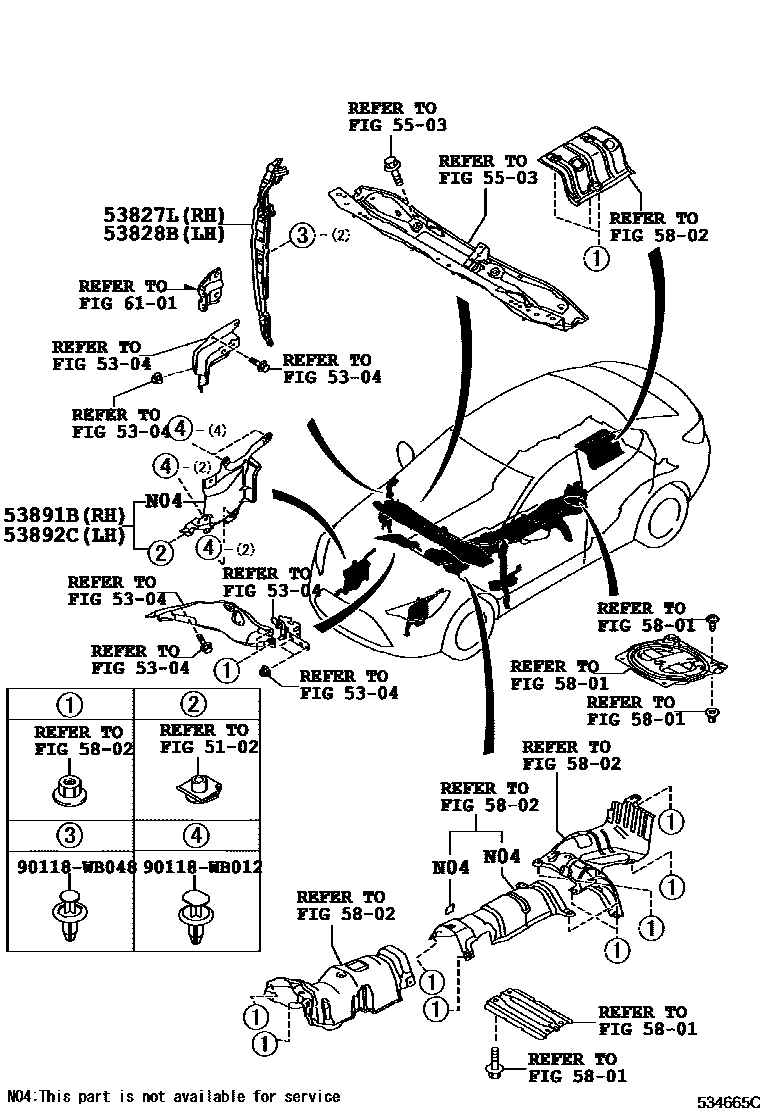

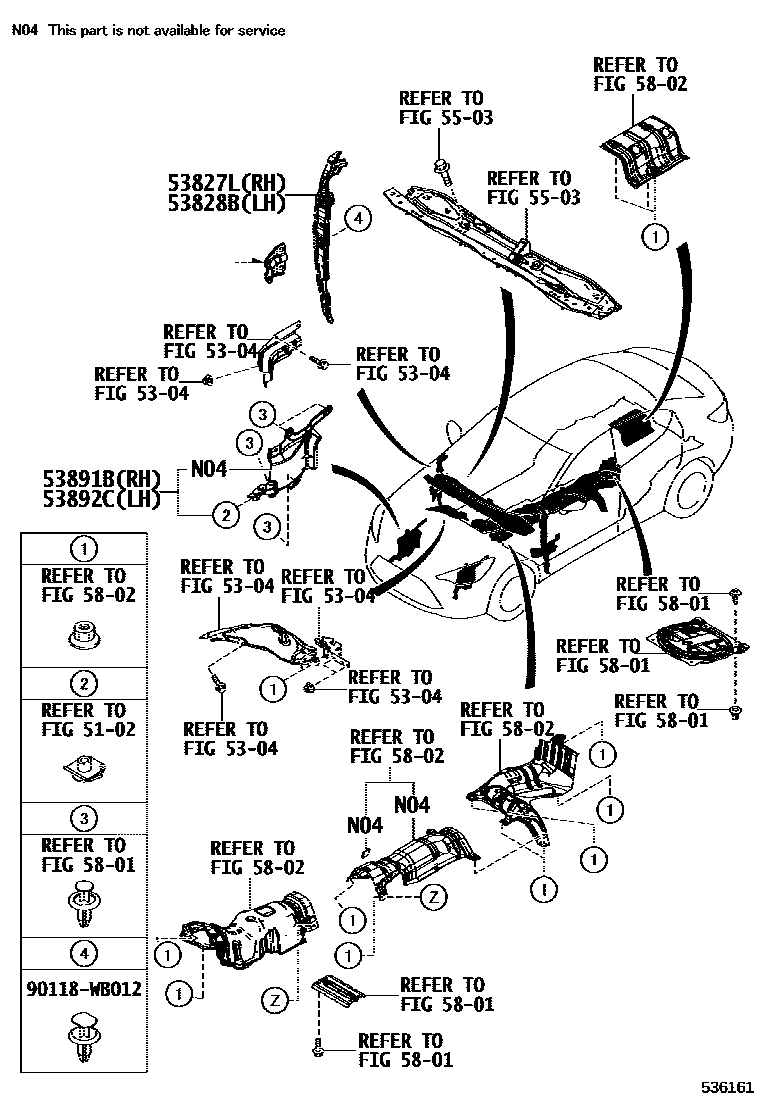

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 7 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-WB001 · 53301-WB002 |
| 53301B | engine cover cushion | 55738-WB001 |
| 53381 | Engine cover to radiator bracket seal | 53381-WB001 · 53381-WB002 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90118-WB008 |
| 53388D | Engine cover to right front fender seal | 53389-WB001 |
| 53389B | Engine cover to left front fender seal | 53389-WB001 |
| 53395C | Engine cover to radiator grille seal | 53395-WB001 · 53395-WB002 |
| 53811A | right front fender | 53811-WB001 · 53811-WB002 |
| 53812C | left front fender | 53812-WB001 · 53812-WB002 |
| 53827L | Right front fender side panel protector | 53827-WB001 |
| 53828B | Left front fender side panel protector | 53828-WB001 |
| 53835C | Right front side panel bracket | 53813-WB001 · 53813-WB002 |
| 53836B | Left front side panel bracket | 53814-WB001 · 53814-WB002 |
| 53851D | Right front fender outer panel pad | 53851-WB001 |
| 53852B | Left front fender exterior panel pad | 53852-WB001 |
| 53875A | Right front fender lining | 53875-WB001 |
| 53876A | Left front fender lining | 53876-WB001 |
| 53891B | JOINT D'ETANCHEITE AVANT DROIT GARDE-BOUE AILE AVANT | 53891-WB001 |
| 53892C | Left front fender splash guard front seal | 53892-WB001 |
| 55739G | Engine cover stop | 55738-WB002 |
