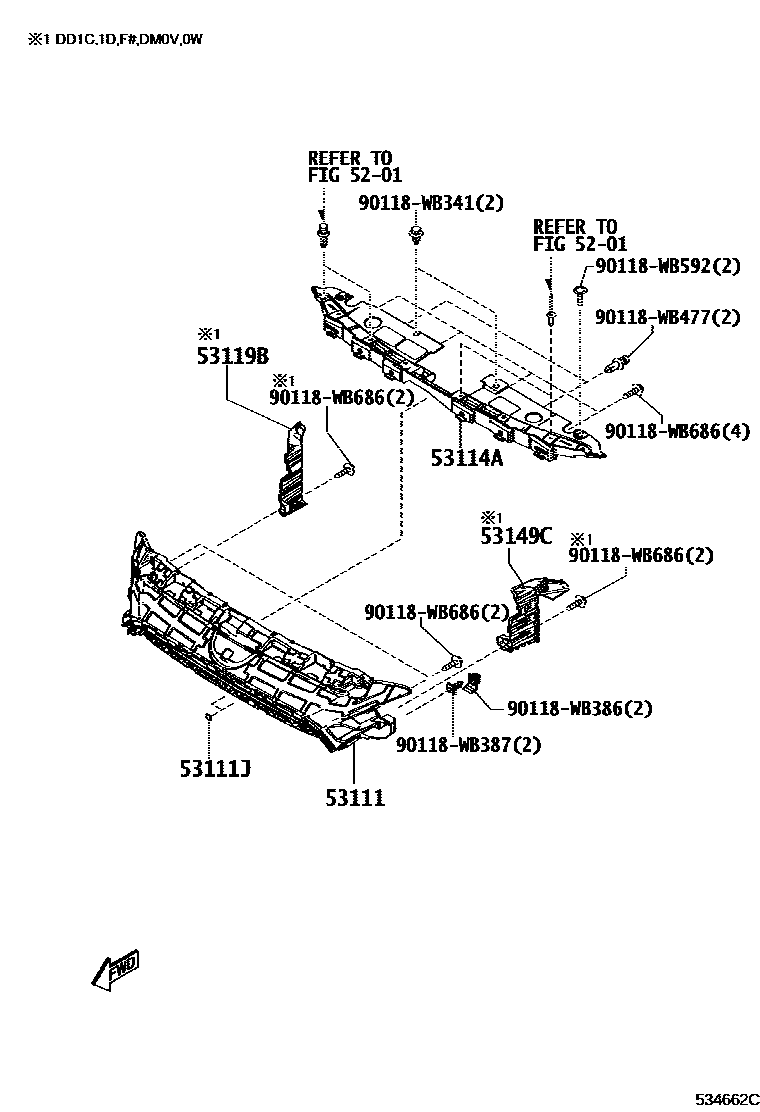

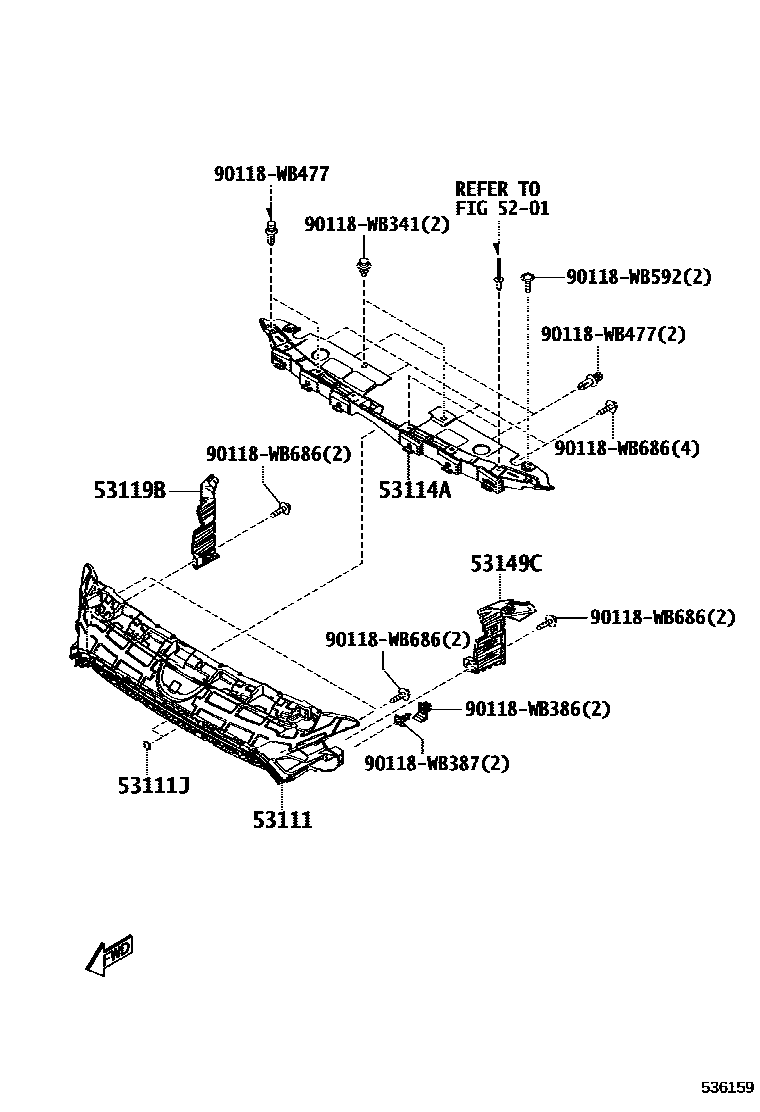

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53111-WB002 |
| 53111J | Radiator grille protector | 90118-WB890 |
| 53114A | inner radiator grille | 53114-WB001 |
| 53119B | Radiator grille protector | 53119-WB002 |
| 53149C | Radiator grille No. 2 protective cover | 53149-WB002 · 53149-WB003 |
