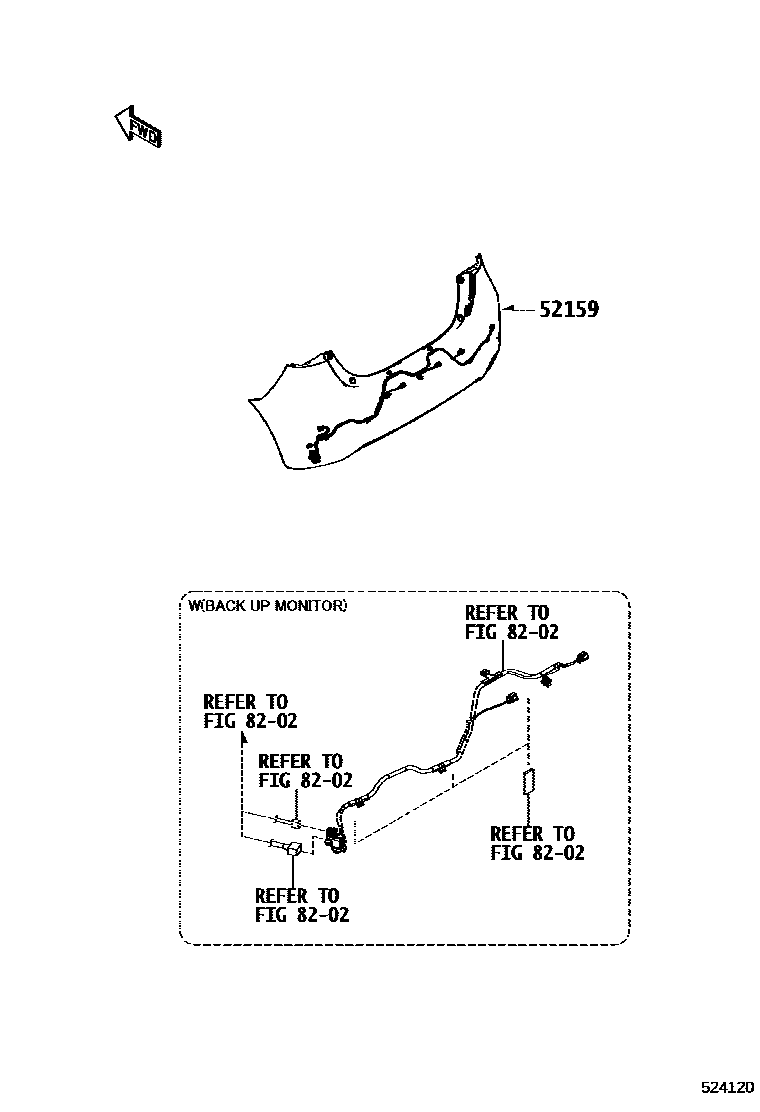

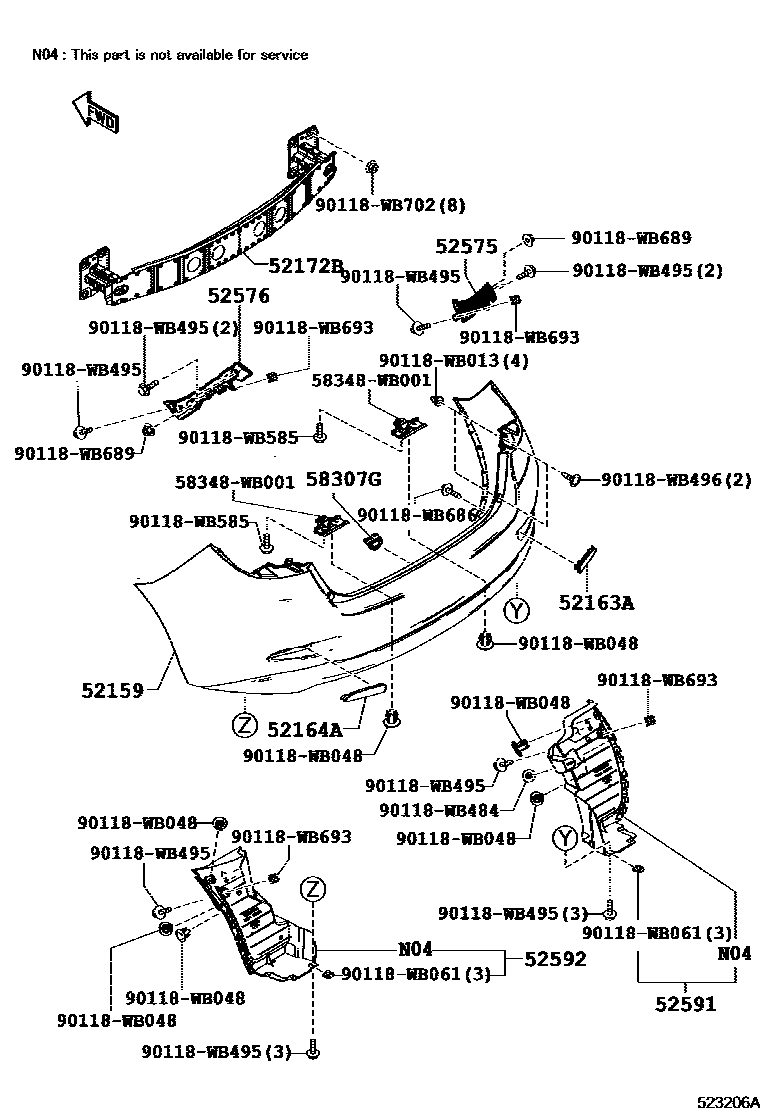

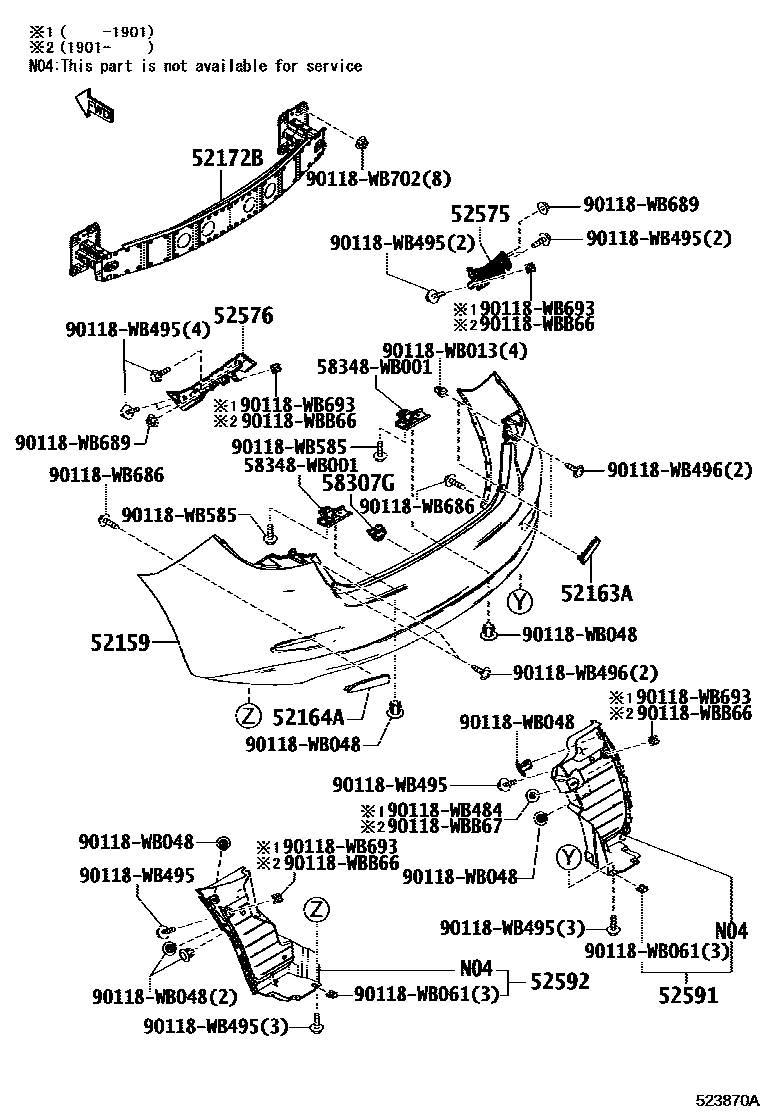

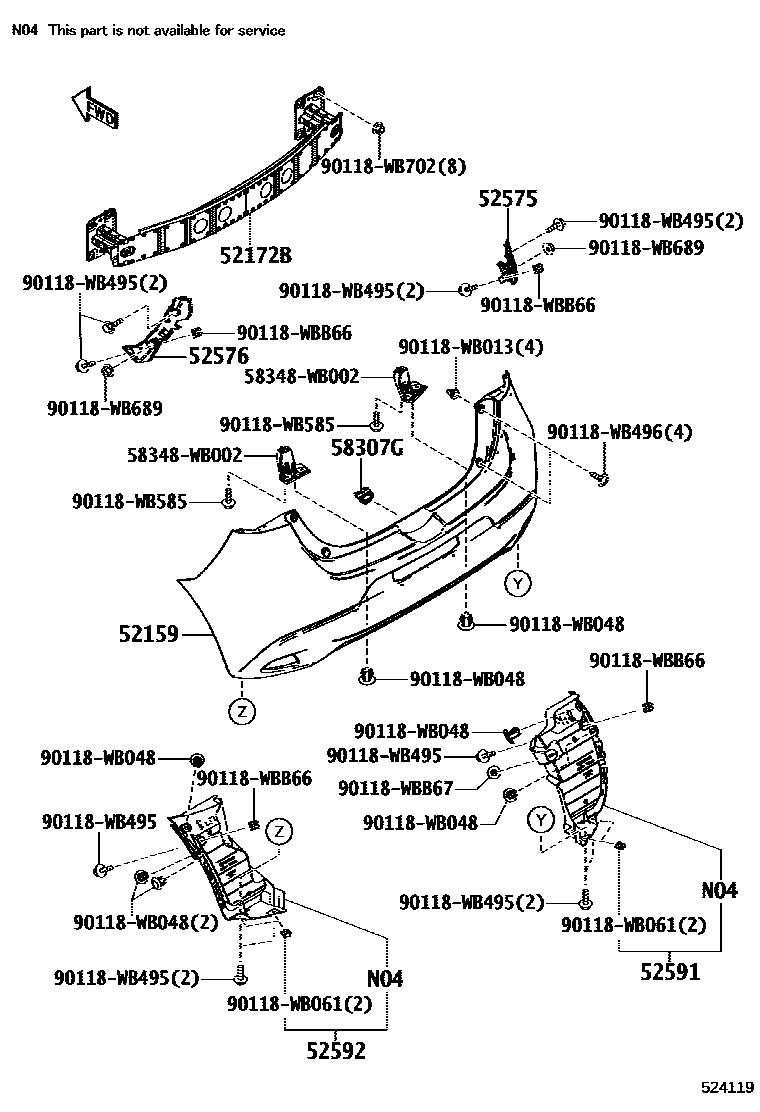

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-WB001 · 52159-WB003 · 52159-WB004 · 52159-WB005 |
| 52163A | Rear bumper right side fender | 52163-WB002 |
| 52164A | Rear bumper left fender | 52164-WB002 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-WB001 · 52172-WB002 |
| 52575 | Rear bumper right side fixing bracket | 52575-WB001 · 52575-WB002 |
| 52576 | Rear bumper left side fixing bracket | 52576-WB001 · 52576-WB002 |
| 52591 | Rear bumper right seal | 52591-WB001 · 52591-WB002 |
| 52592 | Rear bumper left seal | 52592-WB001 · 52592-WB002 |
| 58307G | Rear floor step sub-assembly | 58309-WB001 |
